HYUNDAI NEXO 2020 Owners Manual
Manufacturer: HYUNDAI, Model Year: 2020, Model line: NEXO, Model: HYUNDAI NEXO 2020Pages: 561, PDF Size: 48.42 MB
Page 521 of 561

H16
F FE
EA
AT
TU
UR
RE
ES
S
O
OF
F
F
FC
CE
EV
V
(
(C
CO
ON
NT
T.
.)
)

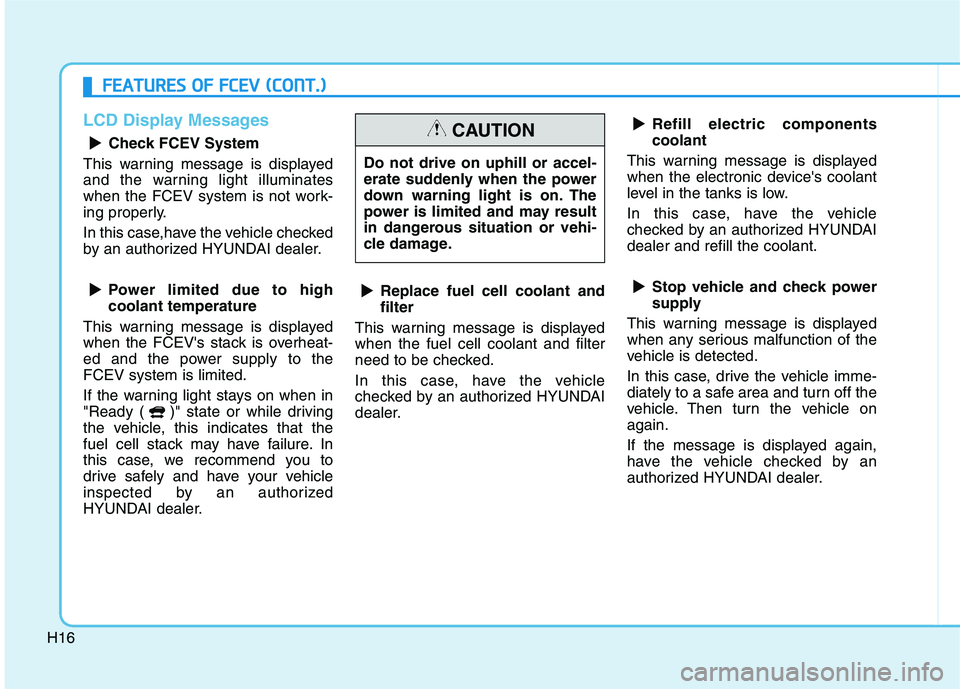

LCD Display Messages
Check FCEV System
This warning message is displayed
and the warning light illuminates
when the FCEV system is not work-
ing properly.
In this case,have the vehicle checked
by an authorized HYUNDAI dealer.
Power limited due to high
coolant temperature
This warning message is displayed
when the FCEV's stack is overheat-
ed and the power supply to the
FCEV system is limited.
If the warning light stays on when in
"Ready ( )" state or while driving
the vehicle, this indicates that the
fuel cell stack may have failure. In
this case, we recommend you to
drive safely and have your vehicle
inspected by an authorized
HYUNDAI dealer.Replace fuel cell coolant and
filter
This warning message is displayed
when the fuel cell coolant and filter
need to be checked.
In this case, have the vehicle
checked by an authorized HYUNDAI
dealer.Refill electric components
coolant
This warning message is displayed
when the electronic device's coolant
level in the tanks is low.
In this case, have the vehicle
checked by an authorized HYUNDAI
dealer and refill the coolant.
Stop vehicle and check power
supply
This warning message is displayed
when any serious malfunction of the
vehicle is detected.
In this case, drive the vehicle imme-
diately to a safe area and turn off the
vehicle. Then turn the vehicle on
again.
If the message is displayed again,
have the vehicle checked by an
authorized HYUNDAI dealer.
▲ ▲ ▲
▲
▲ ▲▲ ▲ ▲
▲
Do not drive on uphill or accel-
erate suddenly when the power
down warning light is on. The
power is limited and may result
in dangerous situation or vehi-
cle damage.
CAUTION
Page 522 of 561

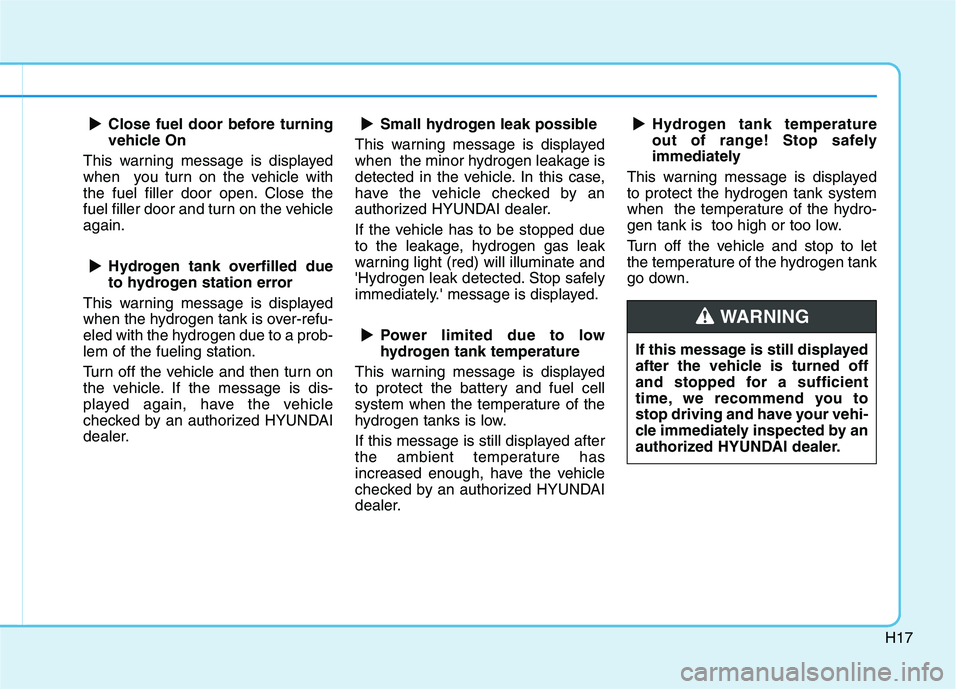

H17
Close fuel door before turning
vehicle On
This warning message is displayed
when you turn on the vehicle with
the fuel filler door open. Close the
fuel filler door and turn on the vehicle
again.
Hydrogen tank overfilled due
to hydrogen station error
This warning message is displayed
when the hydrogen tank is over-refu-
eled with the hydrogen due to a prob-
lem of the fueling station.
Turn off the vehicle and then turn on
the vehicle. If the message is dis-
played again, have the vehicle
checked by an authorized HYUNDAI
dealer.Small hydrogen leak possible
This warning message is displayed
when the minor hydrogen leakage is
detected in the vehicle. In this case,
have the vehicle checked by an
authorized HYUNDAI dealer.
If the vehicle has to be stopped due
to the leakage, hydrogen gas leak
warning light (red) will illuminate and
'Hydrogen leak detected. Stop safely
immediately.' message is displayed.
Power limited due to low
hydrogen tank temperature
This warning message is displayed
to protect the battery and fuel cell
system when the temperature of the
hydrogen tanks is low.
If this message is still displayed after
the ambient temperature has
increased enough, have the vehicle
checked by an authorized HYUNDAI
dealer.Hydrogen tank temperature
out of range! Stop safely
immediately
This warning message is displayed
to protect the hydrogen tank system
when the temperature of the hydro-
gen tank is too high or too low.
Turn off the vehicle and stop to let
the temperature of the hydrogen tank
go down.▲ ▲
▲ ▲ ▲
▲
▲ ▲ ▲
▲
If this message is still displayed
after the vehicle is turned off
and stopped for a sufficient
time, we recommend you to
stop driving and have your vehi-
cle immediately inspected by an
authorized HYUNDAI dealer.
WARNING
Page 523 of 561

H18
F FE
EA
AT
TU
UR
RE
ES
S
O
OF
F
F
FC
CE
EV
V
(
(C
CO
ON
NT
T.
.)
)

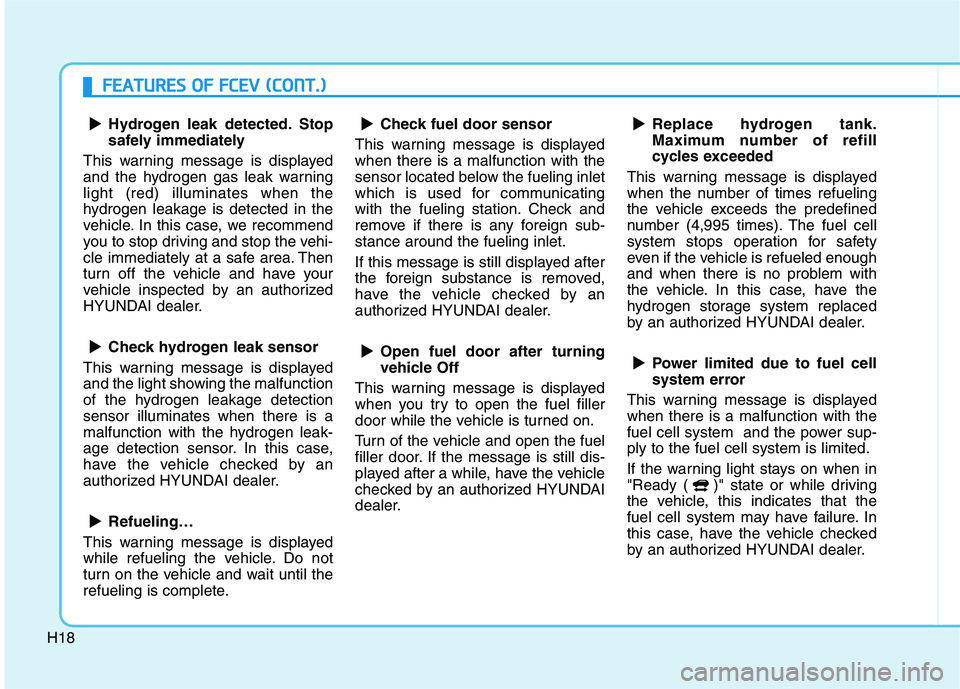

Hydrogen leak detected. Stop
safely immediately
This warning message is displayed
and the hydrogen gas leak warning
light (red) illuminates when the
hydrogen leakage is detected in the
vehicle. In this case, we recommend
you to stop driving and stop the vehi-
cle immediately at a safe area. Then
turn off the vehicle and have your
vehicle inspected by an authorized
HYUNDAI dealer.
Check hydrogen leak sensor
This warning message is displayed
and the light showing the malfunction
of the hydrogen leakage detection
sensor illuminates when there is a
malfunction with the hydrogen leak-
age detection sensor. In this case,
have the vehicle checked by an
authorized HYUNDAI dealer.
Refueling…
This warning message is displayed
while refueling the vehicle. Do not
turn on the vehicle and wait until the
refueling is complete.Check fuel door sensor
This warning message is displayed
when there is a malfunction with the
sensor located below the fueling inlet
which is used for communicating
with the fueling station. Check and
remove if there is any foreign sub-
stance around the fueling inlet.
If this message is still displayed after
the foreign substance is removed,
have the vehicle checked by an
authorized HYUNDAI dealer.
Open fuel door after turning
vehicle Off
This warning message is displayed
when you try to open the fuel filler
door while the vehicle is turned on.
Turn of the vehicle and open the fuel
filler door. If the message is still dis-
played after a while, have the vehicle
checked by an authorized HYUNDAI
dealer.Replace hydrogen tank.
Maximum number of refill
cycles exceeded
This warning message is displayed
when the number of times refueling
the vehicle exceeds the predefined
number (4,995 times). The fuel cell
system stops operation for safety
even if the vehicle is refueled enough
and when there is no problem with
the vehicle. In this case, have the
hydrogen storage system replaced
by an authorized HYUNDAI dealer.
Power limited due to fuel cell
system error
This warning message is displayed
when there is a malfunction with the
fuel cell system and the power sup-
ply to the fuel cell system is limited.
If the warning light stays on when in
"Ready ( )" state or while driving
the vehicle, this indicates that the
fuel cell system may have failure. In
this case, have the vehicle checked
by an authorized HYUNDAI dealer.
▲ ▲ ▲
▲
▲ ▲ ▲
▲
▲ ▲ ▲
▲ ▲
▲
Page 524 of 561

H19
Check fuel cell system! Stop
safely immediately
This warning message is displayed
when any serious malfunction of the
fuel cell system is detected.
In this case, immediately park the
vehicle at a safe area and turn off the
vehicle. Then turn the vehicle on
again.
If the message is displayed again,
have the vehicle checked by an
authorized HYUNDAI dealer.
Unable to start vehicle! Check
high voltage system
This warning message is displayed
when there is a malfunction with the
high voltage system.
If the vehicle will not turn on, have
the vehicle checked by an authorized
HYUNDAI dealer.Unable to start vehicle.
Hydrogen too low
This warning message is displayed
when the fuel is empty and the vehi-
cle is not turned on. The vehicle will
not turn on and we recommend that
you have your vehicle inspected by
an authorized HYUNDAI dealer.
Check FCEV System! Stop and
turn vehicle Off
This warning message is displayed
when there is a temporary malfunc-
tion with the FCEV system. Stop the
vehicle at a safe area and turn off the
vehicle. Then turn on the vehicle
after a while. If the message is dis-
played again, have the vehicle
checked by an authorized HYUNDAI
dealer.Check 12V battery. Stop safely
and engage parking brake
This warning message is displayed
when the voltage of the auxiliary bat-
tery is low. Stop the vehicle at a safe
area and turn off the vehicle. Then
turn on the vehicle after a while. If the
message is displayed again, have
the vehicle checked by an authorized
HYUNDAI dealer.
Low fuel
This warning message is displayed
when you need to refuel the vehicle.
Refuel the vehicle immediately at a
nearby fueling station.
▲ ▲ ▲
▲
▲ ▲ ▲
▲
▲ ▲ ▲
▲
Page 525 of 561

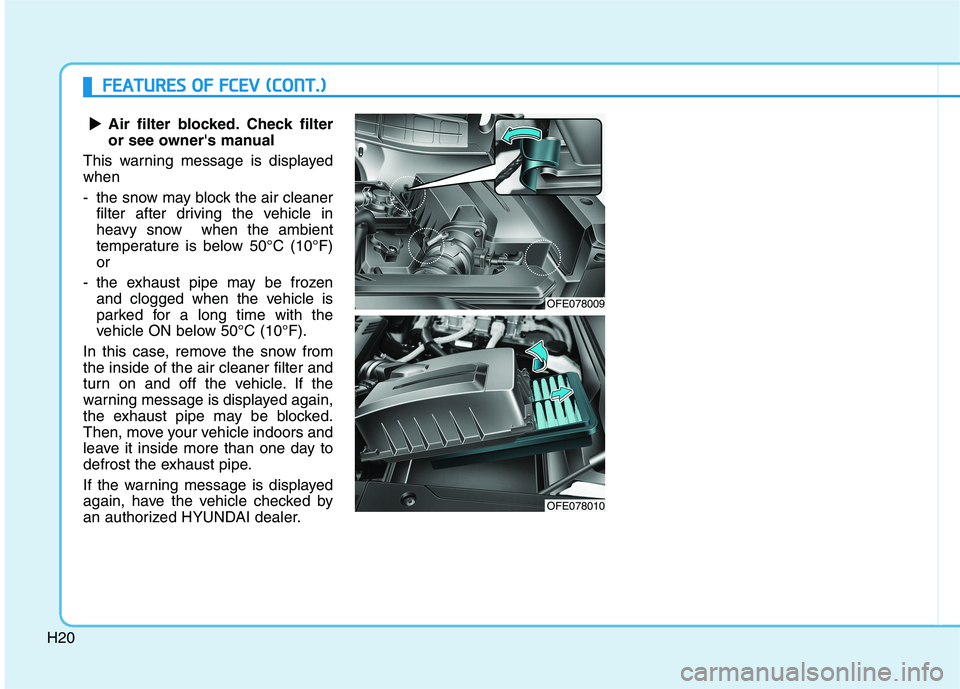

H20Air filter blocked. Check filter
or see owner's manual
This warning message is displayed
when
- the snow may block the air cleaner
filter after driving the vehicle in
heavy snow when the ambient
temperature is below 50°C (10°F)
or
- the exhaust pipe may be frozen
and clogged when the vehicle is
parked for a long time with the
vehicle ON below 50°C (10°F).
In this case, remove the snow from
the inside of the air cleaner filter and
turn on and off the vehicle. If the
warning message is displayed again,
the exhaust pipe may be blocked.
Then, move your vehicle indoors and
leave it inside more than one day to
defrost the exhaust pipe.
If the warning message is displayed
again, have the vehicle checked by
an authorized HYUNDAI dealer.
▲ ▲
OFE078009
OFE078010
F FE
EA
AT
TU
UR
RE
ES
S
O
OF
F
F
FC
CE
EV
V
(
(C
CO
ON
NT
T.
.)
)
Page 526 of 561

H21

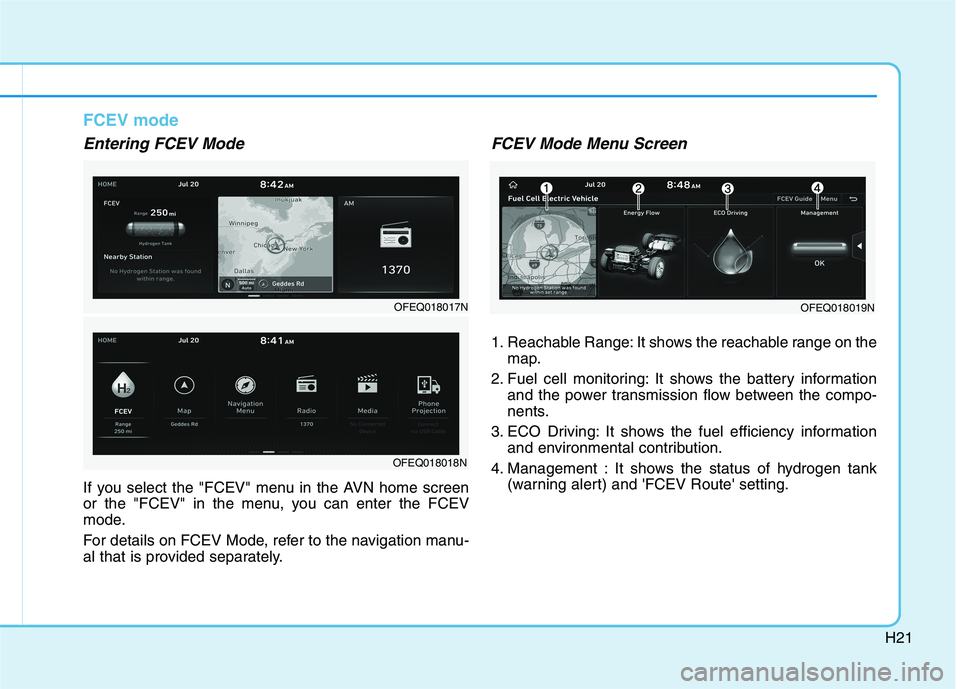

FCEV mode
Entering FCEV Mode
If you select the "FCEV" menu in the AVN home screen
or the "FCEV" in the menu, you can enter the FCEV
mode.
For details on FCEV Mode, refer to the navigation manu-
al that is provided separately.
FCEV Mode Menu Screen
1. Reachable Range: It shows the reachable range on the
map.
2. Fuel cell monitoring: It shows the battery information
and the power transmission flow between the compo-
nents.
3. ECO Driving: It shows the fuel efficiency information
and environmental contribution.
4. Management : It shows the status of hydrogen tank
(warning alert) and 'FCEV Route' setting.
OFEQ018017NOFEQ018019N
OFEQ018018N
Page 527 of 561

H22
F FE
EA
AT
TU
UR
RE
ES
S
O
OF
F
F
FC
CE
EV
V
(
(C
CO
ON
NT
T.
.)
)

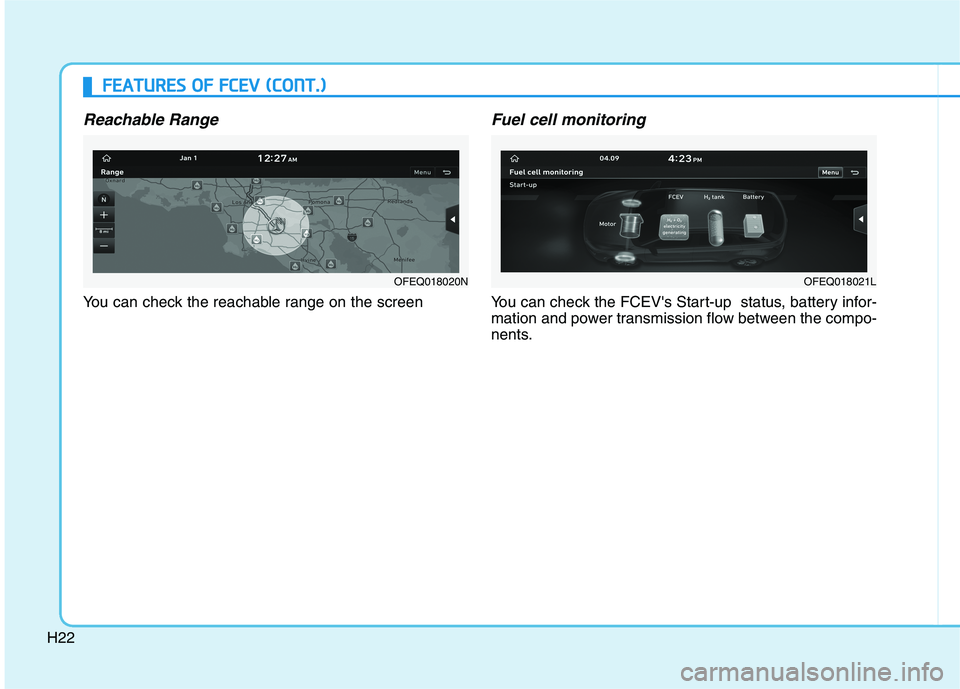

Reachable Range
You can check the reachable range on the screen
Fuel cell monitoring
You can check the FCEV's Start-up status, battery infor-
mation and power transmission flow between the compo-
nents.
OFEQ018020NOFEQ018021L
Page 528 of 561

H23

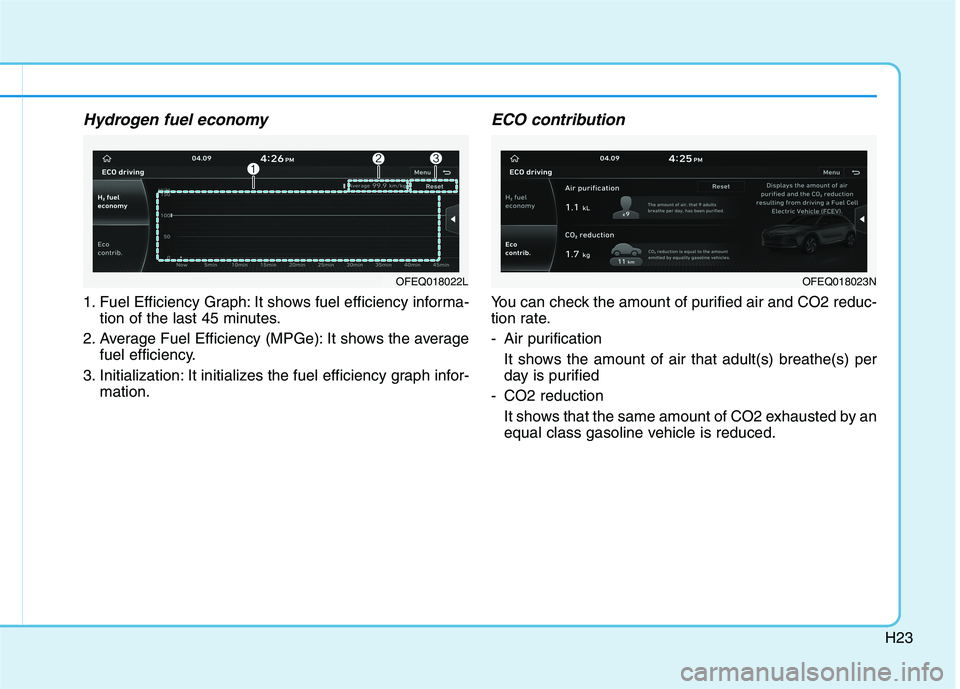

Hydrogen fuel economy
1. Fuel Efficiency Graph: It shows fuel efficiency informa-
tion of the last 45 minutes.
2. Average Fuel Efficiency (MPGe): It shows the average
fuel efficiency.
3. Initialization: It initializes the fuel efficiency graph infor-
mation.
ECO contribution
You can check the amount of purified air and CO2 reduc-
tion rate.
- Air purification
It shows the amount of air that adult(s) breathe(s) per
day is purified
- CO2 reduction
It shows that the same amount of CO2 exhausted by an
equal class gasoline vehicle is reduced.
OFEQ018022LOFEQ018023N
Page 529 of 561

H24
F FE
EA
AT
TU
UR
RE
ES
S
O
OF
F
F
FC
CE
EV
V
(
(C
CO
ON
NT
T.
.)
)

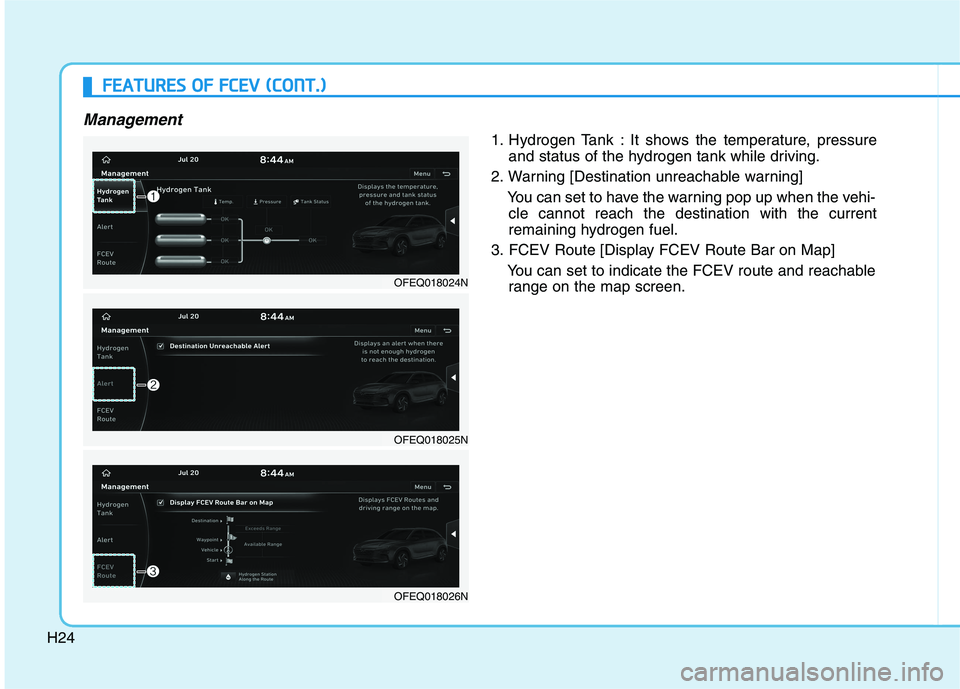

Management
1. Hydrogen Tank : It shows the temperature, pressure
and status of the hydrogen tank while driving.
2. Warning [Destination unreachable warning]
You can set to have the warning pop up when the vehi-
cle cannot reach the destination with the current
remaining hydrogen fuel.
3. FCEV Route [Display FCEV Route Bar on Map]
You can set to indicate the FCEV route and reachable
range on the map screen.
OFEQ018024N
OFEQ018025N
OFEQ018026N

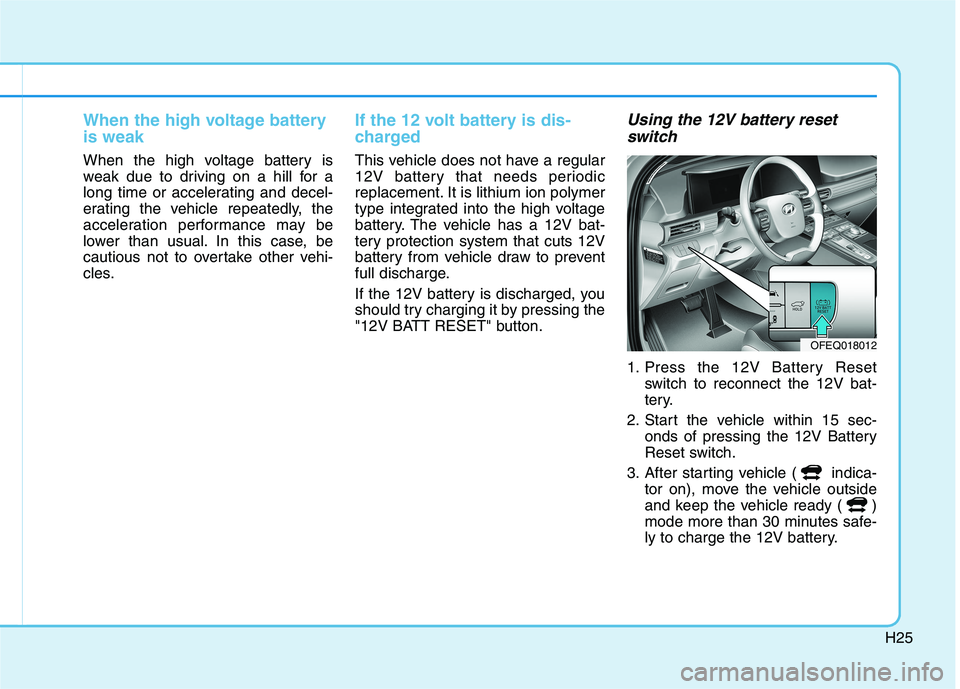

Page 530 of 561

H25
When the high voltage battery
is weak
When the high voltage battery is
weak due to driving on a hill for a
long time or accelerating and decel-
erating the vehicle repeatedly, the
acceleration performance may be
lower than usual. In this case, be
cautious not to overtake other vehi-
cles.
If the 12 volt battery is dis-
charged
This vehicle does not have a regular
12V battery that needs periodic
replacement. It is lithium ion polymer
type integrated into the high voltage
battery. The vehicle has a 12V bat-
tery protection system that cuts 12V
battery from vehicle draw to prevent
full discharge.
If the 12V battery is discharged, you
should try charging it by pressing the
"12V BATT RESET" button.
Using the 12V battery reset
switch
1. Press the 12V Battery Reset
switch to reconnect the 12V bat-
tery.
2. Start the vehicle within 15 sec-
onds of pressing the 12V Battery
Reset switch.
3. After starting vehicle ( indica-
tor on), move the vehicle outside
and keep the vehicle ready ( )
mode more than 30 minutes safe-
ly to charge the 12V battery.
OFEQ018012
