Page 581 of 661

HYUNDAI PALISADE 2023  Owners Manual 08
8-19

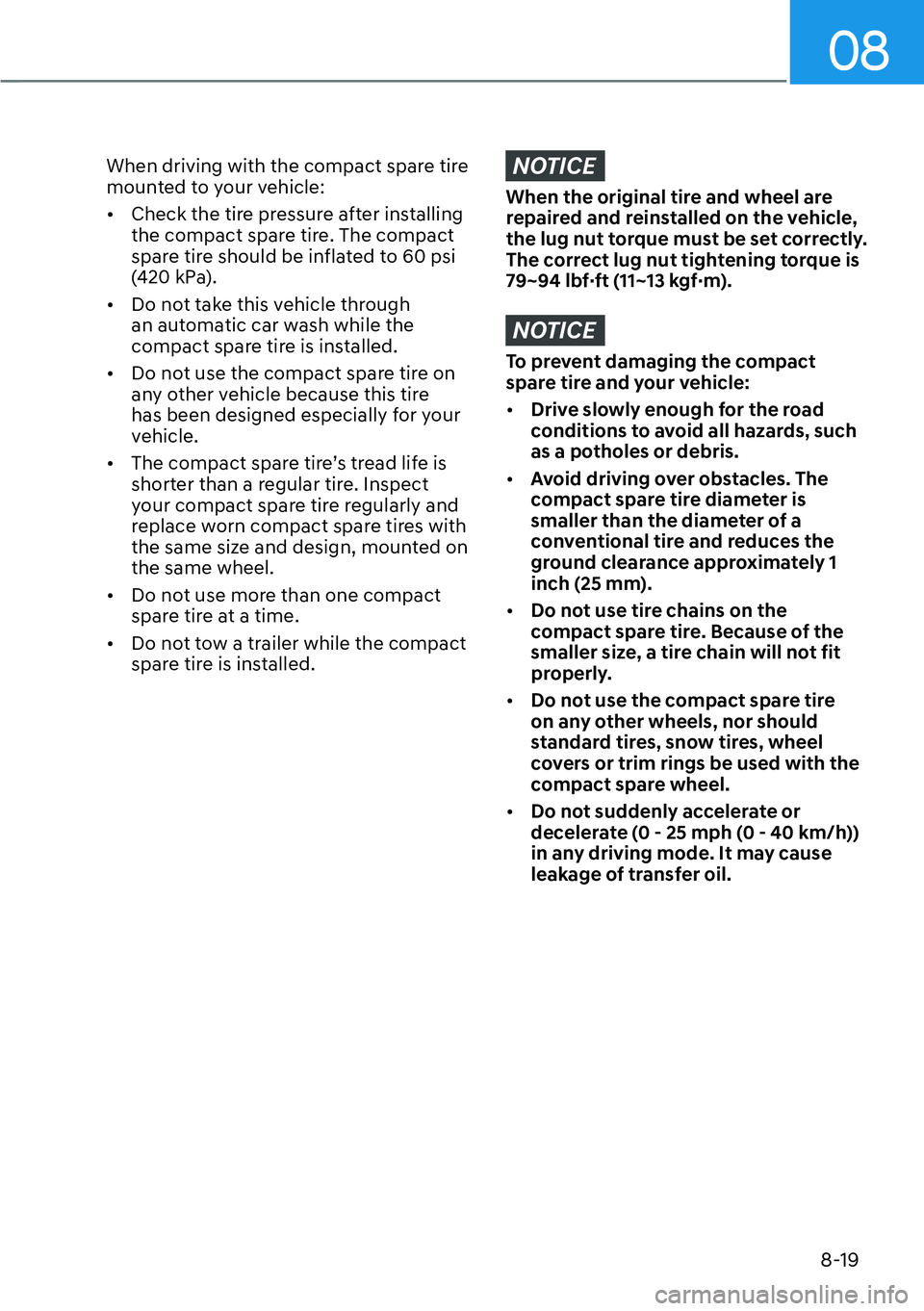

When driving with the compact spare tire
mounted to your vehicle:
[�Check the tire pressure after installing
the compact spare tire. The compact
spare tire should be inflated to 60 psi
(

Page 582 of 661

HYUNDAI PALISADE 2023  Owners Manual Emergency Situations8-20

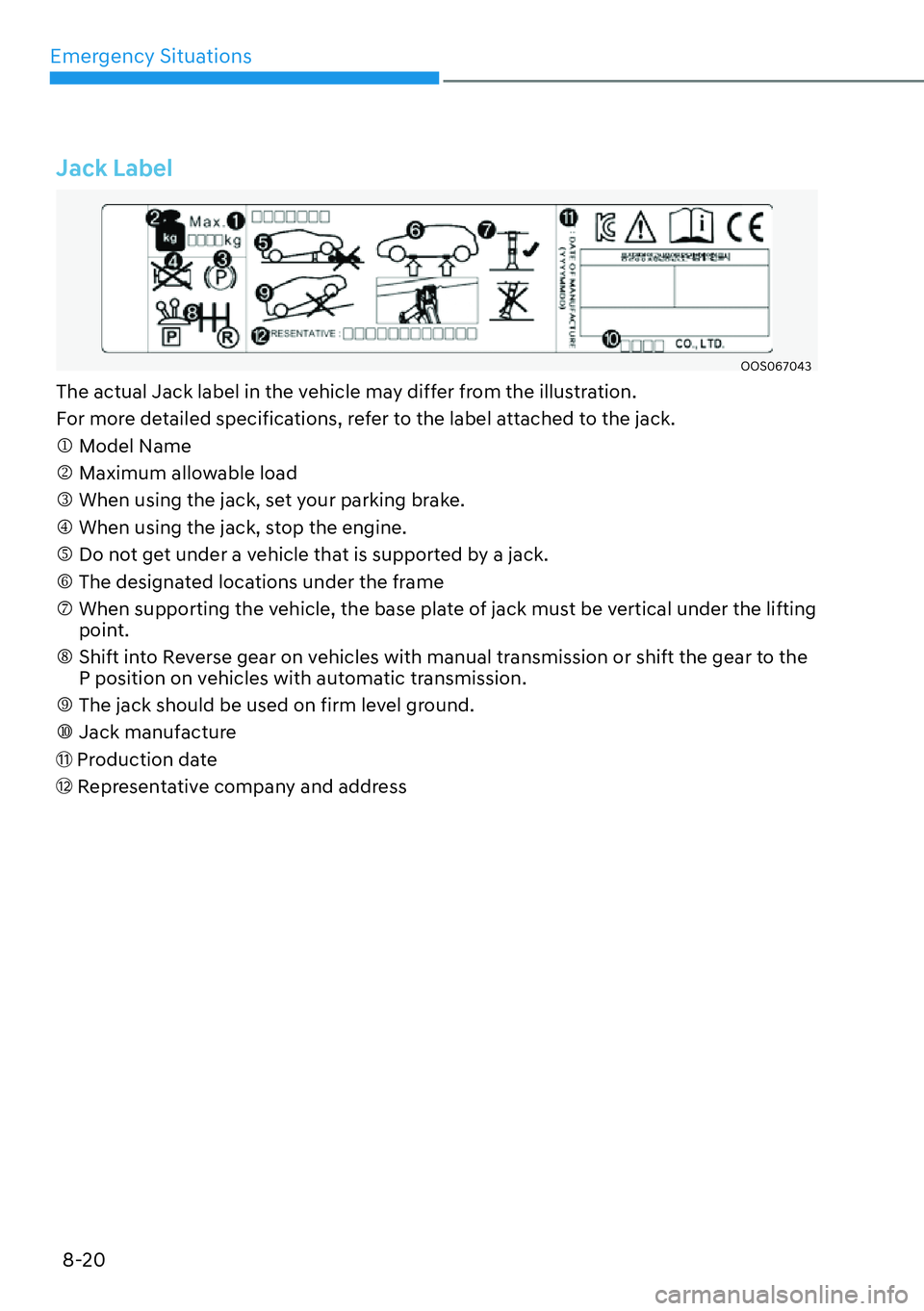

Jack Label
OOS067043
The actual Jack label in the vehicle may differ from the illustration.
For more detailed specifications, refer to the label attached to the jack.
�M Model

Page 583 of 661

HYUNDAI PALISADE 2023  Owners Manual 08
8-21

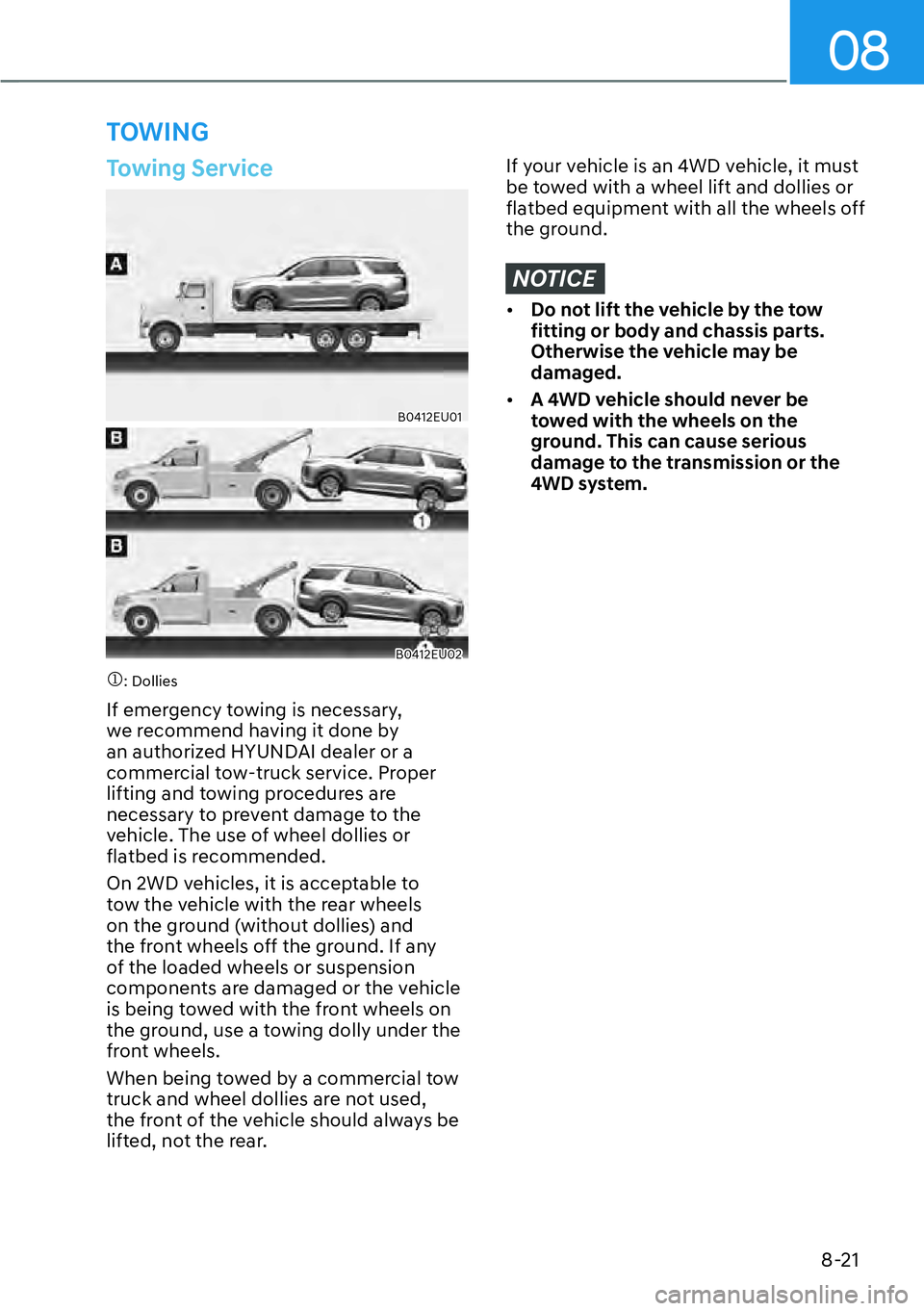

Towing Service
B0412EU01
B0412EU02
�M: Dollies
If emergency towing is necessary,
we recommend having it done by
an authorized HYUNDAI dealer or a
commercial tow-truck service. Proper
lifti

Page 584 of 661

HYUNDAI PALISADE 2023  Owners Manual Emergency Situations8-22
 CAUTION
[� Do not tow the vehicle with the front
wheels on the ground as this may
cause damage to the vehicle.
B0412EU03
[�Do not tow with sling-type
equipment. Use wh

Page 585 of 661

HYUNDAI PALISADE 2023  Owners Manual 08
8-23

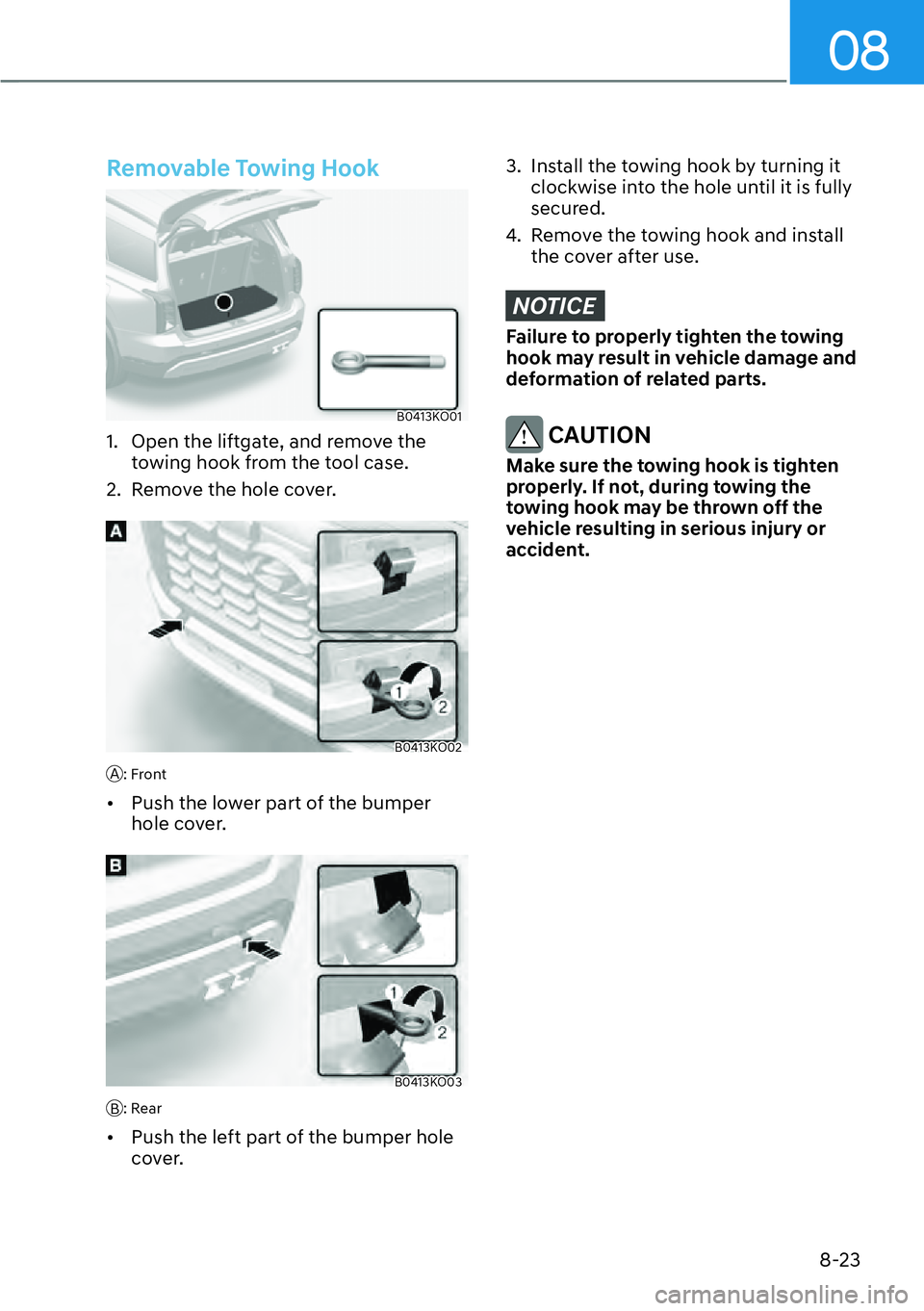

Removable Towing Hook
B0413KO01
1.  Open the liftgate, and remove the towing hook from the tool case.
2.  Remove the hole cover.
B0413KO02
A: Front
[� Push the lower part of the bumper
hol

Page 586 of 661

HYUNDAI PALISADE 2023  Owners Manual Emergency Situations8-24

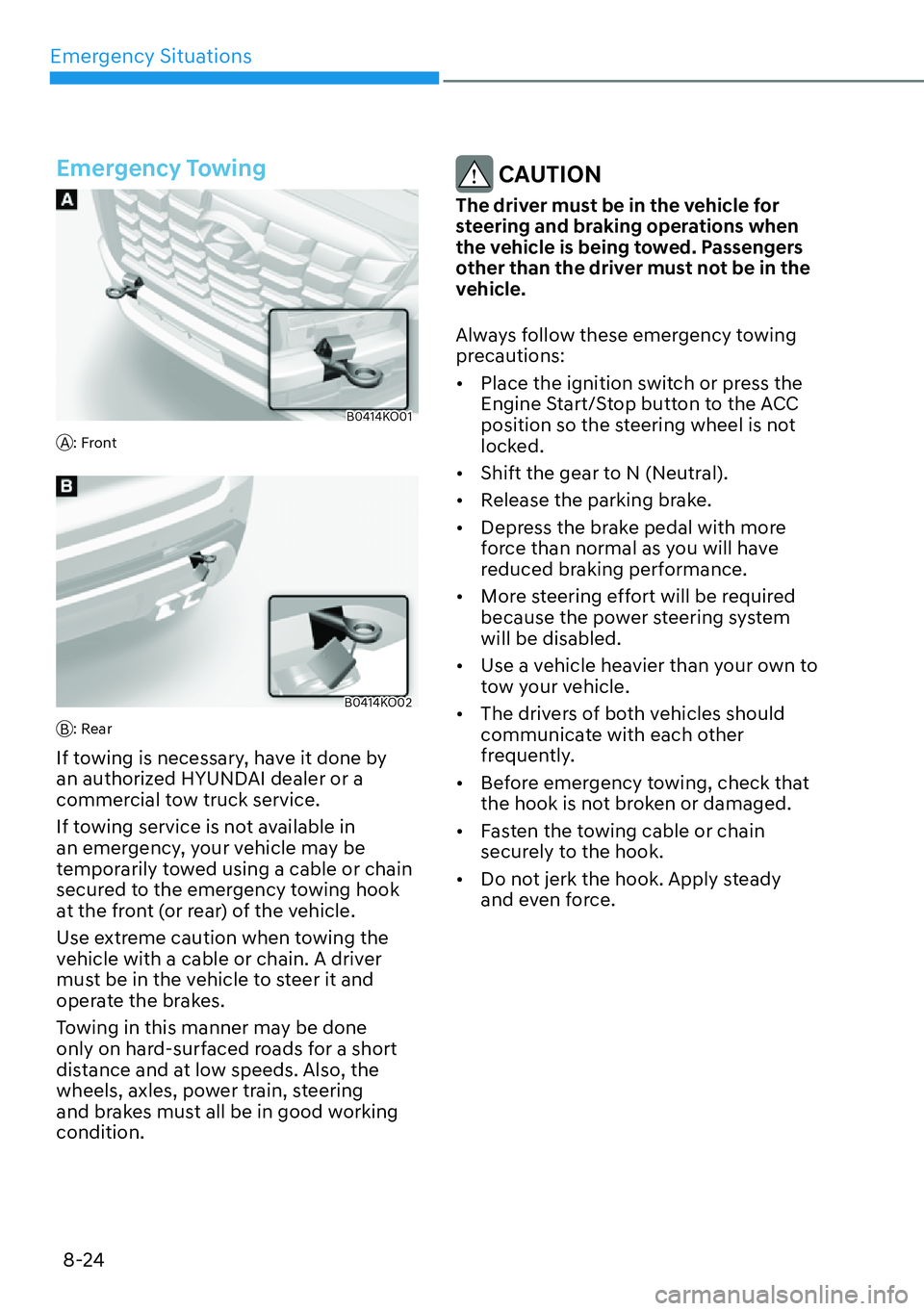

Emergency Towing
B0414KO01
A: Front
B0414KO02
B: Rear
If towing is necessary, have it done by
an authorized HYUNDAI dealer or a
commercial tow truck service.
If towing serv

Page 587 of 661

HYUNDAI PALISADE 2023  Owners Manual 08
8-25

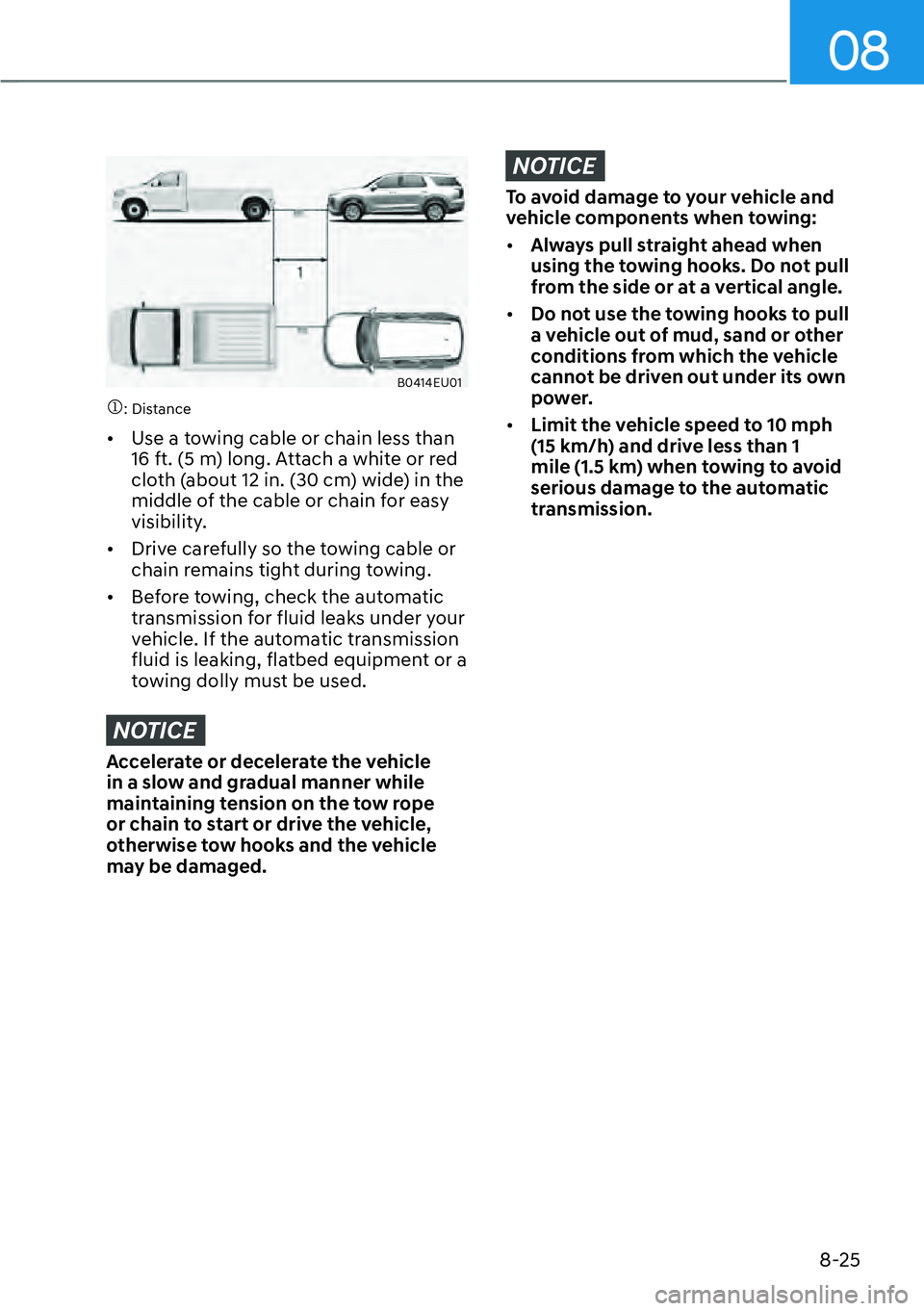

B0414EU01
�M: Distance
[�Use a towing cable or chain less than
16 ft. (5 m) long. Attach a white or red
cloth (about 12 in. (30 cm) wide) in the
middle of the cable or chain for easy
vis

Page 588 of 661

HYUNDAI PALISADE 2023  Owners Manual 9

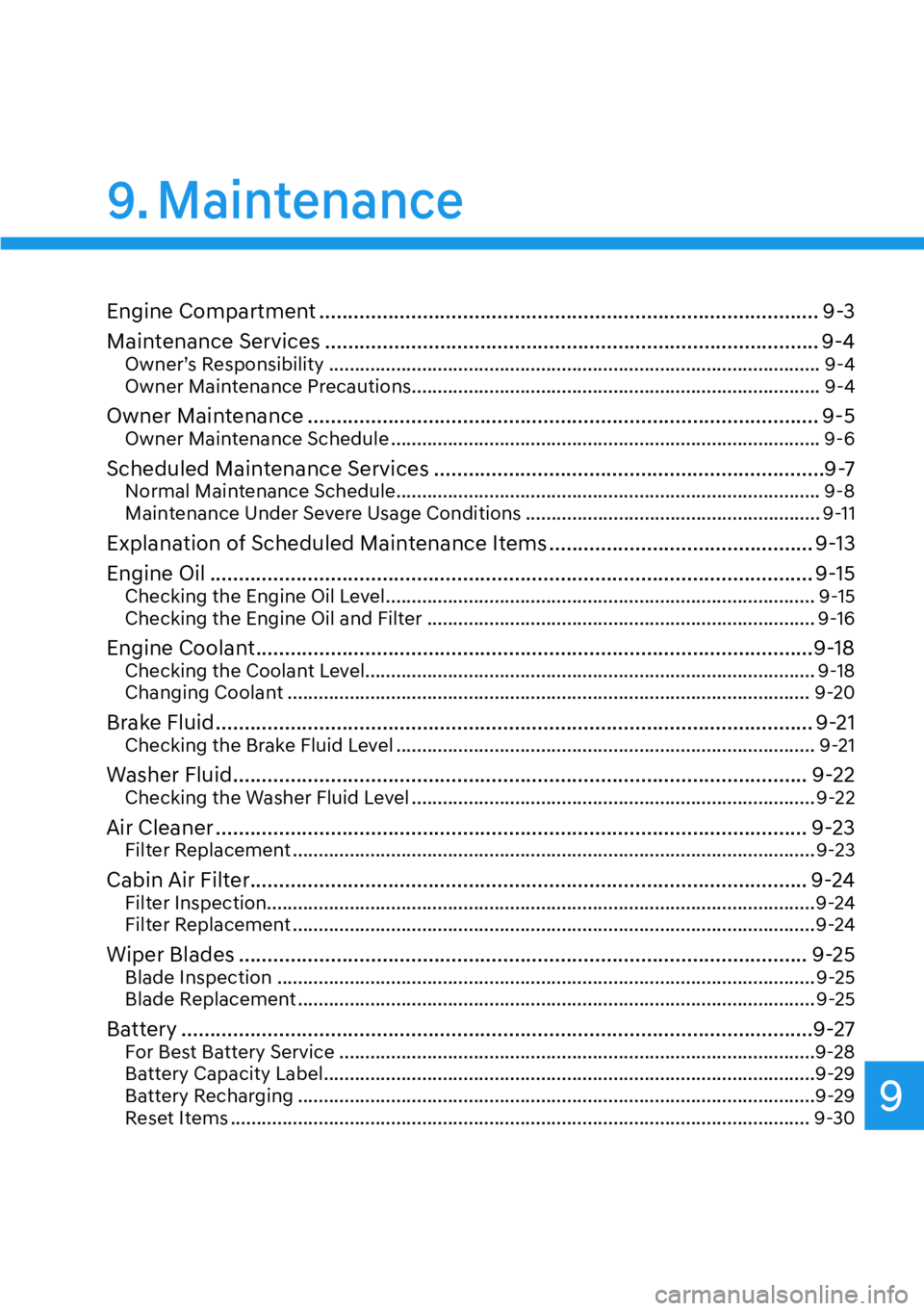

9. Maintenance
Engine Compartment ........................................................................\
............... 9-3
Maintenance Services .................................................

Page 589 of 661

HYUNDAI PALISADE 2023  Owners Manual 9
Tires and Wheels ........................................................................\
...................... 9-31Tire Care ......................................................................

Page 590 of 661

HYUNDAI PALISADE 2023  Owners Manual 9-3
09

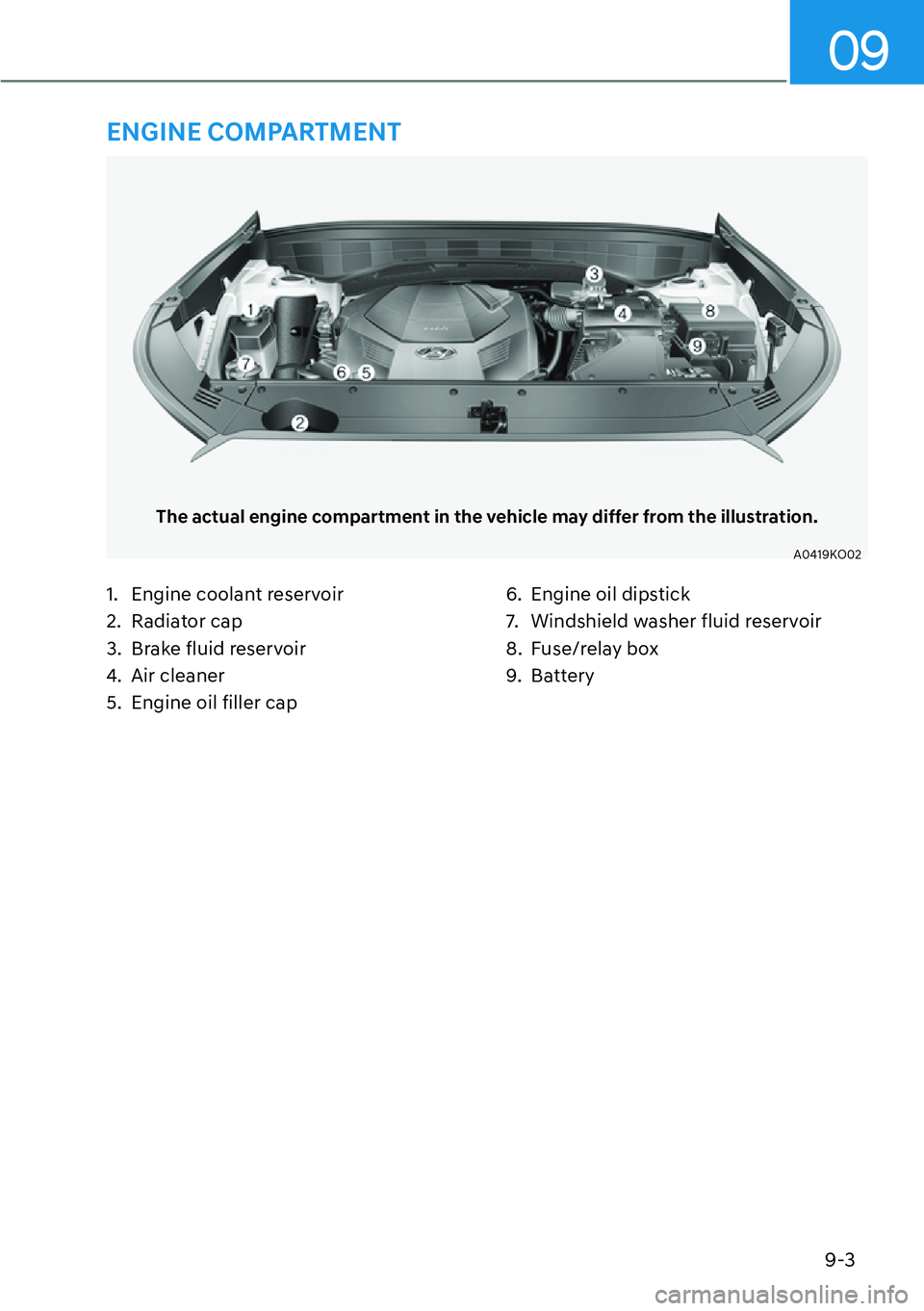

The actual engine compartment in the vehicle may differ from the illustration.
A0419KO02
1.  Engine coolant reservoir
2. Radiator cap
3.  Brake fluid reservoir
4. Air cleaner
5.  Engine oil fil
