headrest HYUNDAI PALISADE 2023 Owners Manual

3-4
Seats & Safety System
A0053EU01

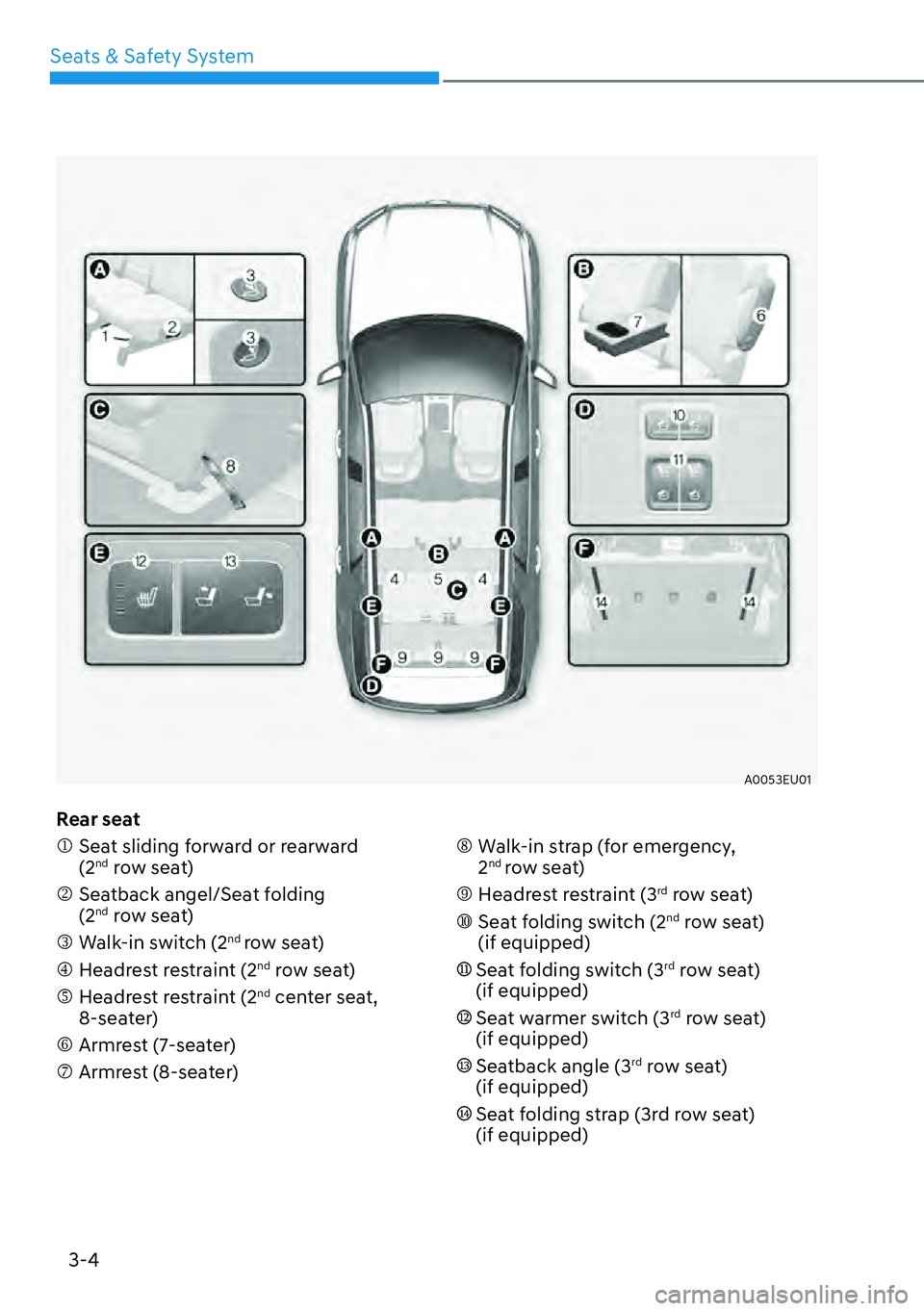

Rear seat
M Seat sliding forward or rearward
(2
nd row seat)
N Seatback angel/Seat folding (2
nd row seat)
O Walk-in switch (2nd row seat)
P Headrest restraint (2nd row seat)
Q Headrest restraint (2nd center seat,
8-seater)
R Armrest (7-seater)
S Armrest (8-seater) T Walk-in strap (for emergency,
2
nd row seat)
U Headrest restraint (3rd row seat)
V Seat folding switch (2nd row seat)
(if equipped)
Seat folding switch (3rd row seat)
(if equipped)
Seat warmer switch (3rd row seat)
(if equipped)
Seatback angle (3rd row seat)
(if equipped)
Seat folding strap (3rd row seat) (if equipped)

Seats & Safety System3-30
B0701EU05

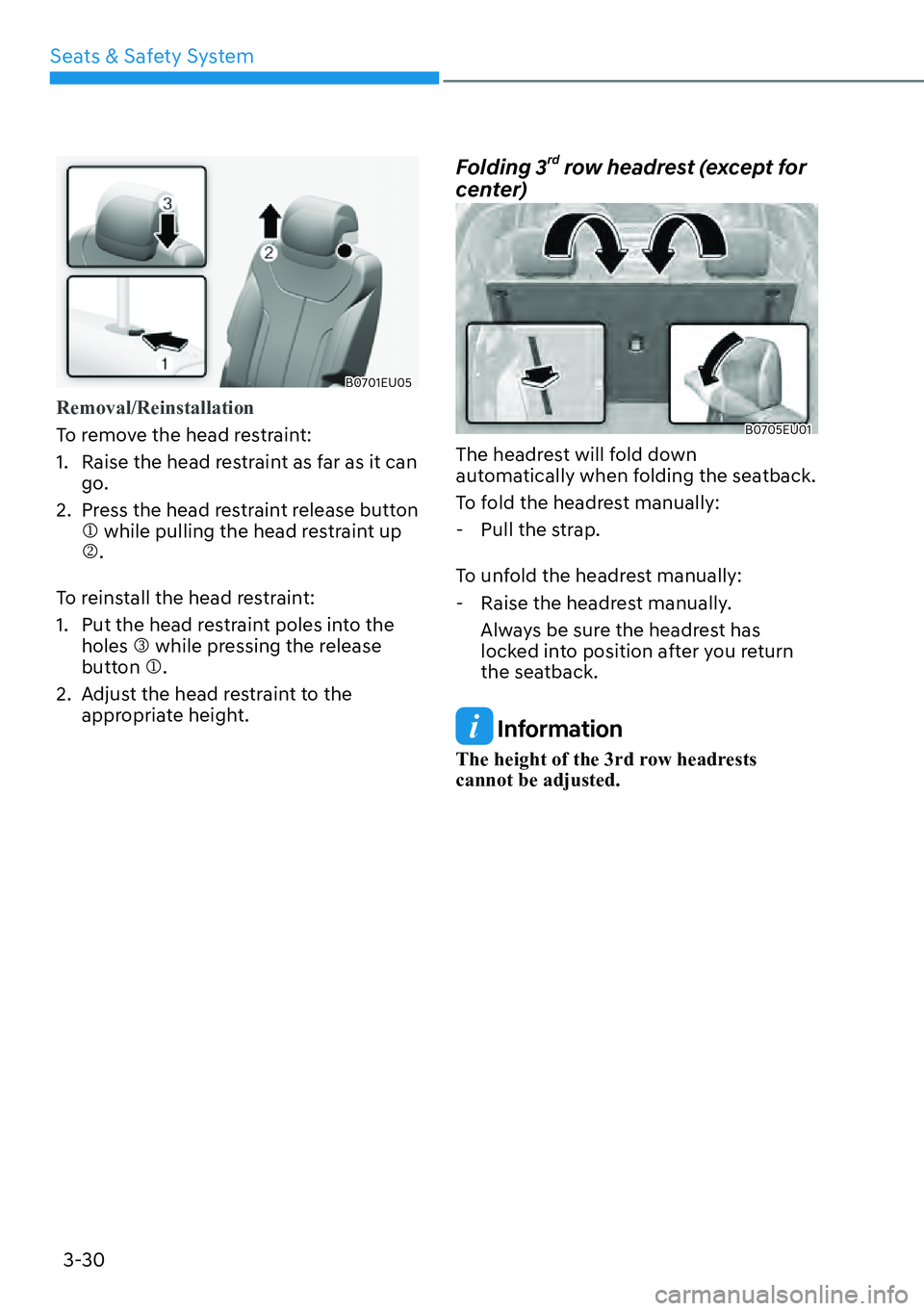

Removal/Reinstallation
To remove the head restraint:
1.
Raise the head restraint as far as it can
go.
2. Press the head restraint release button M while pulling the head restraint up
N.
To reinstall the head restraint:
1. Put the head restraint poles into the holes O while pressing the release
button M.
2. Adjust the head restraint to the appropriate height.
Folding 3rd row headrest (except for
center)
B0705EU01
The headrest will fold down
automatically when folding the seatback.
To fold the headrest manually:

- Pull the strap.
To unfold the headrest manually:
- Raise the headrest manually.
Always be sure the headrest has
locked into position after you return
the seatback.
Information
The height of the 3rd row headrests
cannot be adjusted.

03
3-31

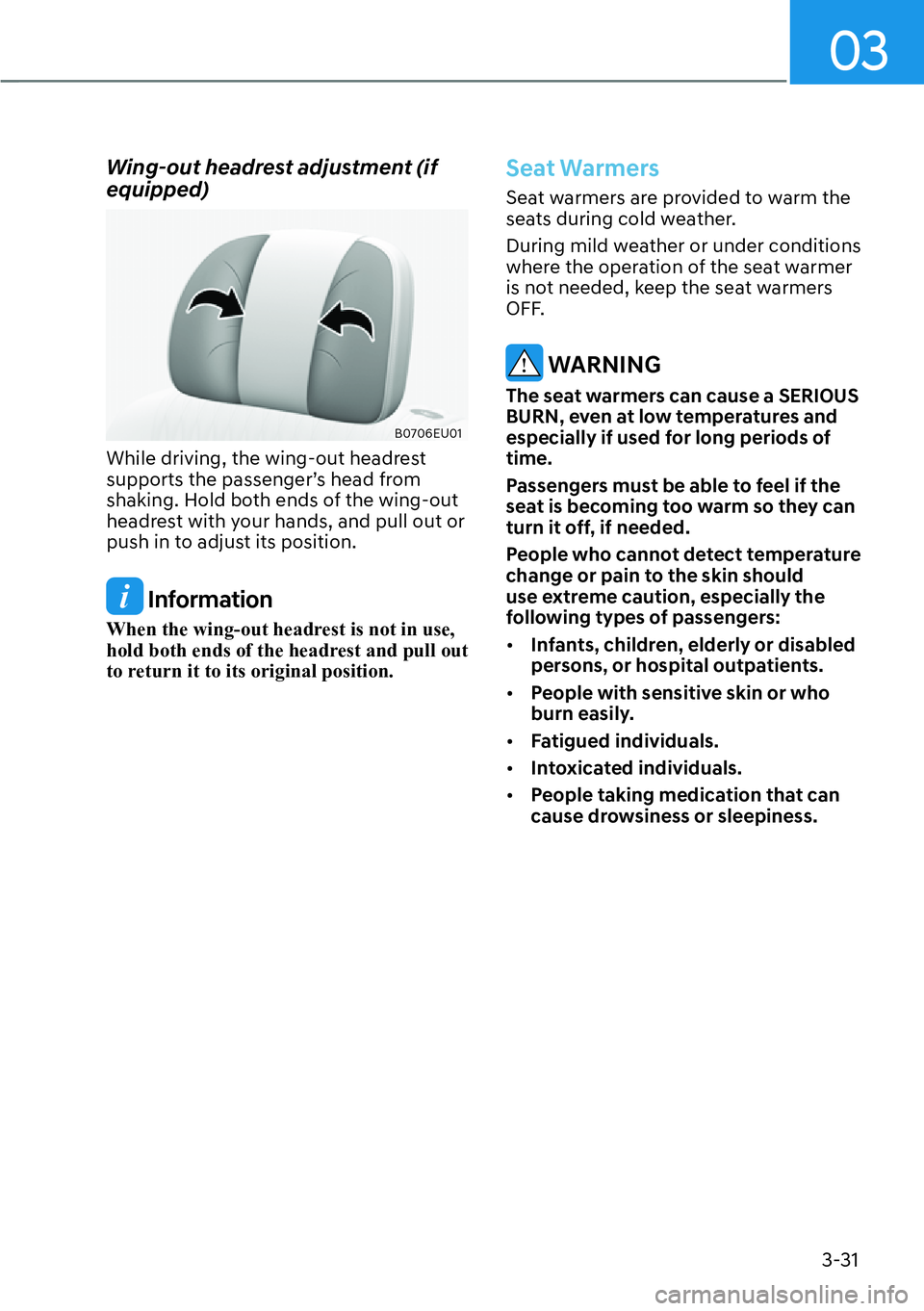

Wing-out headrest adjustment (if
equipped)
B0706EU01
While driving, the wing-out headrest
supports the passenger’s head from
shaking. Hold both ends of the wing-out
headrest with your hands, and pull out or
push in to adjust its position.
Information
When the wing-out headrest is not in use,
hold both ends of the headrest and pull out
to return it to its original position.
Seat Warmers
Seat warmers are provided to warm the
seats during cold weather.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the seat warmers
OFF.
WARNING
The seat warmers can cause a SERIOUS
BURN, even at low temperatures and
especially if used for long periods of
time.
Passengers must be able to feel if the
seat is becoming too warm so they can
turn it off, if needed.
People who cannot detect temperature
change or pain to the skin should
use extreme caution, especially the
following types of passengers:

[Infants, children, elderly or disabled
persons, or hospital outpatients.

[ People with sensitive skin or who
burn easily.

[ Fatigued individuals.

[ Intoxicated individuals.

[ People taking medication that can
cause drowsiness or sleepiness.

05
5-47

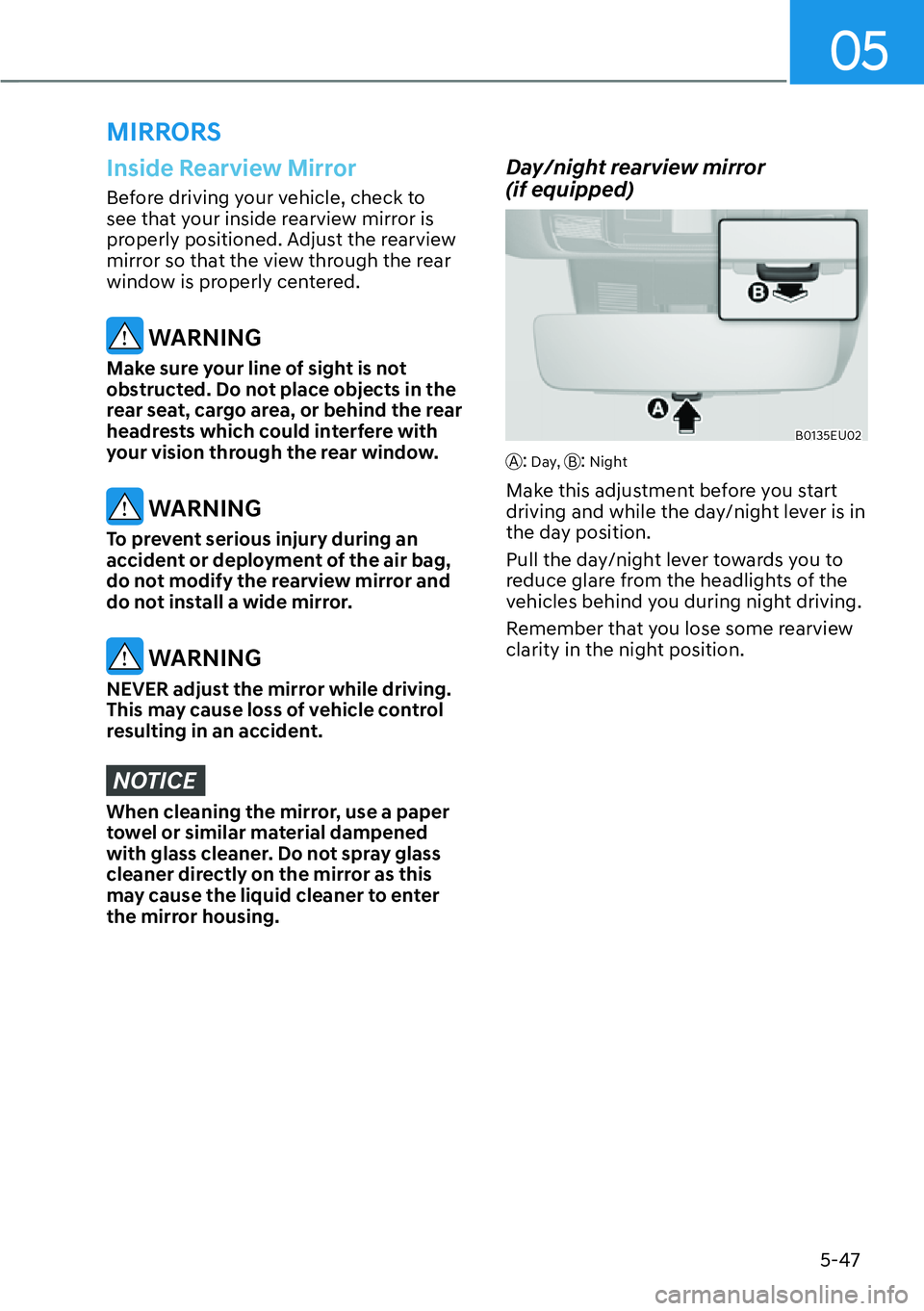

MIRRORS
Inside Rearview Mirror
Before driving your vehicle, check to
see that your inside rearview mirror is
properly positioned. Adjust the rearview
mirror so that the view through the rear
window is properly centered.
WARNING
Make sure your line of sight is not
obstructed. Do not place objects in the
rear seat, cargo area, or behind the rear
headrests which could interfere with
your vision through the rear window.
WARNING
To prevent serious injury during an
accident or deployment of the air bag,
do not modify the rearview mirror and
do not install a wide mirror.
WARNING
NEVER adjust the mirror while driving.
This may cause loss of vehicle control
resulting in an accident.
NOTICE
When cleaning the mirror, use a paper
towel or similar material dampened
with glass cleaner. Do not spray glass
cleaner directly on the mirror as this
may cause the liquid cleaner to enter
the mirror housing.
Day/night rearview mirror
(if equipped)
B0135EU02
A: Day, B: Night
Make this adjustment before you start
driving and while the day/night lever is in
the day position.
Pull the day/night lever towards you to
reduce glare from the headlights of the
vehicles behind you during night driving.
Remember that you lose some rearview
clarity in the night position.

Convenience Features5-60

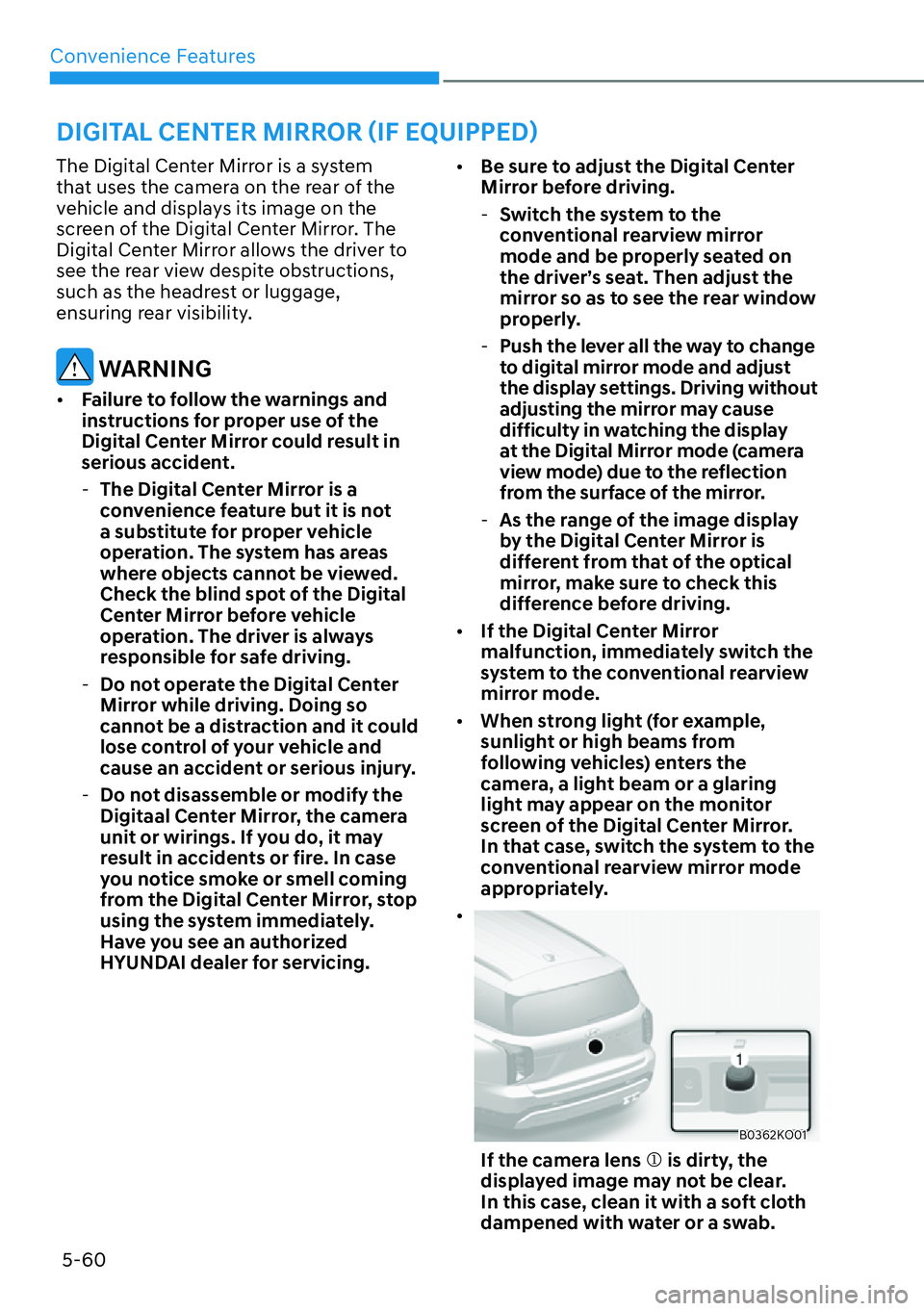

The Digital Center Mirror is a system
that uses the camera on the rear of the
vehicle and displays its image on the
screen of the Digital Center Mirror. The
Digital Center Mirror allows the driver to
see the rear view despite obstructions,
such as the headrest or luggage,
ensuring rear visibility.
WARNING

[ )DLOXUHWRIROORZWKHZDUQLQJVDQG
instructions for proper use of the
Digital Center Mirror could result in
serious accident.

- The Digital Center Mirror is a
convenience feature but it is not
a substitute for proper vehicle
operation. The system has areas
where objects cannot be viewed.
Check the blind spot of the Digital
Center Mirror before vehicle
operation. The driver is always
responsible for safe driving.

- Do not operate the Digital Center
Mirror while driving. Doing so
cannot be a distraction and it could
lose control of your vehicle and
cause an accident or serious injury.

- Do not disassemble or modify the
Digitaal Center Mirror, the camera
unit or wirings. If you do, it may
result in accidents or fire. In case
you notice smoke or smell coming
from the Digital Center Mirror, stop
using the system immediately.
Have you see an authorized
HYUNDAI dealer for servicing.
[
Be sure to adjust the Digital Center
Mirror before driving.

- Switch the system to the
conventional rearview mirror
mode and be properly seated on
the driver’s seat. Then adjust the
mirror so as to see the rear window
properly.

- Push the lever all the way to change
to digital mirror mode and adjust
the display settings. Driving without
adjusting the mirror may cause
difficulty in watching the display
at the Digital Mirror mode (camera
view mode) due to the reflection
from the surface of the mirror.

- As the range of the image display
by the Digital Center Mirror is
different from that of the optical
mirror, make sure to check this
difference before driving.

[ If the Digital Center Mirror
malfunction, immediately switch the
system to the conventional rearview
mirror mode.

[ When strong light (for example,
sunlight or high beams from
following vehicles) enters the
camera, a light beam or a glaring
light may appear on the monitor
screen of the Digital Center Mirror.
In that case, switch the system to the
conventional rearview mirror mode
appropriately.

[
B0362KO01
If the camera lens M is dirty, the
displayed image may not be clear.
In this case, clean it with a soft cloth
dampened with water or a swab.
',*,7$/&(17(50,5525
