run flat HYUNDAI PALISADE 2023 Owners Manual

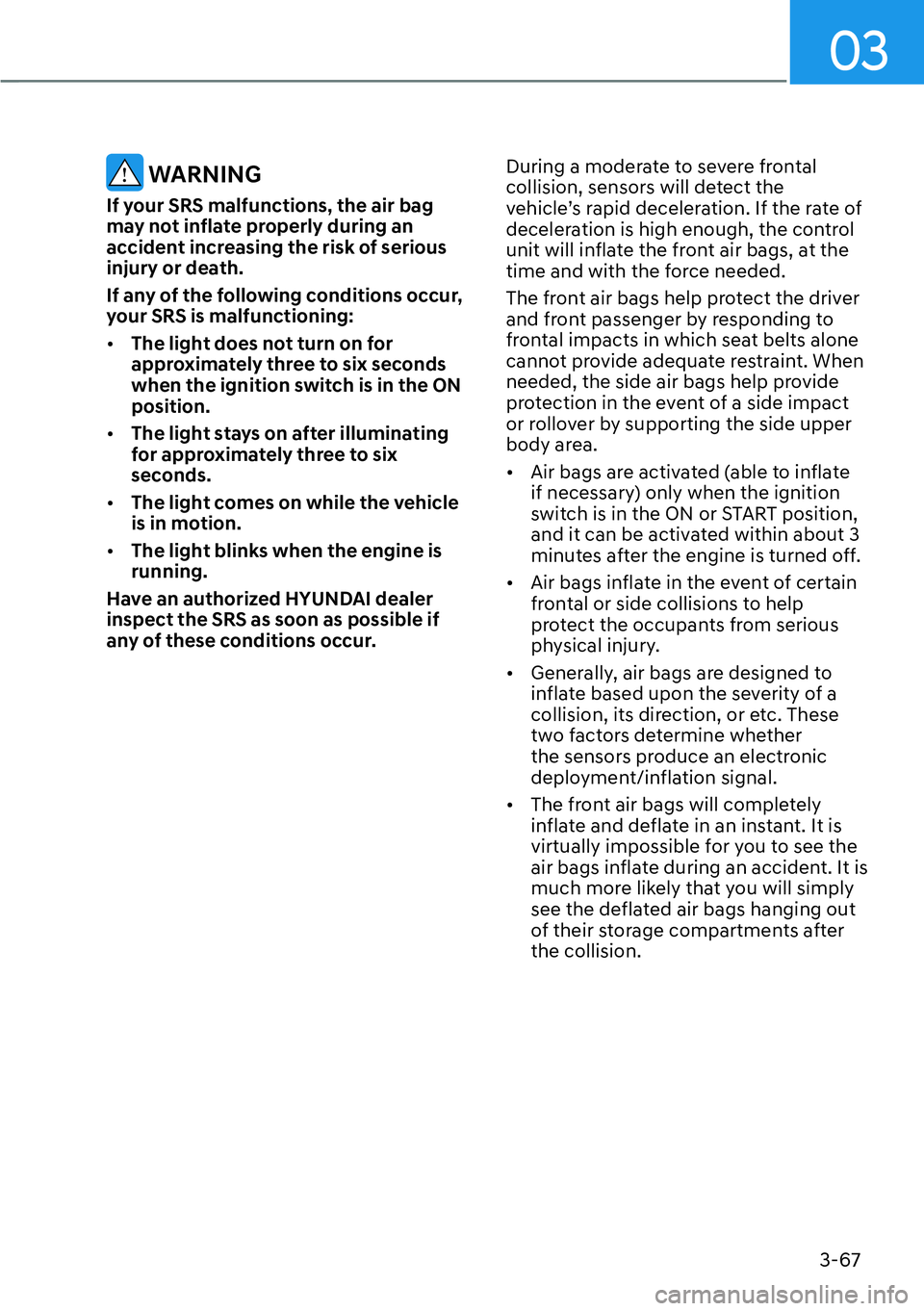

03
3-67
WARNING
If your SRS malfunctions, the air bag
may not inflate properly during an
accident increasing the risk of serious
injury or death.
If any of the following conditions occur,
your SRS is malfunctioning:

[The light does not turn on for
approximately three to six seconds
when the ignition switch is in the ON
position.

[ The light stays on after illuminating
for approximately three to six
seconds.

[ The light comes on while the vehicle
is in motion.

[ The light blinks when the engine is
running.
Have an authorized HYUNDAI dealer
inspect the SRS as soon as possible if
any of these conditions occur. During a moderate to severe frontal
collision, sensors will detect the
vehicle’s rapid deceleration. If the rate of
deceleration is high enough, the control
unit will inflate the front air bags, at the
time and with the force needed.
The front air bags help protect the driver
and front passenger by responding to
frontal impacts in which seat belts alone
cannot provide adequate restraint. When
needed, the side air bags help provide
protection in the event of a side impact
or rollover by supporting the side upper
body area.

[
Air bags are activated (able to inflate
if necessary) only when the ignition
switch is in the ON or START position,
and it can be activated within about 3
minutes after the engine is turned off.

[ Air bags inflate in the event of certain
frontal or side collisions to help
protect the occupants from serious
physical injury.

[ Generally, air bags are designed to
inflate based upon the severity of a
collision, its direction, or etc. These
two factors determine whether
the sensors produce an electronic
deployment/inflation signal.

[ The front air bags will completely
inflate and deflate in an instant. It is
virtually impossible for you to see the
air bags inflate during an accident. It is
much more likely that you will simply
see the deflated air bags hanging out
of their storage compartments after
the collision.

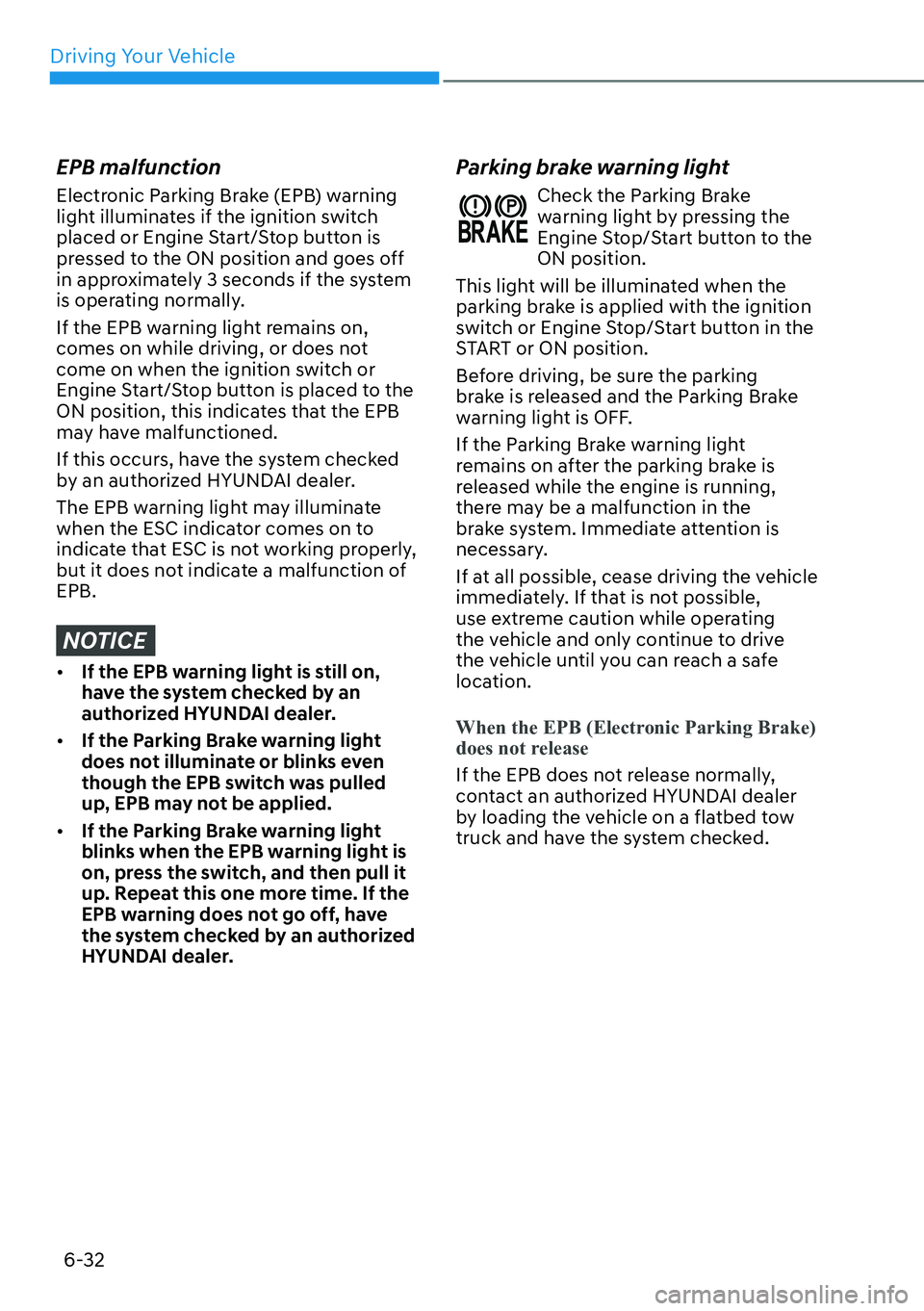

Driving Your Vehicle6-32
EPB malfunction
Electronic Parking Brake (EPB) warning
light illuminates if the ignition switch
placed or Engine Start/Stop button is
pressed to the ON position and goes off
in approximately 3 seconds if the system
is operating normally.
If the EPB warning light remains on,
comes on while driving, or does not
come on when the ignition switch or
Engine Start/Stop button is placed to the
ON position, this indicates that the EPB
may have malfunctioned.
If this occurs, have the system checked
by an authorized HYUNDAI dealer.
The EPB warning light may illuminate
when the ESC indicator comes on to
indicate that ESC is not working properly,
but it does not indicate a malfunction of
EPB.
NOTICE

[ If the EPB warning light is still on,
have the system checked by an
authorized HYUNDAI dealer.

[ If the Parking Brake warning light
does not illuminate or blinks even
though the EPB switch was pulled
up, EPB may not be applied.

[ If the Parking Brake warning light
blinks when the EPB warning light is
on, press the switch, and then pull it
up. Repeat this one more time. If the
EPB warning does not go off, have
the system checked by an authorized
HYUNDAI dealer.
Parking brake warning light
Check the Parking Brake
warning light by pressing the
Engine Stop/Start button to the
ON position.
This light will be illuminated when the
parking brake is applied with the ignition
switch or Engine Stop/Start button in the
START or ON position.
Before driving, be sure the parking
brake is released and the Parking Brake
warning light is OFF.
If the Parking Brake warning light
remains on after the parking brake is
released while the engine is running,
there may be a malfunction in the
brake system. Immediate attention is
necessary.
If at all possible, cease driving the vehicle
immediately. If that is not possible,
use extreme caution while operating
the vehicle and only continue to drive
the vehicle until you can reach a safe
location.
When the EPB (Electronic Parking Brake)
does not r
elease
If the EPB does not release normally,
contact an authoriz
ed HYUNDAI dealer
by loading the vehicle on a flatbed tow
truck and have the system checked.

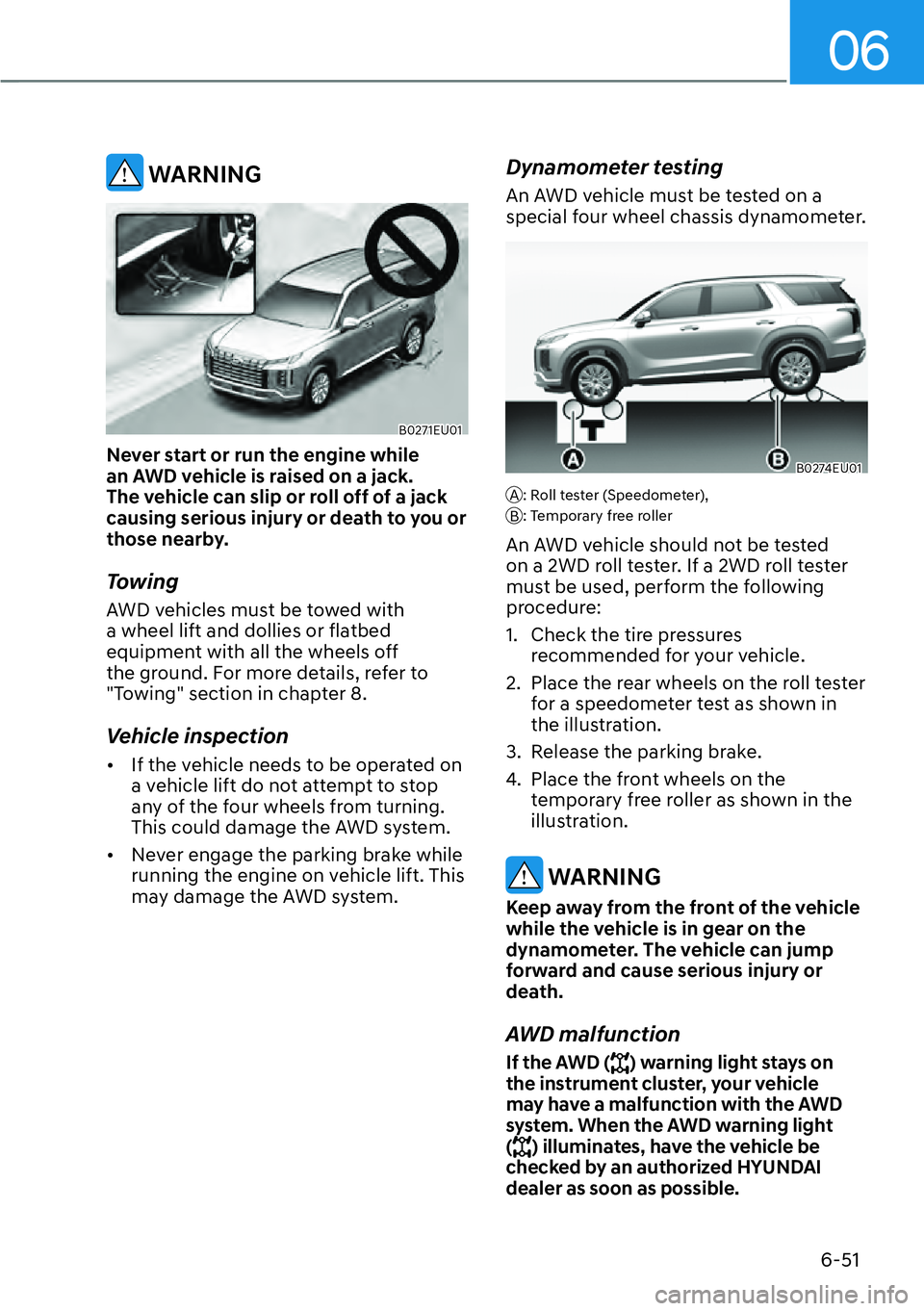

06
6-51
WARNING
B0271EU01
Never start or run the engine while
an AWD vehicle is raised on a jack.
The vehicle can slip or roll off of a jack
causing serious injury or death to you or
those nearby.
Towing
AWD vehicles must be towed with
a wheel lift and dollies or flatbed
equipment with all the wheels off
the ground. For more details, refer to
"Towing" section in chapter 8.
Vehicle inspection

[If the vehicle needs to be operated on
a vehicle lift do not attempt to stop
any of the four wheels from turning.
This could damage the AWD system.

[ Never engage the parking brake while
running the engine on vehicle lift. This
may damage the AWD system.
Dynamometer testing
An AWD vehicle must be tested on a
special four wheel chassis dynamometer.
B0274EU01
A: Roll tester (Speedometer),
B: Temporary free roller
An AWD vehicle should not be tested
on a 2WD roll tester. If a 2WD roll tester
must be used, perform the following
procedure:
1. Check the tire pressures recommended for your vehicle.
2. Place the rear wheels on the roll tester for a speedometer test as shown in
the illustration.
3. Release the parking brake.
4. Place the front wheels on the temporary free roller as shown in the
illustration.
WARNING
Keep away from the front of the vehicle
while the vehicle is in gear on the
dynamometer. The vehicle can jump
forward and cause serious injury or
death.
AWD malfunction
If the AWD () warning light stays on
the instrument cluster, your vehicle
may have a malfunction with the AWD
system. When the AWD warning light
(
) illuminates, have the vehicle be
checked by an authorized HYUNDAI
dealer as soon as possible.

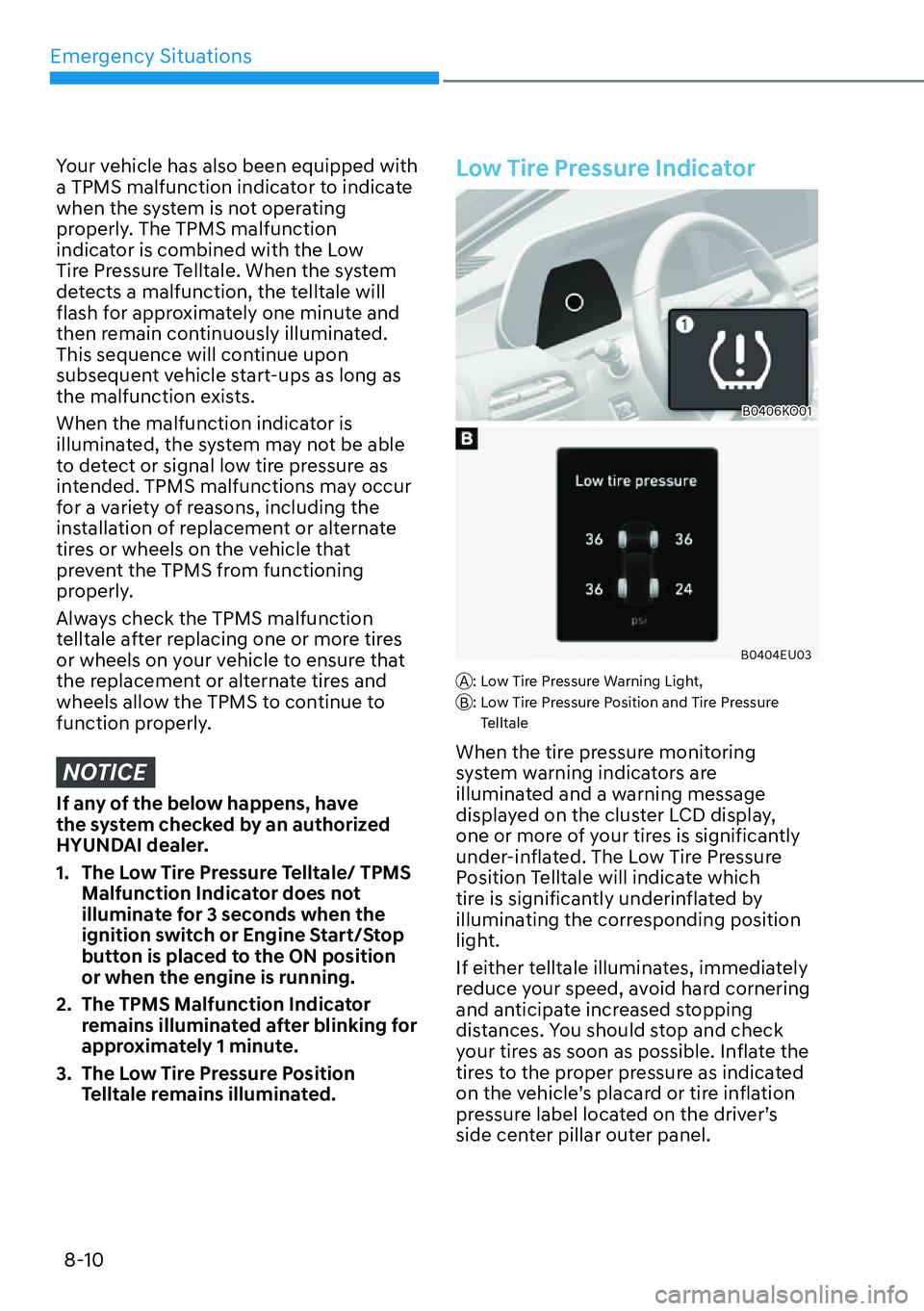

Emergency Situations8-10
Your vehicle has also been equipped with
a TPMS malfunction indicator to indicate
when the system is not operating
properly. The TPMS malfunction
indicator is combined with the Low
Tire Pressure Telltale. When the system
detects a malfunction, the telltale will
flash for approximately one minute and
then remain continuously illuminated.
This sequence will continue upon
subsequent vehicle start-ups as long as
the malfunction exists.
When the malfunction indicator is
illuminated, the system may not be able
to detect or signal low tire pressure as
intended. TPMS malfunctions may occur
for a variety of reasons, including the
installation of replacement or alternate
tires or wheels on the vehicle that
prevent the TPMS from functioning
properly.
Always check the TPMS malfunction
telltale after replacing one or more tires
or wheels on your vehicle to ensure that
the replacement or alternate tires and
wheels allow the TPMS to continue to
function properly.
NOTICE
If any of the below happens, have
the system checked by an authorized
HYUNDAI dealer.
1. The Low Tire Pressure Telltale/ TPMS Malfunction Indicator does not
illuminate for 3 seconds when the
ignition switch or Engine Start/Stop
button is placed to the ON position
or when the engine is running.
2. The TPMS Malfunction Indicator remains illuminated after blinking for
approximately 1 minute.
3. The Low Tire Pressure Position Telltale remains illuminated.
Low Tire Pressure Indicator
B0406KO01
B0404EU03
A: Low Tire Pressure Warning Light,
B: Low Tire Pressure Position and Tire Pressure Telltale
When the tire pressure monitoring
system warning indicators are
illuminated and a warning message
displayed on the cluster LCD display,
one or more of your tires is significantly
under-inflated. The Low Tire Pressure
Position Telltale will indicate which
tire is significantly underinflated by
illuminating the corresponding position
light.
If either telltale illuminates, immediately
reduce your speed, avoid hard cornering
and anticipate increased stopping
distances. You should stop and check
your tires as soon as possible. Inflate the
tires to the proper pressure as indicated
on the vehicle’s placard or tire inflation
pressure label located on the driver’s
side center pillar outer panel.

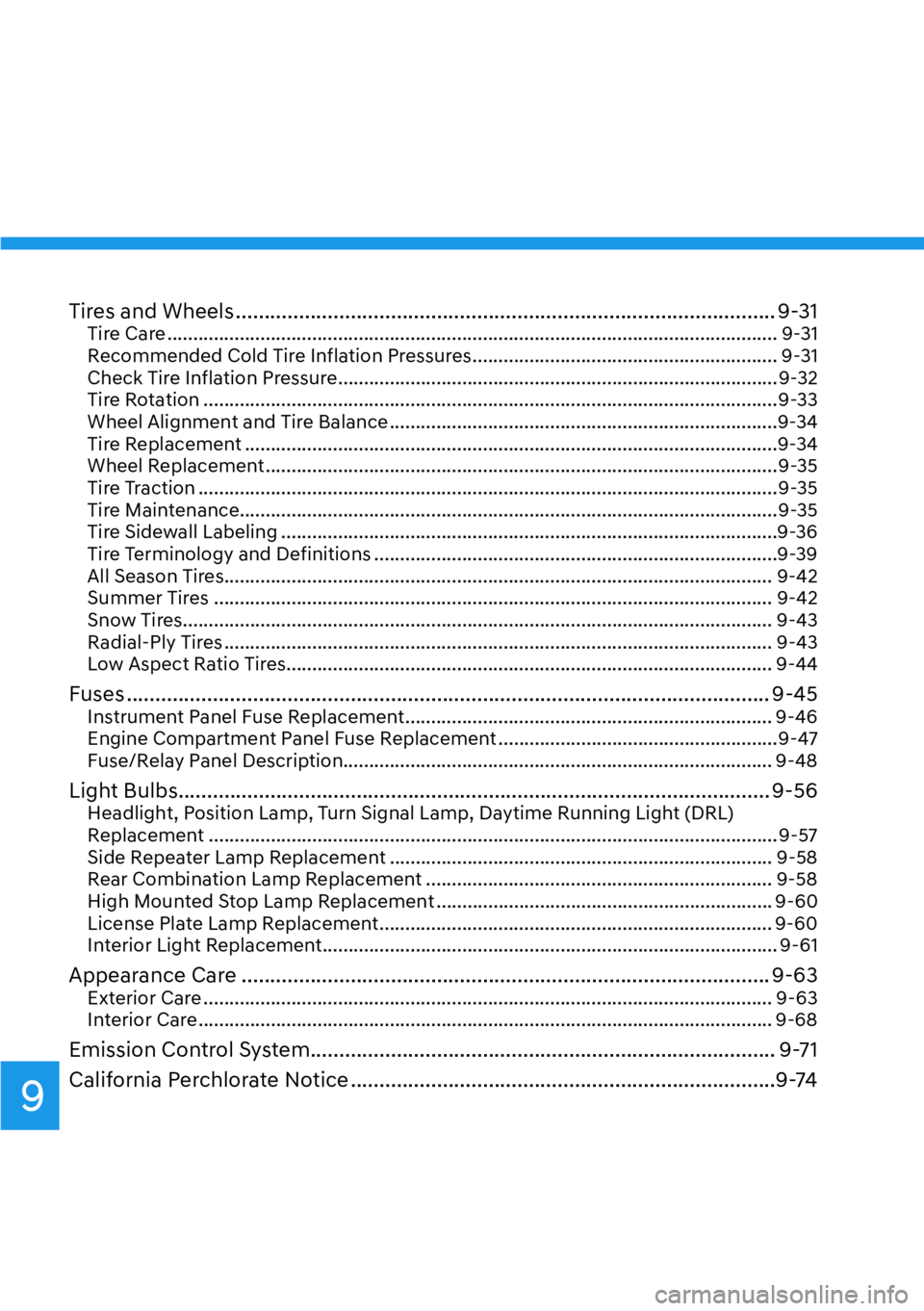

9
Tires and Wheels ........................................................................\
...................... 9-31Tire Care ........................................................................\
..............................................9-31
Recommended Cold Tire Inflation Pressures ........................................................... 9-31
Check Tire Inflation Pressure ........................................................................\
............. 9-32
Tire Rotation ........................................................................\
.......................................9-33
Wheel Alignment and Tire Balance ........................................................................\
...9-34
Tire Replacement ........................................................................\
...............................9-34
Wheel Replacement ........................................................................\
...........................9-35
Tire Traction ........................................................................\
........................................9-35
Tire Maintenance..................................................................\
......................................9-35
Tire Sidewall Labeling ........................................................................\
........................9-36
Tire Terminology and Definitions ........................................................................\
......9-39
All Season Tires ........................................................................\
.................................. 9-42
Summer Tires ........................................................................\
.................................... 9-42
Snow Tires......................................................................\
............................................ 9-43
Radial-Ply Tires ........................................................................\
.................................. 9-43
Low Aspect Ratio Tires ........................................................................\
...................... 9-44
Fuses ...................................................................\
............................................. 9-45Instrument Panel Fuse Replacement ....................................................................... 9-46
Engine Compartment Panel Fuse Replacement ......................................................9-47
Fuse/Relay Panel Description........................................................................\
........... 9-48
Light Bulbs ........................................................................\
............................... 9-56
Headlight, Position Lamp, Turn Signal Lamp, Daytime Running Light (DRL)
Replacement .............................................................\
................................................. 9-57
Side Repeater Lamp Replacement ........................................................................\
.. 9-58
Rear Combination Lamp Replacement ................................................................... 9-58
High Mounted Stop Lamp Replacement ................................................................. 9-60
License Plate Lamp Replacement ........................................................................\
.... 9-60
Interior Light Replacement ........................................................................\
................ 9-61
Appearance Care ........................................................................\
.................... 9-63Exterior Care ........................................................................\
...................................... 9-63
Interior Care ........................................................................\
....................................... 9-68
Emission Control System ........................................................................\
......... 9-71
California Perchlorate Notice ........................................................................\
..9-74
