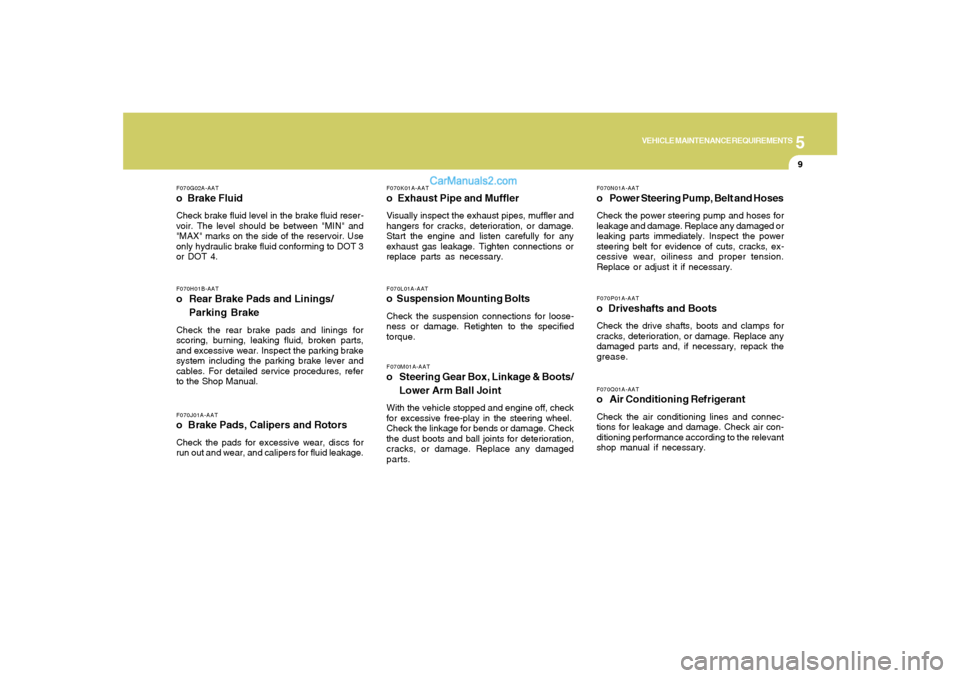

Page 211 of 277

Hyundai Santa Fe 2005  Owners Manual 5
VEHICLE MAINTENANCE REQUIREMENTS
9
F070L01A-AATo  Suspension Mounting BoltsCheck the suspension connections for loose-
ness or damage. Retighten to the specified
torque.
F070G02A-AATo  Brake FluidCh

Page 212 of 277

Hyundai Santa Fe 2005  Owners Manual 6

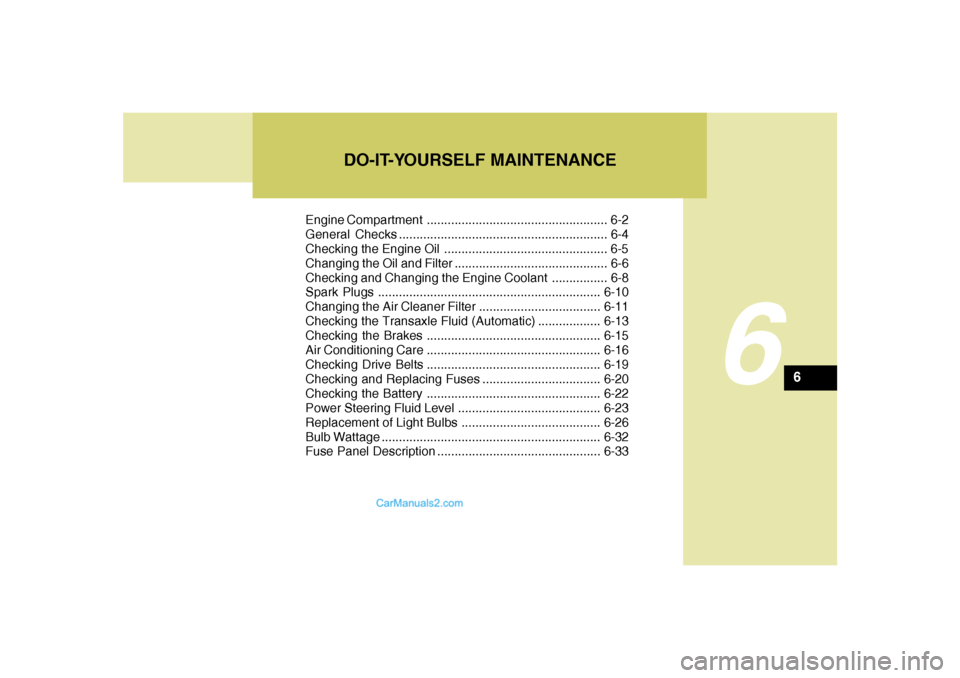

Engine Compartment .................................................... 6-2
General Checks ............................................................ 6-4
Checking the Engine Oil ..................

Page 213 of 277

Hyundai Santa Fe 2005  Owners Manual 6
DO-IT-YOURSELF MAINTENANCE
2

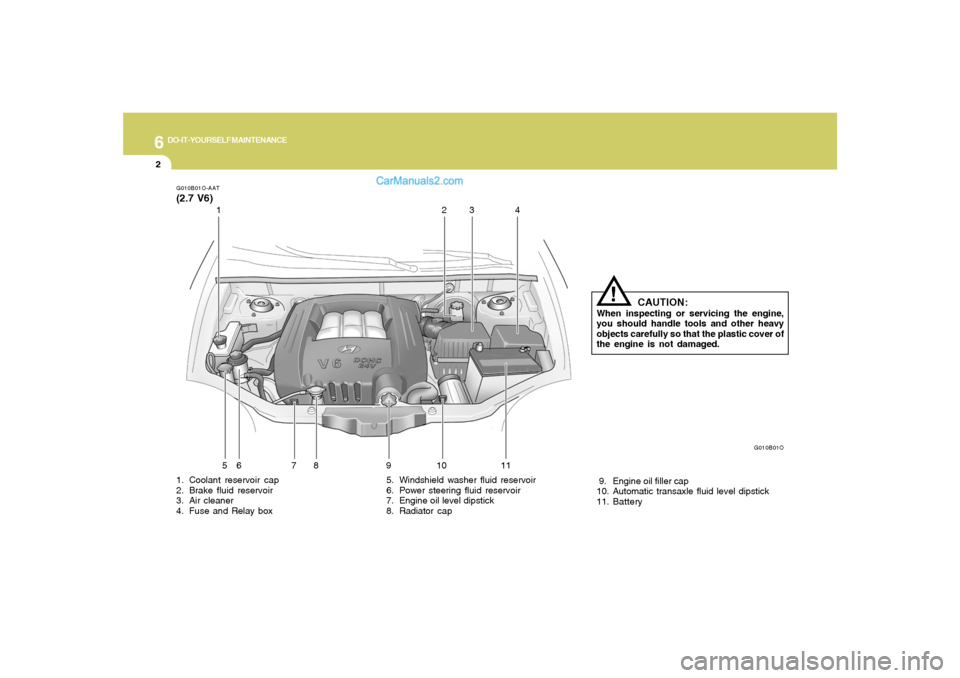

G010B01O-AAT(2.7 V6)1. Coolant reservoir cap
2. Brake fluid reservoir
3. Air cleaner
4. Fuse and Relay box5. Windshield washer fluid reservoir
6. Power steering fluid re

Page 214 of 277

Hyundai Santa Fe 2005  Owners Manual 6
DO-IT-YOURSELF MAINTENANCE
3

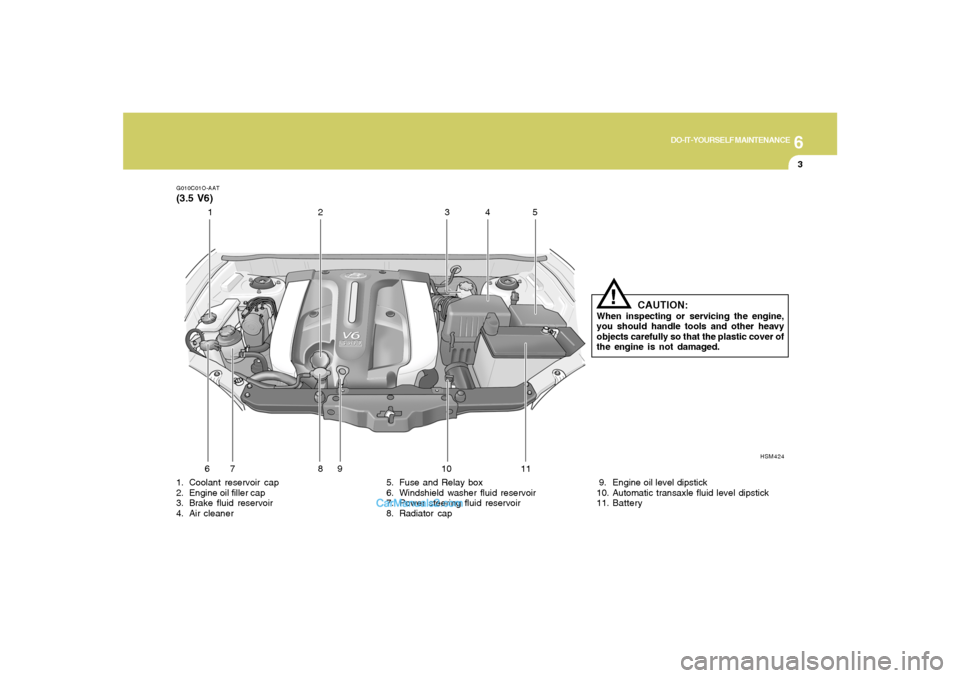

G010C01O-AAT(3.5 V6)1. Coolant reservoir cap
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner5. Fuse and Relay box
6. Windshield washer fluid reservoir
7

Page 215 of 277

Hyundai Santa Fe 2005  Owners Manual 6
DO-IT-YOURSELF MAINTENANCE
4

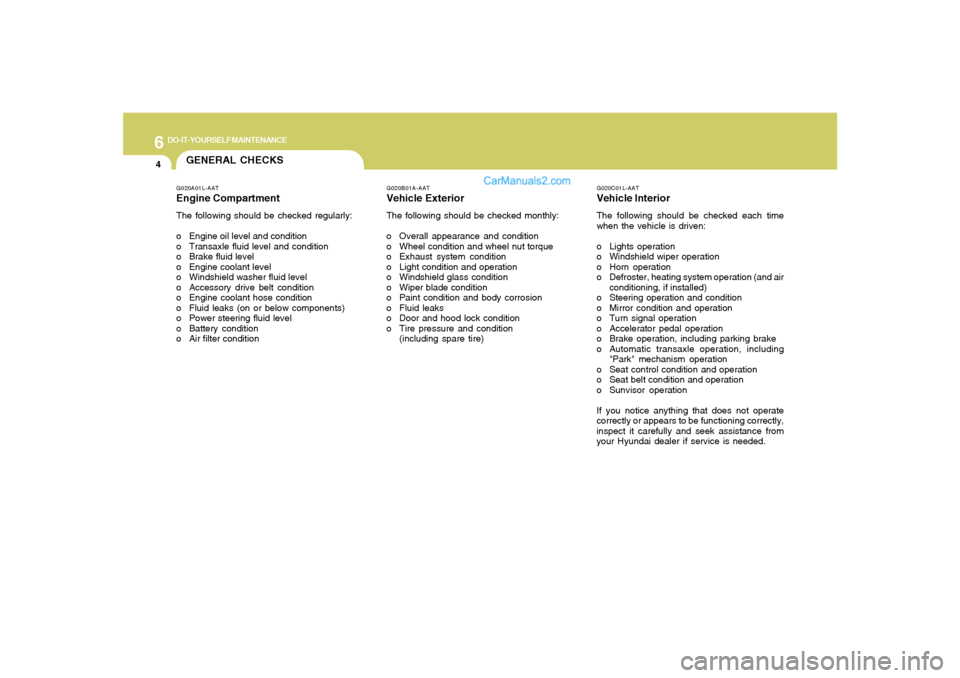

GENERAL CHECKS
G020C01L-AATVehicle InteriorThe following should be checked each time
when the vehicle is driven:
o Lights operation
o Windshield wiper operation
o Horn o

Page 216 of 277

Hyundai Santa Fe 2005  Owners Manual 6
DO-IT-YOURSELF MAINTENANCE
5

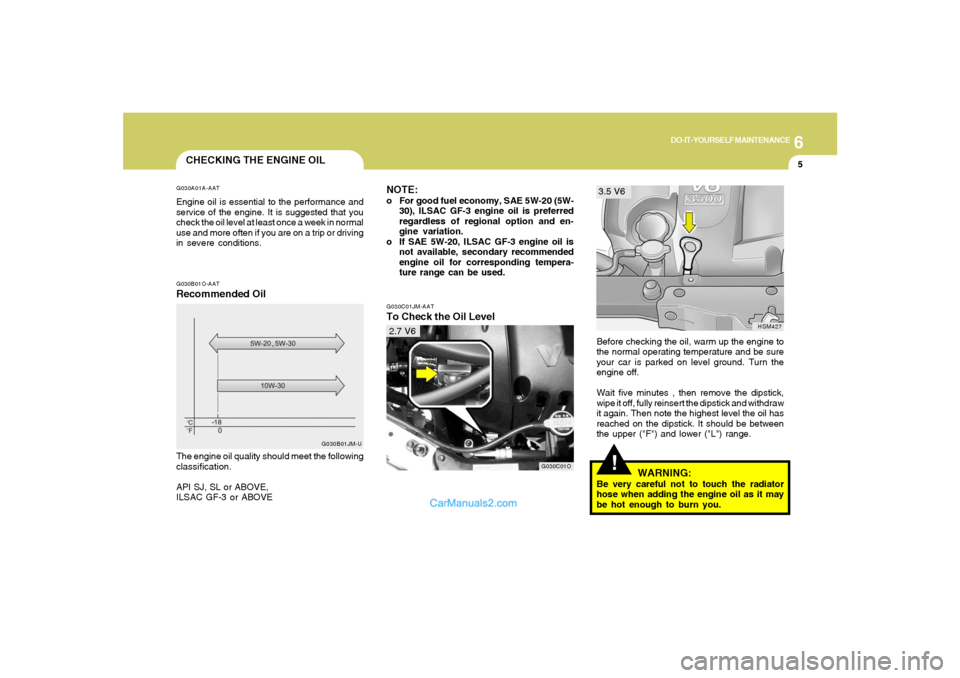

CHECKING THE ENGINE OILG030A01A-AATEngine oil is essential to the performance and
service of the engine. It is suggested that you
check the oil level at least once a wee

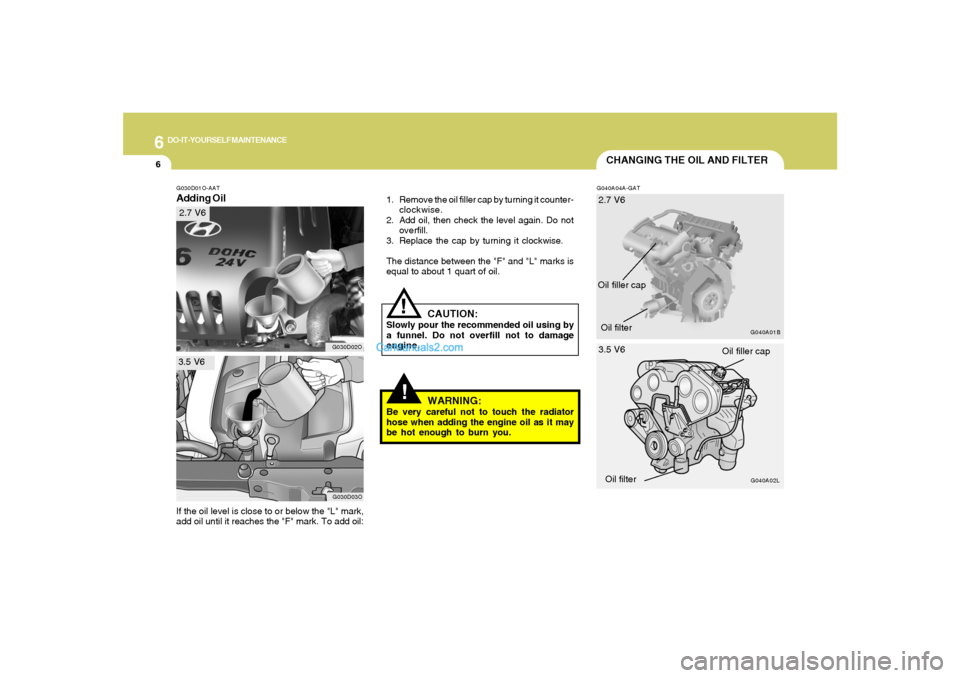

Page 217 of 277

Hyundai Santa Fe 2005  Owners Manual 6
DO-IT-YOURSELF MAINTENANCE
6
G040A02L
Oil filter
Oil filler cap 3.5 V6
CHANGING THE OIL AND FILTERG040A04A-GATOil filler cap
Oil filter2.7 V6
G040A01B
!!
G030D01O-AATAdding Oil
1. Remove the oil fil

Page 218 of 277

Hyundai Santa Fe 2005  Owners Manual 6
DO-IT-YOURSELF MAINTENANCE
7
!

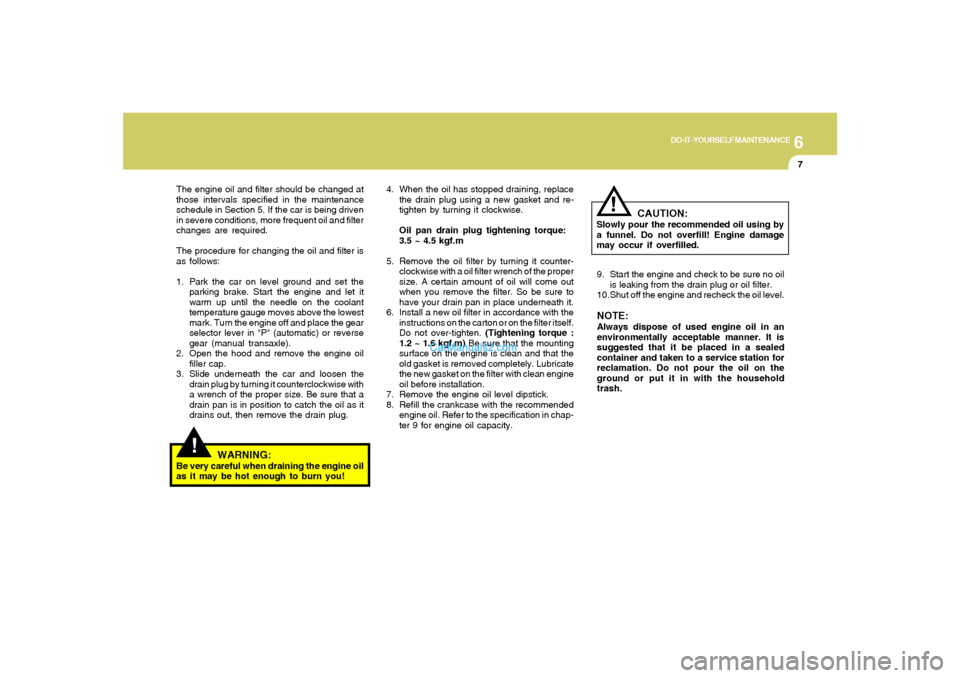

The engine oil and filter should be changed at
those intervals specified in the maintenance
schedule in Section 5. If the car is being driven
in severe conditions, mor

Page 219 of 277

Hyundai Santa Fe 2005  Owners Manual 6
DO-IT-YOURSELF MAINTENANCE
8

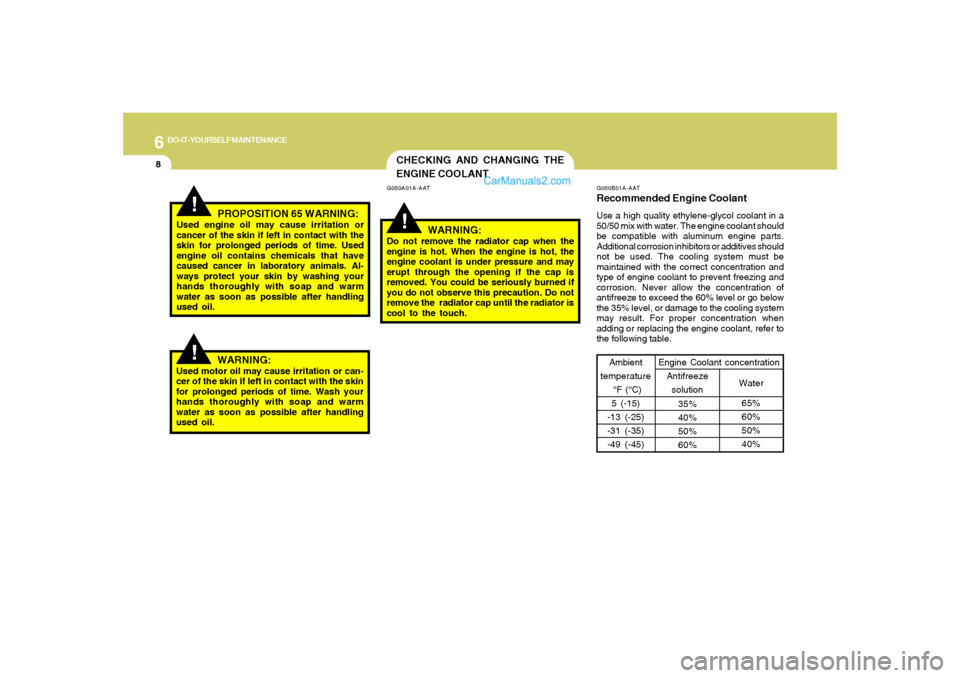

G050B01A-AATRecommended Engine CoolantUse a high quality ethylene-glycol coolant in a
50/50 mix with water. The engine coolant should
be compatible with aluminum engine

Page 220 of 277

Hyundai Santa Fe 2005  Owners Manual 6
DO-IT-YOURSELF MAINTENANCE
9
!

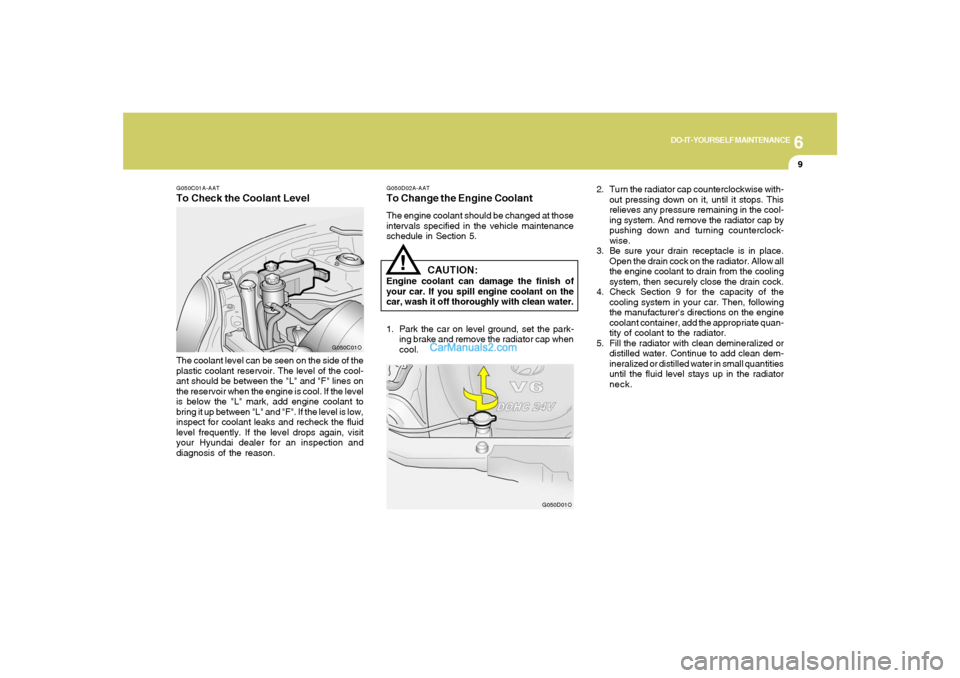

G050C01A-AATTo Check the Coolant LevelThe coolant level can be seen on the side of the
plastic coolant reservoir. The level of the cool-
ant should be between the "L"
