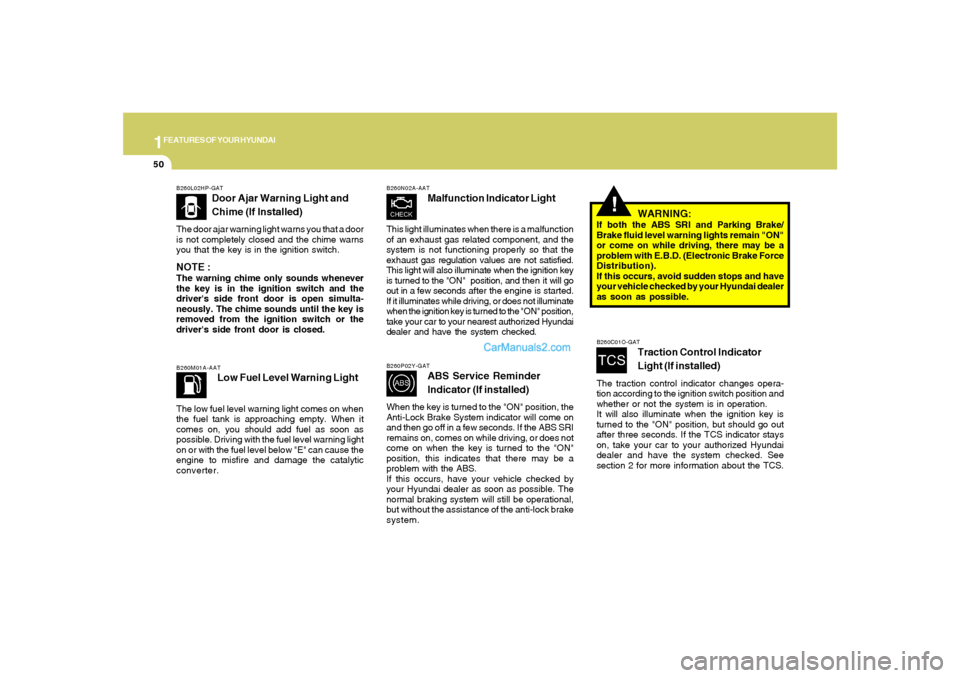

Hyundai Santa Fe 2005 Repair Manual 1FEATURES OF YOUR HYUNDAI50
B260L02HP-GAT
Door Ajar Warning Light and
Chime (If Installed)
The door ajar warning light warns you that a door
is not completely closed and the chime warns
you that the k

Page 62 of 277

Hyundai Santa Fe 2005 Repair Manual 1
FEATURES OF YOUR HYUNDAI
51

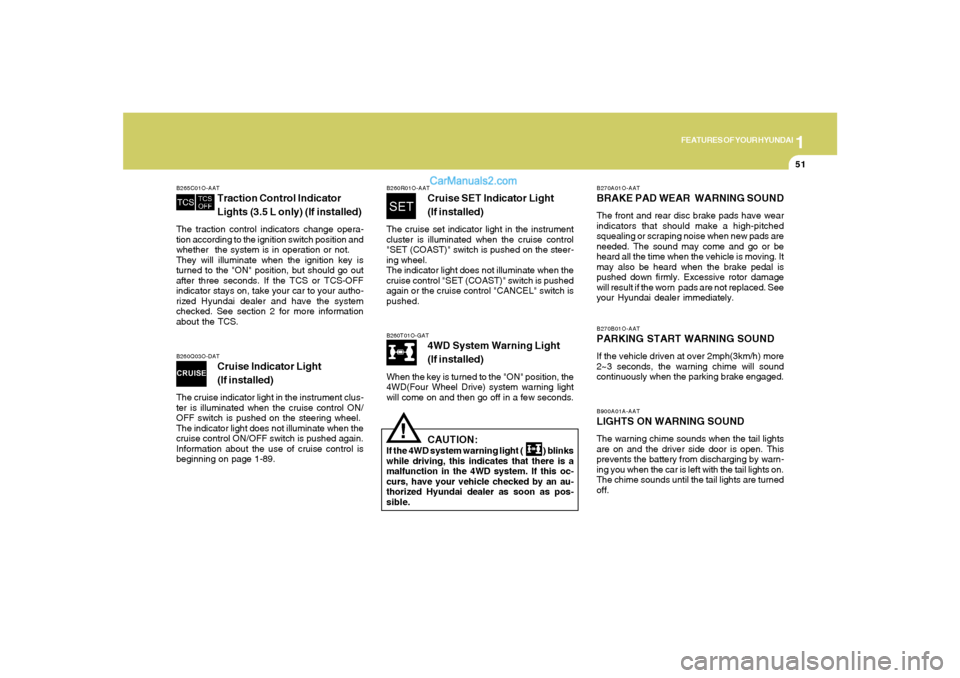

B270A01O-AATBRAKE PAD WEAR  WARNING SOUNDThe front and rear disc brake pads have wear
indicators that should make a high-pitched
squealing or scraping noise when new pads

Page 63 of 277

Hyundai Santa Fe 2005 Repair Manual 1FEATURES OF YOUR HYUNDAI52
!

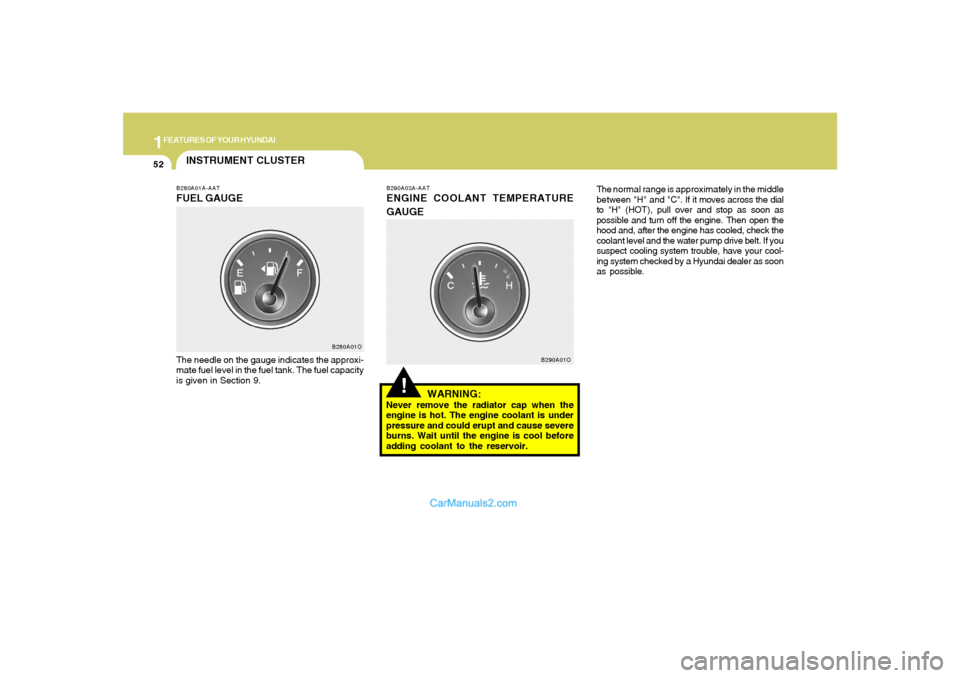

B290A03A-AATENGINE COOLANT TEMPERATURE
GAUGE
WARNING:Never remove the radiator cap when the
engine is hot. The engine coolant is under
pressure and could erupt and cause

Page 64 of 277

Hyundai Santa Fe 2005 Repair Manual 1
FEATURES OF YOUR HYUNDAI
53
B330A02A-AATTACHOMETERThe tachometer registers the speed of your
engine in revolutions per minute (rpm).
CAUTION:
The engine should not be raced to such a
speed that the

Page 65 of 277

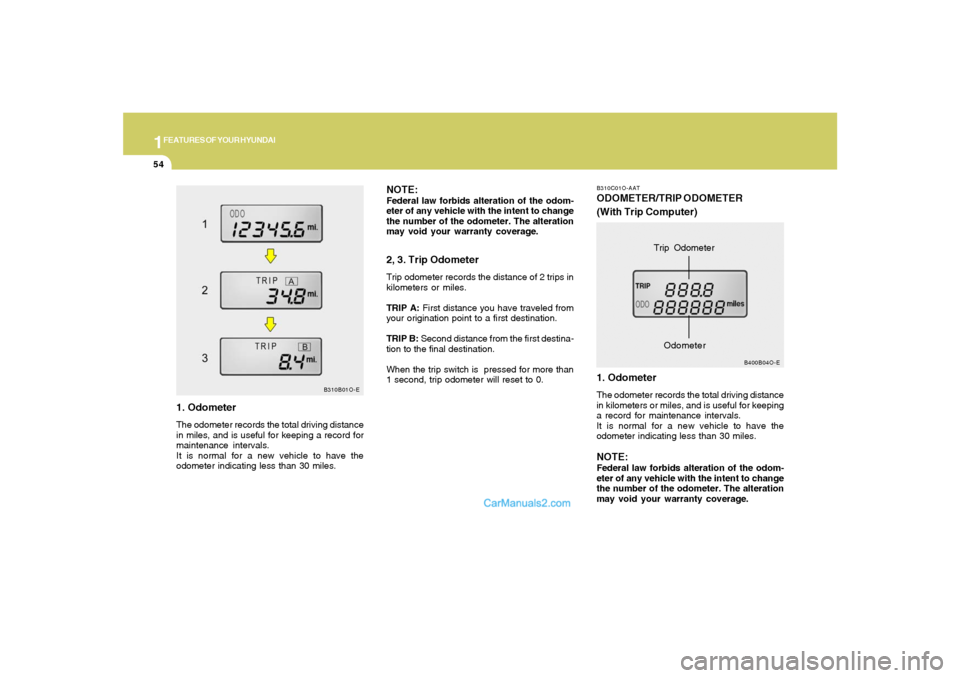

Hyundai Santa Fe 2005 Repair Manual 1FEATURES OF YOUR HYUNDAI54

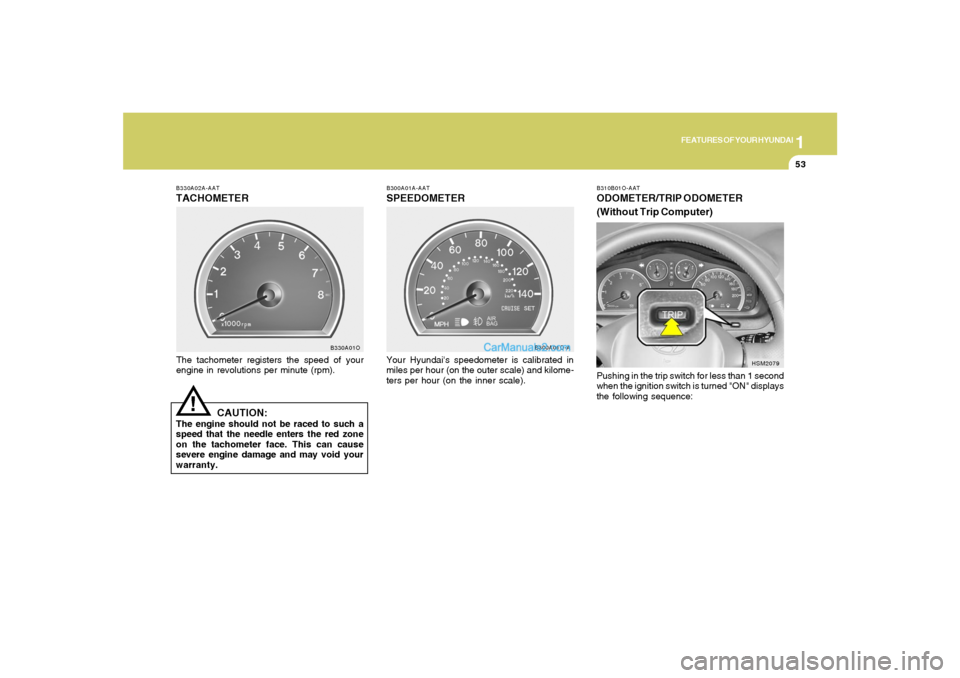

1. OdometerThe odometer records the total driving distance
in miles, and is useful for keeping a record for
maintenance intervals.
It is normal for a new vehicle to have th

Page 66 of 277

Hyundai Santa Fe 2005 Repair Manual 1
FEATURES OF YOUR HYUNDAI
55

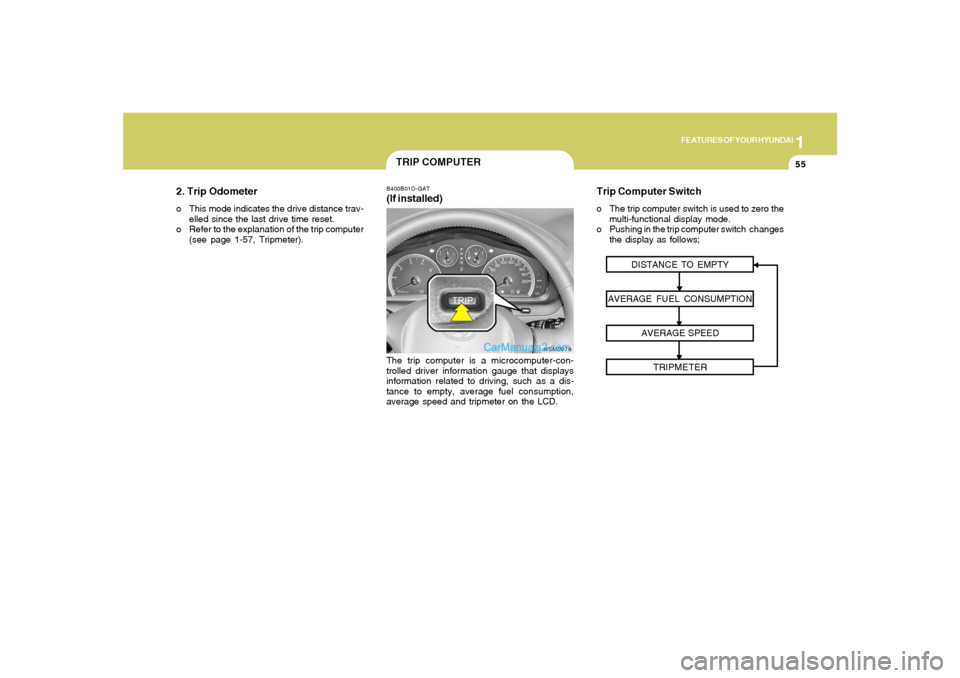

2. Trip Odometero This mode indicates the drive distance trav-
elled since the last drive time reset.
o Refer to the explanation of the trip computer
(see page 1-57, Trip

Page 67 of 277

Hyundai Santa Fe 2005 Repair Manual 1FEATURES OF YOUR HYUNDAI56

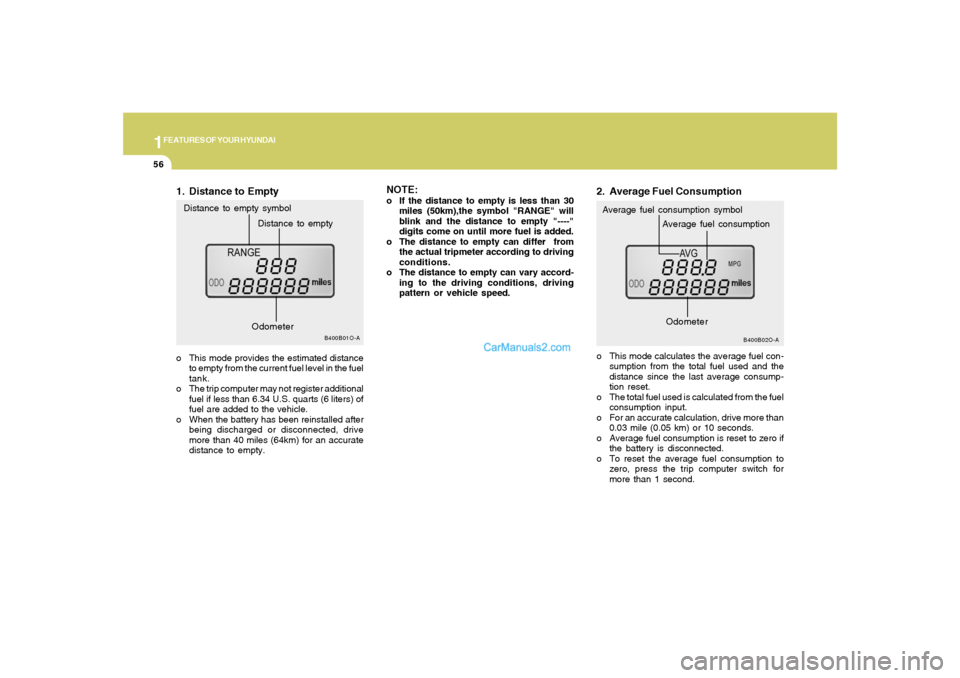

Distance to empty Distance to empty symbol
B400B01O-A
Odometer
1. Distance to Emptyo This mode provides the estimated distance
to empty from the current fuel level in the f

Page 68 of 277

Hyundai Santa Fe 2005 Repair Manual 1
FEATURES OF YOUR HYUNDAI
57

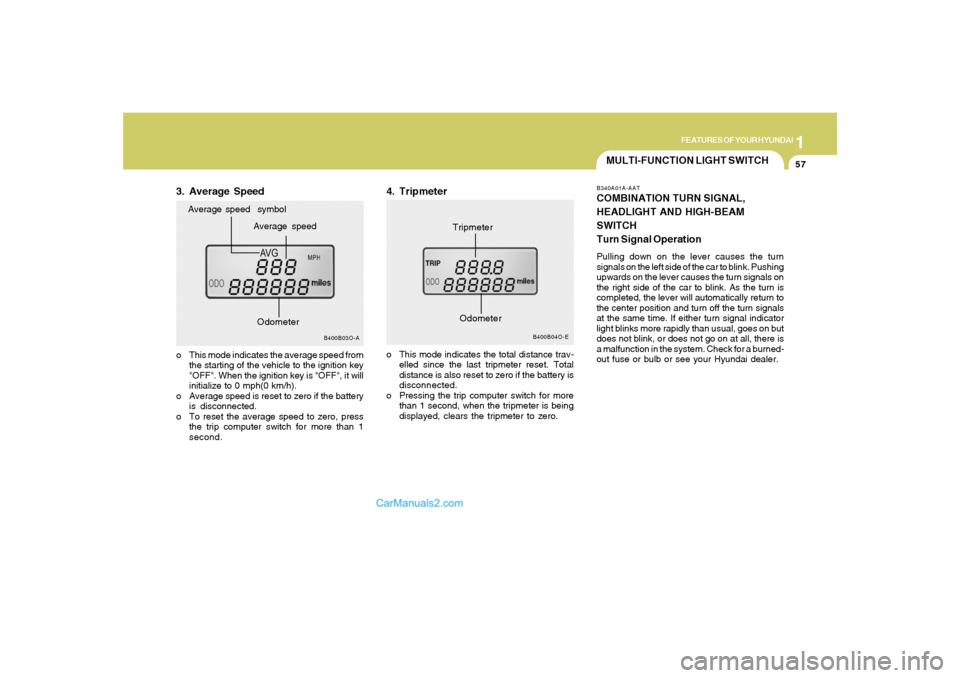

MULTI-FUNCTION LIGHT SWITCHB340A01A-AATCOMBINATION TURN SIGNAL,
HEADLIGHT AND HIGH-BEAM
SWITCH
Turn Signal OperationPulling down on the lever causes the turn
signals on t

Page 69 of 277

Hyundai Santa Fe 2005 Repair Manual 1FEATURES OF YOUR HYUNDAI58

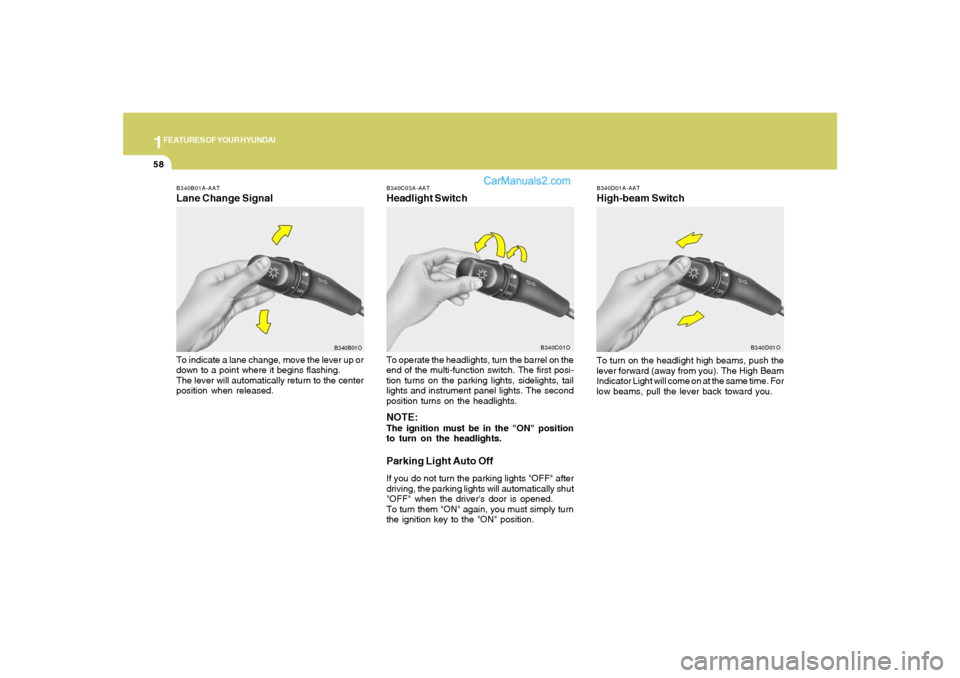

B340D01A-AATHigh-beam Switch
B340B01A-AATLane Change SignalTo indicate a lane change, move the lever up or
down to a point where it begins flashing.
The lever will automati

Page 70 of 277

Hyundai Santa Fe 2005 Repair Manual 1
FEATURES OF YOUR HYUNDAI
59

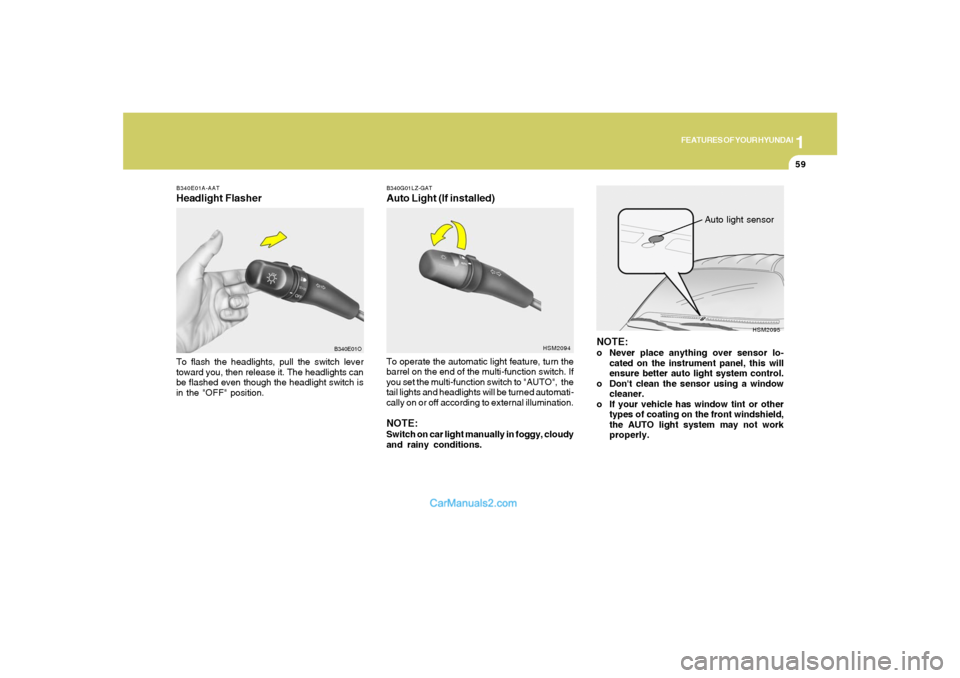

B340E01A-AATHeadlight FlasherTo flash the headlights, pull the switch lever
toward you, then release it. The headlights can
be flashed even though the headlight switch is
