6
DO-IT-YOURSELF MAINTENANCE
25

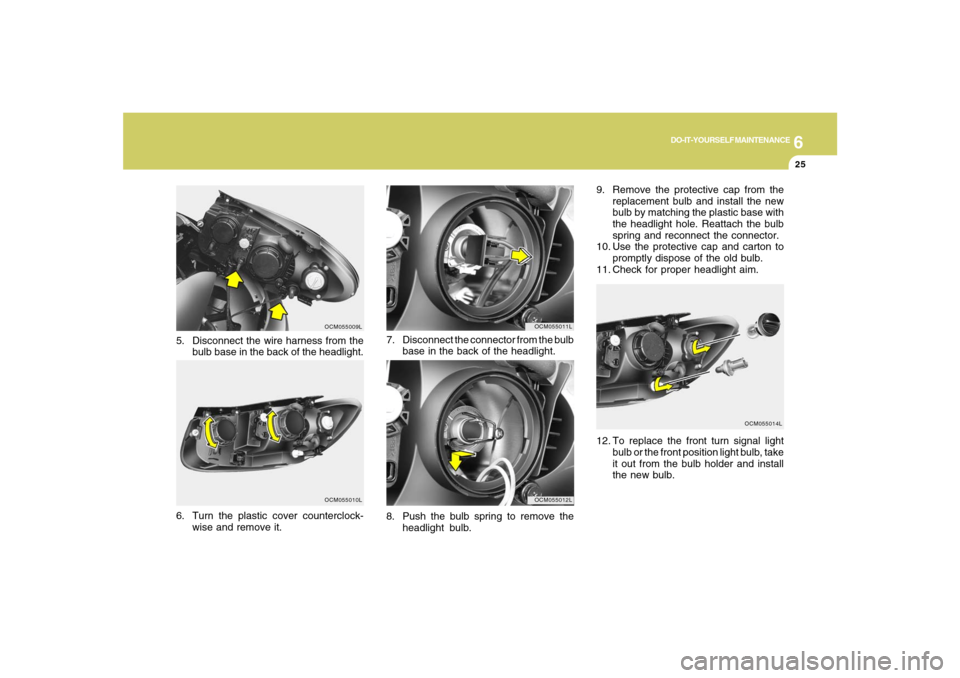

8. Push the bulb spring to remove the
headlight bulb. 7. Disconnect the connector from the bulb
base in the back of the headlight.
OCM055011LOCM055012L
5. Disconnect the wire harness from the
bulb base in the back of the headlight.
6. Turn the plastic cover counterclock-
wise and remove it.
OCM055010L OCM055009L
9. Remove the protective cap from the
replacement bulb and install the new
bulb by matching the plastic base with
the headlight hole. Reattach the bulb
spring and reconnect the connector.
10. Use the protective cap and carton to
promptly dispose of the old bulb.
11. Check for proper headlight aim.
OCM055014L
12. To replace the front turn signal light
bulb or the front position light bulb, take
it out from the bulb holder and install
the new bulb.
Page 312 of 355
6
DO-IT-YOURSELF MAINTENANCE
26
!

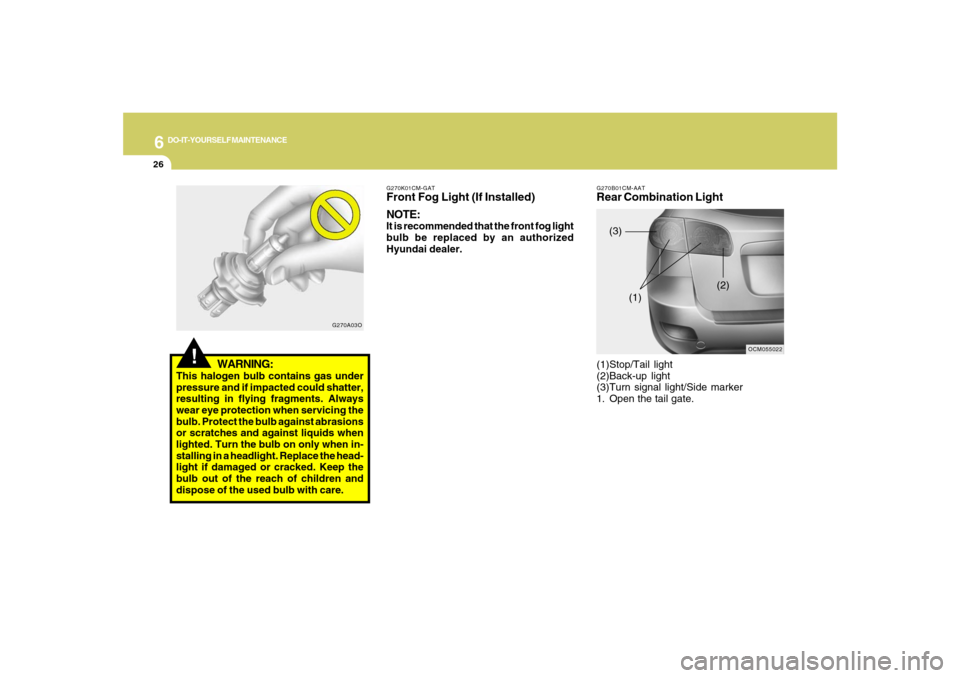

WARNING:
This halogen bulb contains gas under
pressure and if impacted could shatter,
resulting in flying fragments. Always
wear eye protection when servicing the
bulb. Protect the bulb against abrasions
or scratches and against liquids when
lighted. Turn the bulb on only when in-
stalling in a headlight. Replace the head-
light if damaged or cracked. Keep the
bulb out of the reach of children and
dispose of the used bulb with care.
G270A03OG270K01CM-GAT
Front Fog Light (If Installed)
NOTE:It is recommended that the front fog light
bulb be replaced by an authorized
Hyundai dealer.
G270B01CM-AATRear Combination Light
OCM055022
(3)
(1)(2)
(1)Stop/Tail light
(2)Back-up light
(3)Turn signal light/Side marker
1. Open the tail gate.
Page 313 of 355
6
DO-IT-YOURSELF MAINTENANCE
27

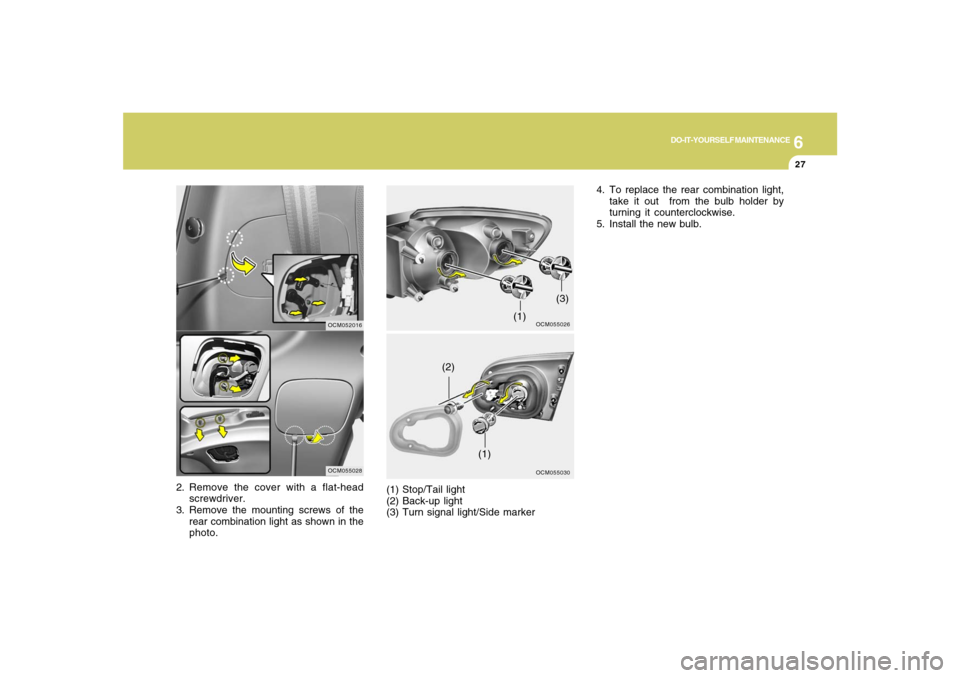

2. Remove the cover with a flat-head
screwdriver.
3. Remove the mounting screws of the
rear combination light as shown in the
photo.
OCM055026
OCM055028
OCM055030
(1)
(1) (2)(3)
(1) Stop/Tail light
(2) Back-up light
(3) Turn signal light/Side marker4. To replace the rear combination light,
take it out from the bulb holder by
turning it counterclockwise.
5. Install the new bulb.
OCM052016
Page 314 of 355
6
DO-IT-YOURSELF MAINTENANCE
28
G270J01CM-AATLicense Plate Light1. Remove the mounting screws of the
license plate light cover with a phillips
screwdriver.
2. Disconnect the wire harness by turning
the bulb cover counterclockwise and
take the bulb out from the bulb cover by
turning it clockwise.
3. Replace with a new bulb.
OCM055036 G270I01CM-GAT
High Mounted Rear Stop Light
(If Installed)
NOTE:It is recommended that the High-Mounted
Rear Stop Light be replaced by an autho-
rized Hyundai Dealer.

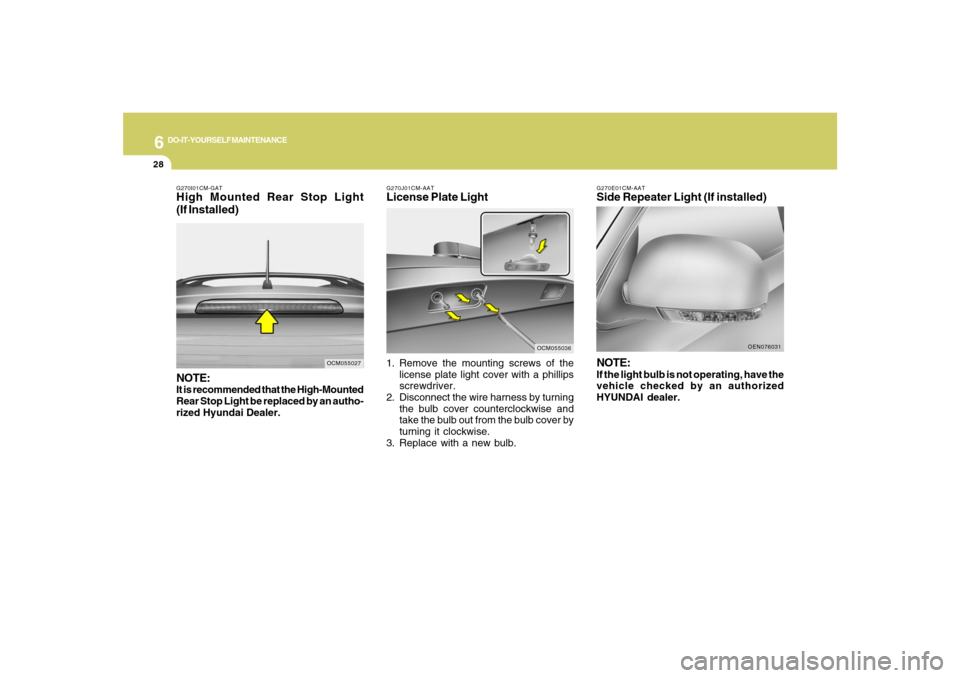

OCM055027G270E01CM-AAT
Side Repeater Light (If installed)
NOTE:If the light bulb is not operating, have the
vehicle checked by an authorized
HYUNDAI dealer.
OEN076031
Page 315 of 355
6
DO-IT-YOURSELF MAINTENANCE
29

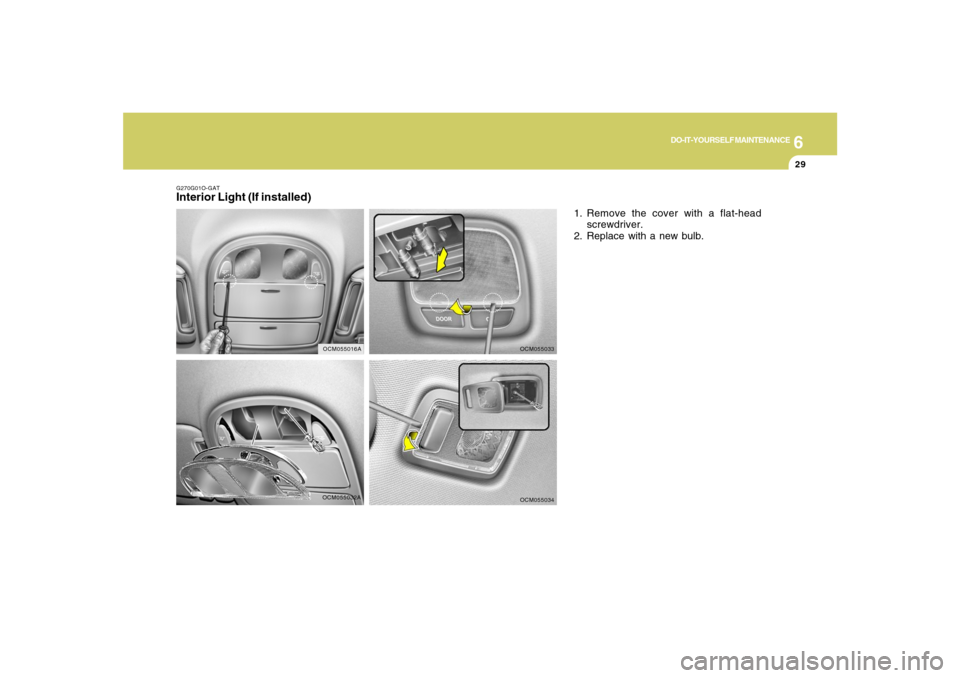

OCM055032A G270G01O-GAT
Interior Light (If installed)
1. Remove the cover with a flat-head
screwdriver.
2. Replace with a new bulb.
OCM055033OCM055034
OCM055016A
Page 316 of 355
6
DO-IT-YOURSELF MAINTENANCE
30

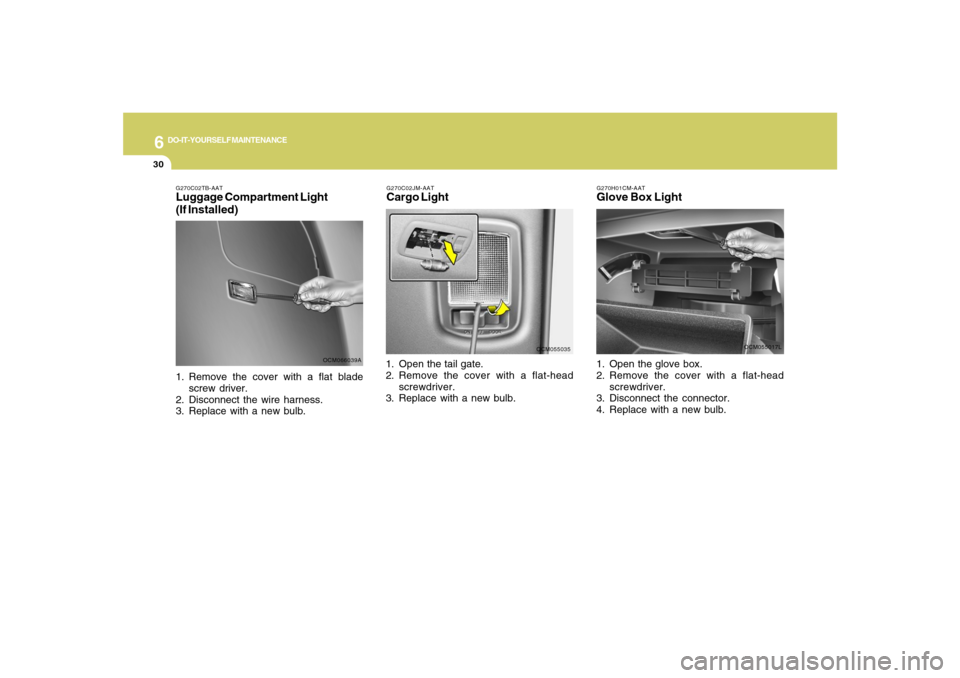

G270H01CM-AATGlove Box Light1. Open the glove box.
2. Remove the cover with a flat-head
screwdriver.
3. Disconnect the connector.
4. Replace with a new bulb.
OCM055017L
G270C02TB-AATLuggage Compartment Light
(If Installed)
OCM066039A
1. Remove the cover with a flat blade
screw driver.
2. Disconnect the wire harness.
3. Replace with a new bulb.
G270C02JM-AATCargo Light1. Open the tail gate.
2. Remove the cover with a flat-head
screwdriver.
3. Replace with a new bulb.
OCM055035
Page 317 of 355
6
DO-IT-YOURSELF MAINTENANCE
31

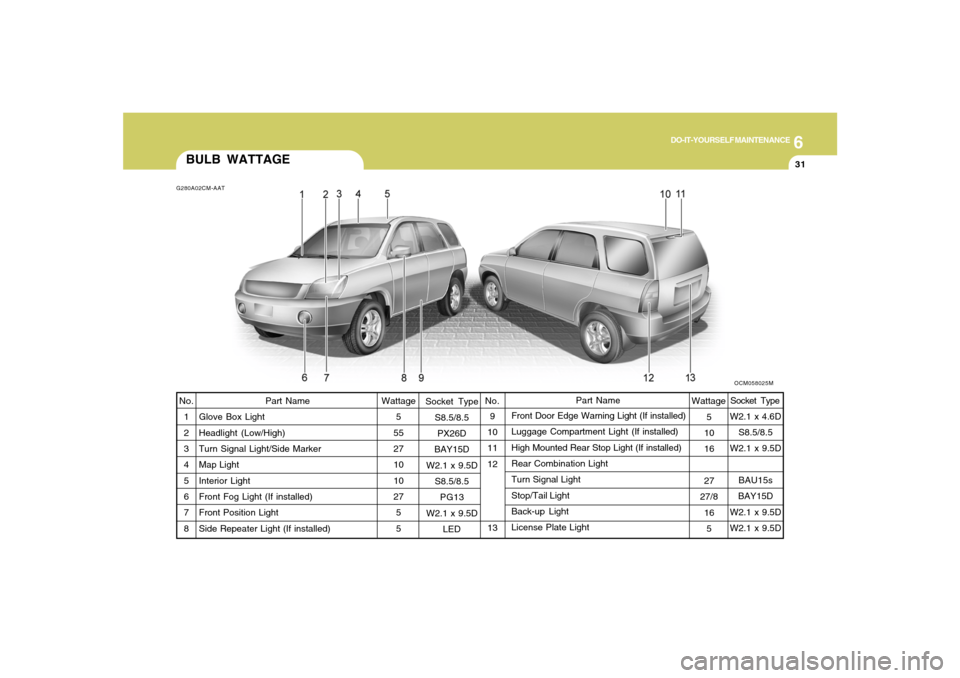

BULB WATTAGE
Socket Type
S8.5/8.5
PX26D
BAY15D
W2.1 x 9.5D
S8.5/8.5
PG13
W2.1 x 9.5D
LED9
10
11
12
13Front Door Edge Warning Light (If installed)
Luggage Compartment Light (If installed)
High Mounted Rear Stop Light (If installed)
Rear Combination Light
Turn Signal Light
Stop/Tail Light
Back-up Light
License Plate Light No.
1
2
3
4
5
6
7
8
Part Name
Glove Box Light
Headlight (Low/High)
Turn Signal Light/Side Marker
Map Light
Interior Light
Front Fog Light (If installed)
Front Position Light
Side Repeater Light (If installed)Wattage
5
55
27
10
10
27
5
5
G280A02CM-AAT
Wattage No.
OCM058025M
5
10
16
27
27/8
16
5
Socket Type
Part Name
W2.1 x 4.6D
S8.5/8.5
W2.1 x 9.5D
BAU15s
BAY15D
W2.1 x 9.5D
W2.1 x 9.5D
Page 318 of 355
6
DO-IT-YOURSELF MAINTENANCE
32

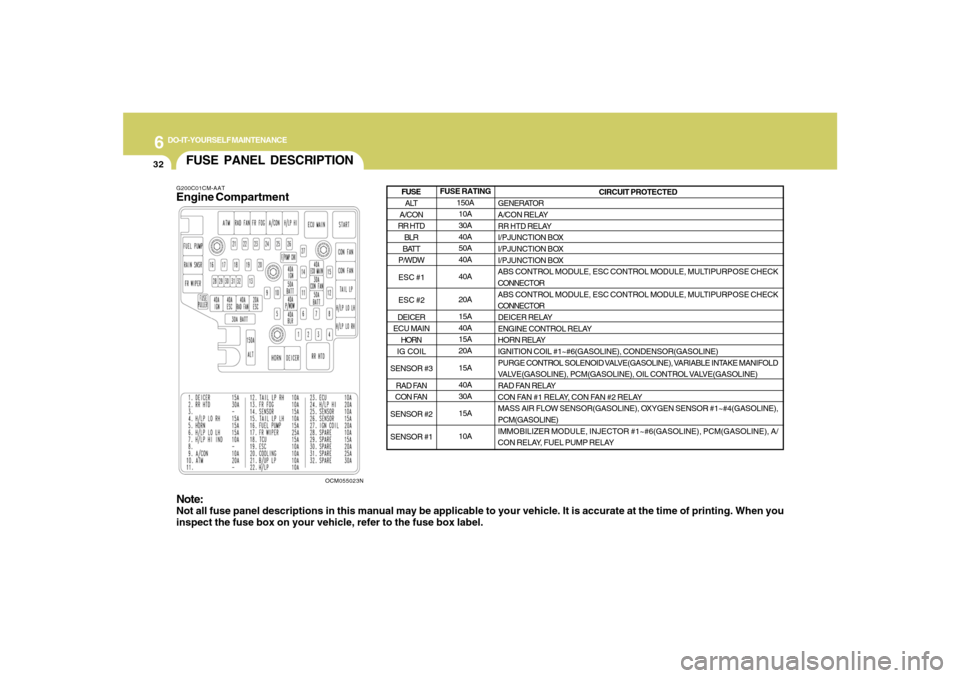

FUSE PANEL DESCRIPTIONG200C01CM-AATEngine Compartment
OCM055023N
Note:Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you
inspect the fuse box on your vehicle, refer to the fuse box label.
FUSE RATING
150A
10A
30A
40A
50A
40A
40A
20A
15A
40A
15A
20A
15A
40A
30A
15A
10ACIRCUIT PROTECTED
GENERATOR
A/CON RELAY
RR HTD RELAY
I/PJUNCTION BOX
I/PJUNCTION BOX
I/PJUNCTION BOX
ABS CONTROL MODULE, ESC CONTROL MODULE, MULTIPURPOSE CHECK
CONNECTOR
ABS CONTROL MODULE, ESC CONTROL MODULE, MULTIPURPOSE CHECK
CONNECTOR
DEICER RELAY
ENGINE CONTROL RELAY
HORN RELAY
IGNITION COIL #1~#6(GASOLINE), CONDENSOR(GASOLINE)
PURGE CONTROL SOLENOID VALVE(GASOLINE), VARIABLE INTAKE MANIFOLD
VALVE(GASOLINE), PCM(GASOLINE), OIL CONTROL VALVE(GASOLINE)
RAD FAN RELAY
CON FAN #1 RELAY, CON FAN #2 RELAY
MASS AIR FLOW SENSOR(GASOLINE), OXYGEN SENSOR #1~#4(GASOLINE),
PCM(GASOLINE)
IMMOBILIZER MODULE, INJECTOR #1~#6(GASOLINE), PCM(GASOLINE), A/
CON RELAY, FUEL PUMP RELAY
ALT
A/CON
RR HTD
BLR
BATT
P/WDW
ESC #1
ESC #2
DEICER
ECU MAIN
HORN
IG COIL
SENSOR #3
RAD FAN
CON FAN
SENSOR #2
SENSOR #1FUSE
Page 319 of 355
6
DO-IT-YOURSELF MAINTENANCE
33
FUSE RATING
15A
15A
15A
10A
10A
25A
20A
10A
40A
40A
50A
20A
15A
10A
10A
10A
10A
10A
10A
10A
10A
15A
20A
25A
30ACIRCUIT PROTECTED
FUEL PUMP RELAY
H/LP LO LH RELAY
H/LP LO RH RELAY
FR FOG RELAY
I/P JUNCTION BOX
FR WIPER RELAY, RAIN SNSR RELAY, FRONT WIPER MOTOR, MULTIFUNCTION SWITCH
H/LP HI RELAY
HEAD LAMP, INSTRUMENT CLUSTER
IGNITION SWITCH
IGNITION SWITCH, START RELAY
I/P JUNCTION BOX
ATM RELAY(GASOLINE), AWD ECM
PCM(GASOLINE)
GENERATOR
VEHICLE SPEED SENSOR, PCM(GASOLINE), SEMI ACTIVE CONTROL MODULE(GASOLINE)
CON FAN #1 RELAY, CON FAN #2 RELAY
INPUT SPEED SENSOR, OUTPUT SPEED SENSOR, TRANSAXLE RANGE SWITCH, BACK-UP LAMP SWITCH
ABS CONTROL MODULE, ESC CONTROL MODULE, YAW RATE SENSOR, AWD ECM, STOP LAMP SWITCH(GASOLINE), MULTIPURPOSE
CHECK CONNECTOR
REAR COMBINATION LAMP LH, POSITION LAMP LH
REAR COMBINATION LAMP RH, POSITION LAMP RH
GLOVE BOX LAMP, ICM RELAY BOX
-
-
-
-
-
FUEL PUMP
H/LP LO LH
H/LP LO RH
FR FOG
H/LP
FR WIPER
H/LP HI
H/LP HI IND
IGN #1
IGN #2
BATT
AT M
TCU
ALT DSL
ECU
COOLING
B/UP UP
ESC
TAIL LH
TAIL RH
SPARE
SPARE
SPARE
SPARE
SPAREFUSE
Page 320 of 355
6
DO-IT-YOURSELF MAINTENANCE
34

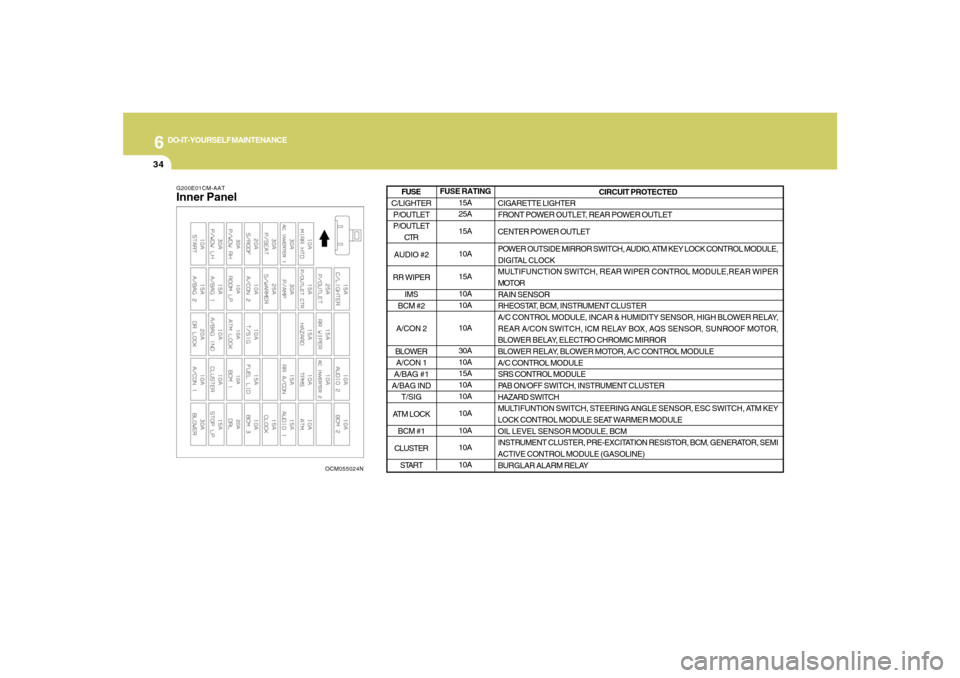

G200E01CM-AATInner Panel
OCM055024N
FUSE RATING
15A
25A
15A
10A
15A
10A
10A
10A
30A
10A
15A
10A
10A
10A
10A
10A
10ACIRCUIT PROTECTED
CIGARETTE LIGHTER
FRONT POWER OUTLET, REAR POWER OUTLET
CENTER POWER OUTLET
POWER OUTSIDE MIRROR SWITCH, AUDIO, ATM KEY LOCK CONTROL MODULE,
DIGITAL CLOCK
MULTIFUNCTION SWITCH, REAR WIPER CONTROL MODULE,REAR WIPER
MOTOR
RAIN SENSOR
RHEOSTAT, BCM, INSTRUMENT CLUSTER
A/C CONTROL MODULE, INCAR & HUMIDITY SENSOR, HIGH BLOWER RELAY,
REAR A/CON SWITCH, ICM RELAY BOX, AQS SENSOR, SUNROOF MOTOR,
BLOWER BELAY, ELECTRO CHROMIC MIRROR
BLOWER RELAY, BLOWER MOTOR, A/C CONTROL MODULE
A/C CONTROL MODULE
SRS CONTROL MODULE
PAB ON/OFF SWITCH, INSTRUMENT CLUSTER
HAZARD SWITCH
MULTIFUNTION SWITCH, STEERING ANGLE SENSOR, ESC SWITCH, ATM KEY
LOCK CONTROL MODULE SEAT WARMER MODULE
OIL LEVEL SENSOR MODULE, BCM
INSTRUMENT CLUSTER, PRE-EXCITATION RESISTOR, BCM, GENERATOR, SEMI
ACTIVE CONTROL MODULE (GASOLINE)
BURGLAR ALARM RELAY
C/LIGHTER
P/OUTLET
P/OUTLET
CTR
AUDIO #2
RR WIPER
IMS
BCM #2
A/CON 2
BLOWER
A/CON 1
A/BAG #1
A/BAG IND
T/SIG
ATM LOCK
BCM #1
CLUSTER
STARTFUSE
