seat adjustment Hyundai Santa Fe 2015 Quick Reference Guide

Table of contentsGETTING STARTED
Folding key 02
Front seat adjustment 03
Headrest adjustment 04
Rear seat folding 04
Remote keyless entry 02
Seat belt adjustment 04
FEATURES AND CONTROLS
AC 115V plug 36
Active ECO System 36
Blind spot detection system (BSD) 37
Central door lock switch 06
Child-protector rear door lock 32
Climate control – Manual 16 -17
Climate control – Automatic 18 -19
Clock adjustments 31
Cruise control system 20
Driver’s main controls 06
Driver selectable steering mode 35
Electronic Stability Control (ESC) 35
Fuel filler lid 05
Headlights and fog lights 07
Homelink wireless control system 11
Instrument cluster 12-15
Instrument panel illumination 13
& 15
Interior lights 10
Power tailgate 09
Rearview camera 37
Seat warmer and cooler 32
Steering wheel adjustments 05
Steering wheel functions 20 - 21
Sunroof 09
Tire Pressure Monitoring System (TPMS) 34
Transmission 33
Trip computer 13 & 15
Wiper and washer 08
MULTIMEDIA
Audio 28
AUX, USB, and iPod
® Port 28
Blue Link Telematics system 26-27
Bluetooth operational tips 22-23
Bluetooth phone operation 24-25
Bluetooth phone pairing 24
Navigation 29-30
Headlights
and fog lightsPage 07
Instrument
clusterPages 12-15
Wiper and
washerPage 08
NavigationPages 29-30
Trip computerPages 13 & 15
Cruise control
systemPage 20
*
Some vehicles may not be equipped with
all the listed features.
Use this Quick Reference Guide to learn
about the features that will enhance your
enjoyment of your Hyundai. More detailed
information about these features is
available in your Owner’s Manual.
Frequently Asked Questions 1. Pair phone to your vehicle. Refer to pages 24.
2. Program HomeLink. Refer to page 11.
3. Getting started with Blue Link. Refer to page 26.
WARNING!
To reduce the risk of serious injury to yourself and others,
read and understand the important SAFETY INFORMATION
in your Owner’s Manual.
Steering wheel
adjustmentsPage 05
TransmissionPage 33
AUX, USB
and iPod
®
port
Page 28
Driver's main
controlsPage 06
Type A Type B
Climate
controlPages 16-19
Manual
Automatic

GETTING STARTED
SANTA FE
03 02
HYUNDAI
FRONT SEAT ADJUSTMENT (Manual)FRONT SEAT ADJUSTMENT (POWER)
Lumbar support
Lumbar supportForward/backward
Forward / backwardSeat cushion height
(for driver’s seat)
Seat cushion height
(for driver’s seat)
Seatback angle
Seatback angleAAABB
B
CC
C
D
D
A
B
C
A
FOLDING KEY
Driver’s door Lock / UnlockSmart key must be within range.Press: Once – Unlock driver door
Twice – Unlock all doors
Third – Lock all doorsUnfolding keyPress button
A to unfold key.
LockLockUnlockUnlockTailgate unlock
(Press and Hold)

Tailgate unlock
(Press and Hold)
Alarm
Alarm Mechanical key
Press and hold the release button
A
and remove the key.
NOTE
User selectable option see Owner’s
Manual for more detail.
A
A
REMOTE KEYLESS ENTRY

GETTING STARTED
SANTA FE
05 04
HYUNDAI
FEATURES AND CONTROLS
Telescopic
NOTEAfter adding fuel, always reinstall the
fuel cap onto the filler neck by
rotating it
clockwise until it clicks one time. Failure to
do this may result in the Check Engine
Light illuminating.
FUEL FILLER LIDSTEERING WHEEL ADJUSTMENTS
TiltNOTE:
Do not adjust while driving.
1. Push the lever
A down to release.
2. Set the angle
B and distance
C.
3. Pull the lever
A up to lock.
A
B
C
HEADREST ADJUSTMENT
To Raise Headrest:
Pull headrest up.
To Lower Headrest:
Press lock button while pressing
down on headrest.
To Adjust Headrest Forward:
Pull forward to 1 of 3 positions
To Adjust Backward:
Press lock button and push
headrest backwards.
SEAT BELT ADJUSTMENT (Front seat)
Pull up to raise.Press button and
push down to
lower.
REAR SEAT FOLDING
From cargo area (2
nd row seat) 2
nd row seat
3rd row seat
Rear center seatback (2
nd row seat)
Check the engine oil regularly
between recommended oil changes.

FEATURES AND CONTROLS
SANTA FE
09 08
HYUNDAI

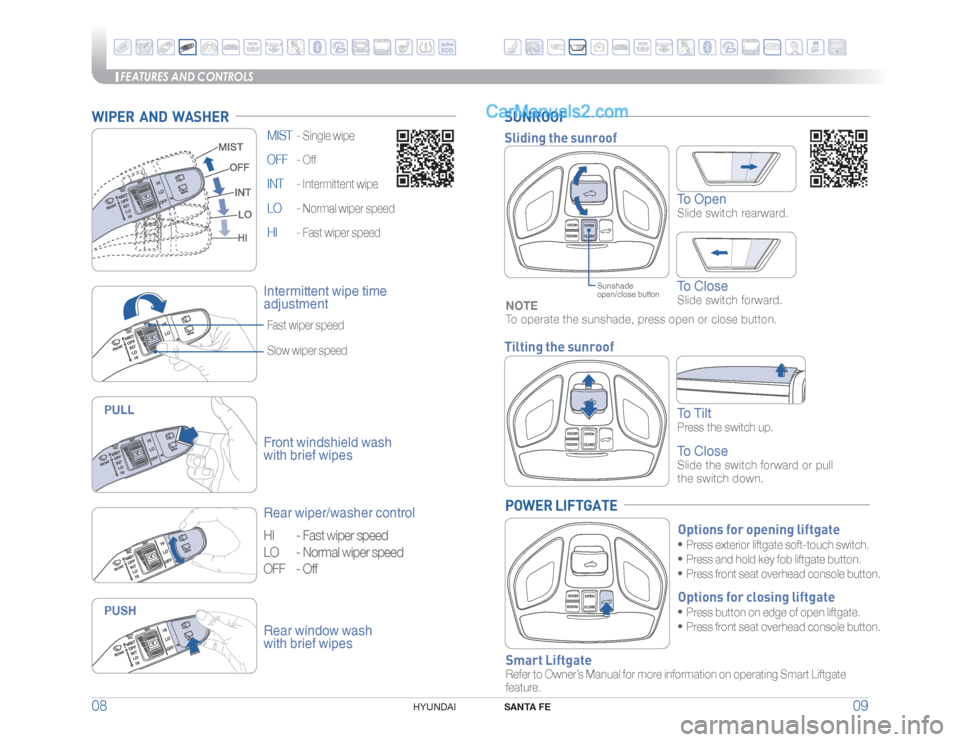

SUNROOFSliding the sunroof
To Open
Slide switch rearward.To CloseSlide switch forward.To TiltPress the switch up.To CloseSlide the switch forward or pull
the switch down.
Tilting the sunroofNOTE
To operate the sunshade, press open or close button.
Sunshade
open/close button
MIST -
Single wipe
OFF -
Off
INT -
Intermittent wipe
LO -
Normal wiper speed
HI -
Fast wiper speed
WIPER AND WASHER
Front windshield wash
with brief wipesIntermittent wipe time
adjustmentFast wiper speed
Slow wiper speedRear wiper/washer control
HI - Fast wiper speed
LO - Normal wiper speed
OFF - OffRear window wash
with brief wipes
PULL
PUSH
Smart LiftgateRefer to Owner’s Manual for more information on operating Smart Liftgate
feature.POWER LIFTGATE
Options for opening liftgater Press exterior liftgate soft-touch switch. r Press and hold key fob liftgate button. r Press front seat overhead console button.Options for closing liftgater Press button on edge of open liftgate.r Press front seat overhead console button.
