HYUNDAI SANTA FE 2022 Owners Manual

3-61
03
OTM030009/OTM030010/OTM030011/OTM030035/OTM030036/OTM030037OTM030009/OTM030010/OTM030011/OTM030035/OTM030036/OTM030037
1. SRS control module / Rollover sensor
2. Front impact sensor
3. Side impact sensor (Pressure)4. Side impact sensor (Acceleration)
5. Side impact sensor (Acceleration)
003_TMa_HMA.indd 3-612021-08-26 9:01:15

Seats & Safety System
3-62

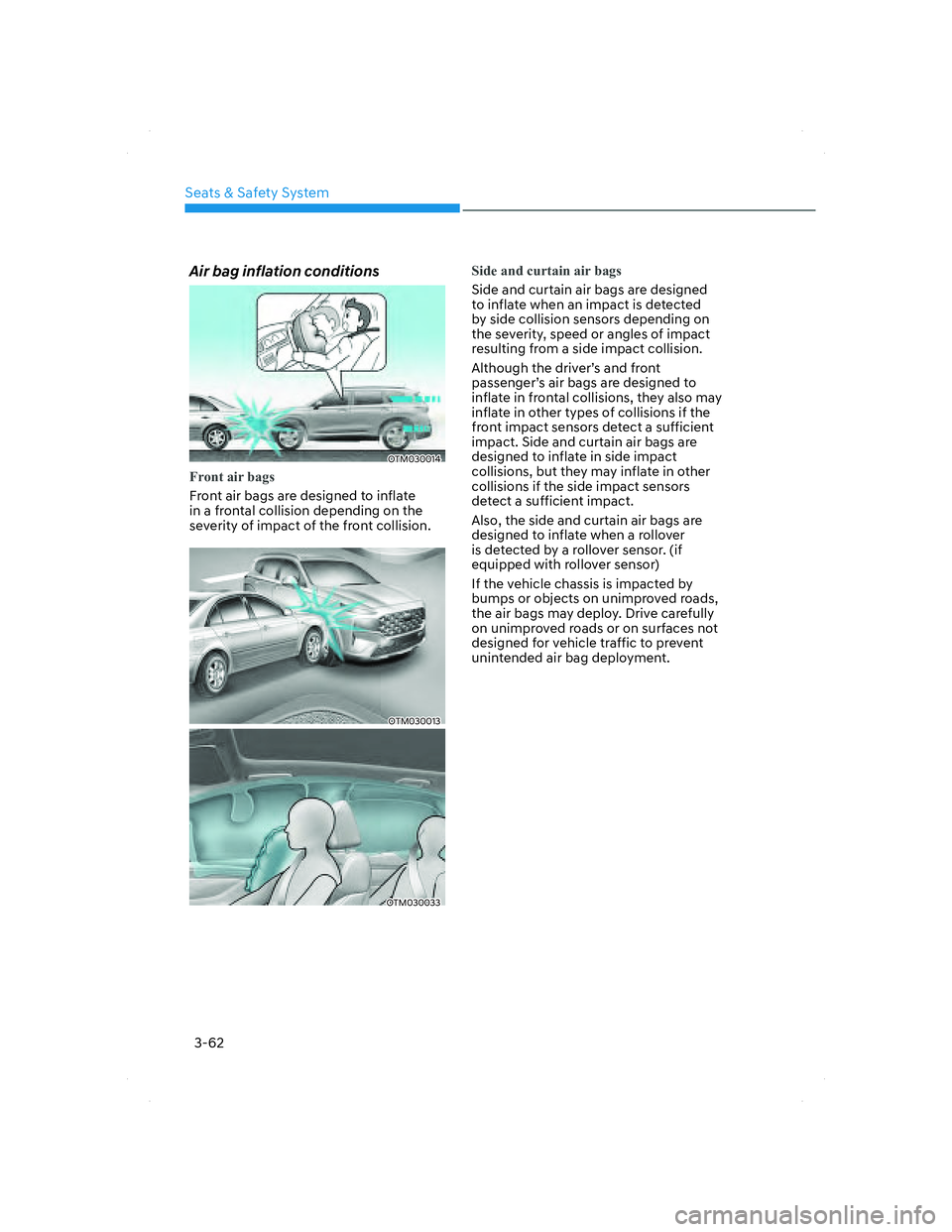

Air bag inflation conditions
OTM030014OTM030014
Front air bags
Front air bags are designed to inflate
in a frontal collision depending on the
severity of impact of the front collision.
OTM030013OTM030013
OTM030033OTM030033
Side and curtain air bags
Side and curtain air bags are designed
to inflate when an impact is detected
by side collision sensors depending on
the severity, speed or angles of impact
resulting from a side impact collision.
Although the driver’s and front
passenger’s air bags are designed to
inflate in frontal collisions, they also may
inflate in other types of collisions if the
front impact sensors detect a sufficient
impact. Side and curtain air bags are
designed to inflate in side impact
collisions, but they may inflate in other
collisions if the side impact sensors
detect a sufficient impact.
Also, the side and curtain air bags are
designed to inflate when a rollover
is detected by a rollover sensor. (if
equipped with rollover sensor)
If the vehicle chassis is impacted by
bumps or objects on unimproved roads,
the air bags may deploy. Drive carefully
on unimproved roads or on surfaces not
designed for vehicle traffic to prevent
unintended air bag deployment.
003_TMa_HMA.indd 3-622021-08-26 9:01:16

03
3-63

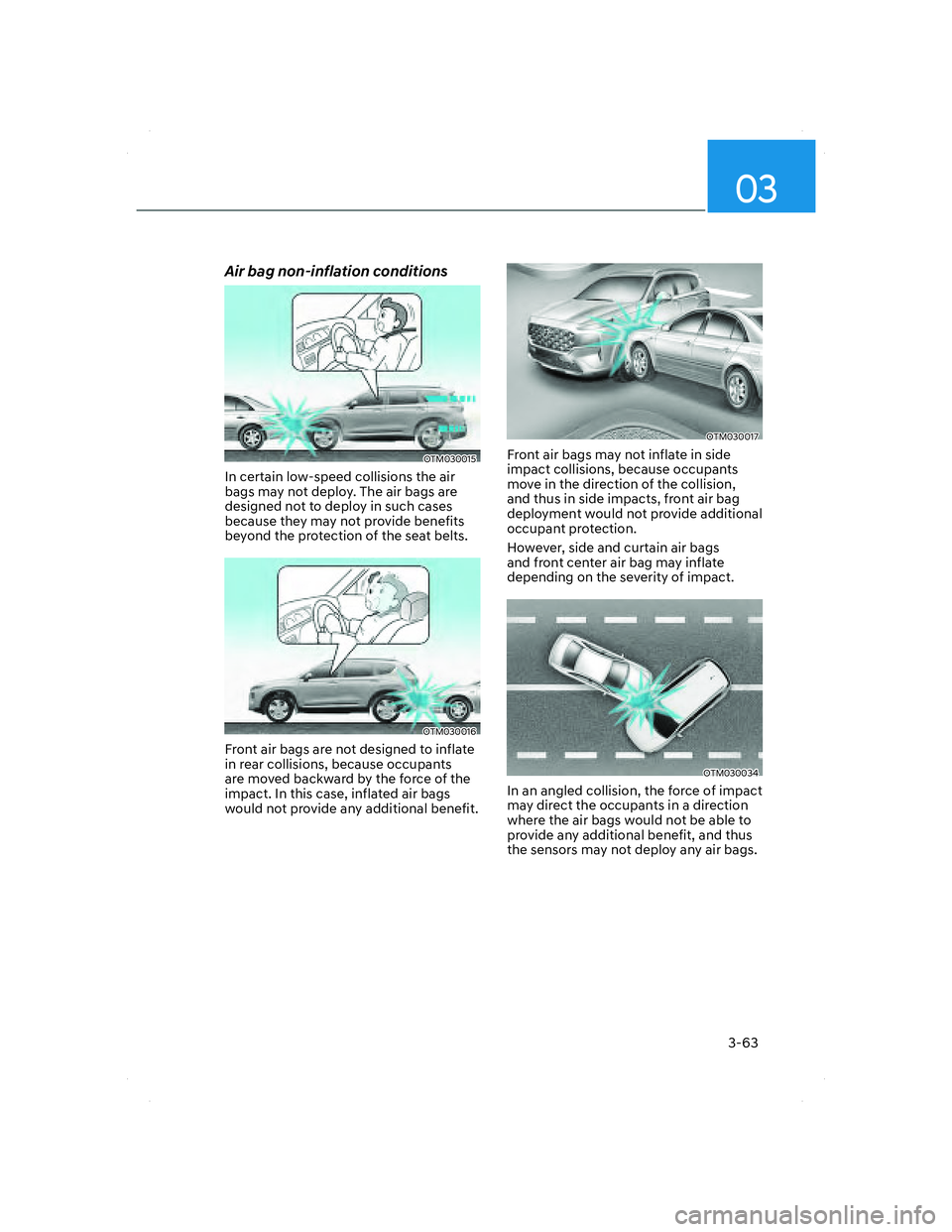

Air bag non-inflation conditions
OTM030015OTM030015
In certain low-speed collisions the air
bags may not deploy. The air bags are
designed not to deploy in such cases
because they may not provide benefits
beyond the protection of the seat belts.
OTM030016OTM030016
Front air bags are not designed to inflate
in rear collisions, because occupants
are moved backward by the force of the
impact. In this case, inflated air bags
would not provide any additional benefit.
OTM030017OTM030017
Front air bags may not inflate in side
impact collisions, because occupants
move in the direction of the collision,
and thus in side impacts, front air bag
deployment would not provide additional
occupant protection.
However, side and curtain air bags
and front center air bag may inflate
depending on the severity of impact.
OTM030034OTM030034
In an angled collision, the force of impact
may direct the occupants in a direction
where the air bags would not be able to
provide any additional benefit, and thus
the sensors may not deploy any air bags.
003_TMa_HMA.indd 3-632021-08-26 9:01:16

Seats & Safety System
3-64
OTM030018OTM030018

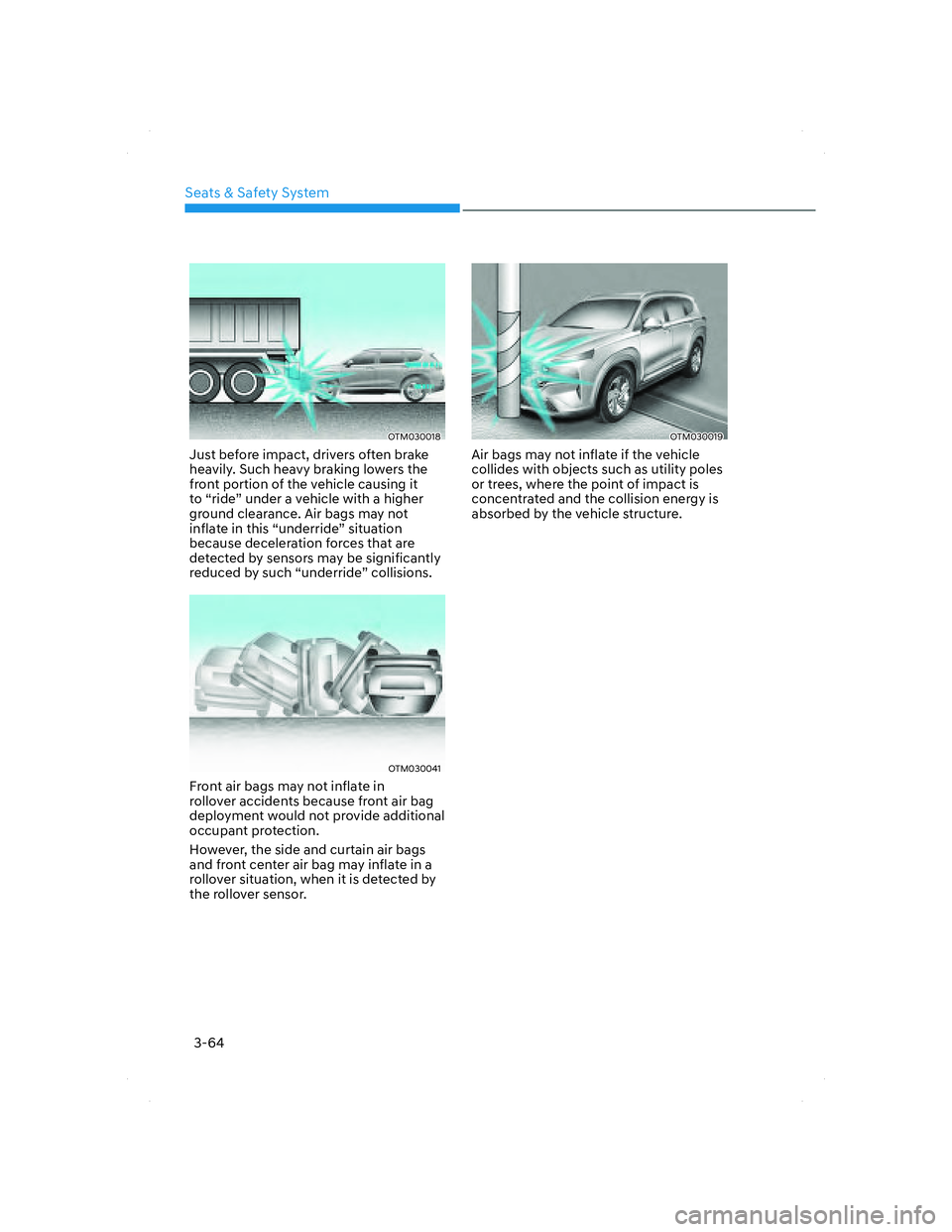

Just before impact, drivers often brake
heavily. Such heavy braking lowers the
front portion of the vehicle causing it
to “ride” under a vehicle with a higher
ground clearance. Air bags may not
inflate in this “underride” situation
because deceleration forces that are
detected by sensors may be significantly
reduced by such “underride” collisions.
OTM030041OTM030041
Front air bags may not inflate in
rollover accidents because front air bag
deployment would not provide additional
occupant protection.
However, the side and curtain air bags
and front center air bag may inflate in a
rollover situation, when it is detected by
the rollover sensor.
OTM030019OTM030019
Air bags may not inflate if the vehicle
collides with objects such as utility poles
or trees, where the point of impact is
concentrated and the collision energy is
absorbed by the vehicle structure.
003_TMa_HMA.indd 3-642021-08-26 9:01:17

03
3-65

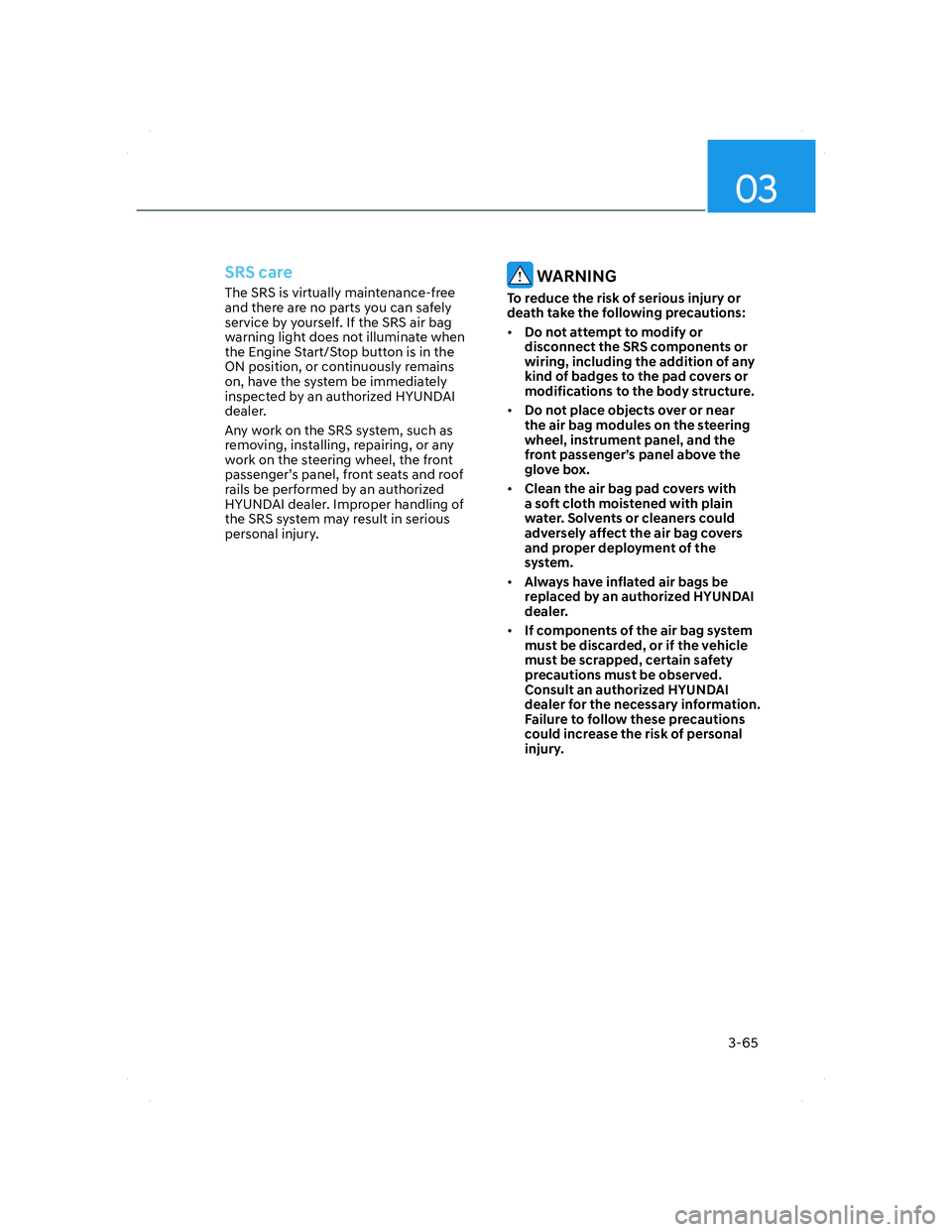

SRS care
The SRS is virtually maintenance-free
and there are no parts you can safely
service by yourself. If the SRS air bag
warning light does not illuminate when
the Engine Start/Stop button is in the
ON position, or continuously remains
on, have the system be immediately
inspected by an authorized HYUNDAI
dealer.
Any work on the SRS system, such as
removing, installing, repairing, or any
work on the steering wheel, the front
passenger’s panel, front seats and roof
rails be performed by an authorized
HYUNDAI dealer. Improper handling of
the SRS system may result in serious
personal injury. WARNING
To reduce the risk of serious injury or
death take the following precautions:
• Do not attempt to modify or
disconnect the SRS components or
wiring, including the addition of any
kind of badges to the pad covers or
modifications to the body structure.
• Do not place objects over or near
the air bag modules on the steering
wheel, instrument panel, and the
front passenger’s panel above the
glove box.
• Clean the air bag pad covers with
a soft cloth moistened with plain
water. Solvents or cleaners could
adversely affect the air bag covers
and proper deployment of the
system.
• Always have inflated air bags be
replaced by an authorized HYUNDAI
dealer.
• If components of the air bag system
must be discarded, or if the vehicle
must be scrapped, certain safety
precautions must be observed.
Consult an authorized HYUNDAI
dealer for the necessary information.
Failure to follow these precautions
could increase the risk of personal
injury.
003_TMa_HMA.indd 3-652021-08-26 9:01:17

Seats & Safety System
3-66

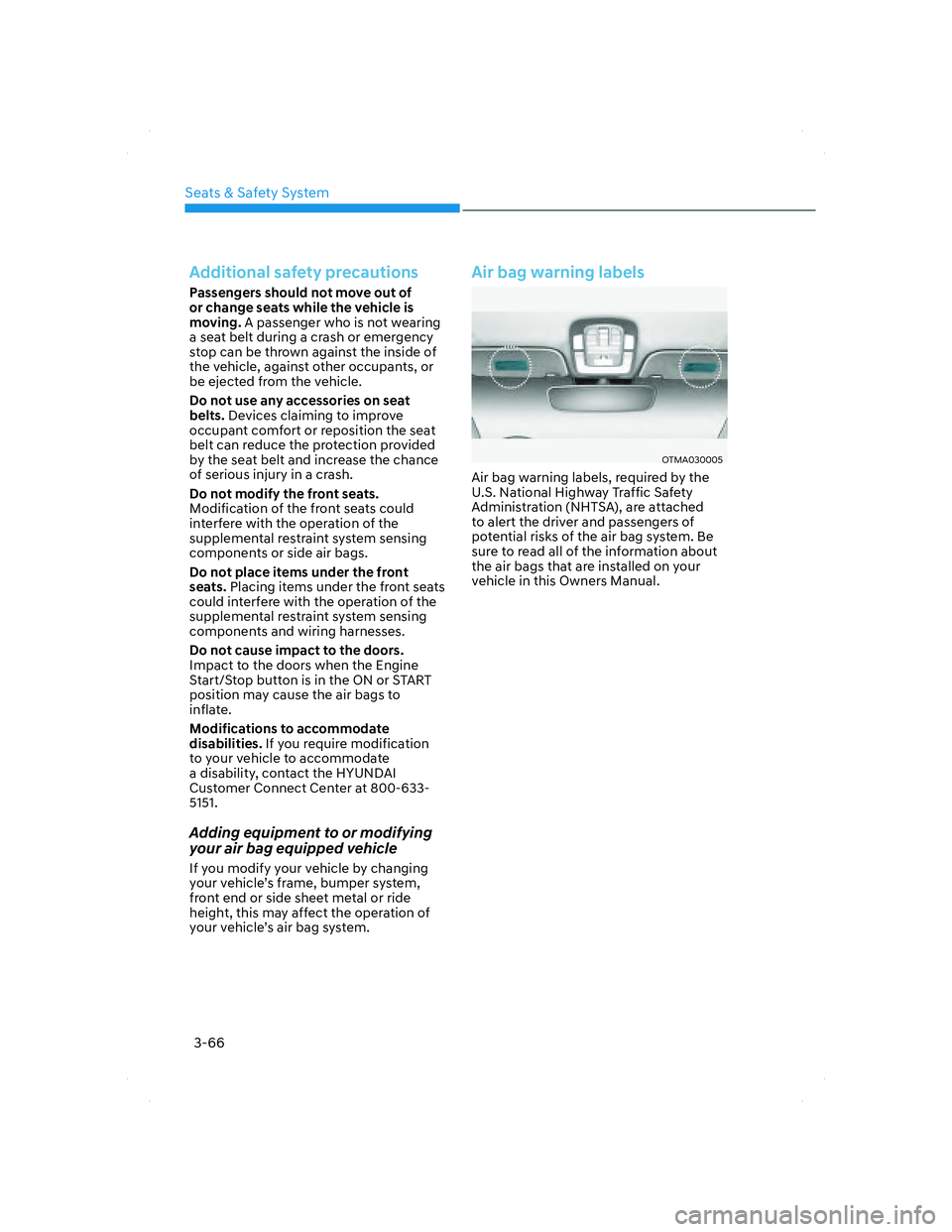

Additional safety precautions
Passengers should not move out of
or change seats while the vehicle is
moving. A passenger who is not wearing
a seat belt during a crash or emergency
stop can be thrown against the inside of
the vehicle, against other occupants, or
be ejected from the vehicle.
Do not use any accessories on seat
belts. Devices claiming to improve
occupant comfort or reposition the seat
belt can reduce the protection provided
by the seat belt and increase the chance
of serious injury in a crash.
Do not modify the front seats.
Modification of the front seats could
interfere with the operation of the
supplemental restraint system sensing
components or side air bags.
Do not place items under the front
seats. Placing items under the front seats
could interfere with the operation of the
supplemental restraint system sensing
components and wiring harnesses.
Do not cause impact to the doors.
Impact to the doors when the Engine
Start/Stop button is in the ON or START
position may cause the air bags to
inflate.
Modifications to accommodate
disabilities. If you require modification
to your vehicle to accommodate
a disability, contact the HYUNDAI
Customer Connect Center at 800-633-
5151.
Adding equipment to or modifying
your air bag equipped vehicle
If you modify your vehicle by changing
your vehicle’s frame, bumper system,
front end or side sheet metal or ride
height, this may affect the operation of
your vehicle’s air bag system.
Air bag warning labels
OTMA030005OTMA030005
Air bag warning labels, required by the
U.S. National Highway Traffic Safety
Administration (NHTSA), are attached
to alert the driver and passengers of
potential risks of the air bag system. Be
sure to read all of the information about
the air bags that are installed on your
vehicle in this Owners Manual.
003_TMa_HMA.indd 3-662021-08-26 9:01:17

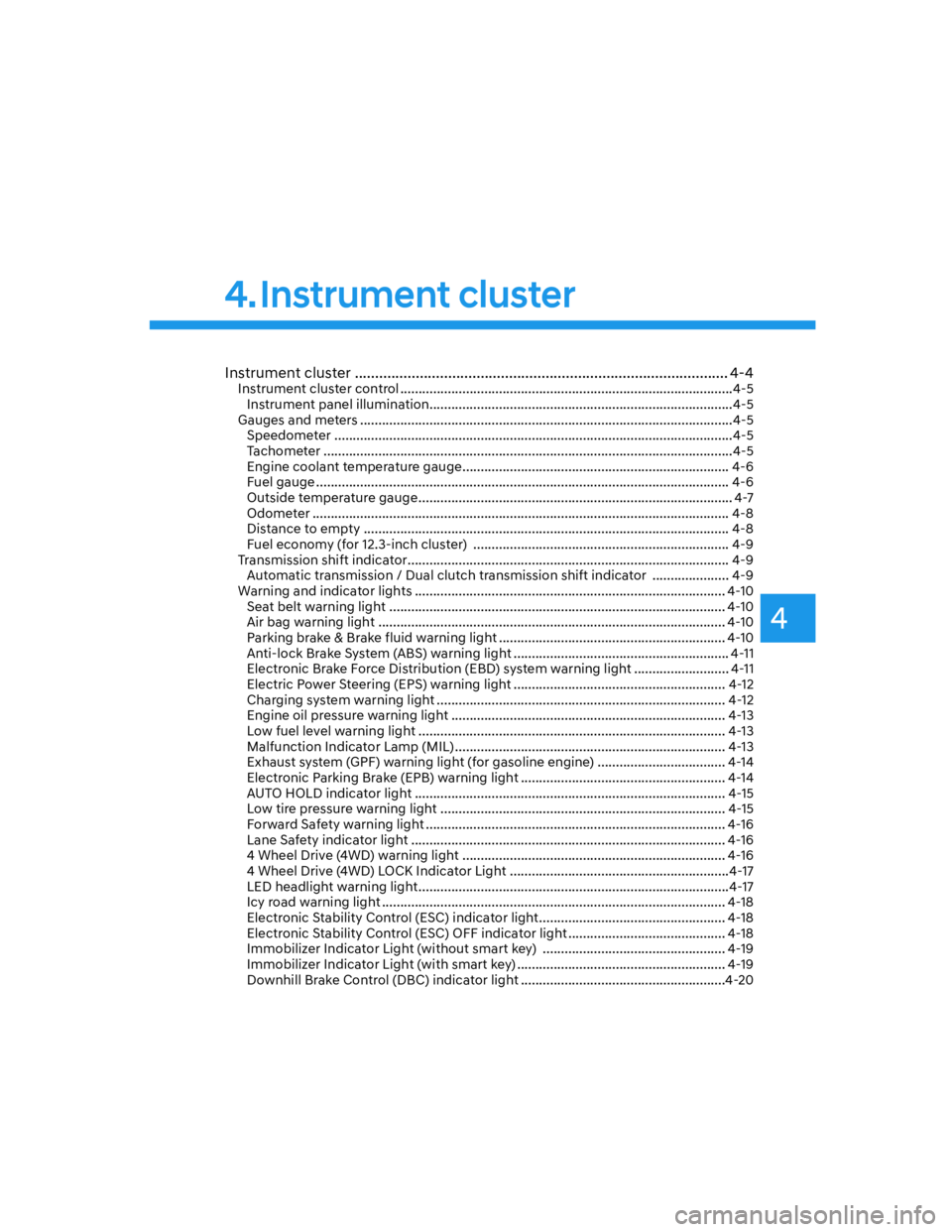

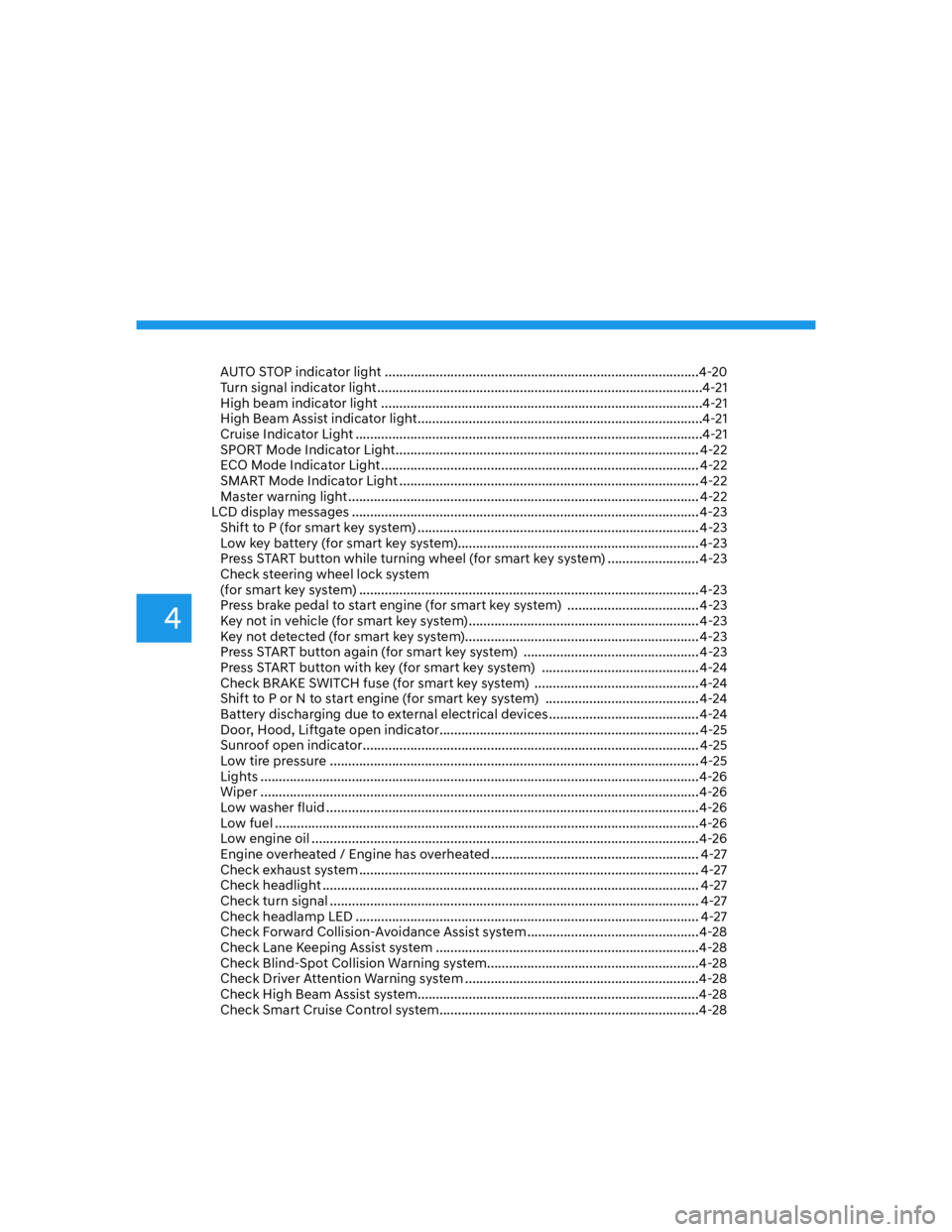

4
Instrument cluster ............................................................................................ 4-4Instrument cluster control ...........................................................................................4-5
Instrument panel illumination
...................................................................................4-5
Gauges and meters
......................................................................................................4-5
Speedometer
.............................................................................................................4-5
Tachometer
................................................................................................................4-5
Engine coolant temperature gauge
......................................................................... 4-6
Fuel gauge
................................................................................................................. 4-6
Outside temperature gauge
...................................................................................... 4-7
Odometer
.................................................................................................................. 4-8
Distance to empty
.................................................................................................... 4-8
Fuel economy (for 12.3-inch cluster)
...................................................................... 4-9
Transmission shift indicator
........................................................................................ 4-9
Automatic transmission / Dual clutch transmission shift indicator
..................... 4-9
Warning and indicator lights
..................................................................................... 4-10
Seat belt warning light
............................................................................................ 4-10
Air bag warning light
............................................................................................... 4-10
Parking brake & Brake fluid warning light
.............................................................. 4-10
Anti-lock Brake System (ABS) warning light
........................................................... 4-11
Electronic Brake Force Distribution (EBD) system warning light
.......................... 4-11
Electric Power Steering (EPS) warning light
.......................................................... 4-12
Charging system warning light
............................................................................... 4-12
Engine oil pressure warning light
........................................................................... 4-13
Low fuel level warning light
.................................................................................... 4-13
Malfunction Indicator Lamp (MIL)
.......................................................................... 4-13
Exhaust system (GPF) warning light (for gasoline engine)
................................... 4-14
Electronic Parking Brake (EPB) warning light
........................................................ 4-14
AUTO HOLD indicator light
..................................................................................... 4-15
Low tire pressure warning light
.............................................................................. 4-15
Forward Safety warning light
.................................................................................. 4-16
Lane Safety indicator light
...................................................................................... 4-16
4 Wheel Drive (4WD) warning light
........................................................................ 4-16
4 Wheel Drive (4WD) LOCK Indicator Light
............................................................4-17
LED headlight warning light
.....................................................................................4-17
Icy road warning light
.............................................................................................. 4-18
Electronic Stability Control (ESC) indicator light
................................................... 4-18
Electronic Stability Control (ESC) OFF indicator light
........................................... 4-18
Immobilizer Indicator Light (without smart key)
.................................................. 4-19
Immobilizer Indicator Light (with smart key)
......................................................... 4-19
Downhill Brake Control (DBC) indicator light
........................................................4-20

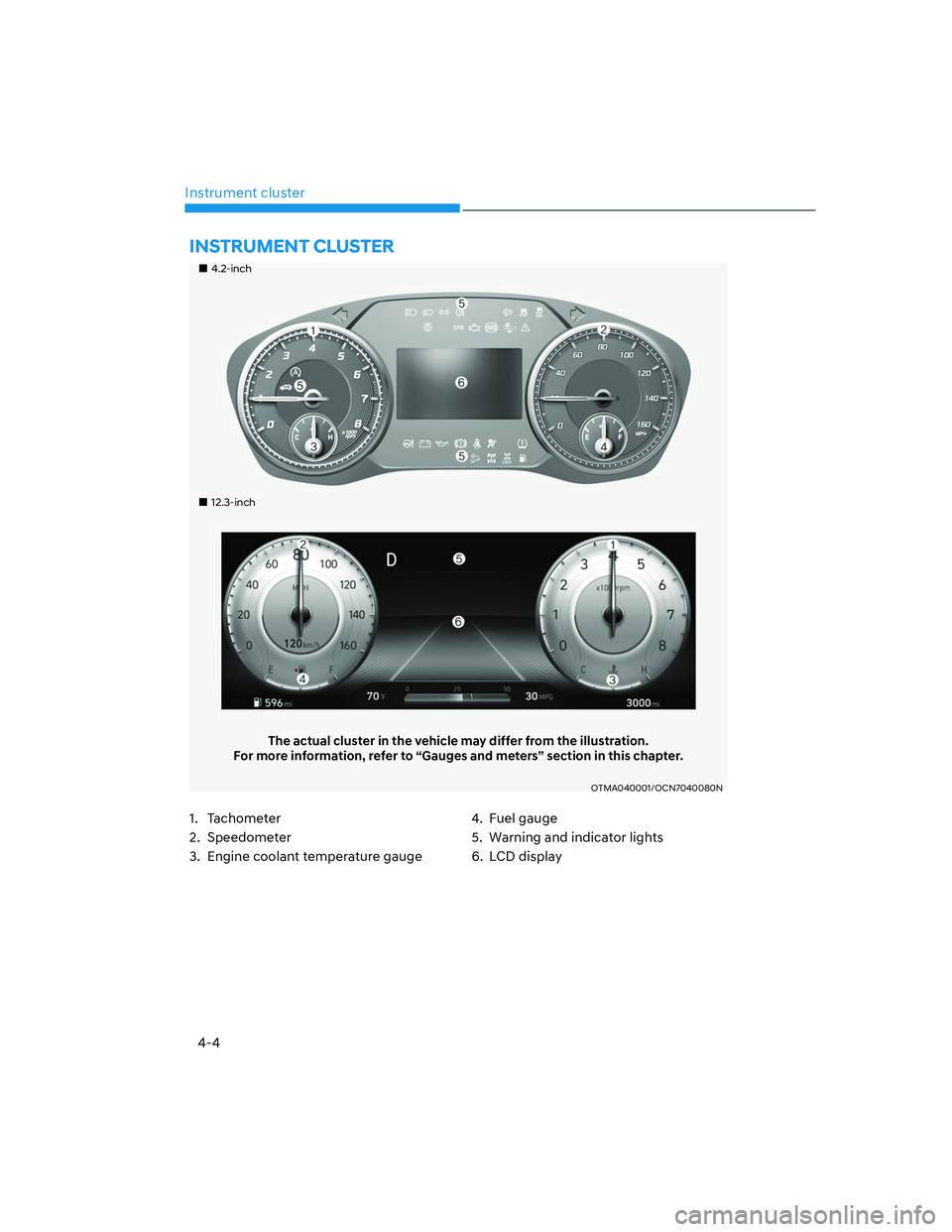

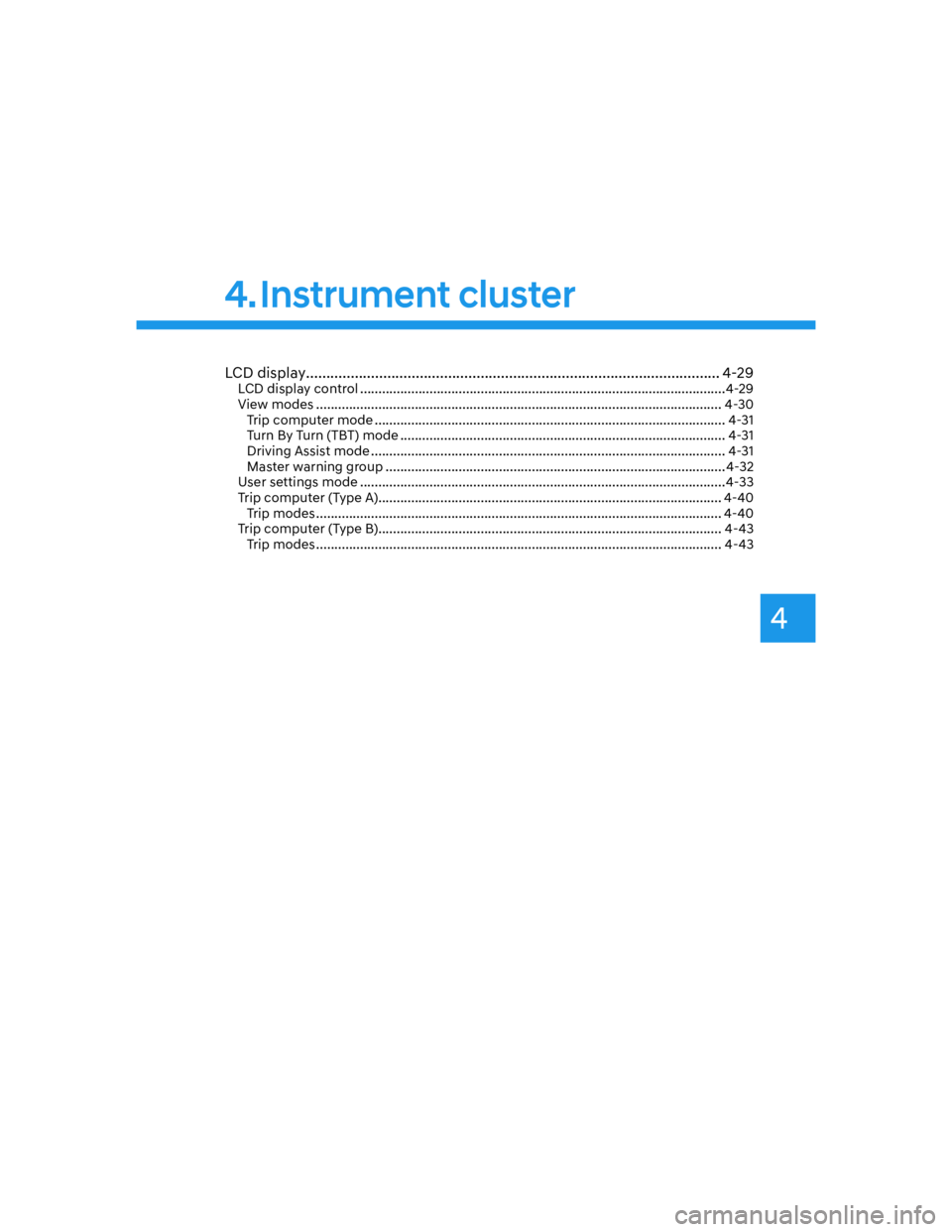

4. Instrument cluster

4
AUTO STOP indicator light ......................................................................................4-20
Turn signal indicator light
.........................................................................................4-21
High beam indicator light
........................................................................................4-21
High Beam Assist indicator light
..............................................................................4-21
Cruise Indicator Light
...............................................................................................4-21
SPORT Mode Indicator Light
................................................................................... 4-22
ECO Mode Indicator Light
....................................................................................... 4-22
SMART Mode Indicator Light
.................................................................................. 4-22
Master warning light
................................................................................................ 4-22
LCD display messages
............................................................................................... 4-23
Shift to P (for smart key system)
............................................................................. 4-23
Low key battery (for smart key system).................................................................. 4-23
Press START button while turning wheel (for smart key system)
......................... 4-23
Check steering wheel lock system
(for smart key system)
............................................................................................. 4-23
Press brake pedal to start engine (for smart key system)
.................................... 4-23
Key not in vehicle (for smart key system)
............................................................... 4-23
Key not detected (for smart key system)................................................................ 4-23
Press START button again (for smart key system)
................................................ 4-23
Press START button with key (for smart key system)
........................................... 4-24
Check BRAKE SWITCH fuse (for smart key system)
............................................. 4-24
Shift to P or N to start engine (for smart key system)
.......................................... 4-24
Battery discharging due to external electrical devices
......................................... 4-24
Door, Hood, Liftgate open indicator
....................................................................... 4-25
Sunroof open indicator
............................................................................................ 4-25
Low tire pressure
..................................................................................................... 4-25
Lights
........................................................................................................................4-26
Wiper
........................................................................................................................4-26
Low washer fluid
......................................................................................................4-26
Low fuel
....................................................................................................................4-26
Low engine oil
..........................................................................................................4-26
Engine overheated / Engine has overheated
......................................................... 4-27
Check exhaust system
............................................................................................. 4-27
Check headlight
....................................................................................................... 4-27
Check turn signal
..................................................................................................... 4-27
Check headlamp LED
.............................................................................................. 4-27
Check Forward Collision-Avoidance Assist system
...............................................4-28
Check Lane Keeping Assist system
........................................................................4-28
Check Blind-Spot Collision Warning system..........................................................4-28
Check Driver Attention Warning system
................................................................4-28
Check High Beam Assist system
.............................................................................4-28
Check Smart Cruise Control system
.......................................................................4-28

4
4. Instrument cluster
LCD display ...................................................................................................... 4-29LCD display control ....................................................................................................4-29
View modes
............................................................................................................... 4-30
Trip computer mode
................................................................................................ 4-31
Turn By Turn (TBT) mode
......................................................................................... 4-31
Driving Assist mode
................................................................................................. 4-31
Master warning group
............................................................................................. 4-32
User settings mode
....................................................................................................4-33
Trip computer (Type A).............................................................................................. 4-40
Trip modes
............................................................................................................... 4-40
Trip computer (Type B).............................................................................................. 4-43
Trip modes
............................................................................................................... 4-43

4-4
Instrument cluster
„4.2-inch
„12.3-inch
The actual cluster in the vehicle may differ from the illustration.
For more information, refer to “Gauges and meters” section in this chapter.
OTMA040001/OCN7040080N
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge4. Fuel gauge
5. Warning and indicator lights
6. LCD display
INSTRUMENT CLUSTER
