HYUNDAI SANTA FE 2022 Owner's Manual

02
2-9
Light bulb Bulb type Wattage
FrontType AHeadlampHigh LED LED
Low LED LED
Daytime running lamp (DRL) /
position lampLED LED
Turn signal lamp PY21W 21
Type BHeadlampHigh LED LED
Low LED LED
Low beam assist LED LED
Daytime running lamp (DRL) /
position lampLED LED
Turn signal lamp (Outside mirror) LED LED
Turn signal lamp (Outside mirror) LED LED
RearType ATail lamp W5W 5
Tail/Stop lamp P21/5W 5/21
Type BTail lamp LED LED
Tail/Stop lamp LED LED
Turn signal lampType A PY21W 21
Type B LED LED
Reverse lamp W16W 16
License plate lamp W5W 5
High mounted stop lamp LED LED
InteriorMap lampType A W10W 10
Type B LED LED
Room lamp FESTOON 10
Personnal lamp LED LED
Glove box lamp W5W 5
Sunvisor lamp FESTOON 5
Luggage compartment lamp FESTOON 10
BULB WATTAGE

Vehicle Information, Consumer Information and Reporting Safety Defects
2-10
Items Tire sizeWheel
sizeInflation pressure
kPa (psi)Wheel bolt
torque
lbf·ft
(kgf·m, N·m) Normal load Maximum load
Front Rear Front Rear
Full size tire
235/60 R18 7.5J x 18
240(35)79~94
(11~13, 107~127)235/55 R19 7.5J x 19
255/45 R20 8.5J x 20
Compact
spare tireT135/90 D17 4.0B x 17420(60)
NOTICE

[It is permissible to add 3 psi to the standard tire pressure specification if colder
temperatures are expected soon.
Tires typically lose 1psi (7kPa) for every 12°F temperature drop. If extreme
temperature variations are expected, recheck your tire pressure as necessary to
keep them properly inflated.

[Tire inflation pressures will vary with changes in elevation. If driving in areas of
higher or lower elevation, be sure to check and adjust for proper tire inflation.
CAUTION

[When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.

[When replacing tires, ALWAYS use the same size, type, construction and tread
pattern supplied with the vehicle for all tires.

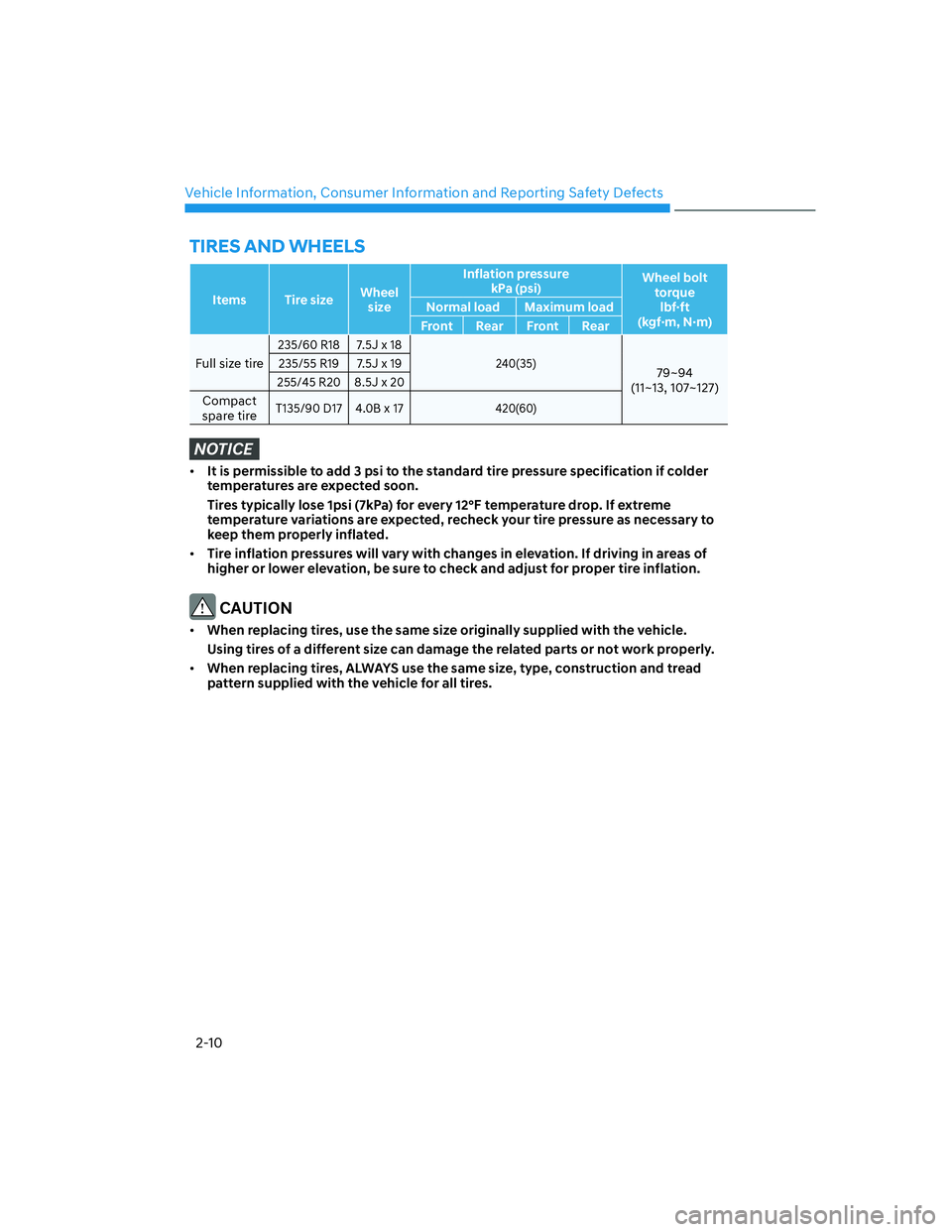

TIRES AND WHEELS

02
2-11

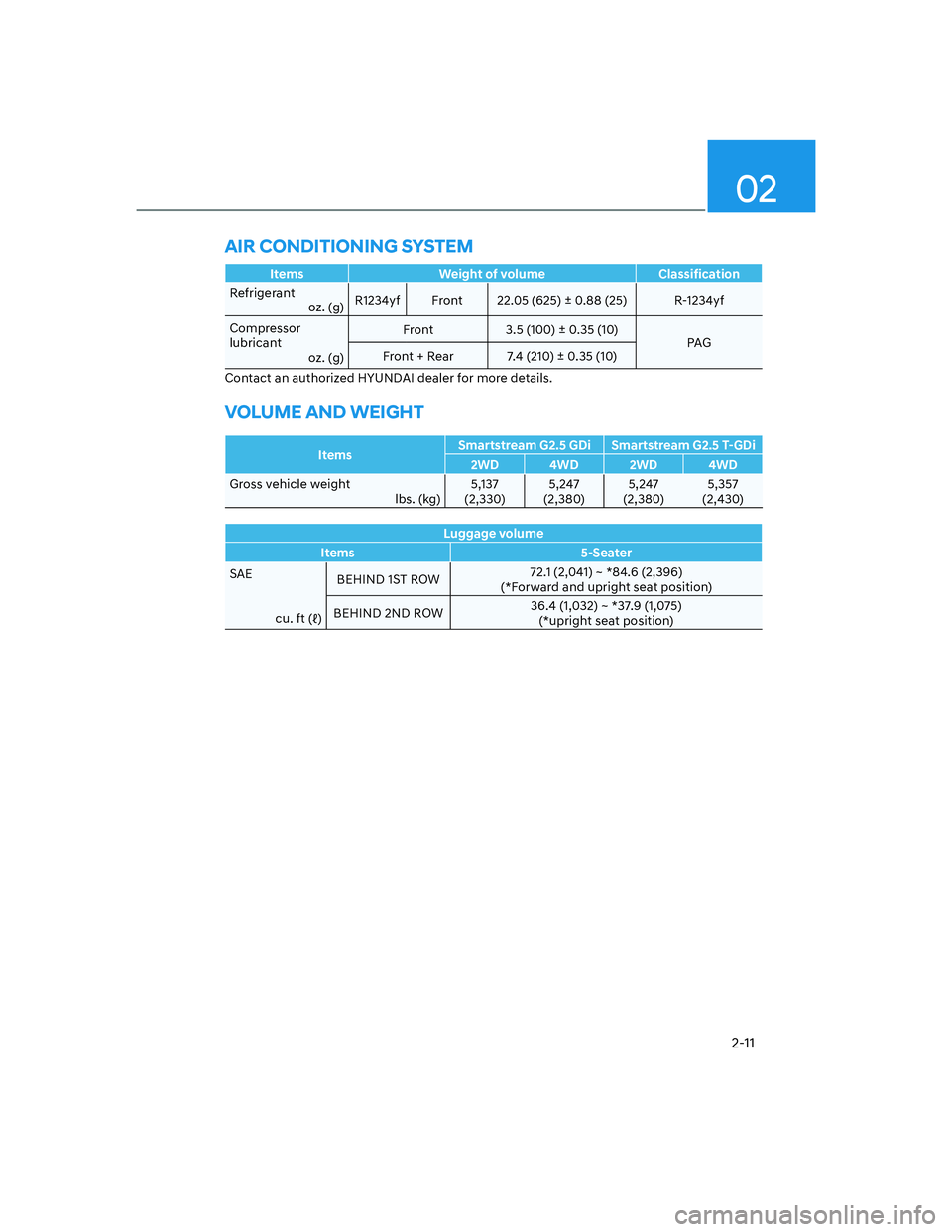

Items Weight of volume Classification
Refrigerant
oz. (g)R1234yf Front 22.05 (625) ± 0.88 (25) R-1234yf
Compressor
lubricant
oz. (g)Front 3.5 (100) ± 0.35 (10)
PAG
Front + Rear 7.4 (210) ± 0.35 (10)
Contact an authorized HYUNDAI dealer for more details.
VOLUME AND WEIGHT
ItemsSmartstream G2.5 GDi Smartstream G2.5 T-GDi
2WD 4WD 2WD 4WD
Gross vehicle weight
lbs. (kg)5,137
(2,330)5,247
(2,380)5,247
(2,380)5,357
(2,430)
Luggage volume
Items 5-Seater
SAE
FXIW
b BEHIND 1ST ROW72.1 (2,041) ~ *84.6 (2,396)
(*Forward and upright seat position)
BEHIND 2ND ROW36.4 (1,032) ~ *37.9 (1,075)
(*upright seat position)
AIR CONDITIONING SYSTEM

Vehicle Information, Consumer Information and Reporting Safety Defects
2-12

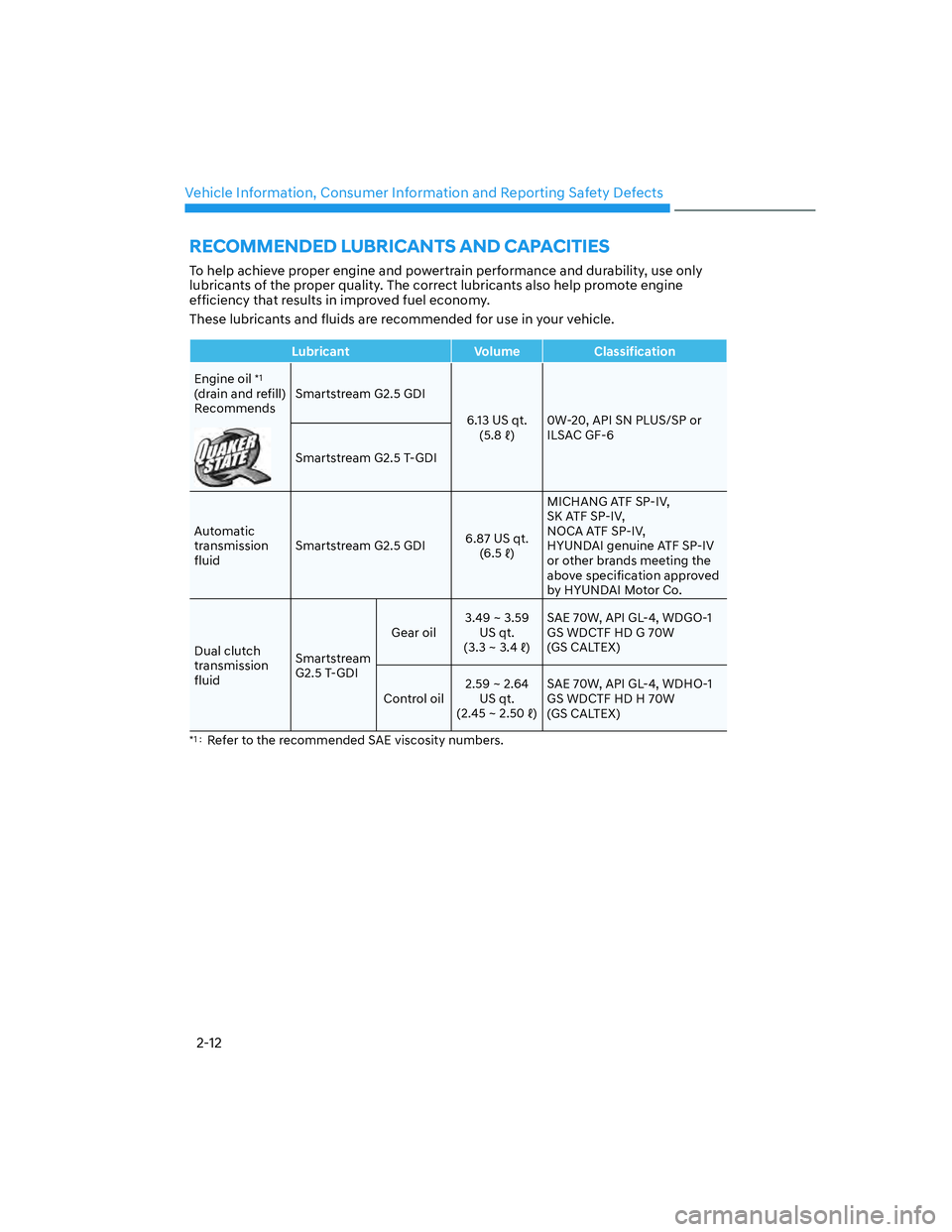

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *1
(drain and refill)
RecommendsSmartstream G2.5 GDI
6.13 US qt.

b 0W-20, API SN PLUS/SP or
ILSAC GF-6
Smartstream G2.5 T-GDI
Automatic
transmission
fluidSmartstream G2.5 GDI6.87 US qt.

b MICHANG ATF SP-IV,
SK ATF SP-IV,
NOCA ATF SP-IV,
HYUNDAI genuine ATF SP-IV
or other brands meeting the
above specification approved
by HYUNDAI Motor Co.
Dual clutch
transmission
fluidSmartstream
G2.5 T-GDIGear oil3.49 ~ 3.59
US qt.
a
b SAE 70W, API GL-4, WDGO-1
GS WDCTF HD G 70W
(GS CALTEX)
Control oil2.59 ~ 2.64
US qt.
a
b SAE 70W, API GL-4, WDHO-1
GS WDCTF HD H 70W
(GS CALTEX)
*1 : Refer to the recommended SAE viscosity numbers.

02
2-13

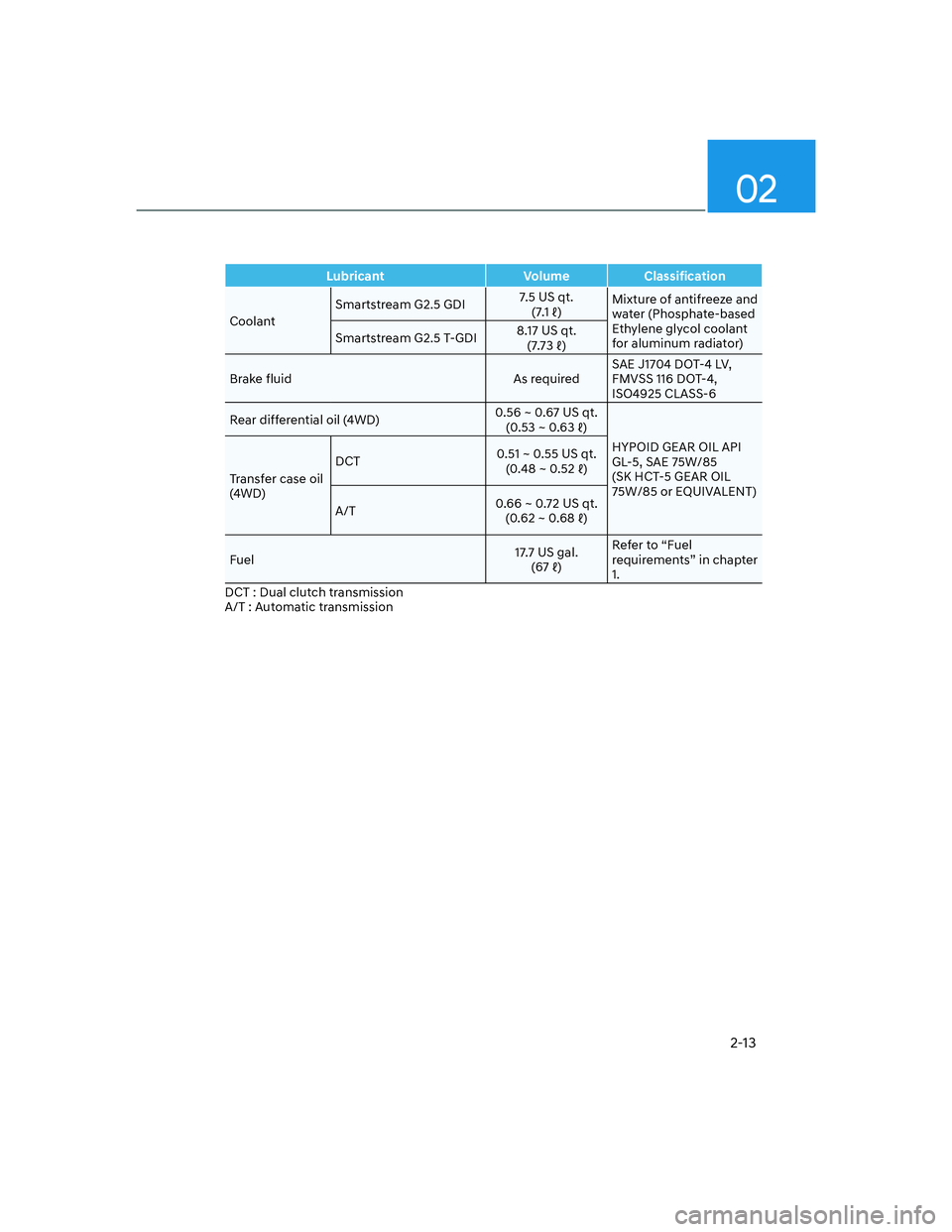

Lubricant Volume Classification
CoolantSmartstream G2.5 GDI7.5 US qt.

b Mixture of antifreeze and
water (Phosphate-based
Ethylene glycol coolant
for aluminum radiator) Smartstream G2.5 T-GDI8.17 US qt.

b
Brake fluid As required SAE J1704 DOT-4 LV,
FMVSS 116 DOT-4,
ISO4925 CLASS-6
Rear differential oil (4WD) 0.56 ~ 0.67 US qt.
a
b
HYPOID GEAR OIL API
GL-5, SAE 75W/85
(SK HCT-5 GEAR OIL
75W/85 or EQUIVALENT) Transfer case oil
(4WD)DCT0.51 ~ 0.55 US qt.
a
b
A/T0.66 ~ 0.72 US qt.
a
b
Fuel17.7 US gal.

b Refer to “Fuel
requirements” in chapter
1.
DCT : Dual clutch transmission
A/T : Automatic transmission

Vehicle Information, Consumer Information and Reporting Safety Defects
2-14

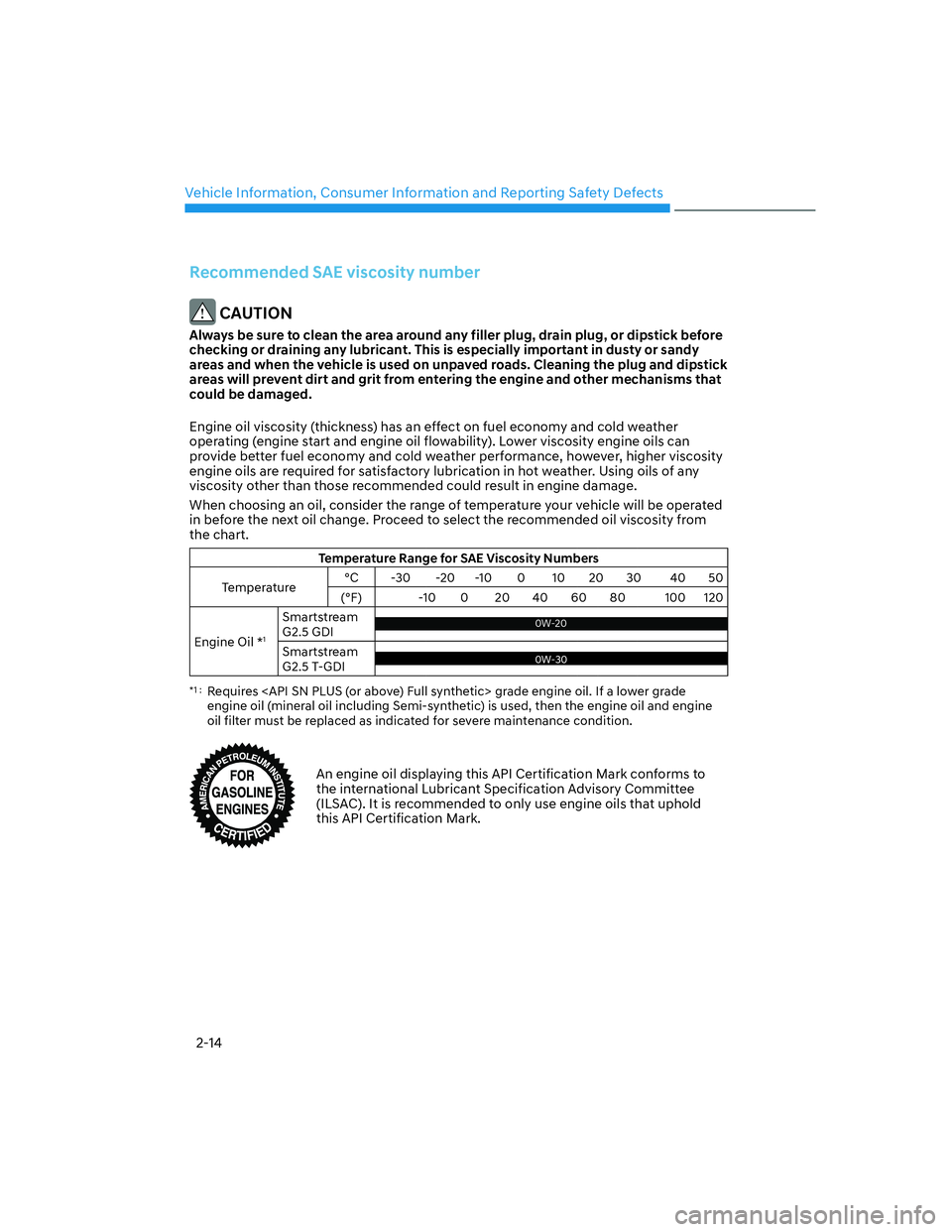

Recommended SAE viscosity number
CAUTION
Always be sure to clean the area around any filler plug, drain plug, or dipstick before
checking or draining any lubricant. This is especially important in dusty or sandy
areas and when the vehicle is used on unpaved roads. Cleaning the plug and dipstick
areas will prevent dirt and grit from entering the engine and other mechanisms that
could be damaged.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather
operating (engine start and engine oil flowability). Lower viscosity engine oils can
provide better fuel economy and cold weather performance, however, higher viscosity
engine oils are required for satisfactory lubrication in hot weather. Using oils of any
viscosity other than those recommended could result in engine damage.
When choosing an oil, consider the range of temperature your vehicle will be operated
in before the next oil change. Proceed to select the recommended oil viscosity from
the chart.
Temperature Range for SAE Viscosity Numbers
Temperature°C -30 -20 -10 0 10 20 30 40 50
(°F) -10 0 20 40 60 80 100 120
Engine Oil *
1
Smartstream
G2.5 GDI0W-20 0W-20
Smartstream
G2.5 T-GDI0W-30
*1 : Requires grade engine oil. If a lower grade
engine oil (mineral oil including Semi-synthetic) is used, then the engine oil and engine
oil filter must be replaced as indicated for severe maintenance condition.
An engine oil displaying this API Certification Mark conforms to
the international Lubricant Specification Advisory Committee
(ILSAC). It is recommended to only use engine oils that uphold
this API Certification Mark.

02
2-15

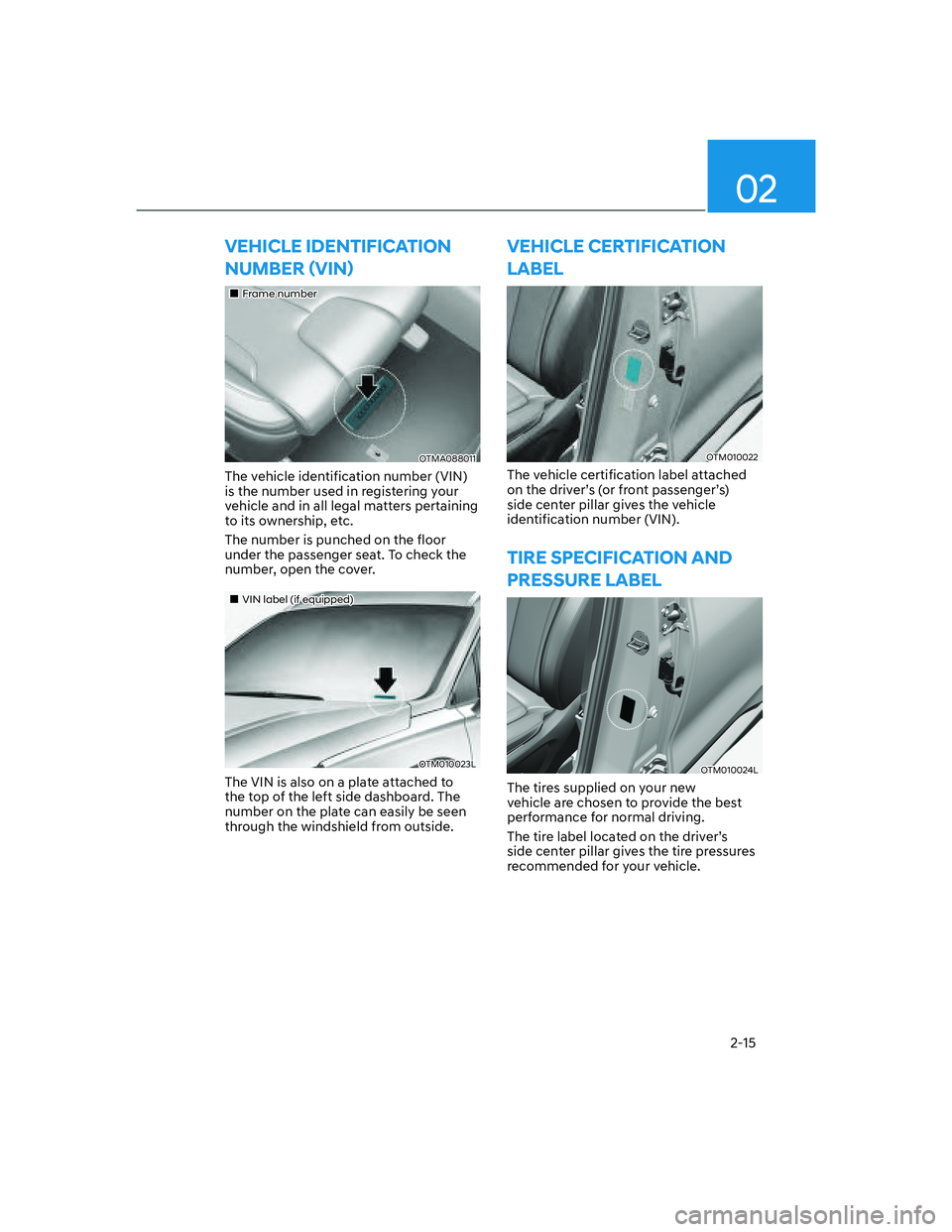

VEHICLE IDENTIFICATION
180%(5
ã9,1
ä
„Frame number
OTMA088011
The vehicle identification number (VIN)
is the number used in registering your
vehicle and in all legal matters pertaining
to its ownership, etc.
The number is punched on the floor
under the passenger seat. To check the
number, open the cover.
„VIN label (if equipped)
OTM010023L
The VIN is also on a plate attached to
the top of the left side dashboard. The
number on the plate can easily be seen
through the windshield from outside.
VEHICLE CERTIFICATION
LABEL
OTM010022
The vehicle certification label attached
on the driver’s (or front passenger’s)
side center pillar gives the vehicle
identification number (VIN).
TIRE SPECIFICATION AND
PRESSURE LABEL
OTM010024L
The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your vehicle.

Vehicle Information, Consumer Information and Reporting Safety Defects
2-16

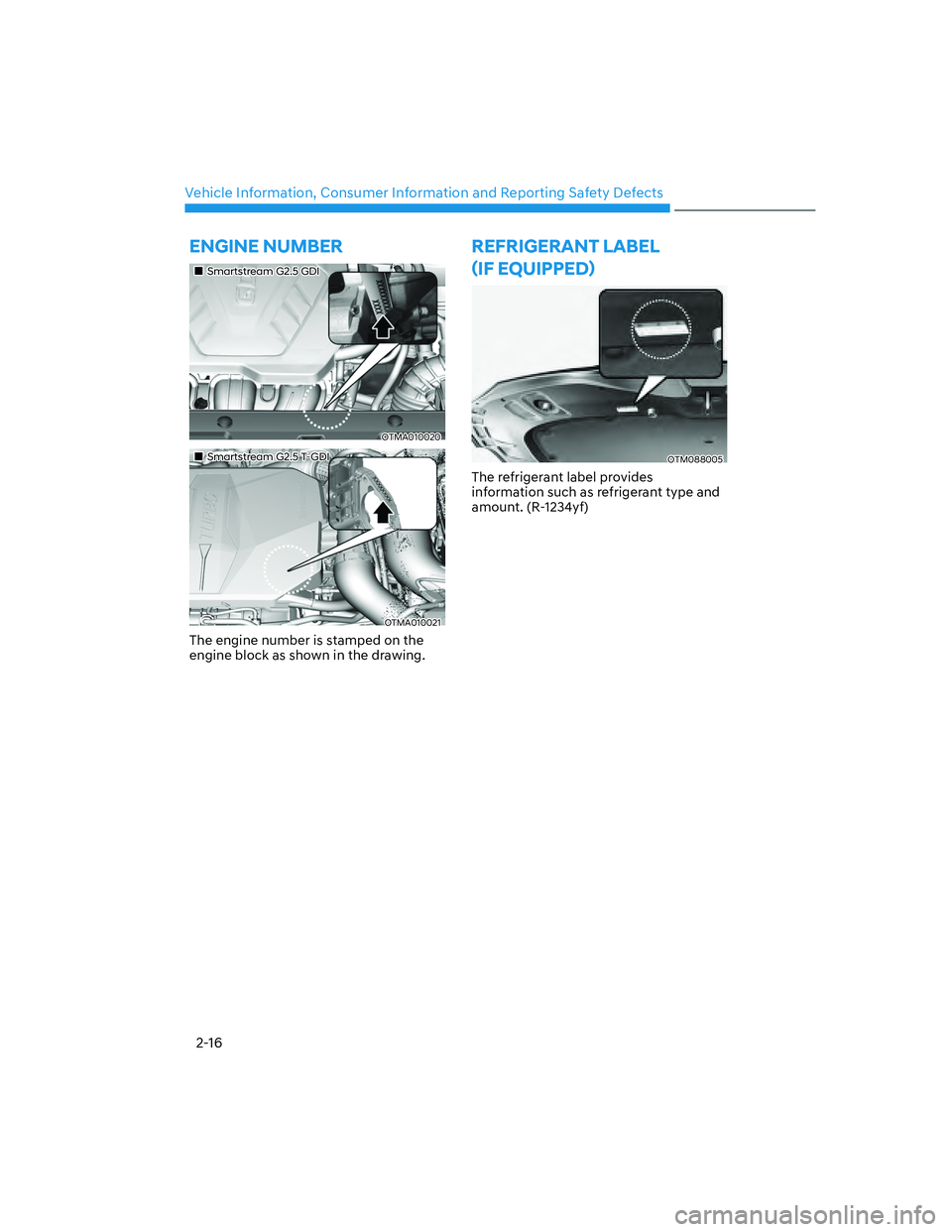

ENGINE NUMBER
„Smartstream G2.5 GDI
OTMA010020
„Smartstream G2.5 T-GDI
OTMA010021
The engine number is stamped on the
engine block as shown in the drawing.
REFRIGERANT LABEL

ã,)(48,33('
ä
OTM088005
The refrigerant label provides
information such as refrigerant type and
amount. (R-1234yf)

02
2-17
This consumer information has been prepared in accordance with regulations issued
by the National Highway Traffic Safety Administration of the U.S. Department of
Transportation.Your HYUNDAI dealer will help answer any questions you may have as
you read this information.
HYUNDAI motor vehicles are designed and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions in
this Owner’s Manual, particularly the information under the headings “NOTICE”,
“CAUTION” and “WARNING”.
If, after reading this manual, you have any questions regarding the operation of your
vehicle, please contact the Hyundai Customer Care Center.
Hyundai Customer Care
P.O. Box 20850
Fountain Valley, CA 92728
800-633-5151
[email protected]
Hyundai’s Customer Care Center representatives are available Monday through Friday,
between the hours of 6:00 AM and 5:00 PM PST
and Saturday between 6:30 AM and 3:00 PM PST (English).
For Customer Care Center assistance in Spanish or Korean, representatives are
available Monday through Friday between 6:30 AM and 3:00 PM PST.

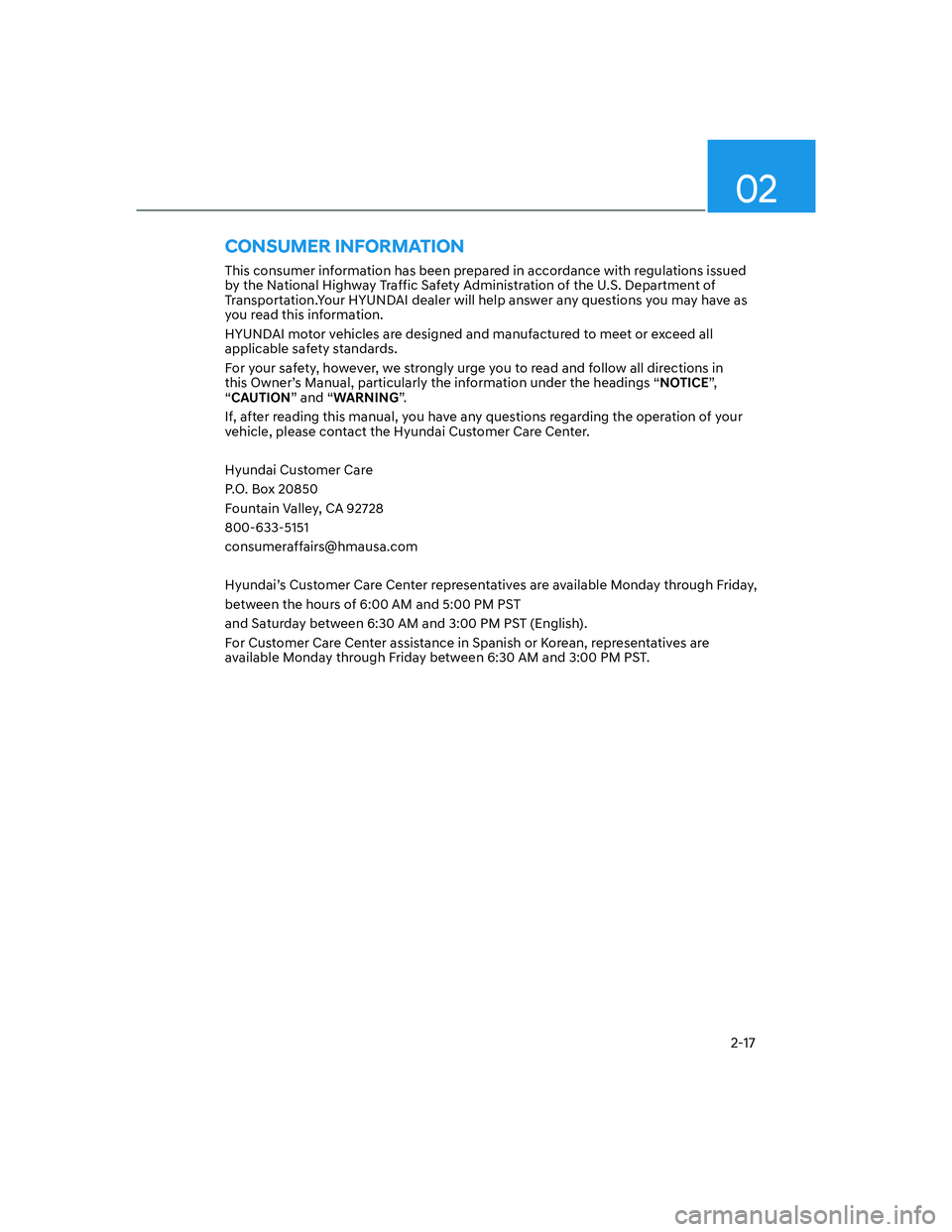

CONSUMER INFORMATION

Vehicle Information, Consumer Information and Reporting Safety Defects
2-18
If you believe that your vehicle has a defect which could cause a crash or
could cause injury or death, you should immediately inform the National
Highway Traffic Safety Administration (NHTSA) in addition to notifying
HYUNDAI MOTOR AMERICA.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov;
download the SaferCar mobile application;
or write to: Administrator, NHTSA
1200 New Jersey Ave, SE,
West Building Washington, D.C. 20590.
You can also obtain other information about motor vehicle safety from
http://www.safercar.gov.
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual
problems between you, your dealer, or HYUNDAI MOTOR AMERICA.

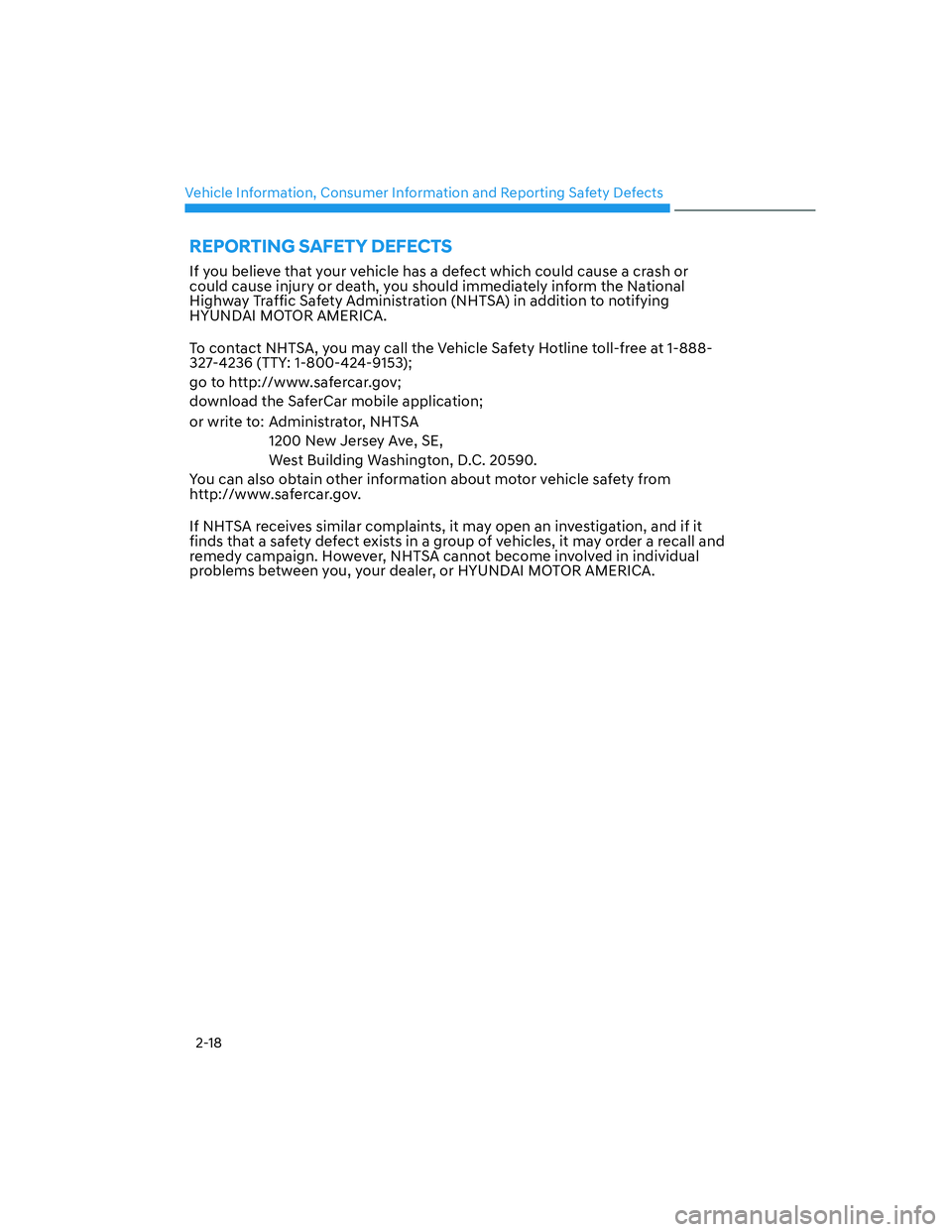

REPORTING SAFETY DEFECTS
