Page 371 of 637

HYUNDAI SANTA FE 2022  Owners Manual Driving your vehicle
6-86
NOTICE
To prevent engine and/or transmission
overheating:
[�When towing a trailer on steep
grades (in excess of 6%) pay close
attention to the engine coolant
temperatur

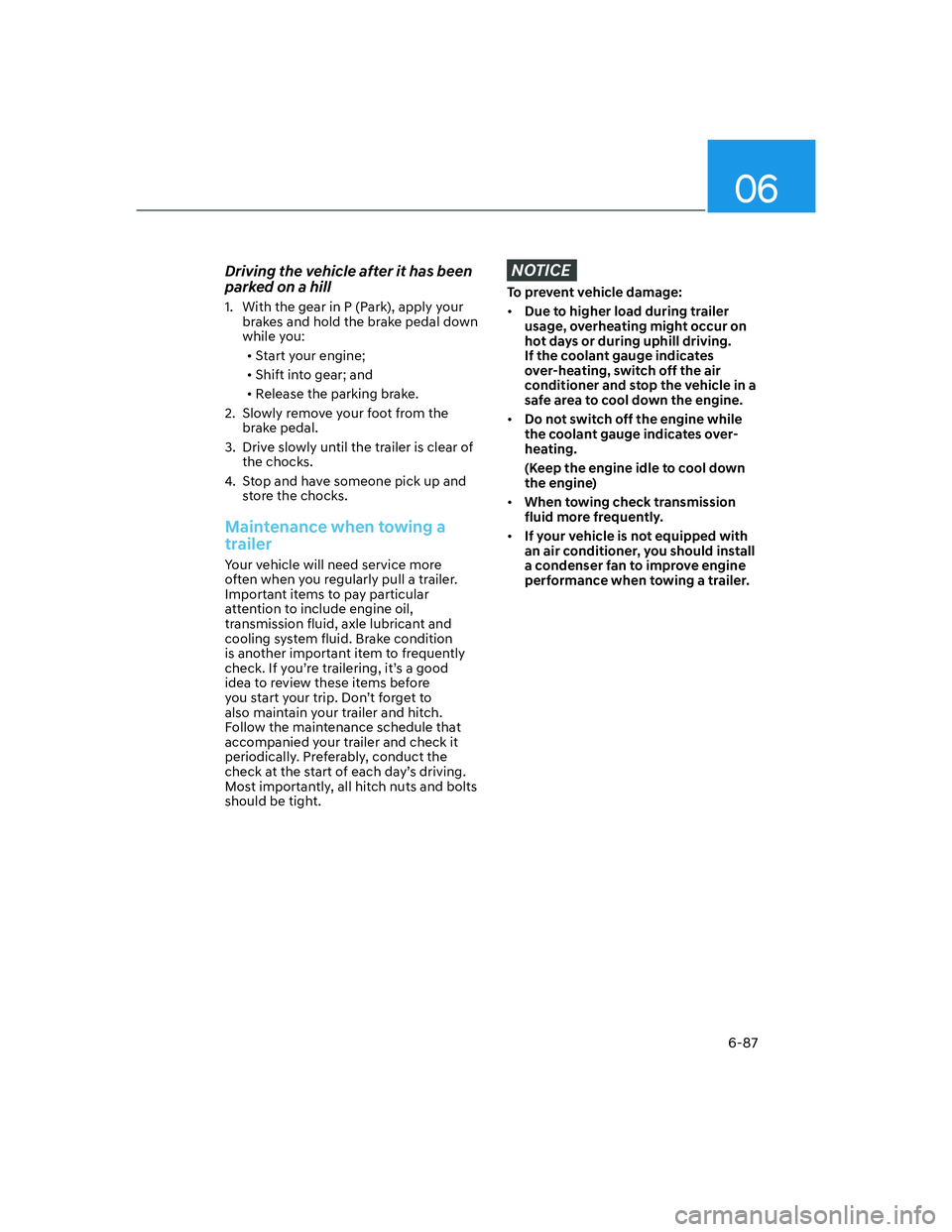

Page 372 of 637

HYUNDAI SANTA FE 2022  Owners Manual 06
6-87
Driving the vehicle after it has been
parked on a hill
1.  With the gear in P (Park), apply your
brakes and hold the brake pedal down
while you:
[�Start your engine;
[�Shift into gear;

Page 373 of 637

HYUNDAI SANTA FE 2022  Owners Manual Driving your vehicle
6-88

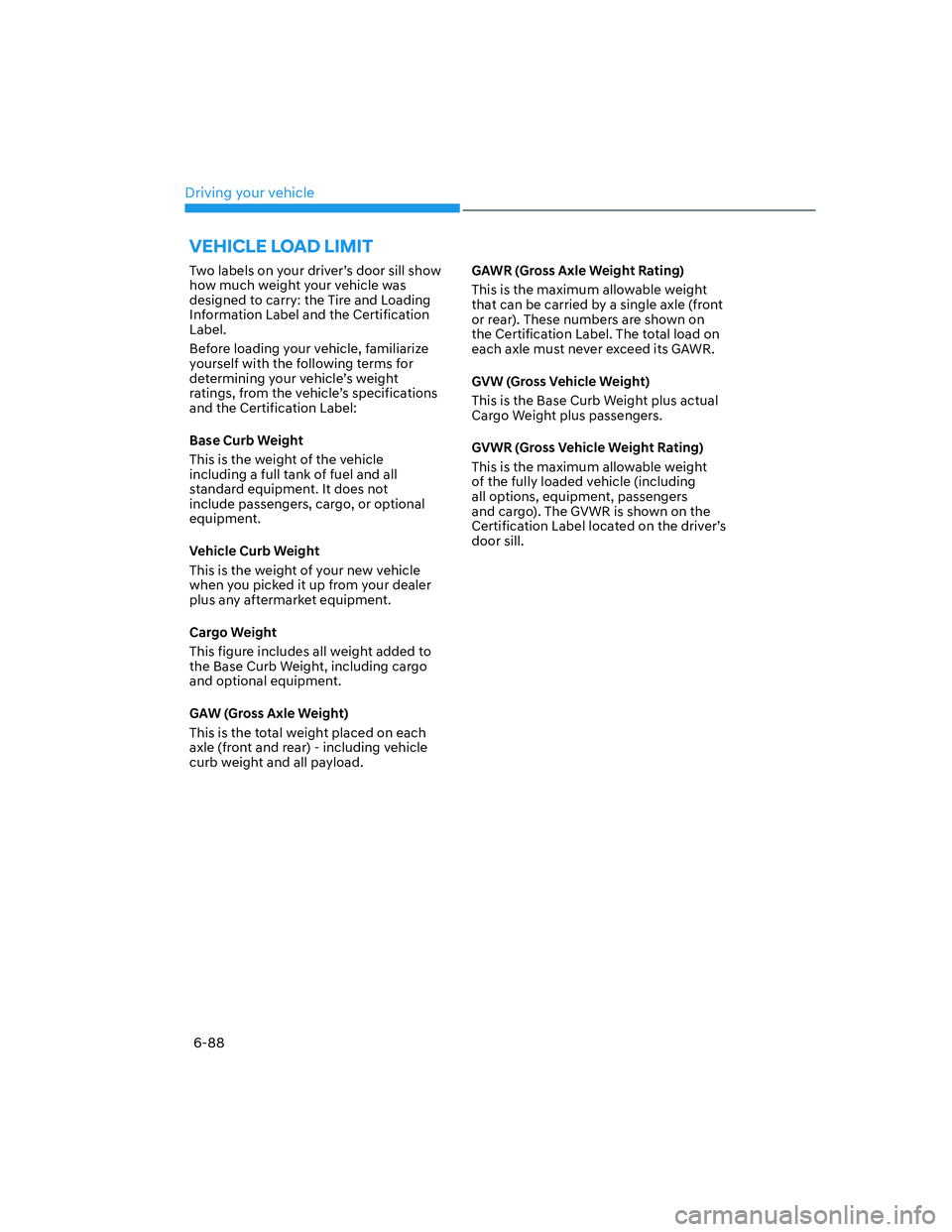

Two labels on your driver’s door sill show
how much weight your vehicle was
designed to carry: the Tire and Loading
Information Label and the Certification
Label.
Befor

Page 374 of 637

HYUNDAI SANTA FE 2022  Owners Manual 06
6-89

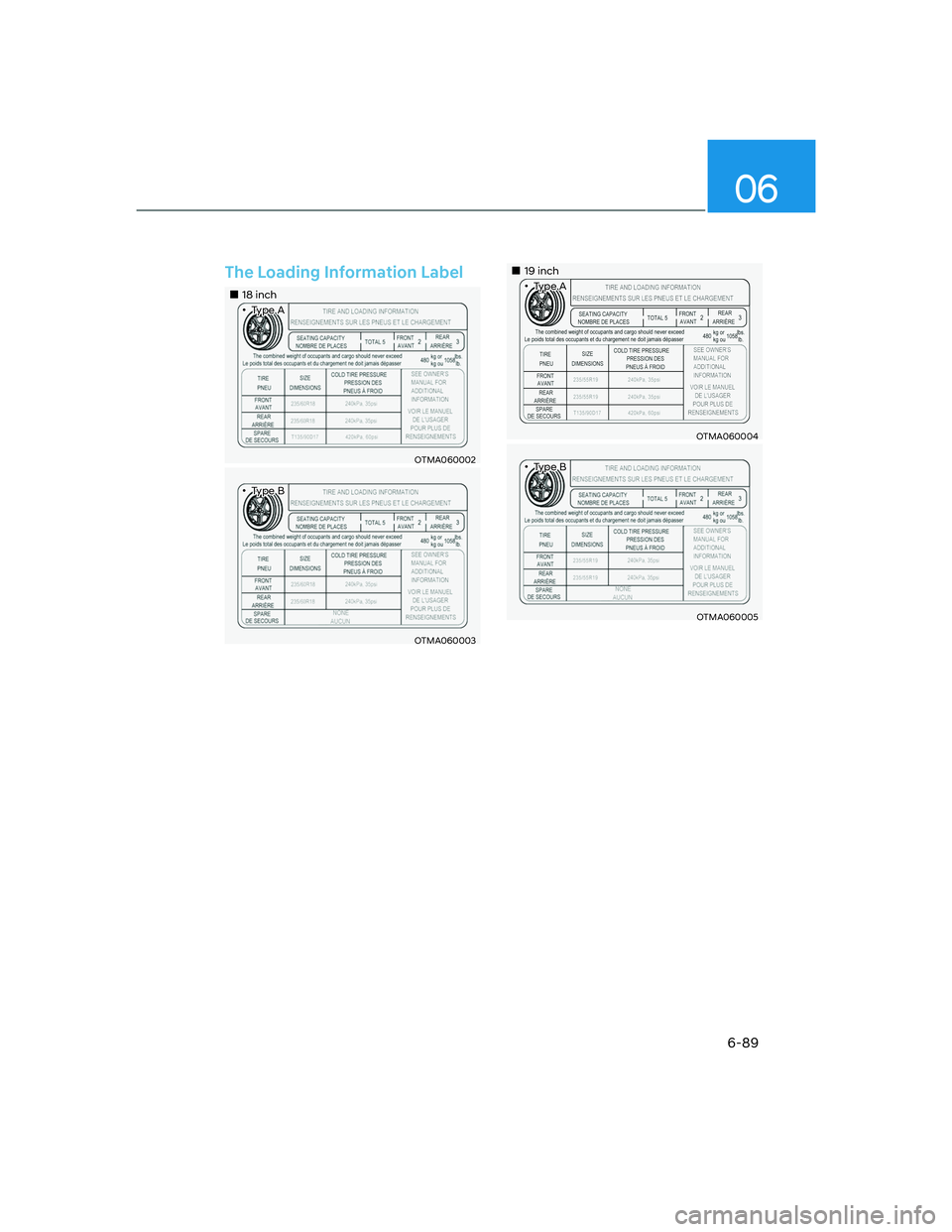

The Loading Information Label
��„18 inch
��‡Type A
OTMA060002
��‡Type B
OTMA060003
��„19 inch
��‡Type A
OTMA060004
��‡Type B
OTMA060005

Page 375 of 637

HYUNDAI SANTA FE 2022  Owners Manual Driving your vehicle
6-90

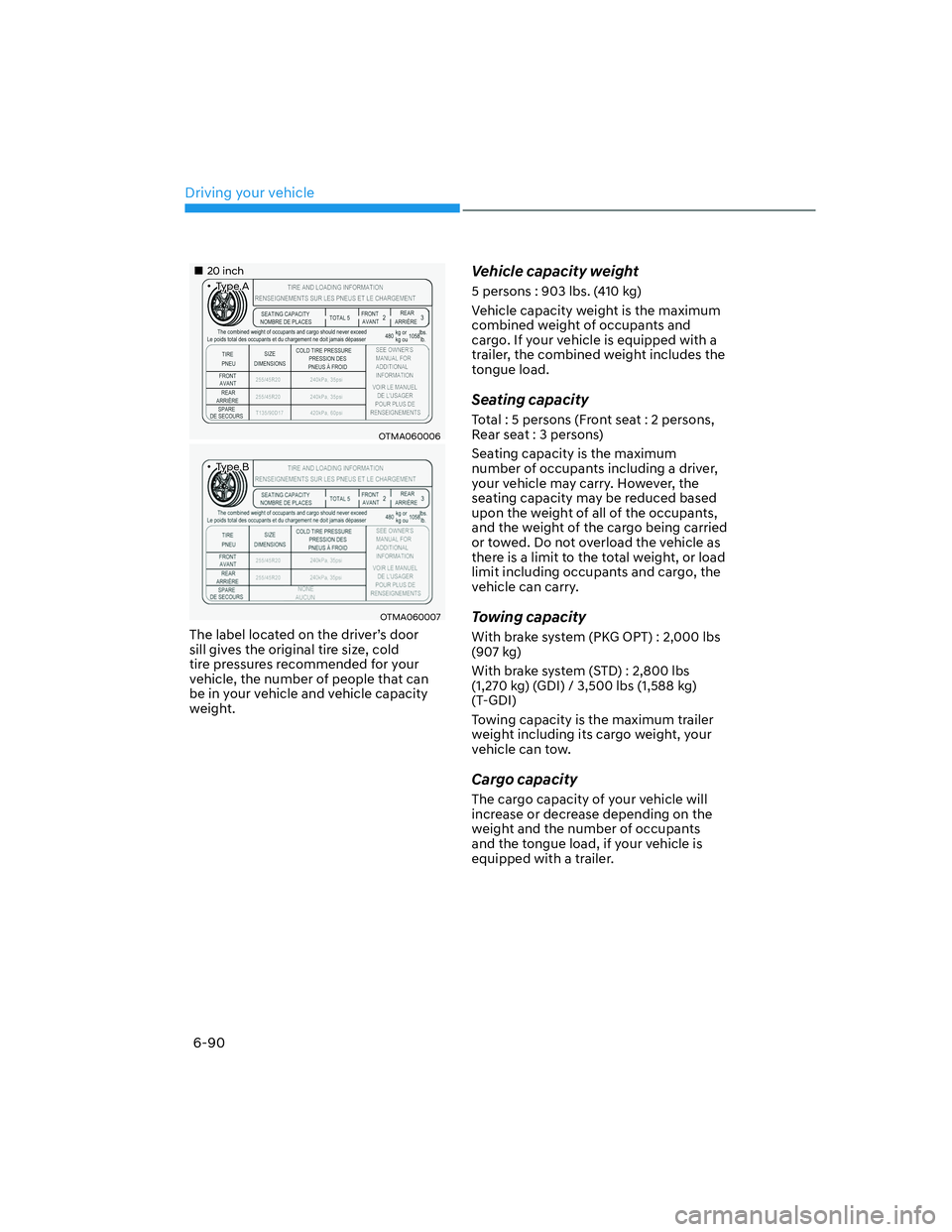

��„20 inch
��‡Type A
OTMA060006
��‡Type B
OTMA060007
The label located on the driver’s door
sill gives the original tire size, cold
tire pressures recommended fo

Page 376 of 637

HYUNDAI SANTA FE 2022  Owners Manual 06
6-91

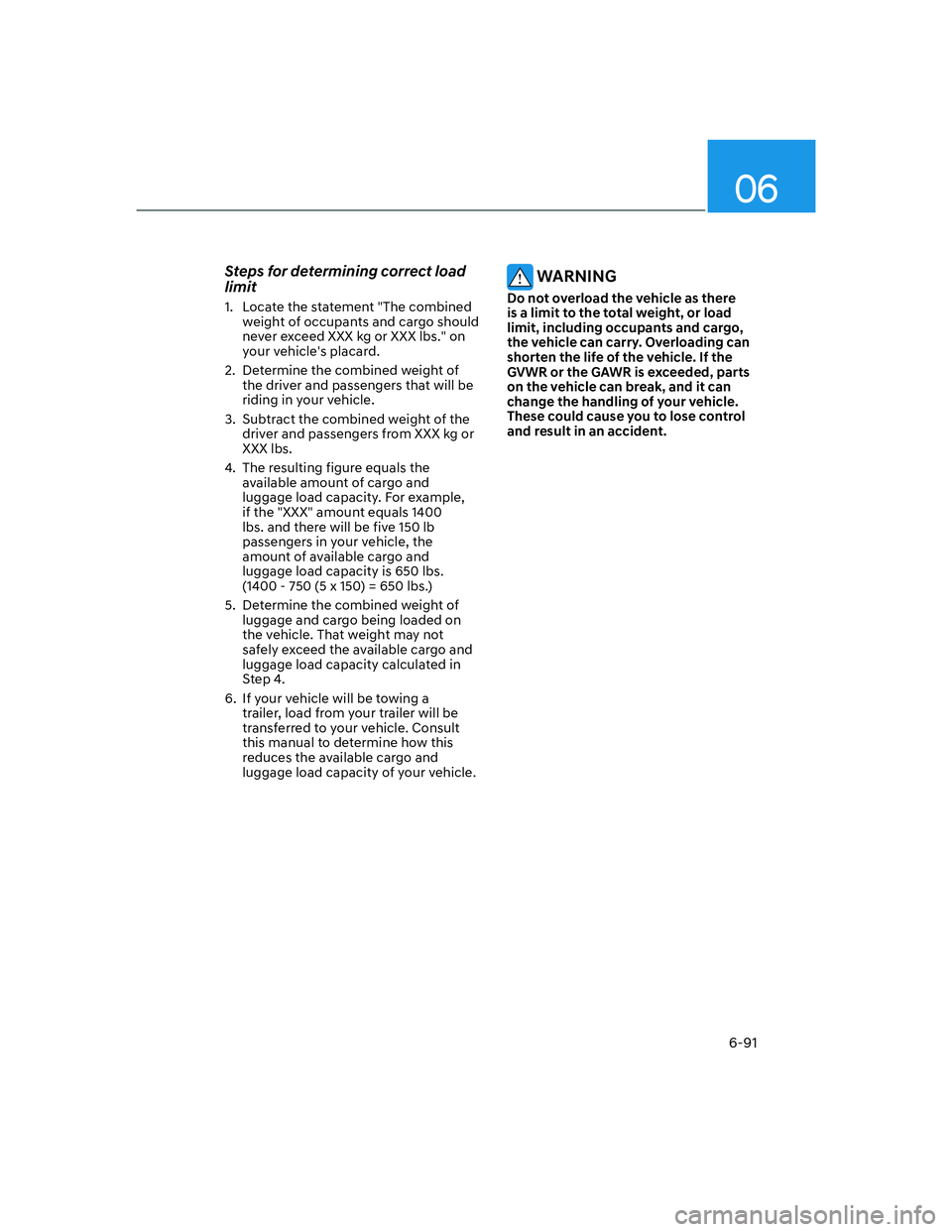

Steps for determining correct load
limit
1.  Locate the statement "The combined
weight of occupants and cargo should
never exceed XXX kg or XXX lbs." on
your vehicles placard.
2.  Determi

Page 377 of 637

HYUNDAI SANTA FE 2022  Owners Manual Driving your vehicle
6-92

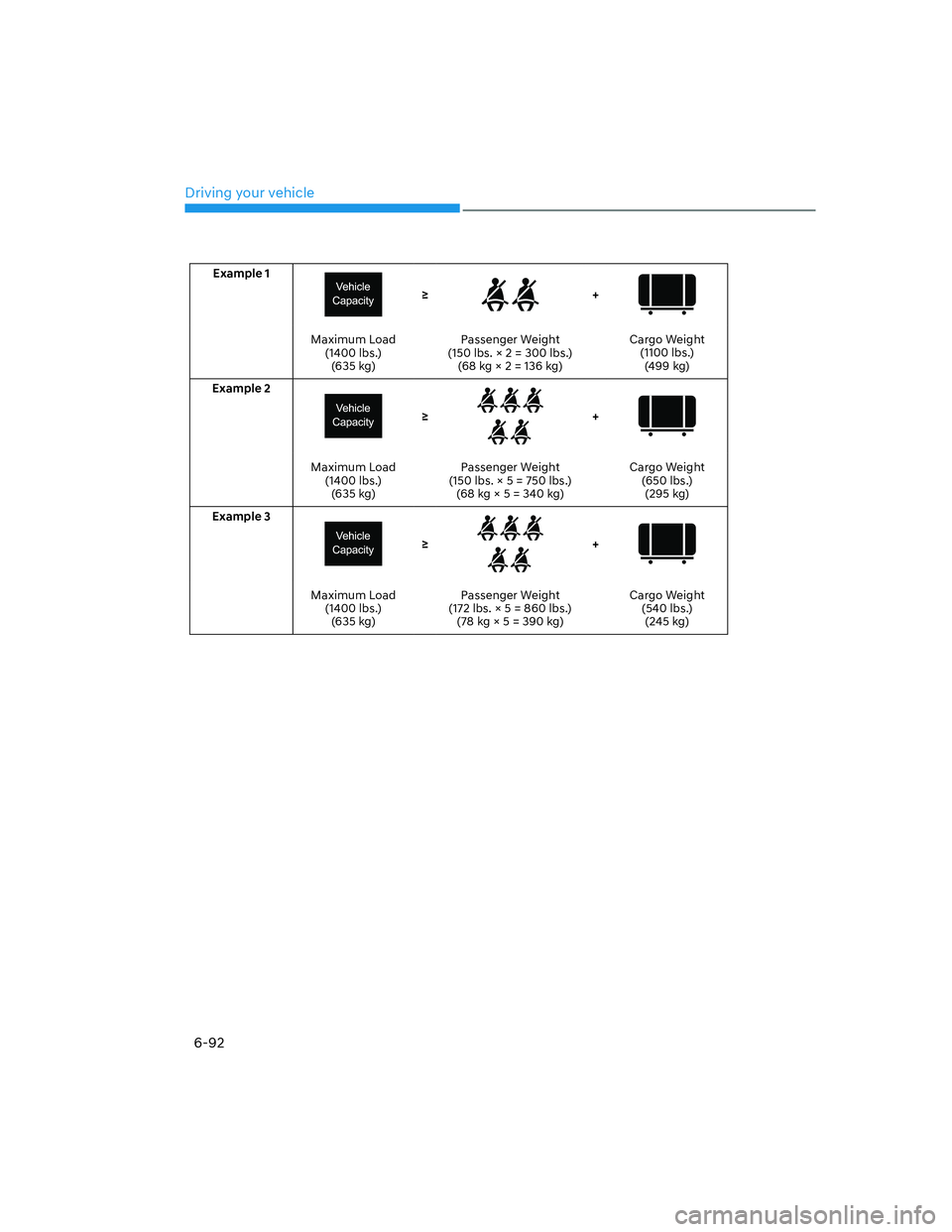

Example 1
g+
Maximum Load
(1400 lbs.)
(635 kg)Passenger Weight
(150 lbs. × 2 = 300 lbs.)
(68 kg × 2 = 136 kg)Cargo Weight
(1100 lbs.)
(499 kg)
Example 2
g+
Maximum Load
(

Page 378 of 637

HYUNDAI SANTA FE 2022  Owners Manual 06
6-93

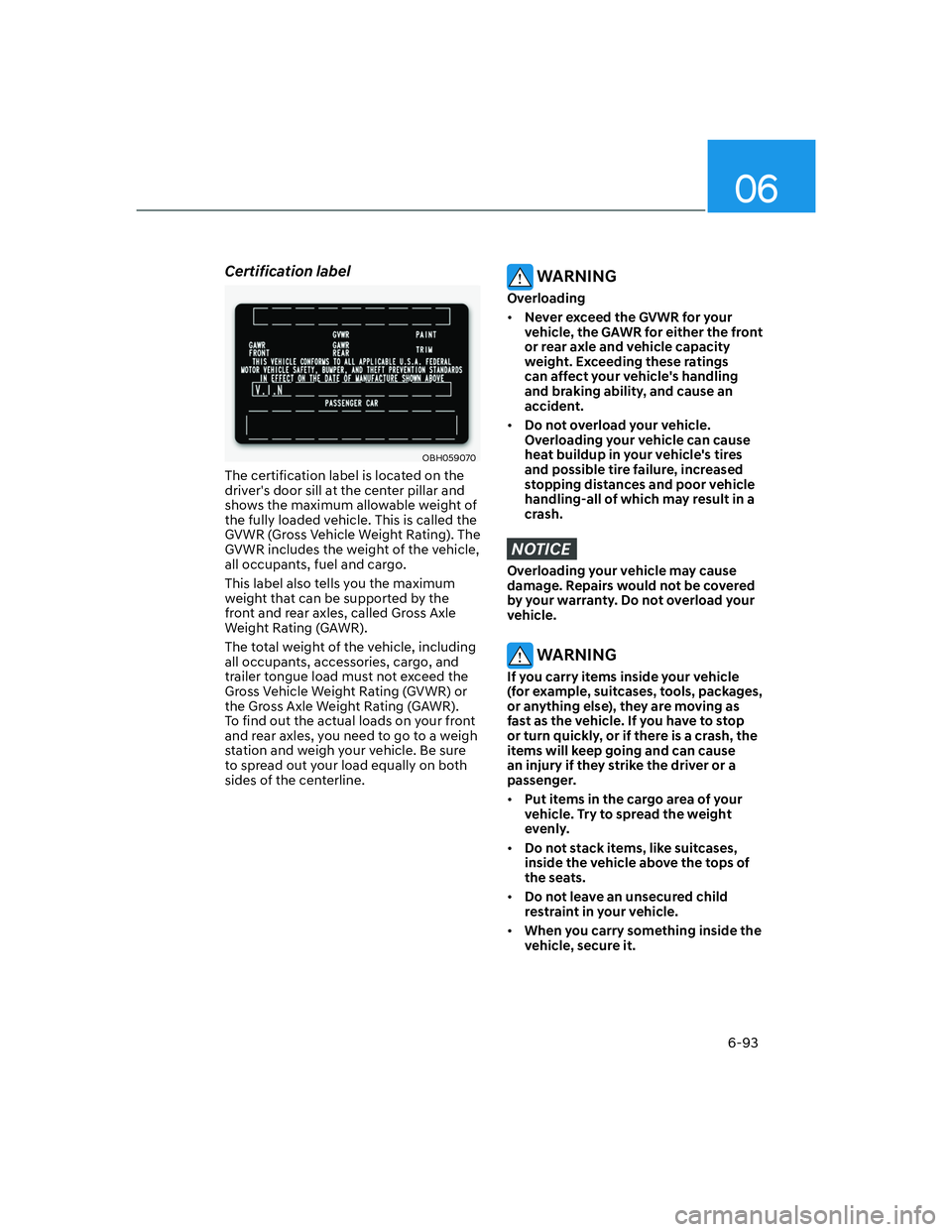

Certification label
OBH059070
The certification label is located on the
drivers door sill at the center pillar and
shows the maximum allowable weight of
the fully loaded vehicle. This is c

Page 379 of 637

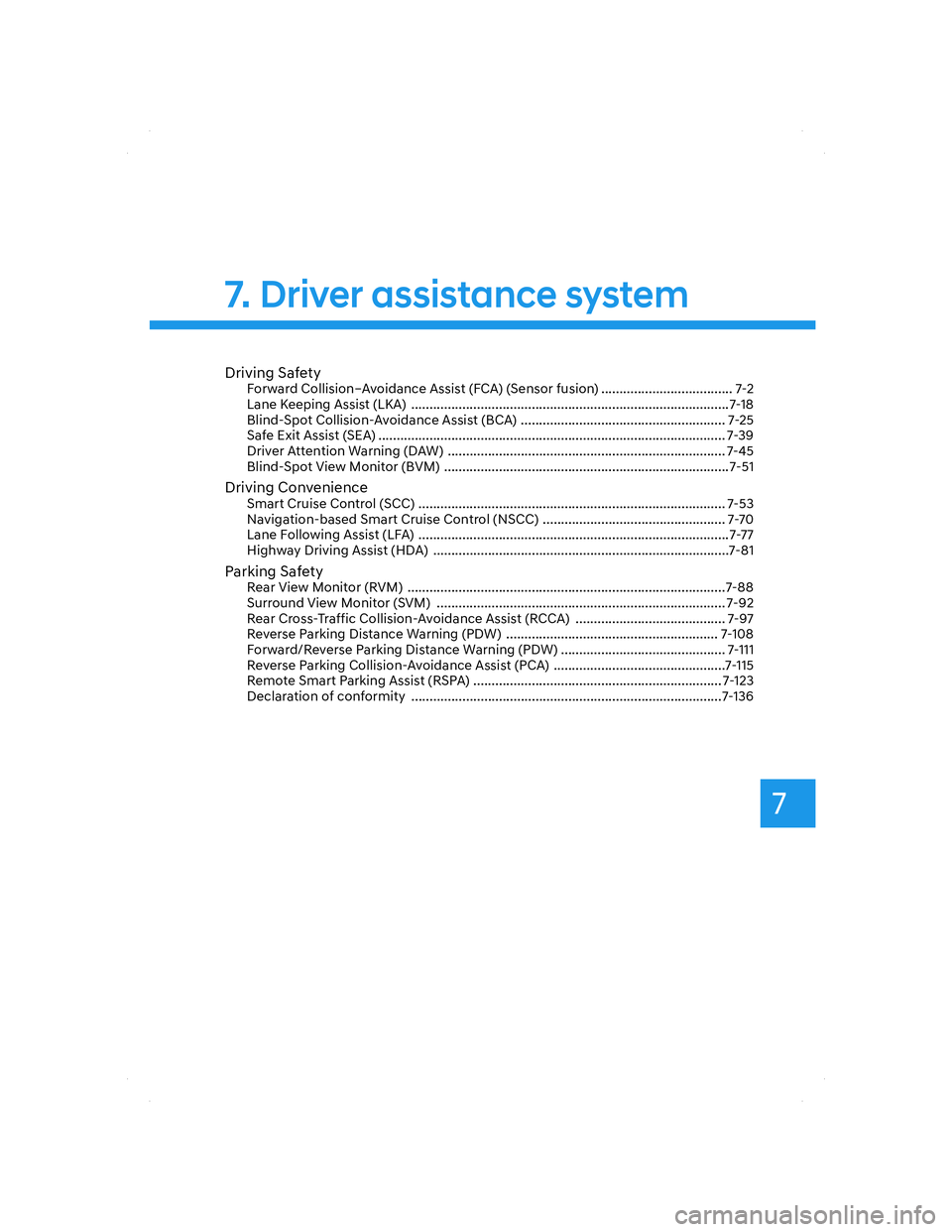

HYUNDAI SANTA FE 2022  Owners Manual 7
Driving SafetyForward Collision–Avoidance Assist (FCA) (Sensor fusion) .................................... 7-2
Lane Keeping Assist (LKA)  .........................................................

Page 380 of 637

HYUNDAI SANTA FE 2022  Owners Manual Driver assistance system
7-2

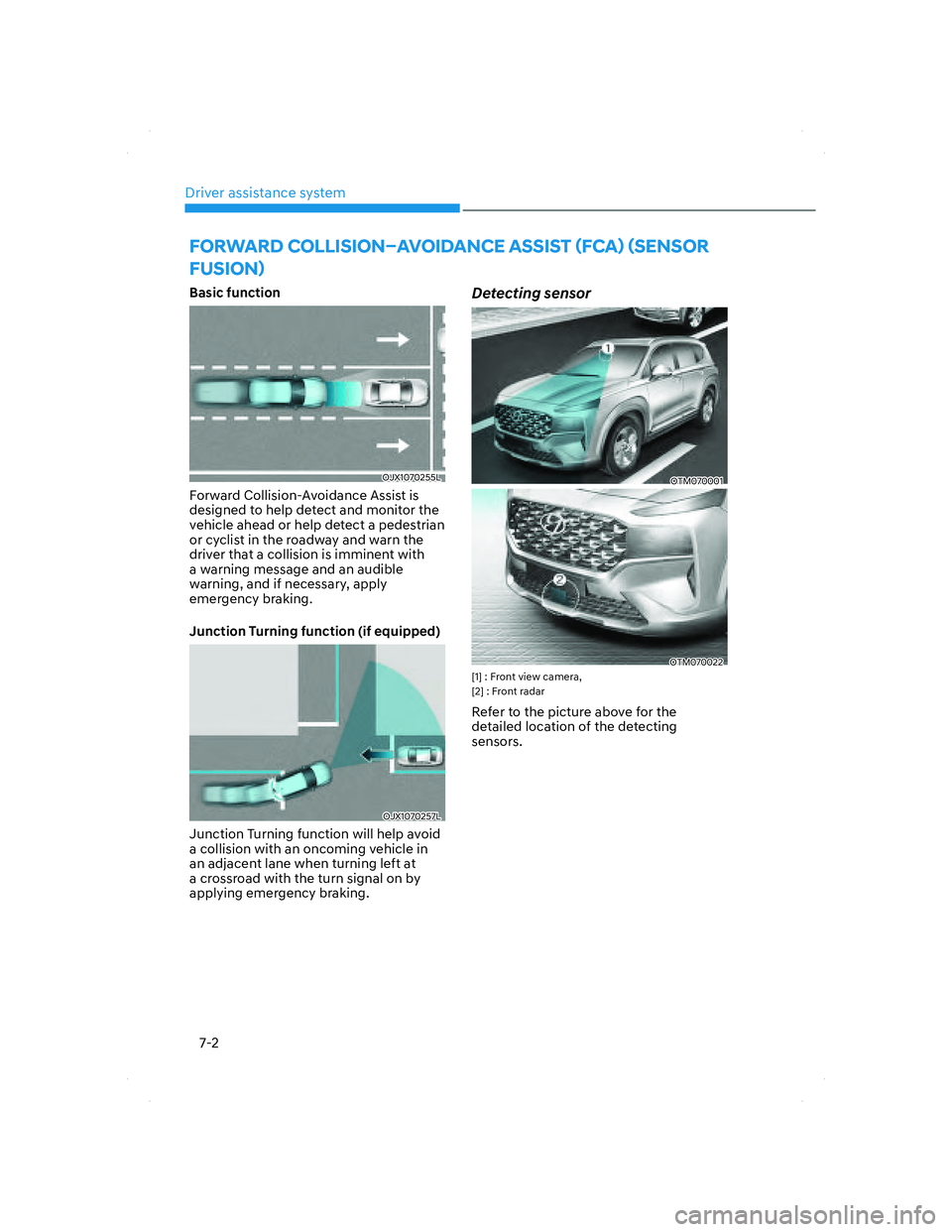

FORWARD COLLISION–AVOIDANCE ASSIST (FCA) (SENSOR
FUSION)
Basic function
OJX1070255LOJX1070255L
Forward Collision-Avoidance Assist is
designed to help detect and monito
