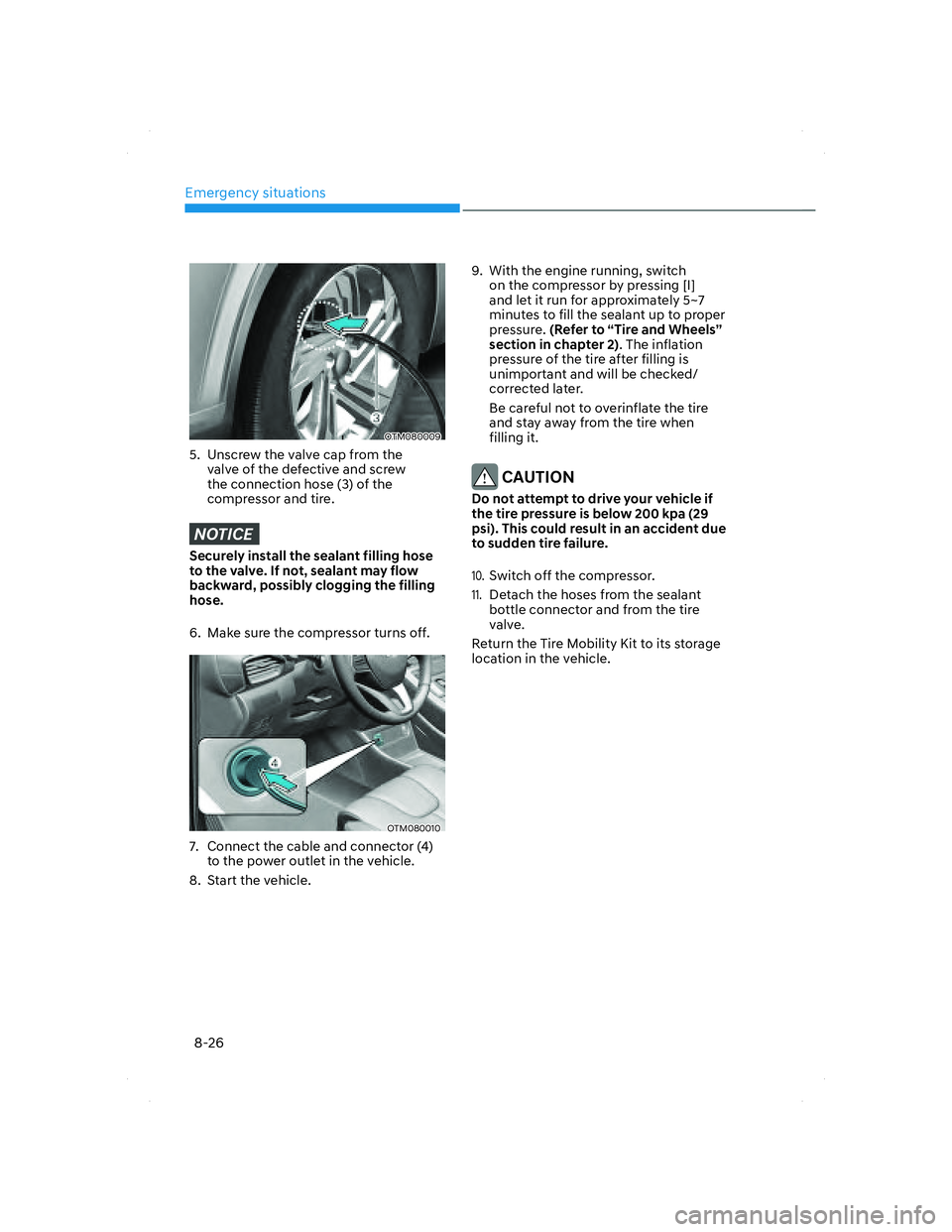

Emergency situations
8-26
OTM080009OTM080009
5. Unscrew the valve cap from the
valve of the defective and screw
the connection hose (3) of the
compressor and tire.
NOTICE
Securely install the sealant filling hose
to the valve. If not, sealant may flow
backward, possibly clogging the filling
hose.
6. Make sure the compressor turns off.
OTM080010OTM080010
7. Connect the cable and connector (4)
to the power outlet in the vehicle.
8. Start the vehicle.9. With the engine running, switch
on the compressor by pressing [I]
and let it run for approximately 5~7
minutes to fill the sealant up to proper
pressure. (Refer to “Tire and Wheels”
section in chapter 2). The inflation
pressure of the tire after filling is
unimportant and will be checked/
corrected later.
Be careful not to overinflate the tire
and stay away from the tire when
filling it.
CAUTION
Do not attempt to drive your vehicle if
the tire pressure is below 200 kpa (29
psi). This could result in an accident due
to sudden tire failure.
10. Switch off the compressor.
11. Detach the hoses from the sealant
bottle connector and from the tire
valve.
Return the Tire Mobility Kit to its storage
location in the vehicle.
008_TMa_HMA.indd 8-262021-08-27 1:44:09

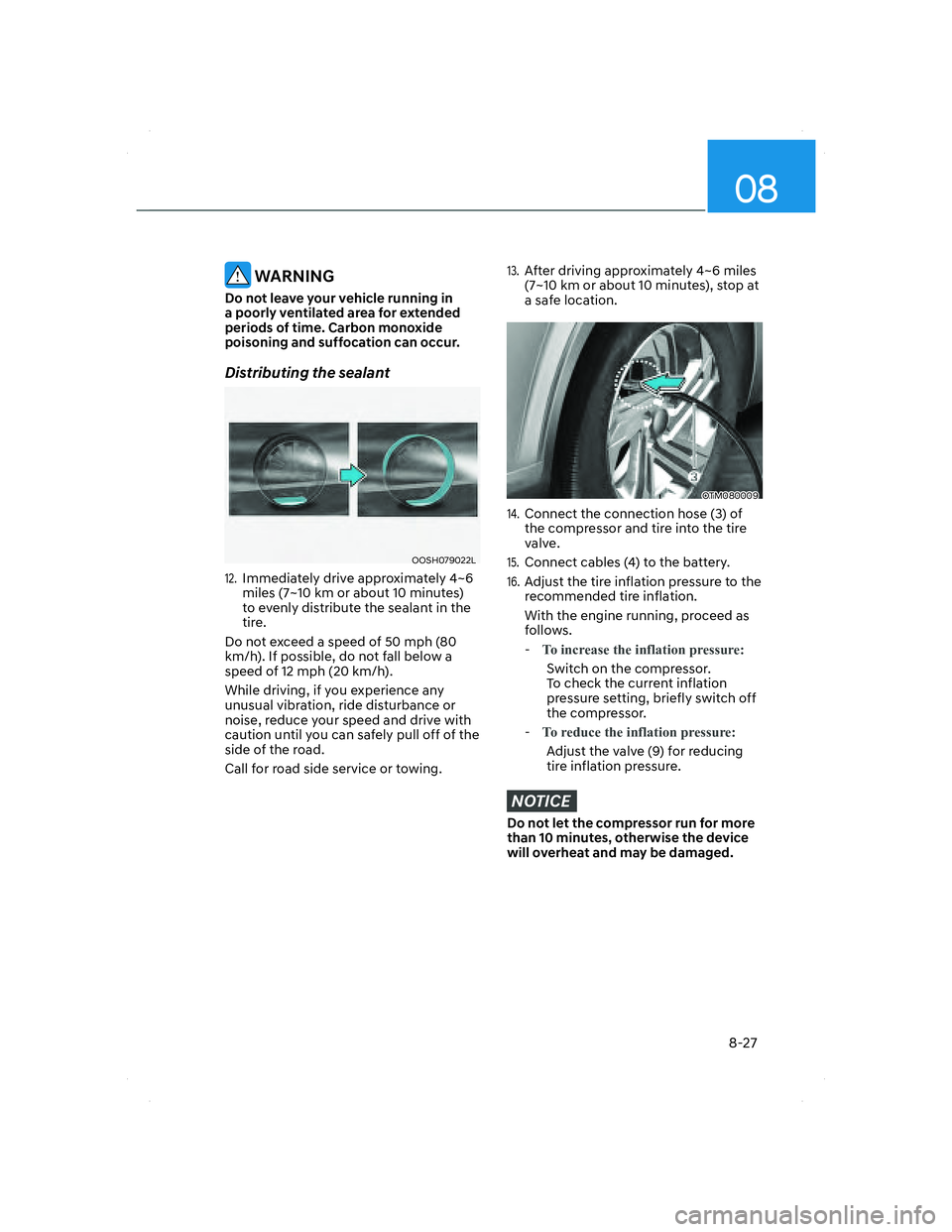

08
8-27
WARNING
Do not leave your vehicle running in
a poorly ventilated area for extended
periods of time. Carbon monoxide
poisoning and suffocation can occur.
Distributing the sealant
OOSH079022LOOSH079022L
12. Immediately drive approximately 4~6
miles (7~10 km or about 10 minutes)
to evenly distribute the sealant in the
tire.
Do not exceed a speed of 50 mph (80
km/h). If possible, do not fall below a
speed of 12 mph (20 km/h).
While driving, if you experience any
unusual vibration, ride disturbance or
noise, reduce your speed and drive with
caution until you can safely pull off of the
side of the road.
Call for road side service or towing.
13. After driving approximately 4~6 miles
(7~10 km or about 10 minutes), stop at
a safe location.
OTM080009OTM080009
14. Connect the connection hose (3) of
the compressor and tire into the tire
valve.
15. Connect cables (4) to the battery.
16. Adjust the tire inflation pressure to the
recommended tire inflation.
With the engine running, proceed as
follows.
-
To increase the inflation pressure:
Switch on the compressor.
To check the current inflation
pressure setting, briefly switch off
the compressor.
-
To reduce the inflation pressure:
Adjust the valve (9) for reducing
tire inflation pressure.
NOTICE
Do not let the compressor run for more
than 10 minutes, otherwise the device
will overheat and may be damaged.
008_TMa_HMA.indd 8-272021-08-27 1:44:12

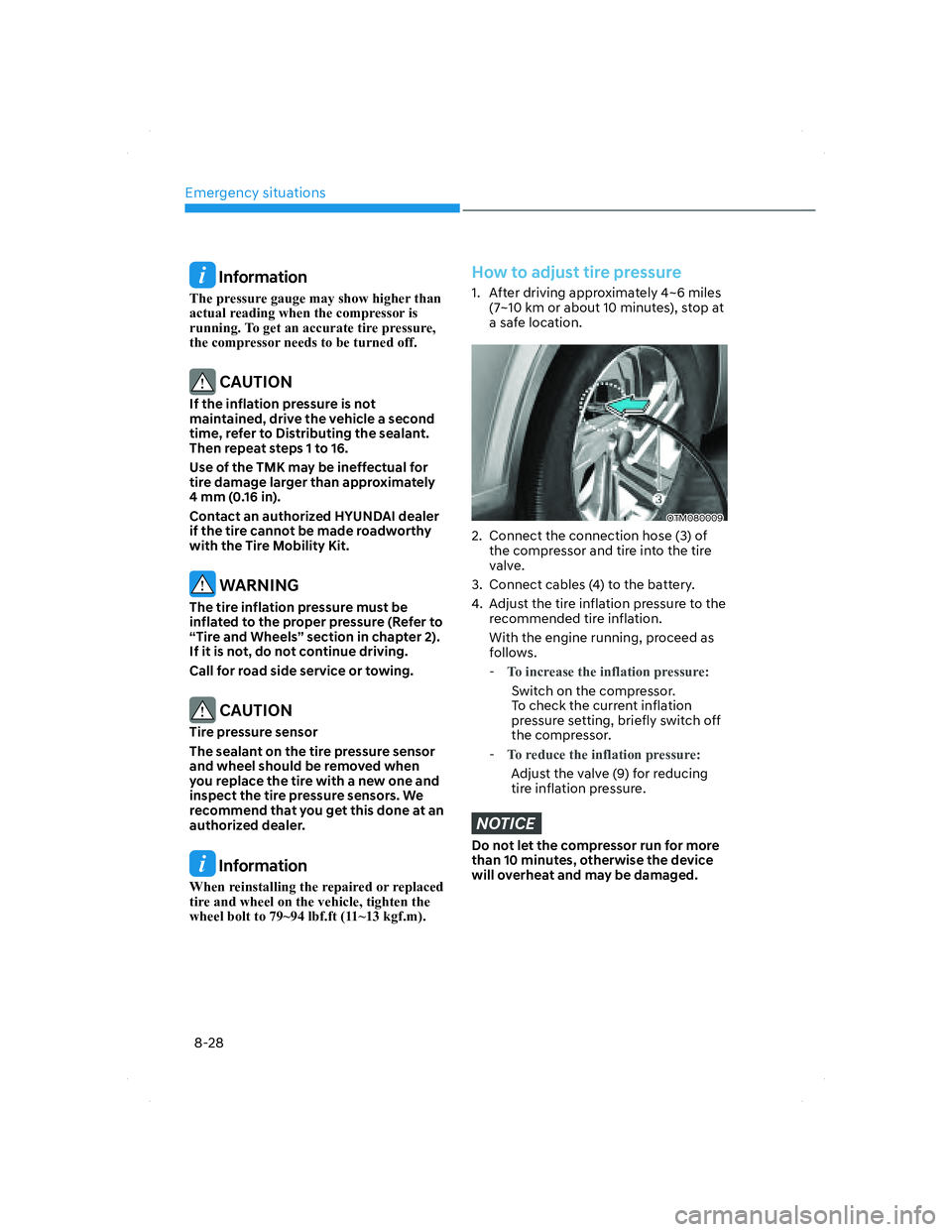

Emergency situations
8-28
Information
The pressure gauge may show higher than
actual reading when the compressor is
running. To get an accurate tire pressure,
the compressor needs to be turned off.
CAUTION
If the inflation pressure is not
maintained, drive the vehicle a second
time, refer to Distributing the sealant.
Then repeat steps 1 to 16.
Use of the TMK may be ineffectual for
tire damage larger than approximately
4 mm (0.16 in).
Contact an authorized HYUNDAI dealer
if the tire cannot be made roadworthy
with the Tire Mobility Kit.
WARNING
The tire inflation pressure must be
inflated to the proper pressure (Refer to
“Tire and Wheels” section in chapter 2).
If it is not, do not continue driving.
Call for road side service or towing.
CAUTION
Tire pressure sensor
The sealant on the tire pressure sensor
and wheel should be removed when
you replace the tire with a new one and
inspect the tire pressure sensors. We
recommend that you get this done at an
authorized dealer.
Information
When reinstalling the repaired or replaced
tire and wheel on the vehicle, tighten the
wheel bolt to 79~94 lbf.ft (11~13 kgf.m).
How to adjust tire pressure
1. After driving approximately 4~6 miles
(7~10 km or about 10 minutes), stop at
a safe location.
OTM080009OTM080009
2. Connect the connection hose (3) of
the compressor and tire into the tire
valve.
3. Connect cables (4) to the battery.
4. Adjust the tire inflation pressure to the
recommended tire inflation.
With the engine running, proceed as
follows.
-
To increase the inflation pressure:
Switch on the compressor.
To check the current inflation
pressure setting, briefly switch off
the compressor.
-
To reduce the inflation pressure:
Adjust the valve (9) for reducing
tire inflation pressure.
NOTICE
Do not let the compressor run for more
than 10 minutes, otherwise the device
will overheat and may be damaged.
008_TMa_HMA.indd 8-282021-08-27 1:44:12

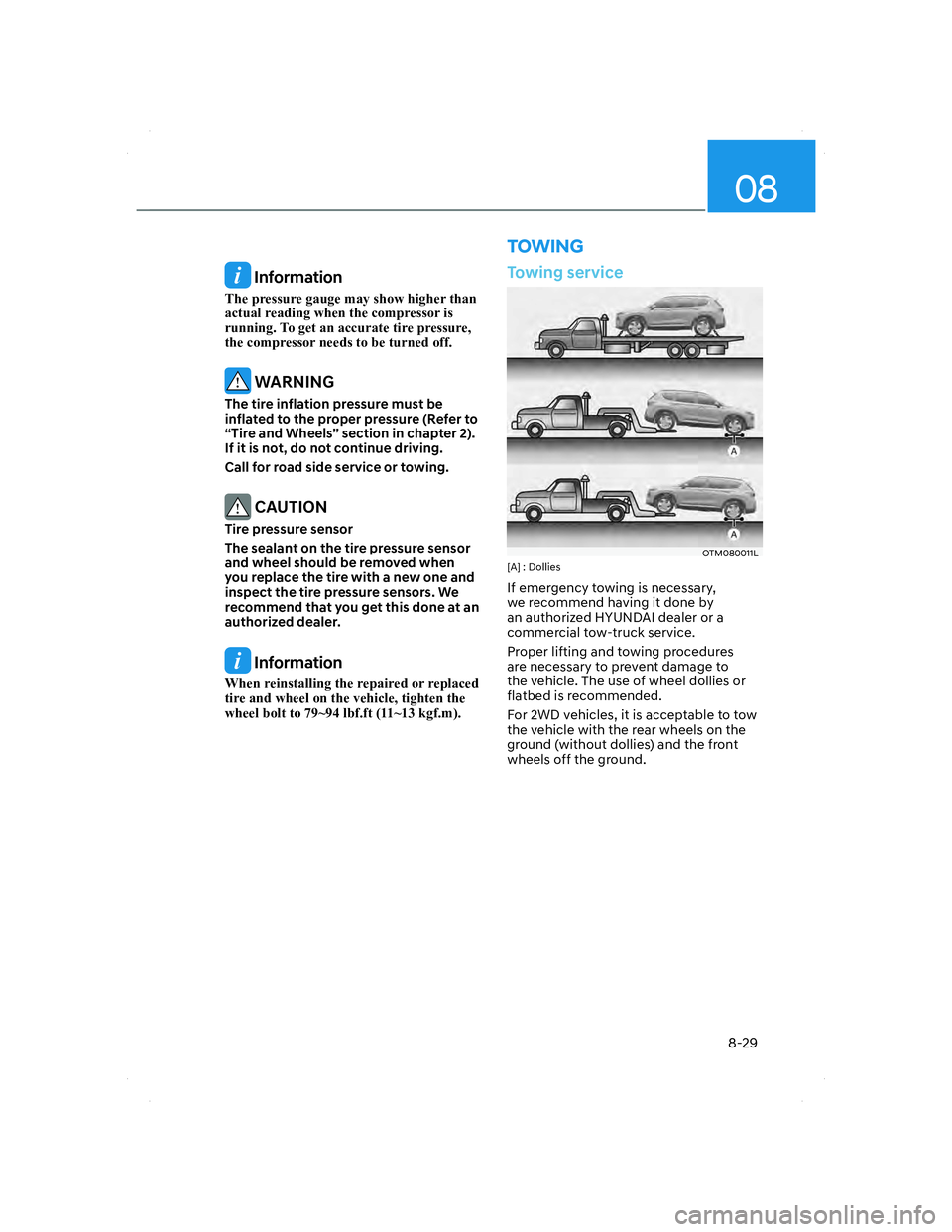

08
8-29
TOWING
Information
The pressure gauge may show higher than
actual reading when the compressor is
running. To get an accurate tire pressure,
the compressor needs to be turned off.
WARNING
The tire inflation pressure must be
inflated to the proper pressure (Refer to
“Tire and Wheels” section in chapter 2).
If it is not, do not continue driving.
Call for road side service or towing.
CAUTION
Tire pressure sensor
The sealant on the tire pressure sensor
and wheel should be removed when
you replace the tire with a new one and
inspect the tire pressure sensors. We
recommend that you get this done at an
authorized dealer.
Information
When reinstalling the repaired or replaced
tire and wheel on the vehicle, tighten the
wheel bolt to 79~94 lbf.ft (11~13 kgf.m).
Towing service
OTM080011LOTM080011L[A] : Dollies
If emergency towing is necessary,
we recommend having it done by
an authorized HYUNDAI dealer or a
commercial tow-truck service.
Proper lifting and towing procedures
are necessary to prevent damage to
the vehicle. The use of wheel dollies or
flatbed is recommended.
For 2WD vehicles, it is acceptable to tow
the vehicle with the rear wheels on the
ground (without dollies) and the front
wheels off the ground.
008_TMa_HMA.indd 8-292021-08-27 1:44:13

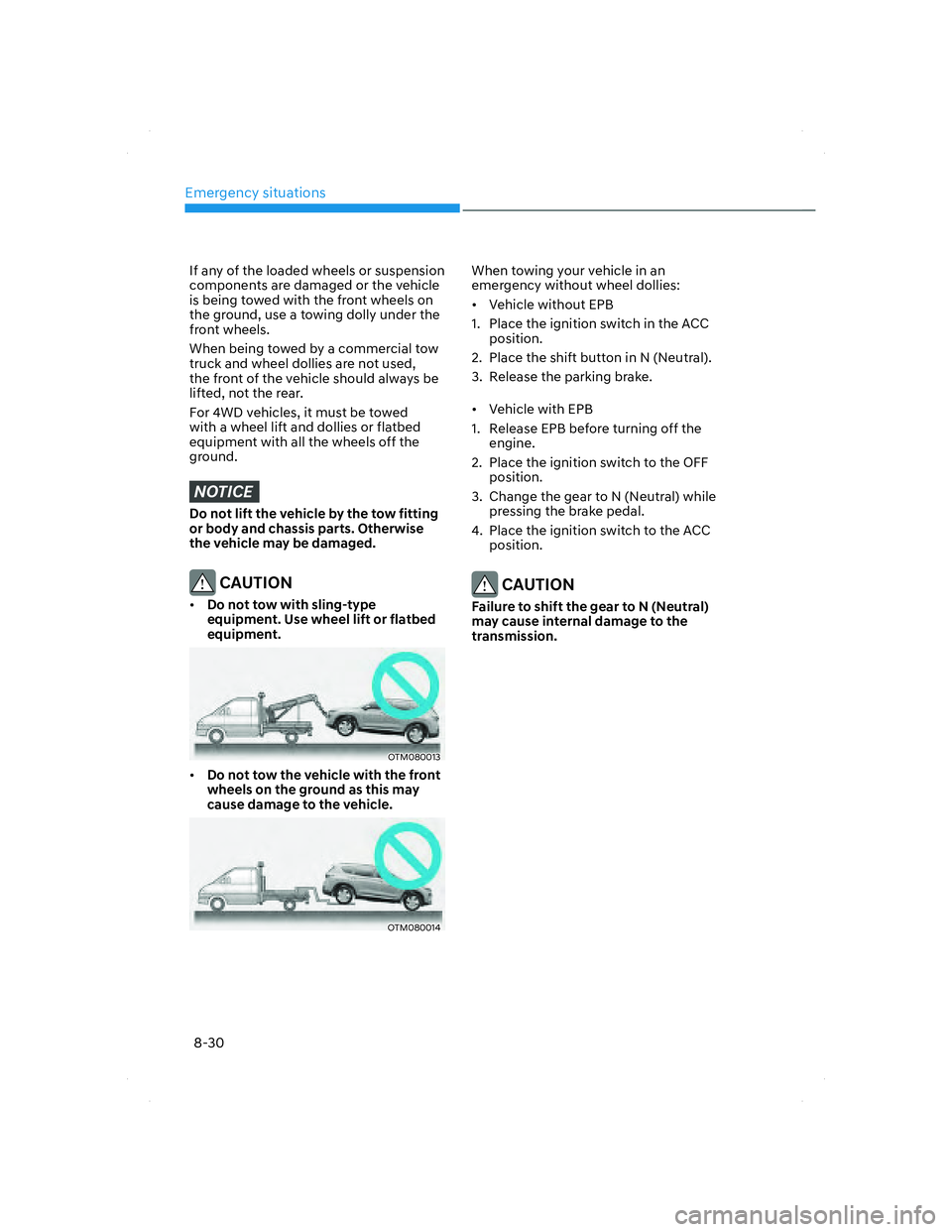

Emergency situations
8-30
If any of the loaded wheels or suspension
components are damaged or the vehicle
is being towed with the front wheels on
the ground, use a towing dolly under the
front wheels.
When being towed by a commercial tow
truck and wheel dollies are not used,
the front of the vehicle should always be
lifted, not the rear.
For 4WD vehicles, it must be towed
with a wheel lift and dollies or flatbed
equipment with all the wheels off the
ground.
NOTICE
Do not lift the vehicle by the tow fitting
or body and chassis parts. Otherwise
the vehicle may be damaged.
CAUTION
• Do not tow with sling-type
equipment. Use wheel lift or flatbed
equipment.
OTM080013OTM080013
• Do not tow the vehicle with the front
wheels on the ground as this may
cause damage to the vehicle.
OTM080014OTM080014
When towing your vehicle in an
emergency without wheel dollies:
• Vehicle without EPB
1. Place the ignition switch in the ACC
position.
2. Place the shift button in N (Neutral).
3. Release the parking brake.
• Vehicle with EPB
1. Release EPB before turning off the
engine.
2. Place the ignition switch to the OFF
position.
3. Change the gear to N (Neutral) while
pressing the brake pedal.
4. Place the ignition switch to the ACC
position.
CAUTION
Failure to shift the gear to N (Neutral)
may cause internal damage to the
transmission.
008_TMa_HMA.indd 8-302021-08-27 1:44:14

9
9. Maintenance
Engine compartment ........................................................................................ 9-3
Maintenance services
....................................................................................... 9-4
Owner’s responsibility ................................................................................................ 9-4
Owner maintenance precautions............................................................................... 9-4
Owner maintenance ......................................................................................... 9-5Owner maintenance schedule ................................................................................... 9-6
Scheduled maintenance services .....................................................................9-7
Normal maintenance schedule .................................................................................. 9-8
Maintenance under severe usage conditions
.......................................................... 9-12
Explanation of scheduled maintenance items .............................................. 9-14Fuel filter (for gasoline engine) ................................................................................. 9-14
Parking brake
.............................................................................................................. 9-15
Engine oil ..........................................................................................................9-16Checking the engine oil level .................................................................................... 9-16
Checking the engine oil and filter
............................................................................. 9-18
Engine coolant /Liquid-cooled intercooler coolant ......................................9-19
Checking the coolant level ........................................................................................ 9-19
Changing coolant
....................................................................................................... 9-21
Brake fluid ....................................................................................................... 9-22Checking the brake fluid level ................................................................................... 9-22
Washer fluid .................................................................................................... 9-23Checking the washer fluid level ................................................................................ 9-23
Air cleaner ....................................................................................................... 9-24Filter replacement ......................................................................................................9-24
Cabin air filter .................................................................................................. 9-25Filter inspection .......................................................................................................... 9-25
Filter replacement
...................................................................................................... 9-25
Wiper blades ................................................................................................... 9-26Blade inspection .........................................................................................................9-26
Blade replacement
.....................................................................................................9-26
Battery ............................................................................................................. 9-29
For best battery service ............................................................................................ 9-30
Battery capacity label
................................................................................................ 9-31
Battery recharging
..................................................................................................... 9-31
Reset items
................................................................................................................. 9-32

9
Tires and wheels ............................................................................................. 9-33Tire care ......................................................................................................................9-33
Recommended cold tire inflation pressures
............................................................9-33
Check tire inflation pressure
.....................................................................................9-34
Tire rotation
................................................................................................................9-35
Wheel alignment and tire balance
............................................................................9-36
Tire replacement
........................................................................................................9-36
Wheel replacement
.................................................................................................... 9-37
Tire traction
................................................................................................................ 9-37
Tire maintenance
....................................................................................................... 9-37
Tire sidewall labeling
................................................................................................. 9-38
Tire Terminology and Definitions Air Pressure
........................................................ 9-41
All Season Tires
.......................................................................................................... 9-44
Snow Tires.................................................................................................................. 9-44
Radial-Ply Tires
.......................................................................................................... 9-44
Low aspect ratio tires
................................................................................................ 9-45
Fuses ................................................................................................................ 9-47Instrument panel fuse replacement ........................................................................ 9-48
Engine compartment panel fuse replacement
....................................................... 9-49

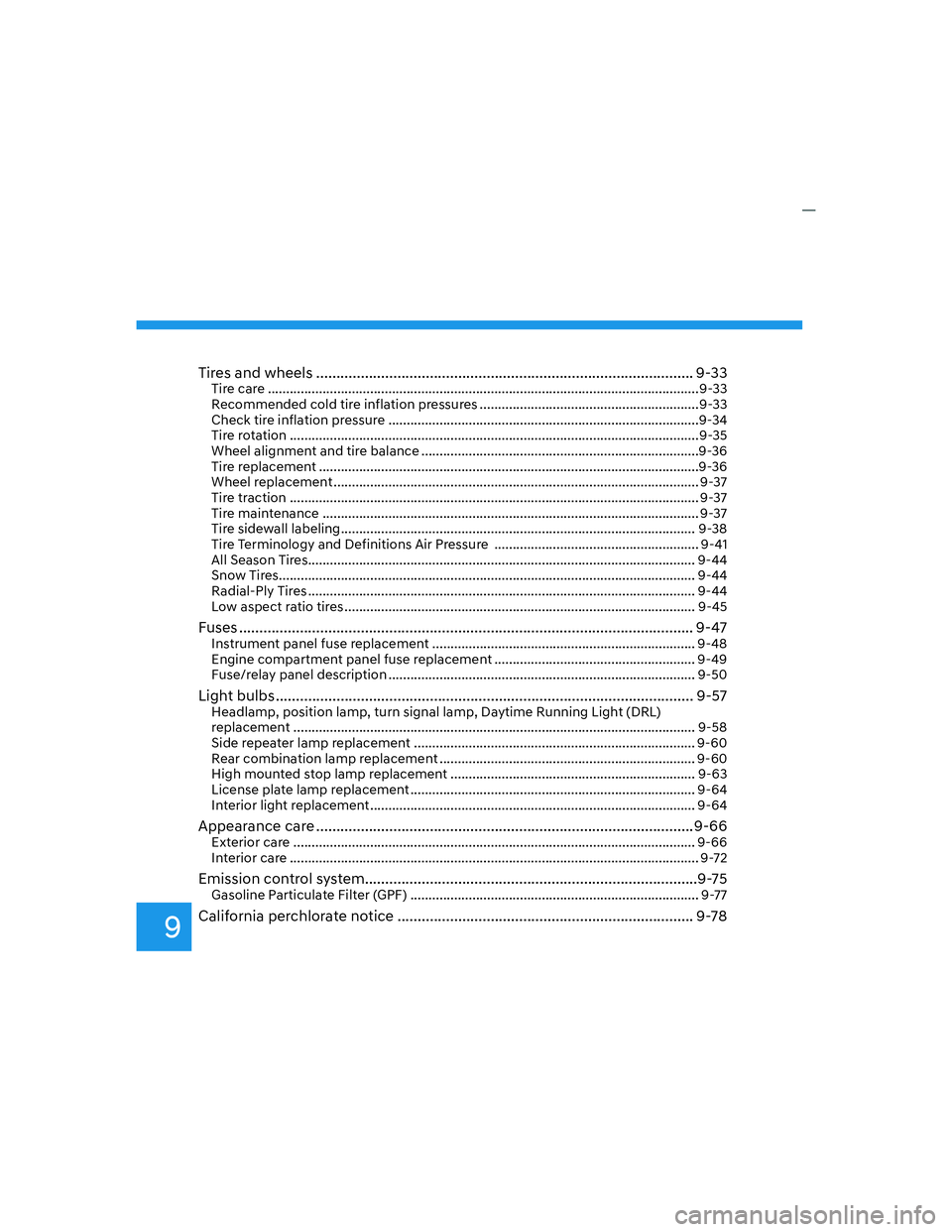

Fuse/relay panel description
.................................................................................... 9-50
Light bulbs ....................................................................................................... 9-57Headlamp, position lamp, turn signal lamp, Daytime Running Light (DRL)
replacement
.............................................................................................................. 9-58
Side repeater lamp replacement
............................................................................. 9-60
Rear combination lamp replacement
...................................................................... 9-60
High mounted stop lamp replacement
................................................................... 9-63
License plate lamp replacement
.............................................................................. 9-64
Interior light replacement
......................................................................................... 9-64
Appearance care .............................................................................................9-66
Exterior care .............................................................................................................. 9-66
Interior care
................................................................................................................ 9-72
Emission control system..................................................................................9-75Gasoline Particulate Filter (GPF) ............................................................................... 9-77
California perchlorate notice ......................................................................... 9-78

9-3
09
„Smartstream G2.5 GDI
„Smartstream G2.5 T-GDI
The actual engine compartment in the vehicle may differ from the illustration.
OTMA090001/OTMA090015
1. Engine oil filler cap
2. Engine oil dipstick
3. Engine coolant reservoir
4. Windshield washer fluid reservoir5. Brake fluid reservoir
6. Battery terminal [+]
7. Battery terminal [-]
8. Air cleaner
9. Fuse box

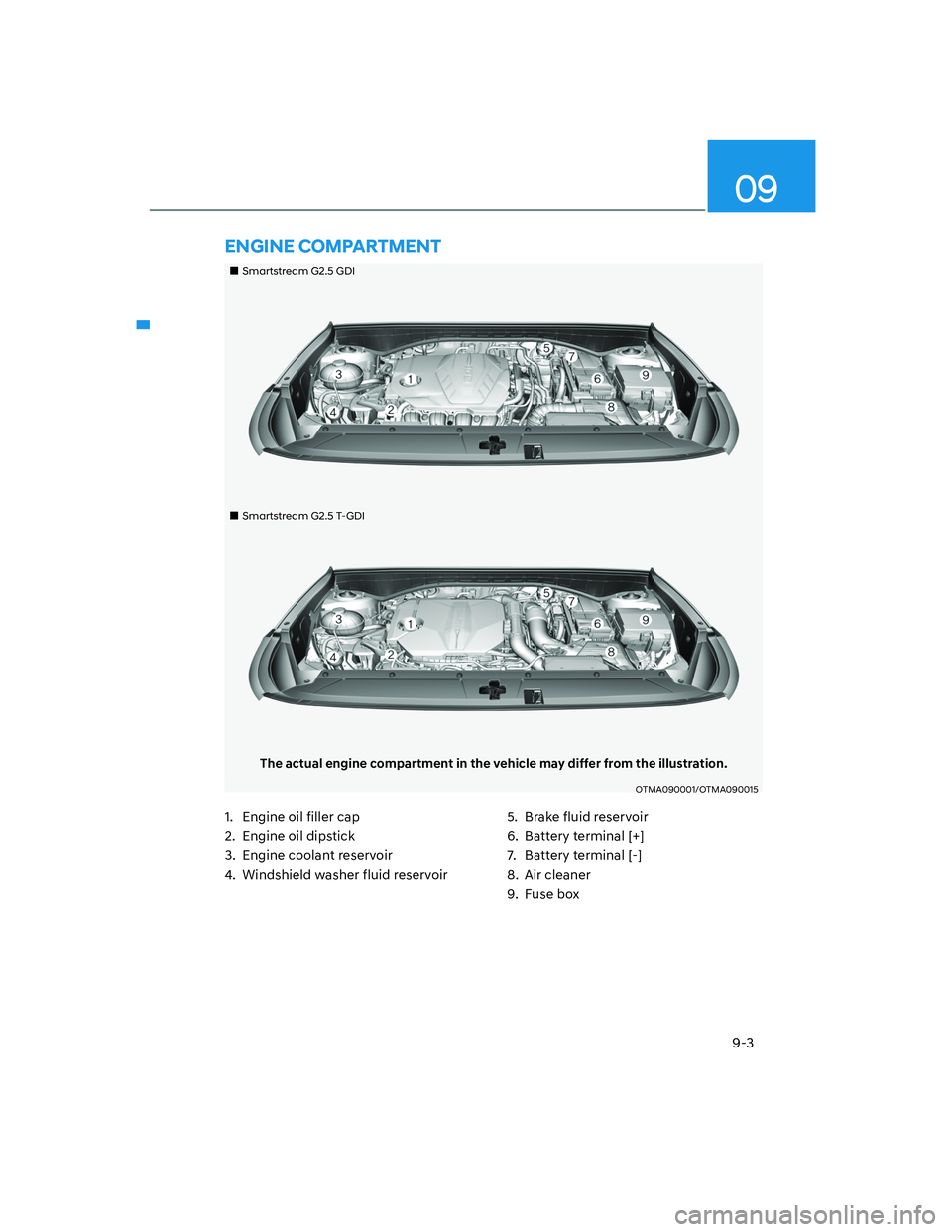

ENGINE COMPARTMENT

Maintenance
9-4
You should exercise the utmost care
to prevent damage to your vehicle and
injury to yourself whenever performing
any maintenance or inspection
procedures.
Have your vehicle maintained and
repaired by an authorized HYUNDAI
dealer. An authorized HYUNDAI dealer
meets HYUNDAI’s high service quality
standards and receives technical support
from HYUNDAI in order to provide you
with a high level of service satisfaction.
Owner’s responsibility
Maintenance service and record
retention are the owner’s responsibility.
You should retain documents that show
proper maintenance has been performed
on your vehicle in accordance with
the scheduled maintenance service
charts shown on the following pages.
You need this information to establish
your compliance with the servicing
and maintenance requirements of your
vehicle warranties.
Detailed warranty information is
provided in your Owner’s Handbook &
Warranty Information booklet.
Repairs and adjustments required as a
result of improper maintenance or a lack
of required maintenance are not covered.
Owner maintenance precautions
Inadequate, incomplete or insufficient
servicing may result in operational
problems with your vehicle that could
lead to vehicle damage, an accident, or
personal injury. This chapter provides
instructions only for the maintenance
items that are easy to perform.
Your vehicle should not be modified
in any way. Such modifications may
adversely affect the performance, safety
or durability of your vehicle and may, in
addition, violate conditions of the limited
warranties covering the vehicle.
NOTICE
Improper owner maintenance during
the warranty period may affect
warranty coverage. For details, read the
separate Owner’s Handbook & Warranty
Information booklet provided with
the vehicle. If you’re unsure about any
servicing or maintenance procedure,
have the system be serviced by an
authorized HYUNDAI dealer.

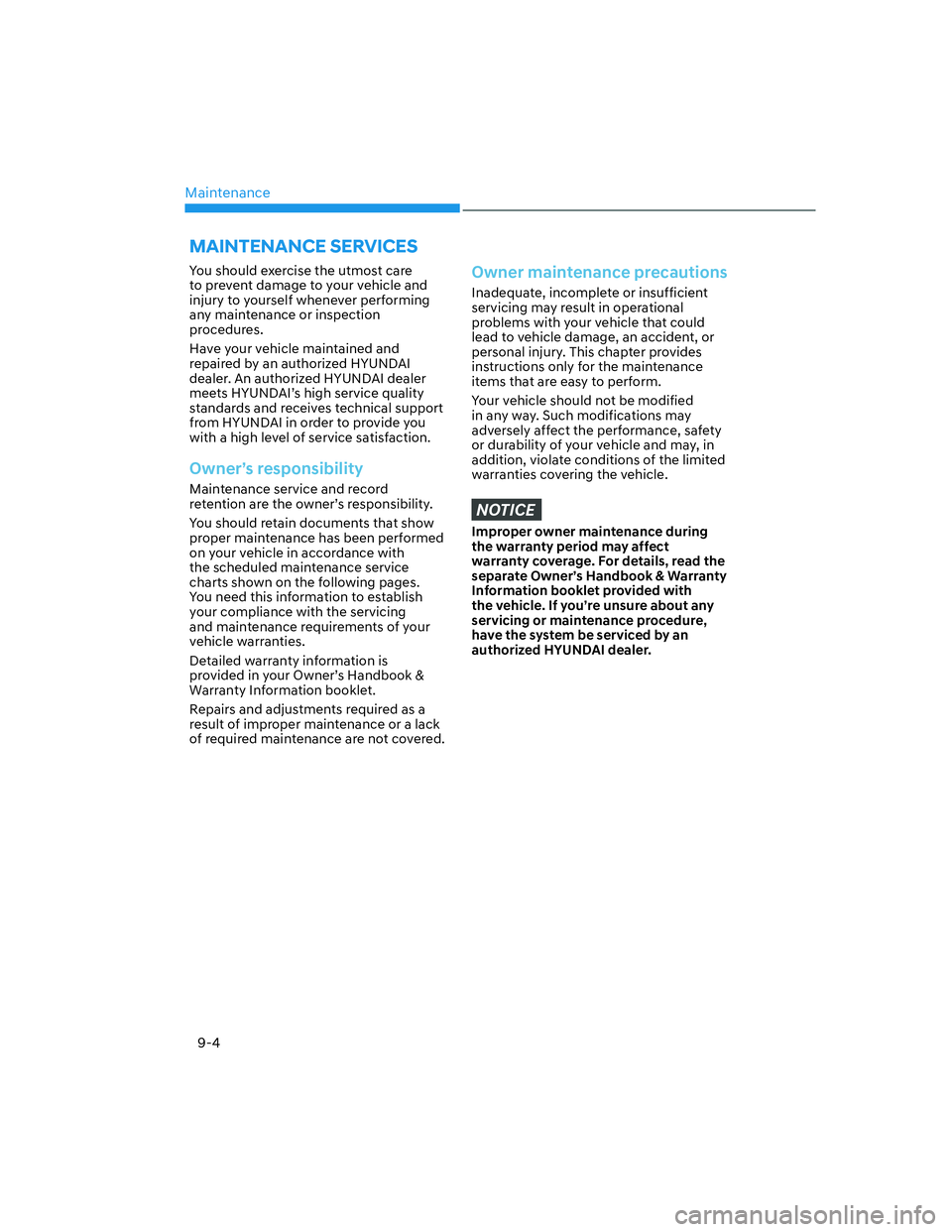

MAINTENANCE SERVICES

09
9-5

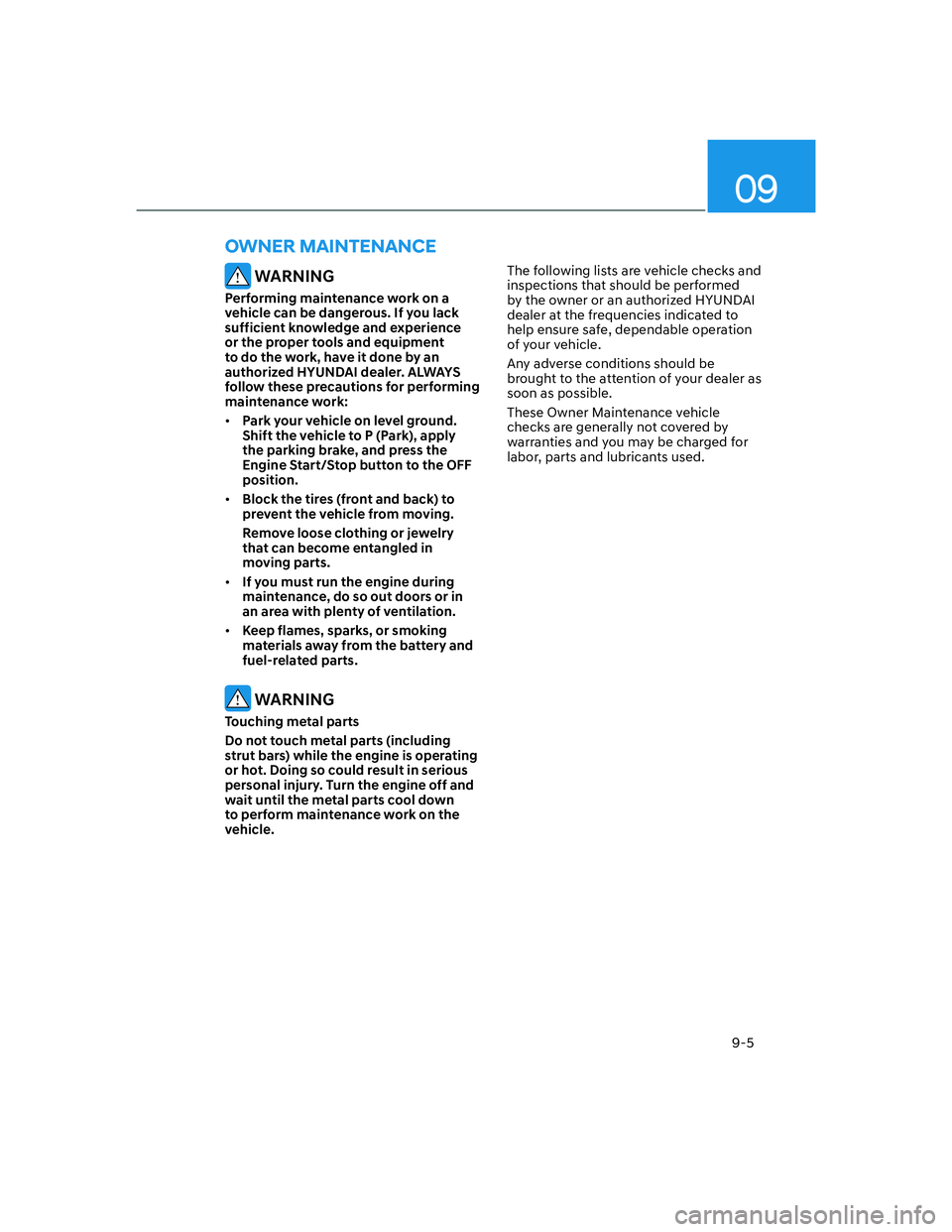

WARNING
Performing maintenance work on a
vehicle can be dangerous. If you lack
sufficient knowledge and experience
or the proper tools and equipment
to do the work, have it done by an
authorized HYUNDAI dealer. ALWAYS
follow these precautions for performing
maintenance work:

[Park your vehicle on level ground.
Shift the vehicle to P (Park), apply
the parking brake, and press the
Engine Start/Stop button to the OFF
position.

[Block the tires (front and back) to
prevent the vehicle from moving.
Remove loose clothing or jewelry
that can become entangled in
moving parts.

[If you must run the engine during
maintenance, do so out doors or in
an area with plenty of ventilation.

[Keep flames, sparks, or smoking
materials away from the battery and
fuel-related parts.
WARNING
Touching metal parts
Do not touch metal parts (including
strut bars) while the engine is operating
or hot. Doing so could result in serious
personal injury. Turn the engine off and
wait until the metal parts cool down
to perform maintenance work on the
vehicle.The following lists are vehicle checks and
inspections that should be performed
by the owner or an authorized HYUNDAI
dealer at the frequencies indicated to
help ensure safe, dependable operation
of your vehicle.
Any adverse conditions should be
brought to the attention of your dealer as
soon as possible.
These Owner Maintenance vehicle
checks are generally not covered by
warranties and you may be charged for
labor, parts and lubricants used.
OWNER MAINTENANCE
