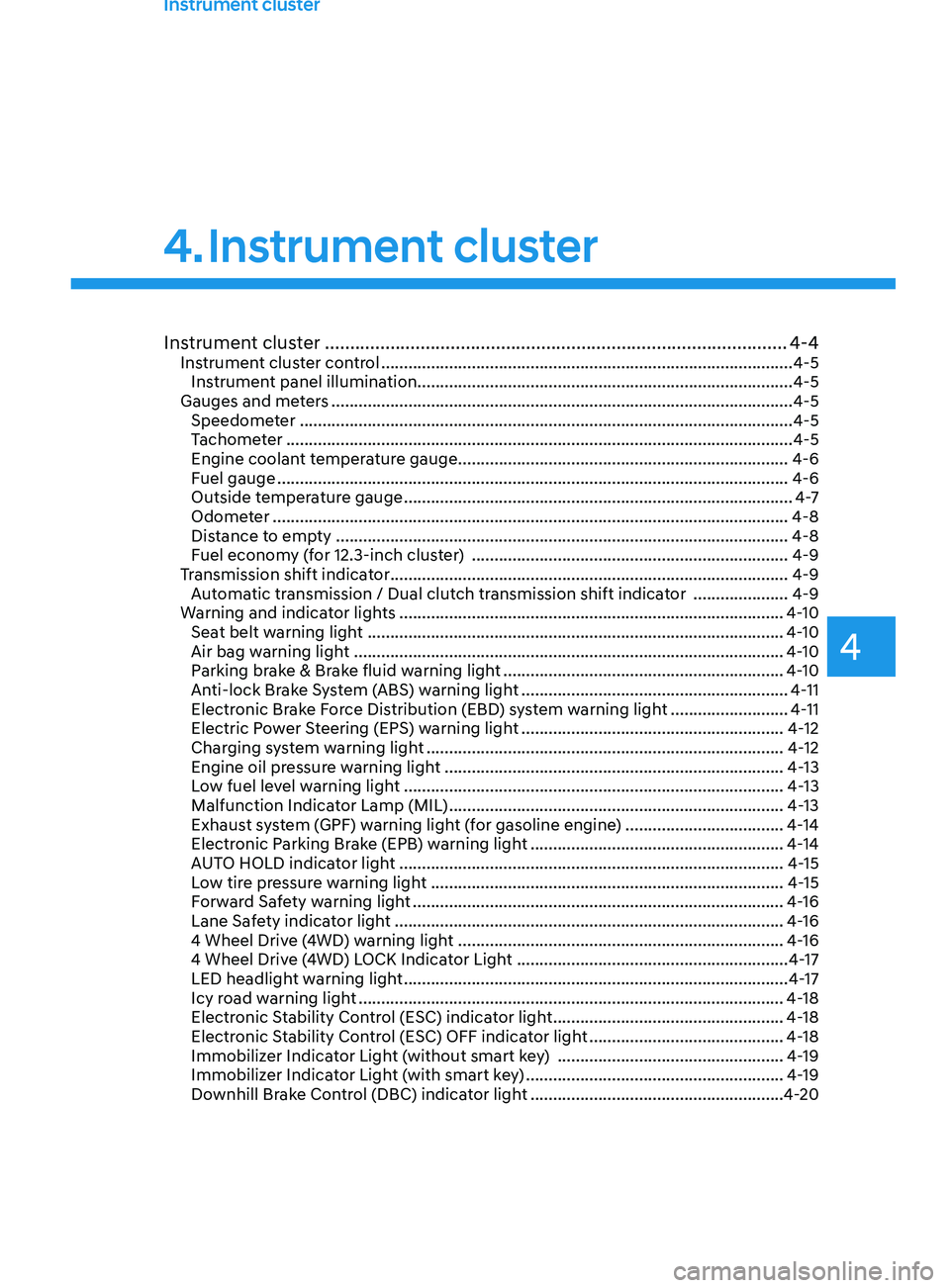

Instrument cluster
Instrument cluster ........................................................................\
....................4-4Instrument cluster control ........................................................................\
...................4-5
Instrumen t panel illumination ........................................................................\
........... 4-5
Gauges and me
ters
........................................................................\
.............................. 4-5
Speedome

ter
........................................................................\
..................................... 4-5
T

achometer
........................................................................\
.....................................
...4-5
Engine coolant temperature gauge
........................................................................\
. 4-6
Fuel gauge ........................................................................\
.....................................

....4-6
Outside temperature gauge
........................................................................\
.............. 4

-7
Odometer
........................................................................\
.....................................

.....4-8
Distance to empty
........................................................................\
............................ 4-8
F

uel economy (for 12.3-inch cluster)
...................................................................... 4-9
T

ransmission shift indicator
........................................................................\
................ 4-9
A

utomatic transmission / Dual clutch transmission shift indicator
..................... 4-9
W

arning and indicator lights
........................................................................\
............. 4-

10
Seat belt warning light
........................................................................\
.................... 4-

10
Air bag warning light
........................................................................\
....................... 4-

10
Parking brake & Brake fluid warning light
.............................................................. 4-10
An

ti-lock Brake System (ABS) warning light
........................................................... 4-

11
Electronic Brake Force Distribution (EBD) system warning light
.......................... 4-

11
Electric Power Steering (EPS) warning light
.......................................................... 4-

12
Charging system warning light
........................................................................\
....... 4-

12
Engine oil pressure warning light
........................................................................\
... 4-

13
Low fuel level warning light
........................................................................\
............ 4-

13
Malfunction Indicator Lamp (MIL)
........................................................................\
.. 4-13
Exhaus

t system (GPF) warning light (for gasoline engine)
................................... 4-

14
Electronic Parking Brake (EPB) warning light
........................................................ 4-

14
AUTO HOLD indicator light
........................................................................\
............. 4-

15
Low tire pressure warning light
........................................................................\
...... 4-

15
Forward Safety warning light
........................................................................\
.......... 4-16
Lane Sa

fety indicator light
........................................................................\
.............. 4-

16
4 Wheel Drive (4WD) warning light
........................................................................\
4-

16
4 Wheel Drive (4WD) LOCK Indicator Light
............................................................ 4-17
LED headligh

t warning light
........................................................................\
............. 4-

17
Icy road warning light
........................................................................\
...................... 4-

18
Electronic Stability Control (ESC) indicator light
................................................... 4-

18
Electronic Stability Control (ESC) OFF indicator light
........................................... 4-

18
Immobilizer Indicator Light (without smart key)
.................................................. 4-

19
Immobilizer Indicator Light (with smart key)
......................................................... 4-

19
Downhill Brake Control (DBC) indicator light
........................................................

4-20
4. Instrument cluster
4

Instrument cluster
4-8
Odometer
„„4.2-inch„„12.3-inch
OTMA048183OCN7040015N
The odometer indicates the total
distance that the vehicle has been
driven and should be used to determine
when periodic maintenance should be
performed.
Distance to empty
„„4.2-inch„„12.3-inch
OAD048563LOCN7040016N
• The distance to empty is the
estimated distance the vehicle can be
driven with the remaining fuel.
• If the estimated distance is below
1 mi. (1 km), the trip computer will
display “---” as distance to empty.
Information
• If the vehicle is not on level ground or
the battery power has been interrupted,
the distance to empty function may not
operate correctly.
• The distance to empty may differ
from the actual driving distance as it
is an estimate of the available driving
distance.
• The trip computer may not register
additional fuel if less than 6 liters (1.5
gallon) of fuel are added to the vehicle.
• The distance to empty may vary
significantly based on driving
conditions, driving habits, and
condition of the vehicle.

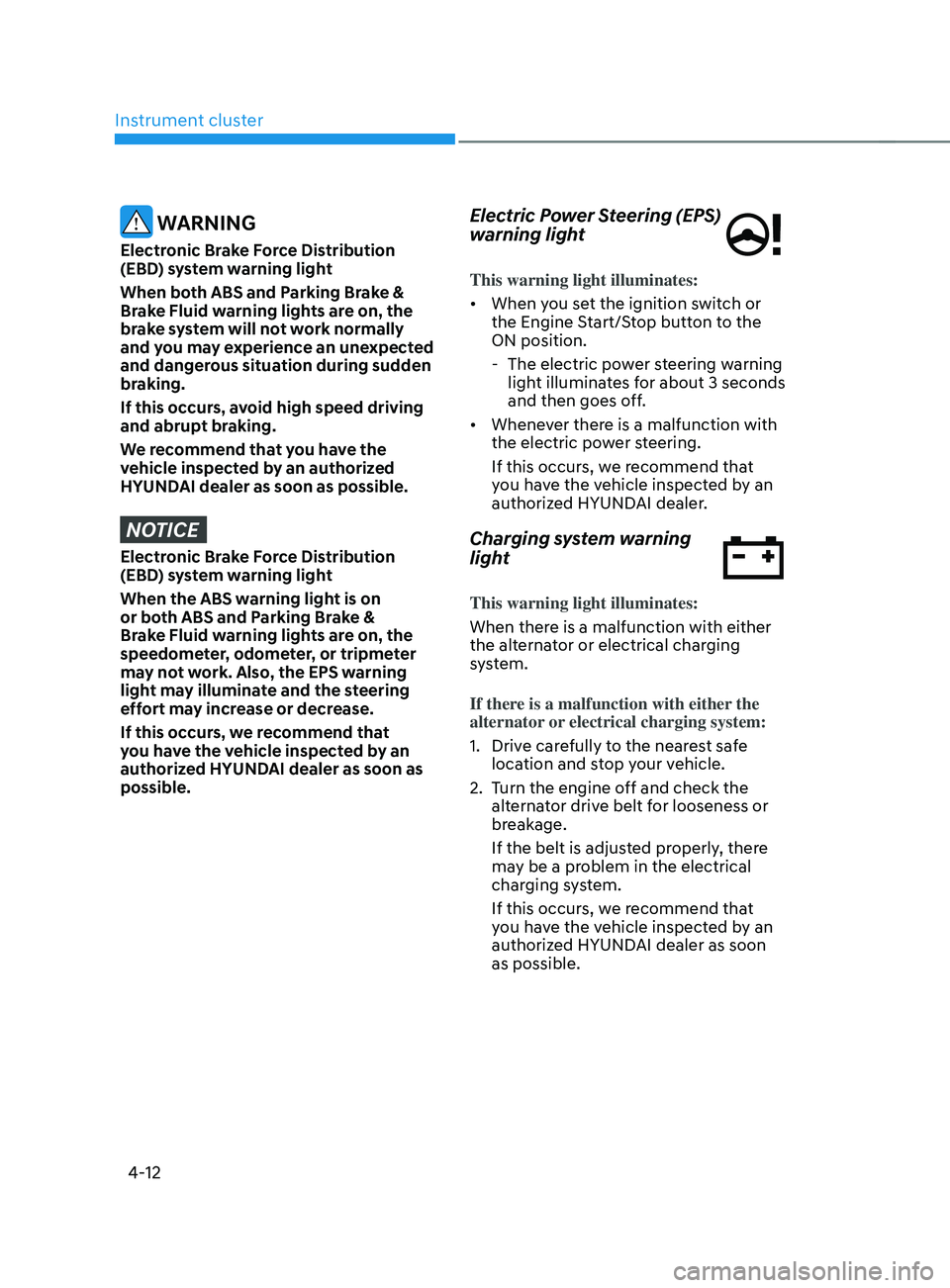

Instrument cluster
4-12
WARNING
Electronic Brake Force Distribution
(EBD) system warning light
When both ABS and Parking Brake &
Brake Fluid warning lights are on, the
brake system will not work normally
and you may experience an unexpected
and dangerous situation during sudden
braking.
If this occurs, avoid high speed driving
and abrupt braking.
We recommend that you have the
vehicle inspected by an authorized
HYUNDAI dealer as soon as possible.
NOTICE
Electronic Brake Force Distribution
(EBD) system warning light
When the ABS warning light is on
or both ABS and Parking Brake &
Brake Fluid warning lights are on, the
speedometer, odometer, or tripmeter
may not work. Also, the EPS warning
light may illuminate and the steering
effort may increase or decrease.
If this occurs, we recommend that
you have the vehicle inspected by an
authorized HYUNDAI dealer as soon as
possible.
Electric Power Steering (EPS)
warning light
This warning light illuminates:
• When you set the ignition switch or
the Engine Start/Stop button to the
ON position.
- The electric pow

er steering warning
light illuminates for about 3 seconds
and then goes off.
• Whenever there is a malfunction with
the electric power steering.
If this occurs, we recommend that
you have the vehicle inspected by an
authorized HYUNDAI dealer.
Charging system warning
light
This warning light illuminates:
When there is a malfunction with either
the alternator or electrical charging
system.
If there is a malfunction with either the
alternator or electrical charging system:
1.
Drive car

efully to the nearest safe
location and stop your vehicle.
2.
Turn the engine o

ff and check the
alternator drive belt for looseness or
breakage.
If the belt is adjusted properly, there
may be a problem in the electrical
charging system.
If this occurs, we recommend that
you have the vehicle inspected by an
authorized HYUNDAI dealer as soon
as possible.

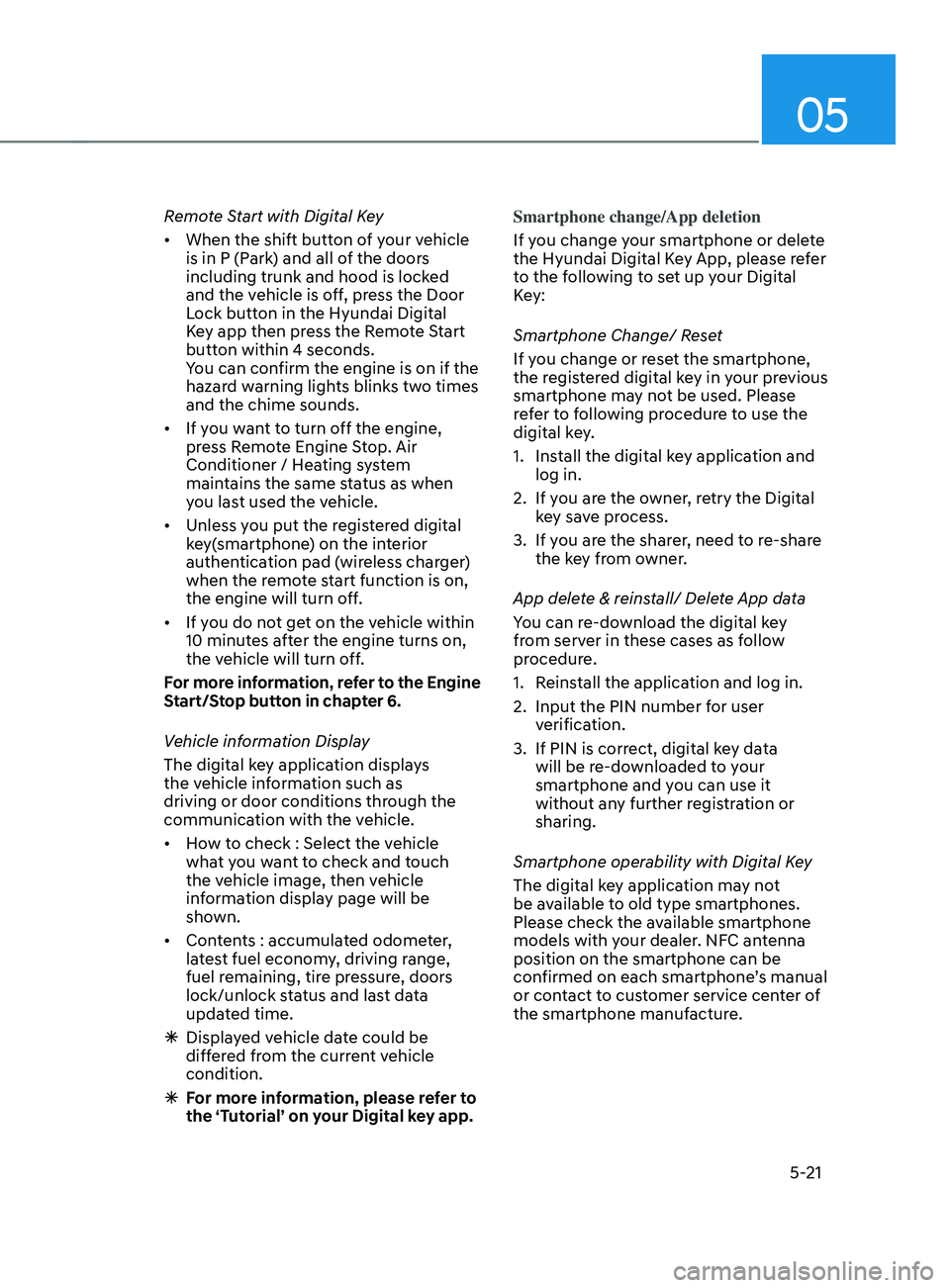

05
5-21
Remote Start with Digital Key
• When the shift button of your vehicle
is in P (Park) and all of the doors
including trunk and hood is locked
and the vehicle is off, press the Door
Lock button in the Hyundai Digital
Key app then press the Remote Start
button within 4 seconds.
You can confirm the engine is on if the
hazard warning lights blinks two times
and the chime sounds.
• If you want to turn off the engine,
press Remote Engine Stop. Air
Conditioner / Heating system
maintains the same status as when
you last used the vehicle.
• Unless you put the registered digital
key(smartphone) on the interior
authentication pad (wireless charger)
when the remote start function is on,
the engine will turn off.
• If you do not get on the vehicle within
10 minutes after the engine turns on,
the vehicle will turn off.
For more information, refer to the Engine
Start/Stop button in chapter 6.
Vehicle information Display
The digital key application displays
the vehicle information such as
driving or door conditions through the
communication with the vehicle.
• How to check : Select the vehicle
what you want to check and touch
the vehicle image, then vehicle
information display page will be
shown.
• Contents : accumulated odometer,
latest fuel economy, driving range,
fuel remaining, tire pressure, doors
lock/unlock status and last data
updated time.
ÃDisplay

ed vehicle date could be
differed from the current vehicle
condition.
à For mor

e information, please refer to
the ‘Tutorial’ on your Digital key app. Smartphone change/App deletion
If you change your smartphone or delete
the Hyundai Digital Key App, please refer
to the following to set up your Digital
Key:
Smartphone Change/ Reset
If you change or reset the smartphone,
the registered digital key in your previous
smartphone may not be used. Please
refer to following procedure to use the
digital key.
1.
Install the digital k

ey application and
log in.
2.
If you ar

e the owner, retry the Digital
key save process.
3.
If you ar

e the sharer, need to re-share
the key from owner.
App delete & reinstall/ Delete App data
You can re-download the digital key
from server in these cases as follow
procedure.
1.
Reins

tall the application and log in.
2.
Input the PIN number for user
v

erification.
3.
If PIN is correct, digital k

ey data
will be re-downloaded to your
smartphone and you can use it
without any further registration or
sharing.
Smartphone operability with Digital Key
The digital key application may not
be available to old type smartphones.
Please check the available smartphone
models with your dealer. NFC antenna
position on the smartphone can be
confirmed on each smartphone’s manual
or contact to customer service center of
the smartphone manufacture.
