Maintenance
9-46

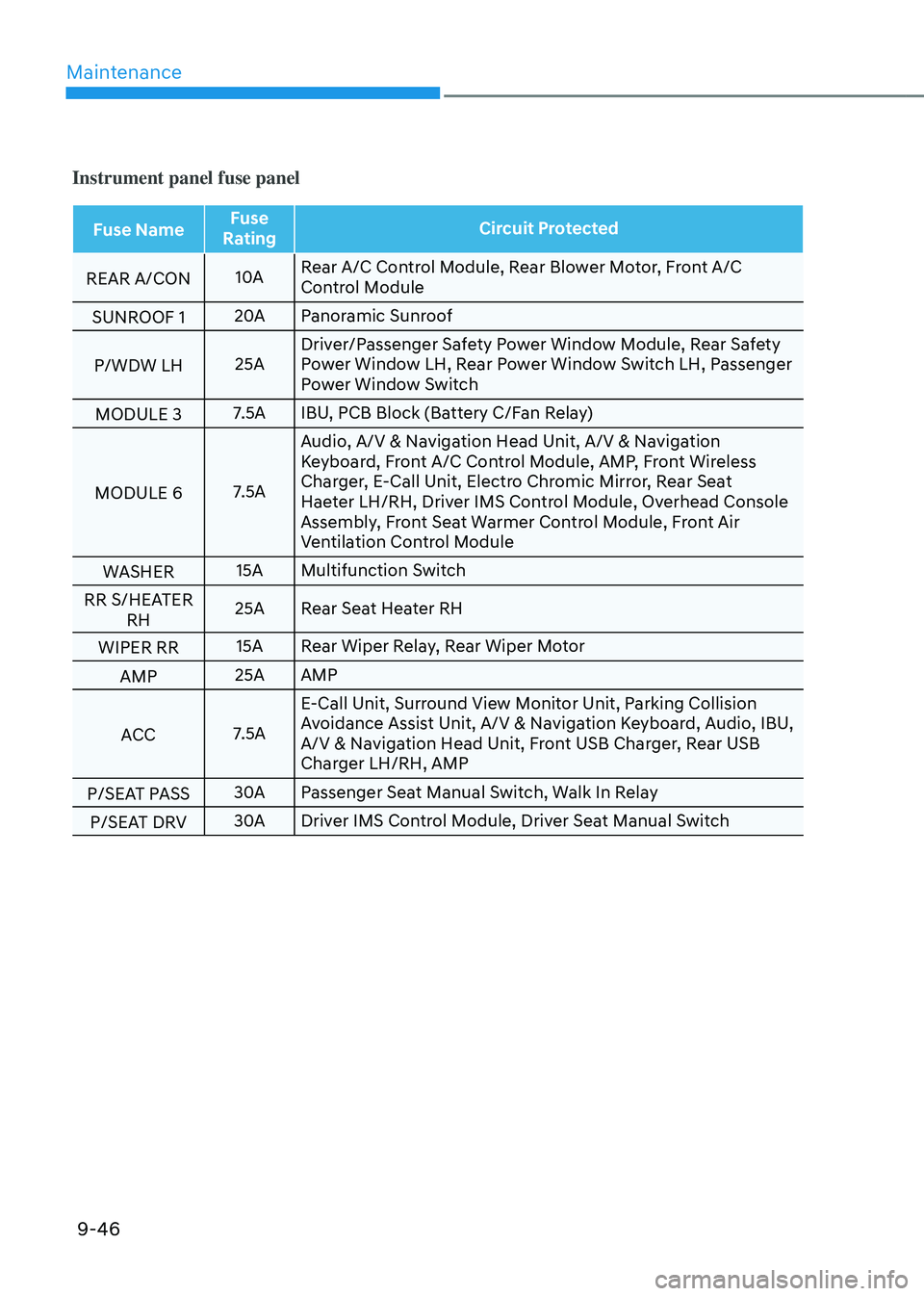

Instrument panel fuse panel
Fuse NameFuse
Rating Circuit Protected
REAR A/CON 10ARear A/C Control Module, Rear Blower Motor, Front A/C
Control Module
SUNROOF 1 20A
Panoramic Sunroof
P/WDW LH 25ADriver/Passenger Safety Power Window Module, Rear Safety
Power Window LH, Rear Power Window Switch LH, Passenger
Power Window Switch
MODULE 3 7.5A
IBU, PCB Block (Battery C/Fan Relay)
MODULE 6 7.5AAudio, A/V & Navigation Head Unit, A/V & Navigation
Keyboard, Front A/C Control Module, AMP, Front Wireless
Charger, E-Call Unit, Electro Chromic Mirror, Rear Seat
Haeter LH/RH, Driver IMS Control Module, Overhead Console
Assembly, Front Seat Warmer Control Module, Front Air
Ventilation Control Module
WASHER 15A
Multifunction Switch
RR S/HEATER RH 25A
Rear Seat Heater RH
WIPER RR 15A
Rear Wiper Relay, Rear Wiper Motor
AMP 25A
AMP
ACC 7.5AE-Call Unit, Surround View Monitor Unit, Parking Collision
Avoidance Assist Unit, A/V & Navigation Keyboard, Audio, IBU,
A/V & Navigation Head Unit, Front USB Charger, Rear USB
Charger LH/RH, AMP
P/SEAT PASS 30A
Passenger Seat Manual Switch, Walk In Relay
P/SEAT DRV 30A
Driver IMS Control Module, Driver Seat Manual Switch
Page 562 of 598

09
9-47

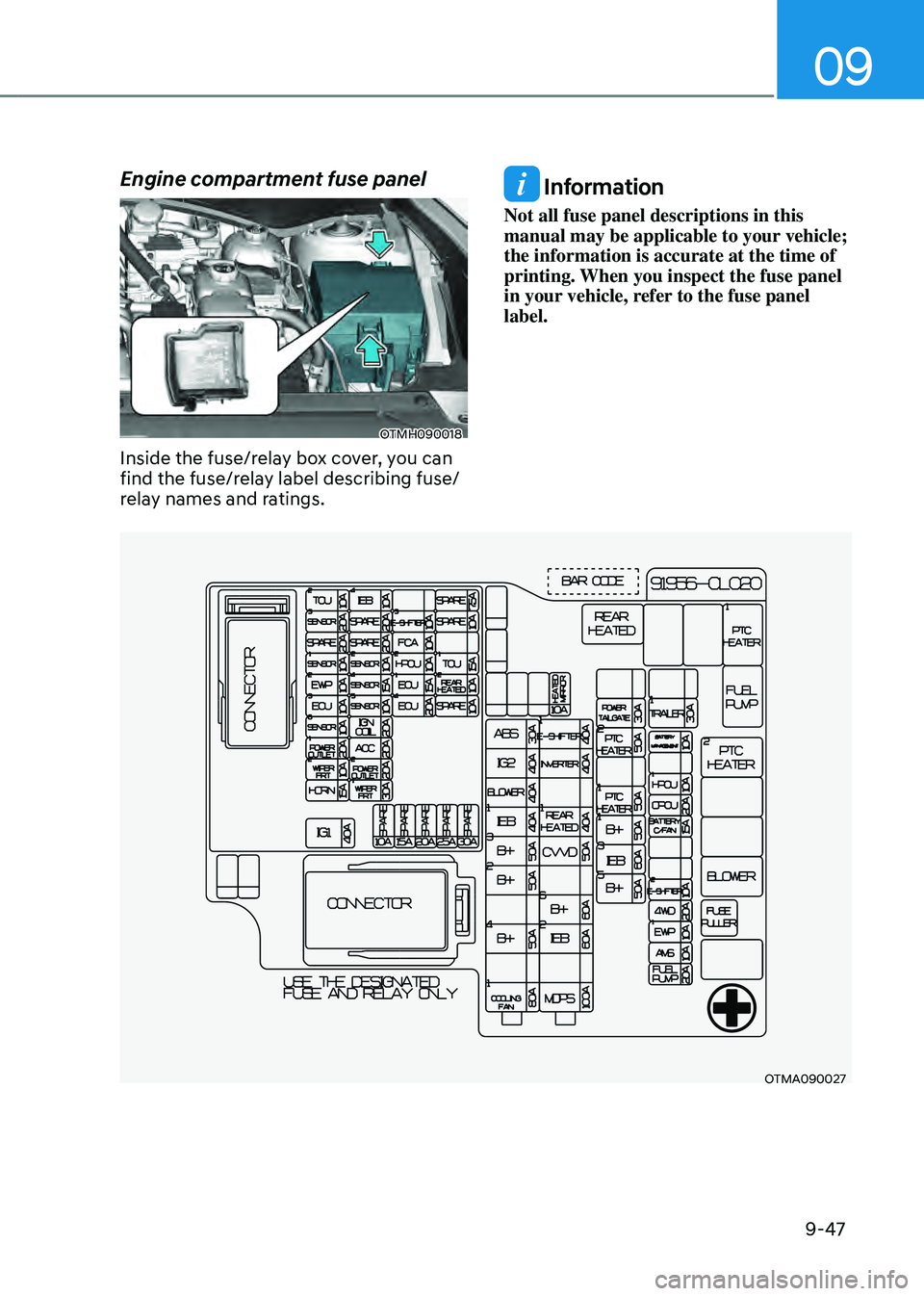

Engine compartment fuse panel
OTMH090018
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
OTMA090027
Page 563 of 598

Maintenance
9-48

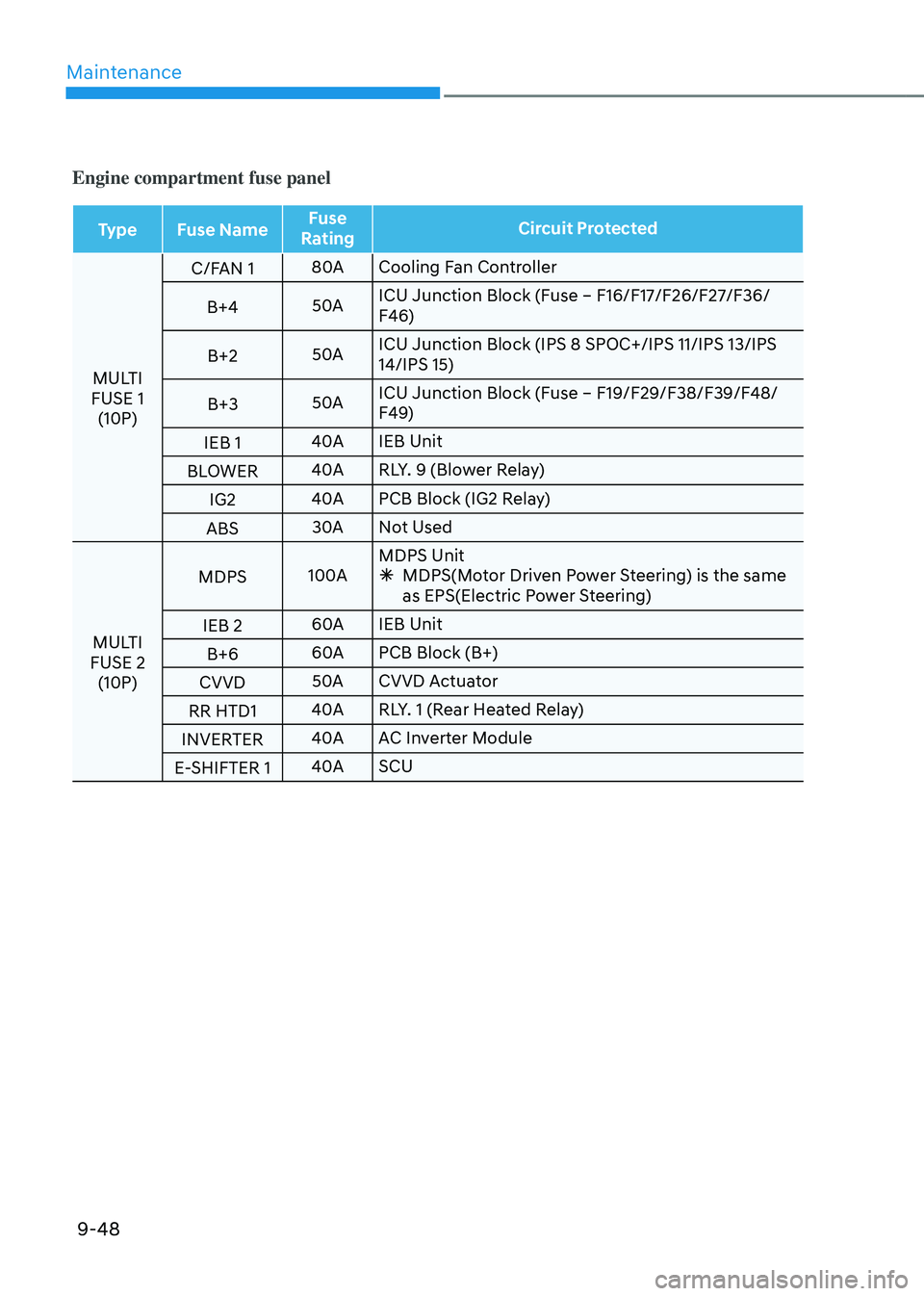

Engine compartment fuse panel
TypeFuse Name Fuse
Rating Circuit Protected
MULTI
FUSE 1 (10P) C/FAN 1
80A
Cooling Fan Controller
B+4 50AICU Junction Block (Fuse – F16/F17/F26/F27/F36/
F46)
B+2 50AICU Junction Block (IPS 8 SPOC+/IPS 11/IPS 13/IPS
14/IPS 15)
B+3 50AICU Junction Block (Fuse – F19/F29/F38/F39/F48/
F49)
IEB 1 40A
IEB Unit
BLOWER 40A
RLY. 9 (Blower Relay)
IG2 40A
PCB Block (IG2 Relay)
ABS 30A
Not Used
MULTI
FUSE 2 (10P) MDPS
100AMDPS Unit
Ã
MDPS(Motor Driven Power Steering) is the same
as EPS(Electric Power Steering)
IEB 2 60A
IEB Unit
B+6 60A
PCB Block (B+)
CVVD 50A
CVVD Actuator
RR HTD1 40A
RLY. 1 (Rear Heated Relay)
INVERTER 40A
AC Inverter Module
E-SHIFTER 1 40A
SCU
Page 564 of 598

09
9-49
Engine compartment fuse panel

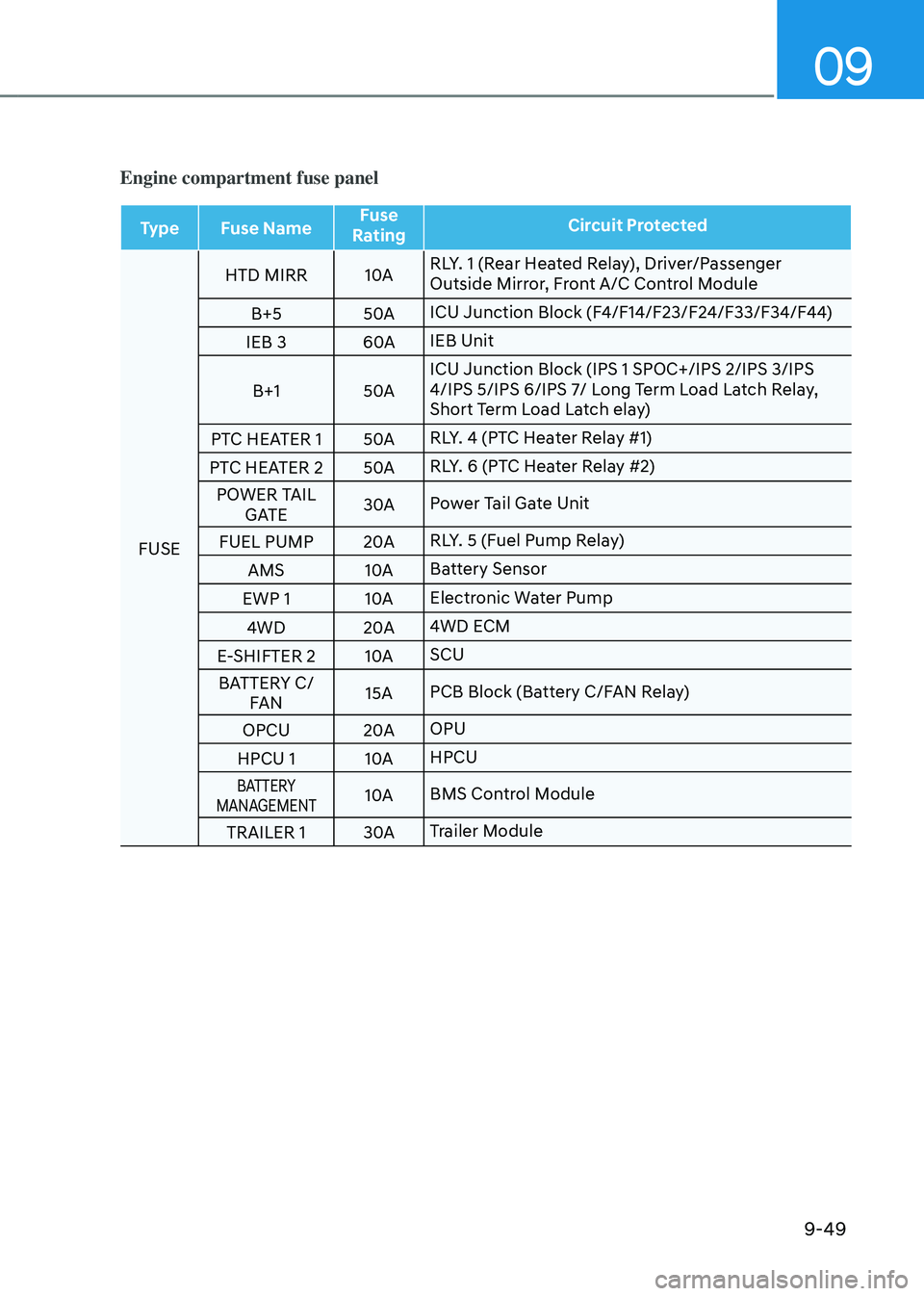

TypeFuse Name Fuse
Rating Circuit Protected
FUSE HTD MIRR
10ARLY. 1 (Rear Heated Relay), Driver/Passenger
Outside Mirror, Front A/C Control Module
B+5 50AICU Junction Block (F4/F14/F23/F24/F33/F34/F44)
IEB 3 60AIEB Unit
B+1 50AICU Junction Block (IPS 1 SPOC+/IPS 2/IPS 3/IPS
4/IPS 5/IPS 6/IPS 7/ Long Term Load Latch Relay,
Short Term Load Latch elay)
PTC HEATER 1 50ARLY. 4 (PTC Heater Relay #1)
PTC HEATER 2 50ARLY. 6 (PTC Heater Relay #2)
POWER TAIL GATE 30A
Power Tail Gate Unit
FUEL PUMP 20ARLY. 5 (Fuel Pump Relay)
AMS 10ABattery Sensor
EWP 1 10AElectronic Water Pump
4WD 20A4WD ECM
E-SHIFTER 2 10ASCU
BATTERY C/ FAN 15A
PCB Block (Battery C/FAN Relay)
OPCU 20AOPU
HPCU 1 10AHPCU
BATTERY
MANAGEMENT10A BMS Control Module
TRAILER 1 30ATrailer Module
Page 565 of 598

Maintenance
9-50
Engine compartment fuse panel
Fuse NameFuse
Rating Circuit Protected
IG1 40A
IG1 Relay
TCU2 10A
TCM
SENSOR3 20A
ECM, Oxygen Sensor (Up/Down)
SENSOR1 10A
ELCM
EWP2 10A
Electronic Water Pump
ECU3 10A
ECM, CVVD Actuator
SENSOR6 10A
OPU
POWER
OUTLET1 20A
Luggage Power Outlet
WIPER2 10A
IBU, Front Wiper Motor
HORN 15A
Horn Relay
IEB4 10A
IEB Unit
SENSOR2 10APurge Control Solenoid Valve,
Oil Control Valve #1/#2(Intake/Exhaust),
Oil Pump Solenoid Valve, Cooling Fan Motor,
RCV Control Solenoid Valve
SENSOR4 15A
Active Purge Pump
SENSOR5 10A
E/R Junction Block (RLY. 5)
IGN COIL 20A
Ignition Coil #1/#2/#3/#4
ACC 20A
ICU Junction Block (Fuse – F37/F47)
POWER
OUTLET2 20A
Front Power Outlet
WIPER1 30A
Front Wiper Motor, Front Wiper (Low) Relay
E-SHIFTER3 10A
SCU
FCA 10A
Front Radar Unit
HPCU 2 10A
HPCU
ECU1 15A
ECM
ECU4 20A
ECM
TCU1 15A
TCM
RR HTD2 10A
E/R Junction Block (RLY. 1)
Page 566 of 598

09
9-51
We recommend that you consult an
authorized HYUNDAI dealer to replace
most vehicle light bulbs. It is difficult
to replace vehicle light bulbs because
other parts of the vehicle must be
removed before you can get to the bulb.
This is especially true for removing the
headlamp assembly to get to the bulb(s).
Removing/installing the headlamp
assembly can result in damage to the
vehicle.
WARNING
• Prior to working on a light, depress
the foot brake, shift to P (Park), apply
the parking brake, set the ignition
switch to the LOCK/OFF position
and take the key with you when
leaving the vehicle to avoid sudden
movement of the vehicle and to
prevent possible electric shock.
• Be aware the bulbs may be hot and
may burn your fingers.
NOTICE
Be sure to replace the burned-out bulb
with one of the same wattage rating.
Otherwise, it may cause damage to the
fuse or electrical wiring system.
NOTICE
To prevent damage, do not clean the
headlamp lens with chemical solvents
or strong detergents.
Information
The headlamp and tail lamp lenses could
appear frosty if the vehicle is washed after
driving or the vehicle is driven at night
in wet weather. This condition is caused
by temperature difference between the
lamp inside and outside and, it does not
indicate a problem with your vehicle.
When moisture condenses in the lamp,
it will be removed after driving with the
headlamp on. The removable level may
differ depending on lamp size, lamp
position and environmental condition.
However, if moisture is not removed, we
recommend that your vehicle is inspected
by an authorized HYUNDAI dealer.
Information
• A normally functioning lamp may
flicker momentarily to stabilize the
vehicle’s electrical control system.
However, if the lamp goes out after
flickering momentarily, or continues to
flicker, we recommend the system be
checked by an authorized HYUNDAI
dealer.
• The position lamp may not turn on
when the position lamp switch is turned
on, but the position lamp and headlamp
switch may turn on when the headlamp
switch is turned on. This may be caused
by network failure or vehicle electrical
control system malfunction. If this
occurs, we recommend the system be
checked by an authorized HYUNDAI
dealer.
Information
The headlamp aiming should be adjusted
after an accident or after the headlamp
assembly is reinstalled at an authorized
HYUNDAI dealer.

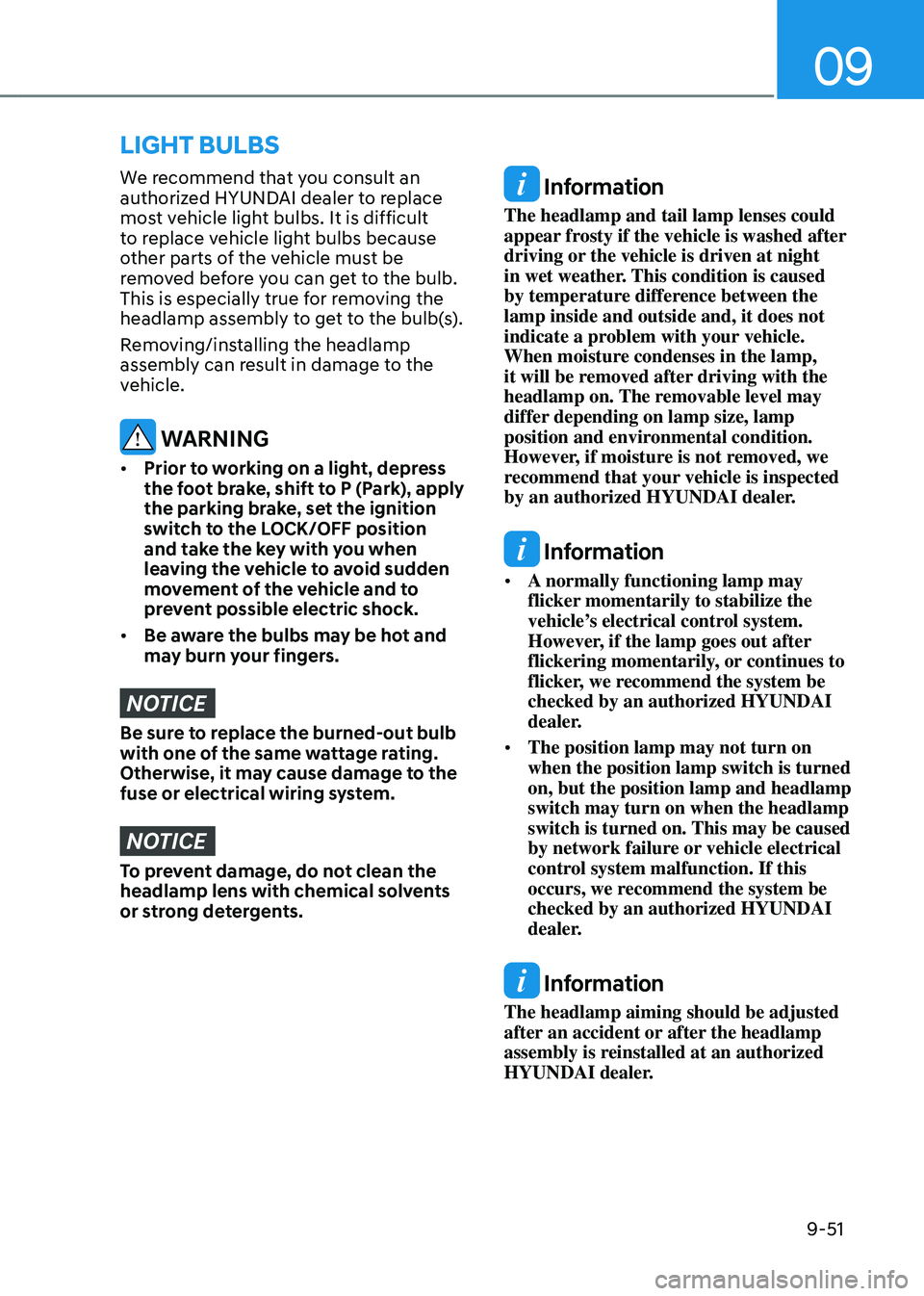

LIGHT BULBS
Page 567 of 598

Maintenance
9-52

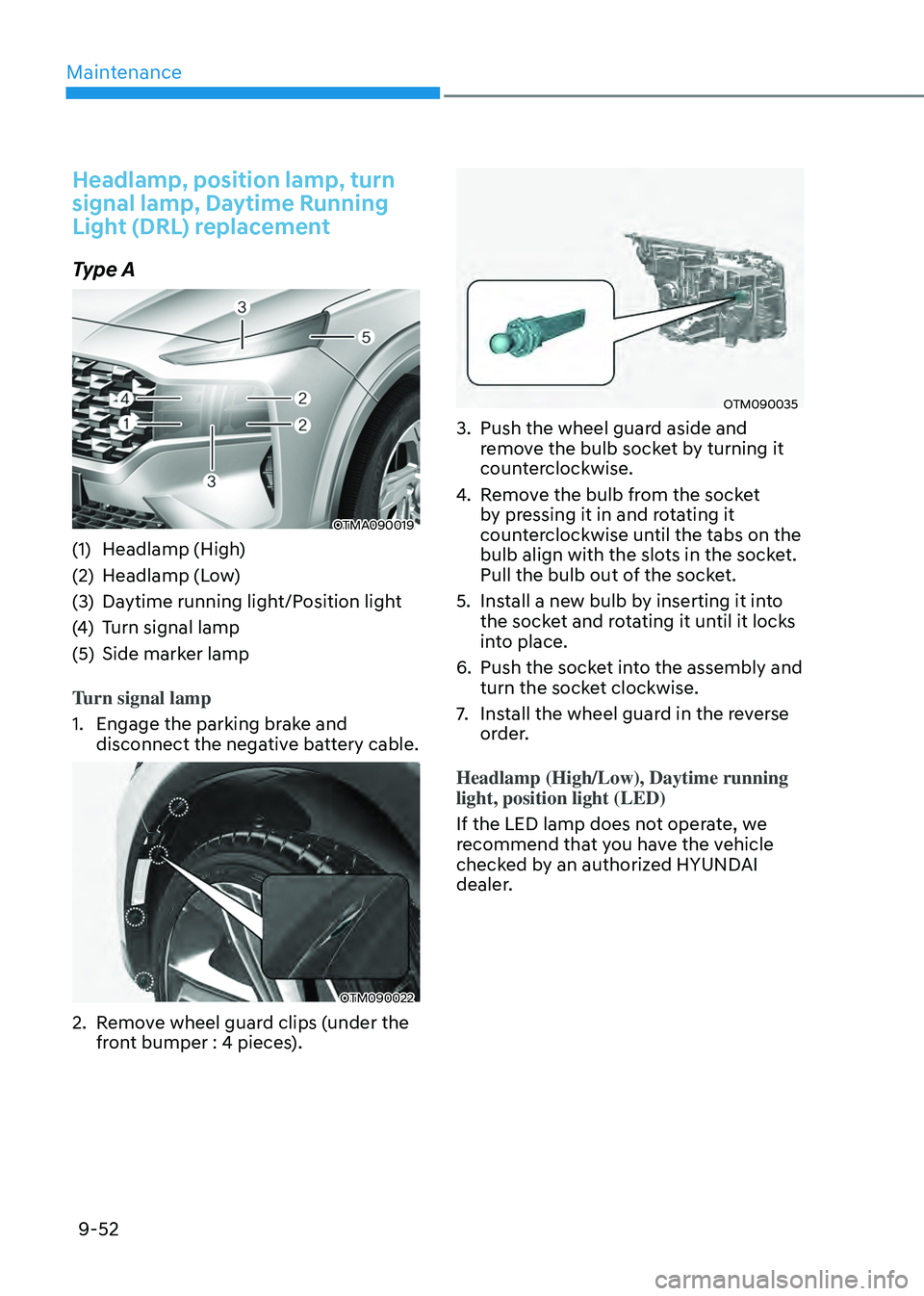

Headlamp, position lamp, turn
signal lamp, Daytime Running
Light (DRL) replacement
Type A
OTMA090019
(1) Headlamp (High)
(2) Headlamp (Low)
(3) Daytime running light/Position light
(4) Turn signal lamp
(5) Side marker lamp
Turn signal lamp
1. Engage the parking brake and
disconnect the negative battery cable.
OTM090022
2. Remove wheel guard clips (under the
front bumper : 4 pieces).
OTM090035
3. Push the wheel guard aside and
remove the bulb socket by turning it
counterclockwise.
4. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
5. Install a new bulb by inserting it into
the socket and rotating it until it locks
into place.
6. Push the socket into the assembly and
turn the socket clockwise.
7. Install the wheel guard in the reverse
order.
Headlamp (High/Low), Daytime running
light, position light (LED)
If the LED lamp does not operate, we
recommend that you have the vehicle
checked by an authorized HYUNDAI
dealer.
Page 568 of 598

09
9-53

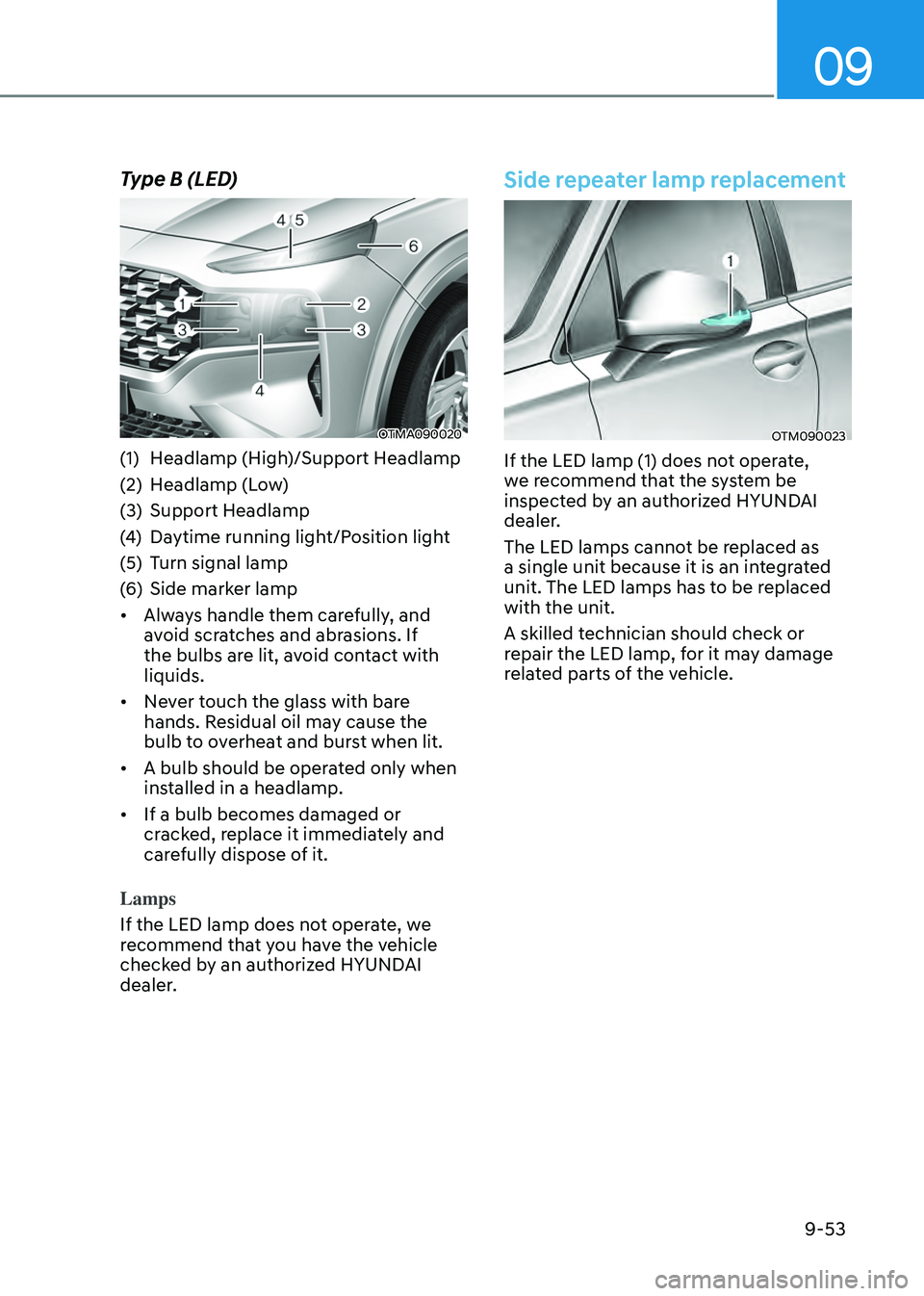

Type B (LED)
OTMA090020
(1) Headlamp (High)/Support Headlamp
(2) Headlamp (Low)
(3) Support Headlamp
(4) Daytime running light/Position light
(5) Turn signal lamp
(6) Side marker lamp
• Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.
• Never touch the glass with bare
hands. Residual oil may cause the
bulb to overheat and burst when lit.
• A bulb should be operated only when
installed in a headlamp.
• If a bulb becomes damaged or
cracked, replace it immediately and
carefully dispose of it.
Lamps
If the LED lamp does not operate, we
recommend that you have the vehicle
checked by an authorized HYUNDAI
dealer.
Side repeater lamp replacement
OTM090023
If the LED lamp (1) does not operate,
we recommend that the system be
inspected by an authorized HYUNDAI
dealer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
Page 569 of 598

Maintenance
9-54

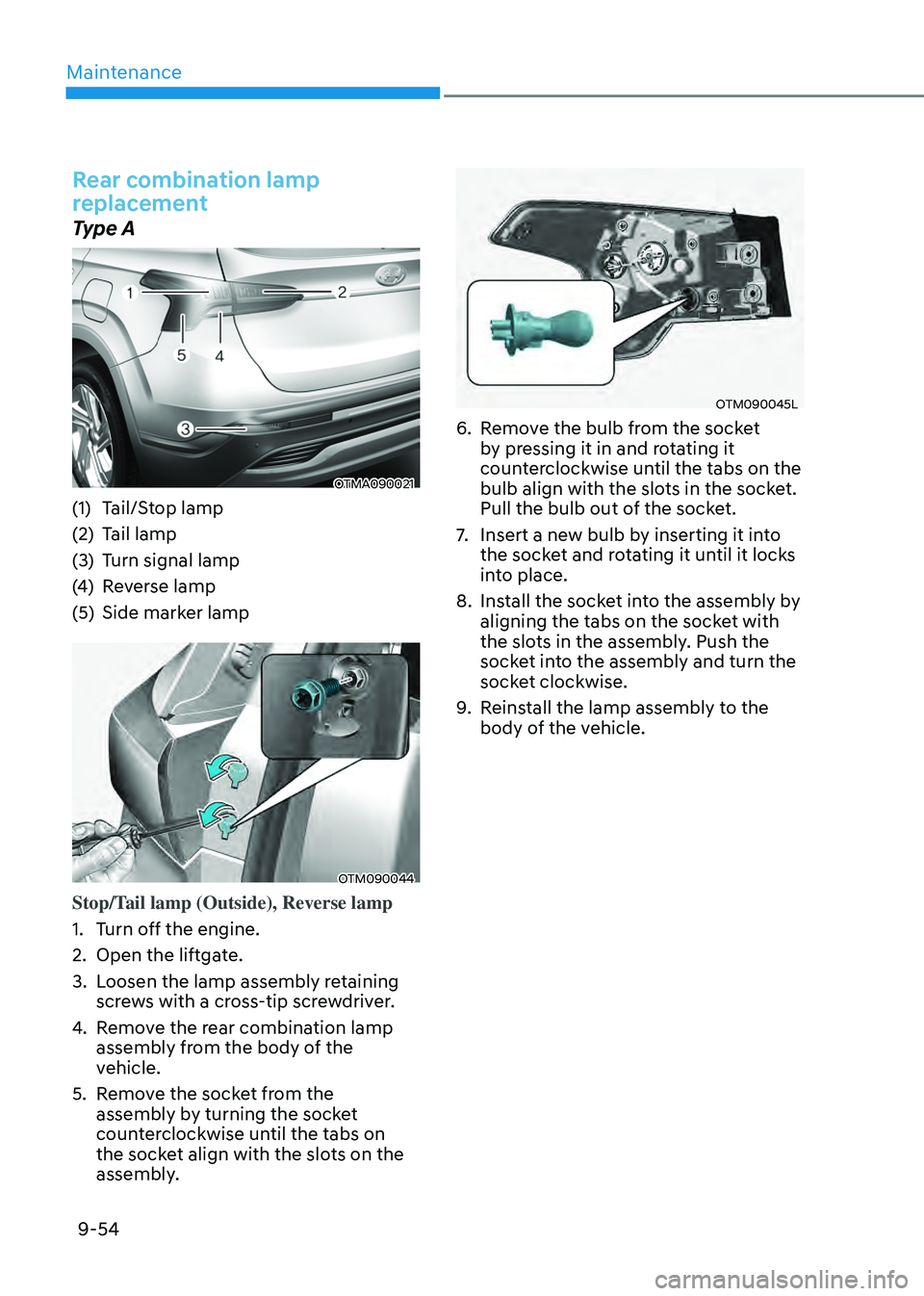

Rear combination lamp
replacement
Type A
OTMA090021
(1) Tail/Stop lamp
(2) Tail lamp
(3) Turn signal lamp
(4) Reverse lamp
(5) Side marker lamp
OTM090044
Stop/Tail lamp (Outside), Reverse lamp
1. Turn off the engine.
2. Open the liftgate.
3. Loosen the lamp assembly retaining
screws with a cross-tip screwdriver.
4. Remove the rear combination lamp
assembly from the body of the
vehicle.
5. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
OTM090045L
6. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
7. Insert a new bulb by inserting it into
the socket and rotating it until it locks
into place.
8. Install the socket into the assembly by
aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.
9. Reinstall the lamp assembly to the
body of the vehicle.
Page 570 of 598

09
9-55
OTM090025

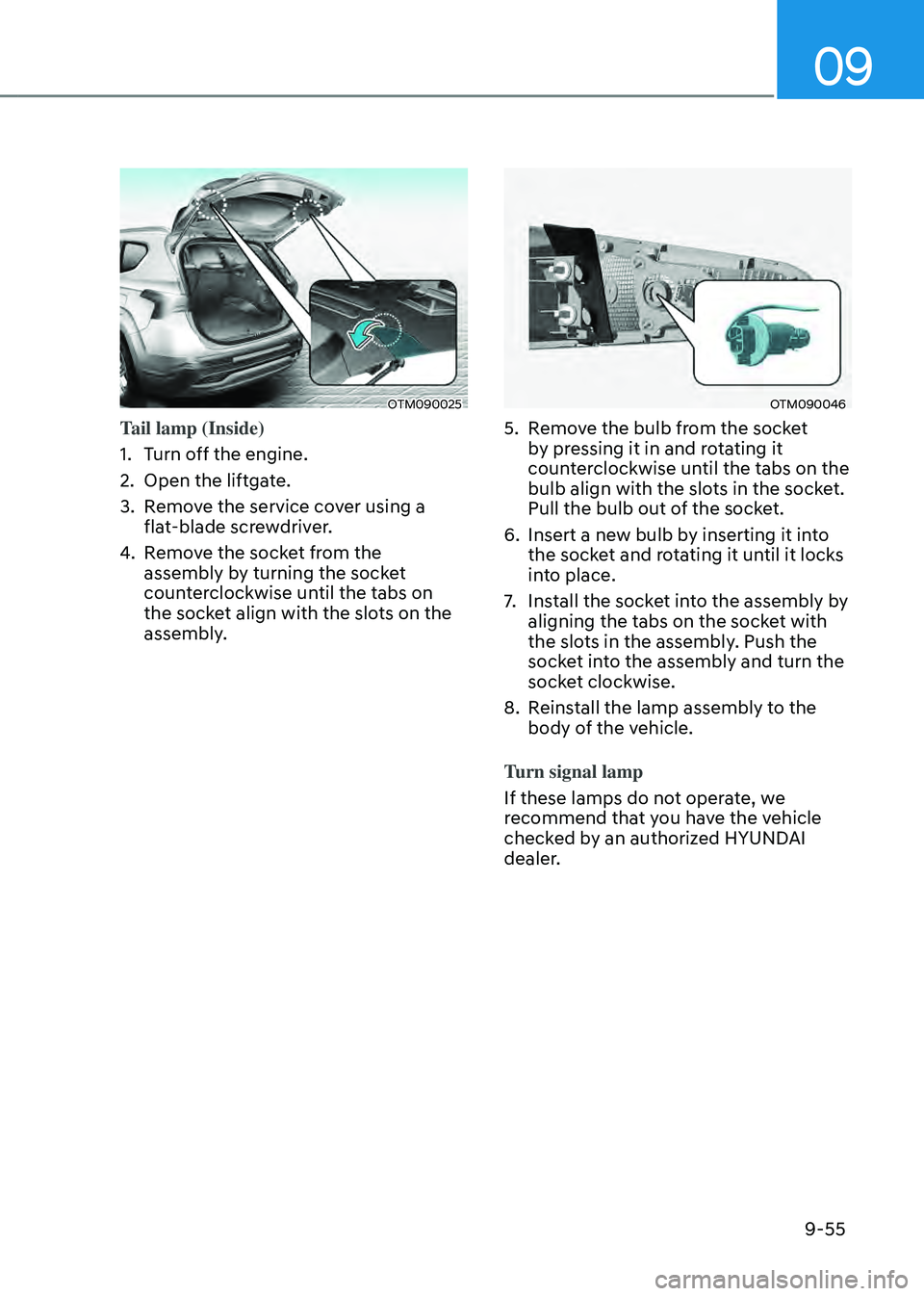

Tail lamp (Inside)
1. Turn off the engine.
2. Open the liftgate.
3. Remove the service cover using a
flat-blade screwdriver.
4. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
OTM090046
5. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
6. Insert a new bulb by inserting it into
the socket and rotating it until it locks
into place.
7. Install the socket into the assembly by
aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.
8. Reinstall the lamp assembly to the
body of the vehicle.
Turn signal lamp
If these lamps do not operate, we
recommend that you have the vehicle
checked by an authorized HYUNDAI
dealer.
