HYUNDAI SANTA FE HYBRID 2022 Owners Manual 01
1-17

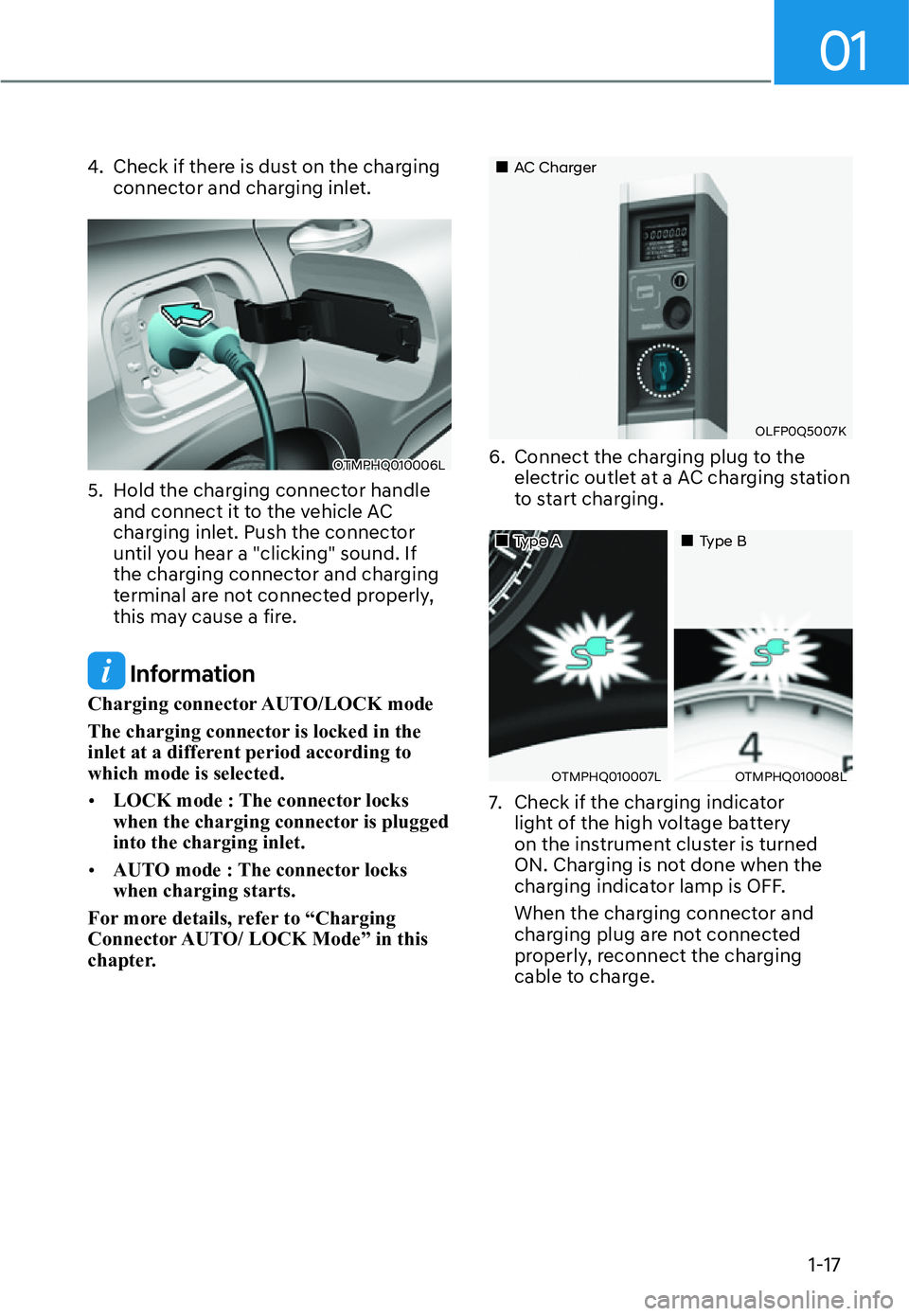

4.  Check if there is dust on the charging
connector and charging inlet.
OTMPHQ010006L
5.  Hold the charging connector handle  and connect it to the vehicle AC
charging inlet. Push the conn

Page 22 of 638

HYUNDAI SANTA FE HYBRID 2022 Owners Manual Foreword / Hybrid System Overview
1-18

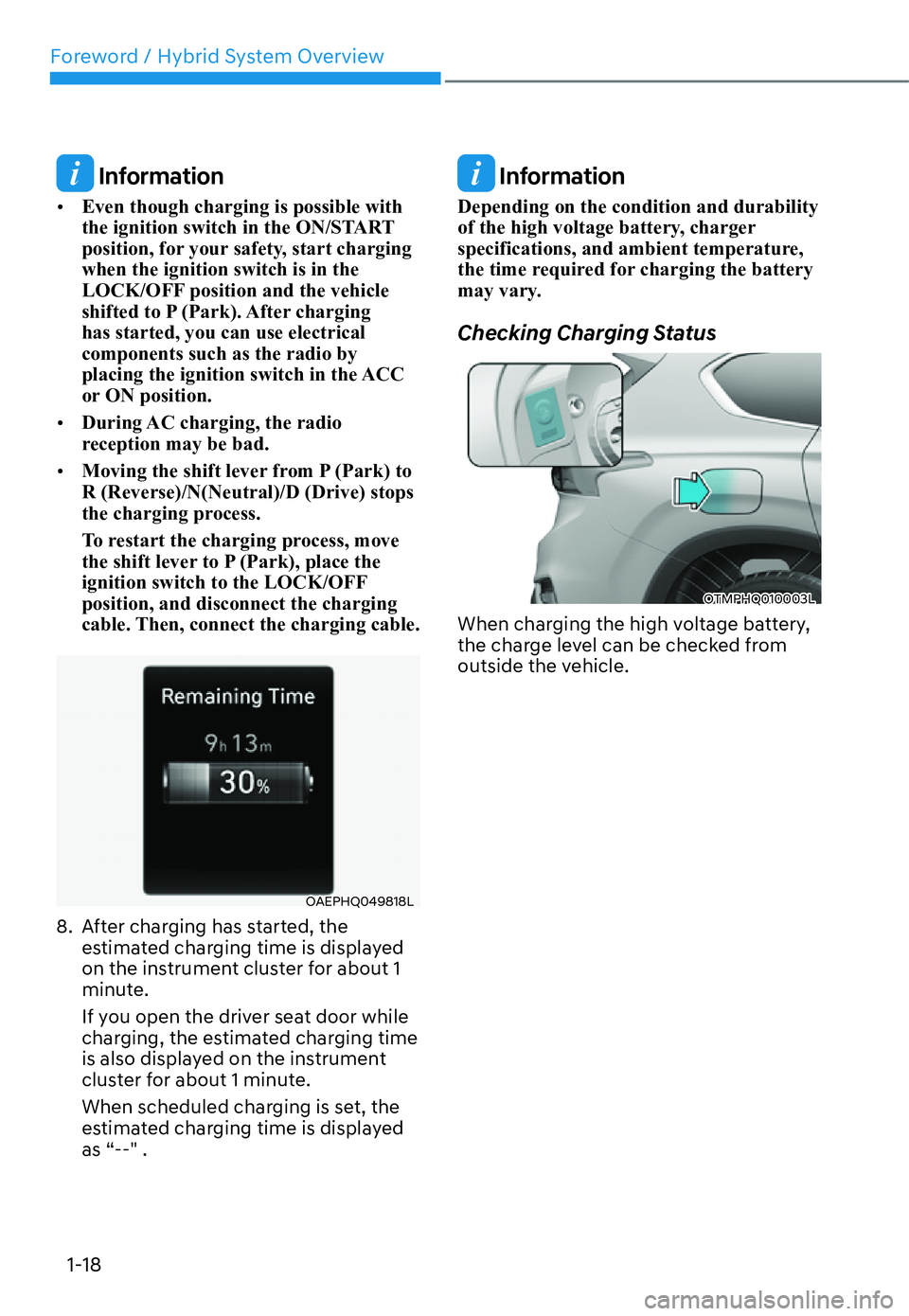

 Information
[� Even though charging is possible with
the ignition switch in the ON/START
position, for your safety, start charging when the ignition switch

Page 23 of 638

HYUNDAI SANTA FE HYBRID 2022 Owners Manual 01
1-19

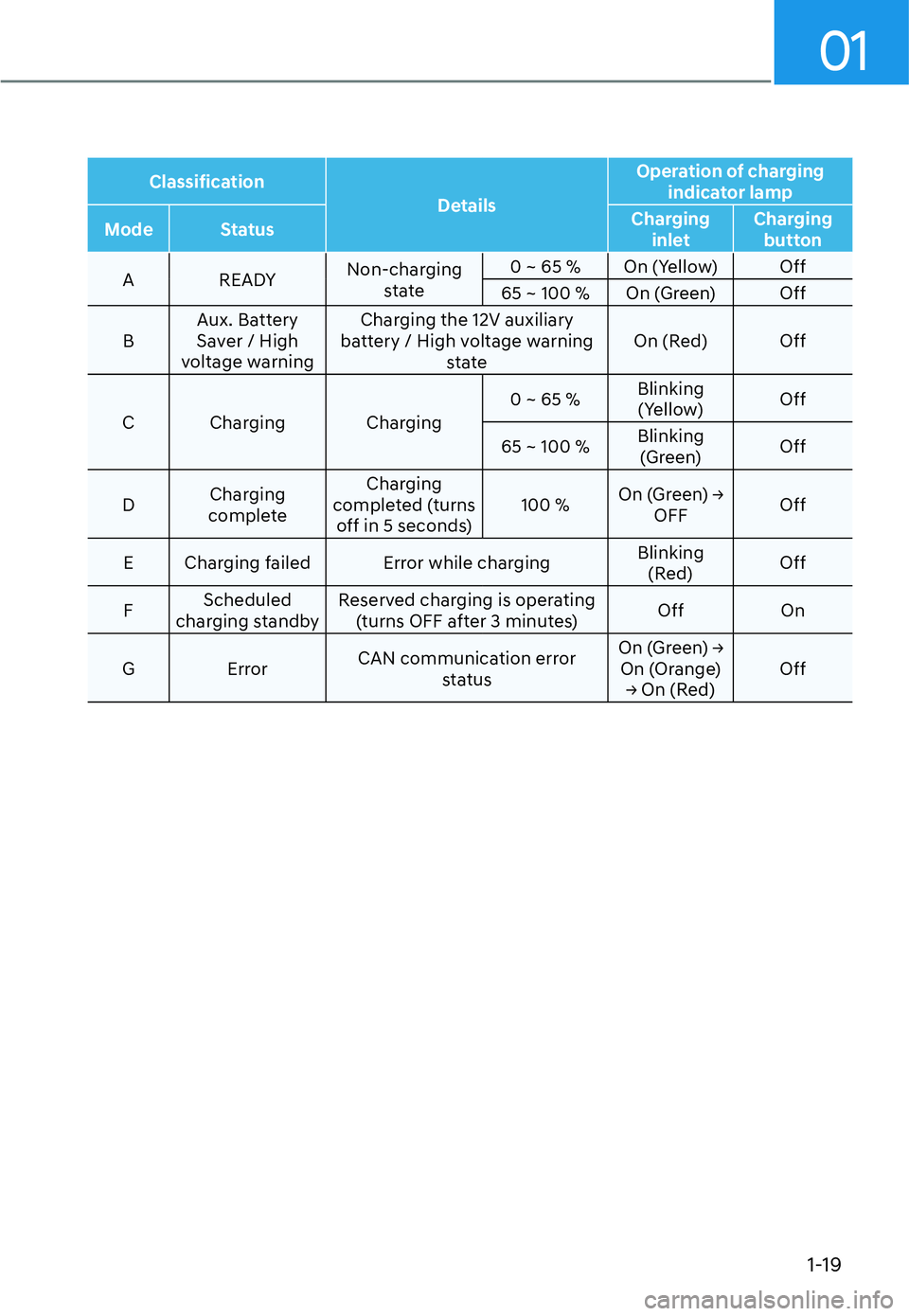

ClassificationDetailsOperation of charging
indicator lamp
Mode Status Charging
inlet Charging
button
A READY Non-charging
state 0 ~ 65 % On (Yellow) Off
65 ~ 100 % On (Green) Off
B Aux. Ba

Page 24 of 638

HYUNDAI SANTA FE HYBRID 2022 Owners Manual Foreword / Hybrid System Overview
1-20

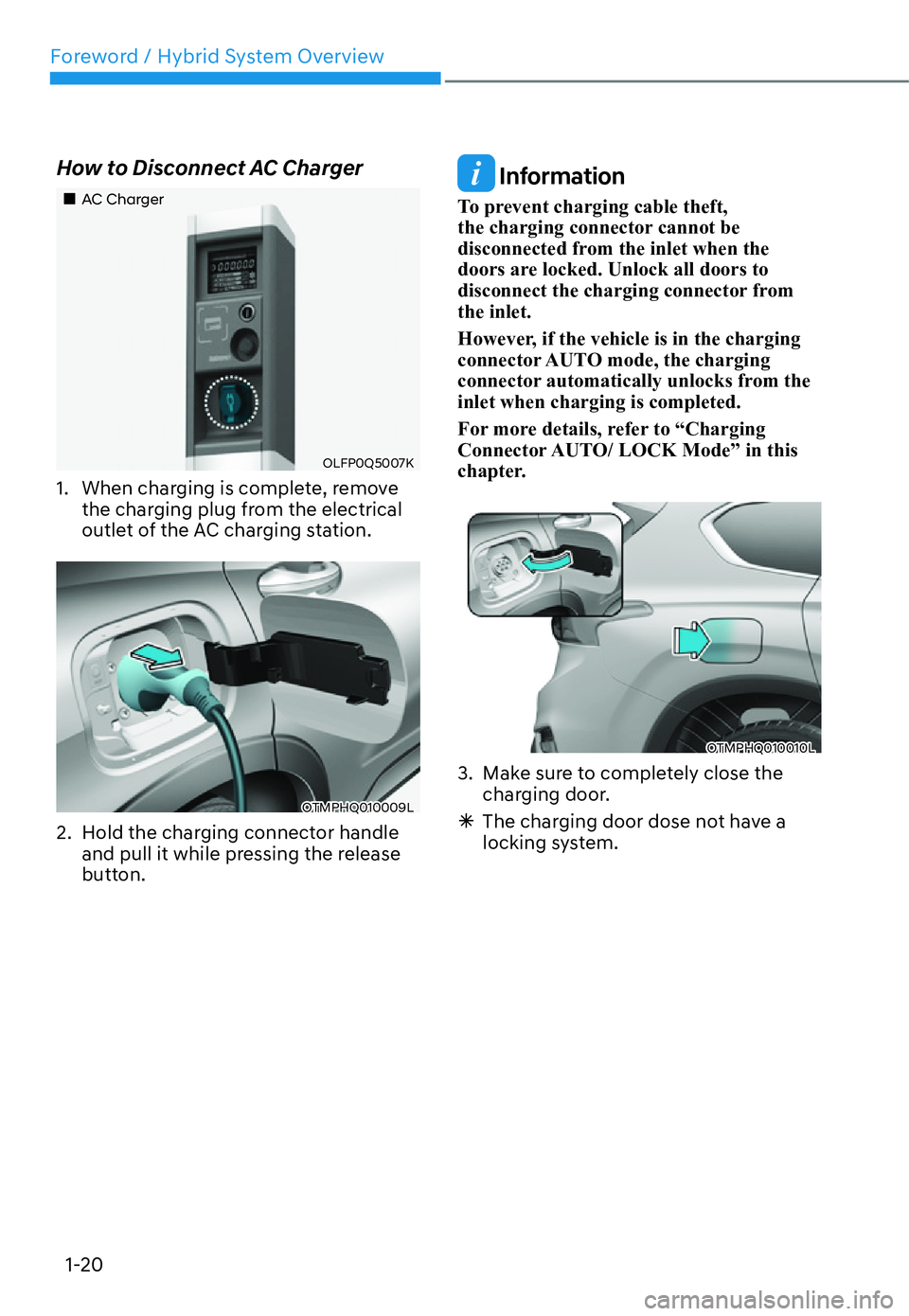

How to Disconnect AC Charger
��„AC Charger
OLFP0Q5007K
1.  When charging is complete, remove  the charging plug from the electrical
outlet of the AC chargin

Page 25 of 638

HYUNDAI SANTA FE HYBRID 2022 Owners Manual 01
1-21

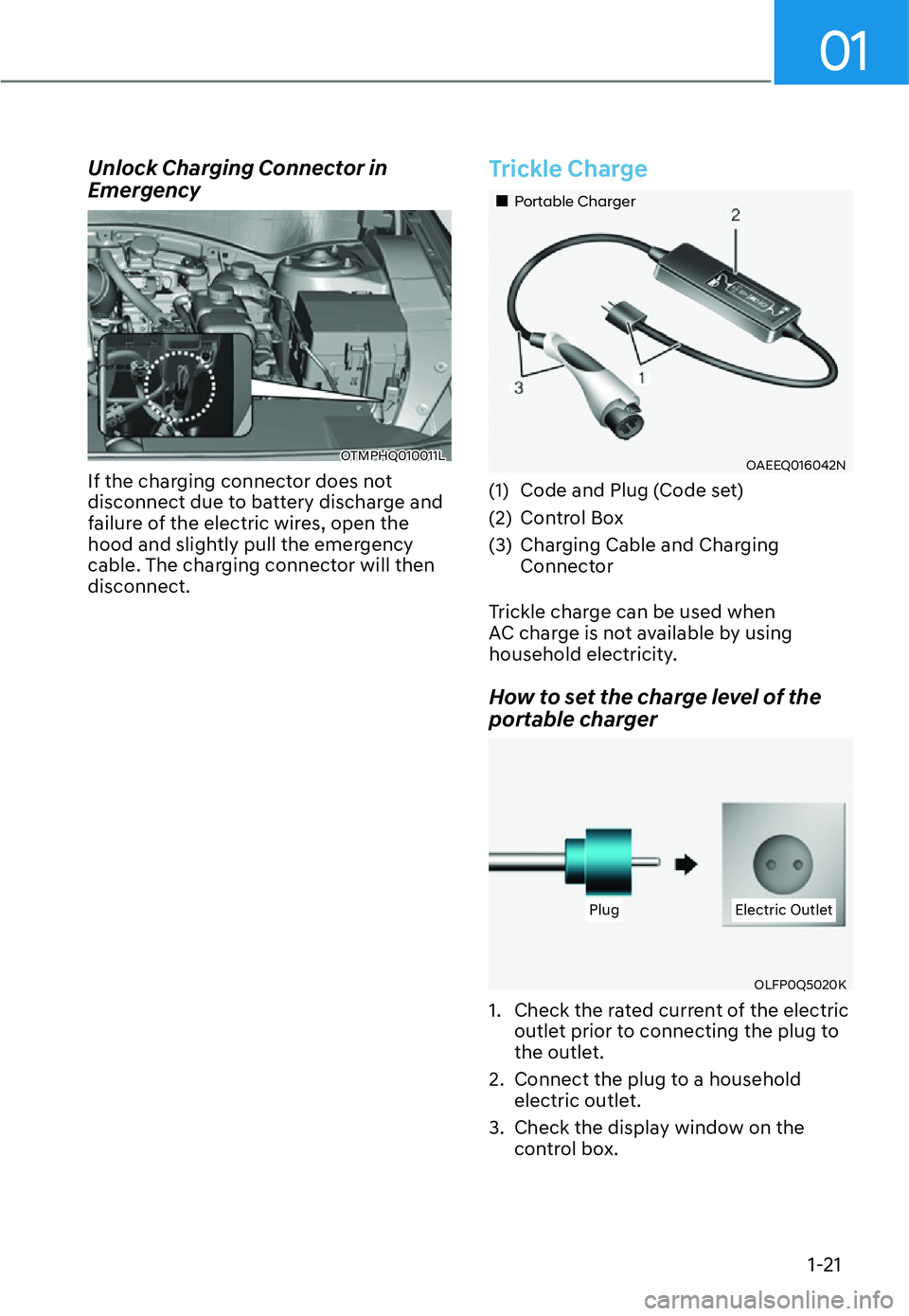

Unlock Charging Connector in
Emergency
OTMPHQ010011L
If the charging connector does not
disconnect due to battery discharge and
failure of the electric wires, open the
hood and slightly

Page 26 of 638

HYUNDAI SANTA FE HYBRID 2022 Owners Manual Foreword / Hybrid System Overview
1-22

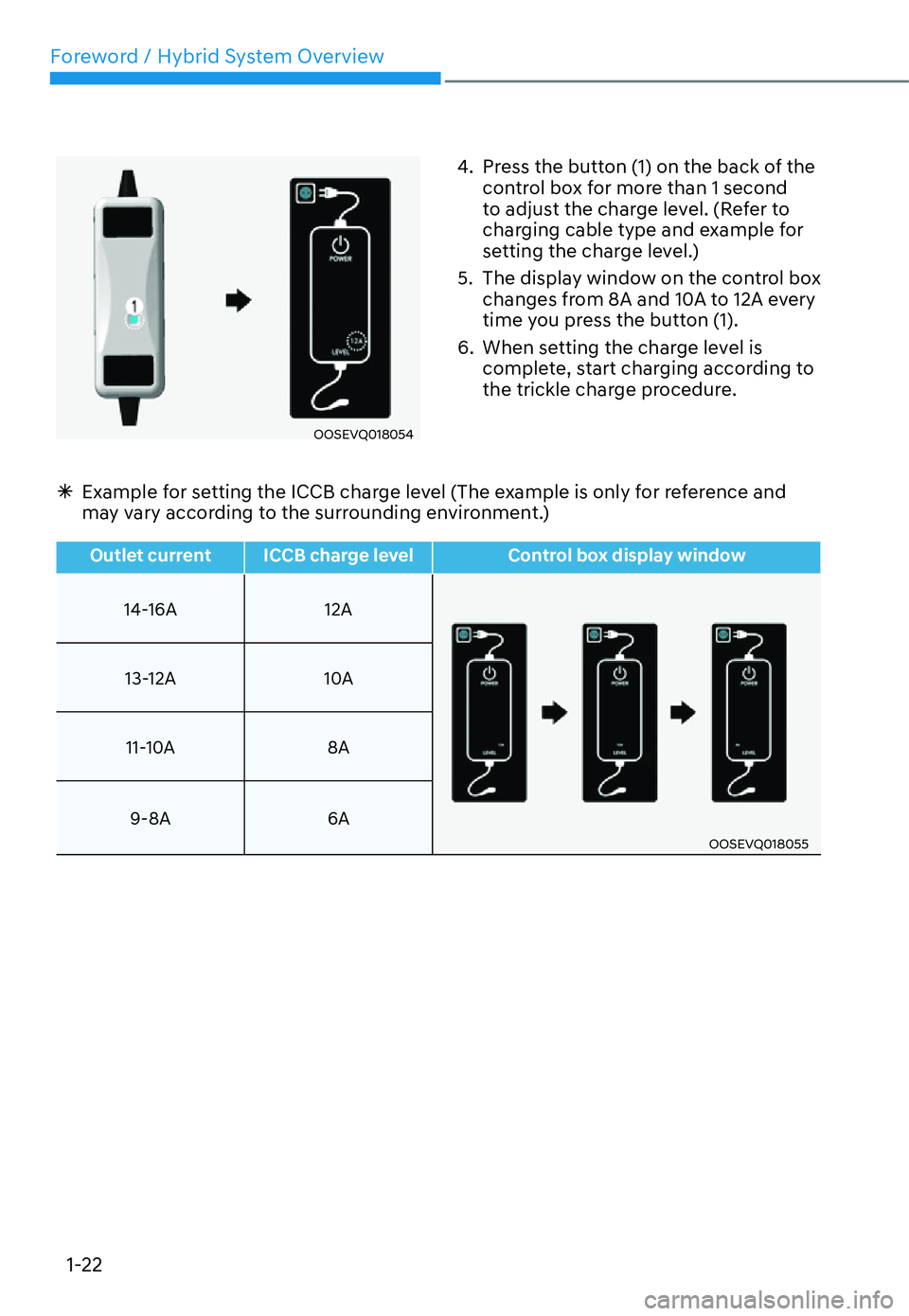

OOSEVQ0180544.  Press the button (1) on the back of the
control box for more than 1 second
to adjust the charge level. (Refer to
charging cable type and exam

Page 27 of 638

HYUNDAI SANTA FE HYBRID 2022 Owners Manual 01
1-23

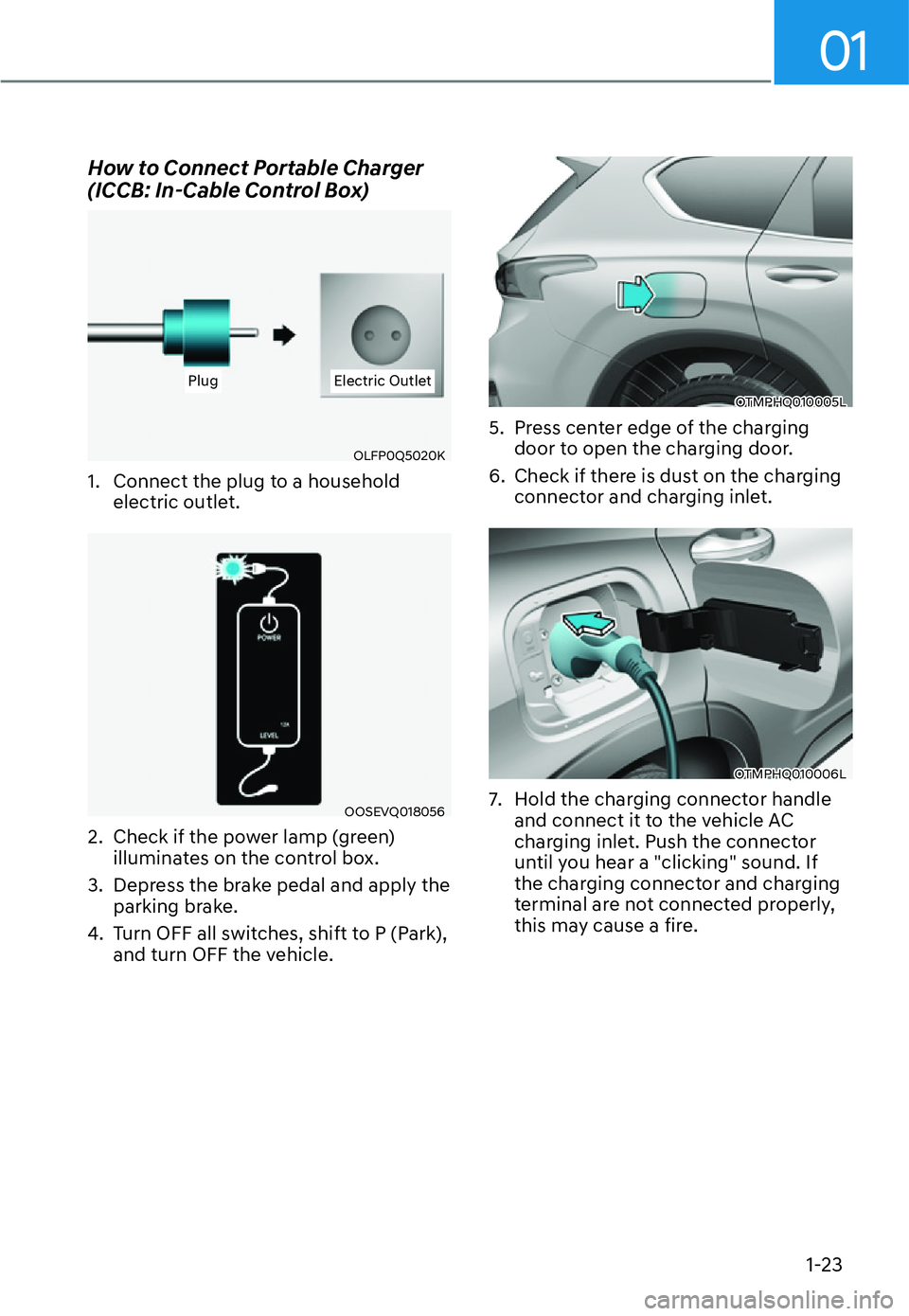

How to Connect Portable Charger
(ICCB: In-Cable Control Box)
PlugPlug Electric OutletElectric Outlet
OLFP0Q5020K
1.  Connect the plug to a household  electric outlet.
OOSEVQ018056
2.  Check

Page 28 of 638

HYUNDAI SANTA FE HYBRID 2022 Owners Manual Foreword / Hybrid System Overview
1-24
 Information

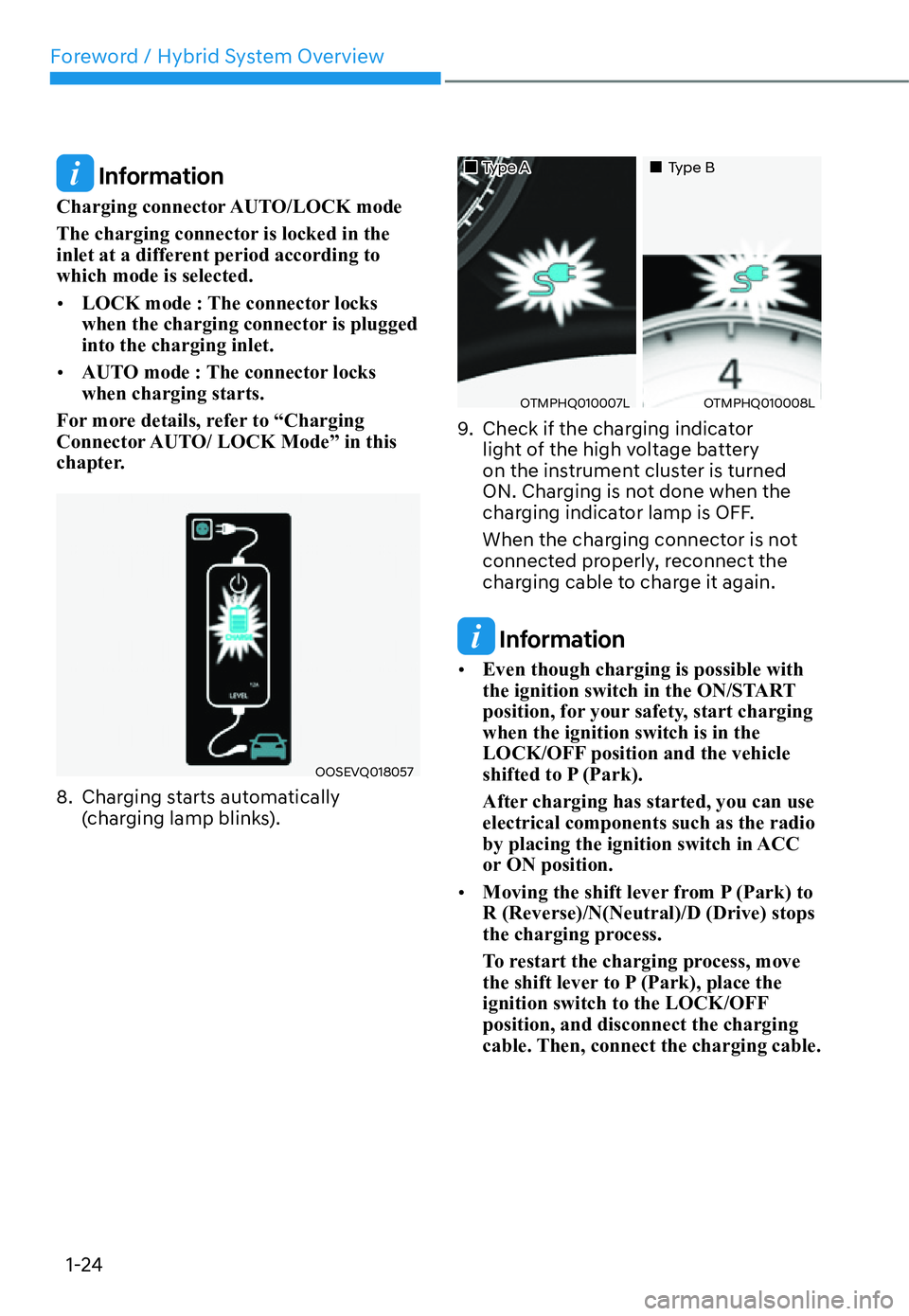

Charging connector AUTO/LOCK mode
The charging connector is locked in the
inlet at a different period according to which mode is selected. [� L

Page 29 of 638

HYUNDAI SANTA FE HYBRID 2022 Owners Manual 01
1-25
OAEPHQ049818L

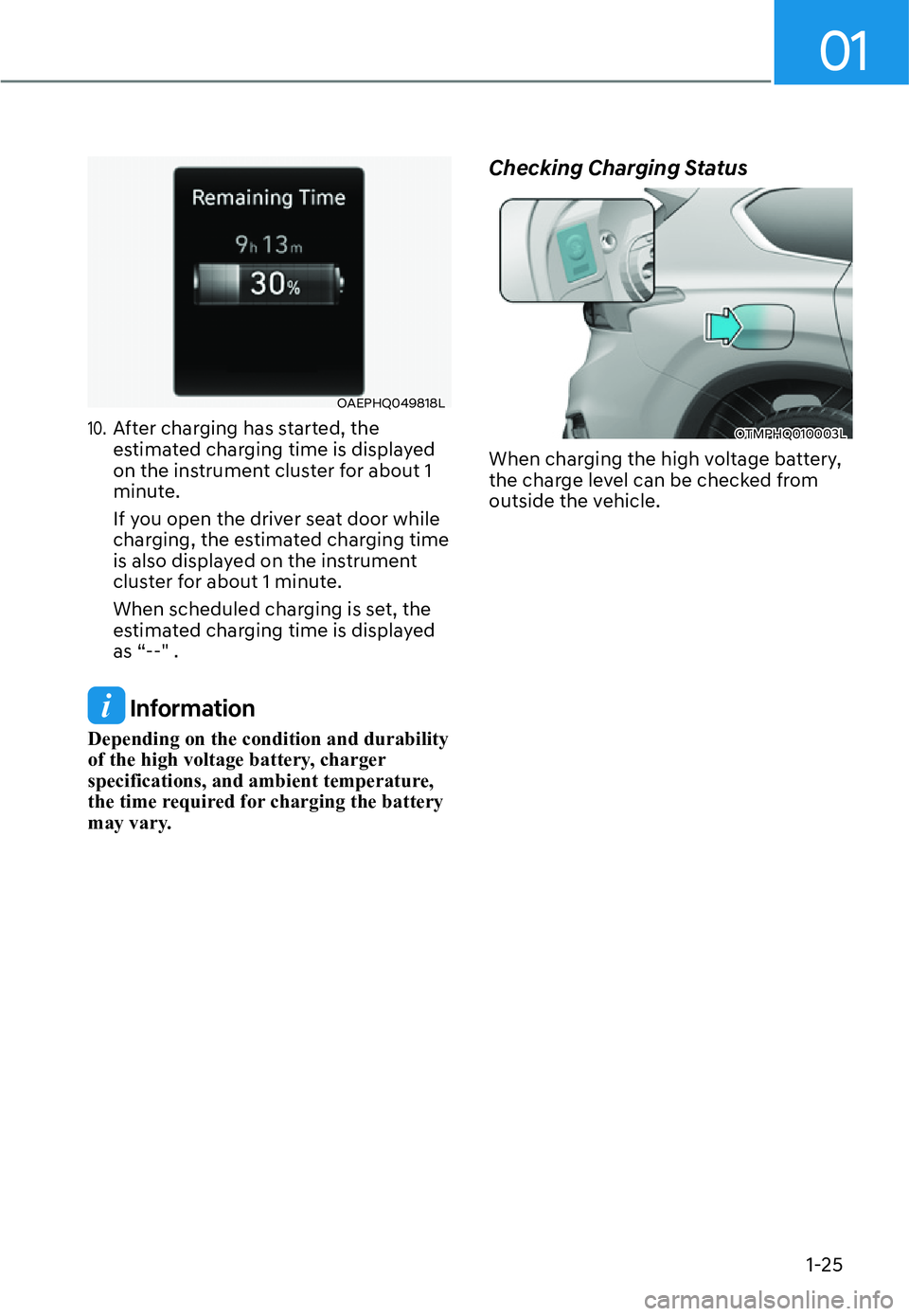

10. After charging has started, the
estimated charging time is displayed
on the instrument cluster for about 1
minute.
If you open the driver seat door while
charging, the

Page 30 of 638

HYUNDAI SANTA FE HYBRID 2022 Owners Manual Foreword / Hybrid System Overview
1-26

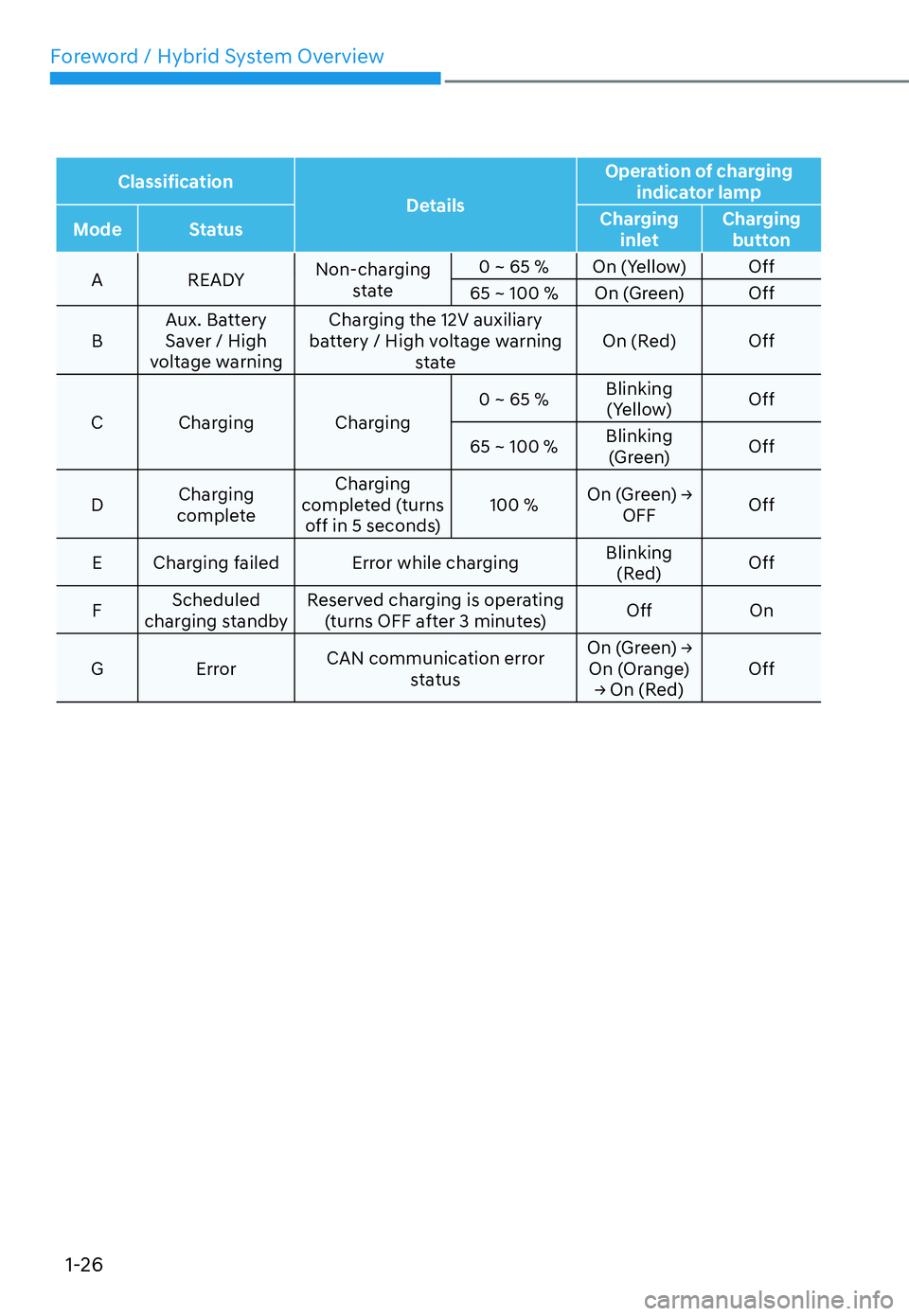

ClassificationDetailsOperation of charging
indicator lamp
Mode Status Charging
inlet Charging
button
A READY Non-charging
state 0 ~ 65 % On (Yellow) Off
65 ~
