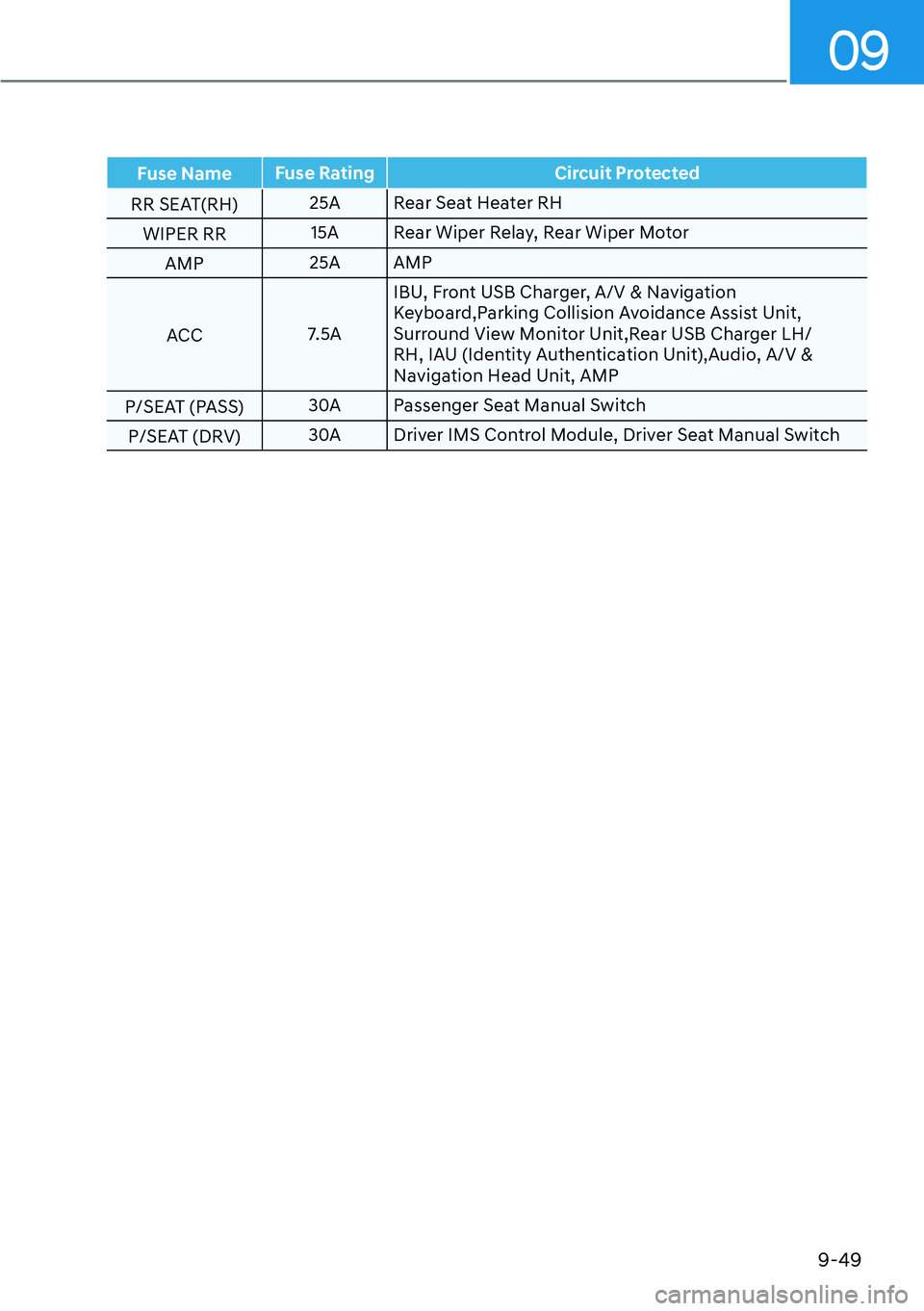

Fuse NameFuse Rating Circuit Protected
RR SEAT(RH) 25A Rear Seat Heater RH
WIPER RR 15A Rear Wiper Relay, Rear Wiper Motor
AMP 25A AMP
ACC 7.5AIBU, Front USB Charger, A/V & Navigation
Keyboard,Parking Collision Avoidance Assist Unit,
Surround View Monitor Unit,Rear USB Charger LH/
RH, IAU (Identity Authentication Unit),Audio, A/V &
Navigation Head Unit, AMP
P/SEAT (PASS) 30A Passenger Seat Manual Switch
P/SEAT (DRV) 30A Driver IMS Control Module, Driver Seat Manual Switch

Maintenance
9-50

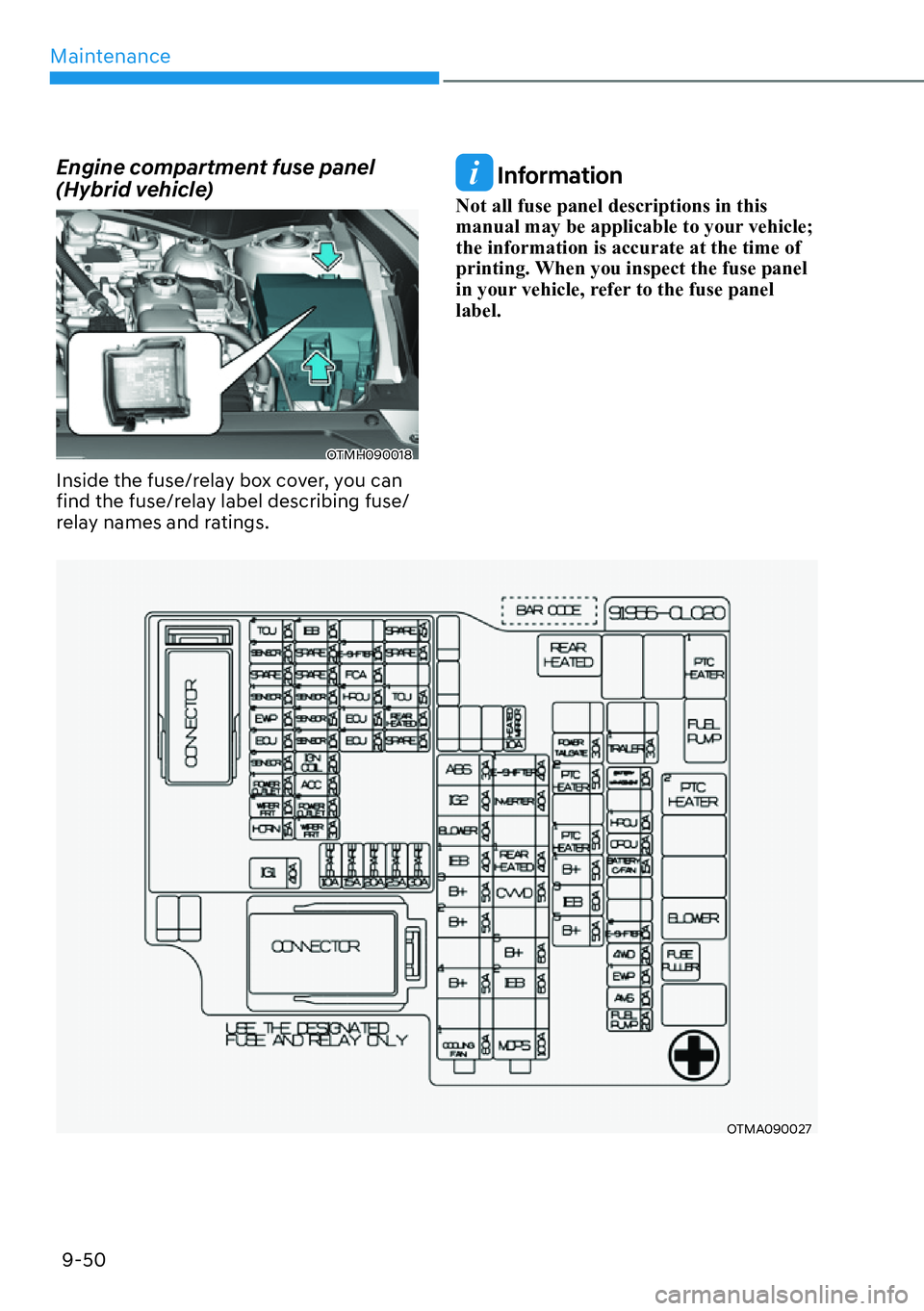

Engine compartment fuse panel
(Hybrid vehicle)
OTMH090018
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle; the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel label.
OTMA090027

09
9-51

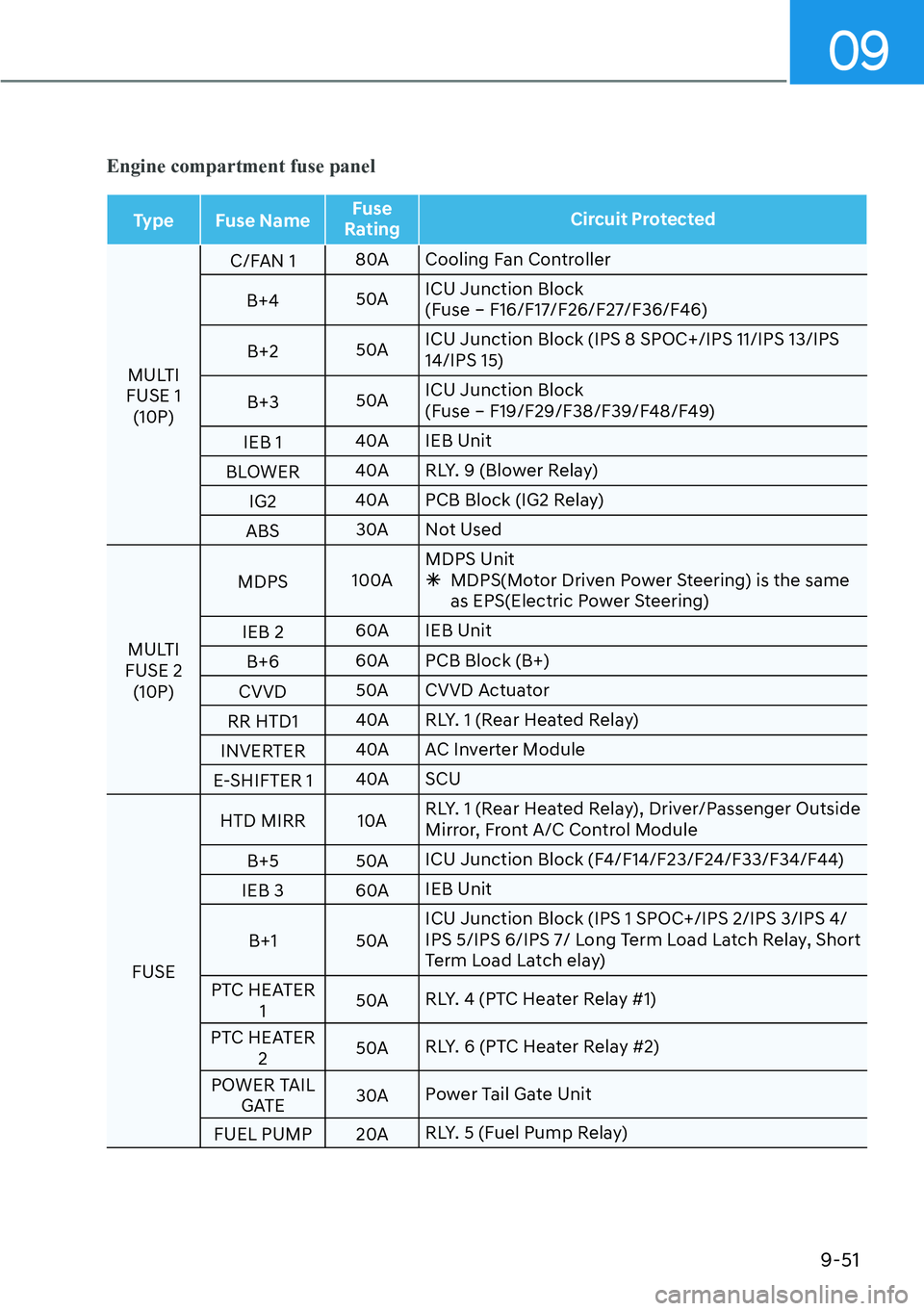

Engine compartment fuse panel
Type Fuse NameFuse
Rating Circuit Protected
MULTI
FUSE 1 (10P) C/FAN 1
80A Cooling Fan Controller
B+4 50AICU Junction Block
(Fuse – F16/F17/F26/F27/F36/F46)
B+2 50AICU Junction Block (IPS 8 SPOC+/IPS 11/IPS 13/IPS 14/IPS 15)
B+3 50AICU Junction Block
(Fuse – F19/F29/F38/F39/F48/F49)
IEB 1 40A IEB Unit
BLOWER 40A RLY. 9 (Blower Relay)
IG2 40A PCB Block (IG2 Relay)
ABS 30A Not Used
MULTI
FUSE 2
(10P) MDPS
100AMDPS Unit

à MDPS(Motor Driven Power Steering) is the same
as EPS(Electric Power Steering)
IEB 2 60A IEB Unit
B+6 60A PCB Block (B+)
CVVD 50A CVVD Actuator
RR HTD1 40A RLY. 1 (Rear Heated Relay)
INVERTER 40A AC Inverter Module
E-SHIFTER 1 40A SCU
FUSE HTD MIRR 10A
RLY. 1 (Rear Heated Relay), Driver/Passenger Outside
Mirror, Front A/C Control Module
B+5 50A ICU Junction Block (F4/F14/F23/F24/F33/F34/F44)
IEB 3 60A IEB Unit
B+1 50A ICU Junction Block (IPS 1 SPOC+/IPS 2/IPS 3/IPS 4/
IPS 5/IPS 6/IPS 7/ Long Term Load Latch Relay, Short
Term Load Latch elay)
PTC HEATER 1 50A
RLY. 4 (PTC Heater Relay #1)
PTC HEATER 2 50A
RLY. 6 (PTC Heater Relay #2)
POWER TAIL GATE 30A
Power Tail Gate Unit
FUEL PUMP 20A RLY. 5 (Fuel Pump Relay)

Maintenance
9-52

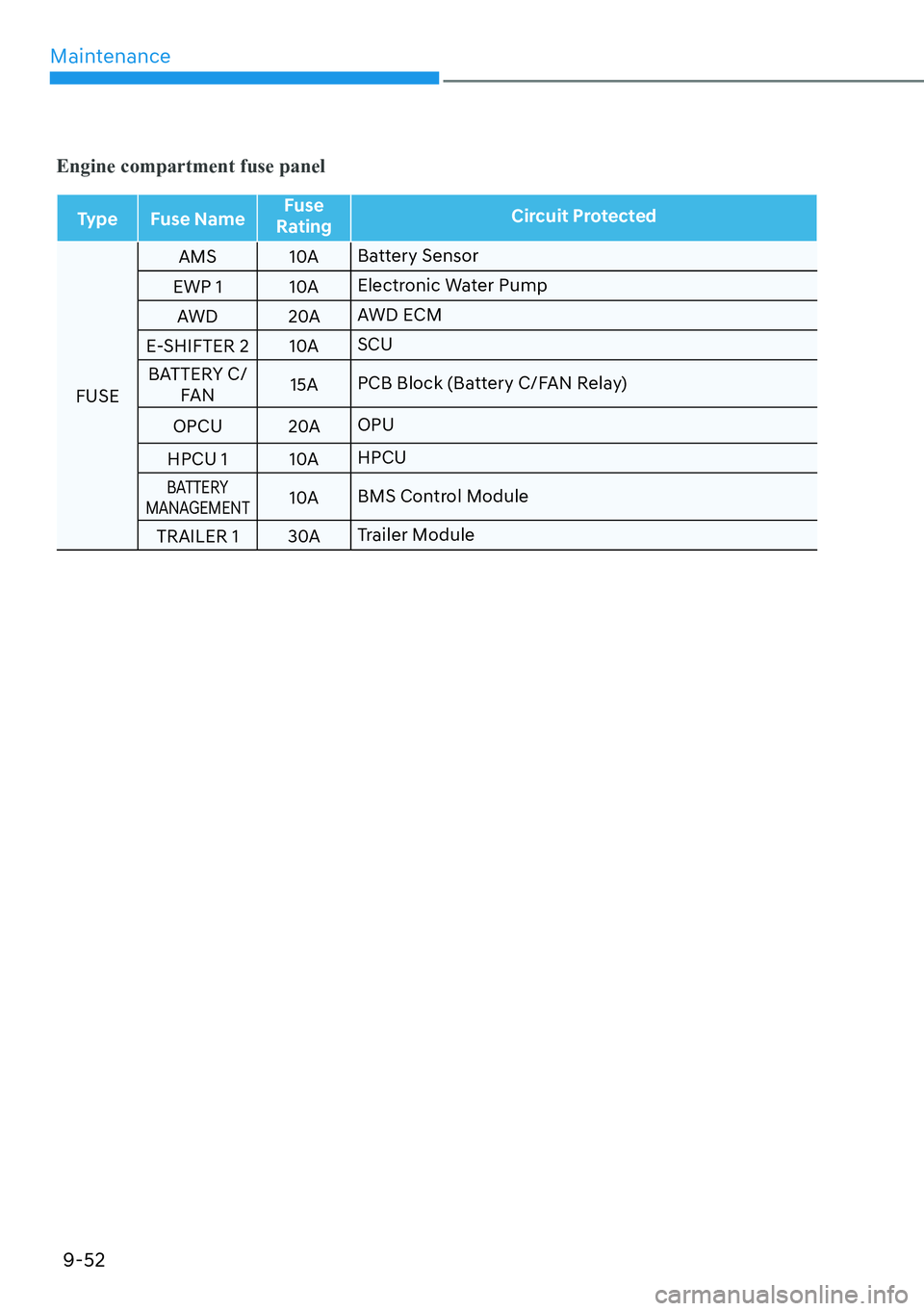

Engine compartment fuse panel
Type Fuse NameFuse
Rating Circuit Protected
FUSEAMS 10A
Battery Sensor
EWP 1 10A Electronic Water Pump
AWD 20A AWD ECM
E-SHIFTER 2 10A SCU
BATTERY C/ FAN 15A
PCB Block (Battery C/FAN Relay)
OPCU 20A OPU
HPCU 1 10A HPCU
BATTERY
MANAGEMENT10A BMS Control Module
TRAILER 1 30A Trailer Module

09
9-53

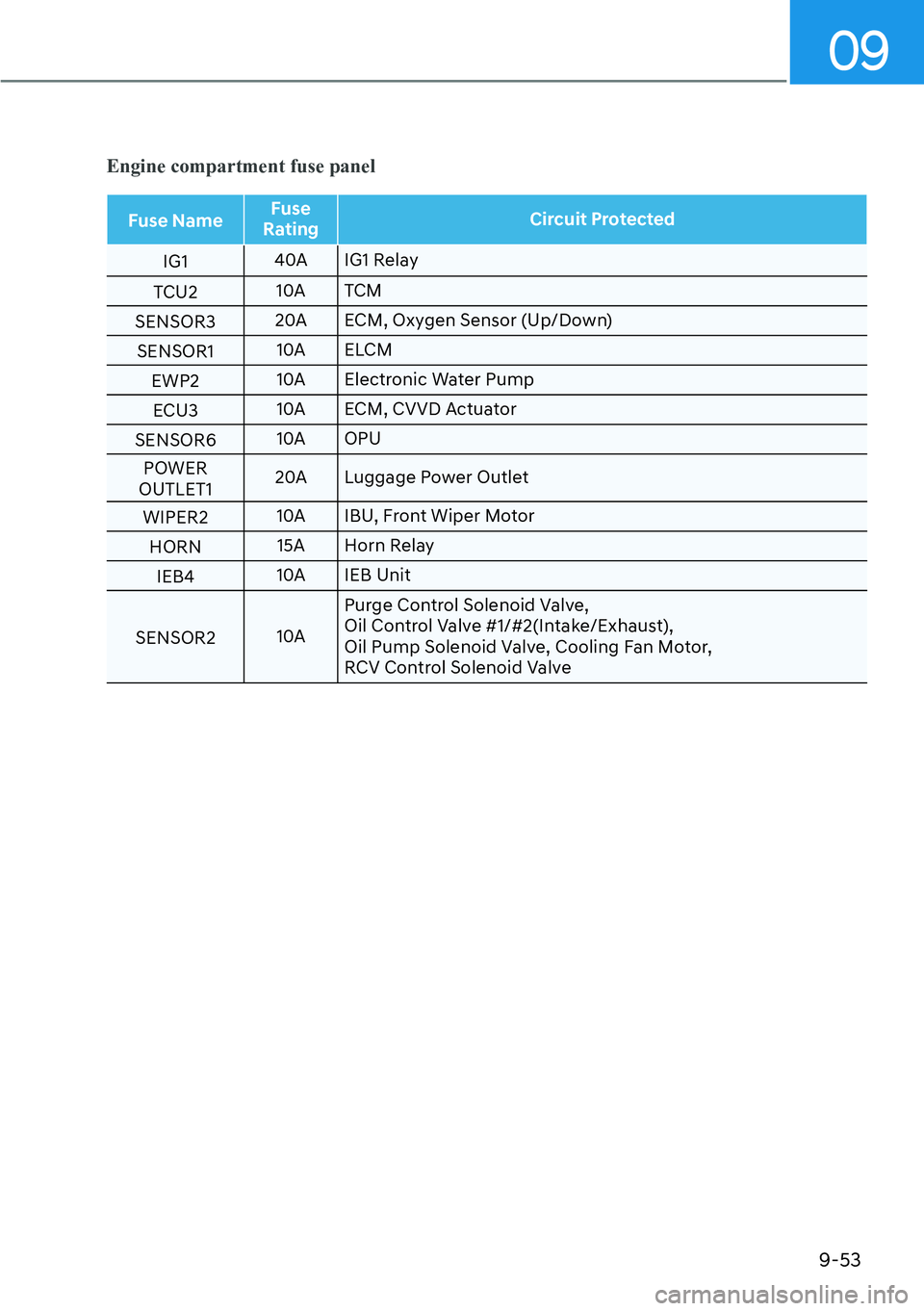

Engine compartment fuse panel
Fuse NameFuse
Rating Circuit Protected
IG1
40A IG1 Relay
TCU2 10A TCM
SENSOR3 20A ECM, Oxygen Sensor (Up/Down)
SENSOR1 10A ELCM
EWP2 10A Electronic Water Pump
ECU3 10A ECM, CVVD Actuator
SENSOR6 10A OPU
POWER
OUTLET1 20A Luggage Power Outlet
WIPER2 10A IBU, Front Wiper Motor
HORN 15A Horn Relay
IEB4 10A IEB Unit
SENSOR2 10APurge Control Solenoid Valve,
Oil Control Valve #1/#2(Intake/Exhaust),
Oil Pump Solenoid Valve, Cooling Fan Motor,
RCV Control Solenoid Valve

Maintenance
9-54

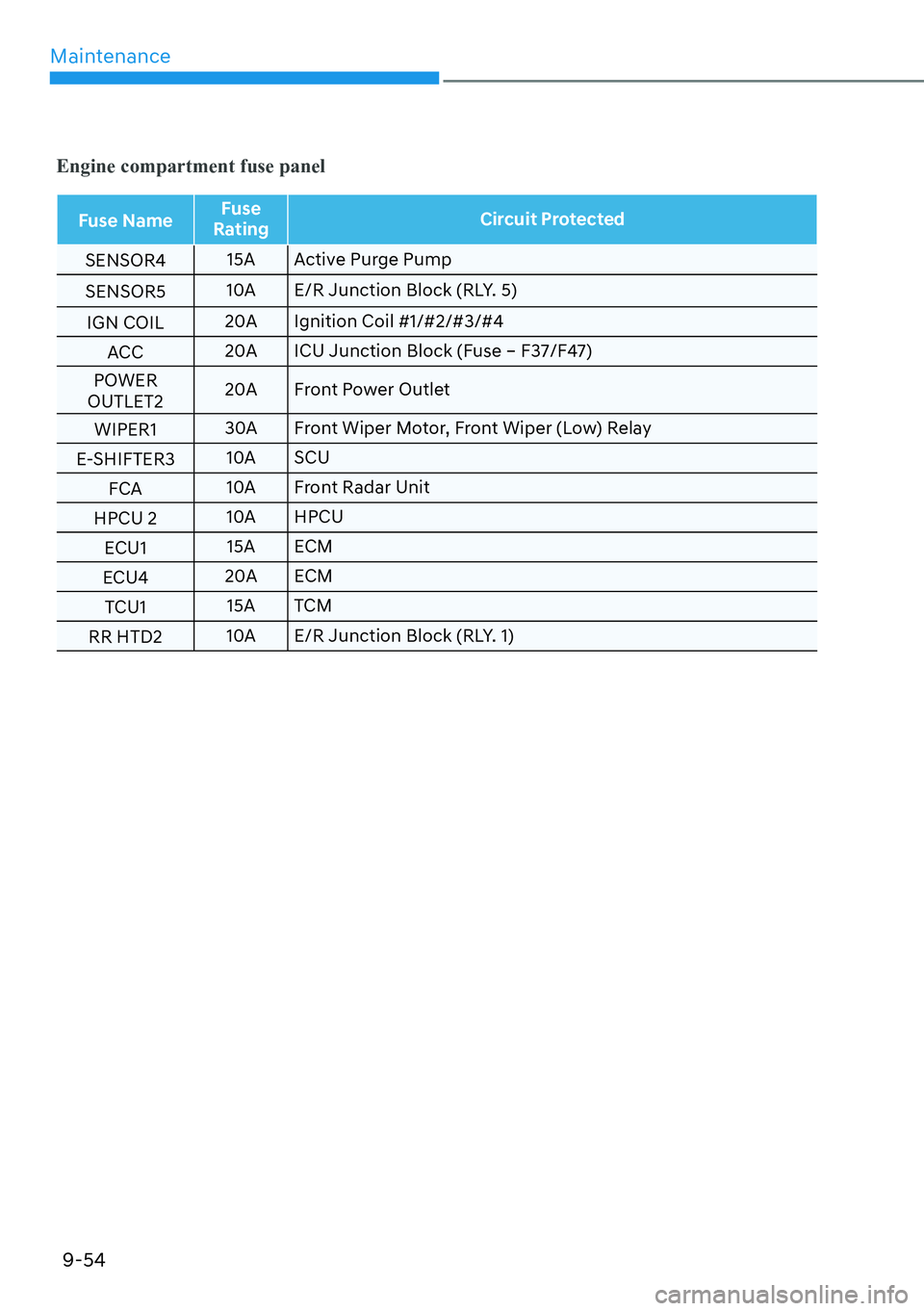

Engine compartment fuse panel
Fuse NameFuse
Rating Circuit Protected
SENSOR4
15A Active Purge Pump
SENSOR5 10A E/R Junction Block (RLY. 5)
IGN COIL 20A Ignition Coil #1/#2/#3/#4
ACC 20A ICU Junction Block (Fuse – F37/F47)
POWER
OUTLET2 20A Front Power Outlet
WIPER1 30A Front Wiper Motor, Front Wiper (Low) Relay
E-SHIFTER3 10A SCU
FCA 10A Front Radar Unit
HPCU 2 10A HPCU
ECU1 15A ECM
ECU4 20A ECM
TCU1 15A TCM

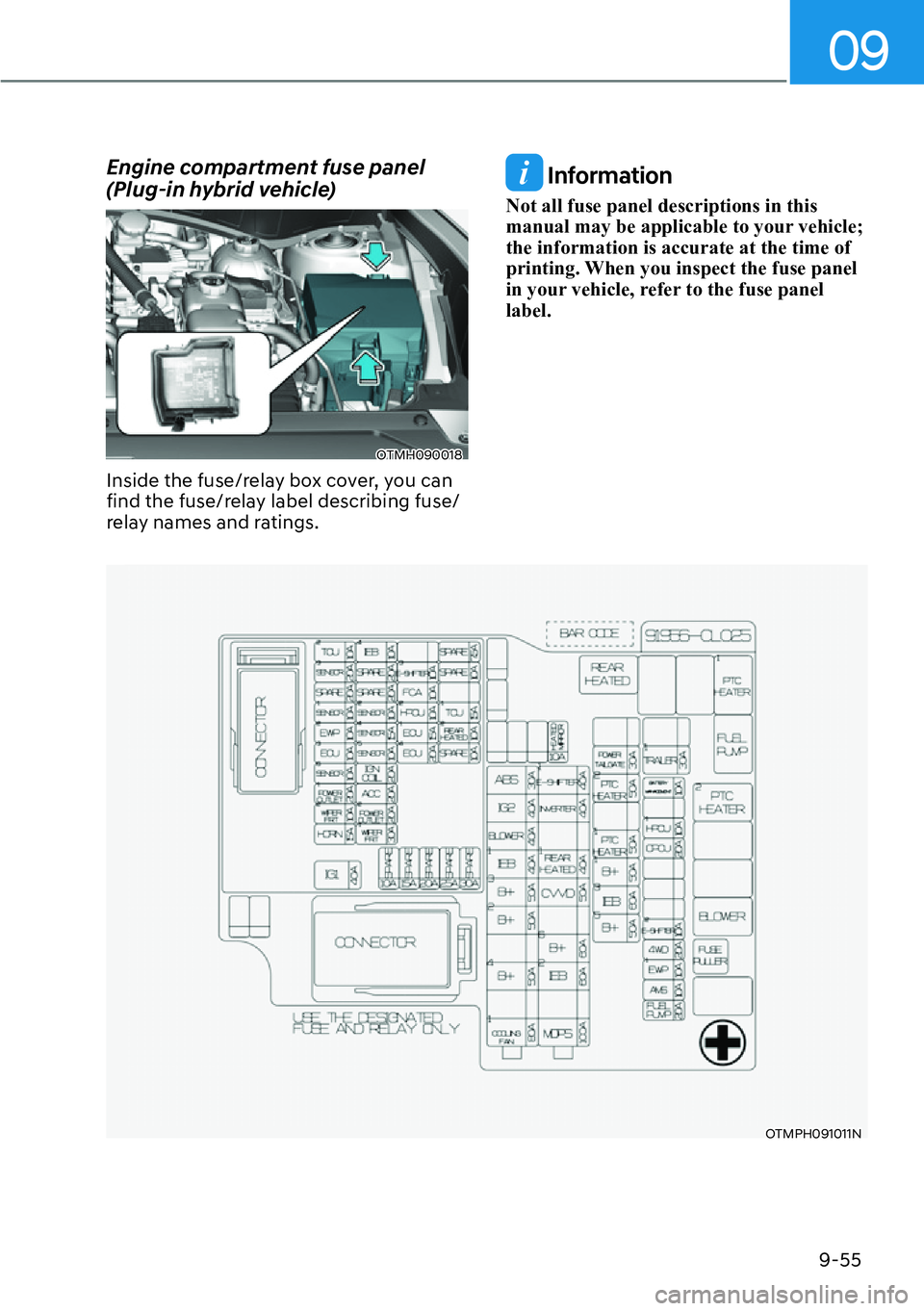

RR HTD2 10A E/R Junction Block (RLY. 1)

09
9-55
Engine compartment fuse panel
(Plug-in hybrid vehicle)
OTMH090018
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle; the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel label.
OTMPH091011N

Maintenance
9-56

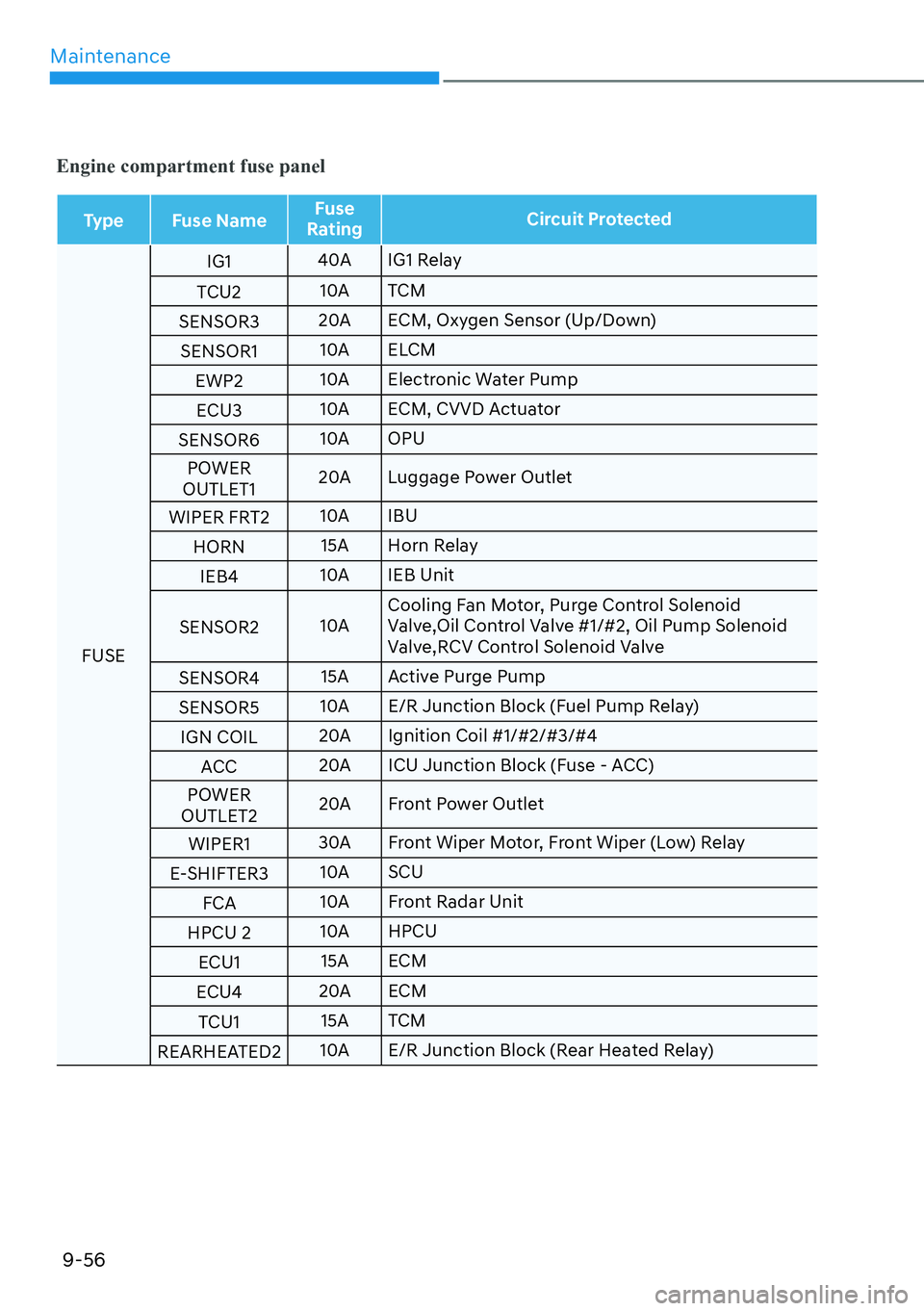

Engine compartment fuse panel
Type Fuse NameFuse
Rating Circuit Protected
FUSEIG1
40A IG1 Relay
TCU2 10A TCM
SENSOR3 20A ECM, Oxygen Sensor (Up/Down)
SENSOR1 10A ELCM
EWP2 10A Electronic Water Pump
ECU3 10A ECM, CVVD Actuator
SENSOR6 10A OPU
POWER
OUTLET1 20A Luggage Power Outlet
WIPER FRT2 10A IBU
HORN 15A Horn Relay
IEB4 10A IEB Unit
SENSOR2 10ACooling Fan Motor, Purge Control Solenoid
Valve,Oil Control Valve #1/#2, Oil Pump Solenoid
Valve,RCV Control Solenoid Valve
SENSOR4 15A Active Purge Pump
SENSOR5 10A E/R Junction Block (Fuel Pump Relay)
IGN COIL 20A Ignition Coil #1/#2/#3/#4
ACC 20A ICU Junction Block (Fuse - ACC)
POWER
OUTLET2 20A Front Power Outlet
WIPER1 30A Front Wiper Motor, Front Wiper (Low) Relay
E-SHIFTER3 10A SCU
FCA 10A Front Radar Unit
HPCU 2 10A HPCU
ECU1 15A ECM
ECU4 20A ECM
TCU1 15A TCM
REARHEATED2 10A E/R Junction Block (Rear Heated Relay)

09
9-57
We recommend that you consult an
authorized HYUNDAI dealer to replace
most vehicle light bulbs. It is difficult
to replace vehicle light bulbs because
other parts of the vehicle must be
removed before you can get to the bulb.
This is especially true for removing the
headlamp assembly to get to the bulb(s).
Removing/installing the headlamp
assembly can result in damage to the
vehicle.
WARNING

[ Prior to working on a light, depress
the foot brake, shift to P (Park), apply
the parking brake, set the ignition
switch to the LOCK/OFF position
and take the key with you when
leaving the vehicle to avoid sudden
movement of the vehicle and to
prevent possible electric shock.

[ Be aware the bulbs may be hot and
may burn your fingers.
NOTICE
Be sure to replace the burned-out bulb
with one of the same wattage rating.
Otherwise, it may cause damage to the
fuse or electrical wiring system.
NOTICE
To prevent damage, do not clean the
headlamp lens with chemical solvents
or strong detergents.
Information
The headlamp and tail lamp lenses could
appear frosty if the vehicle is washed after
driving or the vehicle is driven at night
in wet weather. This condition is caused
by temperature difference between the lamp inside and outside and, it does not
indicate a problem with your vehicle.
When moisture condenses in the lamp,
it will be removed after driving with the
headlamp on. The removable level may
differ depending on lamp size, lamp
position and environmental condition.
However, if moisture is not removed, we
recommend that your vehicle is inspected
by an authorized HYUNDAI dealer.
Information - Headlamp
desiccant (if equipped)
This vehicle is equipped with desiccant to
reduce fogging inside the headlamp due to
moisture. The desiccant is consumable and its performance may change based on the
used period or environment. If fogging inside the headlamp due to
moisture continues for a long time, we
recommend that you consult an authorized
HYUNDAI dealer.
Information - Headlamp
desiccant (if equipped)
This vehicle is equipped with desiccant to
reduce fogging inside the headlamp due to
moisture. The desiccant is consumable and its performance may change based on the
used period or environment. If fogging inside the headlamp due to
moisture continues for a long time, we
recommend that you consult an authorized
HYUNDAI dealer.

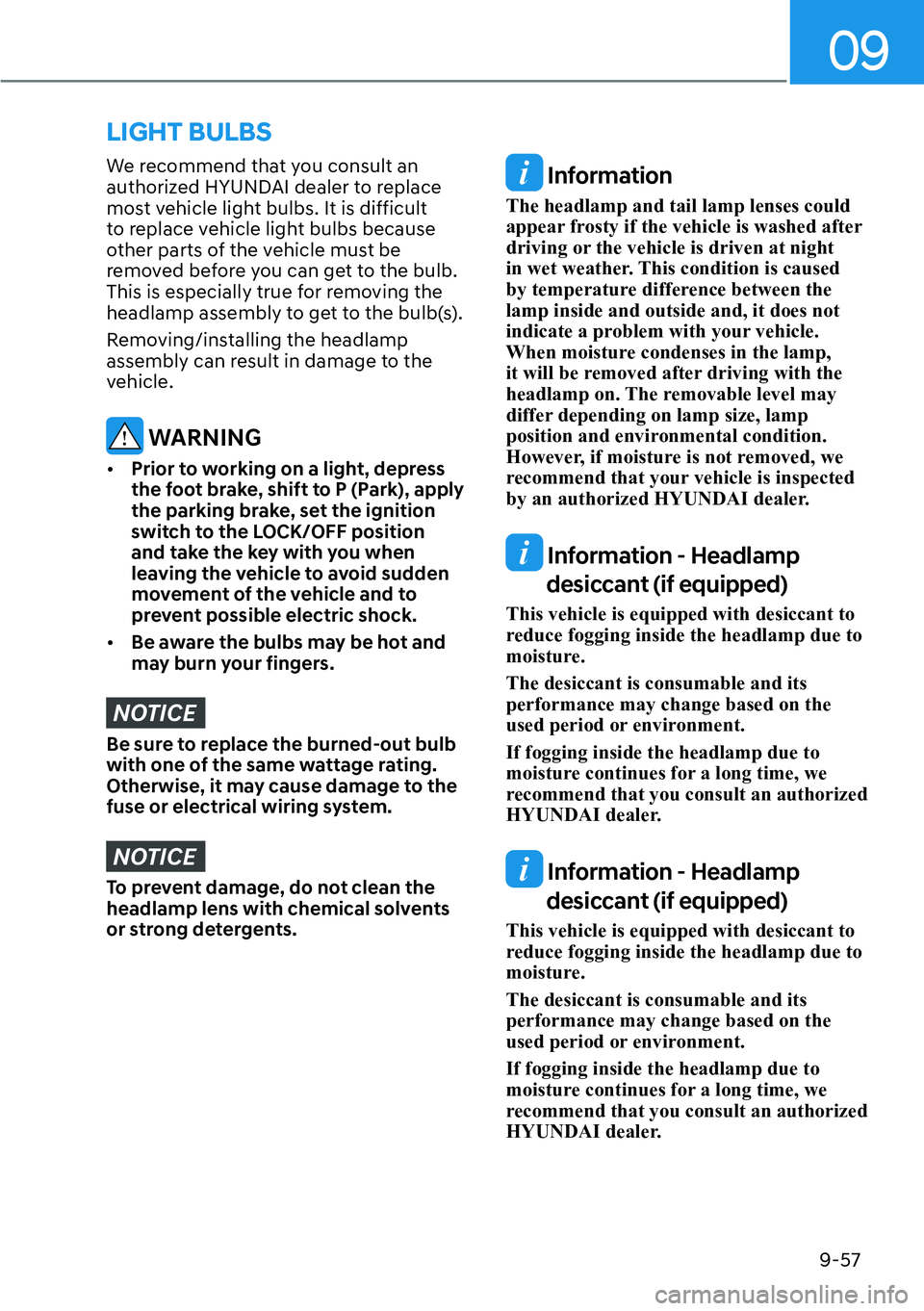

LIGHT BULBS

Maintenance
9-58
Information

[ A normally functioning lamp may
flicker momentarily to stabilize the
vehicle’s electrical control system.
However, if the lamp goes out after
flickering momentarily, or continues to
flicker, we recommend the system be checked by an authorized HYUNDAI
dealer.

[ The position lamp may not turn on when the position lamp switch is turned on, but the position lamp and headlamp switch may turn on when the headlamp
switch is turned on. This may be caused
by network failure or vehicle electrical
control system malfunction. If this
occurs, we recommend the system be checked by an authorized HYUNDAI
dealer.
Information
The headlamp aiming should be adjusted
after an accident or after the headlamp
assembly is reinstalled at an authorized
HYUNDAI dealer.
Headlamp, Position Lamp, Turn
Signal Lamp, Daytime Running
Light (DRL) Replacement
Type A
OTMA090019
(1) Headlamp (High)
(2) Headlamp (Low)
(3) Daytime running light/Position light
(4) Turn signal lamp
(5) Side marker lamp
