HYUNDAI SANTA FE HYBRID 2023 Owners Manual

Emergency Situations8-20

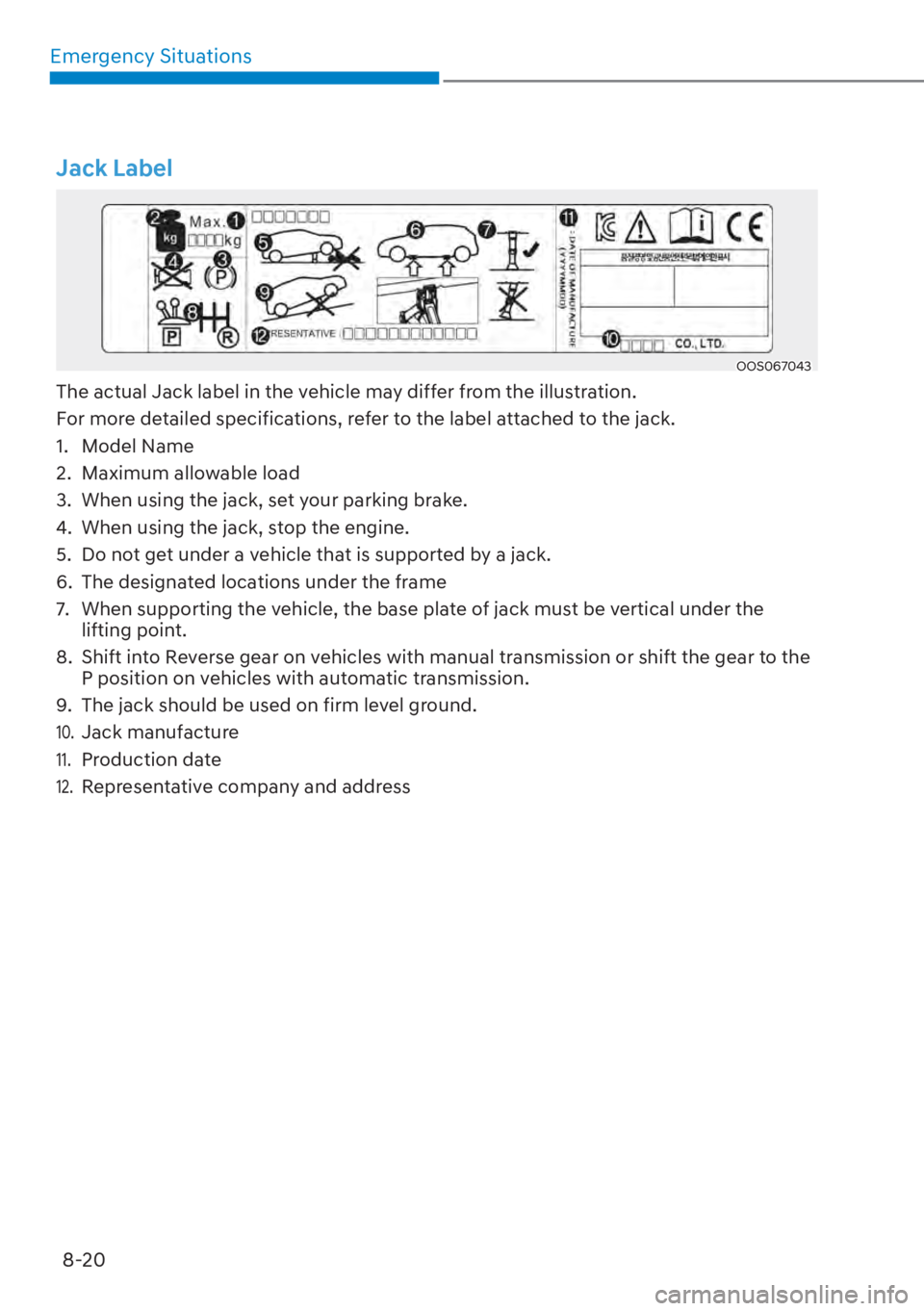

Jack Label
OOS067043
The actual Jack label in the vehicle may differ from the illustration.
For more detailed specifications, refer to the label attached to the jack.
1. Model Name
2. Maximum allowable load
3. When using the jack, set your parking brake.
4. When using the jack, stop the engine.
5. Do not get under a vehicle that is supported by a jack.
6. The designated locations under the frame
7. When supporting the vehicle, the base plate of jack must be vertical under the lifting point.
8. Shift into Reverse gear on vehicles with manual transmission or shift the gear to the P position on vehicles with automatic transmission.
9. The jack should be used on firm level ground.
10. Jack manufacture
11. Production date
12. Representative company and address

08
8-21

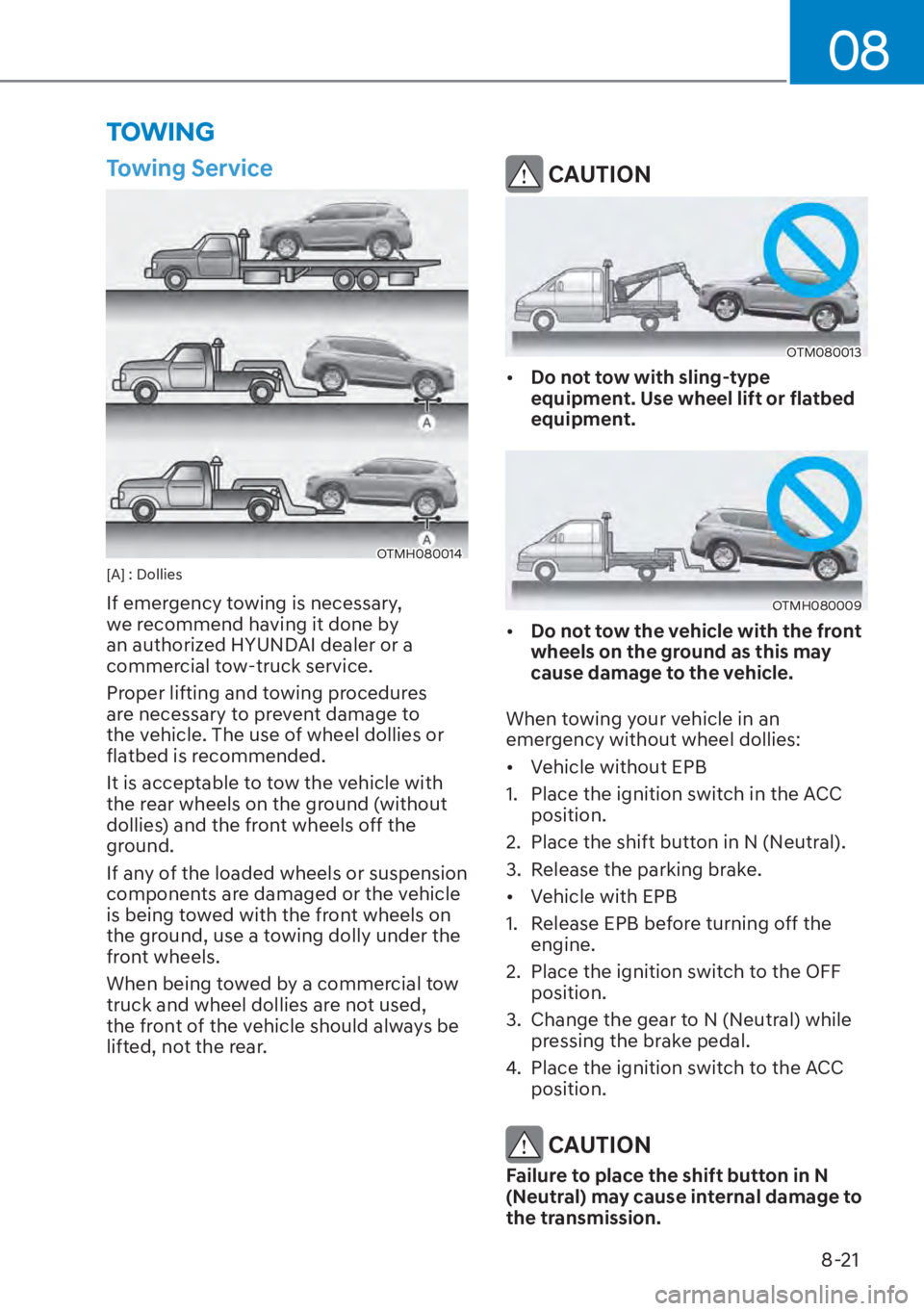

Towing Service
OTMH080014[A] : Dollies
If emergency towing is necessary,
we recommend having it done by
an authorized HYUNDAI dealer or a
commercial tow-truck service.
Proper lifting and towing procedures
are necessary to prevent damage to
the vehicle. The use of wheel dollies or
flatbed is recommended.
It is acceptable to tow the vehicle with
the rear wheels on the ground (without
dollies) and the front wheels off the
ground.
If any of the loaded wheels or suspension
components are damaged or the vehicle
is being towed with the front wheels on
the ground, use a towing dolly under the
front wheels.
When being towed by a commercial tow
truck and wheel dollies are not used,
the front of the vehicle should always be
lifted, not the rear.
CAUTION
OTM080013

[Do not tow with sling-type
equipment. Use wheel lift or flatbed
equipment.
OTMH080009

[Do not tow the vehicle with the front
wheels on the ground as this may
cause damage to the vehicle.
When towing your vehicle in an
emergency without wheel dollies:

[ Vehicle without EPB
1. Place the ignition switch in the ACC position.
2. Place the shift button in N (Neutral).
3. Release the parking brake.

[ Vehicle with EPB
1. Release EPB before turning off the engine.
2. Place the ignition switch to the OFF position.
3. Change the gear to N (Neutral) while pressing the brake pedal.
4. Place the ignition switch to the ACC position.
CAUTION
Failure to place the shift button in N
(Neutral) may cause internal damage to
the transmission.
TOWING

Emergency Situations8-22
Removable Towing Hook
OTMPH081003N
1. Open the liftgate, and remove the towing hook from the tool case.
„Front
OTM080015
„Rear
OTM080016
2. Remove the hole cover by pressing the lower part of the cover on the
bumper.
3. Install the towing hook by turning it clockwise into the hole until it is fully
secured.
4. Remove the towing hook and install the cover after use.

08
8-23
Emergency Towing
„Front
OTM080017
„Rear
OTM080018
If towing is necessary, we recommend
you have it done by an authorized
HYUNDAI dealer or a commercial tow
truck service.
If a towing service is not available in
an emergency, your vehicle may be
temporarily towed using a cable or chain
secured to the emergency towing hook
at the front (or rear) of the vehicle.
Use extreme caution when towing the
vehicle with a cable or chain. A driver
must be in the vehicle to steer it and
operate the brakes.
Towing in this manner may be done
only on hard-surfaced roads for a short
distance and at low speeds. Also, the
wheels, axles, power train, steering and
brakes must all be in good condition.
CAUTION
The driver must be in the vehicle for
steering and braking operations when
the vehicle is being towed. Passengers
other than the driver must not be in the
vehicle.
Always follow these emergency towing
precautions:

[Place the ignition switch in the ACC
position so the steering wheel is not
locked.

[ Place the shift button in N (Neutral).

[ Release the parking brake.

[ Depress the brake pedal with more
force than normal as you will have
reduced braking performance.

[ More steering effort will be required
because the power steering system
will be disabled.

[ Use a vehicle heavier than your own to
tow your vehicle.

[ The drivers of both vehicles should
communicate with each other
frequently.

[ Before emergency towing, check that
the hook is not broken or damaged.

[ Fasten the towing cable or chain
securely to the hook.

[ Do not jerk the hook. Apply steady
and even force.

Emergency Situations8-24

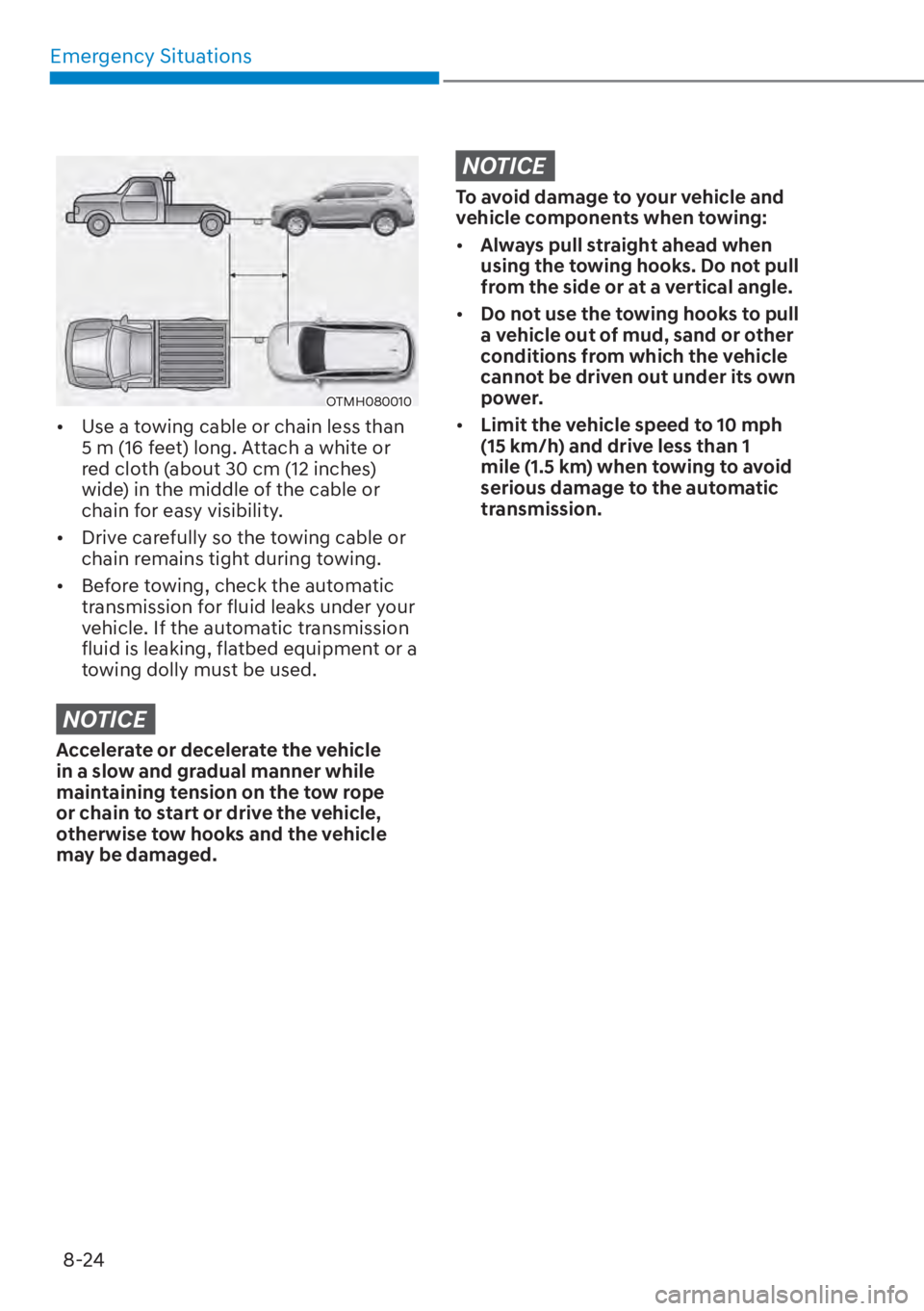

OTMH080010

[ Use a towing cable or chain less than
5 m (16 feet) long. Attach a white or
red cloth (about 30 cm (12 inches)
wide) in the middle of the cable or
chain for easy visibility.

[ Drive carefully so the towing cable or
chain remains tight during towing.

[ Before towing, check the automatic
transmission for fluid leaks under your
vehicle. If the automatic transmission
fluid is leaking, flatbed equipment or a
towing dolly must be used.
NOTICE
Accelerate or decelerate the vehicle
in a slow and gradual manner while
maintaining tension on the tow rope
or chain to start or drive the vehicle,
otherwise tow hooks and the vehicle
may be damaged.
NOTICE
To avoid damage to your vehicle and
vehicle components when towing:

[Always pull straight ahead when
using the towing hooks. Do not pull
from the side or at a vertical angle.

[ Do not use the towing hooks to pull
a vehicle out of mud, sand or other
conditions from which the vehicle
cannot be driven out under its own
power.

[ Limit the vehicle speed to 10 mph
(15 km/h) and drive less than 1
mile (1.5 km) when towing to avoid
serious damage to the automatic
transmission.

08
8-25

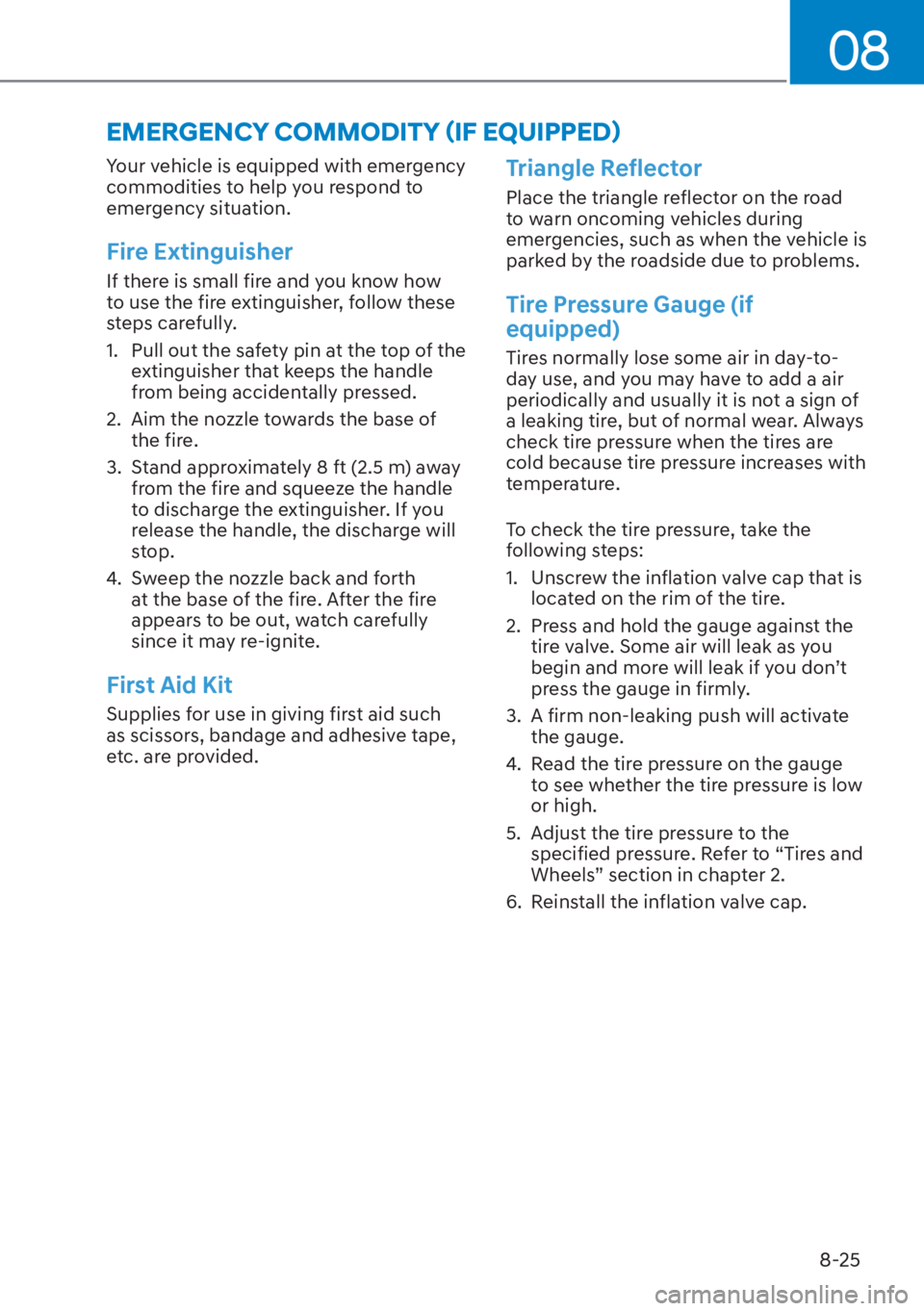

(0(5*(1&<&2002',7<

9

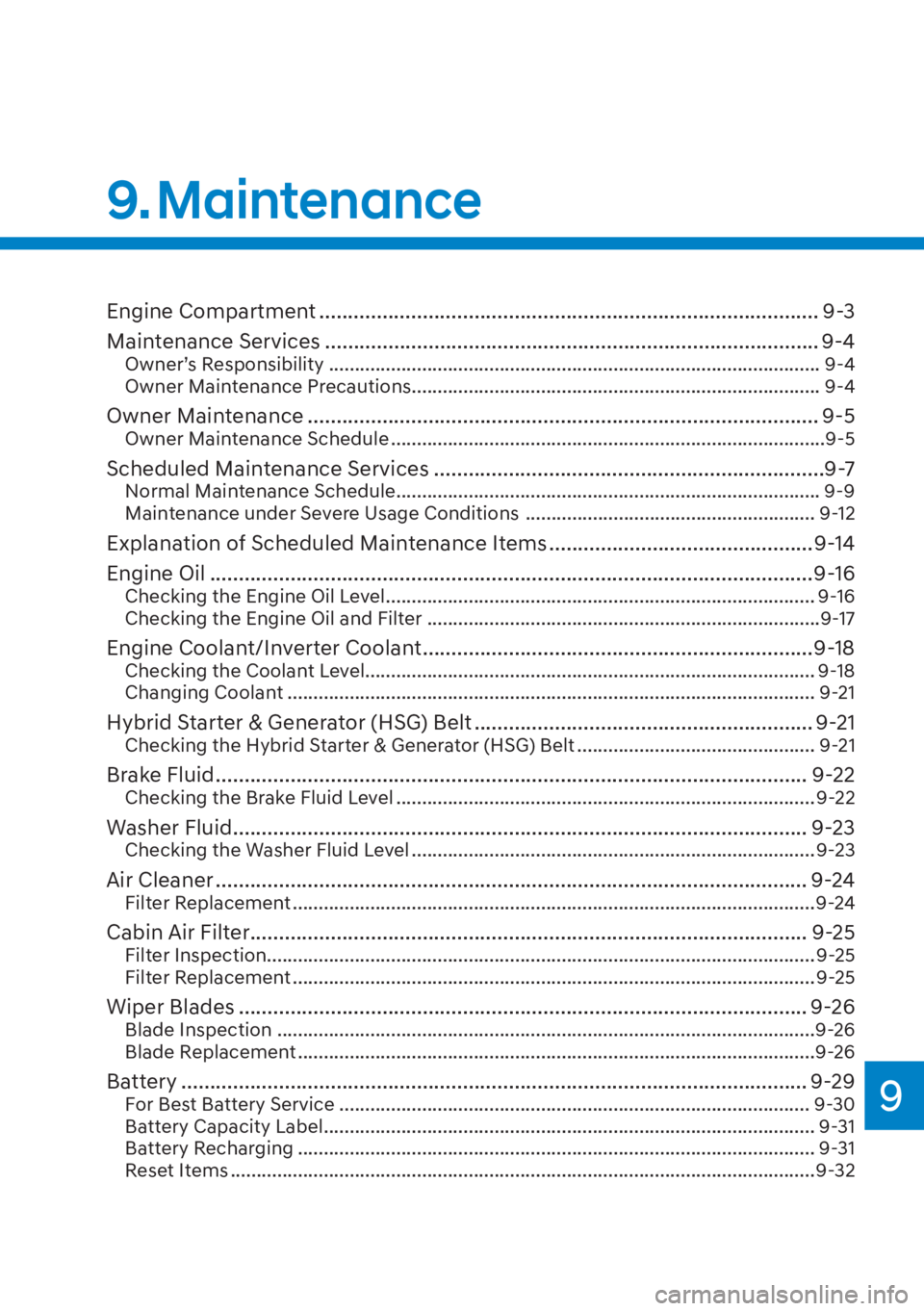

9. Maintenance

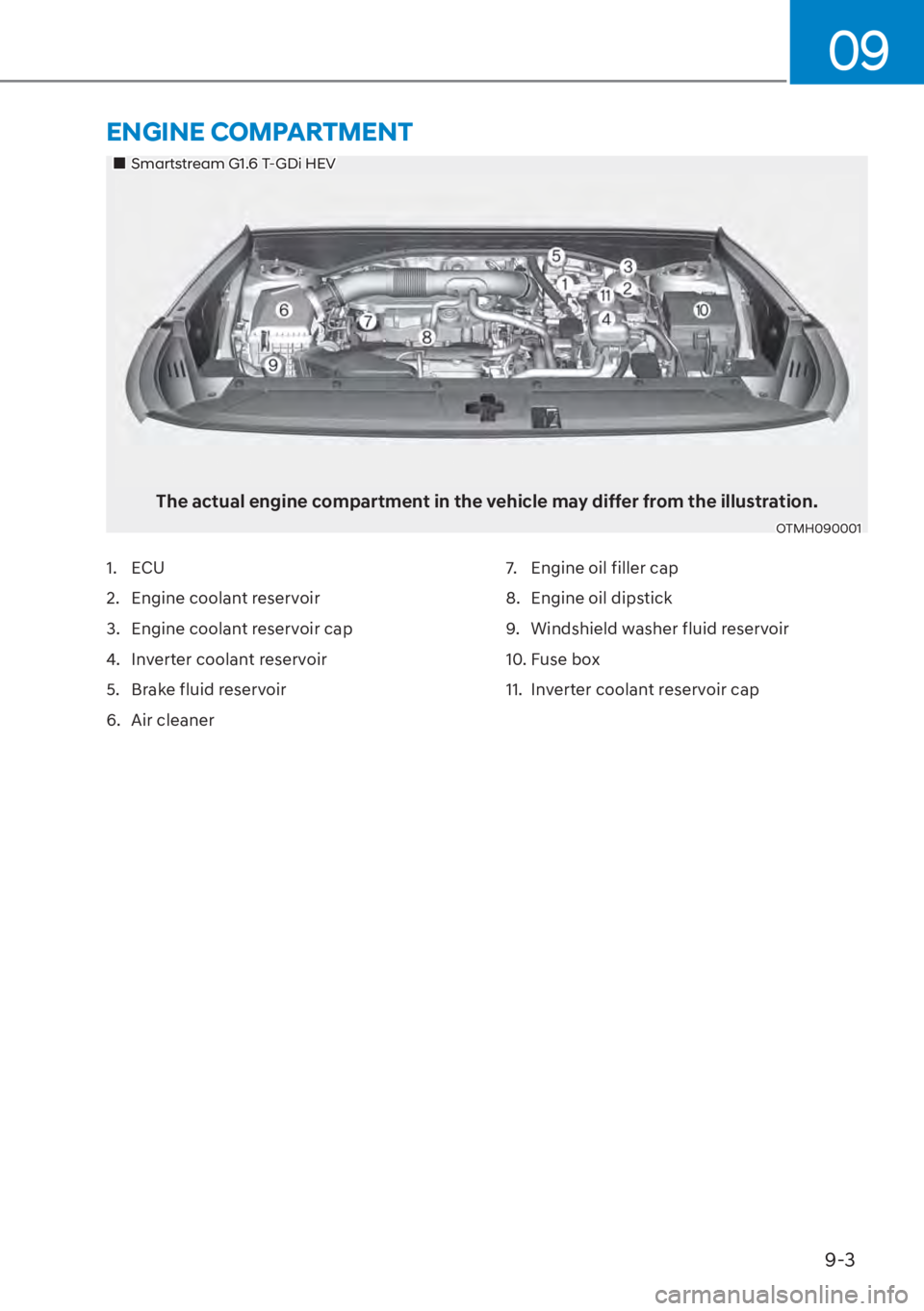

Engine Compartment ........................................................................\
............... 9-3

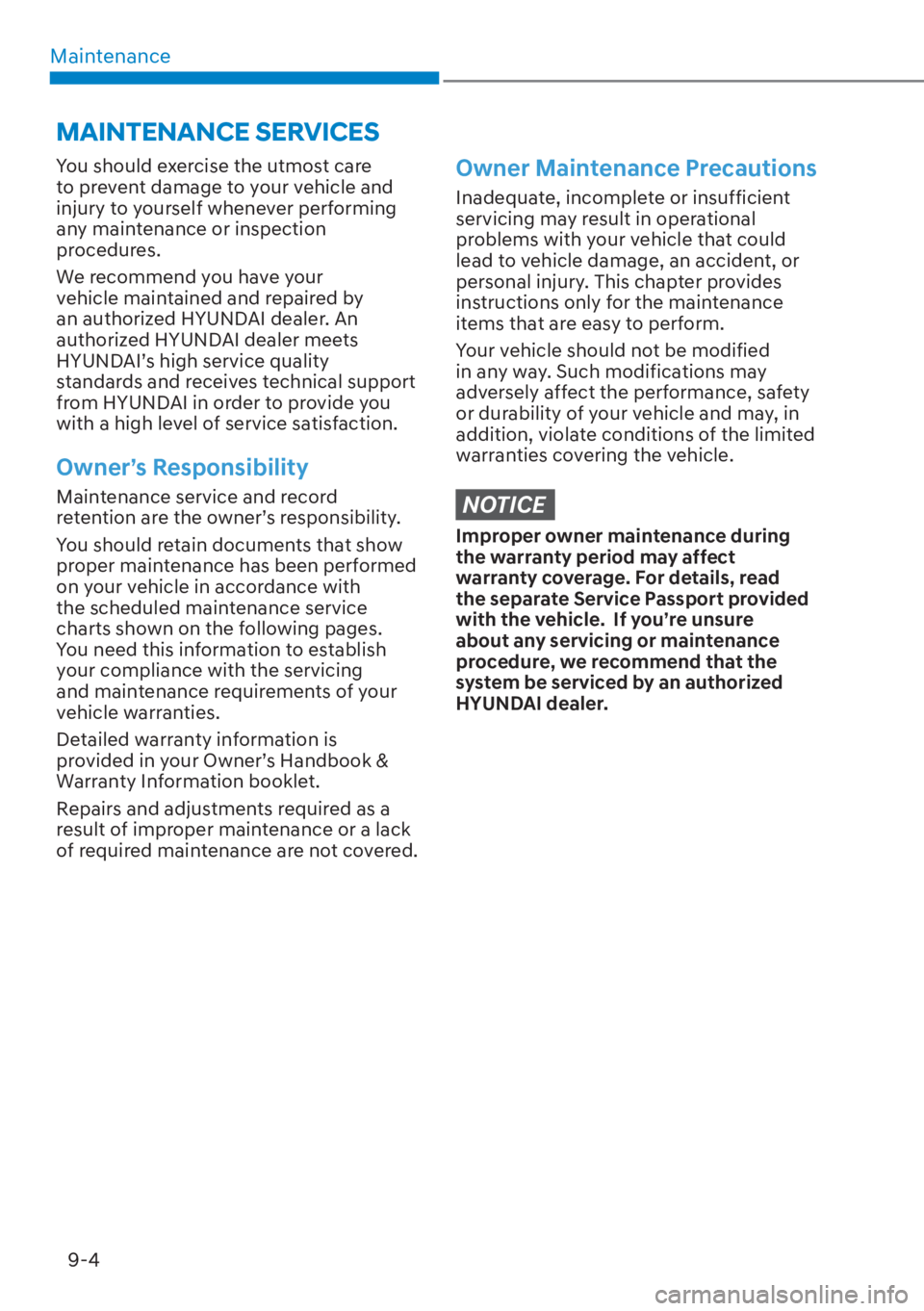

Maintenance Services ........................................................................\
.............. 9-4
Owner’s Responsibility ........................................................................\
....................... 9-4
Owner Maintenance Precautions ........................................................................\
....... 9-4
Owner Maintenance ........................................................................\
................. 9-5Owner Maintenance Schedule ........................................................................\
............9-5
Scheduled Maintenance Services ....................................................................9-7Normal Maintenance Schedule ........................................................................\
.......... 9-9
Maintenance under Severe Usage Conditions ........................................................ 9-12
Explanation of Scheduled Maintenance Items .............................................. 9-14
Engine Oil ........................................................................\
.................................9-16
Checking the Engine Oil Level ........................................................................\
........... 9-16
Checking the Engine Oil and Filter ........................................................................\
....9-17
Engine Coolant/Inverter Coolant ....................................................................9-18Checking the Coolant Level......................................................................\
................. 9-18
Changing Coolant ........................................................................\
.............................. 9-21
Hybrid Starter & Generator (HSG) Belt ........................................................... 9-21
Checking the Hybrid Starter & Generator (HSG) Belt .............................................. 9-21
Brake Fluid ........................................................................\
............................... 9-22Checking the Brake Fluid Level ........................................................................\
......... 9-22
Washer Fluid ........................................................................\
............................ 9-23Checking the Washer Fluid Level ........................................................................\
...... 9-23
Air Cleaner ........................................................................\
............................... 9-24Filter Replacement ........................................................................\
.............................9-24
Cabin Air Filter ........................................................................\
......................... 9-25Filter Inspection........................................................................\
.................................. 9-25
Filter Replacement ........................................................................\
............................. 9-25
Wiper Blades ........................................................................\
........................... 9-26Blade Inspection ........................................................................\
................................9-26
Blade Replacement ........................................................................\
............................9-26
Battery ....................................................................\
......................................... 9-29For Best Battery Service ........................................................................\
................... 9-30
Battery Capacity Label ........................................................................\
....................... 9-31
Battery Recharging ........................................................................\
............................ 9-31
Reset Items ........................................................................\
......................................... 9-32

9

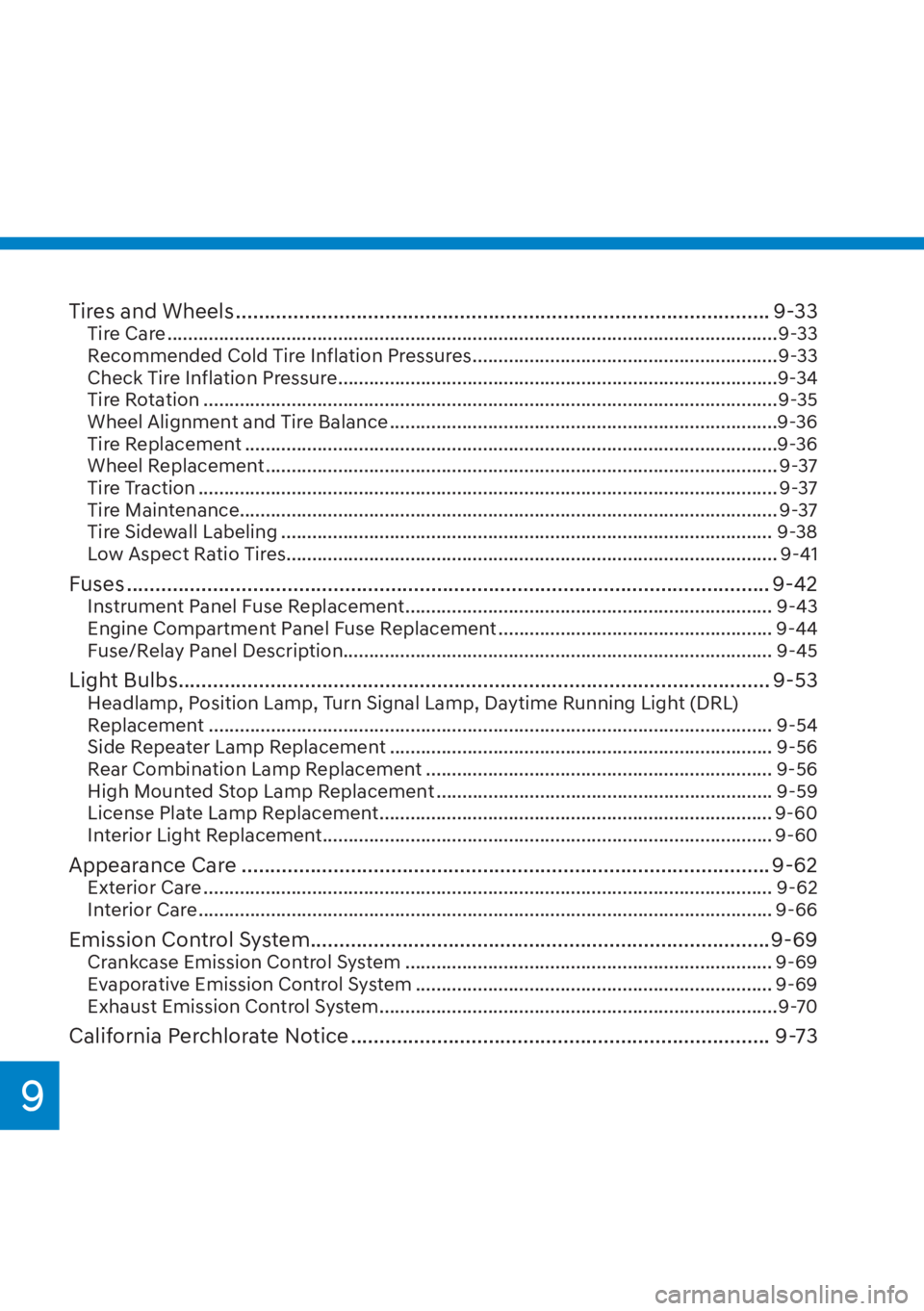

Tires and Wheels ........................................................................\
..................... 9-33Tire Care ........................................................................\
..............................................9-33
Recommended Cold Tire Inflation Pressures ...........................................................9-33
Check Tire Inflation Pressure ........................................................................\
.............9-34
Tire Rotation ........................................................................\
.......................................9-35
Wheel Alignment and Tire Balance ........................................................................\
...9-36
Tire Replacement ........................................................................\
...............................9-36
Wheel Replacement ........................................................................\
........................... 9-37
Tire Traction ........................................................................\
........................................ 9-37
Tire Maintenance..................................................................\
...................................... 9-37
Tire Sidewall Labeling ........................................................................\
....................... 9-38
Low Aspect Ratio Tires ........................................................................\
....................... 9-41
Fuses ...................................................................\
............................................. 9-42Instrument Panel Fuse Replacement ....................................................................... 9-43
Engine Compartment Panel Fuse Replacement ..................................................... 9-44
Fuse/Relay Panel Description........................................................................\
........... 9-45
Light Bulbs ........................................................................\
............................... 9-53Headlamp, Position Lamp, Turn Signal Lamp, Daytime Running Light (DRL)
Replacement .............................................................\
................................................ 9-54
Side Repeater Lamp Replacement ........................................................................\
.. 9-56
Rear Combination Lamp Replacement ................................................................... 9-56
High Mounted Stop Lamp Replacement ................................................................. 9-59
License Plate Lamp Replacement ........................................................................\
.... 9-60
Interior Light Replacement ........................................................................\
............... 9-60
Appearance Care ........................................................................\
.................... 9-62Exterior Care ........................................................................\
...................................... 9-62
Interior Care ........................................................................\
....................................... 9- 66
Emission Control System ........................................................................\
........9-69Crankcase Emission Control System ....................................................................... 9-69
Evaporative Emission Control System ..................................................................... 9-69
Exhaust Emission Control System ........................................................................\
.....9-70
California Perchlorate Notice ........................................................................\
. 9-73

9-3
09
„Smartstream G1.6 T-GDi HEV
The actual engine compartment in the vehicle may differ from the illustration.
OTMH090001
1. ECU
2. Engine coolant reservoir
3. Engine coolant reservoir cap
4. Inverter coolant reservoir
5. Brake fluid reservoir
6. Air cleaner7. Engine oil filler cap
8. Engine oil dipstick
9. Windshield washer fluid reservoir
10. Fuse box
11. Inverter coolant reservoir cap
ENGINE COMPARTMENT

Maintenance9-4
You should exercise the utmost care
to prevent damage to your vehicle and
injury to yourself whenever performing
any maintenance or inspection
procedures.
We recommend you have your
vehicle maintained and repaired by
an authorized HYUNDAI dealer. An
authorized HYUNDAI dealer meets
HYUNDAI’s high service quality
standards and receives technical support
from HYUNDAI in order to provide you
with a high level of service satisfaction.
Owner’s Responsibility
Maintenance service and record
retention are the owner’s responsibility.
You should retain documents that show
proper maintenance has been performed
on your vehicle in accordance with
the scheduled maintenance service
charts shown on the following pages.
You need this information to establish
your compliance with the servicing
and maintenance requirements of your
vehicle warranties.
Detailed warranty information is
provided in your Owner’s Handbook &
Warranty Information booklet.
Repairs and adjustments required as a
result of improper maintenance or a lack
of required maintenance are not covered.
Owner Maintenance Precautions
Inadequate, incomplete or insufficient
servicing may result in operational
problems with your vehicle that could
lead to vehicle damage, an accident, or
personal injury. This chapter provides
instructions only for the maintenance
items that are easy to perform.
Your vehicle should not be modified
in any way. Such modifications may
adversely affect the performance, safety
or durability of your vehicle and may, in
addition, violate conditions of the limited
warranties covering the vehicle.
NOTICE
Improper owner maintenance during
the warranty period may affect
warranty coverage. For details, read
the separate Service Passport provided
with the vehicle. If you’re unsure
about any servicing or maintenance
procedure, we recommend that the
system be serviced by an authorized
HYUNDAI dealer.
MAINTENANCE SERVICES
