HYUNDAI SANTA FE HYBRID 2023 Owners Manual

09
9-45

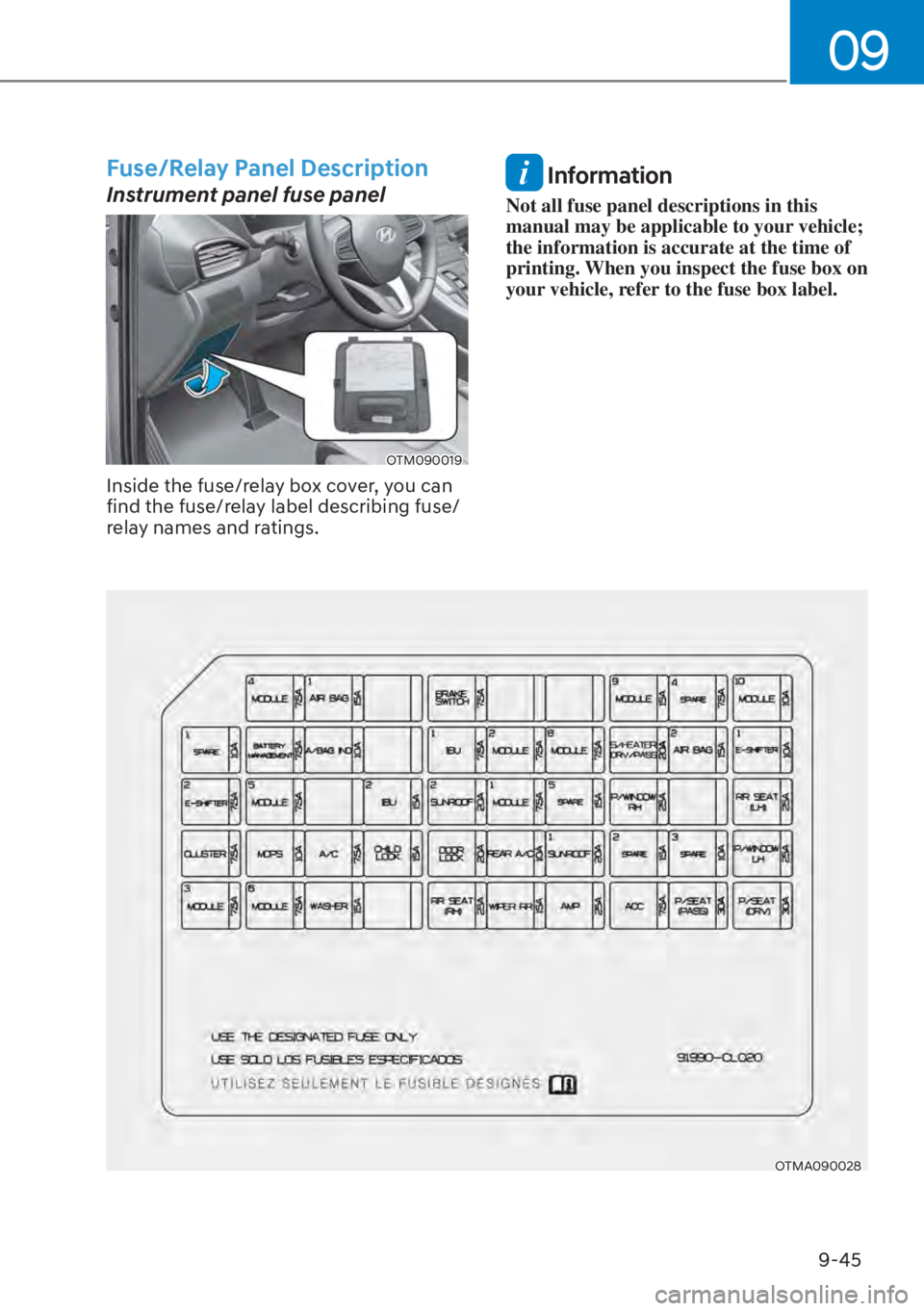

Fuse/Relay Panel Description
Instrument panel fuse panel
OTM090019
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse box on
your vehicle, refer to the fuse box label.
OTMA090028

Maintenance9-46

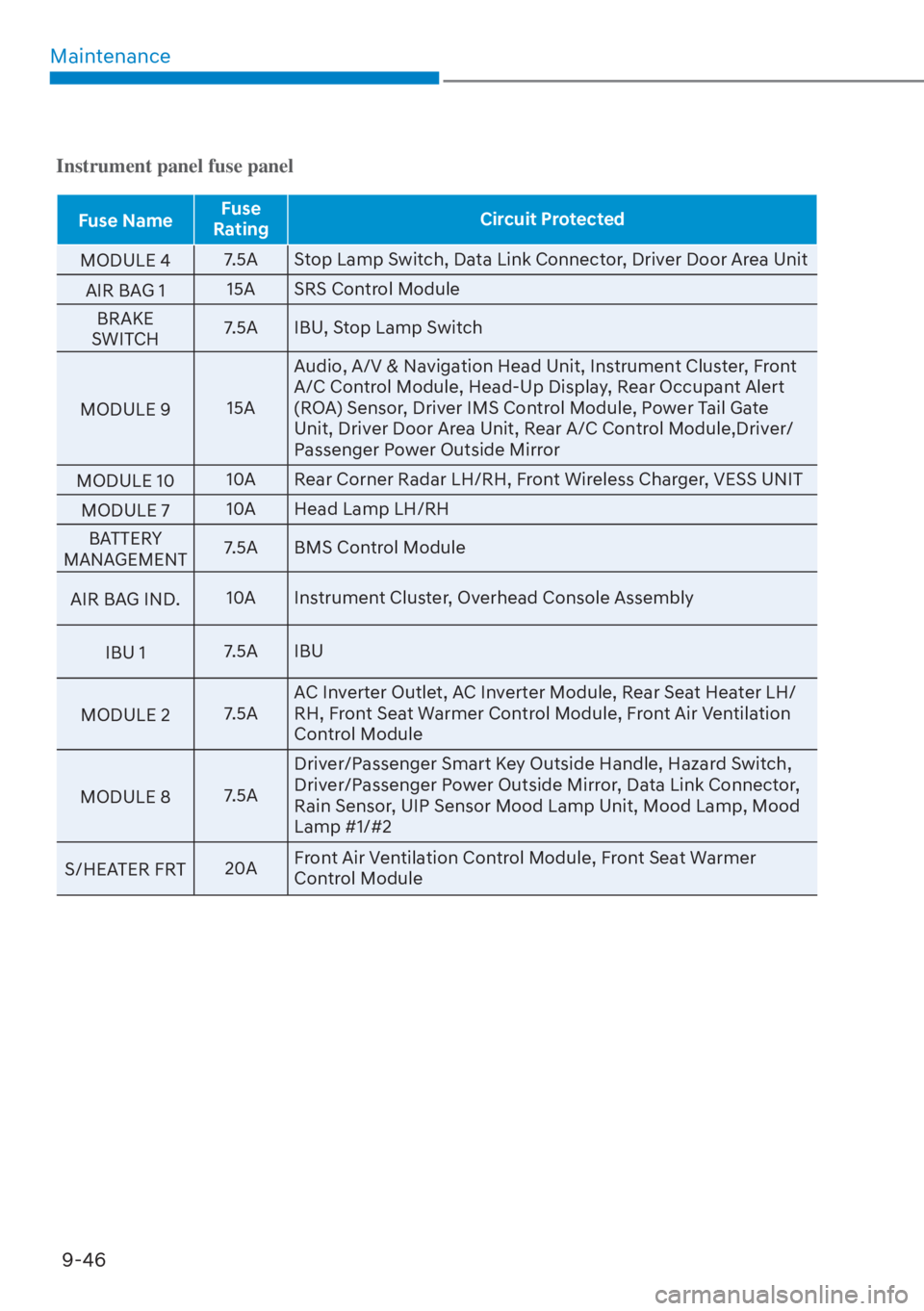

Instrument panel fuse panel
Fuse Name Fuse
Rating Circuit Protected
MODULE 4 7
.5A Stop Lamp Switch, Data Link Connector, Driver Door Area Unit
AIR BAG 1 15A SRS Control Module
BRAKE
SWITCH 7.5A IBU, Stop Lamp Switch
MODULE 9 15AAudio, A/V & Navigation Head Unit, Instrument Cluster, Front
A/C Control Module, Head-Up Display, Rear Occupant Alert
(ROA) Sensor, Driver IMS Control Module, Power Tail Gate
Unit, Driver Door Area Unit, Rear A/C Control Module,Driver/
Passenger Power Outside Mirror
MODULE 10 10A Rear Corner Radar LH/RH, Front Wireless Charger, VESS UNIT
MODULE 7 10A Head Lamp LH/RH
BATTERY
MANAGEMENT7.5A BMS Control Module
AIR BAG IND. 10A Instrument Cluster, Overhead Console Assembly
IBU 1 7.5A IBU
MODULE 2 7.5AAC Inverter Outlet, AC Inverter Module, Rear Seat Heater LH/
RH, Front Seat Warmer Control Module, Front Air Ventilation
Control Module
MODULE 8 7.5ADriver/Passenger Smart Key Outside Handle, Hazard Switch,
Driver/Passenger Power Outside Mirror, Data Link Connector,
Rain Sensor, UIP Sensor Mood Lamp Unit, Mood Lamp, Mood
Lamp #1/#2
S/HEATER FRT 20AFront Air Ventilation Control Module, Front Seat Warmer
Control Module

09
9-47

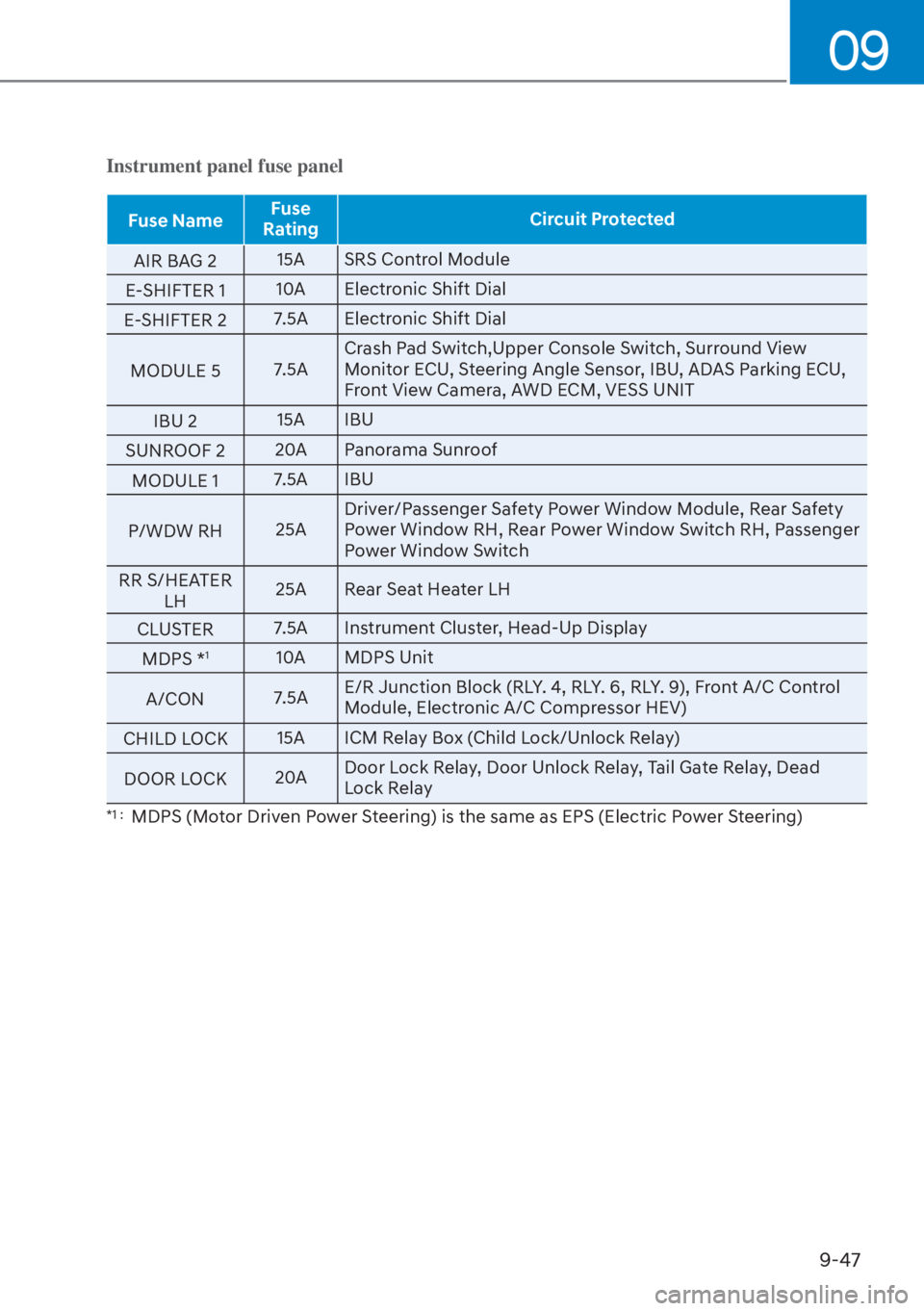

Instrument panel fuse panel
Fuse NameFuse
Rating Circuit Protected
AIR BAG 2 15A
SRS Control Module
E-SHIFTER 1 10A Electronic Shift Dial
E-SHIFTER 2 7.5A Electronic Shift Dial
MODULE 5 7.5ACrash Pad Switch,Upper Console Switch, Surround View
Monitor ECU, Steering Angle Sensor, IBU, ADAS Parking ECU,
Front View Camera, AWD ECM, VESS UNIT
IBU 2 15A IBU
SUNROOF 2 20A Panorama Sunroof
MODULE 1 7.5A IBU
P/WDW RH 25ADriver/Passenger Safety Power Window Module, Rear Safety
Power Window RH, Rear Power Window Switch RH, Passenger
Power Window Switch
RR S/HEATER LH 25A Rear Seat Heater LH
CLUSTER 7.5A Instrument Cluster, Head-Up Display
MDPS *
110A MDPS Unit
A/CON 7.5AE/R Junction Block (RLY. 4, RLY. 6, RLY. 9), Front A/C Control
Module, Electronic A/C Compressor HEV)
CHILD LOCK 15A ICM Relay Box (Child Lock/Unlock Relay)
DOOR LOCK 20ADoor Lock Relay, Door Unlock Relay, Tail Gate Relay, Dead
Lock Relay
*1 : MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering)

Maintenance9-48
Instrument panel fuse panel
Fuse Name Fuse
Rating Circuit Protected
REAR A/CON 10
ARear A/C Control Module, Rear Blower Motor, Front A/C
Control Module
SUNROOF 1 20A Panoramic Sunroof
P/WDW LH 25ADriver/Passenger Safety Power Window Module, Rear Safety
Power Window LH, Rear Power Window Switch LH, Passenger
Power Window Switch
MODULE 3 7.5A IBU, PCB Block (Battery C/Fan Relay)
MODULE 6 7.5AAudio, A/V & Navigation Head Unit, A/V & Navigation
Keyboard, Front A/C Control Module, AMP, Front Wireless
Charger, E-Call Unit, Electro Chromic Mirror, Rear Seat
Haeter LH/RH, Driver IMS Control Module, Overhead Console
Assembly, Front Seat Warmer Control Module, Front Air
Ventilation Control Module
WASHER 15A Multifunction Switch
RR S/HEATER RH 25A Rear Seat Heater RH
WIPER RR 15A Rear Wiper Relay, Rear Wiper Motor
AMP 25A AMP
ACC 7.5AE-Call Unit, Surround View Monitor ECU, ADAS Parking ECU
Avoidance Assist Unit, A/V & Navigation Keyboard, Audio, IBU,
A/V & Navigation Head Unit, Front USB Charger, Rear USB
Charger LH/RH, AMP
P/SEAT PASS 30A Passenger Seat Manual Switch, Walk In Relay
P/SEAT DRV 30A Driver IMS Control Module, Driver Seat Manual Switch

09
9-49

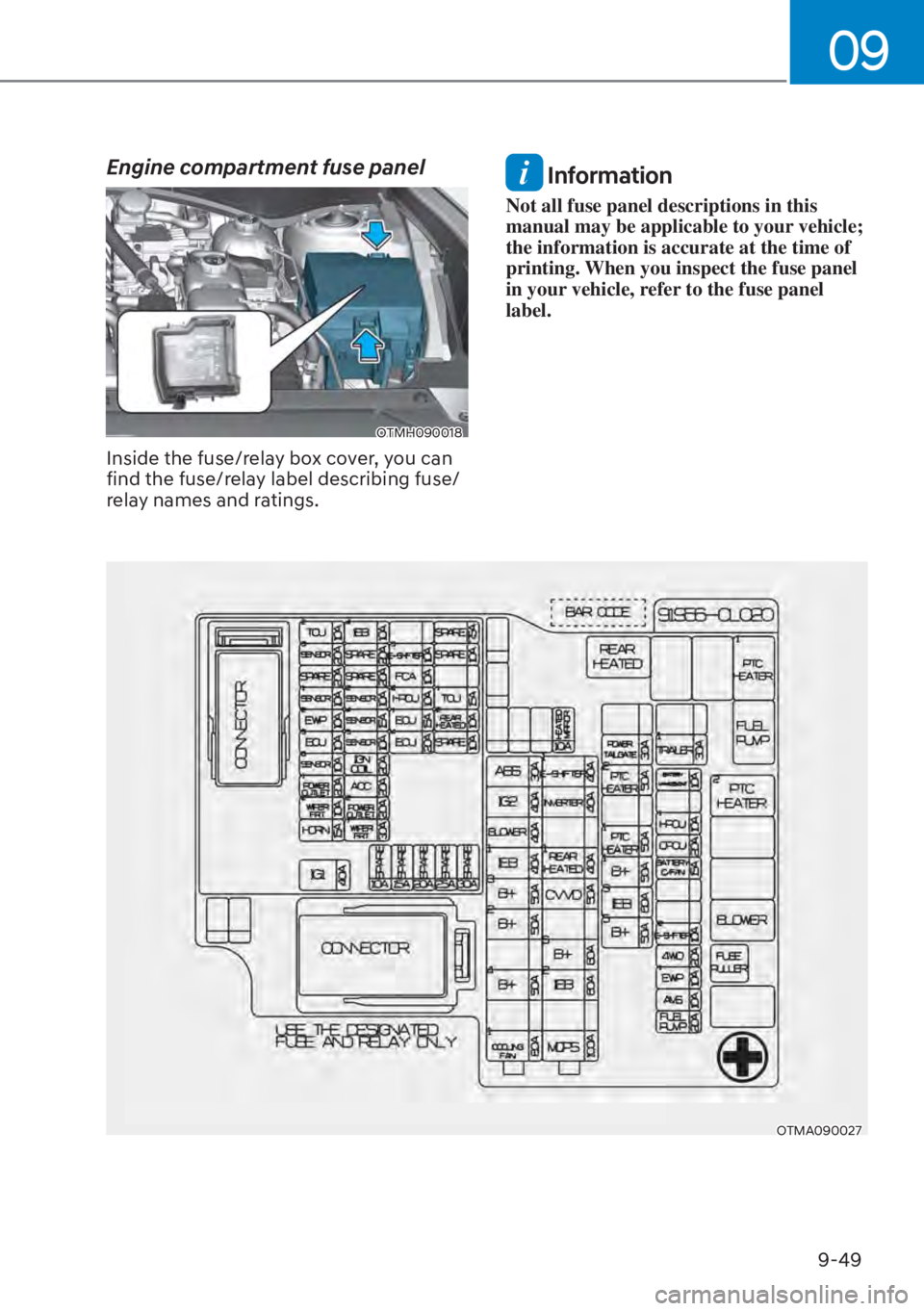

Engine compartment fuse panel
OTMH090018
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
OTMA090027

Maintenance9-50

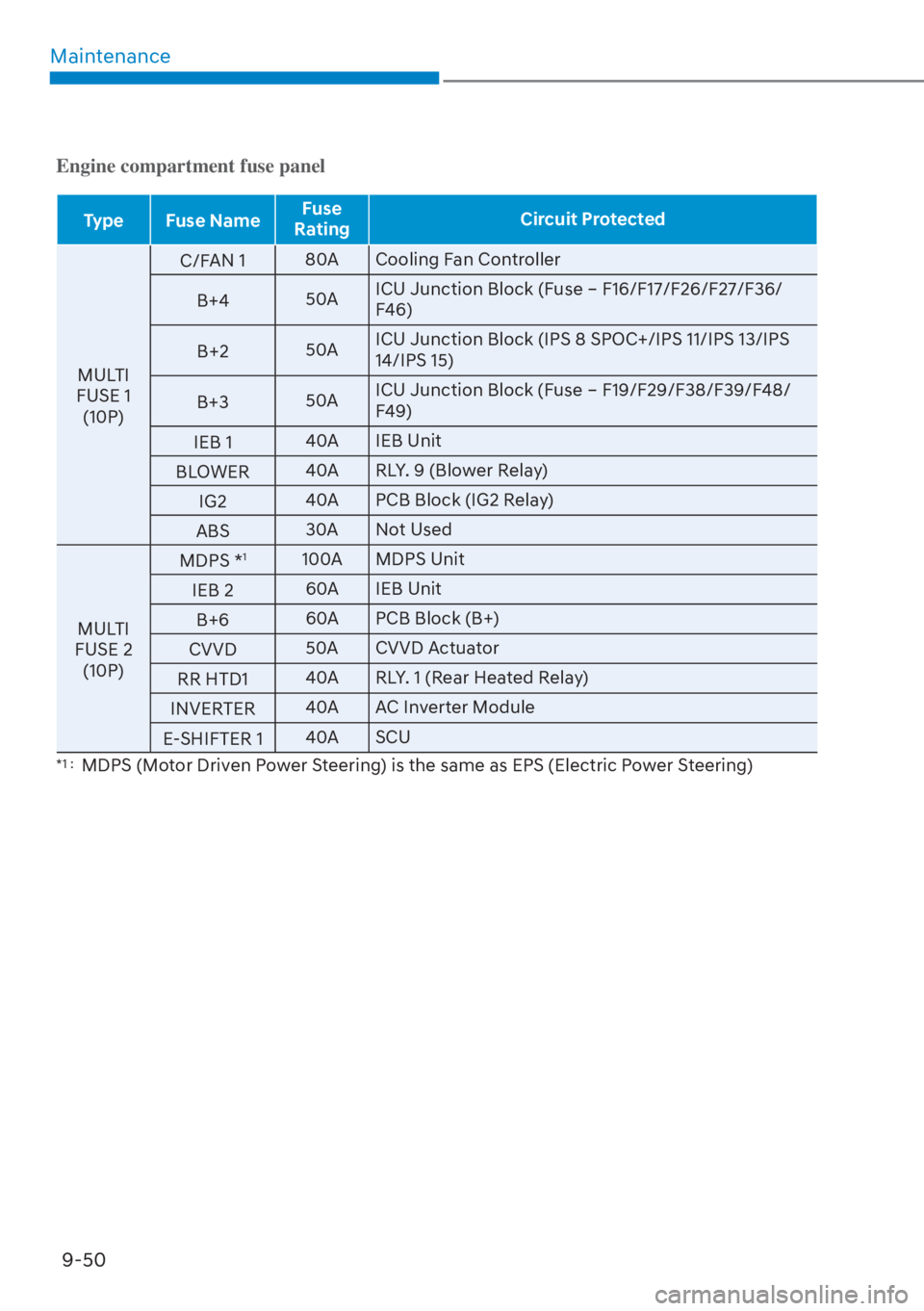

Engine compartment fuse panel
Type Fuse Name Fuse
Rating Circuit Protected
MULTI
FUSE 1 (10P) C/F

AN 1
80A Cooling Fan Controller
B+4 50AICU Junction Block (Fuse – F16/F17/F26/F27/F36/
F46)
B+2 50AICU Junction Block (IPS 8 SPOC+/IPS 11/IPS 13/IPS
14/IPS 15)
B+3 50AICU Junction Block (Fuse – F19/F29/F38/F39/F48/
F49)
IEB 1 40A IEB Unit
BLOWER 40A RLY. 9 (Blower Relay)
IG2 40A PCB Block (IG2 Relay)
ABS 30A Not Used
MULTI
FUSE 2 (10P) MDPS *
1100A MDPS Unit
IEB 2 60A IEB Unit
B+6 60A PCB Block (B+)
CVVD 50A CVVD Actuator
RR HTD1 40A RLY. 1 (Rear Heated Relay)
INVERTER 40A AC Inverter Module
E-SHIFTER 1 40A SCU
*1 : MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering)

09
9-51

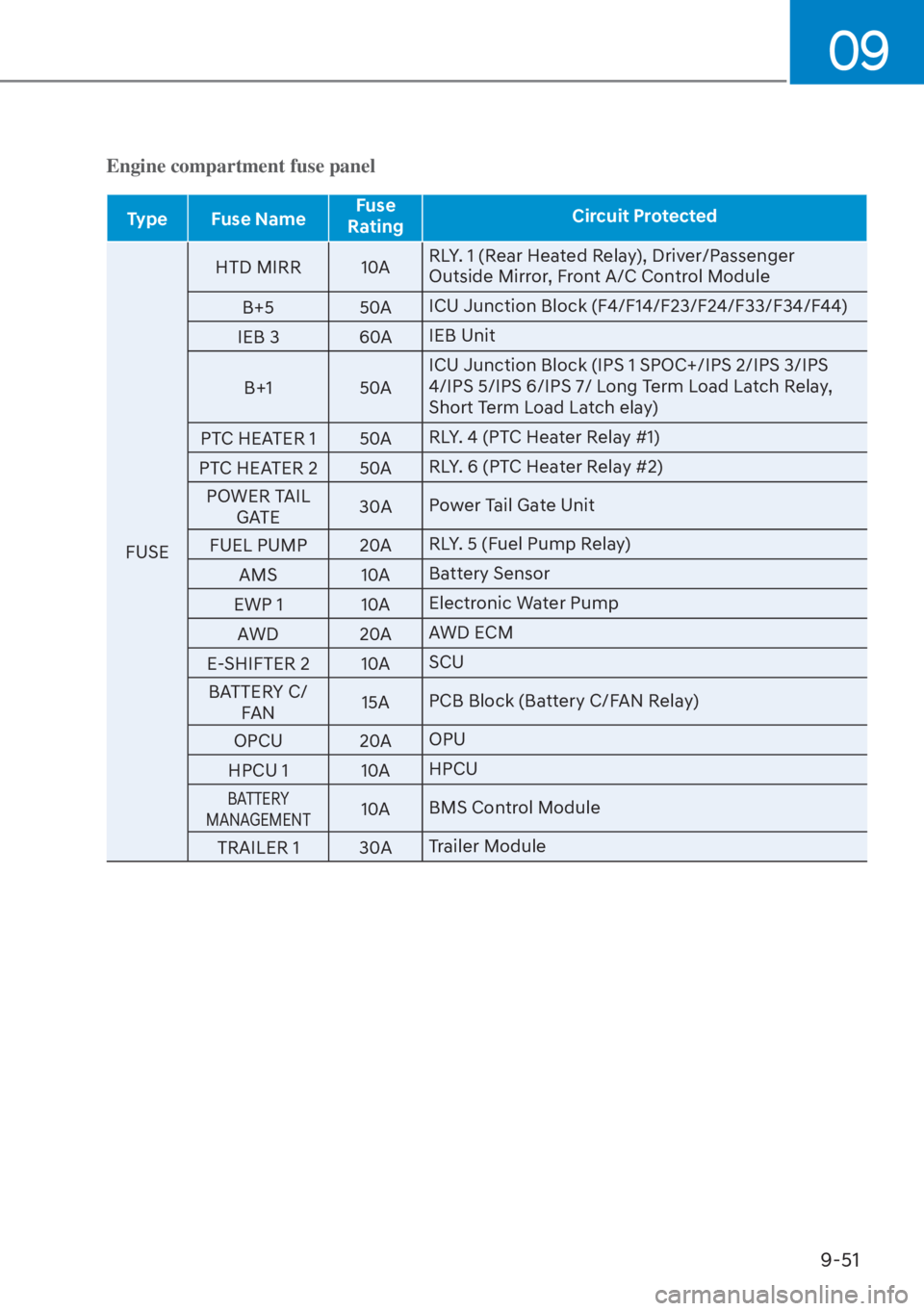

Engine compartment fuse panel
Type Fuse NameFuse
Rating Circuit Protected
FUSE HTD MIRR
10A
RLY. 1 (Rear Heated Relay), Driver/Passenger
Outside Mirror, Front A/C Control Module
B+5 50A ICU Junction Block (F4/F14/F23/F24/F33/F34/F44)
IEB 3 60A IEB Unit
B+1 50A ICU Junction Block (IPS 1 SPOC+/IPS 2/IPS 3/IPS
4/IPS 5/IPS 6/IPS 7/ Long Term Load Latch Relay,
Short Term Load Latch elay)
PTC HEATER 1 50A RLY. 4 (PTC Heater Relay #1)
PTC HEATER 2 50A RLY. 6 (PTC Heater Relay #2)
POWER TAIL GATE 30A
Power Tail Gate Unit
FUEL PUMP 20A RLY. 5 (Fuel Pump Relay)
AMS 10A Battery Sensor
EWP 1 10A Electronic Water Pump
AWD 20A AWD ECM
E-SHIFTER 2 10A SCU
BATTERY C/ FAN 15A
PCB Block (Battery C/FAN Relay)
OPCU 20A OPU
HPCU 1 10A HPCU
BATTERY
MANAGEMENT10A BMS Control Module
TRAILER 1 30A Trailer Module

Maintenance9-52

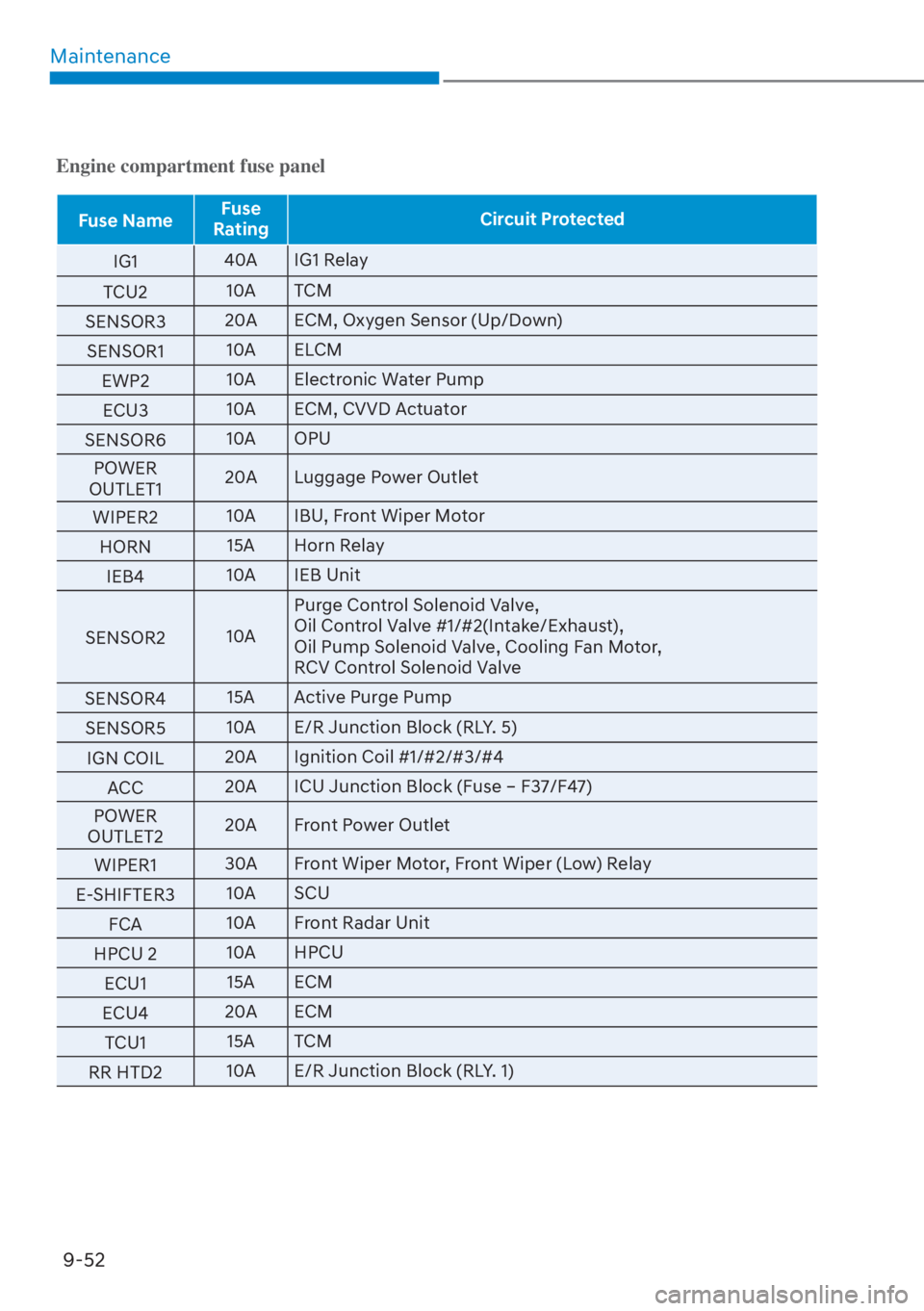

Engine compartment fuse panel
Fuse Name Fuse
Rating Circuit Protected
IG1 40
A IG1 Relay
TCU2 10A TCM
SENSOR3 20A ECM, Oxygen Sensor (Up/Down)
SENSOR1 10A ELCM
EWP2 10A Electronic Water Pump
ECU3 10A ECM, CVVD Actuator
SENSOR6 10A OPU
POWER
OUTLET1 20A Luggage Power Outlet
WIPER2 10A IBU, Front Wiper Motor
HORN 15A Horn Relay
IEB4 10A IEB Unit
SENSOR2 10APurge Control Solenoid Valve,
Oil Control Valve #1/#2(Intake/Exhaust),
Oil Pump Solenoid Valve, Cooling Fan Motor,
RCV Control Solenoid Valve
SENSOR4 15A Active Purge Pump
SENSOR5 10A E/R Junction Block (RLY. 5)
IGN COIL 20A Ignition Coil #1/#2/#3/#4
ACC 20A ICU Junction Block (Fuse – F37/F47)
POWER
OUTLET2 20A Front Power Outlet
WIPER1 30A Front Wiper Motor, Front Wiper (Low) Relay
E-SHIFTER3 10A SCU
FCA 10A Front Radar Unit
HPCU 2 10A HPCU
ECU1 15A ECM
ECU4 20A ECM
TCU1 15A TCM
RR HTD2 10A E/R Junction Block (RLY. 1)

09
9-53

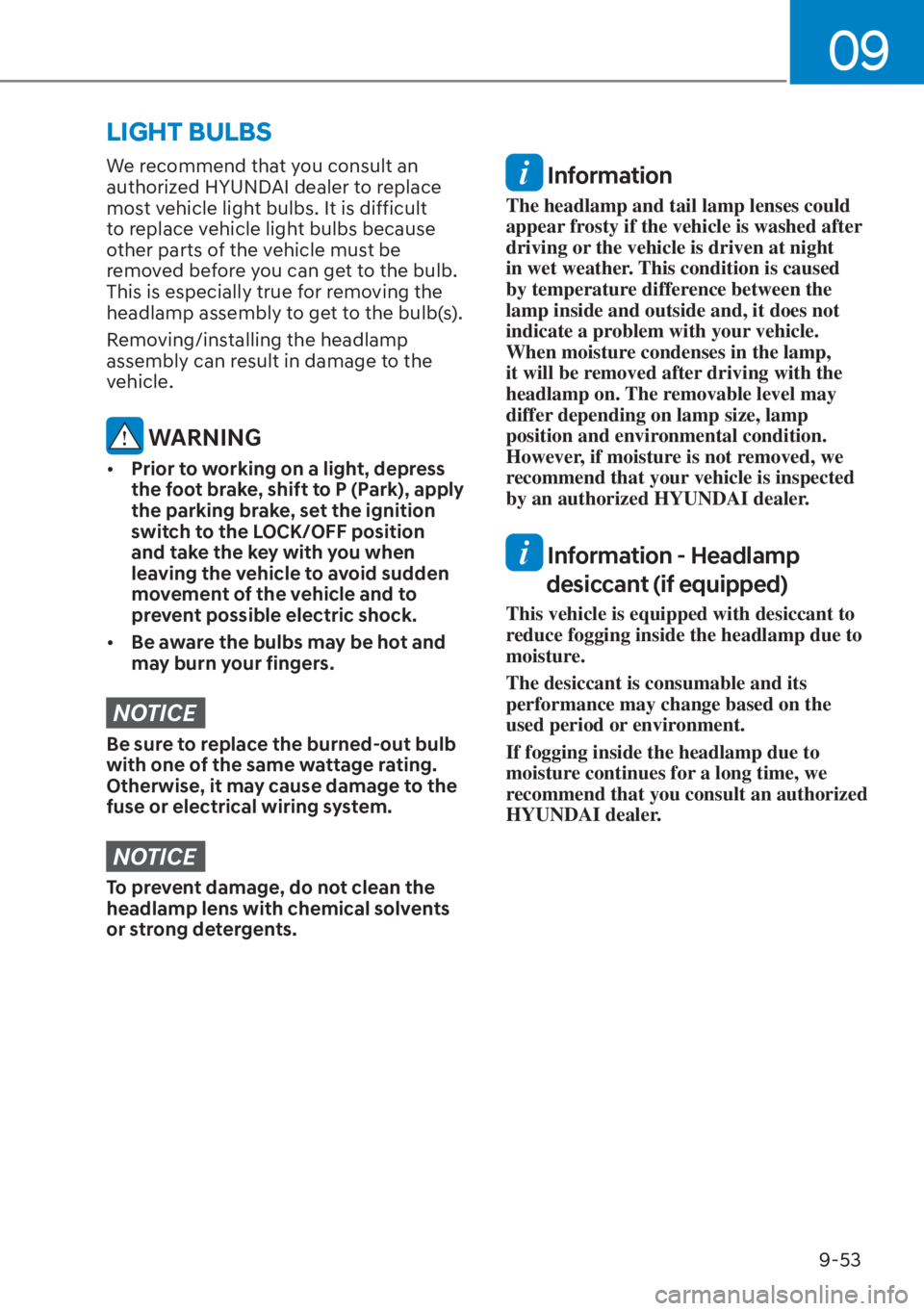

We recommend that you consult an
authorized HYUNDAI dealer to replace
most vehicle light bulbs. It is difficult
to replace vehicle light bulbs because
other parts of the vehicle must be
removed before you can get to the bulb.
This is especially true for removing the
headlamp assembly to get to the bulb(s).
Removing/installing the headlamp
assembly can result in damage to the
vehicle.
WARNING

[Prior to working on a light, depress
the foot brake, shift to P (Park), apply
the parking brake, set the ignition
switch to the LOCK/OFF position
and take the key with you when
leaving the vehicle to avoid sudden
movement of the vehicle and to
prevent possible electric shock.

[ Be aware the bulbs may be hot and
may burn your fingers.
NOTICE
Be sure to replace the burned-out bulb
with one of the same wattage rating.
Otherwise, it may cause damage to the
fuse or electrical wiring system.
NOTICE
To prevent damage, do not clean the
headlamp lens with chemical solvents
or strong detergents.
Information
The headlamp and tail lamp lenses could
appear frosty if the vehicle is washed after
driving or the vehicle is driven at night
in wet weather. This condition is caused
by temperature difference between the
lamp inside and outside and, it does not
indicate a problem with your vehicle.
When moisture condenses in the lamp,
it will be removed after driving with the
headlamp on. The removable level may
differ depending on lamp size, lamp
position and environmental condition.
However, if moisture is not removed, we
recommend that your vehicle is inspected
by an authorized HYUNDAI dealer.
Information - Headlamp
desiccant (if equipped)
This vehicle is equipped with desiccant to
reduce fogging inside the headlamp due to
moisture.
The desiccant is consumable and its
performance may change based on the
used period or environment.
If fogging inside the headlamp due to
moisture continues for a long time, we
recommend that you consult an authorized
HYUNDAI dealer.
LIGHT BULBS

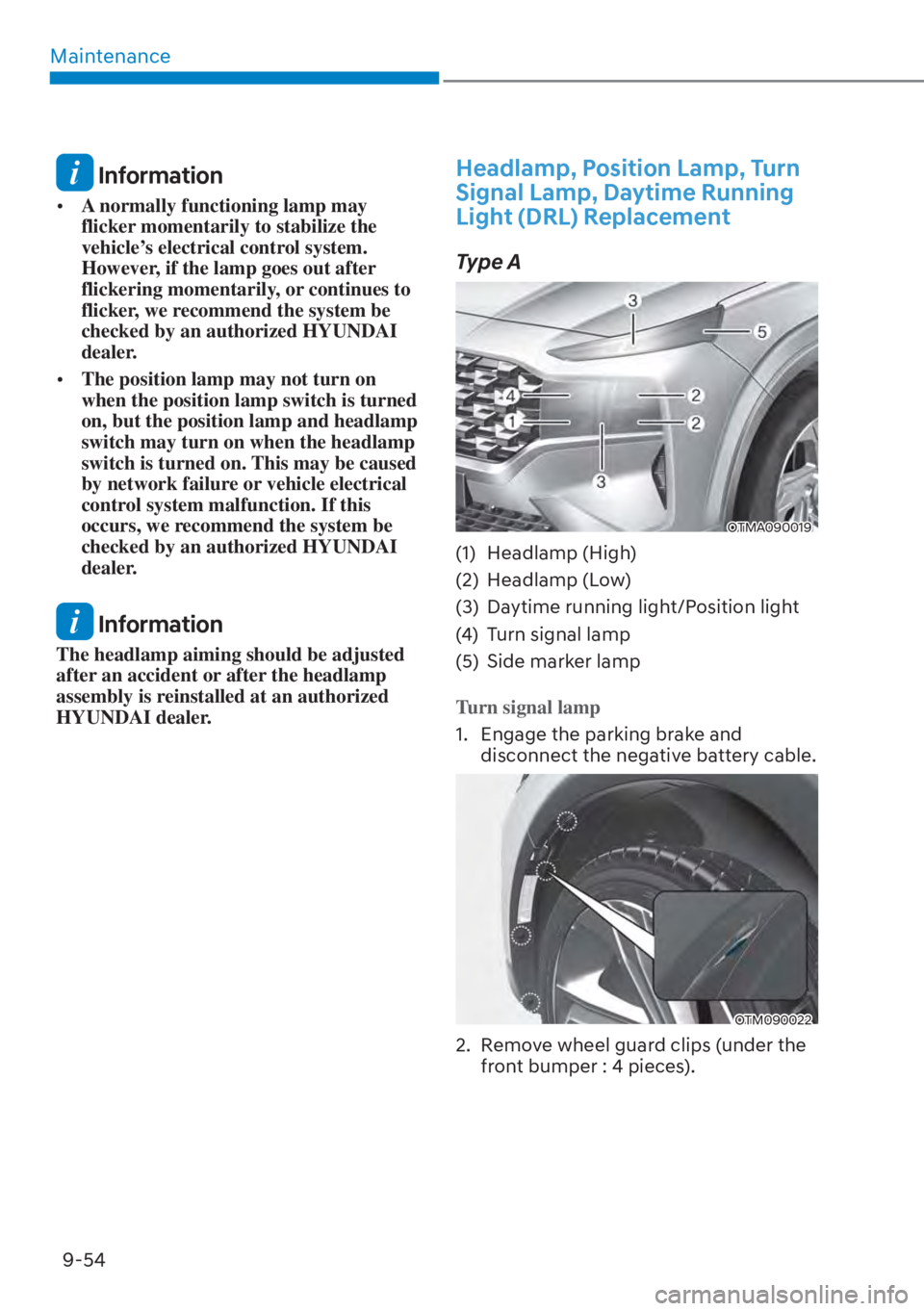

Maintenance9-54
Information

[ A normally functioning lamp may
flicker momentarily to stabilize the
vehicle’s electrical control system.
However, if the lamp goes out after
flickering momentarily, or continues to
flicker, we recommend the system be
checked by an authorized HYUNDAI
dealer.

[ The position lamp may not turn on
when the position lamp switch is turned
on, but the position lamp and headlamp
switch may turn on when the headlamp
switch is turned on. This may be caused
by network failure or vehicle electrical
control system malfunction. If this
occurs, we recommend the system be
checked by an authorized HYUNDAI
dealer.
Information
The headlamp aiming should be adjusted
after an accident or after the headlamp
assembly is reinstalled at an authorized
HYUNDAI dealer.
Headlamp, Position Lamp, Turn
Signal Lamp, Daytime Running
Light (DRL) Replacement
Type A
OTMA090019
(1) Headlamp (High)
(2) Headlamp (Low)
(3) Daytime running light/Position light
(4) Turn signal lamp
(5) Side marker lamp
Turn signal lamp
1. Engage the parking brake and
disconnect the nega
tive battery cable.
OTM090022
2. Remove wheel guard clips (under the front bumper : 4 pieces).
