Hyundai Sonata

83
Especificações & Informação ao consumidor

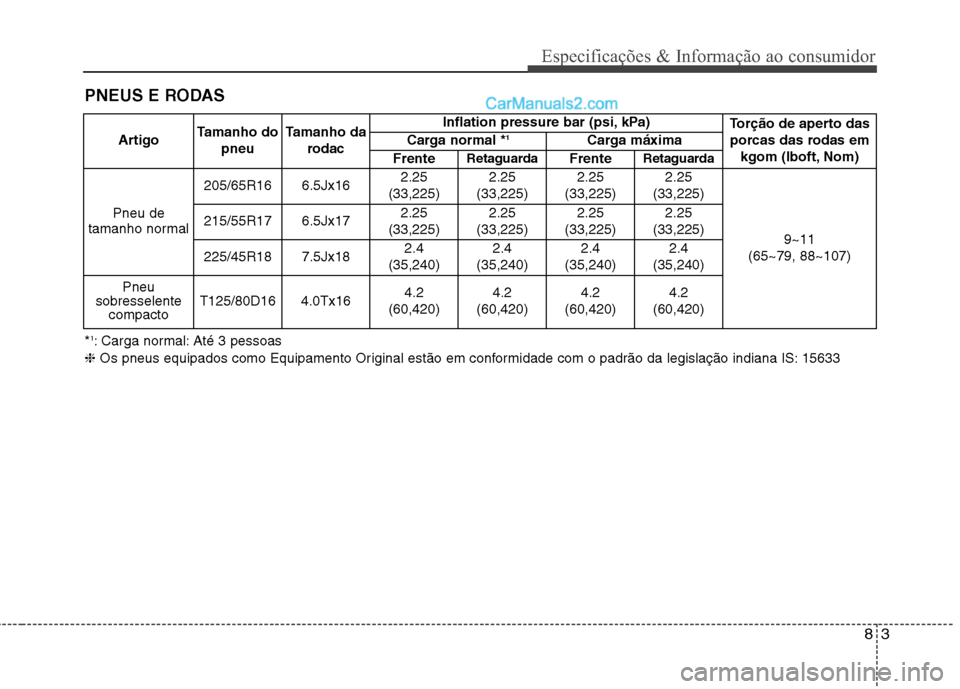

PNEUS E RODAS
ArtigoTamanho do
pneu Tamanho da
rodac Inflation pressure bar (psi, kPa)
Torção de aperto das
porcas das rodas em kgom (lboft, Nom)
Carga normal *
1
Carga máxima
Frente Retaguarda
FrenteRetaguarda
Pneu de
tamanho normal 205/65R16 6.5Jx16
2.25
(33,225) 2.25
(33,225) 2.25
(33,225) 2.25
(33,225)
9~11
(65~79, 88~107)
215/55R17 6.5Jx17
2.25
(33,225) 2.25
(33,225) 2.25
(33,225) 2.25
(33,225)
225/45R18 7.5Jx18 2.4
(35,240) 2.4
(35,240) 2.4
(35,240) 2.4
(35,240)
Pneu
sobresselente compacto T125/80D16 4.0Tx16
4.2
(60,420) 4.2
(60,420) 4.2
(60,420) 4.2
(60,420)
* 1
: Carga normal: Até 3 pessoas
❈ Os pneus equipados como Equipamento Original estão em conformidade com o padrão da legislação indiana IS: 15633

Especificações & Informação ao consumidor
4
8

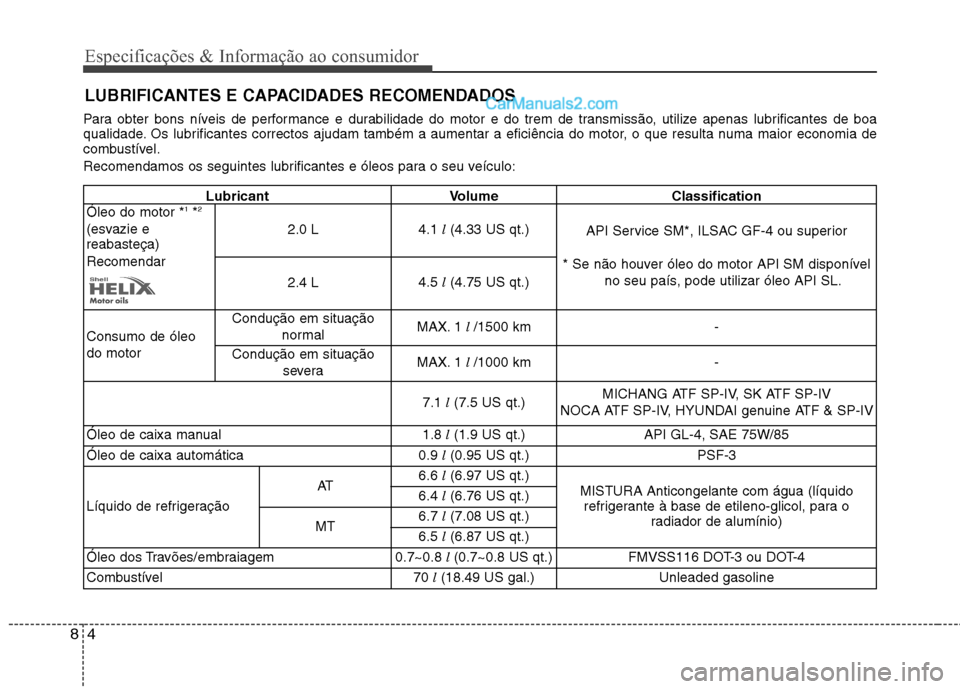

LUBRIFICANTES E CAPACIDADES RECOMENDADOS
Para obter bons níveis de performance e durabilidade do motor e do trem de transmissão, utilize apenas lubrificantes de boa
qualidade. Os lubrificantes correctos ajudam também a aumentar a eficiência do motor, o que resulta numa maior economia de
combustível.
Recomendamos os seguintes lubrificantes e óleos para o seu veículo:
Lubricant Volume Classification
Óleo do motor * 1
*2
(esvazie e reabasteça) Recomendar 2.0 L
4.1
l(4.33 US qt.)
API Service SM*, ILSAC GF-4 ou superior
* Se não houver óleo do motor API SM disponível no seu país, pode utilizar óleo API SL.
2.4 L4.5 l(4.75 US qt.)
Consumo de óleo do motor
Condução em situação
normalMAX. 1l /1500 km-
Condução em situação
severaMAX. 1l /1000 km-
7.1 l(7.5 US qt.) MICHANG ATF SP-IV, SK ATF SP-IV
NOCA ATF SP-IV, HYUNDAI genuine ATF & SP-IV
Óleo de caixa manual 1.8
l(1.9 US qt.)
API GL-4, SAE 75W/85
Óleo de caixa automática 0.9
l(0.95 US qt.)
PSF-3
Líquido de refrigeração
AT 6.6
l(6.97 US qt.)
MISTURA Anticongelante com água (líquidorefrigerante à base de etileno-glicol, para o
radiador de alumínio)6.4 l(6.76 US qt.)
MT6.7 l(7.08 US qt.)
6.5 l(6.87 US qt.)
Óleo dos Travões/embraiagem 0.7~0.8
l (0.7~0.8 US qt.)
FMVSS116 DOT-3 ou DOT-4
Combustível 70
l(18.49 US gal.)
Unleaded gasoline

85
Especificações & Informação ao consumidor

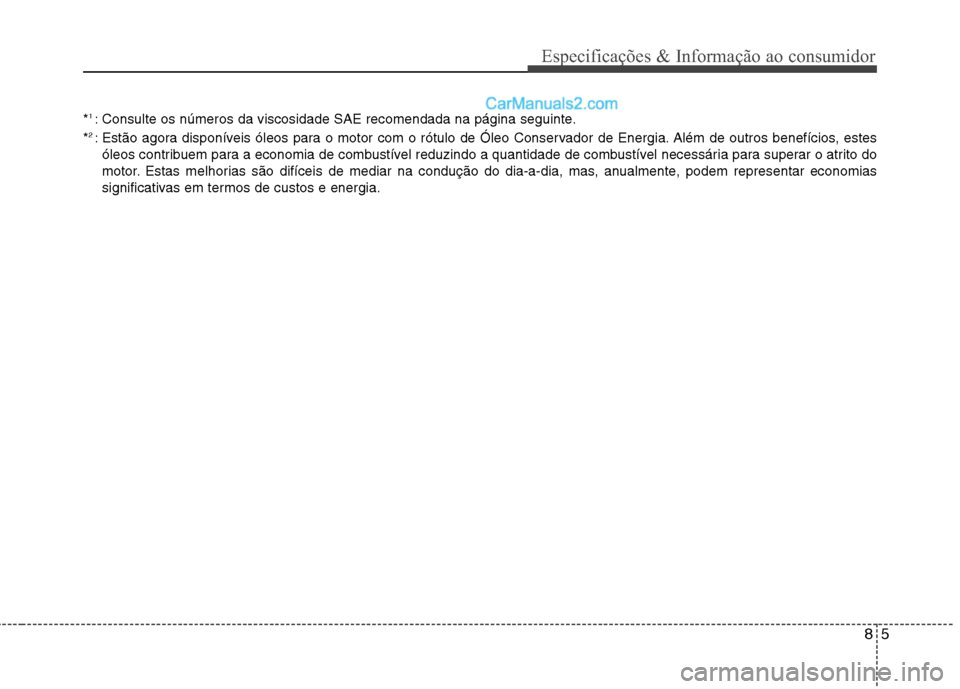

*1
: Consulte os números da viscosidade SAE recomendada na página seguinte.
* 2
: Estão agora disponíveis óleos para o motor com o rótulo de Óleo Conservador de Energia. Além de outros benefícios, estes
óleos contribuem para a economia de combustível reduzindo a quantidade de combustível necessária para superar o atrito do
motor. Estas melhorias são difíceis de mediar na condução do dia-a-dia, mas, anualmente, podem representar economias
significativas em termos de custos e energia.

Especificações & Informação ao consumidor
6
8

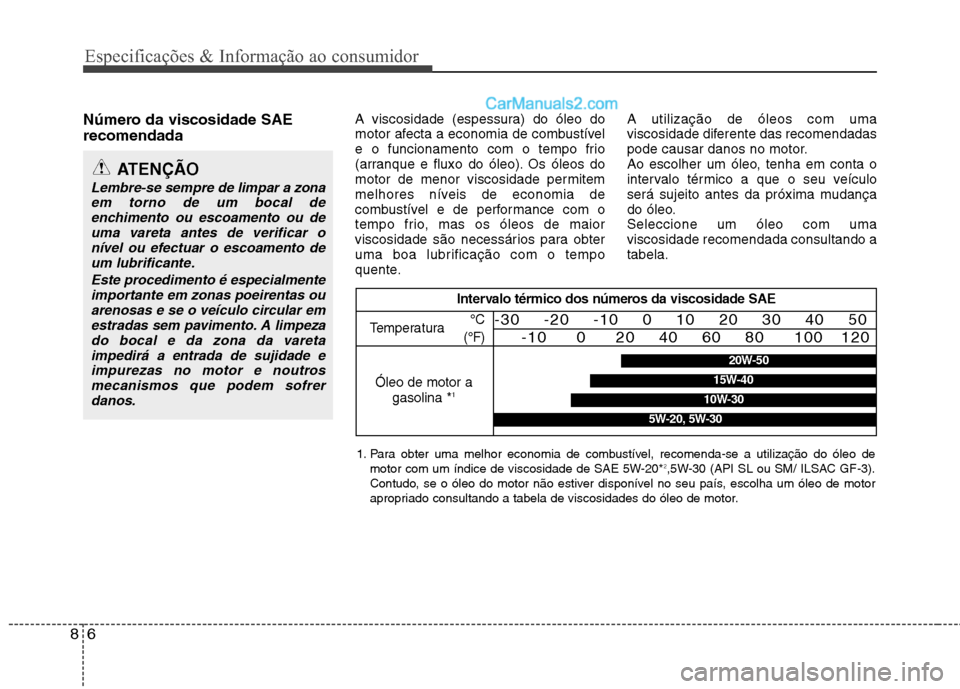

Número da viscosidade SAE recomendada A viscosidade (espessura) do óleo do
motor afecta a economia de combustível
e o funcionamento com o tempo frio
(arranque e fluxo do óleo). Os óleos do
motor de menor viscosidade permitem
melhores níveis de economia de
combustível e de performance com o
tempo frio, mas os óleos de maior
viscosidade são necessários para obter
uma boa lubrificação com o tempo
quente.A utilização de óleos com uma
viscosidade diferente das recomendadas
pode causar danos no motor.
Ao escolher um óleo, tenha em conta o
intervalo térmico a que o seu veículo
será sujeito antes da próxima mudança
do óleo.Seleccione um óleo com umaviscosidade recomendada consultando atabela.
ATENÇÃO
Lembre-se sempre de limpar a zona
em torno de um bocal deenchimento ou escoamento ou de
uma vareta antes de verificar onível ou efectuar o escoamento deum lubrificante.
Este procedimento é especialmenteimportante em zonas poeirentas ou
arenosas e se o veículo circular em estradas sem pavimento. A limpezado bocal e da zona da varetaimpedirá a entrada de sujidade e
impurezas no motor e noutrosmecanismos que podem sofrerdanos.
1. Para obter uma melhor economia de combustível, recomenda-se a utilização do óleo de motor com um índice de viscosidade de SAE 5W-20* 2
,5W-30 (API SL ou SM/ ILSAC GF-3).
Contudo, se o óleo do motor não estiver disponível no seu país, escolha um óleo de motor
apropriado consultando a tabela de viscosidades do óleo de motor.
Intervalo térmico dos números da viscosidade SAE
Temperatura
Óleo de motor a gasolina * 1°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
20W-50
10W-30
15W-40
5W-20, 5W-30

87
Especificações & Informação ao consumidor

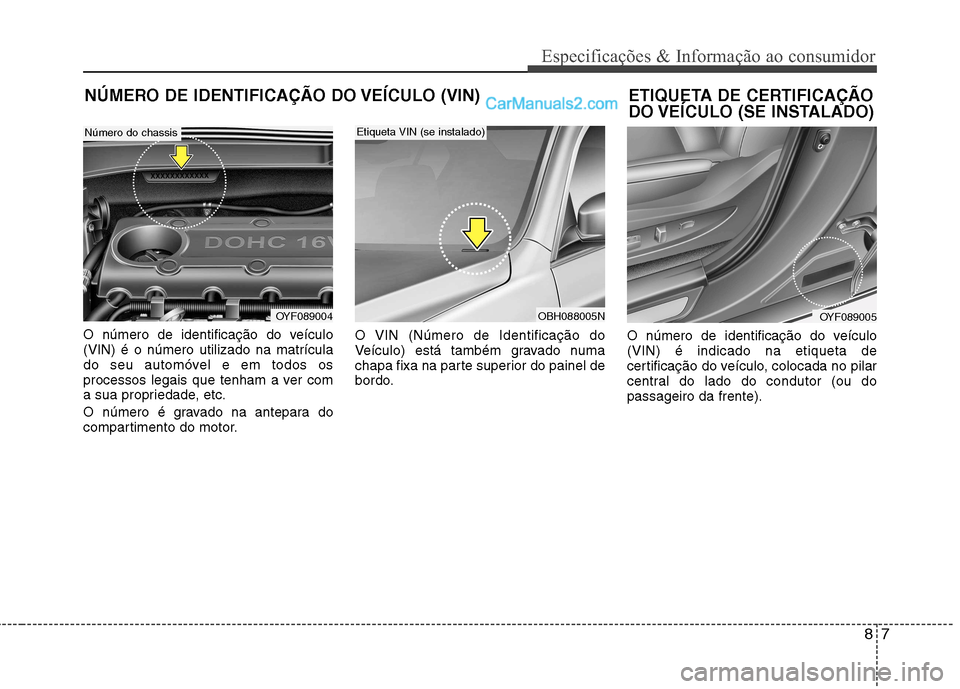

NÚMERO DE IDENTIFICAÇÃO DO VEÍCULO (VIN)
O número de identificação do veículo (VIN) é o número utilizado na matrícula
do seu automóvel e em todos os
processos legais que tenham a ver com
a sua propriedade, etc.
O número é gravado na antepara do
compartimento do motor. O VIN (Número de Identificação do
Veículo) está também gravado numa
chapa fixa na parte superior do painel de
bordo.
O número de identificação do veículo(VIN) é indicado na etiqueta de
certificação do veículo, colocada no pilar
central do lado do condutor (ou dopassageiro da frente).ETIQUETA DE CERTIFICAÇÃO
DO VEÍCULO (SE INSTALADO)
OYF089004OBH088005N
Etiqueta VIN (se instalado)Número do chassis
OYF089005

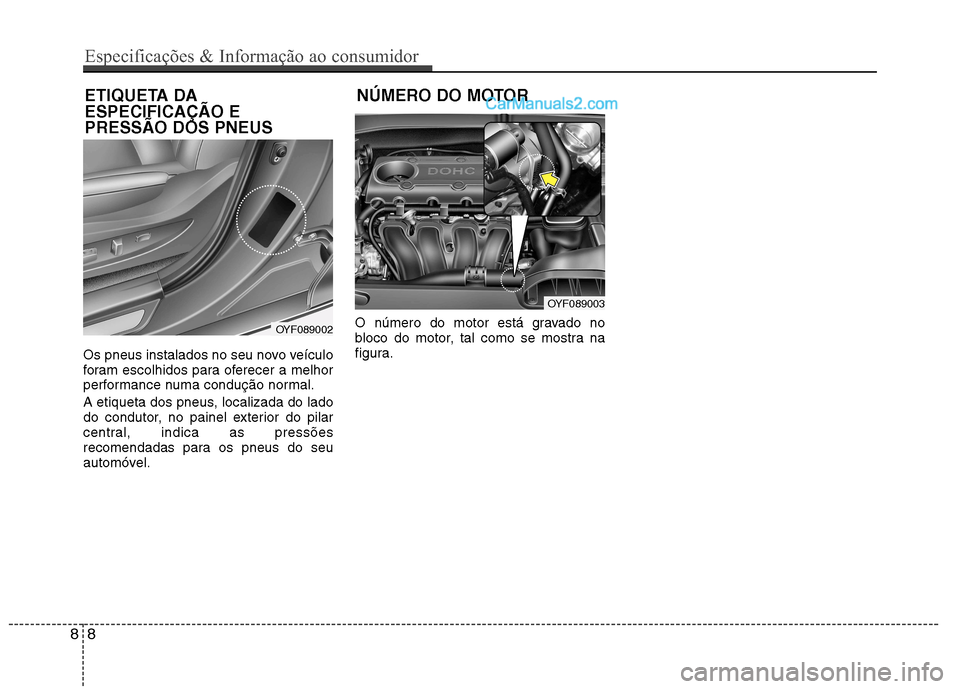

Os pneus instalados no seu novo veículo
foram escolhidos para oferecer a melhor
performance numa condução normal.
A etiqueta dos pneus, localizada do lado
do condutor, no painel exterior do pilar
central, indica as pressões
recomendadas para os pneus do seu
automóvel.O número do motor está gravado no
bloco do motor, tal como se mostra na
figura.
ETIQUETA DA ESPECIFICAÇÃO EPRESSÃO DOS PNEUS
NÚMERO DO MOTOR
88
Especificações & Informação ao consumidor
OYF089002
OYF089003

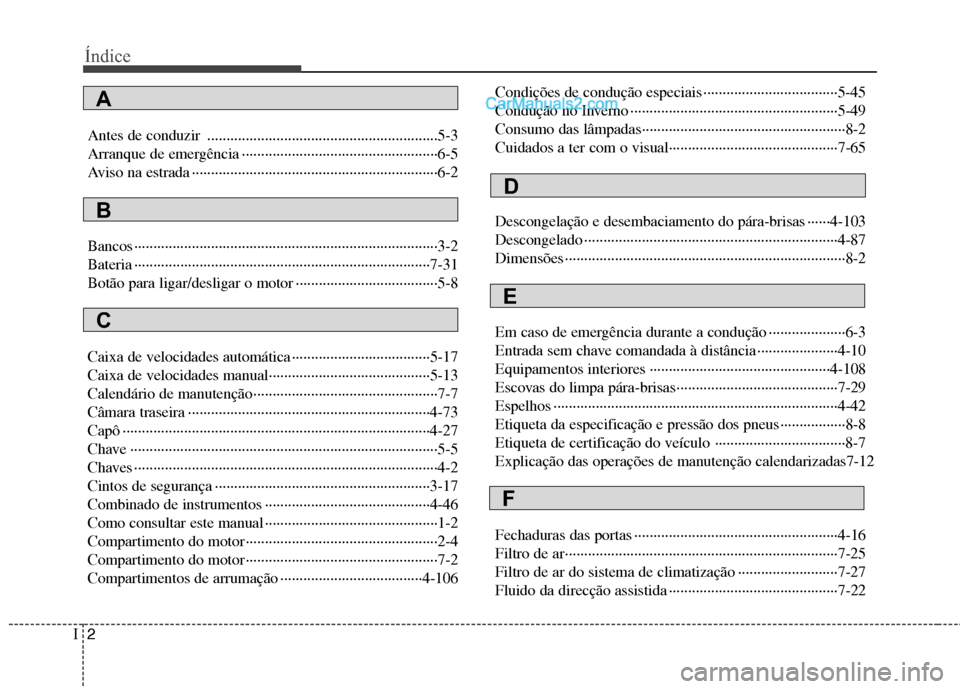

IÍndice

Índice
2
I
Antes de conduzir ............................................................5-3
Arranque de emergência ···················································6-5
Aviso na estrada ································································6-2
Bancos ···············································································3-2
Bateria ·············································································7-31
Botão para ligar/desligar o motor ·····································5-8
Caixa de velocidades automática ····································5-17
Caixa de velocidades manual··········································5-13
Calendário de manutenção················································7-7
Câmara traseira ·······························································4-73
Capô ················································································4-27
Chave ················································································5-5
Chaves ···············································································4-2
Cintos de segurança ························································3-17
Combinado de instrumentos ···········································4-46
Como consultar este manual ·············································1-2
Compartimento do motor··················································2-4
Compartimento do motor··················································7-2
Compartimentos de arrumação ·····································4-106 Condições de condução especiais ···································5-45
Condução no Inverno ······················································5-49
Consumo das lâmpadas·····················································8-2Cuidados a ter com o visual············································7-65
Descongelação e desembaciamento do pára-brisas ······4-103
Descongelado ··································································4-87
Dimensões ·········································································8-2
Em caso de emergência durante a condução ····················6-3
Entrada sem chave comandada à distância ·····················4-10
Equipamentos interiores ···············································4-108
Escovas do limpa pára-brisas··········································7-29
Espelhos ··········································································4-42
Etiqueta da especificação e pressão dos pneus ·················8-8
Etiqueta de certificação do veículo ··································8-7Explicação das operações de manutenção calendarizadas7-12
Fechaduras das portas ·····················································4-16
Filtro de ar·······································································7-25
Filtro de ar do sistema de climatização ··························7-27
Fluido da direcção assistida ············································7-22
A
B
C
D
E
F

I3

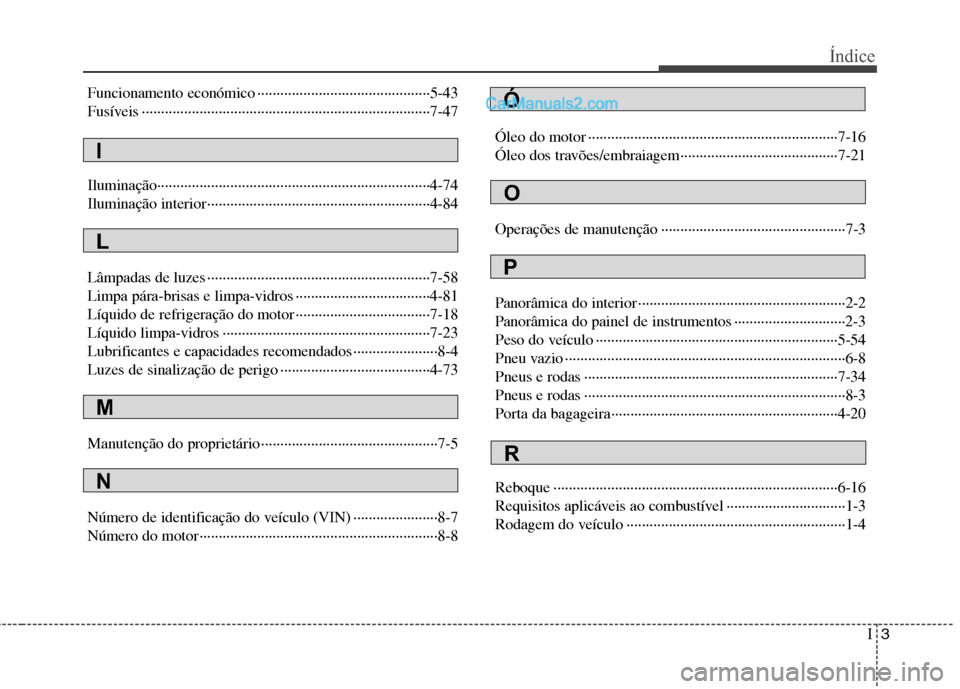

Índice
Funcionamento económico ·············································5-43
Fusíveis ···········································································7-47
Iluminação·······································································4-74
Iluminação interior··························································4-84
Lâmpadas de luzes ··························································7-58
Limpa pára-brisas e limpa-vidros ···································4-81
Líquido de refrigeração do motor ···································7-18
Líquido limpa-vidros ······················································7-23
Lubrificantes e capacidades recomendados ······················8-4
Luzes de sinalização de perigo ·······································4-73
Manutenção do proprietário ··············································7-5
Número de identificação do veículo (VIN) ······················8-7
Número do motor······························································8-8 Óleo do motor ·································································7-16
Óleo dos travões/embraiagem·········································7-21
Operações de manutenção ················································7-3
Panorâmica do interior ······················································2-2
Panorâmica do painel de instrumentos ·····························2-3
Peso do veículo ·······························································5-54
Pneu vazio ·········································································6-8
Pneus e rodas ··································································7-34
Pneus e rodas ····································································8-3
Porta da bagageira···························································4-20
Reboque ··········································································6-16
Requisitos aplicáveis ao combustível ·······························1-3
Rodagem do veículo ·························································1-4
I
L
M
N
P
O
Ó
R

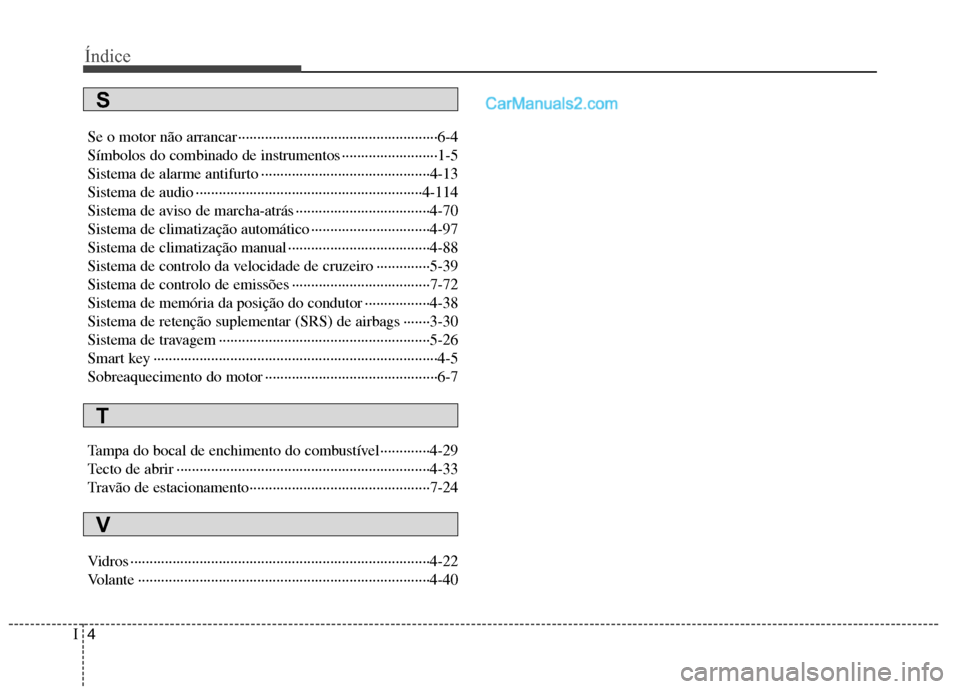

Índice
4
I
Se o motor não arrancar ····················································6-4
Símbolos do combinado de instrumentos ·························1-5
Sistema de alarme antifurto ············································4-13
Sistema de audio ···························································4-114
Sistema de aviso de marcha-atrás ···································4-70
Sistema de climatização automático ·······························4-97
Sistema de climatização manual ·····································4-88
Sistema de controlo da velocidade de cruzeiro ··············5-39
Sistema de controlo de emissões ····································7-72
Sistema de memória da posição do condutor ·················4-38
Sistema de retenção suplementar (SRS) de airbags ·······3-30
Sistema de travagem ·······················································5-26
Smart key ··········································································4-5
Sobreaquecimento do motor ·············································6-7
Tampa do bocal de enchimento do combustível·············4-29
Tecto de abrir ··································································4-33
Travão de estacionamento···············································7-24
Vidros ··············································································4-22
Volante ············································································4-40
S
T
V
