THEFT-ALARM SYSTEMB070A01A-AATThis system is designed to provide
protection from unauthorized entry into the
car. This system is operated in three stages
: the first is the "Armed" stage, the second
is the "Alarm" stage and the third is the
"Disarmed" stage. If triggered, the system
provides an audible alarm with blinking of
the turn signal lights.B070B02NF-AATArmed Stage
HMR
Park the car and stop the engine. Arm the
system as described below.
1) Remove the ignition key from the ignition
switch.
NOTE:The transmitter will not work if any of
following occur:
- The ignition key is in ignition switch.
- You exceed the operating distance
limit (10 m).
- The battery in the transmitter is weak.
- Other vehicles or objects may be
blocking the signal.
- The weather is extremely cold.
- The transmitter is close to a radio
transmitter such as a radio station or
an airport which can interfere with
normal operation of the transmitter.
When the transmitter does not work cor-
rectly, open and close the door with the
ignition key. If you have a problem with
the transmitter, contact an authorized
Hyundai Dealer.NOTE:Keep the transmitter away from water or
any liquid. If the keyless entry system is
inoperative due to exposure to water or
liquids, it will not be covered by your
manufacturer vehicle warranty.
Locking doors1. Close all doors.
2. Push the "LOCK (1)" button on the trans-
mitter.
3. At the same time, all doors lock and the
turn signal lights will blink once to
indicate that the system is armed.Unlocking doors1. Push the "UNLOCK (2)" button on the
transmitter.
2. At the same time, the driver's door
unlocks and the turn signal lights will
blink twice to indicate that the system is
disarmed.NOTE:If you wish to unlock all the doors, press
the "UNLOCK" button on the transmitter
again within 4 seconds.Releasing the trunk lidPush the trunk lid release button (3) on the
transmitter for longer than 1 second.
Page 22 of 286
1
FEATURES OF YOUR HYUNDAI
9
2) Make sure that the engine hood and
trunk lid are closed and latched.
3) Lock the doors using the transmitter of
the keyless entry system or key.
After completion of the steps above, the
turn signal lights will blink once and the
system will be armed.
The system can also be armed by locking
the doors with the key; however, the turn
signal lights are not operated.
If any door, trunk lid or engine hood is not
opened or the ignition key is not inserted
in the ignition switch within 30 seconds,
the system will be rearmed.NOTE:1) If any door, trunk lid or engine hood
remains open, the system will not be
armed.
2) If this happens, rearm the system as
previously described.NOTE:Do not arm the system until all passen-
gers have left the car. If the system is
armed while a passenger(s) remains in
the car, the alarm may be activated when
the remaining passenger(s) leaves the
car.
B075D01CM-AATDisarmed StageIf the following conditions are met, the
system will be disarmed.
o When the doors are unlocked with the
transmitter or the ignition key.
After depressing unlock button, you
must open the doors within 30 seconds
or all doors will automatically lock again
and theft-alarm system will be armed.
o When the ignition switch is in the "ON"
position.
The turn signal lights will blink twice when
the door is unlocked with the transmitter.
The alarm will be deactivated when:
o The lock/unlock button on the transmit-
ter is pressed.
o The doors are unlocked with the igni-
tion key.
o The ignition switch is in the "ON" posi-
tion for 30 seconds.NOTE:When the system is disarmed while the
"DOOR" button of the interior light is
depressed, the interior light will illumi-
nate for 30 seconds.
B070C01NF-AATAlarm StageThe alarm will be activated if any of the
following occurs while the car is parked
and the system is armed.
1) A front or rear door is opened without
using the transmitter or the ignition key.
2) The trunk lid is opened without using
the transmitter or the ignition key.
3) The engine hood is opened.
The alarming horn will sound and the turn
signal lights will blink continuously for 27
seconds (This will repeat 2 times). To turn
off the system, unlock the door or trunk lid
with the transmitter or the ignition key.
CAUTION:
Avoid trying to start the engine while the
system is armed.
!
Page 23 of 286
1FEATURES OF YOUR HYUNDAI10
HNF2005
Battery
2. Remove the old battery from the case
and note the polarity. Make sure the
polarity of the new battery is the
same(+side facing up), then insert it in
the transmitter.
B070E01NF-GATReplacing the batteryWhen the transmitter's battery begins to
get weak, it may take several pushes on
the button to lock or unlock the doors, and
the LED will not light. Replace the battery
as soon as possible.
Battery type : CR2032
Replacement instructions:
1. Carefully separate the case with a coin
as shown in the illustration.
ONF048120
B070E01NF-AATPanic Warning1. Push the "PANIC" button on the backside
of the transmitter.
2. At the same time, the alarm horn will
sound and the turn signal lights will
blink continuously for 30 seconds.
3. To turn off the system, push the "PANIC"
button again on the backside of the
transmitter.
7B070E02NF-A
Page 24 of 286
1
FEATURES OF YOUR HYUNDAI
11
WINDOWS

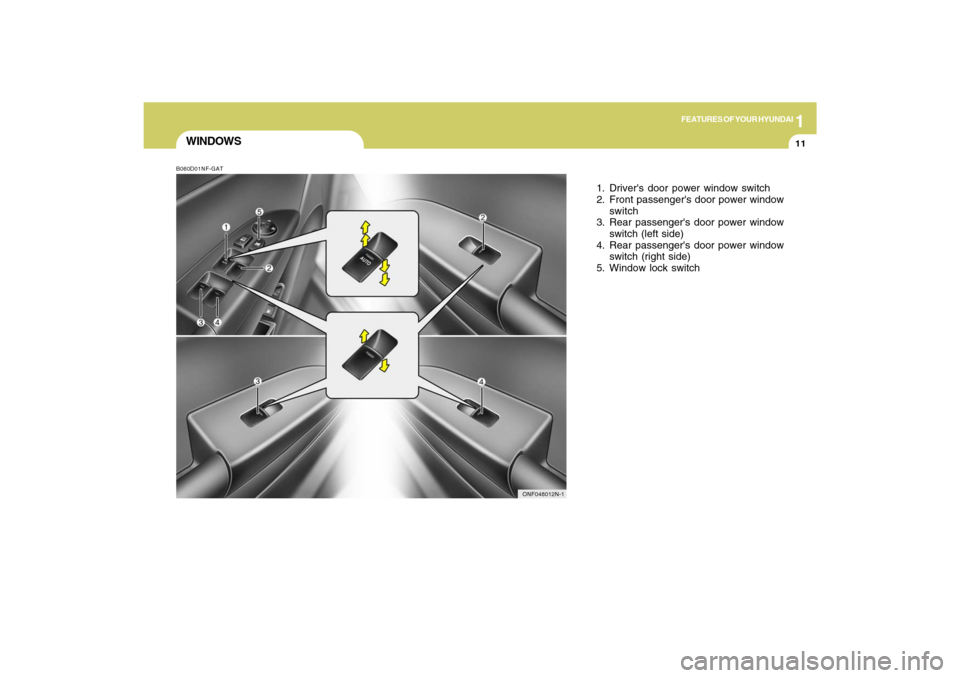

1. Driver's door power window switch
2. Front passenger's door power window
switch
3. Rear passenger's door power window
switch (left side)
4. Rear passenger's door power window
switch (right side)
5. Window lock switch
B060D01NF-GAT
ONF048012N-1
Page 25 of 286
1FEATURES OF YOUR HYUNDAI12
B060A01NF-GATPOWER WINDOWSThe power windows operate when the
ignition key is in the "ON" position. The
main switches are located on the driver's
armrest and control the front and rear
windows on both sides of the vehicle. The
windows may be opened by depressing
the appropriate window switch and closed
by pulling up the switch. To open the win-
dow on the driver's side, press the switch
halfway down. The window moves as long
as the switch is operated.
ONF048014N-1

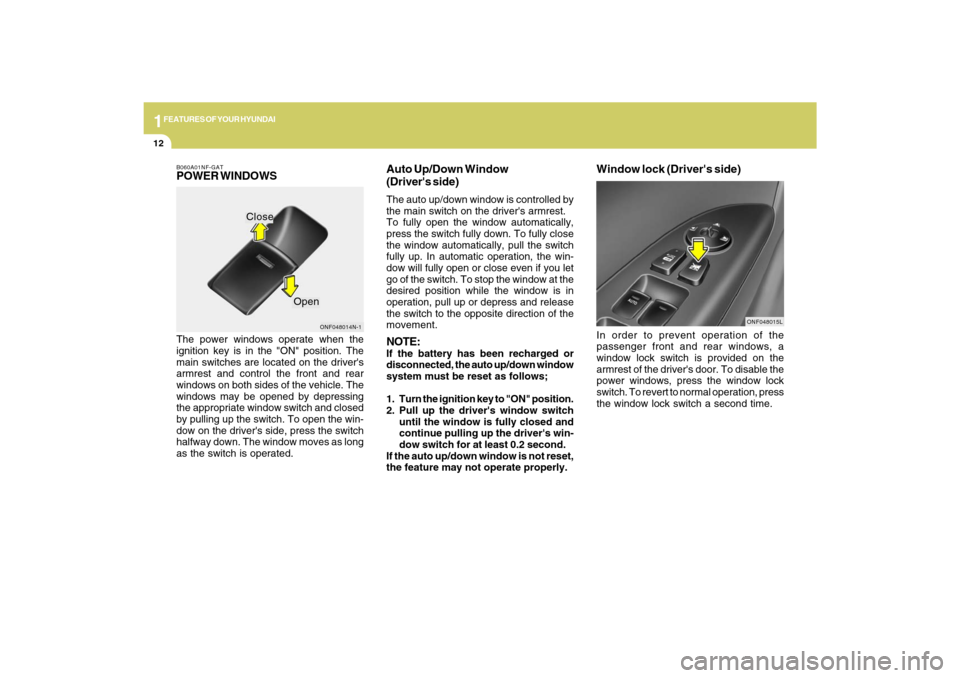

Window lock (Driver's side)
ONF048015L
Auto Up/Down Window
(Driver's side)The auto up/down window is controlled by
the main switch on the driver's armrest.
To fully open the window automatically,
press the switch fully down. To fully close
the window automatically, pull the switch
fully up. In automatic operation, the win-
dow will fully open or close even if you let
go of the switch. To stop the window at the
desired position while the window is in
operation, pull up or depress and release
the switch to the opposite direction of the
movement.NOTE:If the battery has been recharged or
disconnected, the auto up/down window
system must be reset as follows;
1. Turn the ignition key to "ON" position.
2. Pull up the driver's window switch
until the window is fully closed and
continue pulling up the driver's win-
dow switch for at least 0.2 second.
If the auto up/down window is not reset,
the feature may not operate properly. Open Close
In order to prevent operation of the
passenger front and rear windows, a
window lock switch is provided on the
armrest of the driver's door. To disable the
power windows, press the window lock
switch. To revert to normal operation, press
the window lock switch a second time.
Page 26 of 286
1
FEATURES OF YOUR HYUNDAI
13
!
!

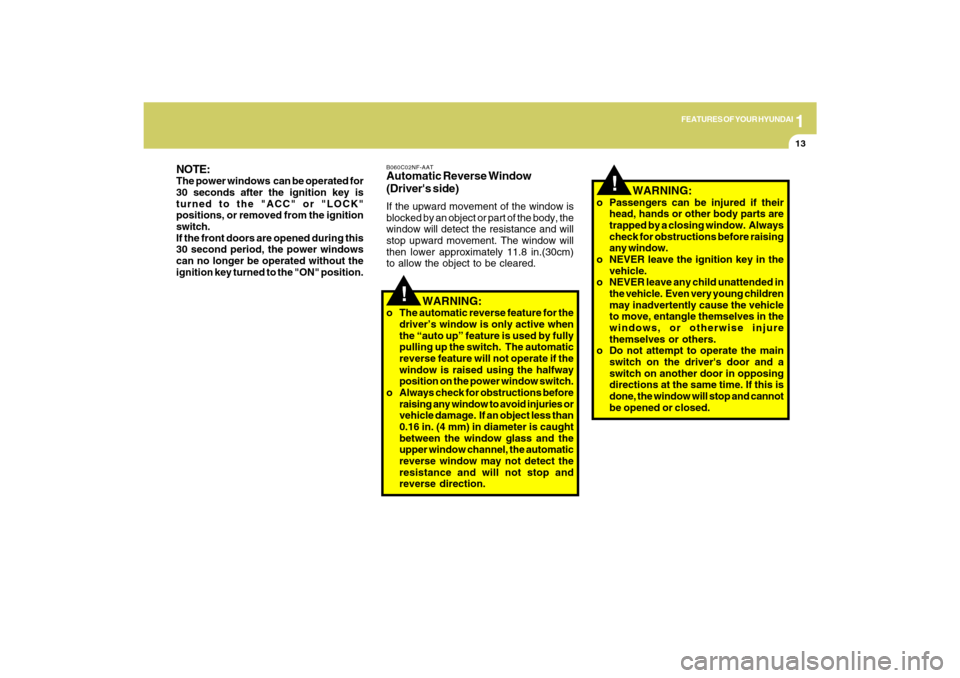

WARNING:
o Passengers can be injured if their
head, hands or other body parts are
trapped by a closing window. Always
check for obstructions before raising
any window.
o NEVER leave the ignition key in the
vehicle.
o NEVER leave any child unattended in
the vehicle. Even very young children
may inadvertently cause the vehicle
to move, entangle themselves in the
windows, or otherwise injure
themselves or others.
o Do not attempt to operate the main
switch on the driver's door and a
switch on another door in opposing
directions at the same time. If this is
done, the window will stop and cannot
be opened or closed.
WARNING:
o The automatic reverse feature for the
driver’s window is only active when
the “auto up” feature is used by fully
pulling up the switch. The automatic
reverse feature will not operate if the
window is raised using the halfway
position on the power window switch.
o Always check for obstructions before
raising any window to avoid injuries or
vehicle damage. If an object less than
0.16 in. (4 mm) in diameter is caught
between the window glass and the
upper window channel, the automatic
reverse window may not detect the
resistance and will not stop and
reverse direction.B060C02NF-AATAutomatic Reverse Window
(Driver's side)If the upward movement of the window is
blocked by an object or part of the body, the
window will detect the resistance and will
stop upward movement. The window will
then lower approximately 11.8 in.(30cm)
to allow the object to be cleared.
NOTE:The power windows can be operated for
30 seconds after the ignition key is
turned to the "ACC" or "LOCK"
positions, or removed from the ignition
switch.
If the front doors are opened during this
30 second period, the power windows
can no longer be operated without the
ignition key turned to the "ON" position.
Page 27 of 286
1FEATURES OF YOUR HYUNDAI14
!
B080B03A-AATAdjusting Seat Forward and

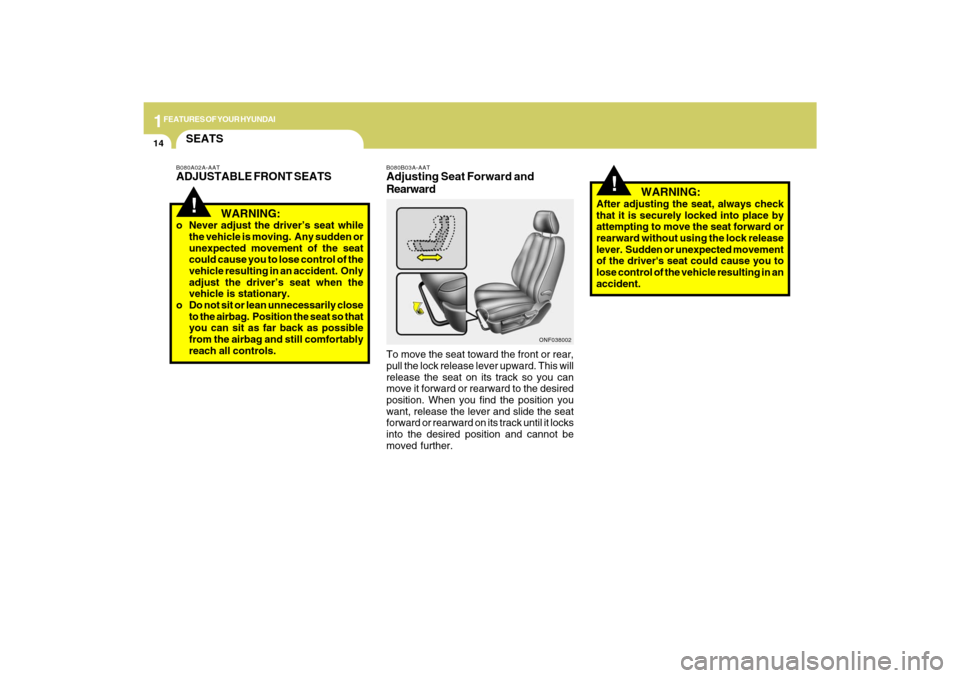

RearwardTo move the seat toward the front or rear,
pull the lock release lever upward. This will
release the seat on its track so you can
move it forward or rearward to the desired
position. When you find the position you
want, release the lever and slide the seat
forward or rearward on its track until it locks
into the desired position and cannot be
moved further.
WARNING:
After adjusting the seat, always check
that it is securely locked into place by
attempting to move the seat forward or
rearward without using the lock release
lever. Sudden or unexpected movement
of the driver's seat could cause you to
lose control of the vehicle resulting in an
accident.
SEATSB080A02A-AATADJUSTABLE FRONT SEATS
!
WARNING:

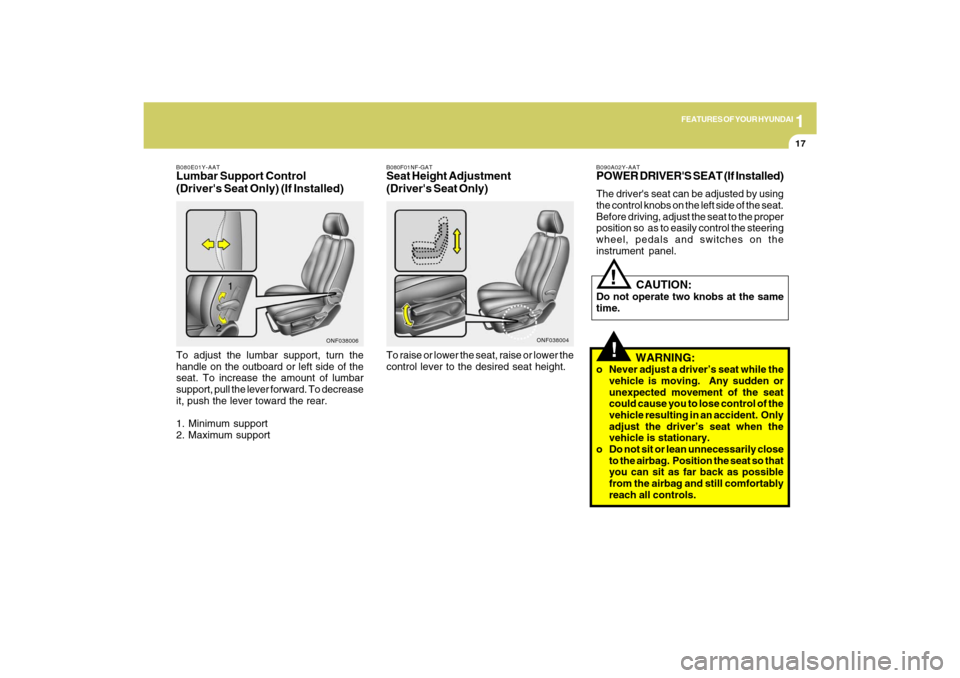

o Never adjust the driver’s seat while
the vehicle is moving. Any sudden or
unexpected movement of the seat
could cause you to lose control of the
vehicle resulting in an accident. Only
adjust the driver’s seat when the
vehicle is stationary.
o Do not sit or lean unnecessarily close
to the airbag. Position the seat so that
you can sit as far back as possible
from the airbag and still comfortably
reach all controls.
ONF038002
Page 28 of 286
1
FEATURES OF YOUR HYUNDAI
15

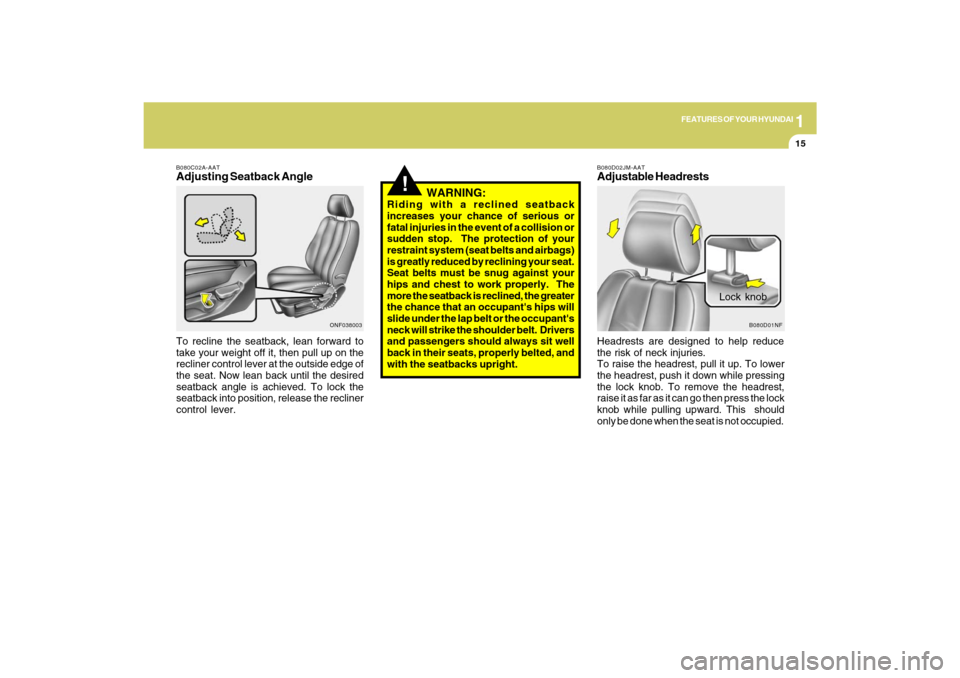

B080C02A-AATAdjusting Seatback AngleTo recline the seatback, lean forward to
take your weight off it, then pull up on the
recliner control lever at the outside edge of
the seat. Now lean back until the desired
seatback angle is achieved. To lock the
seatback into position, release the recliner
control lever.
ONF038003
!
WARNING:
Riding with a reclined seatback
increases your chance of serious or
fatal injuries in the event of a collision or
sudden stop. The protection of your
restraint system (seat belts and airbags)
is greatly reduced by reclining your seat.
Seat belts must be snug against your
hips and chest to work properly. The
more the seatback is reclined, the greater
the chance that an occupant's hips will
slide under the lap belt or the occupant's
neck will strike the shoulder belt. Drivers
and passengers should always sit well
back in their seats, properly belted, and
with the seatbacks upright.
B080D02JM-AATAdjustable HeadrestsHeadrests are designed to help reduce
the risk of neck injuries.
To raise the headrest, pull it up. To lower
the headrest, push it down while pressing
the lock knob. To remove the headrest,
raise it as far as it can go then press the lock
knob while pulling upward. This should
only be done when the seat is not occupied.
B080D01NF
Lock knob
Page 29 of 286

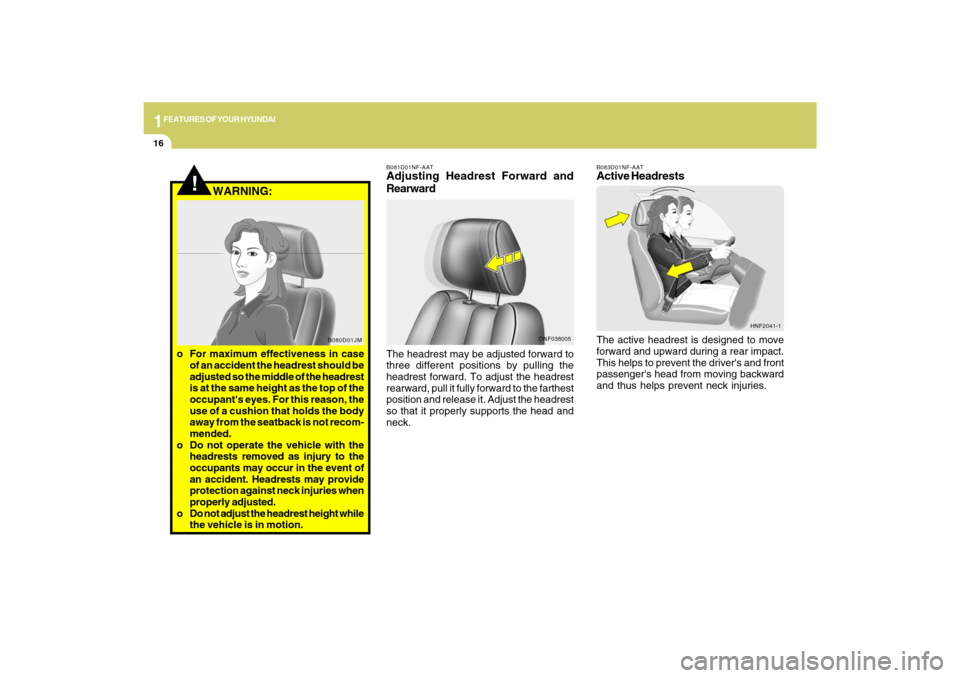

1FEATURES OF YOUR HYUNDAI16
B083D01NF-AATActive HeadrestsThe active headrest is designed to move
forward and upward during a rear impact.
This helps to prevent the driver's and front
passenger's head from moving backward
and thus helps prevent neck injuries.
B081D01NF-AATAdjusting Headrest Forward and
RearwardThe headrest may be adjusted forward to
three different positions by pulling the
headrest forward. To adjust the headrest
rearward, pull it fully forward to the farthest
position and release it. Adjust the headrest
so that it properly supports the head and
neck.
ONF038005HNF2041-1
!
WARNING:
o For maximum effectiveness in case
of an accident the headrest should be
adjusted so the middle of the headrest
is at the same height as the top of the
occupant's eyes. For this reason, the
use of a cushion that holds the body
away from the seatback is not recom-
mended.
o Do not operate the vehicle with the
headrests removed as injury to the
occupants may occur in the event of
an accident. Headrests may provide
protection against neck injuries when
properly adjusted.
o Do not adjust the headrest height while
the vehicle is in motion.
B080D01JM
Page 30 of 286
1
FEATURES OF YOUR HYUNDAI
17
B080E01Y-AATLumbar Support Control
(Driver's Seat Only) (If Installed)To adjust the lumbar support, turn the
handle on the outboard or left side of the
seat. To increase the amount of lumbar
support, pull the lever forward. To decrease
it, push the lever toward the rear.
1. Minimum support
2. Maximum support
ONF038006
2
!
B090A02Y-AATPOWER DRIVER'S SEAT (If Installed)The driver's seat can be adjusted by using
the control knobs on the left side of the seat.
Before driving, adjust the seat to the proper
position so as to easily control the steering
wheel, pedals and switches on the
instrument panel.
CAUTION:
Do not operate two knobs at the same
time.
WARNING:
o Never adjust a driver’s seat while the
vehicle is moving. Any sudden or
unexpected movement of the seat
could cause you to lose control of the
vehicle resulting in an accident. Only
adjust the driver’s seat when the
vehicle is stationary.
o Do not sit or lean unnecessarily close
to the airbag. Position the seat so that
you can sit as far back as possible
from the airbag and still comfortably
reach all controls.
!
B080F01NF-GATSeat Height Adjustment
(Driver's Seat Only)To raise or lower the seat, raise or lower the
control lever to the desired seat height.
ONF038004
1
