Page 151 of 283

Hyundai Sonata 2
DRIVING YOUR HYUNDAI
2

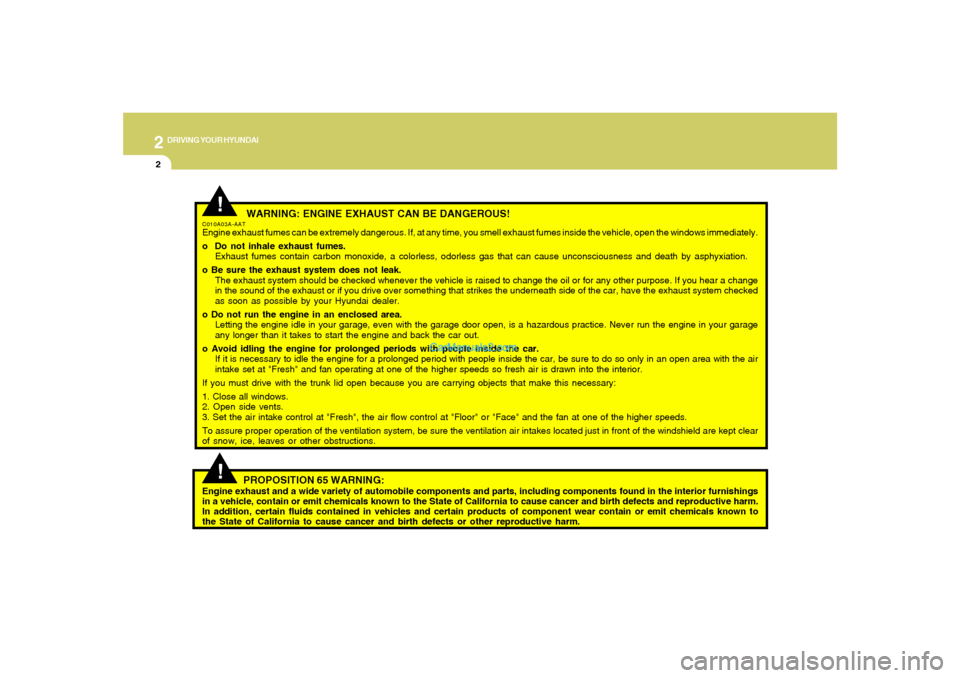

 WARNING: ENGINE EXHAUST CAN BE DANGEROUS!
C010A03A-AATEngine exhaust fumes can be extremely dangerous. If, at any time, you smell exhaust fumes inside the vehicle, open the w

Page 152 of 283

Hyundai Sonata 2
DRIVING YOUR HYUNDAI
3
!
BEFORE STARTING
THE ENGINEC020A02A-AATBefore you start the engine, you should always:
1. Look around  the vehicle to be sure there are
no flat tires, puddles of oil, water o

Page 153 of 283

Hyundai Sonata 2
DRIVING YOUR HYUNDAI
4

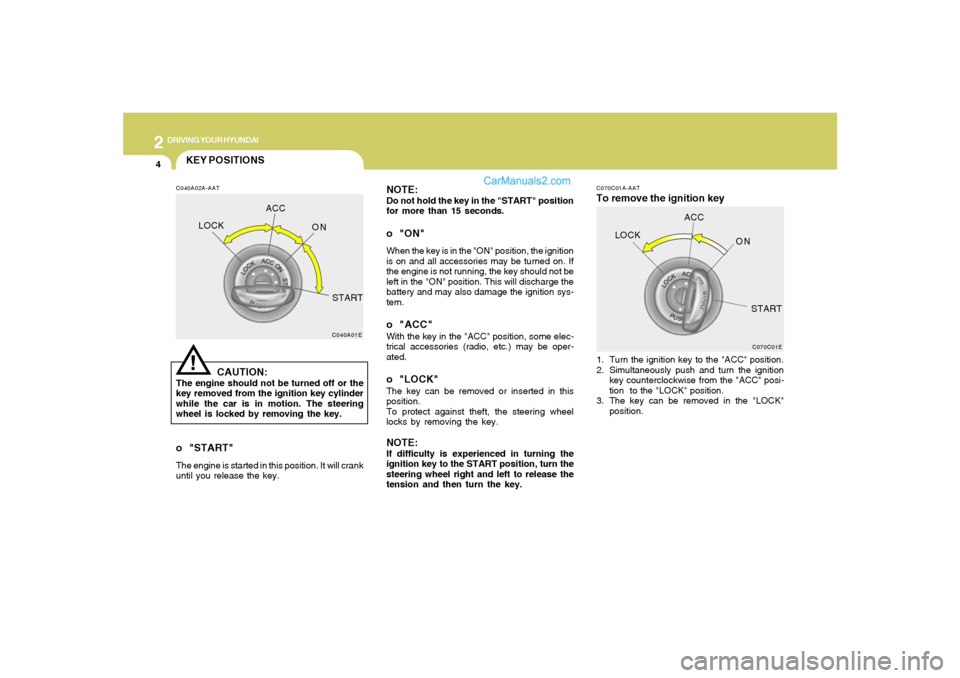

NOTE:Do not hold the key in the "START" position
for more than 15 seconds.o "ON"When the key is in the "ON" position, the ignition
is on and all accessories may be turned on.

Page 154 of 283

Hyundai Sonata 2
DRIVING YOUR HYUNDAI
5
!

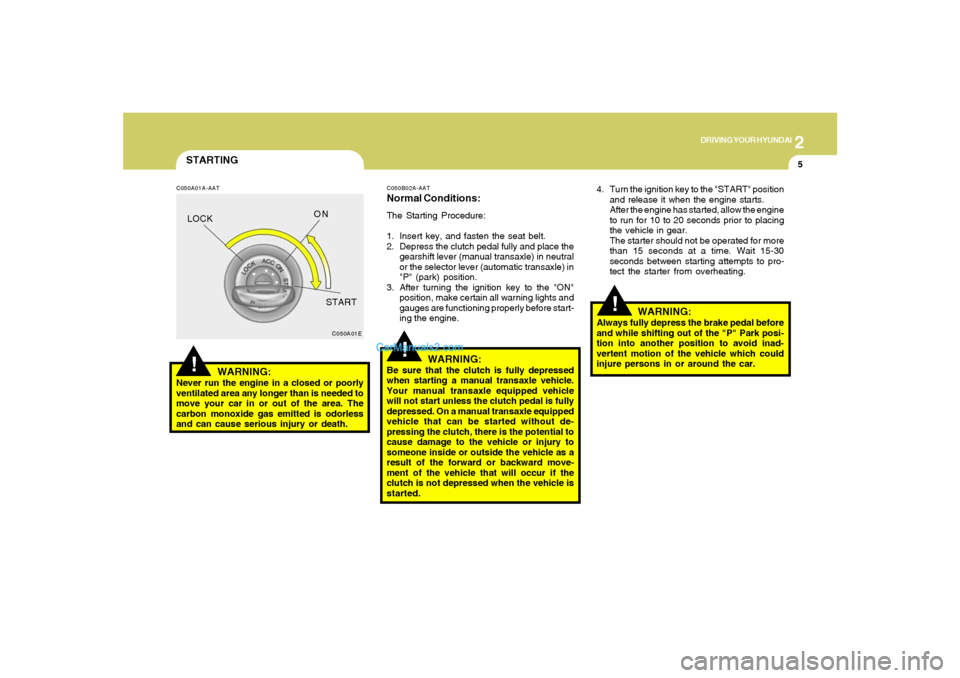

STARTING!
C050A01A-AAT
WARNING:
Never run the engine in a closed or poorly
ventilated area any longer than is needed to
move your car in or out of the area. The
carbon monox

Page 155 of 283

Hyundai Sonata 2
DRIVING YOUR HYUNDAI
6
CAUTION:

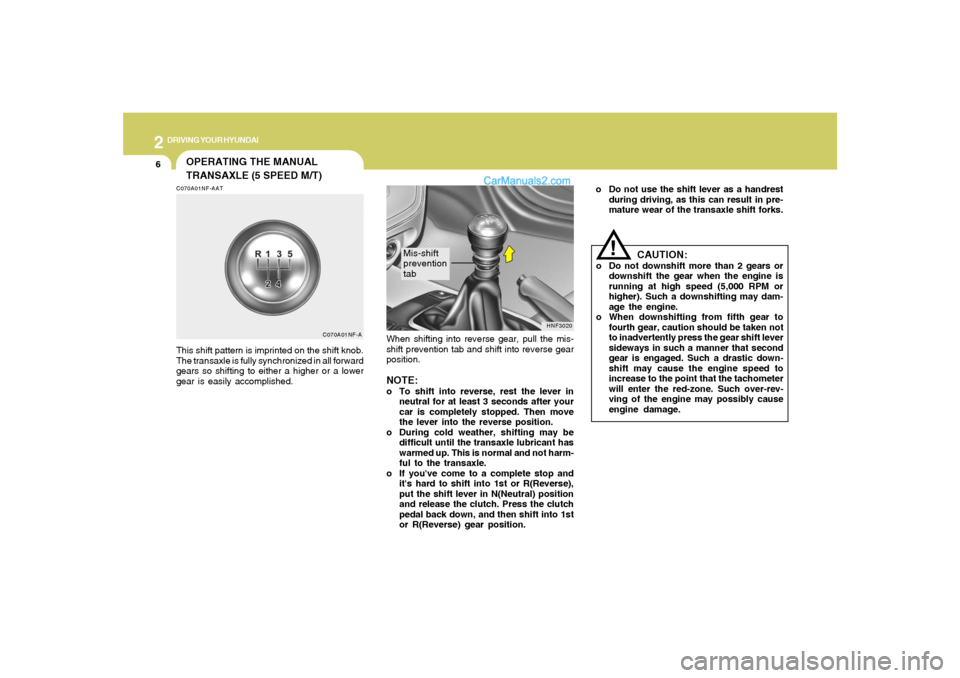

o Do not downshift more than 2 gears or
downshift the gear when the engine is
running at high speed (5,000 RPM or
higher). Such a downshifting may dam-
age the engine

Page 156 of 283

Hyundai Sonata 2
DRIVING YOUR HYUNDAI
7
!

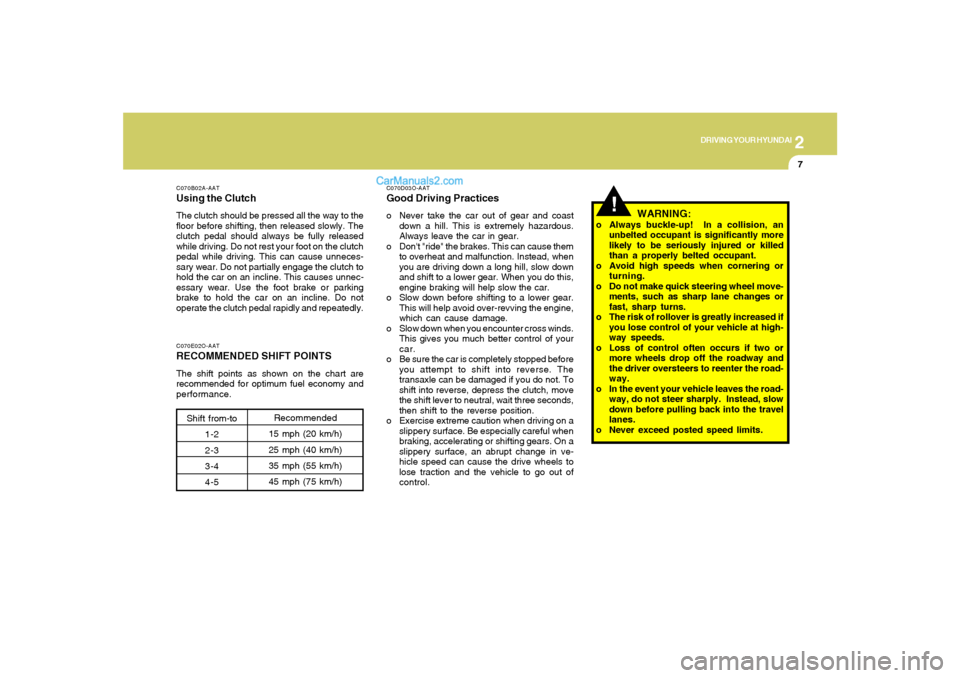

C070B02A-AATUsing the ClutchThe clutch should be pressed all the way to the
floor before shifting, then released slowly. The
clutch pedal should always be fully released
whi

Page 157 of 283

Hyundai Sonata 2
DRIVING YOUR HYUNDAI
8

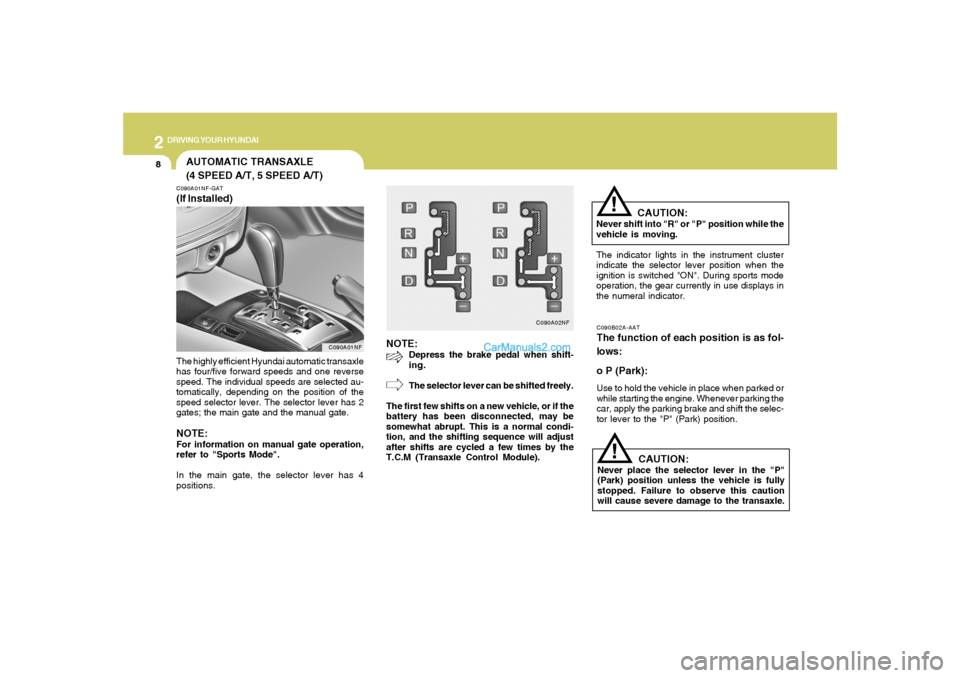

NOTE:
Depress the brake pedal when shift-
ing.
The selector lever can be shifted freely.
The first few shifts on a new vehicle, or if the
battery has been disconnected, may be

Page 158 of 283

Hyundai Sonata 2
DRIVING YOUR HYUNDAI
9

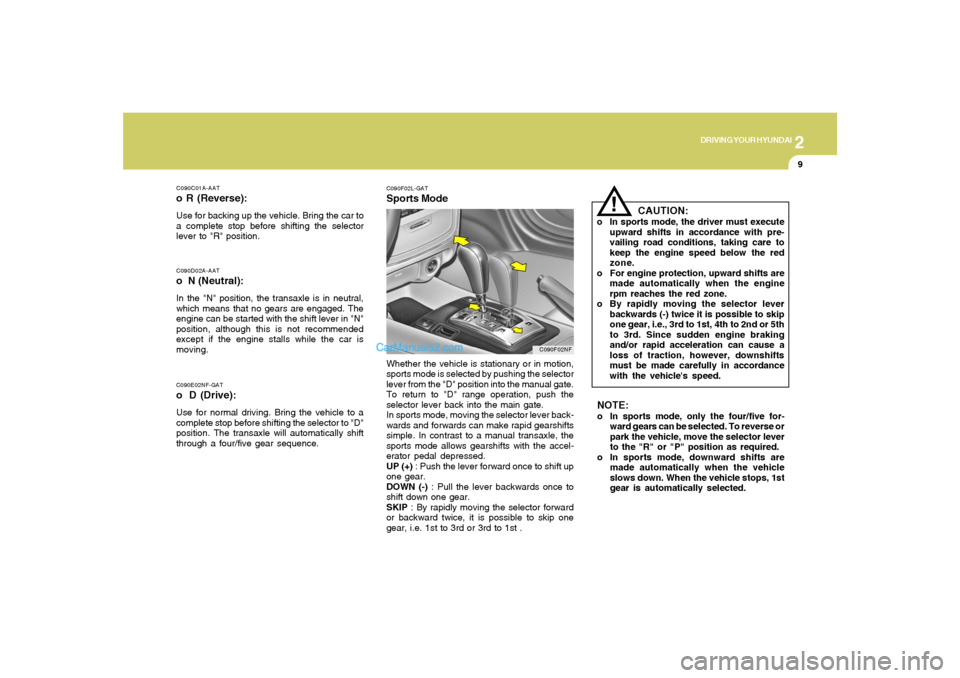

C090E02NF-GATo D (Drive):Use for normal driving. Bring the vehicle to a
complete stop before shifting the selector to "D"
position. The transaxle will automatically shift
thro

Page 159 of 283

Hyundai Sonata 2
DRIVING YOUR HYUNDAI
10
!

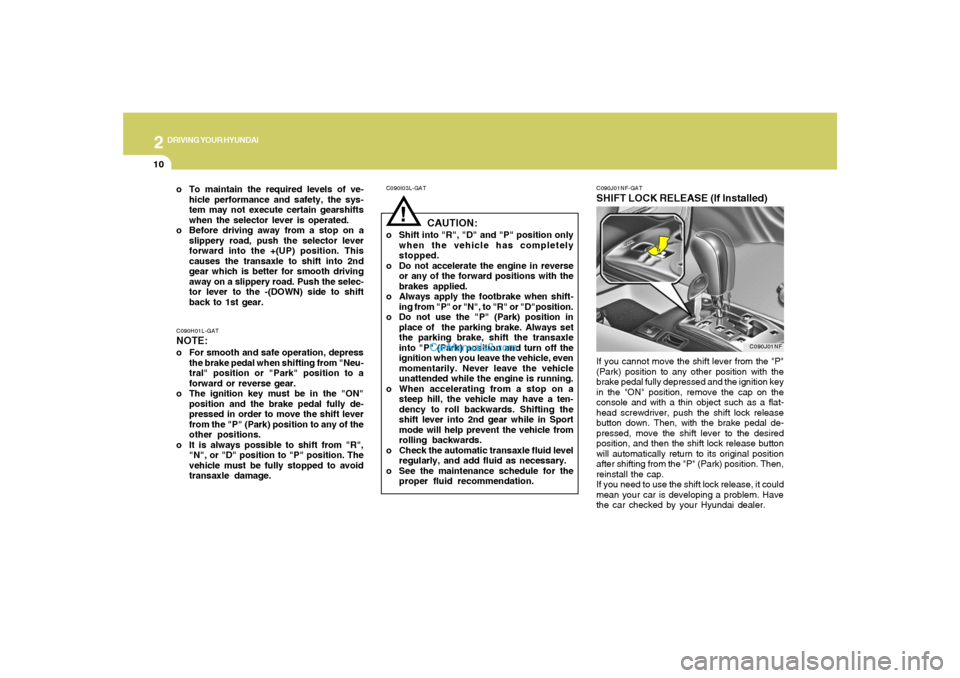

C090I03L-GAT
CAUTION:
o Shift into "R", "D" and "P" position only
when the vehicle has completely
stopped.
o Do not accelerate the engine in reverse
or any of the forward p

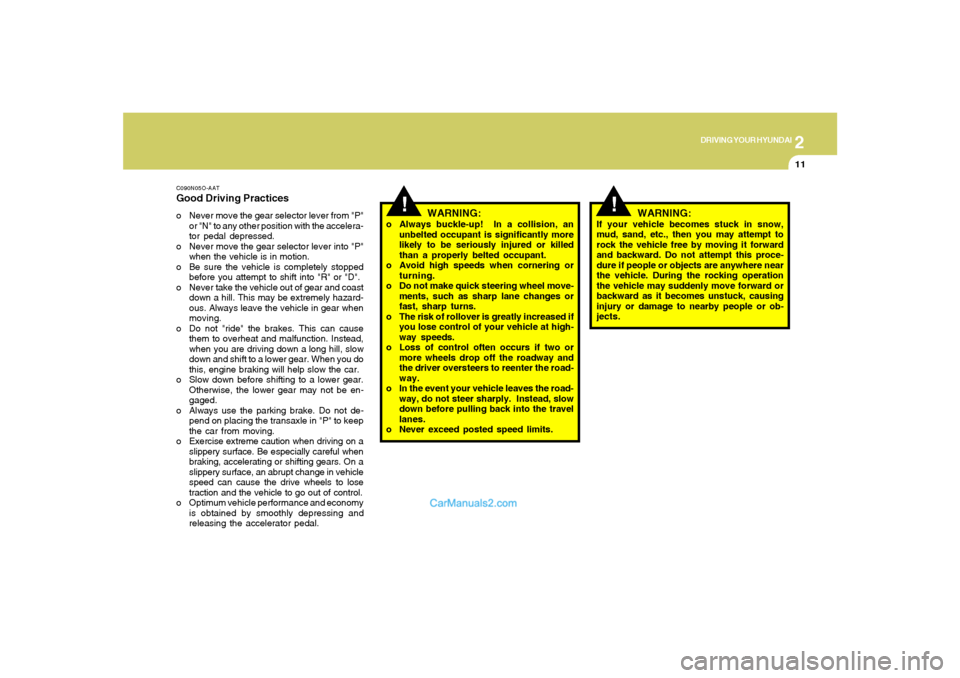

Page 160 of 283

Hyundai Sonata 2
DRIVING YOUR HYUNDAI
11
!
!
C090N05O-AATGood Driving Practiceso Never move the gear selector lever from "P"
or "N" to any other position with the accelera-
tor pedal depressed.
o Never move the gear
