dimensions HYUNDAI SONATA 2022 Owners Manual

2

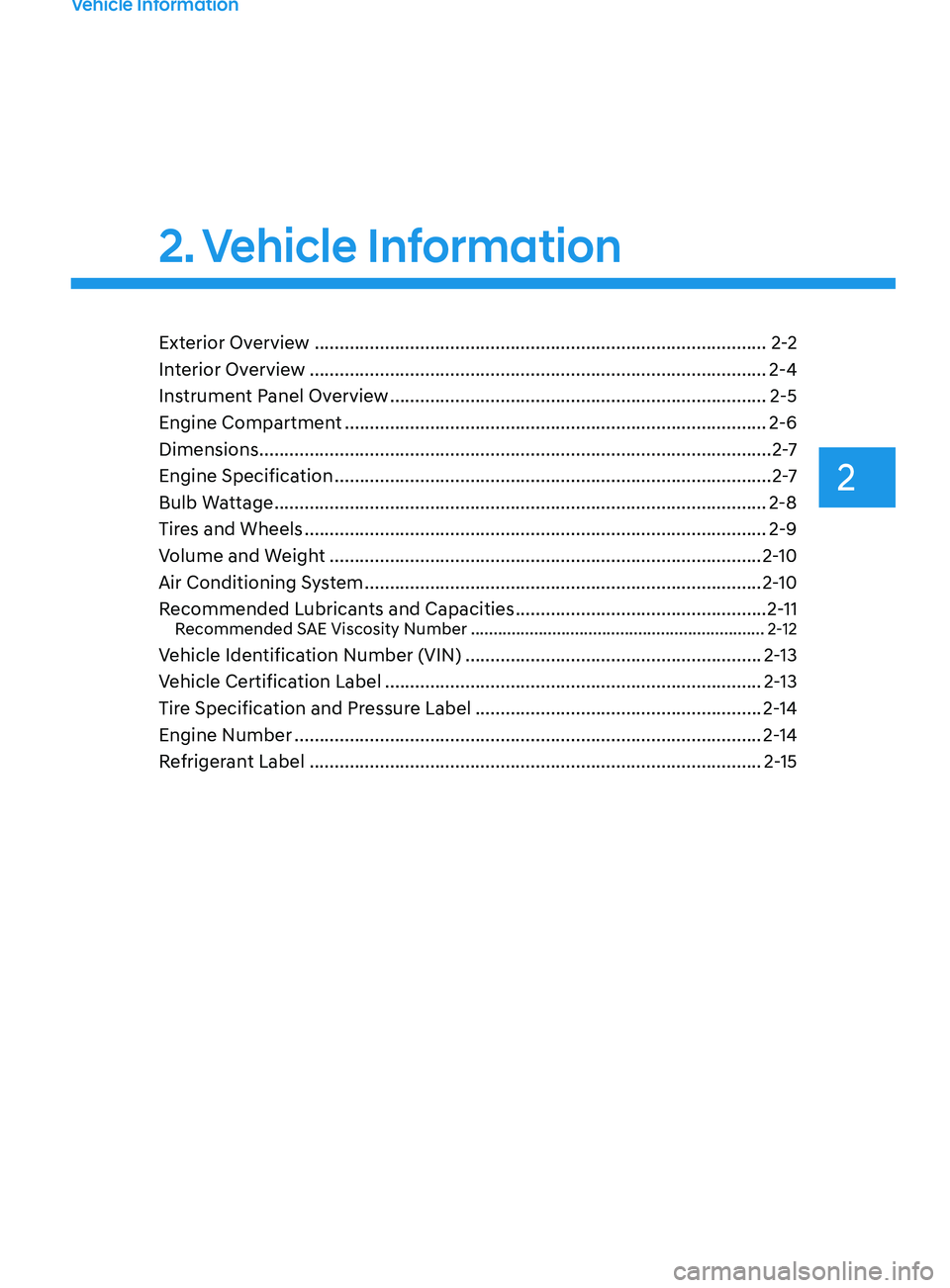

2. Vehicle Information
Vehicle Information
Exterior Overview ........................................................................\
..................2 -2
Interior Overview ........................................................................\
................... 2-4
Instrument Panel Overview
........................................................................\
... 2-5
Engine Compartment
........................................................................\
............ 2-6
Dimensions
........................................................................\
.............................. 2-7
Engine Specification
........................................................................\
............... 2-7
Bulb Wattage
........................................................................\
.......................... 2-8
Tires and Wheels
........................................................................\
.................... 2-9
Volume and Weight
........................................................................\
.............. 2-10
Air Conditioning System
........................................................................\
....... 2-10
Recommended Lubricants and Capacities
..................................................2-11
Recommended SAE Viscosity Number ................................................................. 2 -12
Vehicle Identification Number (VIN) ...........................................................2 -13
Vehicle Certification Label ........................................................................\
... 2-13
Tire Specification and Pressure Label
.........................................................2-14
Engine Number
........................................................................\
..................... 2-14
Refrigerant Label ........................................................................\
.................. 2-15

02
2-7

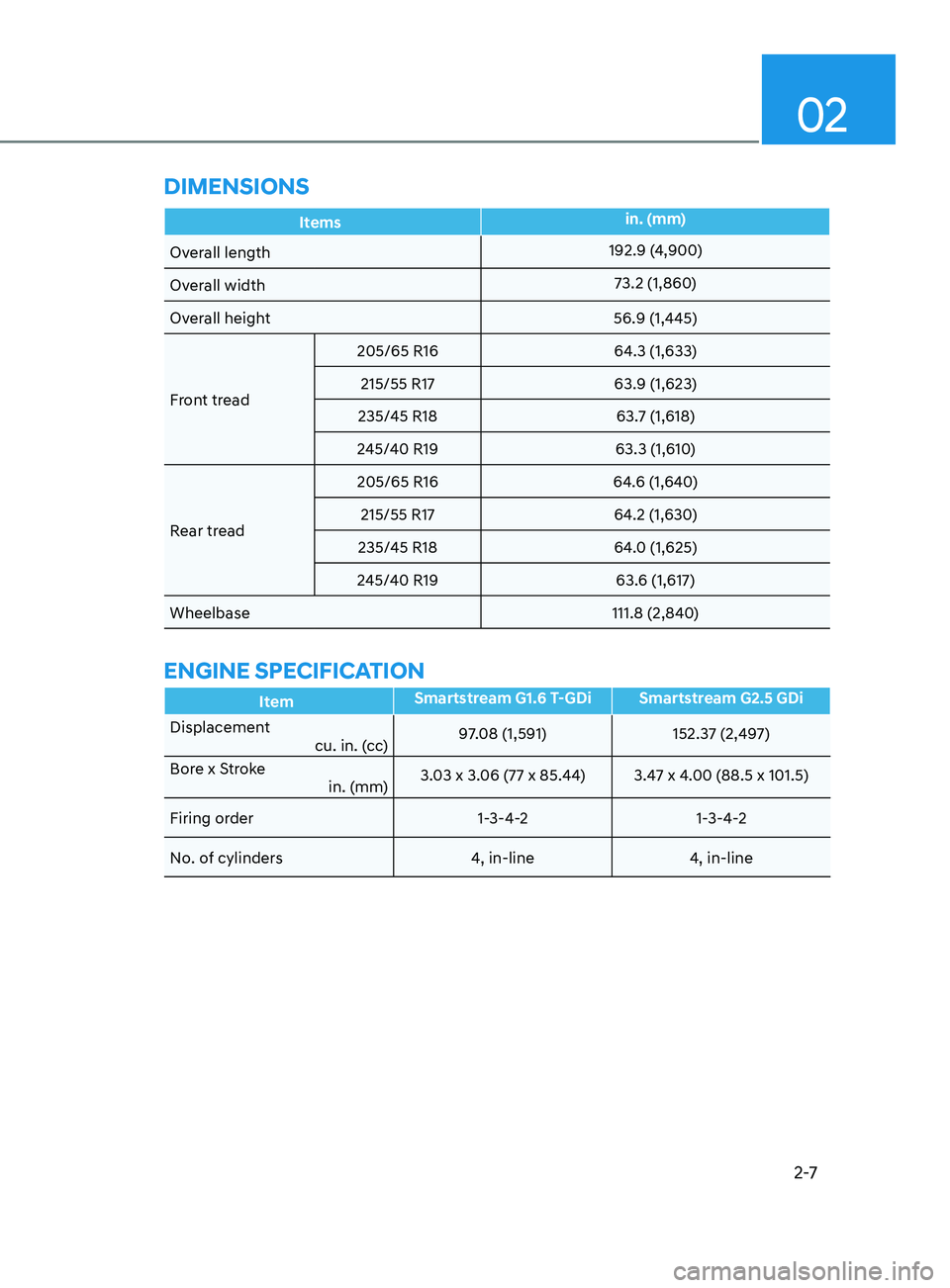

DimEnsions
Itemsin. (mm)
Overall length 192.9 (4,900)
Overall width 73.2 (1,860)
Overall height 56.9 (1,445)
Front tread 205/65 R16
64.3 (1,633)
215/55 R17 63.9 (1,623)
235/45 R18 63.7 (1,618)
245/40 R19 63.3 (1,610)
Rear tread 205/65 R16
64.6 (1,640)
215/55 R17 64.2 (1,630)
235/45 R18 64.0 (1,625)
245/40 R19 63.6 (1,617)
Wheelbase 111.8 (2,840)
EnginE sPECifiCation
Item Smartstream G1.6 T-GDi Smartstream G2.5 GDi
Displacement cu. in. (cc) 97.08 (1,591)
152.37 (2,497)
Bore x Stroke in. (mm)3.03 x 3.06 (77 x 85.44) 3.47 x 4.00 (88.5 x 101.5)
Firing order 1-3-4-21-3-4-2
No. of cylinders 4, in-line4, in-line

I
I-5

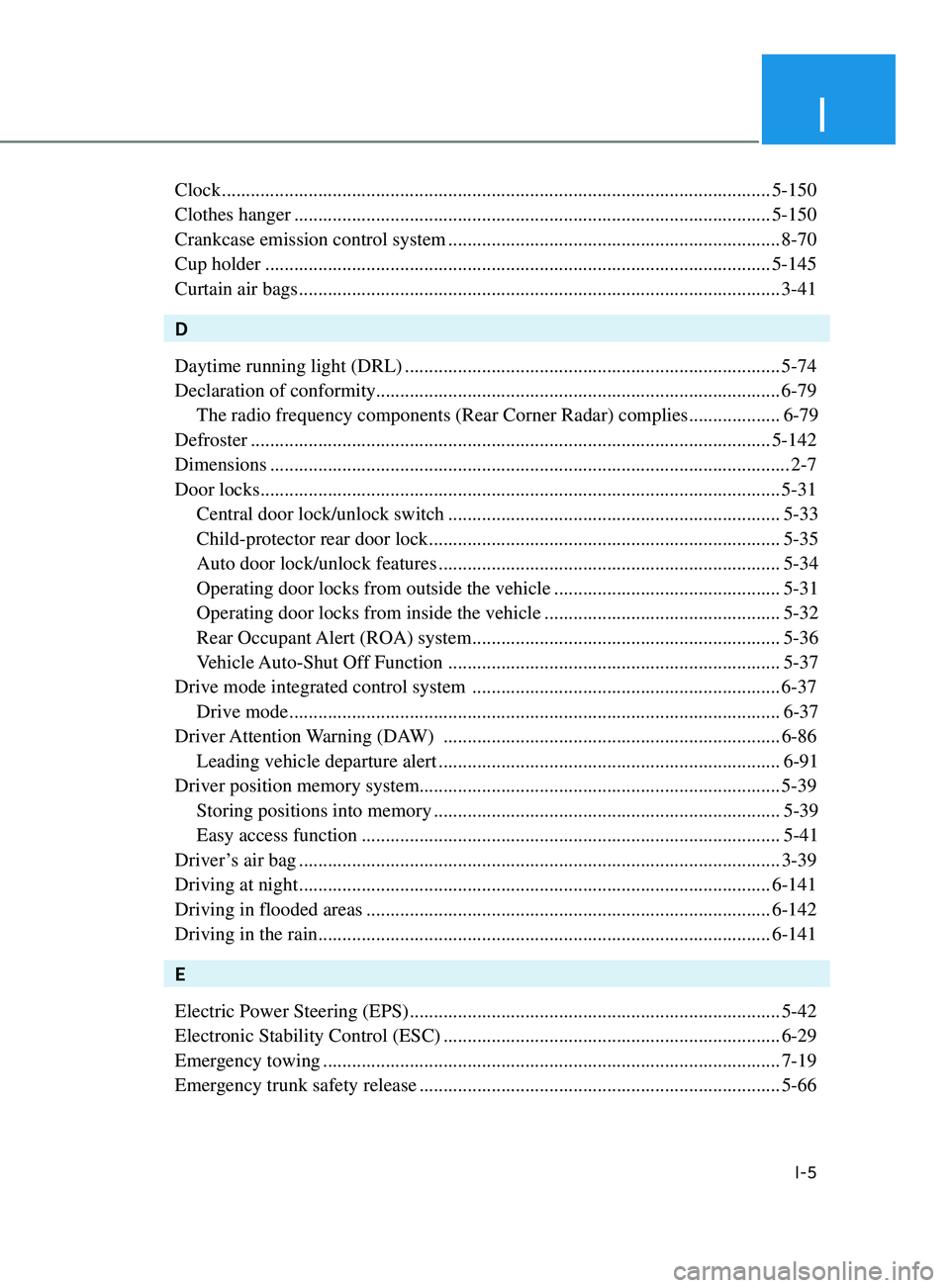

Clock ........................................................................\
..........................................5-150
Clothes hanger

........................................................................\
........................... 5-150
Crankcase emission control system
..................................................................... 8-70
Cup holder

........................................................................\
................................. 5-145
Curtain air bags


........................................................................\
............................ 3-41
D
Daytime running light (DRL)


........................................................................\
...... 5-74
Declaration of conformity........................................................................\
............ 6-79 The radio frequency components (Rear Corner Radar) complies


...................6-79
Defroster
........................................................................\
.................................... 5-142
Dimensions
........................................................................\
.................................... 2-7
Door locks
........................................................................\
.................................... 5-31
Central door lock/unlock switch


..................................................................... 5-33
Child-protector rear door lock


........................................................................\
. 5-35
Auto door lock/unlock features
....................................................................... 5-34
Operating door locks from outside the vehicle


...............................................5-31
Operating door locks from inside the vehicle


.................................................5-32
Rear Occupant Alert (ROA) system
................................................................ 5-36
Vehicle Auto-Shut Off Function
..................................................................... 5-37
Drive mode integrated control system


................................................................ 6-37
Drive mode


........................................................................\
.............................. 6-37
Driver Attention Warning (DAW)
...................................................................... 6-86
Leading vehicle departure alert


....................................................................... 6-91
Driver position memory system........................................................................\
... 5-39 Storing positions into memory


........................................................................\
5-39
Easy access function


........................................................................\
............... 5-41
Driver’s air bag
........................................................................\
............................ 3-39
Driving at night


........................................................................\
.......................... 6-141
Driving in flooded areas


........................................................................\
............ 6-142
Driving in the rain


........................................................................\
...................... 6-141
E
Electric Power Steering (EPS)


........................................................................\
..... 5-42
Electronic Stability Control (ESC)


...................................................................... 6-29
Emergency towing


........................................................................\
....................... 7-19
Emergency trunk safety release


........................................................................\
... 5-66
