FEATURES OF YOUR HYUNDAI
77
!
WARNING:
To avoid the possibility of injury in case of
an accident or a sudden stop, the center
console box lid should be kept closed when
the car is in motion.
HNF2178

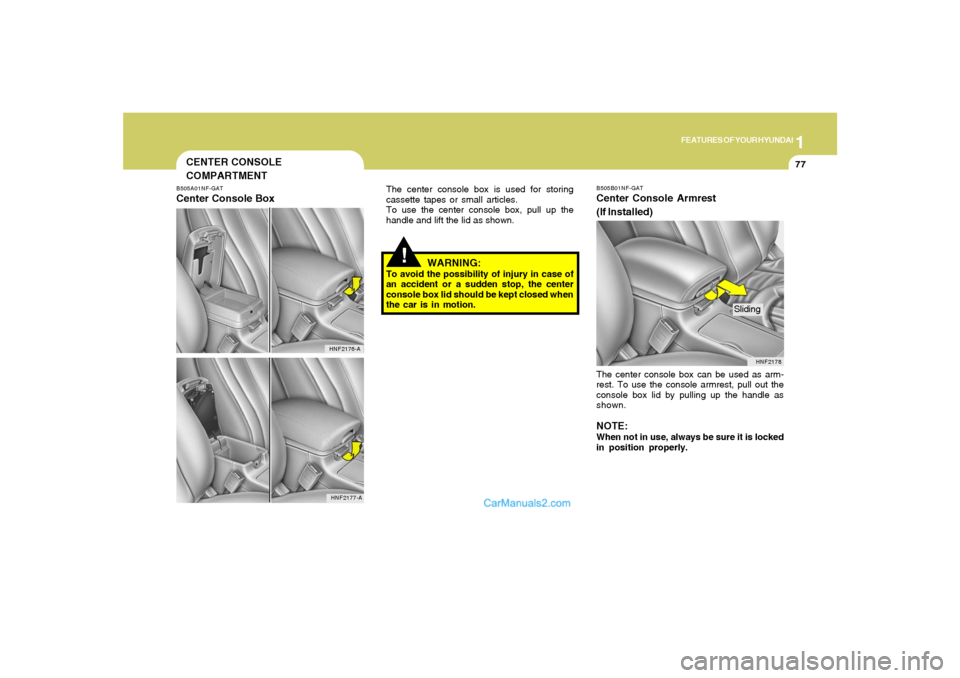

The center console box can be used as arm-
rest. To use the console armrest, pull out the
console box lid by pulling up the handle as
shown.NOTE:When not in use, always be sure it is locked
in position properly.B505B01NF-GATCenter Console Armrest
(If Installed)
The center console box is used for storing
cassette tapes or small articles.
To use the center console box, pull up the
handle and lift the lid as shown.
CENTER CONSOLE
COMPARTMENTB505A01NF-GATCenter Console Box
HNF2176-A
HNF2177-A
Sliding

1FEATURES OF YOUR HYUNDAI78
!

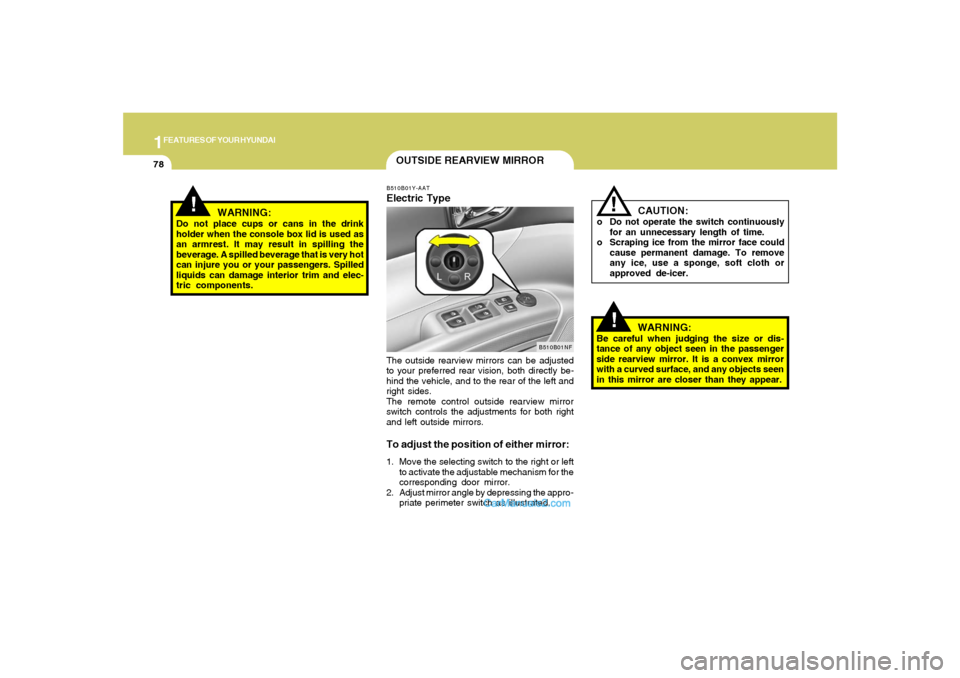

OUTSIDE REARVIEW MIRROR
!
WARNING:
Do not place cups or cans in the drink
holder when the console box lid is used as
an armrest. It may result in spilling the
beverage. A spilled beverage that is very hot
can injure you or your passengers. Spilled
liquids can damage interior trim and elec-
tric components.
B510B01Y-AATElectric TypeThe outside rearview mirrors can be adjusted
to your preferred rear vision, both directly be-
hind the vehicle, and to the rear of the left and
right sides.
The remote control outside rearview mirror
switch controls the adjustments for both right
and left outside mirrors.To adjust the position of either mirror:1. Move the selecting switch to the right or left
to activate the adjustable mechanism for the
corresponding door mirror.
2. Adjust mirror angle by depressing the appro-
priate perimeter switch as illustrated.
B510B01NF
CAUTION:
o Do not operate the switch continuously
for an unnecessary length of time.
o Scraping ice from the mirror face could
cause permanent damage. To remove
any ice, use a sponge, soft cloth or
approved de-icer.
!
WARNING:
Be careful when judging the size or dis-
tance of any object seen in the passenger
side rearview mirror. It is a convex mirror
with a curved surface, and any objects seen
in this mirror are closer than they appear.

1
FEATURES OF YOUR HYUNDAI
79

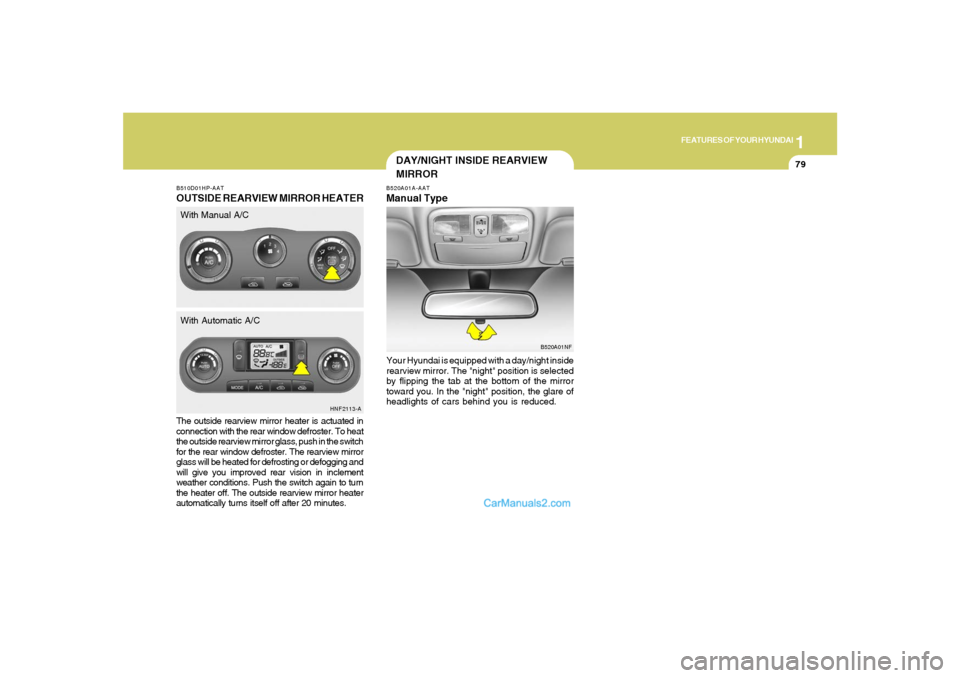

The outside rearview mirror heater is actuated in
connection with the rear window defroster. To heat
the outside rearview mirror glass, push in the switch
for the rear window defroster. The rearview mirror
glass will be heated for defrosting or defogging and
will give you improved rear vision in inclement
weather conditions. Push the switch again to turn
the heater off. The outside rearview mirror heater
automatically turns itself off after 20 minutes.B510D01HP-AATOUTSIDE REARVIEW MIRROR HEATER
HNF2113-A
With Manual A/C
With Automatic A/C
DAY/NIGHT INSIDE REARVIEW
MIRRORB520A01A-AATManual TypeYour Hyundai is equipped with a day/night inside
rearview mirror. The "night" position is selected
by flipping the tab at the bottom of the mirror
toward you. In the "night" position, the glare of
headlights of cars behind you is reduced.
B520A01NF

1FEATURES OF YOUR HYUNDAI80
HOMELINK MIRRORB520C01NF-AATAutomatic-Dimming Mirror
with Z-Nav™ Electronic Compass Dis-
play and HomeLink
® (If Installed)
Your vehicle comes with a Gentex Automatic-
Dimming Mirror with a Z-Nav™ Electronic Com-
pass Display and an Integrated HomeLink
®
Wireless Control System. During nighttime driv-
ing, this feature will automatically detect and
reduce rearview mirror glare while the compass
indicates the direction the vehicle is pointed.
The HomeLink
® Universal Transceiver allows
you to activate your garage door(s), electric
gate, home lighting, etc.

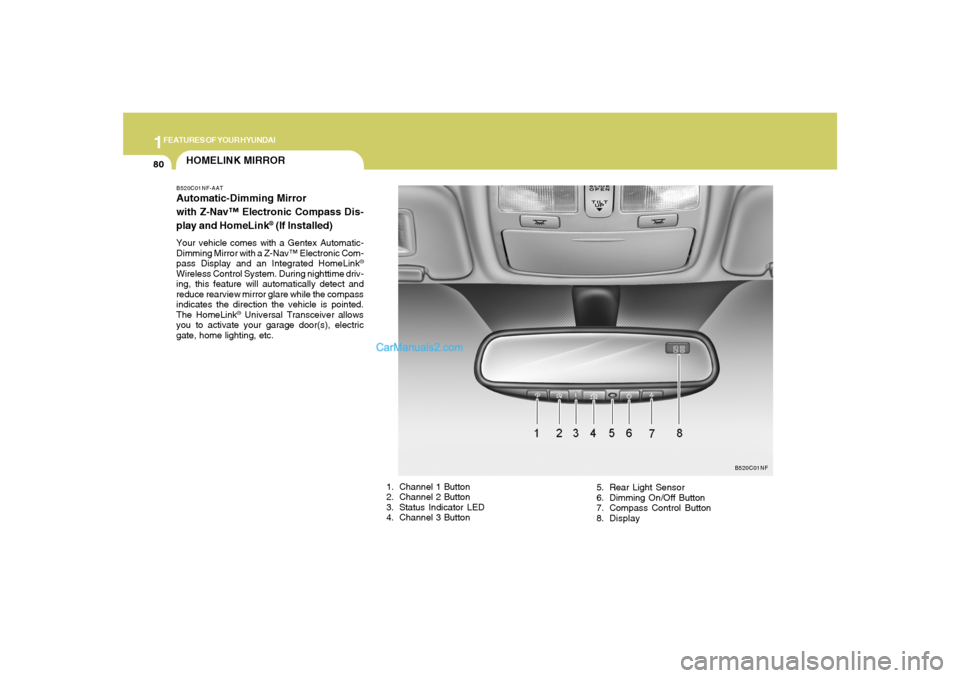

1. Channel 1 Button
2. Channel 2 Button
3. Status Indicator LED
4. Channel 3 Button5. Rear Light Sensor
6. Dimming On/Off Button
7. Compass Control Button
8. Display
B520C01NF

1
FEATURES OF YOUR HYUNDAI
81

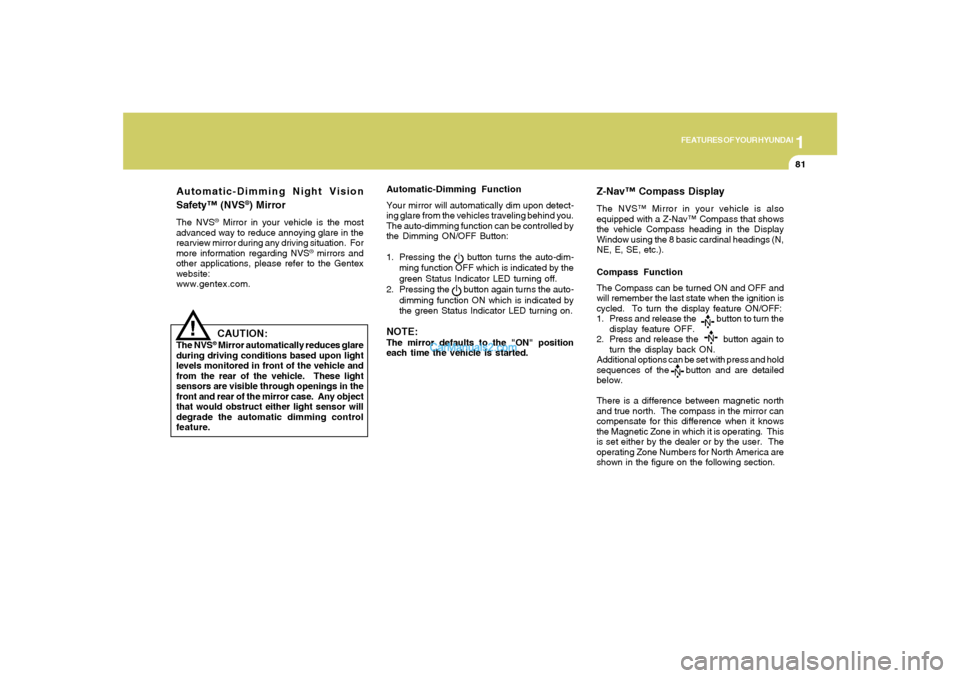

Automatic-Dimming Night Vision
Safety™ (NVS
®) Mirror
The NVS
® Mirror in your vehicle is the most
advanced way to reduce annoying glare in the
rearview mirror during any driving situation. For
more information regarding NVS
® mirrors and
other applications, please refer to the Gentex
website:
www.gentex.com.
CAUTION:
The NVS
® Mirror automatically reduces glare
during driving conditions based upon light
levels monitored in front of the vehicle and
from the rear of the vehicle. These light
sensors are visible through openings in the
front and rear of the mirror case. Any object
that would obstruct either light sensor will
degrade the automatic dimming control
feature.
!
Automatic-Dimming Function
Your mirror will automatically dim upon detect-
ing glare from the vehicles traveling behind you.
The auto-dimming function can be controlled by
the Dimming ON/OFF Button:
1. Pressing the
button turns the auto-dim-
ming function OFF which is indicated by the
green Status Indicator LED turning off.
2. Pressing the button again turns the auto-
dimming function ON which is indicated by
the green Status Indicator LED turning on.
NOTE:The mirror defaults to the "ON" position
each time the vehicle is started.Compass Function
The Compass can be turned ON and OFF and
will remember the last state when the ignition is
cycled. To turn the display feature ON/OFF:
1. Press and release the button to turn the
display feature OFF.
2. Press and release the button again to
turn the display back ON.
Additional options can be set with press and hold
sequences of the button and are detailed
below.
There is a difference between magnetic north
and true north. The compass in the mirror can
compensate for this difference when it knows
the Magnetic Zone in which it is operating. This
is set either by the dealer or by the user. The
operating Zone Numbers for North America are
shown in the figure on the following section.
Z-Nav™ Compass DisplayThe NVS™ Mirror in your vehicle is also
equipped with a Z-Nav™ Compass that shows
the vehicle Compass heading in the Display
Window using the 8 basic cardinal headings (N,
NE, E, SE, etc.).

1FEATURES OF YOUR HYUNDAI82

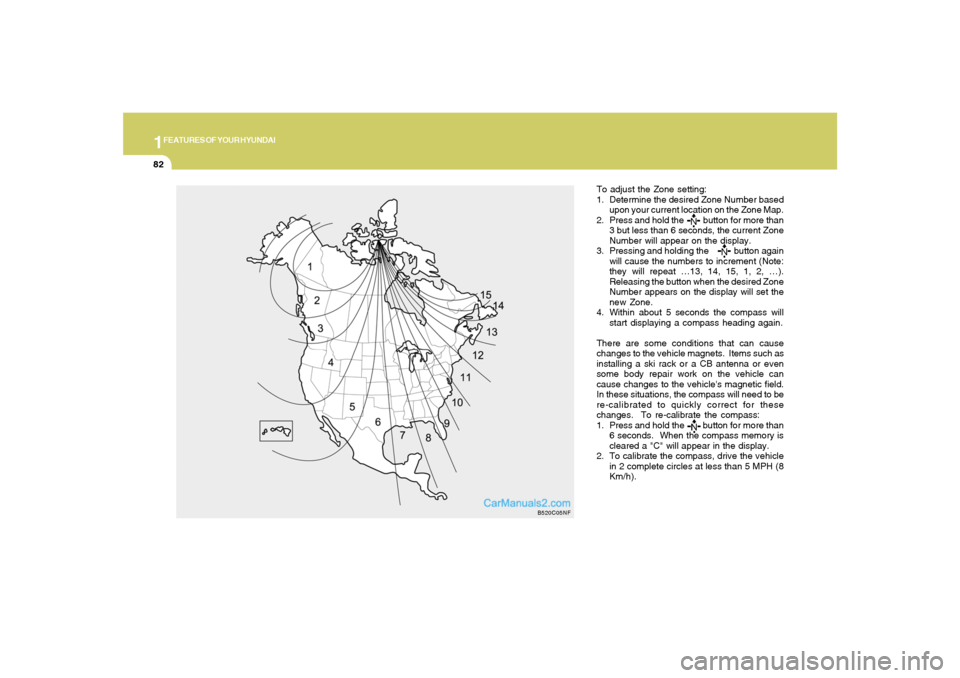

To adjust the Zone setting:
1. Determine the desired Zone Number based
upon your current location on the Zone Map.
2. Press and hold the button for more than
3 but less than 6 seconds, the current Zone
Number will appear on the display.
3. Pressing and holding the button again
will cause the numbers to increment (Note:
they will repeat …13, 14, 15, 1, 2, …).
Releasing the button when the desired Zone
Number appears on the display will set the
new Zone.
4. Within about 5 seconds the compass will
start displaying a compass heading again.
There are some conditions that can cause
changes to the vehicle magnets. Items such as
installing a ski rack or a CB antenna or even
some body repair work on the vehicle can
cause changes to the vehicle's magnetic field.
In these situations, the compass will need to be
re-calibrated to quickly correct for these
changes. To re-calibrate the compass:
1. Press and hold the button for more than
6 seconds. When the compass memory is
cleared a "C" will appear in the display.
2. To calibrate the compass, drive the vehicle
in 2 complete circles at less than 5 MPH (8
Km/h).
B520C05NF

1
FEATURES OF YOUR HYUNDAI
83
!

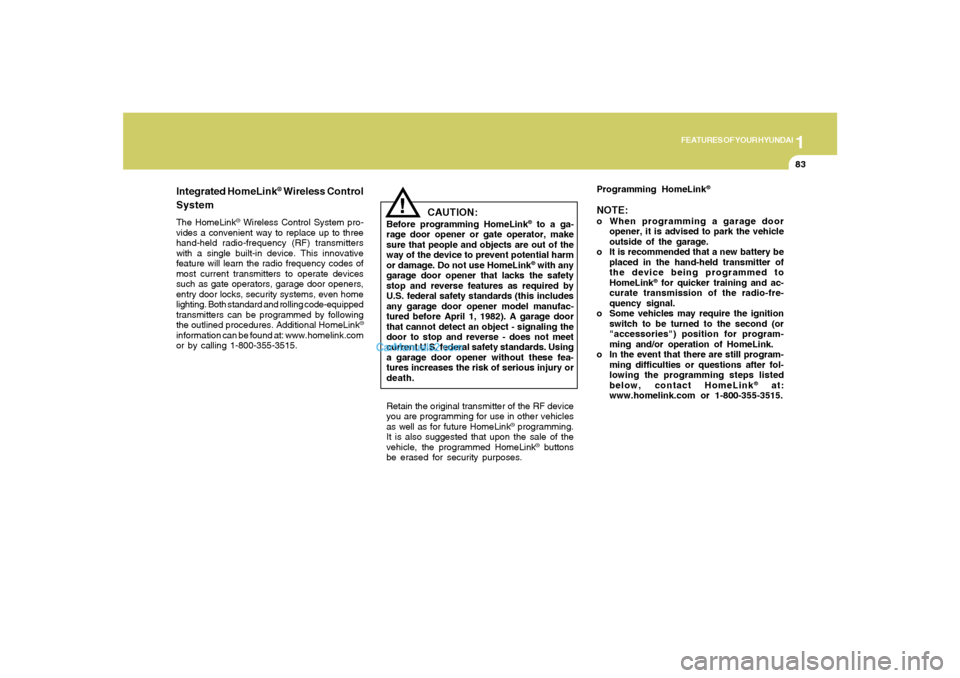

Integrated HomeLink
® Wireless Control
System
The HomeLink
® Wireless Control System pro-
vides a convenient way to replace up to three
hand-held radio-frequency (RF) transmitters
with a single built-in device. This innovative
feature will learn the radio frequency codes of
most current transmitters to operate devices
such as gate operators, garage door openers,
entry door locks, security systems, even home
lighting. Both standard and rolling code-equipped
transmitters can be programmed by following
the outlined procedures. Additional HomeLink
®
information can be found at: www.homelink.com
or by calling 1-800-355-3515.
CAUTION:
Before programming HomeLink
® to a ga-
rage door opener or gate operator, make
sure that people and objects are out of the
way of the device to prevent potential harm
or damage. Do not use HomeLink® with any
garage door opener that lacks the safety
stop and reverse features as required by
U.S. federal safety standards (this includes
any garage door opener model manufac-
tured before April 1, 1982). A garage door
that cannot detect an object - signaling the
door to stop and reverse - does not meet
current U.S. federal safety standards. Using
a garage door opener without these fea-
tures increases the risk of serious injury or
death.Programming HomeLink
®
NOTE:o When programming a garage door
opener, it is advised to park the vehicle
outside of the garage.
o It is recommended that a new battery be
placed in the hand-held transmitter of
the device being programmed to
HomeLink
® for quicker training and ac-
curate transmission of the radio-fre-
quency signal.
o Some vehicles may require the ignition
switch to be turned to the second (or
"accessories") position for program-
ming and/or operation of HomeLink.
o In the event that there are still program-
ming difficulties or questions after fol-
lowing the programming steps listed
below, contact HomeLink
® at:
www.homelink.com or 1-800-355-3515.
Retain the original transmitter of the RF device
you are programming for use in other vehicles
as well as for future HomeLink
® programming.
It is also suggested that upon the sale of the
vehicle, the programmed HomeLink
® buttons
be erased for security purposes.

1FEATURES OF YOUR HYUNDAI84

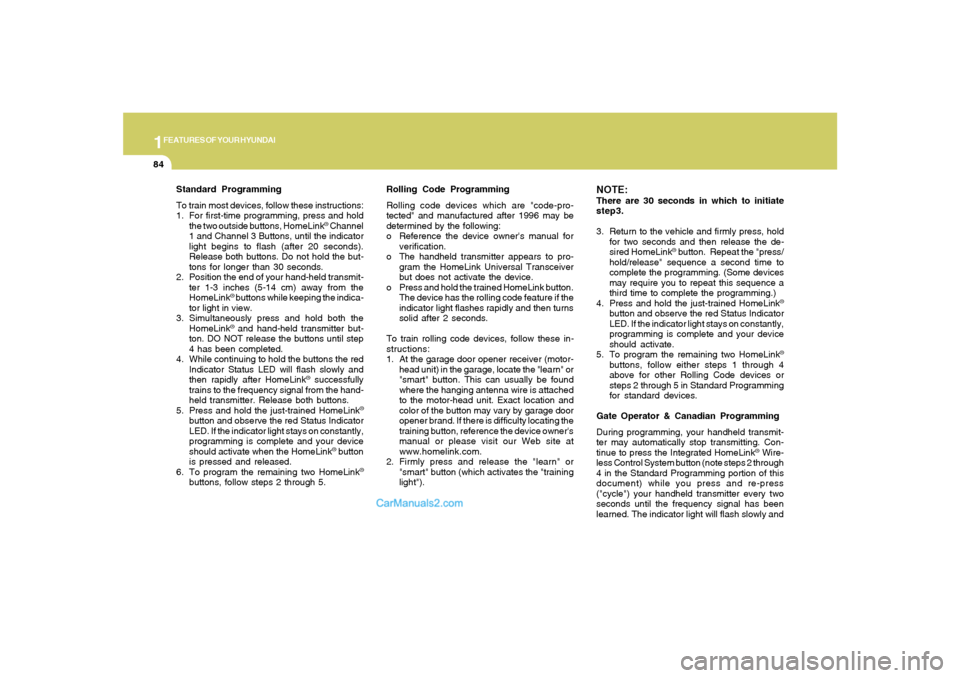

Standard Programming
To train most devices, follow these instructions:
1. For first-time programming, press and hold
the two outside buttons, HomeLink
® Channel
1 and Channel 3 Buttons, until the indicator
light begins to flash (after 20 seconds).
Release both buttons. Do not hold the but-
tons for longer than 30 seconds.
2. Position the end of your hand-held transmit-
ter 1-3 inches (5-14 cm) away from the
HomeLink
® buttons while keeping the indica-
tor light in view.
3. Simultaneously press and hold both the
HomeLink® and hand-held transmitter but-
ton. DO NOT release the buttons until step
4 has been completed.
4. While continuing to hold the buttons the red
Indicator Status LED will flash slowly and
then rapidly after HomeLink
® successfully
trains to the frequency signal from the hand-
held transmitter. Release both buttons.
5. Press and hold the just-trained HomeLink
®
button and observe the red Status Indicator
LED. If the indicator light stays on constantly,
programming is complete and your device
should activate when the HomeLink
® button
is pressed and released.
6. To program the remaining two HomeLink
®
buttons, follow steps 2 through 5.Rolling Code Programming
Rolling code devices which are "code-pro-
tected" and manufactured after 1996 may be
determined by the following:
o Reference the device owner's manual for
verification.
o The handheld transmitter appears to pro-
gram the HomeLink Universal Transceiver
but does not activate the device.
o Press and hold the trained HomeLink button.
The device has the rolling code feature if the
indicator light flashes rapidly and then turns
solid after 2 seconds.
To train rolling code devices, follow these in-
structions:
1. At the garage door opener receiver (motor-
head unit) in the garage, locate the "learn" or
"smart" button. This can usually be found
where the hanging antenna wire is attached
to the motor-head unit. Exact location and
color of the button may vary by garage door
opener brand. If there is difficulty locating the
training button, reference the device owner's
manual or please visit our Web site at
www.homelink.com.
2. Firmly press and release the "learn" or
"smart" button (which activates the "training
light").
NOTE:There are 30 seconds in which to initiate
step3.
3. Return to the vehicle and firmly press, hold
for two seconds and then release the de-
sired HomeLink
® button. Repeat the "press/
hold/release" sequence a second time to
complete the programming. (Some devices
may require you to repeat this sequence a
third time to complete the programming.)
4. Press and hold the just-trained HomeLink
®
button and observe the red Status Indicator
LED. If the indicator light stays on constantly,
programming is complete and your device
should activate.
5. To program the remaining two HomeLink
®
buttons, follow either steps 1 through 4
above for other Rolling Code devices or
steps 2 through 5 in Standard Programming
for standard devices.
Gate Operator & Canadian Programming
During programming, your handheld transmit-
ter may automatically stop transmitting. Con-
tinue to press the Integrated HomeLink
® Wire-
less Control System button (note steps 2 through
4 in the Standard Programming portion of this
document) while you press and re-press
("cycle") your handheld transmitter every two
seconds until the frequency signal has been
learned. The indicator light will flash slowly and

1
FEATURES OF YOUR HYUNDAI
85
!

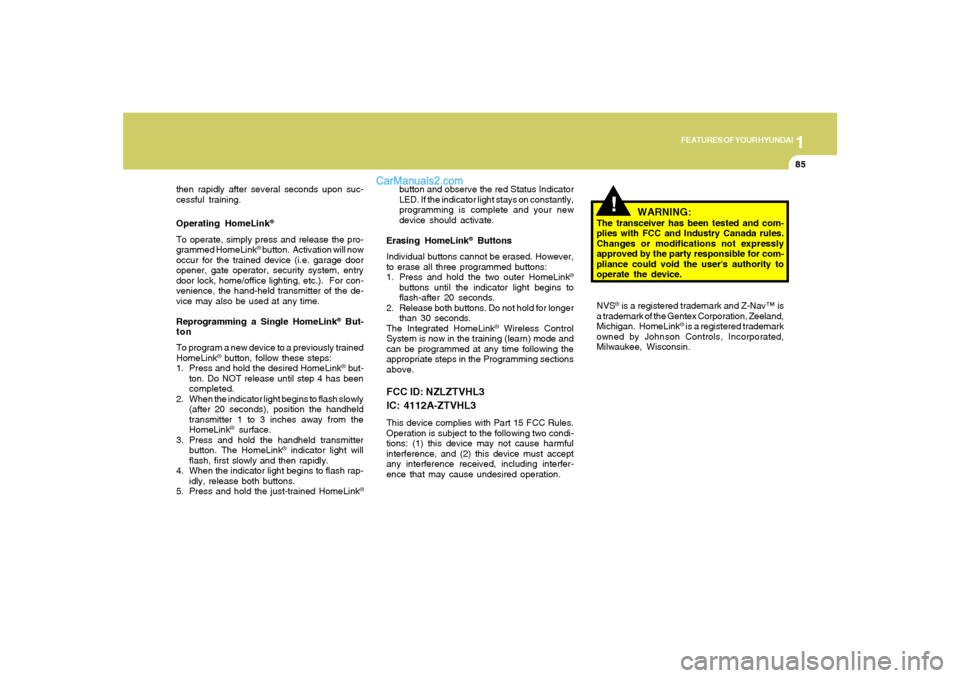

then rapidly after several seconds upon suc-
cessful training.
Operating HomeLink
®
To operate, simply press and release the pro-
grammed HomeLink
® button. Activation will now
occur for the trained device (i.e. garage door
opener, gate operator, security system, entry
door lock, home/office lighting, etc.). For con-
venience, the hand-held transmitter of the de-
vice may also be used at any time.
Reprogramming a Single HomeLink
® But-
ton
To program a new device to a previously trained
HomeLink
® button, follow these steps:
1. Press and hold the desired HomeLink
® but-
ton. Do NOT release until step 4 has been
completed.
2. When the indicator light begins to flash slowly
(after 20 seconds), position the handheld
transmitter 1 to 3 inches away from the
HomeLink
® surface.
3. Press and hold the handheld transmitter
button. The HomeLink
® indicator light will
flash, first slowly and then rapidly.
4. When the indicator light begins to flash rap-
idly, release both buttons.
5. Press and hold the just-trained HomeLink
®
button and observe the red Status Indicator
LED. If the indicator light stays on constantly,
programming is complete and your new
device should activate.
Erasing HomeLink
® Buttons
Individual buttons cannot be erased. However,
to erase all three programmed buttons:
1. Press and hold the two outer HomeLink
®
buttons until the indicator light begins to
flash-after 20 seconds.
2. Release both buttons. Do not hold for longer
than 30 seconds.
The Integrated HomeLink
® Wireless Control
System is now in the training (learn) mode and
can be programmed at any time following the
appropriate steps in the Programming sections
above.
FCC ID: NZLZTVHL3
IC: 4112A-ZTVHL3This device complies with Part 15 FCC Rules.
Operation is subject to the following two condi-
tions: (1) this device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
WARNING:
The transceiver has been tested and com-
plies with FCC and Industry Canada rules.
Changes or modifications not expressly
approved by the party responsible for com-
pliance could void the user's authority to
operate the device.
NVS
® is a registered trademark and Z-Nav™ is
a trademark of the Gentex Corporation, Zeeland,
Michigan. HomeLink
® is a registered trademark
owned by Johnson Controls, Incorporated,
Milwaukee, Wisconsin.

1FEATURES OF YOUR HYUNDAI86
!

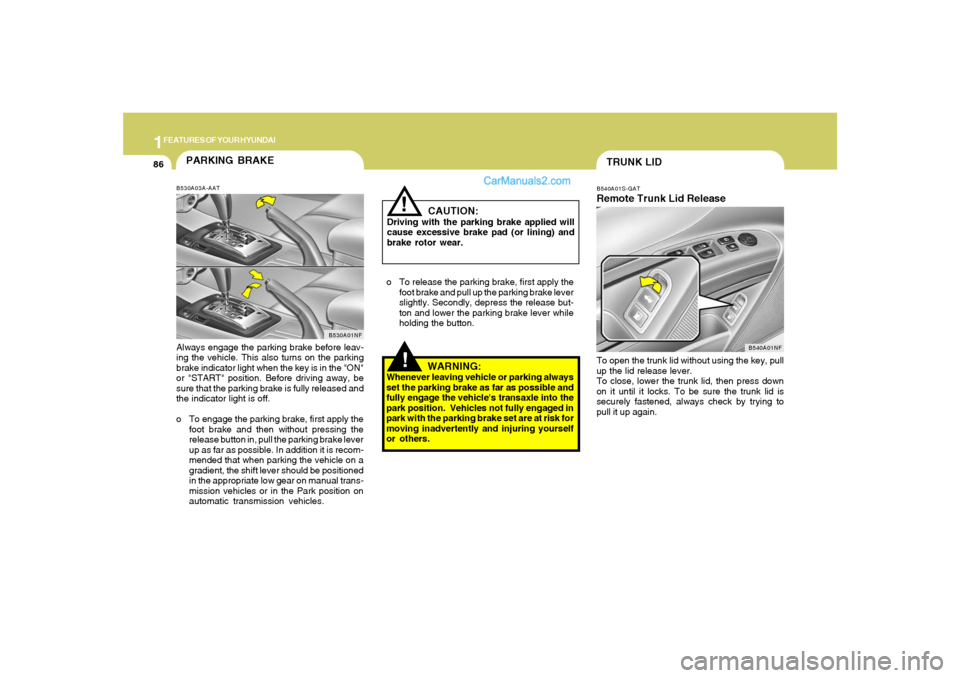

PARKING BRAKEB530A03A-AATAlways engage the parking brake before leav-
ing the vehicle. This also turns on the parking
brake indicator light when the key is in the "ON"
or "START" position. Before driving away, be
sure that the parking brake is fully released and
the indicator light is off.
o To engage the parking brake, first apply the
foot brake and then without pressing the
release button in, pull the parking brake lever
up as far as possible. In addition it is recom-
mended that when parking the vehicle on a
gradient, the shift lever should be positioned
in the appropriate low gear on manual trans-
mission vehicles or in the Park position on
automatic transmission vehicles.
B530A01NF
TRUNK LIDB540A01S-GATRemote Trunk Lid ReleaseTo open the trunk lid without using the key, pull
up the lid release lever.
To close, lower the trunk lid, then press down
on it until it locks. To be sure the trunk lid is
securely fastened, always check by trying to
pull it up again.
B540A01NF
WARNING:
Whenever leaving vehicle or parking always
set the parking brake as far as possible and
fully engage the vehicle's transaxle into the
park position. Vehicles not fully engaged in
park with the parking brake set are at risk for
moving inadvertently and injuring yourself
or others. o To release the parking brake, first apply the
foot brake and pull up the parking brake lever
slightly. Secondly, depress the release but-
ton and lower the parking brake lever while
holding the button.
CAUTION:
Driving with the parking brake applied will
cause excessive brake pad (or lining) and
brake rotor wear.
!
