Hyundai Sonata

6
DO-IT-YOURSELF MAINTENANCE
30

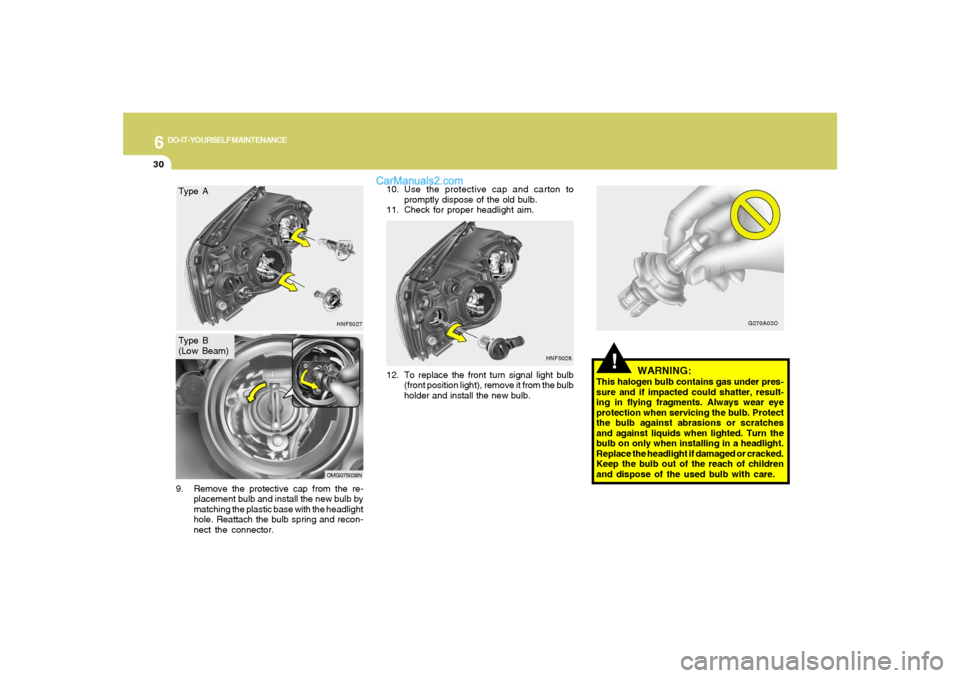

12. To replace the front turn signal light bulb
(front position light), remove it from the bulb
holder and install the new bulb.
!
WARNING:
This halogen bulb contains gas under pres-
sure and if impacted could shatter, result-
ing in flying fragments. Always wear eye
protection when servicing the bulb. Protect
the bulb against abrasions or scratches
and against liquids when lighted. Turn the
bulb on only when installing in a headlight.
Replace the headlight if damaged or cracked.
Keep the bulb out of the reach of children
and dispose of the used bulb with care.
HNF5028G270A03O
10. Use the protective cap and carton to
promptly dispose of the old bulb.
11. Check for proper headlight aim.
HNF5027
9. Remove the protective cap from the re-
placement bulb and install the new bulb by
matching the plastic base with the headlight
hole. Reattach the bulb spring and recon-
nect the connector.Type AType B
(Low Beam)
OMG075038N

6
DO-IT-YOURSELF MAINTENANCE
31

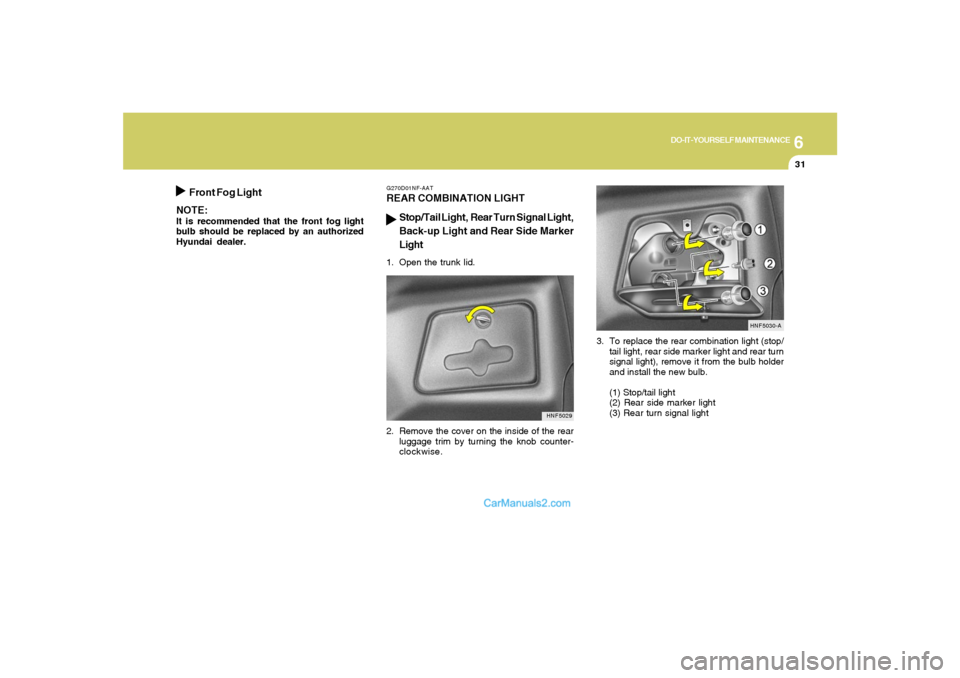

3. To replace the rear combination light (stop/
tail light, rear side marker light and rear turn
signal light), remove it from the bulb holder
and install the new bulb.
(1) Stop/tail light
(2) Rear side marker light
(3) Rear turn signal light
HNF5030-A
Front Fog Light
NOTE:
It is recommended that the front fog light
bulb should be replaced by an authorized
Hyundai dealer.
G270D01NF-AATREAR COMBINATION LIGHT
Stop/Tail Light, Rear Turn Signal Light,
Back-up Light and Rear Side Marker
Light1. Open the trunk lid.
2. Remove the cover on the inside of the rear
luggage trim by turning the knob counter-
clockwise.
HNF5029

6
DO-IT-YOURSELF MAINTENANCE
32
HNF5032
3. Disconnect the power cord.
HTB284
4. Replace with a new bulb.
HNF5042
4. Loosen the mounting screws of the trunk lid
trim with a phillips screwdriver and remove
the trunk lid trim.
5. To replace the rear combination light (back-
up light and stop/tail light), remove the socket
by turning it counterclockwise.
6. Install the new bulb.
G270C01L-AATLUGGAGE COMPARTMENT
LIGHT1. Open the trunk lid.
2. Remove the luggage compartment light cover
on the rear package tray panel with a flat-
head screwdriver.
HNF5031-A

6
DO-IT-YOURSELF MAINTENANCE
33
G270G01NF G270L01L-AAT

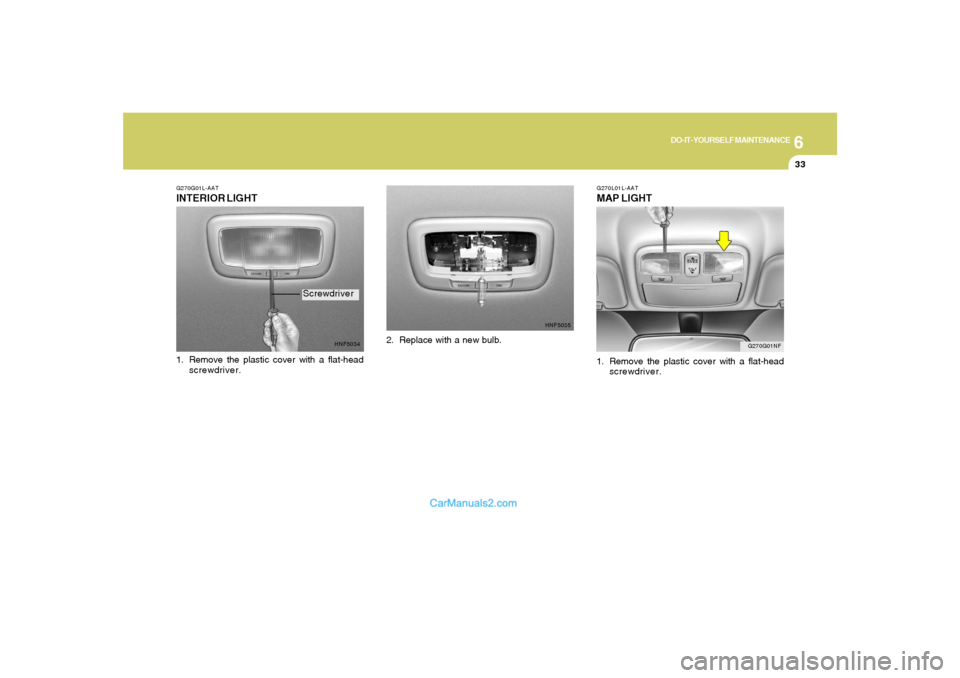

MAP LIGHT1. Remove the plastic cover with a flat-head
screwdriver.
G270G01L-AATINTERIOR LIGHT
HNF5034
1. Remove the plastic cover with a flat-head
screwdriver.
HNF5035
Screwdriver
2. Replace with a new bulb.

6
DO-IT-YOURSELF MAINTENANCE
34
3. Disconnect the power cord.
HJM5039
HTB284
4. Replace with a new bulb.
G270K01L-AATGLOVE BOX ILLUMINATED LIGHT1. Open the glove box.
2. Remove the glove box illuminated light cover
with a flat-head screwdriver.
HNF5036
Screwdriver
G270G02NF
2. Replace with a new bulb.

6
DO-IT-YOURSELF MAINTENANCE
35
Socket Type
BAY 15d
w2.1 x 9.5d
BAY 15d
sv6-7, 6
BAY 15d
BAY15s
w2.1 x 9.5d
w2.1 x 9.5d No.
1
2
3
4
5
6
7Socket Type
P x 26d
P14,5s
BAY15d
w2.1 x 9.5d
sv6-7,6
PGJ13
BAY15d
w2.1 x 4.6d

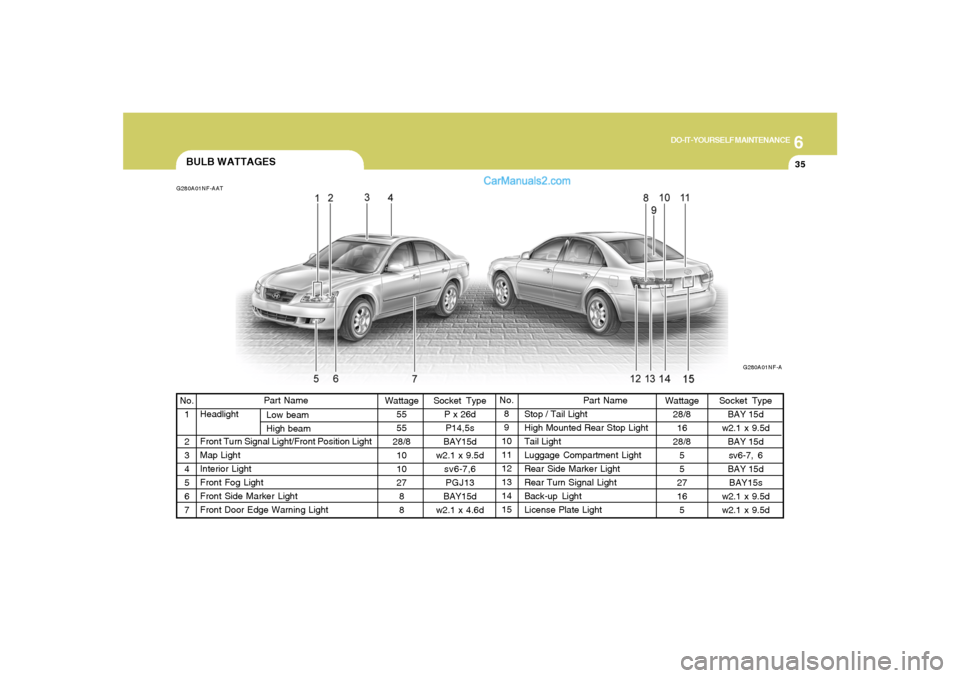

BULB WATTAGESG280A01NF-AAT
G280A01NF-A
Part Name
Stop / Tail Light
High Mounted Rear Stop Light
Tail Light
Luggage Compartment Light
Rear Side Marker Light
Rear Turn Signal Light
Back-up Light
License Plate Light Part Name
Headlight
Front Turn Signal Light/Front Position Light
Map Light
Interior Light
Front Fog Light
Front Side Marker Light
Front Door Edge Warning LightNo.
8
9
10
11
12
13
14
15 Wattage
55
55
28/8
10
10
27
8
8
Low beam
High beam
Wattage
28/8
16
28/8
5
5
27
16
5

6
DO-IT-YOURSELF MAINTENANCE
36

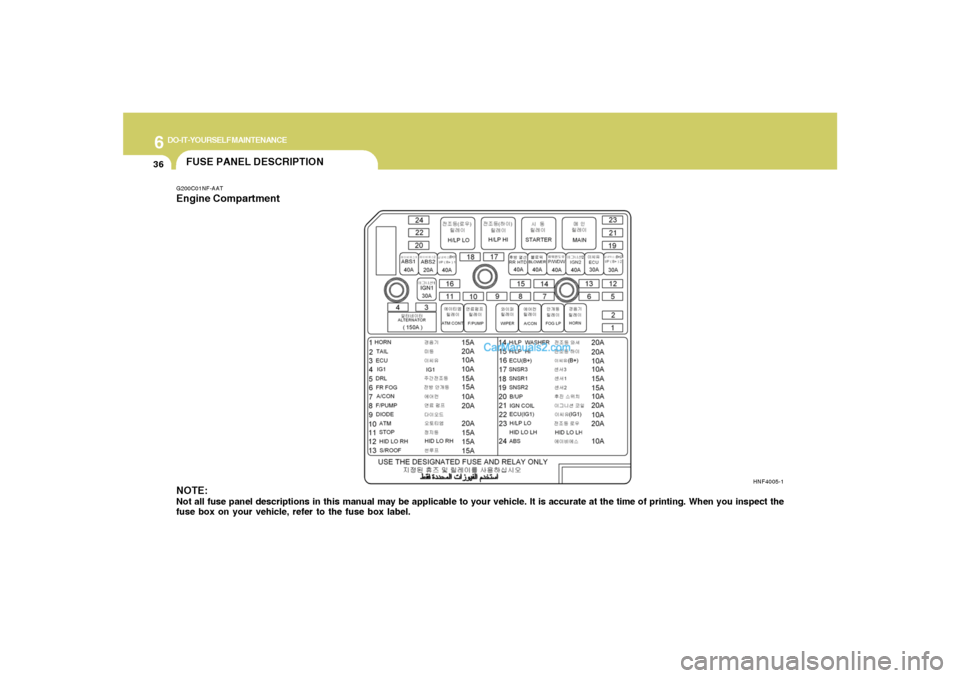

FUSE PANEL DESCRIPTIONG200C01NF-AATEngine Compartment
NOTE:Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the
fuse box on your vehicle, refer to the fuse box label.
HNF4005-1

6
DO-IT-YOURSELF MAINTENANCE
37
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
HORN
TAIL
ECU
IG1
DRL
FR FOG
A/CON
F/PUMP
DIODE
ATM
STOP
H/LP LO RH
S/ROOF
H/LP WASHER
H/LP HI
ECU
SNSR.3
SNSR.1
SNSR.2
B/UP
IGN COIL
ECU (IG1)
H/LP LO
ABS

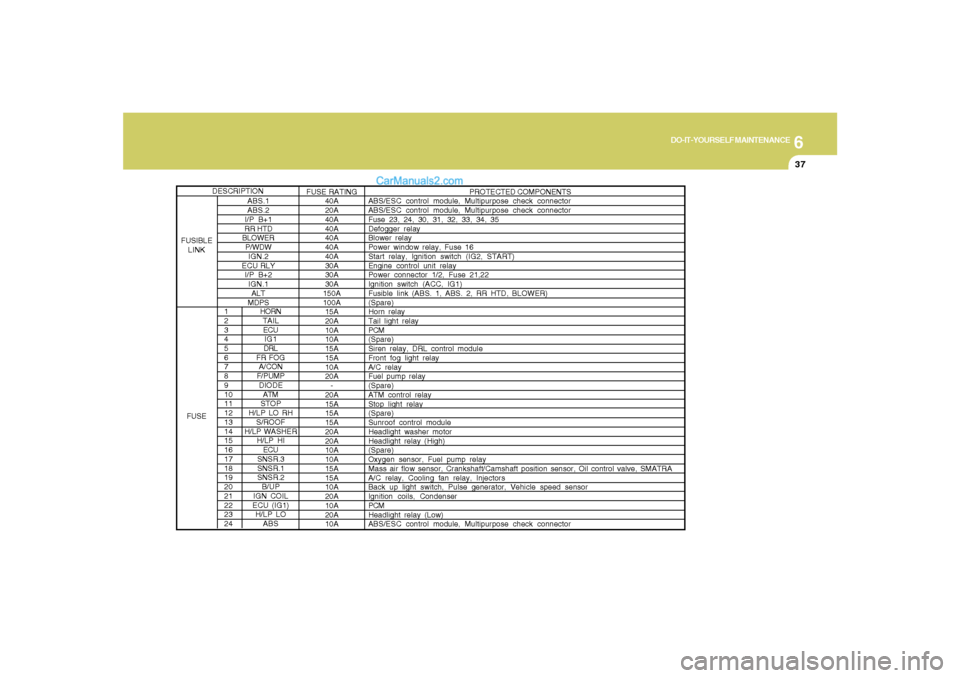

PROTECTED COMPONENTS
ABS/ESC control module, Multipurpose check connector
ABS/ESC control module, Multipurpose check connector
Fuse 23, 24, 30, 31, 32, 33, 34, 35
Defogger relay
Blower relay
Power window relay, Fuse 16
Start relay, Ignition switch (IG2, START)
Engine control unit relay
Power connector 1/2, Fuse 21,22
Ignition switch (ACC, IG1)
Fusible Iink (ABS. 1, ABS. 2, RR HTD, BLOWER)
(Spare)
Horn relay
Tail light relay
PCM
(Spare)
Siren relay, DRL control module
Front fog light relay
A/C relay
Fuel pump relay
(Spare)
ATM control relay
Stop light relay
(Spare)
Sunroof control module
Headlight washer motor
Headlight relay (High)
(Spare)
Oxygen sensor, Fuel pump relay
Mass air flow sensor, Crankshaft/Camshaft position sensor, Oil control valve, SMATRA
A/C relay, Cooling fan relay, Injectors
Back up light switch, Pulse generator, Vehicle speed sensor
Ignition coils, Condenser
PCM
Headlight relay (Low)
ABS/ESC control module, Multipurpose check connector
ABS.1
ABS.2
I/P B+1
RR HTD
BLOWER
P/WDW
IGN.2
ECU RLY
I/P B+2
IGN.1
ALT
MDPSFUSE RATING
40A
20A
40A
40A
40A
40A
40A
30A
30A
30A
150A
100A
15A
20A
10A
10A
15A
15A
10A
20A
-
20A
15A
15A
15A
20A
20A
10A
10A
15A
15A
10A
20A
10A
20A
10A
DESCRIPTION
FUSIBLE
LINK
FUSE

6
DO-IT-YOURSELF MAINTENANCE
38
G200E01NF-AATInner Panel
HNF4003

6
DO-IT-YOURSELF MAINTENANCE
39

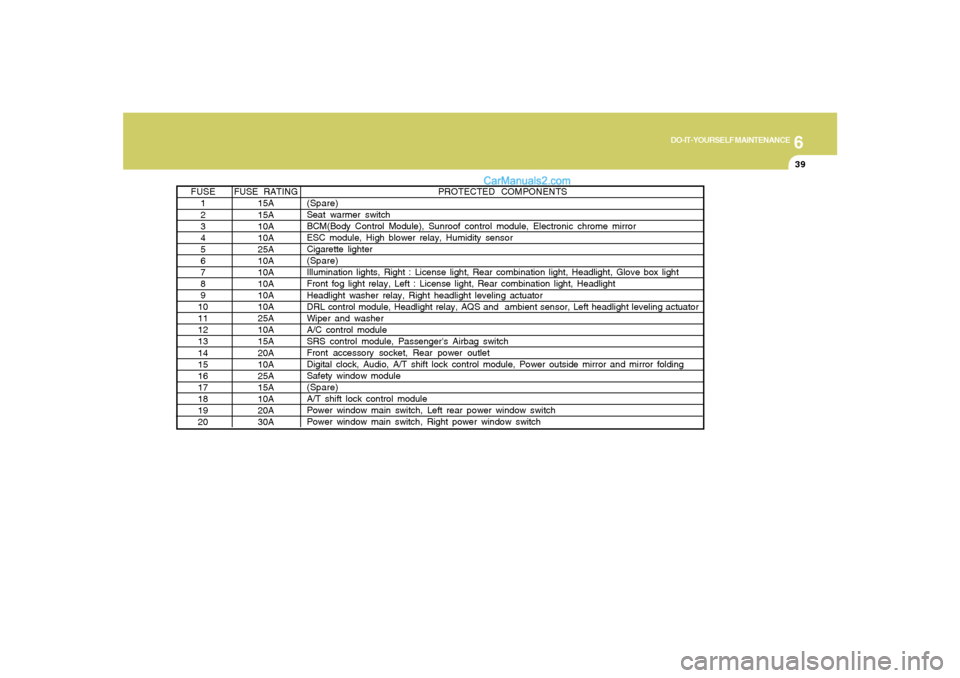

PROTECTED COMPONENTS
(Spare)
Seat warmer switch
BCM(Body Control Module), Sunroof control module, Electronic chrome mirror
ESC module, High blower relay, Humidity sensor
Cigarette lighter
(Spare)
Illumination lights, Right : License light, Rear combination light, Headlight, Glove box light
Front fog light relay, Left : License light, Rear combination light, Headlight
Headlight washer relay, Right headlight leveling actuator
DRL control module, Headlight relay, AQS and ambient sensor, Left headlight leveling actuator
Wiper and washer
A/C control module
SRS control module, Passenger's Airbag switch
Front accessory socket, Rear power outlet
Digital clock, Audio, A/T shift lock control module, Power outside mirror and mirror folding
Safety window module
(Spare)
A/T shift lock control module
Power window main switch, Left rear power window switch
Power window main switch, Right power window switch
FUSE RATING
15A
15A
10A
10A
25A
10A
10A
10A
10A
10A
25A
10A
15A
20A
10A
25A
15A
10A
20A
30A FUSE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
