wiper blades HYUNDAI SONATA HYBRID 2014 Owners Manual

477
Features of your vehicle

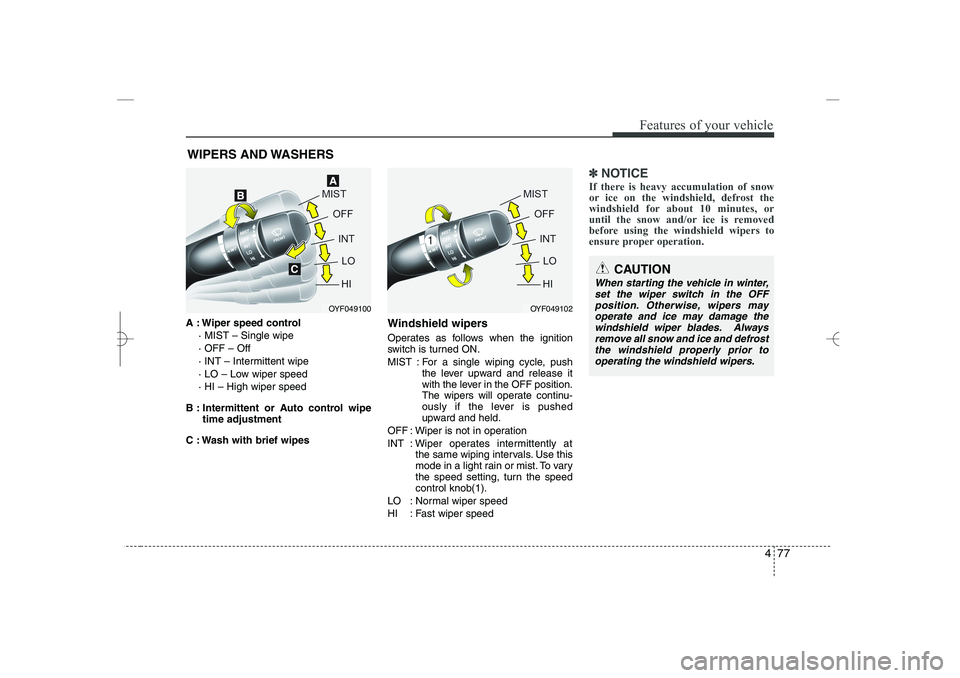

WIPERS AND WASHERS
A : Wiper speed control
· MIST – Single wipe
· OFF – Off
· INT – Intermittent wipe
· LO – Low wiper speed
· HI – High wiper speed
B : Intermittent or Auto control wipe
time adjustment
C : Wash with brief wipes
Windshield wipers
Operates as follows when the ignition
switch is turned ON.
MIST : For a single wiping cycle, push
the lever upward and release it
with the lever in the OFF position.
The wipers will operate continu-
ously if the lever is pushed
upward and held.
OFF : Wiper is not in operation
INT : Wiper operates intermittently at
the same wiping intervals. Use this
mode in a light rain or mist. To vary
the speed setting, turn the speed
control knob(1).
LO : Normal wiper speed
HI : Fast wiper speed
✽
✽
NOTICE
If there is heavy accumulation of snow
or ice on the windshield, defrost the
windshield for about 10 minutes, or
until the snow and/or ice is removed
before using the windshield wipers to
ensure proper operation.
OYF049100
OYF049102
CAUTION
When starting the vehicle in winter,
set the wiper switch in the OFF
position. Otherwise, wipers may
operate and ice may damage the
windshield wiper blades. Always
remove all snow and ice and defrost
the windshield properly prior to
operating the windshield wipers.
YF HMA 4a-111.qxp 1/16/2012 6:32 PM Page 77

Features of your vehicle
78
4

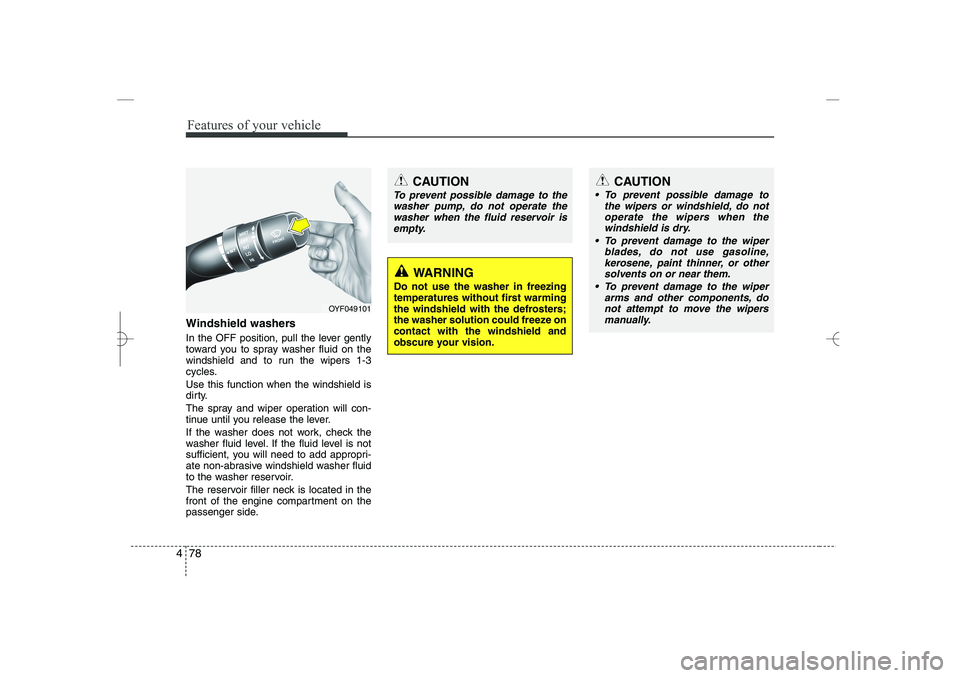

Windshield washers
In the OFF position, pull the lever gently
toward you to spray washer fluid on the
windshield and to run the wipers 1-3
cycles.
Use this function when the windshield is
dirty.
The spray and wiper operation will con-
tinue until you release the lever.
If the washer does not work, check the
washer fluid level. If the fluid level is not
sufficient, you will need to add appropri-
ate non-abrasive windshield washer fluid
to the washer reservoir.
The reservoir filler neck is located in the
front of the engine compartment on the
passenger side.
CAUTION
To prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.
WARNING
Do not use the washer in freezing
temperatures without first warming
the windshield with the defrosters;
the washer solution could freeze on
contact with the windshield and
obscure your vision.
CAUTION
 To prevent possible damage to
the wipers or windshield, do not
operate the wipers when the
windshield is dry.
 To prevent damage to the wiper
blades, do not use gasoline,
kerosene, paint thinner, or other
solvents on or near them.
 To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.
OYF049101
YF HMA 4a-111.qxp 1/16/2012 6:32 PM Page 78

Driving your vehicle
40
5

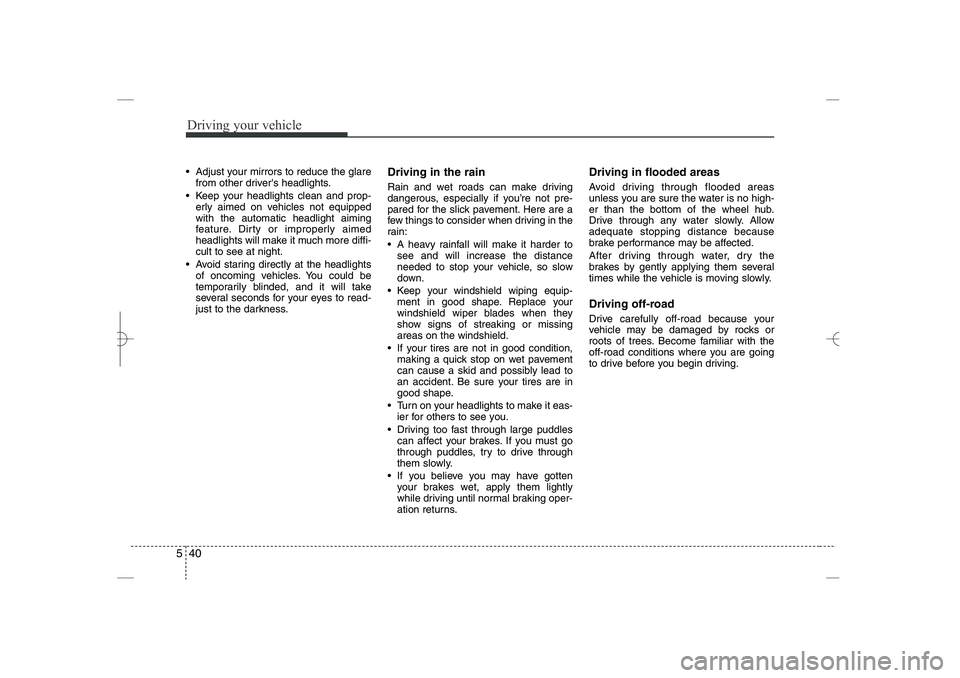

 Adjust your mirrors to reduce the glare
from other driver's headlights.
 Keep your headlights clean and prop-
erly aimed on vehicles not equipped
with the automatic headlight aiming
feature. Dirty or improperly aimed
headlights will make it much more diffi-
cult to see at night.
 Avoid staring directly at the headlights
of oncoming vehicles. You could be
temporarily blinded, and it will take
several seconds for your eyes to read-
just to the darkness.
Driving in the rain
Rain and wet roads can make driving
dangerous, especially if you’re not pre-
pared for the slick pavement. Here are a
few things to consider when driving in the
rain:
 A heavy rainfall will make it harder to
see and will increase the distance
needed to stop your vehicle, so slow
down.
 Keep your windshield wiping equip-
ment in good shape. Replace your
windshield wiper blades when they
show signs of streaking or missing
areas on the windshield.
 If your tires are not in good condition,
making a quick stop on wet pavement
can cause a skid and possibly lead to
an accident. Be sure your tires are in
good shape.
 Turn on your headlights to make it eas-
ier for others to see you.
 Driving too fast through large puddles
can affect your brakes. If you must go
through puddles, try to drive through
them slowly.
 If you believe you may have gotten
your brakes wet, apply them lightly
while driving until normal braking oper-
ation returns.
Driving in flooded areas
Avoid driving through flooded areas
unless you are sure the water is no high-
er than the bottom of the wheel hub.
Drive through any water slowly. Allow
adequate stopping distance because
brake performance may be affected.
After driving through water, dry the
brakes by gently applying them several
times while the vehicle is moving slowly.
Driving off-road
Drive carefully off-road because your
vehicle may be damaged by rocks or
roots of trees. Become familiar with the
off-road conditions where you are going
to drive before you begin driving.
YF HMA 5.qxp 1/16/2012 6:24 PM Page 40

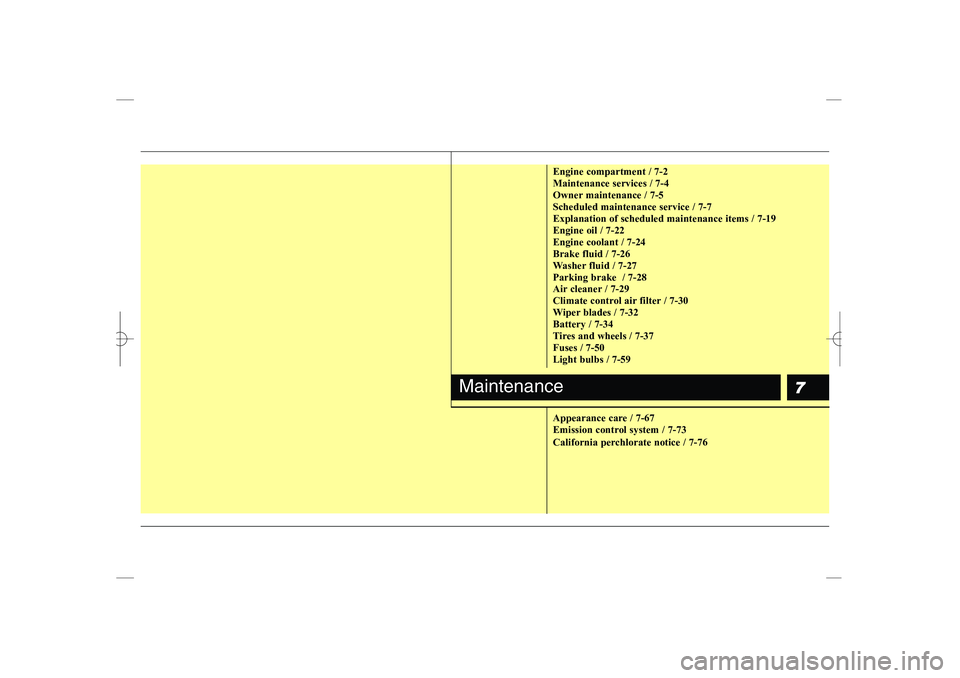

7
Engine compartment / 7-2
Maintenance services / 7-4
Owner maintenance / 7-5
Scheduled maintenance service / 7-7
Explanation of scheduled maintenance items / 7-19
Engine oil / 7-22
Engine coolant / 7-24
Brake fluid / 7-26
Washer fluid / 7-27
Parking brake / 7-28
Air cleaner / 7-29
Climate control air filter / 7-30
Wiper blades / 7-32
Battery / 7-34
Tires and wheels / 7-37
Fuses / 7-50
Light bulbs / 7-59
Appearance care / 7-67
Emission control system / 7-73
California perchlorate notice / 7-76
Maintenance
YF HMA 7.qxp 1/16/2012 6:18 PM Page 1

Maintenance
67

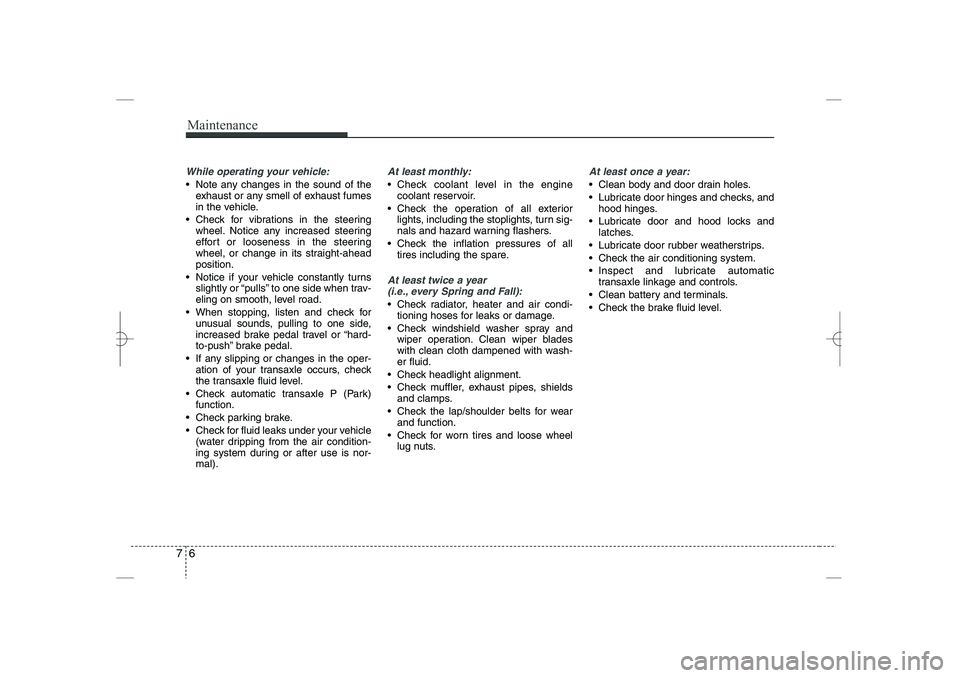

While operating your vehicle:
 Note any changes in the sound of the
exhaust or any smell of exhaust fumes
in the vehicle.
 Check for vibrations in the steering
wheel. Notice any increased steering
effort or looseness in the steering
wheel, or change in its straight-ahead
position.
 Notice if your vehicle constantly turns
slightly or “pulls” to one side when trav-
eling on smooth, level road.
 When stopping, listen and check for
unusual sounds, pulling to one side,
increased brake pedal travel or “hard-
to-push” brake pedal.
 If any slipping or changes in the oper-
ation of your transaxle occurs, check
the transaxle fluid level.
 Check automatic transaxle P (Park)
function.
 Check parking brake.
 Check for fluid leaks under your vehicle
(water dripping from the air condition-
ing system during or after use is nor-
mal).
At least monthly:
 Check coolant level in the engine
coolant reservoir.
 Check the operation of all exterior
lights, including the stoplights, turn sig-
nals and hazard warning flashers.
 Check the inflation pressures of all
tires including the spare.
At least twice a year
(i.e., every Spring and Fall):
 Check radiator, heater and air condi-
tioning hoses for leaks or damage.
 Check windshield washer spray and
wiper operation. Clean wiper blades
with clean cloth dampened with wash-
er fluid.
 Check headlight alignment.
 Check muffler, exhaust pipes, shields
and clamps.
 Check the lap/shoulder belts for wear
and function.
 Check for worn tires and loose wheel
lug nuts.
At least once a year:
 Clean body and door drain holes.
 Lubricate door hinges and checks, and
hood hinges.
 Lubricate door and hood locks and
latches.
 Lubricate door rubber weatherstrips.
 Check the air conditioning system.
 Inspect and lubricate automatic
transaxle linkage and controls.
 Clean battery and terminals.
 Check the brake fluid level.
YF HMA 7.qxp 1/16/2012 6:18 PM Page 6

Maintenance
32
7

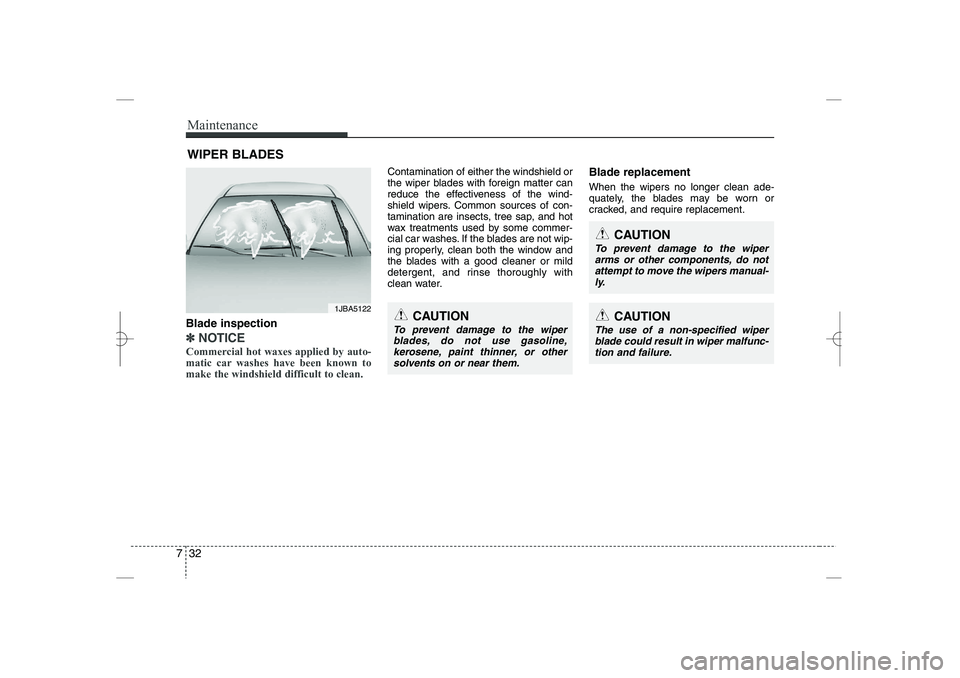

WIPER BLADES
Blade inspection
✽
✽
NOTICE
Commercial hot waxes applied by auto-
matic car washes have been known to
make the windshield difficult to clean.
Contamination of either the windshield or
the wiper blades with foreign matter can
reduce the effectiveness of the wind-
shield wipers. Common sources of con-
tamination are insects, tree sap, and hot
wax treatments used by some commer-
cial car washes. If the blades are not wip-
ing properly, clean both the window and
the blades with a good cleaner or mild
detergent, and rinse thoroughly with
clean water.
Blade replacement
When the wipers no longer clean ade-
quately, the blades may be worn or
cracked, and require replacement.
1JBA5122
CAUTION
To prevent damage to the wiper
blades, do not use gasoline,
kerosene, paint thinner, or other
solvents on or near them.
CAUTION
To prevent damage to the wiper
arms or other components, do not
attempt to move the wipers manual-
ly.
CAUTION
The use of a non-specified wiper
blade could result in wiper malfunc-
tion and failure.
YF HMA 7.qxp 1/16/2012 6:18 PM Page 32

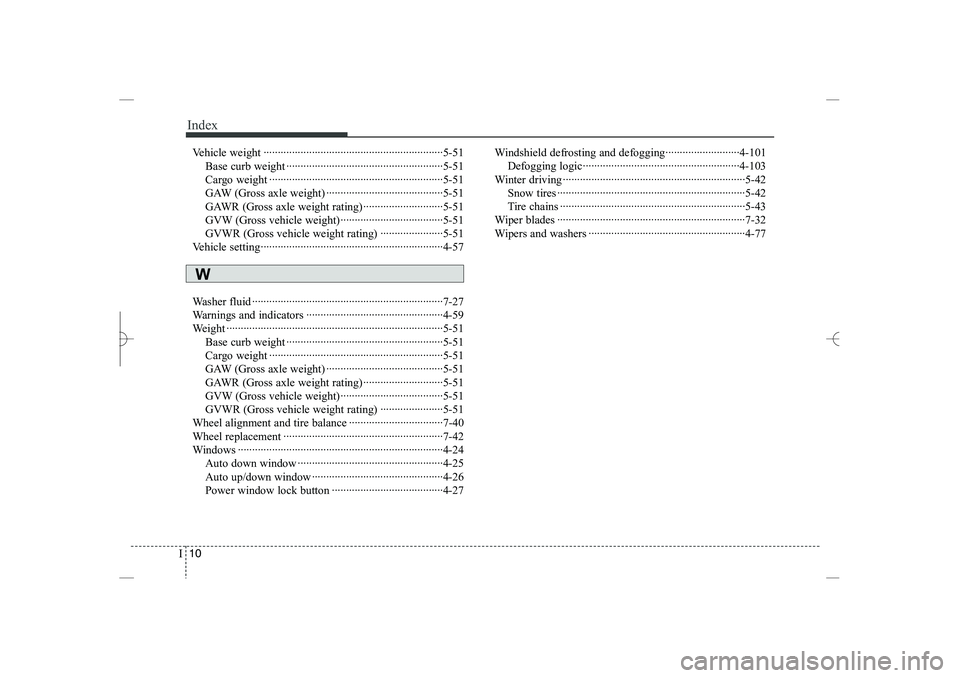

Index
10
I
Vehicle weight ·······························································5-51
Base curb weight ·······················································5-51
Cargo weight ·····························································5-51
GAW (Gross axle weight) ·········································5-51
GAWR (Gross axle weight rating)····························5-51
GVW (Gross vehicle weight)····································5-51
GVWR (Gross vehicle weight rating) ······················5-51
Vehicle setting································································4-57
Washer fluid ···································································7-27
Warnings and indicators ················································4-59
Weight ············································································5-51
Base curb weight ·······················································5-51
Cargo weight ·····························································5-51
GAW (Gross axle weight) ·········································5-51
GAWR (Gross axle weight rating)····························5-51
GVW (Gross vehicle weight)····································5-51
GVWR (Gross vehicle weight rating) ······················5-51
Wheel alignment and tire balance ·································7-40
Wheel replacement ························································7-42
Windows ········································································4-24
Auto down window ···················································4-25
Auto up/down window ··············································4-26
Power window lock button ·······································4-27
Windshield defrosting and defogging··························4-101
Defogging logic·······················································4-103
Winter driving ································································5-42
Snow tires ··································································5-42
Tire chains ·································································5-43
Wiper blades ··································································7-32
Wipers and washers ·······················································4-77
W
YF HMA INDEX.QXP 5/16/2011 5:52 PM Page 10
