Hyundai Sonata Hybrid 2015 Owner's Manual

Specifications, Consumer information, Reporting safety defects
28
CAPACITY/WEIGHT
Item
Displacement
Bore x Stroke
Firing order
No. of cylinders Gasoline (2.4)
143.96 cu.in (2359 cc)
3.46 x 3.82 in. (88 x 97 mm) 1-3-4-2
4, In-line
ENGINE BATTERY
Gross vehicle weight
kg (lbs.) Gasoline (2.4)
2080 (4586)
304 (10.7)
Item
Luggage volume l(cu ft) A/T
Item
Battery pack voltage
Cell voltage
Number of cell in the pack
Battery system weight Hybrid
270V
3.75V
72cell (9module x 8cell)
92.6 lbs (42kg) (system)
Components powered by the battery pack
- Electric motor, Power cable, HSG, Inverter/LDC, A/C Compressor
AIR CONDITIONING
Refrigerant type
Compressor oil R - 134a
POE (Polyol ester)

83
Specifications, Consumer information, Reporting safety defects

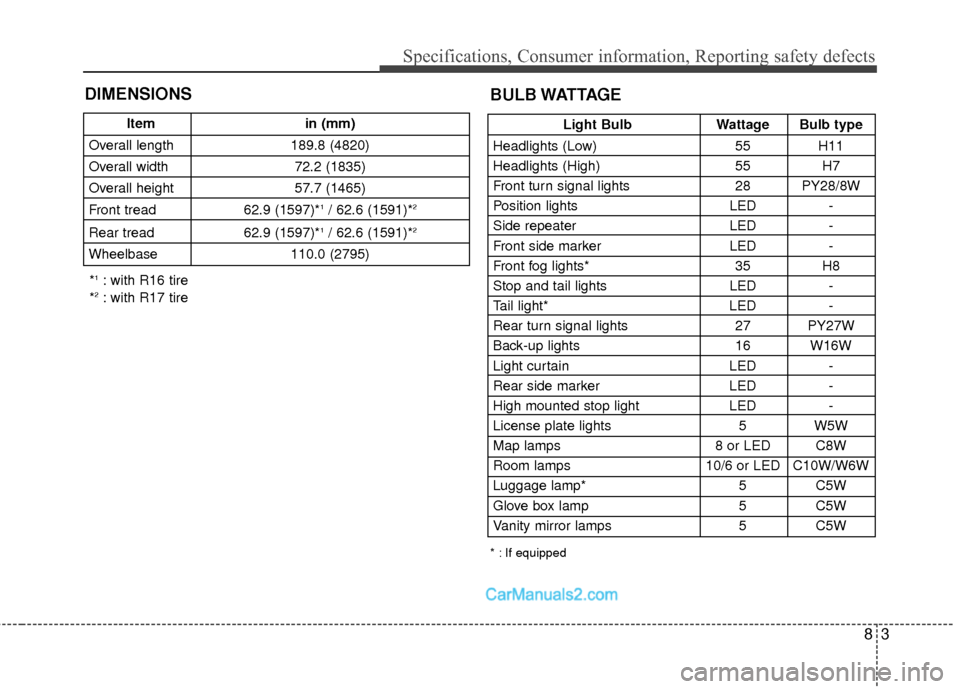

DIMENSIONS
Light BulbWattage Bulb type
Headlights (Low) 55 H11
Headlights (High) 55H7
Front turn signal lights 28 PY28/8W
Position lights LED-
Side repeater LED-
Front side marker LED-
Front fog lights* 35H8
Stop and tail lights LED-
Tail light* LED-
Rear turn signal lights 27 PY27W
Back-up lights 16 W16W
Light curtain LED-
Rear side marker LED-
High mounted stop light LED-
License plate lights 5 W5W
Map lamps 8 or LED C8W
Room lamps 10/6 or LED C10W/W6W
Luggage lamp* 5 C5W
Glove box lamp 5 C5W
Vanity mirror lamps 5 C5W
BULB WATTAGE
* : If equipped
Itemin (mm)
Overall length 189.8 (4820)
Overall width 72.2 (1835)
Overall height 57.7 (1465)
Front tread 62.9 (1597)*
1/ 62.6 (1591)*2
Rear tread62.9 (1597)*1/ 62.6 (1591)*2
Wheelbase 110.0 (2795)
*1: with R16 tire
*2: with R17 tire

Specifications, Consumer information, Reporting safety defects
48

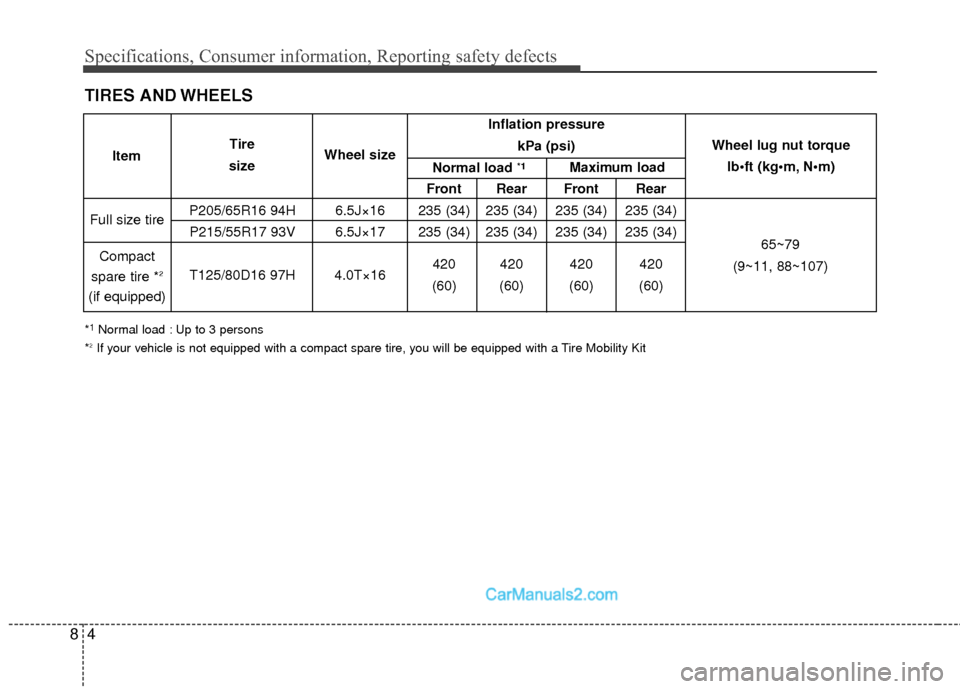

TIRES AND WHEELS
*1Normal load : Up to 3 persons
*2If your vehicle is not equipped with a compact spare tire, you will be equipped with a Tire Mobility Kit
Inflation pressure
kPa (psi)
Front Rear Front Rear
P205/65R16 94H 6.5J×16 235 (34) 235 (34) 235 (34) 235 (34) P215/55R17 93V 6.5J×17 235 (34) 235 (34) 235 (34) 235 (34)
420 420 420 420
T125/80D16 97H 4.0T×16 (60) (60) (60) (60)
Full size tire
Compact
spare tire *
2
(if equipped) Wheel lug nut torque
lb•ft (kg N
65~79
(9~11, 88~107)
Item
Tire
size Wheel size
Normal load
*1Maximum load

85
Specifications, Consumer information, Reporting safety defects

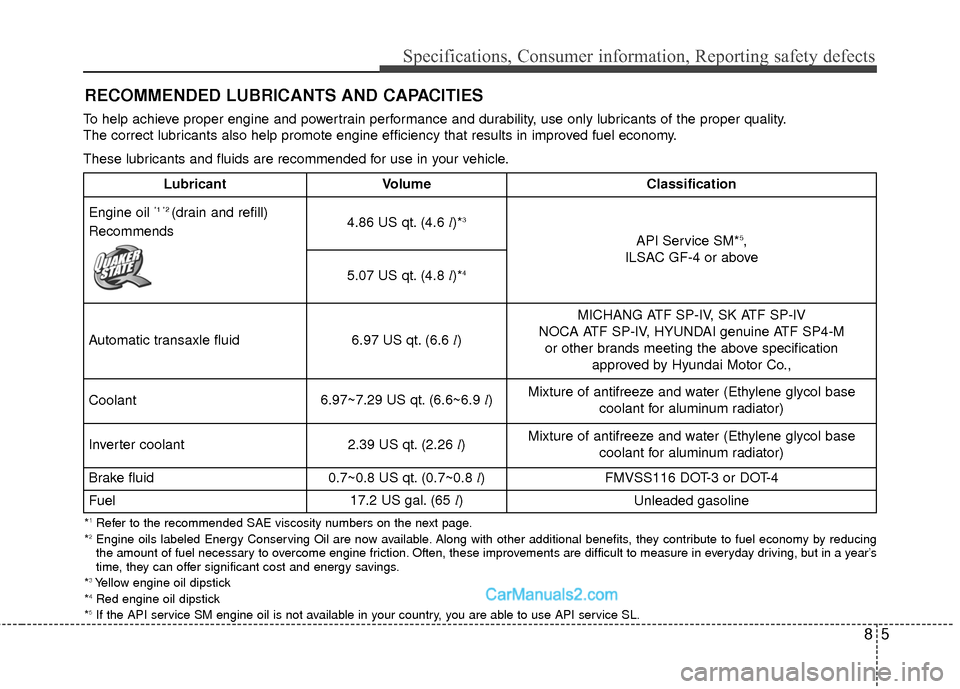

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econo my by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*
3Yellow engine oil dipstick
*4Red engine oil dipstick
*5If the API service SM engine oil is not available in your country, you are able to use API service SL.
LubricantVolumeClassification
Engine oil *1 *2 (drain and refill)
Recommends4.86 US qt. (4.6 l)*3
API Service SM*5,
ILSAC GF-4 or above
5.07 US qt. (4.8 l)*4
Automatic transaxle fluid6.97 US qt. (6.6 l)
MICHANG ATF SP-IV, SK ATF SP-IV
NOCA ATF SP-IV, HYUNDAI genuine ATF SP4-M or other brands meeting the above specification approved by Hyundai Motor Co.,
Coolant 6.97~7.29 US qt. (6.6~6.9 l)Mixture of antifreeze and water (Ethylene glycol base coolant for aluminum radiator)
Inverter coolant2.39 US qt. (2.26 l)Mixture of antifreeze and water (Ethylene glycol basecoolant for aluminum radiator)
Brake fluid0.7~0.8 US qt. (0.7~0.8 l)FMVSS116 DOT-3 or DOT-4
Fuel17.2 US gal. (65 l)Unleaded gasoline

Specifications, Consumer information, Reporting safety defects
68
Recommended SAE viscosity
number Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather. Using
oils of any viscosity other than those rec-
ommended could result in engine dam-
age.When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, ordipstick before checking or drain- ing any lubricant. This is especiallyimportant in dusty or sandy areasand when the vehicle is used onunpaved roads. Cleaning the plugand dipstick areas will prevent dirtand grit from entering the engineand other mechanisms that couldbe damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Engine Oil *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
1. For better fuel economy, it is recommended to use the engine oil of
a viscosity grade SAE 5W-20 (API Service SM / ILSAC GF-4).
However, if the engine oil is not available, select the proper engine
oil using the engine oil viscosity chart.
20W-50
15W-40
10W-30
5W-20, 5W-30

87
Specifications, Consumer information, Reporting safety defects
VEHICLE IDENTIFICATION
NUMBER (VIN)
The vehicle identification number (VIN) is
the number used in registering your car
and in all legal matters pertaining to its
ownership, etc.
The number is punched on the engine
compartment bulkhead or on the floor
under the front passenger’s seat.The VIN is also on a plate attached to the
top of the dashboard. The number on the
plate can easily be seen through the
windshield from outside.
VEHICLE CERTIFICATION
LABEL
The vehicle certification label attached
on the driver’s side center pillar contains
the vehicle identification number (VIN).
OYF089005
OYFH081004N
OBH088005N
OVG089001
VIN label
■ Type A
■ Type B

Specifications, Consumer information, Reporting safety defects
88

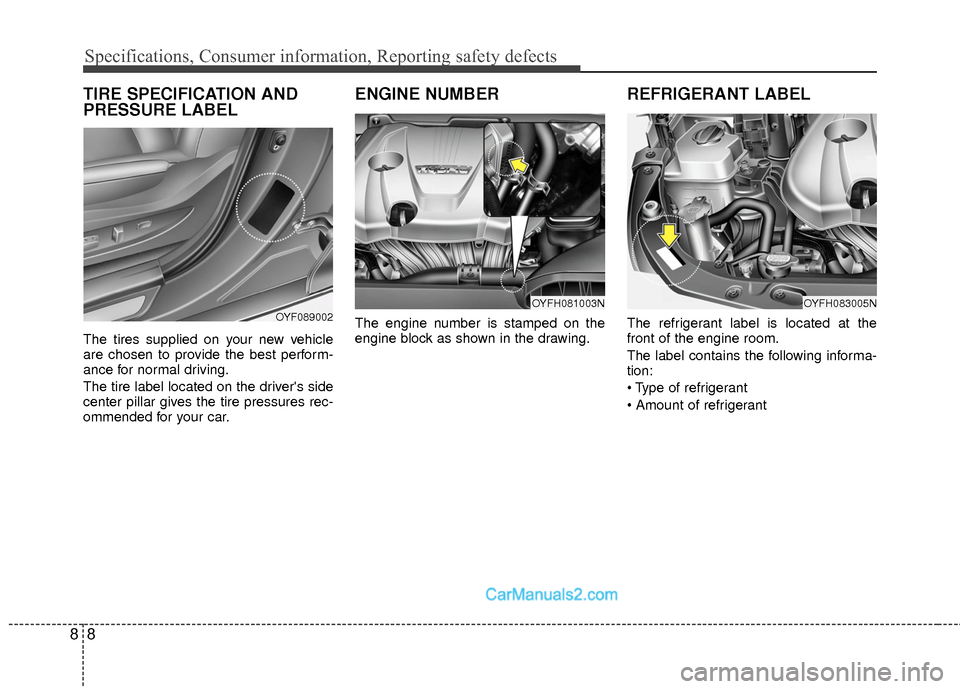

TIRE SPECIFICATION AND
PRESSURE LABEL
The tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your car.
ENGINE NUMBER
The engine number is stamped on the
engine block as shown in the drawing.
REFRIGERANT LABEL
The refrigerant label is located at the
front of the engine room.
The label contains the following informa-
tion:

OYF089002OYFH081003NOYFH083005N

89
Specifications, Consumer information, Reporting safety defects

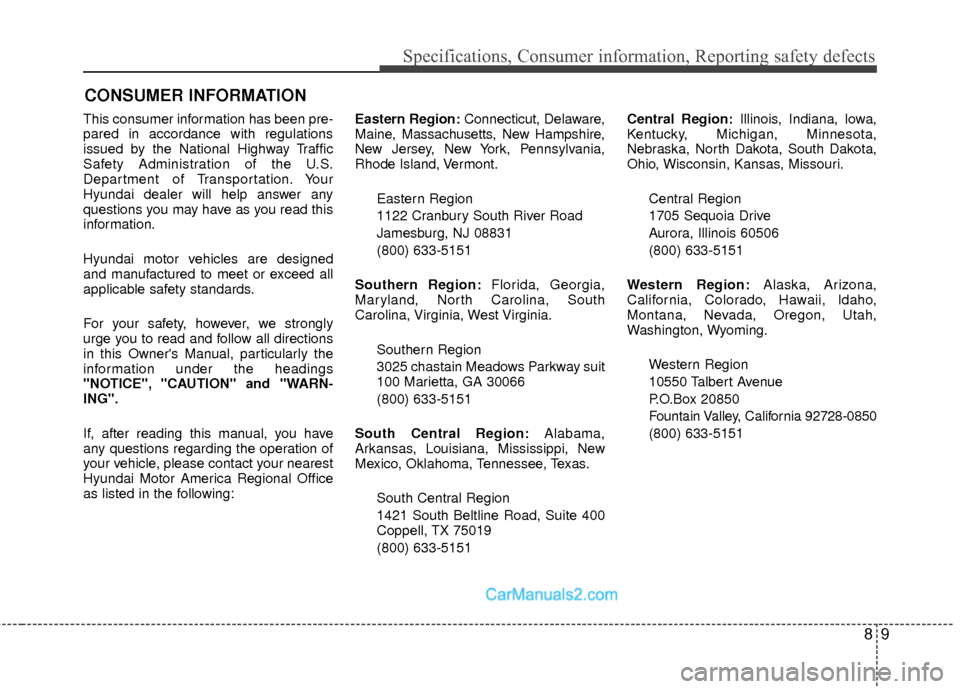

This consumer information has been pre-
pared in accordance with regulations
issued by the National Highway Traffic
Safety Administration of the U.S.
Department of Transportation. Your
Hyundai dealer will help answer any
questions you may have as you read this
information.
Hyundai motor vehicles are designed
and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly
urge you to read and follow all directions
in this Owner's Manual, particularly the
information under the headings
"NOTICE", "CAUTION" and "WARN-
ING".
If, after reading this manual, you have
any questions regarding the operation of
your vehicle, please contact your nearest
Hyundai Motor America Regional Office
as listed in the following:Eastern Region:
Connecticut, Delaware,
Maine, Massachusetts, New Hampshire,
New Jersey, New York, Pennsylvania,
Rhode Island, Vermont.
Eastern Region
1122 Cranbury South River Road
Jamesburg, NJ 08831
(800) 633-5151
Southern Region: Florida, Georgia,
Maryland, North Carolina, South
Carolina, Virginia, West Virginia.
Southern Region
3025 chastain Meadows Parkway suit
100 Marietta, GA 30066 (800) 633-5151
South Central Region: Alabama,
Arkansas, Louisiana, Mississippi, New
Mexico, Oklahoma, Tennessee, Texas.
South Central Region
1421 South Beltline Road, Suite 400
Coppell, TX 75019
(800) 633-5151 Central Region:
Illinois, Indiana, lowa,
Kentucky, Michigan, Minnesota,
Nebraska, North Dakota, South Dakota,
Ohio, Wisconsin, Kansas, Missouri.
Central Region
1705 Sequoia Drive
Aurora, Illinois 60506
(800) 633-5151
Western Region: Alaska, Arizona,
California, Colorado, Hawaii, ldaho,
Montana, Nevada, Oregon, Utah,
Washington, Wyoming.
Western Region
10550 Talbert Avenue
P.O.Box 20850
Fountain Valley, California 92728-0850
(800) 633-5151
CONSUMER INFORMATION

If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National Highway
Traffic Safety Administration (NHTSA) in
addition to notifying HYUNDAI MOTOR
AMERICA. If NHTSA receives similar
complaints, it may open an investigation,
and if it finds that a safety defect exists in
a group of vehicles, it may order a recall
and remedy campaign. However, NHTSA
cannot become involved in individual
problems between you, your dealer, or
HYUNDAI MOTOR AMERICA.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov; or write to:
Administrator, NHTSA, 1200 New Jersey
Avenue, SE West Building Washington,
DC 20590. You can also obtain other
information about motor vehicle safety
from http://www.safercar.gov.

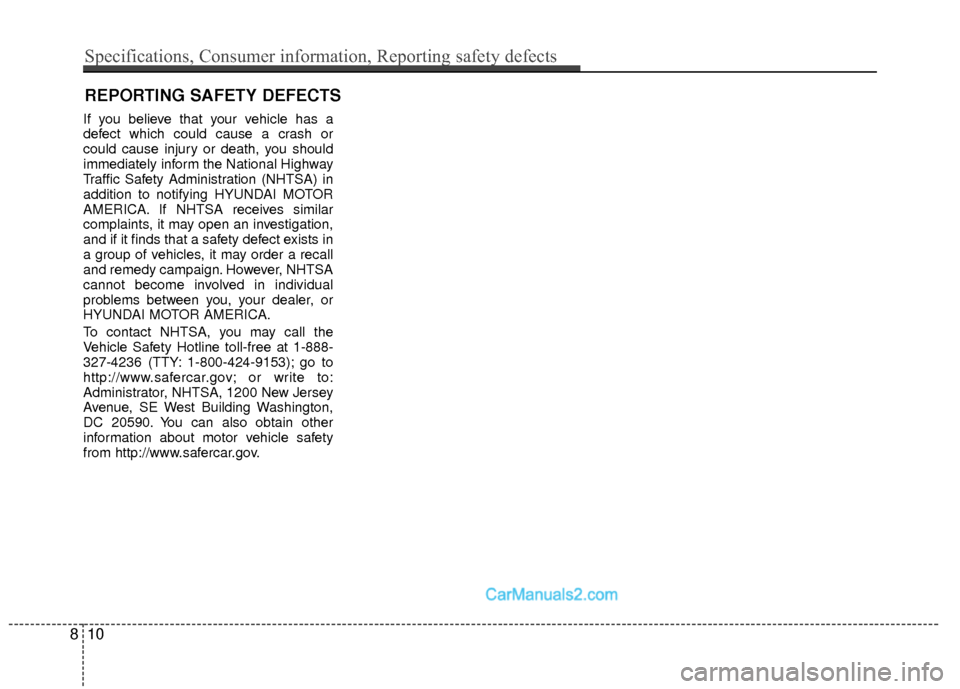

REPORTING SAFETY DEFECTS
810
Specifications, Consumer information, Reporting safety defects
