Hyundai Sonata Hybrid 2016 Multimedia Manual
Manufacturer: HYUNDAI, Model Year: 2016, Model line: Sonata Hybrid, Model: Hyundai Sonata Hybrid 2016Pages: 308, PDF Size: 15.72 MB
Page 181 of 308
Setup
Navigation Settings Sound Settings
Display Settings Phone Settings
Blue Link Settings
Voice Recognition Settings Clock Settings Wi-Fi Settings
Language Settings Keyboard Settings
Do
wnloaded Apps Settings Screen Saver Settings System Inf
o
part.9 Setup
09
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 182 of 308
9-2 I Setup
Setup
Setup
Setup is the screen to control system set-
tings of the AVN.
To enter the screen, select the
SETUP
key of the device or the
Setup button in
All Menus.
Features Description
NavigationProvides Normal/Screen/
Guidance/Route/Safety
Setting.
SoundProvides the sound control
options for Position, Bass,
Mid, Treble, Volume, Ratio
and Advanced settings.
Display
Provides the Adjust/Mode
settings.
PhoneProvides the Bluetooth
Connection/Auto Connection
Priority/Ringtone/System
Bluetooth Information settings.
Blue Link
Provides the Activation/
Modem Information settings.
Voice RecognitionProvides the Guidance and
Priority settings.
Features
Description
ClockProvides the Time and
View settings.
Wi-FiProvides the Wi-Fi On and
Network Connection set-
tings.
Language
Provides the Change
Language settings.
Keyboard
Provides settings to switch
keyboard layouts.
Downloaded
Apps Provides the removal set-
tings for downloaded and
installed apps.
Screen
Saver Provides the Clock/None
settings.
System Info
Provides software and stor-
age space information.
Display OffProvides the Display Off
(touch activation) function.
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E

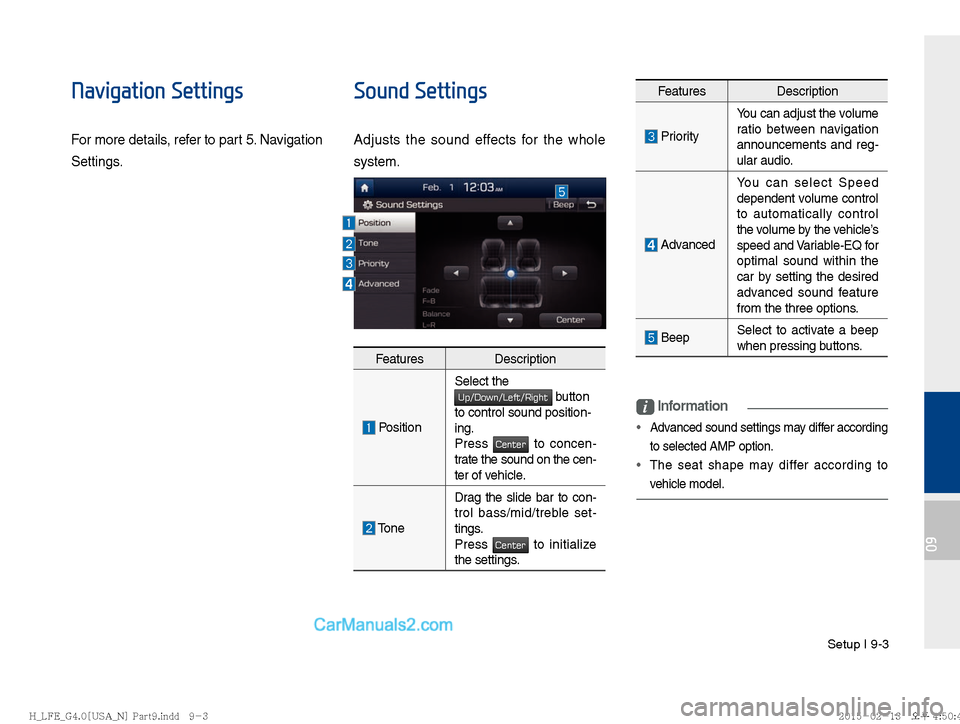

Page 183 of 308
Setup I 9-3
09
Navigation Settings
For more details, refer to part 5. Navigation
Settings.
Sound Settings
Adjusts the sound effects for the whole
system.
i Information
• Advanced sound settings may differ according
to selected AMP option.
The seat shape may differ according to
v
ehicle model.
Features Description
PositionSelect the
Up/Down/Left/Right button
to control sound position-
ing.
Press
Center to concen-
trate the sound on the cen-
ter of v ehicle.
Tone Drag the slide bar to con-
trol bass/mid/treble set-
tings.
Press
Center to initialize
the settings.
Features Description
PriorityYou can adjust the volume
ratio between navigation
announcements and reg-
ular audio.
AdvancedYou can select Speed
dependent v
olume control
to automatically control
the volume by the vehicle’s
speed and Variable-EQ for
optimal sound within the
car by setting the desired
advanced sound feature
from the three options.
Beep Select to activate a beep
when pressing buttons.
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 184 of 308
9-4 I Setup
Display Settings
Controls the display brightness and image
rate for the whole system.
Phone Settings
Changes Bluetooth phone settings.
Phone Settings
!Ÿ
Select the SETUP key in the head unit
▶ Select
Phone.
!Ÿ
Home screen ▶
Select
All Menus ▶
Select
Setup ▶
Select Phone.
Bluetooth Connection Settings
Select the SETUP key in the head unit ▶
Select
Phone ▶
Select Bluetooth Connection
Features Description
AdjustDrag the slide bar to con-
trol
the Brightness/Hue/
Contrast/Saturation set-
tings.
Press
Center to initialize
the settings.
Mode You can select Daylight/
Night/Automatic options
for the display bright-
ness
according to mode
changes.
Display Off Provides the Display Off
(touch activation) function.
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 185 of 308
Setup I 9-5
09
FeaturesDescription
Paired
Device List Displays the paired
Bluetooth device list.
When selecting from
the list, the device is
connected or discon-
nected.
Bluetooth
Audio
Connection
Status An icon appears when
you make a Bluetooth
Audio connection.
Bluetooth
Hands-Free
Connection
Status An icon appears when
you make a Bluetooth
Hands-free connec-
tion.
Add New
Register a new
Bluetooth device.
Delete
Devices Select and delete a
paired device.
Delete All
Delete all paired
devices.
HelpSwitches to the
Bluetooth Connection
Help screen.
i Information
Up to 5 Bluetooth devices can be paired.
Only one Bluetooth device can be connected
at a time
.
During a Bluetooth device connection, another
de
vice cannot be paired.
When you delete a paired device, the Call
Histor
y and Contacts stored in the head unit
are also completely deleted.
Bluetooth Hands-free and Bluetooth Audio
functions are suppor
ted.
Hands-free and audio-supported devices,
such as a Bluetooth smar
tphone or audio, will
function normally.
When a Bluetooth device is connected, if
the Bluetooth connection is une
xpectedly
disconnected, due to being out of
communication range, the device powering
off, or a Bluetooth communication error, the
Bluetooth device automatically searches for
and connects to nearby Bluetooth devices.
If the system is not stable, due to a vehicle-
Bluetooth de
vice communication error, restore
the Default Factory Settings.
For Default Factory Settings, the bluetooth
settings are reset to f
actory settings
Select the
SETUP key Ü
Select Phone
Ü Select
Bluetooth System Info Ü
Select
Default Factory Settings
Auto Connection Priority
Select the SETUP key in the head unit Ü
Select
Phone Ü
Select Auto Connection Priority .
When the engine is running, the selected
Bluetooth device is automatically con-
nected. If you fail to connect the selected
device, the previously-connected device is
automatically connected, and if it also fails,
then it tries to connect all paired devices
sequentially.
Depending on auto connection priority,
connection to a device may take time.
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 186 of 308
9-6 I Setup
Phone Ringtone
Select the SETUP key in the head unit Ü
Select
Phone Ü
Select Ringtone .
Bluetooth System Information
Select the SETUP key in the head unit Ü
Select
Phone Ü
Select Bluetooth System Info .
Features Description
Device
Name You can change the
Bluetooth device name of
the vehicle.
Passkey
You can change the pass-
key used for Bluetooth
device authentication. the
initial passkey is 0000.
Default
Factory
Settings You can delete all paired
devices and restore the
Default Bluetooth Settings.
For Default Factory
Settings, all paired devices
are deleted, and the
system is reset to factory
settings.
Features
Description
Use
Mobile
Ringtone The configured mobile ring-
tone comes out through
the vehicle speakers when
you receive a call. When a
mobile device doesn’t sup-
p
ort it, the basic ringtone
of the vehicle will be used.
Use System
Ringtone The system ringtone will
be used.
Settings
Changes the ringtone.
Ringtone
Type Selects a ringtone by
name.
Preview
Previews the available
ringtones.
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 187 of 308
Setup I 9-7
09
i Information
The device name above is an example. Check
the actual inf
ormation on the product.Blue Link Settings
!Ÿ
Select the SETUP key Ü
Select Blue Link
!Ÿ
Select the BLUELINK key ▶
Select
Blue Link Settings
Features Description
Service
Activation Reactivates the Blue
Link.
Modem
Information Shows MEID modem
information.
Service Activation
Select the BLUELINK key
Ü
Select
Blue Link Settings Ü
Select Service Activation
Activation may take up to five minutes.
Do not turn the engine off while activation
is in progress.
If activation fails, contact the Blue Link
Center at (855) 2-BlueLink.
During service activation, the hard keys in
the head unit do not function.
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 188 of 308
9-8 I Setup
Modem Information
Select the BLUELINK key Ü
Select
Blue Link Settings Ü
Select Modem Information
Features Description
MEIDIdentification number of
the Blue Link terminal
Voice Recognition Settings
Configure how to make a call with
Voice Recognition Guidance and Voice
Recognition.
Features
Description
Guidance Select an option from
Beginner, Normal, or
Expert.
Clock Settings
Provides the time and date settings.
Features
Description
Time
Settings Provides the GPS Time,
Date/Time Settings,
Daylight Savings Time,
and 24 Hours options.
View
Settings Provides options to
select a digital or ana-
log clock widget for the
screen saver or home
screen, and to select the
Display Date settings.
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 189 of 308
Setup I 9-9
09
Wi-Fi Settings
You can share a digital-device network
with the vehicle device through Wi-Fi.
Wi-Fi Settings Screen
FeaturesDescription
Wi-Fi
Turn on/off Wi-Fi.
MAC
Address Displays the MAC address.
Refresh
Searches available net-
works near the vehicle.
Network
Name Displays available network
AP (Access Point) names.
Add Wi-Fi
Network Enter the network ID/
password to connect to a
hidden network AP (Access
Point).
How to Connect to a Network
1.
In the Wi-Fi settings of a digital device,
activate Internet sharing (hot spot).
2. In the vehicle network list, select the
desired device to connect to. Enter the
password to connect, if any.
Language Settings
You can configure the displayed system
language.
When the language is changed, the
system language is automatically
changed.
Unique data including MP3 file name is
not changed and some languages don’t
support voice recognition.
) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' & @ ( < 6 4 " @ / > 1 B S U J O E E
Page 190 of 308
9-10 I Setup
Keyboard Settings
You can configure the keyboard layout for
each language.
You can configure ABCD or QWERTY
keyboards for the system.
i Information
Con gured keyboard layouts are applied to all
input modes.
Downloaded Apps Settings
Displays the applications that were down-
loaded through the Download Center. View
the memory status of installed applications
or delete them.
You can delete downloaded applications in
the Download Center. To recover a deleted
application, you can re-install the applica-
tion with the re-download function in the
Download Center.
Screen Saver Settings
Configures a screen to be displayed when
the system is powered off.
