check engine Hyundai Sonata Hybrid 2016 Multimedia Manual

Starting the System for the First Time I 1-9
01
Starting the System for the
First Time
Turning the System On/Off
Press the engine start button or set the
ignition key to On or ACC. Each time you
turn on the system, a boot logo and safety
warning will appear.
Pressing the power key on the head unit
will display the user agreement screen. To
change the system language between
English, French, Spanish and Korean
press the Change
Language button.
NOTICE
Cannot operate the system while it is booting
up
. It may take some time for all of features of
the system, particularly the voice recognition
system, to be ready for use.
Pressing and holding the power key on the
head unit will turn off the system.
You can change Screen Saver Settings in
Setup to display a clock or another chosen
image on the Screen Saver.
i Information
If you turn off the system during a phone call
using the Hands-free f
eature, then the call will
automatically switch to your mobile phone.
NOTICE
Check the volume when turning on the
system.
Before turning on the system, adjust
the volume to a reasonable level.
System Reset
The System Reset function restores the
system when it is not operating correctly.
Press and hold the RESET
k
ey for a sec-
ond or longer. (It is recommended that you
press the RESET
key using a tool, such as
a pin or a clip.)
NOTICE
Resetting the system restores all existing
settings and configur
ations (e.g. volume,
display, etc.) back to their factory defaults.
)@-'&@(<64"@/>
1BSUJOEE


 )@-'&@(<64"@/>
1BSUJOEE




4-6 I Blue Link® Control
Driving Info
Select the BLUELINK key in the head unit Ü

Select
Driving Info
This service can be used while your car is
stopped and the engine is on.
Select
Update button to receive up-to-
date driving information.
Send to Car with Google
Select the BLUELINK key in the head unit Ü

Select
Send to Car with Google
You can check information about places
received via Blue Link Voice Local Search.
To use Send to Car with Google, first you
need to sign up to the Blue Link.
Name Description
Place listDisplays the list of
received places
Delete ItemsDeletes selected items
from the place list.
Delete AllDeletes all items from
the place list.
DialDisplays the phone
number of a selected
place. Press the num-
ber to make a call.
View MapDisplays the address of
a selected place. Press
the address to view
map
Previous/
Next Displays the previous or
next place information.
)@-'&@(<64"@/>
1BSUJOEE


 )@-'&@(<64"@/>
1BSUJOEE





6-2 I Voice Recognition
What is Voice Recognition?
Voice recognition technology runs the sys-
tem as ordered by recognizing your voice
command for operation of the multimedia
while y

ou are driving the car.
Regretfully, not all possible voice com-
mands are recognized by the system due
to technological limitations. To make up for
these limitations, the system displays the
voice commands that are available for you
to use.
There are errors in communication between
people. Likewise, voice recognition some-
times misunderstands your voice command
in some circumstances. If this happens,
either check the screen for the available
options and say the command again, or
manually select and press the button for the
corresponding command on the screen.
Precautions Required
for Successful Voice
Recognition
1. Voice recognition supports only the
commands that are displayed on the
screen and written in the User's Guide.
2. To ensure the correct recognition and
execution of your command, say your
command when you hear the beep after
a voice prompt.
3. Voice recognition automatically ends if:
1) A call is incoming or outgoing
2) A media (USB or iPod, etc.) is con-
nected or disconnected
3) The front or rear view camera is
operated (optional)
4) The car engine starts or stops
5) A system key, such as
RADIO key
or
MEDIA key is selected
6) An emergency occurs, for example
re-searching for the route after the
navigation route has been lost 4.
The microphone that recognizes your
voice is located over the head part in
the driver's seat. To make your com-
mands better understood, keep your
body straight in the driver's seat when
speaking the command.
5. Speaking naturally and clearly will
ensure better recognition of your voice
commands.
6. In the following cases voice recognition
will be affected by ambient noise.
1) The sound of the wind if any win-
dow or the sun roof is open.
2) High speed blower from the air
v

ents. Set climate control to blow
lower than level 3.
3)


Vibrations from passing through a
tunnel.
4) Vibrations from driving on an
uneven road.
5) Storms and heavy rain.
Voice Recognition
)@-'&@(<64"@/>
1BSUJOEE


 )@-'&@(<64"@/>
1BSUJOEE

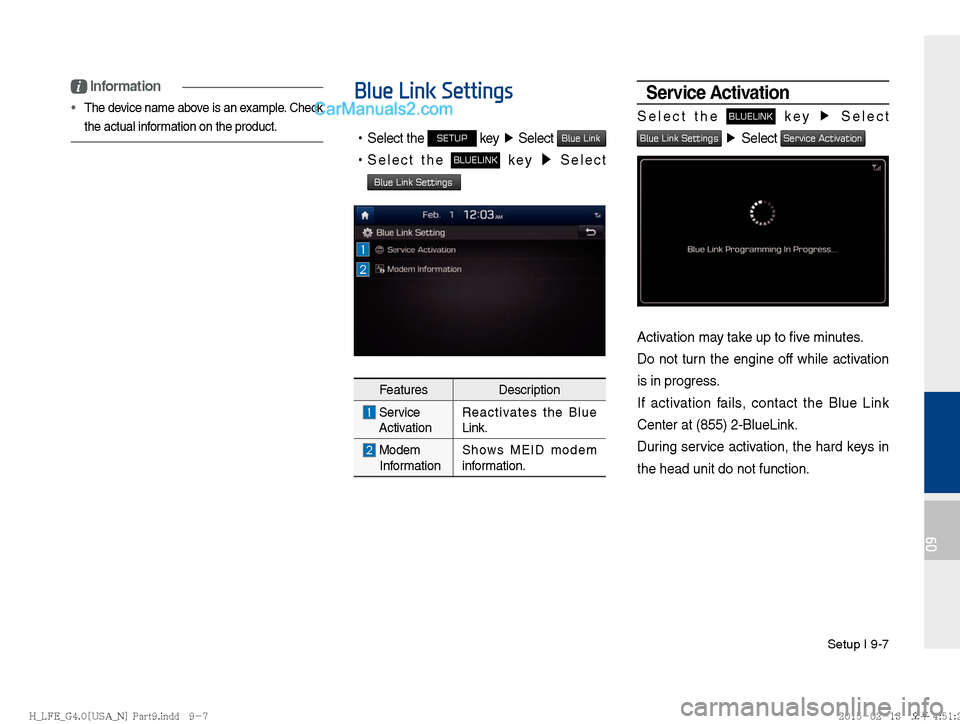

Setup I 9-7
09
i Information

The device name above is an example. Check
the actual inf
ormation on the product.Blue Link Settings

!Ÿ
Select the SETUP key Ü
Select Blue Link

!Ÿ
Select the BLUELINK key ▶
Select
Blue Link Settings
Features Description
Service
Activation Reactivates the Blue
Link.
Modem
Information Shows MEID modem
information.
Service Activation
Select the BLUELINK key
Ü

Select
Blue Link Settings Ü

Select Service Activation
Activation may take up to five minutes.
Do not turn the engine off while activation
is in progress.
If activation fails, contact the Blue Link
Center at (855) 2-BlueLink.
During service activation, the hard keys in
the head unit do not function.
)@-'&@(<64"@/>
1BSUJOEE


 )@-'&@(<64"@/>
1BSUJOEE
