low beam Hyundai Sonata Hybrid 2016 Owner's Manual

3-73
Convenient features of your vehicle
3
Shift Indicator Pop-up (if equipped)
The current shift lever location is dis-
played for 2 seconds when shifting
into other shift lever locations.
Turn Signal Indicator
This indicator blinks:
When you turn the turn signal lighton.
If any of the following occurs, there
may be a malfunction with the turn
signal system. In this case, have the
vehicle inspected by an authorized
HYUNDAI dealer. - The indicator does not blink butilluminates.
- The indicator blinks more rapidly.
- The indicator does not illuminate at all.
High Beam Indicator
This indicator illuminates:
When the headlights are on and in the high beam position
When the turn signal lever is in the Flash-to-Pass position.
Light ON Indicator
This indicator illuminates:
When the tail lights and headlightsare on.
OLF044421/OLF044420
■ Type A ■Type B

3-109
Convenient features of your vehicle
3

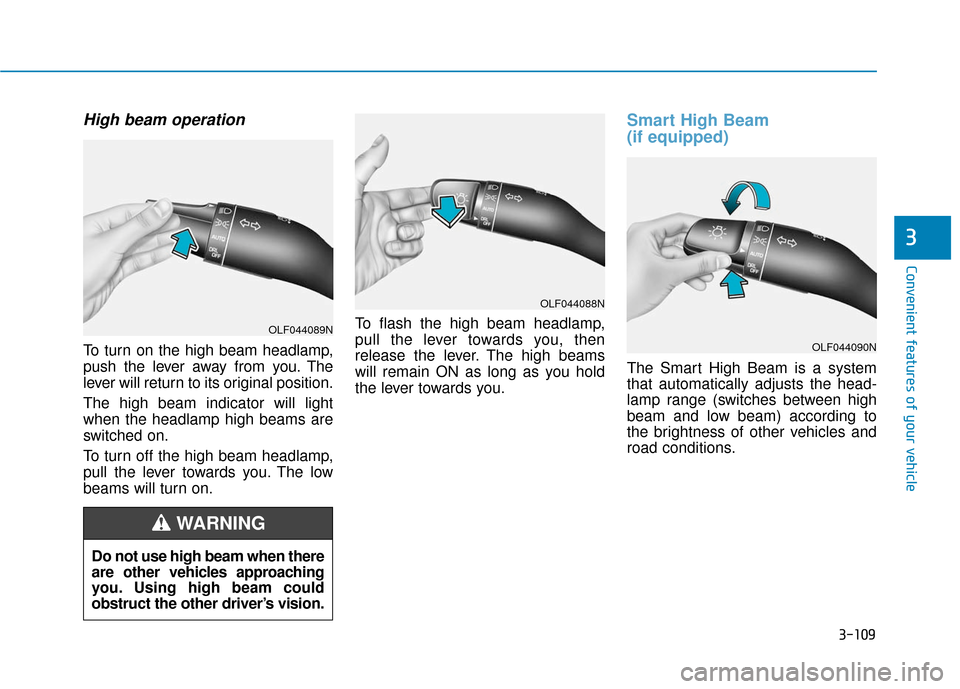

High beam operation
To turn on the high beam headlamp,
push the lever away from you. The
lever will return to its original position.
The high beam indicator will light
when the headlamp high beams are
switched on.
To turn off the high beam headlamp,
pull the lever towards you. The low
beams will turn on.To flash the high beam headlamp,
pull the lever towards you, then
release the lever. The high beams
will remain ON as long as you hold
the lever towards you.
Smart High Beam
(if equipped)
The Smart High Beam is a system
that automatically adjusts the head-
lamp range (switches between high
beam and low beam) according to
the brightness of other vehicles and
road conditions.
OLF044088N
OLF044090N
Do not use high beam when there
are other vehicles approaching
you. Using high beam could
obstruct the other driver’s vision.
WARNING
OLF044089N

3-110
Convenient features of your vehicle

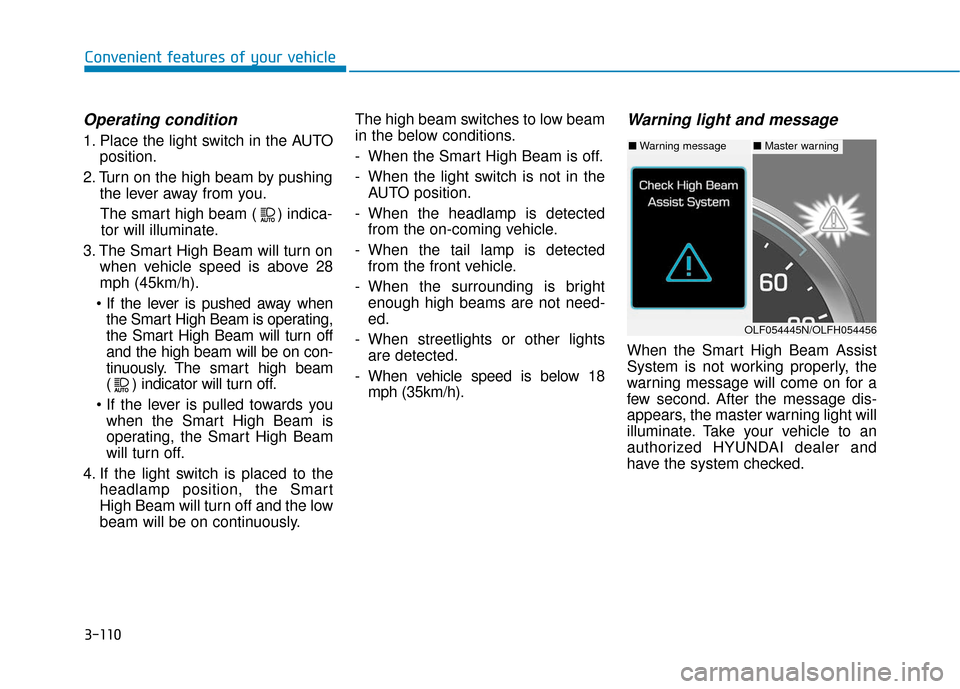

Operating condition
1. Place the light switch in the AUTOposition.
2. Turn on the high beam by pushing the lever away from you.
The smart high beam ( ) indica- tor will illuminate.
3. The Smart High Beam will turn on when vehicle speed is above 28
mph (45km/h).
the Smart High Beam is operating,
the Smart High Beam will turn off
and the high beam will be on con-
tinuously. The smarthigh beam
( ) indicator will turn off.
when the Smart High Beam is
operating, the Smart High Beam
will turn off.
4. If the light switch is placed to the headlamp position, the Smart
High Beam will turn off and the low
beam will be on continuously. The high beam switches to low beam
in the below conditions.
- When the Smart High Beam is off.
- When the light switch is not in the
AUTO position.
- When the headlamp is detected from the on-coming vehicle.
- When the tail lamp is detected from the front vehicle.
- When the surrounding is bright enough high beams are not need-
ed.
- When streetlights or other lights are detected.
- When vehicle speed is below 18 mph (35km/h).
Warning light and message
When the Smart High Beam Assist
System is not working properly, the
warning message will come on for a
few second. After the message dis-
appears, the master warning light will
illuminate. Take your vehicle to an
authorized HYUNDAI dealer and
have the system checked.
■ Warning message■ Master warning
OLF054445N/OLFH054456

3-112
Convenient features of your vehicle
Turn signals and lane changesignals
To signal a turn, push down on the
lever for a left turn or up for a right
turn in position (A). To signal a lane
change, move the turn signal lever
slightly and hold it in position (B). The
lever will return to the OFF position
when released or when the turn is
completed.
If an indicator stays on and does not
flash or if it flashes abnormally, one of
the turn signal bulbs may be burned
out and will require replacement.
Onetouch turn signal function
To activate an One Touch Turn Signal
function, move the turn signal lever
slightly and then release it. The lane
change signals will blink 3, 5 or 7
times.
You can activate or deactivate the
One Touch Turn Signal function or
choose the number of blinking (3, 5,
or 7) from the User Settings Mode
(Light) on the LCD display.
For more information, refer to the
"LCD Display" section in this
chapter.
OLF044091N
Do not place any accessories,
stickers or tint the windshield.
Have the windshield glass
replaced from an authorized
dealer.
Do not remove or impact relat-
ed parts of the Smart High
Beam system.
Be careful that water doesn’t
get into the Smart High Beam
unit.
Do not place objects on the
dashboard that reflects light
such as mirrors, white paper,
etc. The system may malfunc-
tion if sunlight is reflected.
At times, the Smart High
Beam system may not work
properly, always check the
road conditions for your safe-
ty. When the system does not
operate normally, manually
change between the high
beam and low beam.
WARNING

5-65
Driving your vehicle
5

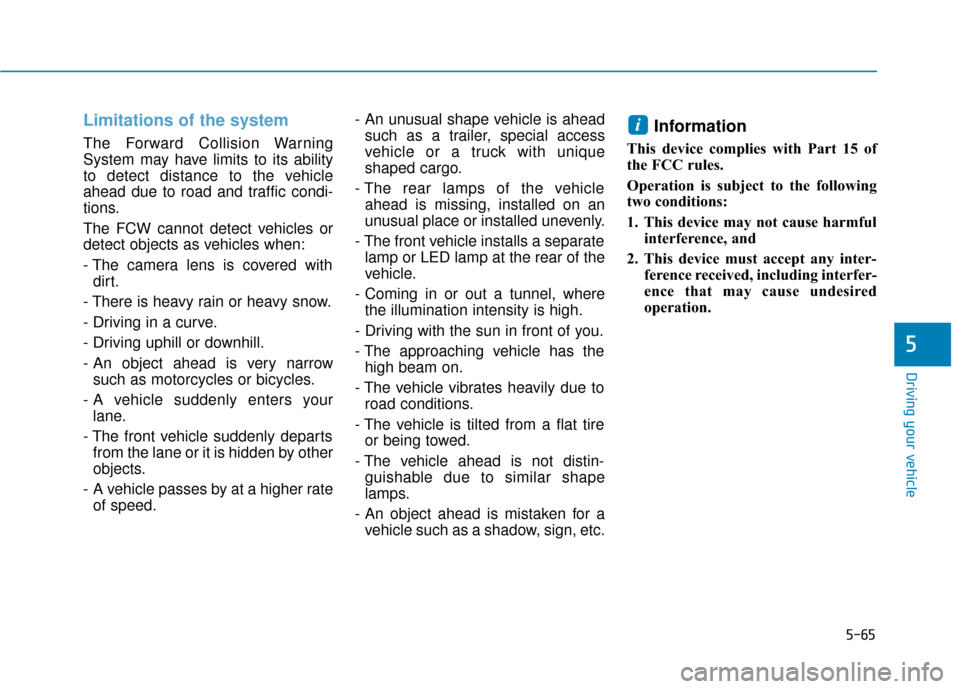

Limitations of the system
The Forward Collision Warning
System may have limits to its ability
to detect distance to the vehicle
ahead due to road and traffic condi-
tions.
The FCW cannot detect vehicles or
detect objects as vehicles when:
- The camera lens is covered withdirt.
- There is heavy rain or heavy snow.
- Driving in a curve.
- Driving uphill or downhill.
- An object ahead is very narrow such as motorcycles or bicycles.
- A vehicle suddenly enters your lane.
- The front vehicle suddenly departs from the lane or it is hidden by other
objects.
- A vehicle passes by at a higher rate of speed. - An unusual shape vehicle is ahead
such as a trailer, special access
vehicle or a truck with unique
shaped cargo.
- The rear lamps of the vehicle ahead is missing, installed on an
unusual place or installed unevenly.
- The front vehicle installs a separate lamp or LED lamp at the rear of the
vehicle.
- Coming in or out a tunnel, where the illumination intensity is high.
- Driving with the sun in front of you.
- The approaching vehicle has the high beam on.
- The vehicle vibrates heavily due to road conditions.
- The vehicle is tilted from a flat tire or being towed.
- The vehicle ahead is not distin- guishable due to similar shape
lamps.
- An object ahead is mistaken for a vehicle such as a shadow, sign, etc.
Information
This device complies with Part 15 of
the FCC rules.
Operation is subject to the following
two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any inter- ference received, including interfer-
ence that may cause undesired
operation.
i

7-74
Maintenance

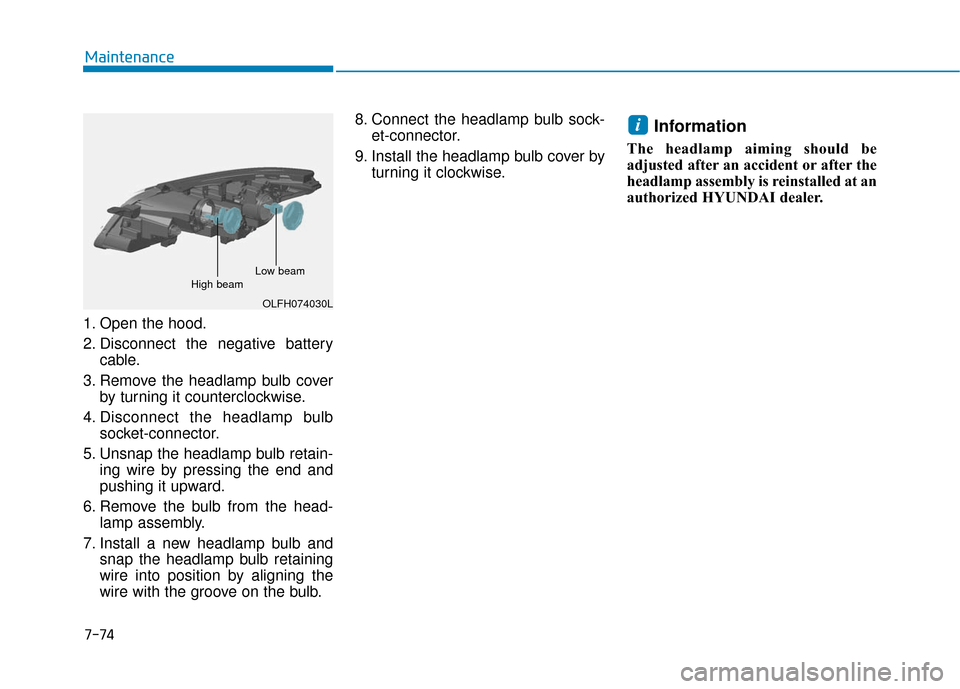

1. Open the hood.
2. Disconnect the negative battery cable.
3. Remove the headlamp bulb cover by turning it counterclockwise.
4. Disconnect the headlamp bulb socket-connector.
5. Unsnap the headlamp bulb retain- ing wire by pressing the end and
pushing it upward.
6. Remove the bulb from the head- lamp assembly.
7. Install a new headlamp bulb and snap the headlamp bulb retaining
wire into position by aligning the
wire with the groove on the bulb. 8. Connect the headlamp bulb sock-
et-connector.
9. Install the headlamp bulb cover by turning it clockwise.
Information
The headlamp aiming should be
adjusted after an accident or after the
headlamp assembly is reinstalled at an
authorized HYUNDAI dealer.
i
OLFH074030L
High beam Low beam

7-76
Maintenance
Daytime running lamp/
Position lamp
If the LED lamp does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
Type B
(1) Headlamp (Low/High)
(2) Side marker
(3) Turn signal lamp
(4) Daytime running lamp/ Position lamp
Headlamp (HID type)
Information
If your vehicle is equipped with High
Intensity Discharge (HID) headlamps,
these headlamps contain mercury. So
if you need to have your vehicle dis-
posed, you should remove the HID
Headlamps before disposal. The
removed HID headlamps should be
recycled, re-used or disposed as haz-
ardous waste.
If the light bulb does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
i
OLFH074018L
HID Headlamp low beam
Do not attempt to replace or
inspect the low beam (XENON
bulb) due to electric shock dan-
ger. If the low beam (XENON
bulb) is not working, have your
vehicle checked by an author-
ized HYUNDAI Dealer.
WARNING

I-9
Rocking the vehicle ........................................................5-78
Room lamp ....................................................................3-116
Rotation (Tire) ................................................................7-47
Safety messages ................................................................F-6
Scheduled maintenance service ........................................7-8
Seat belts ........................................................................\
.2-24Additional seat belt safety precautions ......................2-32
Care of seat belts ........................................................2-35
Height adjustment ......................................................2-26
Pre-tensioner seat belt ................................................2-29
Rear center seat belt ...................................................2-32
Seat belt restraint system............................................2-26
Seat belt safety precautions ........................................2-24
Seat belt warning light ...............................................2-25
Seat warmers ...................................................................2-20
Seatback pockets .............................................................2-11
Seats ........................................................................\
..........2-4 Air ventilation seats....................................................2-22
Armrest .......................................................................2\
-14
Folding rear seats .......................................................2-12
Front seats ....................................................................2-6
Head restraints ............................................................2-16
Rear seats....................................................................2-12\
Safety precautions ........................................................2-5
Seat warmers ..............................................................2-20
Seatback pockets ........................................................2-11 Shift lock system.............................................................5-16
Shift-lock release ............................................................5-16
Side air bags....................................................................2-50\
Side curtain ...................................................................3-153\
Smart cruise control system............................................5-48
Smart high beam ...........................................................3-109
Smart key ........................................................................\
..3-3
Smart trunk .....................................................................3-5\
0
Smooth cornering............................................................5-79
Snow tires .......................................................................5\
-82
Sonata HEV energy flow ...............................................H-11
Special driving conditions ..............................................5-78
Driving at night ..........................................................5-79
Driving in flooded areas .............................................5-80
Driving in the rain ......................................................5-80
Hazardous driving conditions ....................................5-78
Highway driving.........................................................5-81
Rocking the vehicle ....................................................5-78
Smooth cornering .......................................................5-79
Speedometer....................................................................3-59\
Sports mode ....................................................................5-15\
Starting difficulties, see engine will not start ...................6-3
Starting the hybrid vehicle (Smart key).........................H-15
Steering wheel.................................................................3-16 Electric power steering (EPS) ....................................3-16
Heated steering wheel ................................................3-17
Horn ........................................................................\
....3-18
Telescope steering ......................................................3-17
Tilt steering.................................................................3-17
I
Index
S
