Foreword
1-26

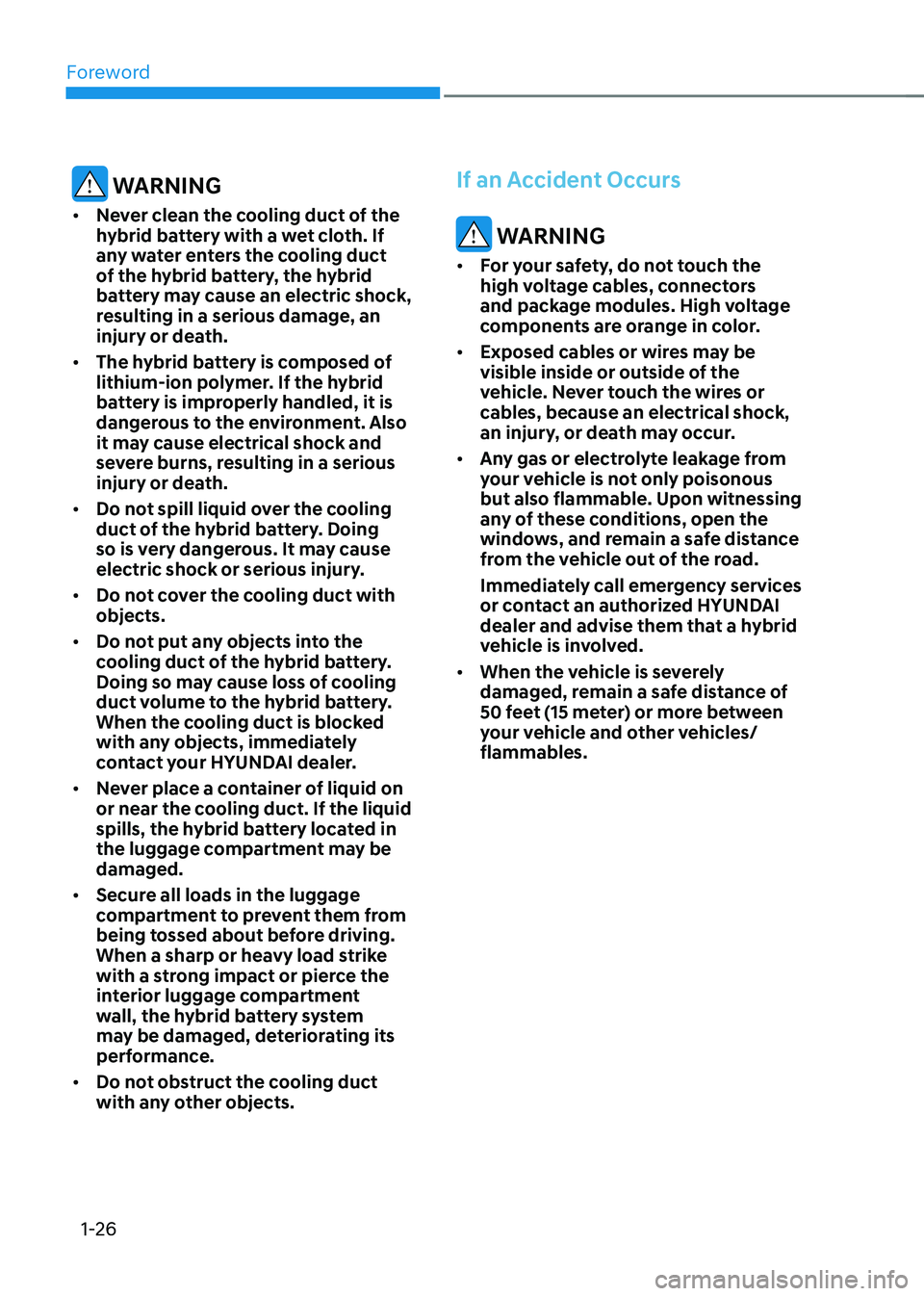

WARNING
• Never clean the cooling duct of the
hybrid battery with a wet cloth. If
any water enters the cooling duct
of the hybrid battery, the hybrid
battery may cause an electric shock,
resulting in a serious damage, an
injury or death.
• The hybrid battery is composed of
lithium-ion polymer. If the hybrid
battery is improperly handled, it is
dangerous to the environment. Also
it may cause electrical shock and
severe burns, resulting in a serious
injury or death.
• Do not spill liquid over the cooling
duct of the hybrid battery. Doing
so is very dangerous. It may cause
electric shock or serious injury.
• Do not cover the cooling duct with
objects.
• Do not put any objects into the
cooling duct of the hybrid battery.
Doing so may cause loss of cooling
duct volume to the hybrid battery.
When the cooling duct is blocked
with any objects, immediately
contact your HYUNDAI dealer.
• Never place a container of liquid on
or near the cooling duct. If the liquid
spills, the hybrid battery located in
the luggage compartment may be
damaged.
• Secure all loads in the luggage
compartment to prevent them from
being tossed about before driving.
When a sharp or heavy load strike
with a strong impact or pierce the
interior luggage compartment
wall, the hybrid battery system
may be damaged, deteriorating its
performance.
• Do not obstruct the cooling duct
with any other objects.
If an Accident Occurs
WARNING
• For your safety, do not touch the
high voltage cables, connectors
and package modules. High voltage
components are orange in color.
• Exposed cables or wires may be
visible inside or outside of the
vehicle. Never touch the wires or
cables, because an electrical shock,
an injury, or death may occur.
• Any gas or electrolyte leakage from
your vehicle is not only poisonous
but also flammable. Upon witnessing
any of these conditions, open the
windows, and remain a safe distance
from the vehicle out of the road.
Immediately call emergency services
or contact an authorized HYUNDAI
dealer and advise them that a hybrid
vehicle is involved.
• When the vehicle is severely
damaged, remain a safe distance of
50 feet (15 meter) or more between
your vehicle and other vehicles/
flammables.
Page 32 of 527
01
1-27
WARNING

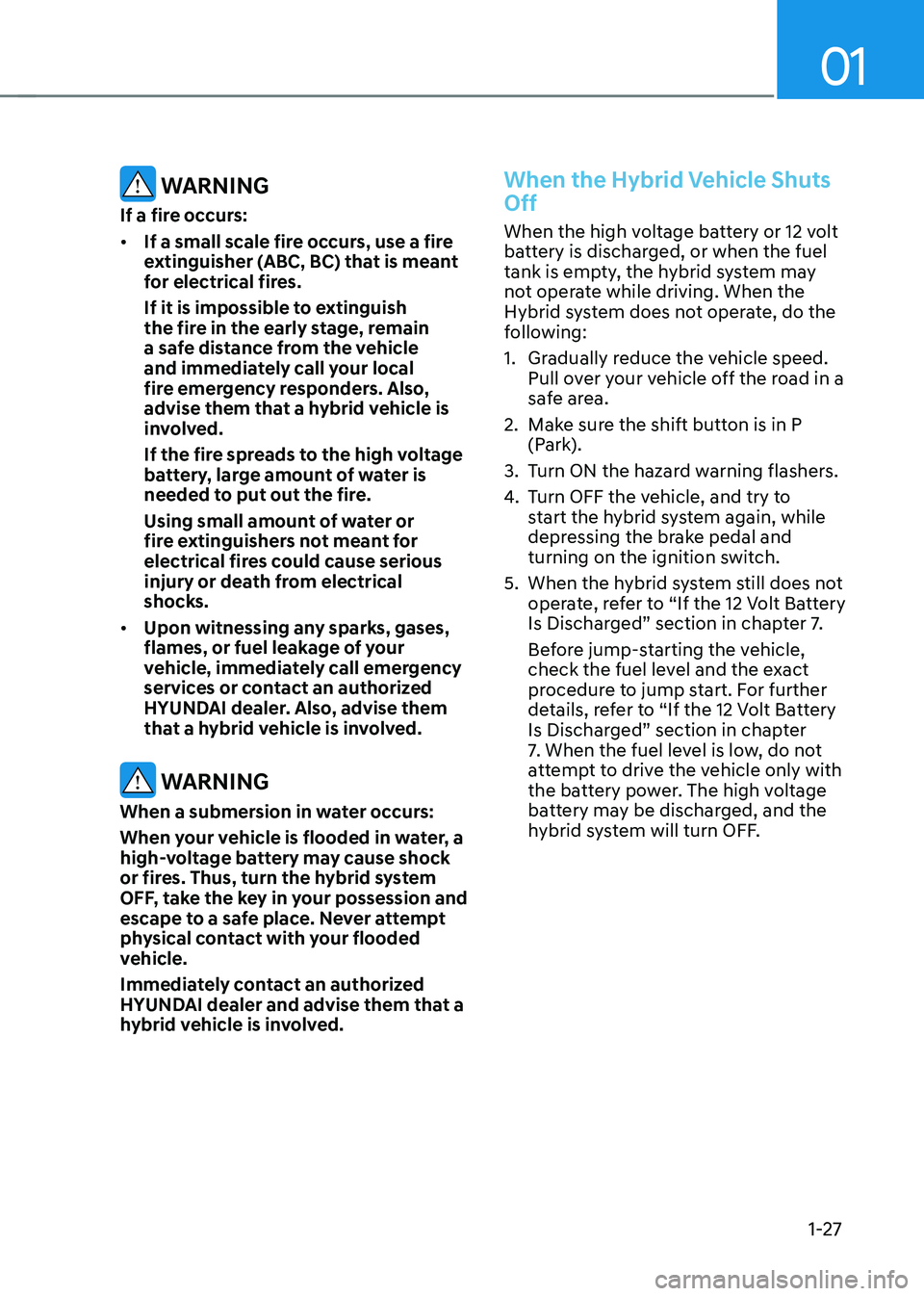

If a fire occurs:
• If a small scale fire occurs, use a fire
extinguisher (ABC, BC) that is meant
for electrical fires.
If it is impossible to extinguish
the fire in the early stage, remain
a safe distance from the vehicle
and immediately call your local
fire emergency responders. Also,
advise them that a hybrid vehicle is
involved.
If the fire spreads to the high voltage
battery, large amount of water is
needed to put out the fire.
Using small amount of water or
fire extinguishers not meant for
electrical fires could cause serious
injury or death from electrical
shocks.
• Upon witnessing any sparks, gases,
flames, or fuel leakage of your
vehicle, immediately call emergency
services or contact an authorized
HYUNDAI dealer. Also, advise them
that a hybrid vehicle is involved.
WARNING
When a submersion in water occurs:
When your vehicle is flooded in water, a
high-voltage battery may cause shock
or fires. Thus, turn the hybrid system
OFF, take the key in your possession and
escape to a safe place. Never attempt
physical contact with your flooded
vehicle.
Immediately contact an authorized
HYUNDAI dealer and advise them that a
hybrid vehicle is involved.
When the Hybrid Vehicle Shuts
Off
When the high voltage battery or 12 volt
battery is discharged, or when the fuel
tank is empty, the hybrid system may
not operate while driving. When the
Hybrid system does not operate, do the
following:
1. Gradually reduce the vehicle speed.
Pull over your vehicle off the road in a
safe area.
2. Make sure the shift button is in P
(Park).
3. Turn ON the hazard warning flashers.
4. Turn OFF the vehicle, and try to
start the hybrid system again, while
depressing the brake pedal and
turning on the ignition switch.
5. When the hybrid system still does not
operate, refer to “If the 12 Volt Battery
Is Discharged” section in chapter 7.
Before jump-starting the vehicle,
check the fuel level and the exact
procedure to jump start. For further
details, refer to “If the 12 Volt Battery
Is Discharged” section in chapter
7. When the fuel level is low, do not
attempt to drive the vehicle only with
the battery power. The high voltage
battery may be discharged, and the
hybrid system will turn OFF.
Page 33 of 527
2

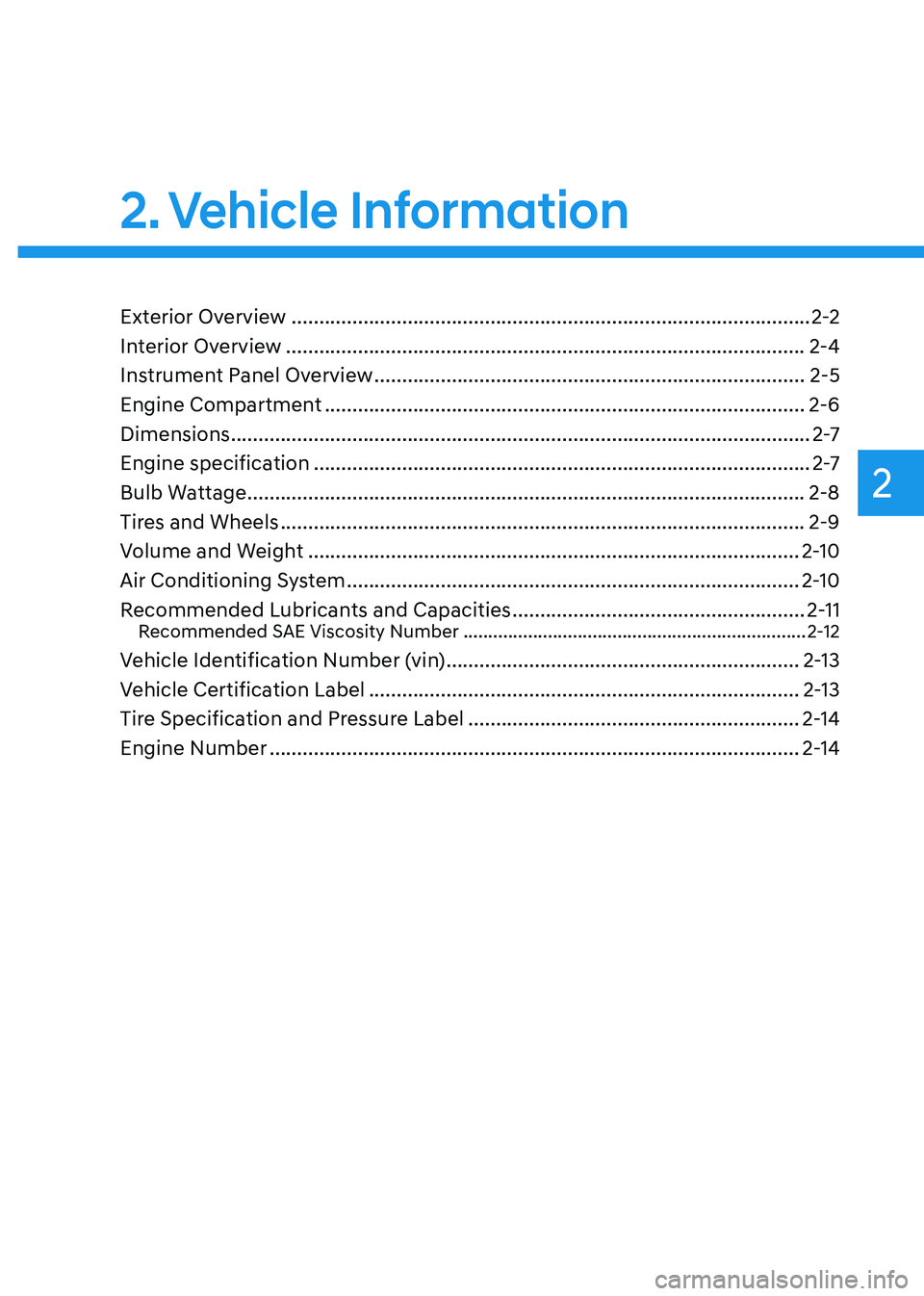

2. Vehicle Information
Vehicle Information
Exterior Overview ........................................................................\
......................2-2
Interior Overview
........................................................................\
......................2-4
Instrument Panel Overview
........................................................................\
......2-5
Engine Compartment
........................................................................\
...............2-6
Dimensions
........................................................................\
.................................2-7
Engine specification
........................................................................\
..................2-7
Bulb Wattage
........................................................................\
.............................2-8
Tires and Wheels
........................................................................\
.......................2-9
Volume and Weight
........................................................................\
.................2-10
Air Conditioning System
........................................................................\
..........2-10
Recommended Lubricants and Capacities
.....................................................2-11Recommended SAE Viscosity Number .....................................................................2-12
Vehicle Identification Number (vin) ................................................................2-13
Vehicle Certification Label
........................................................................\
......2-13
Tire Specification and Pressure Label
............................................................2-14
Engine Number
........................................................................\
........................2-14
Page 34 of 527
2-2
Vehicle Information

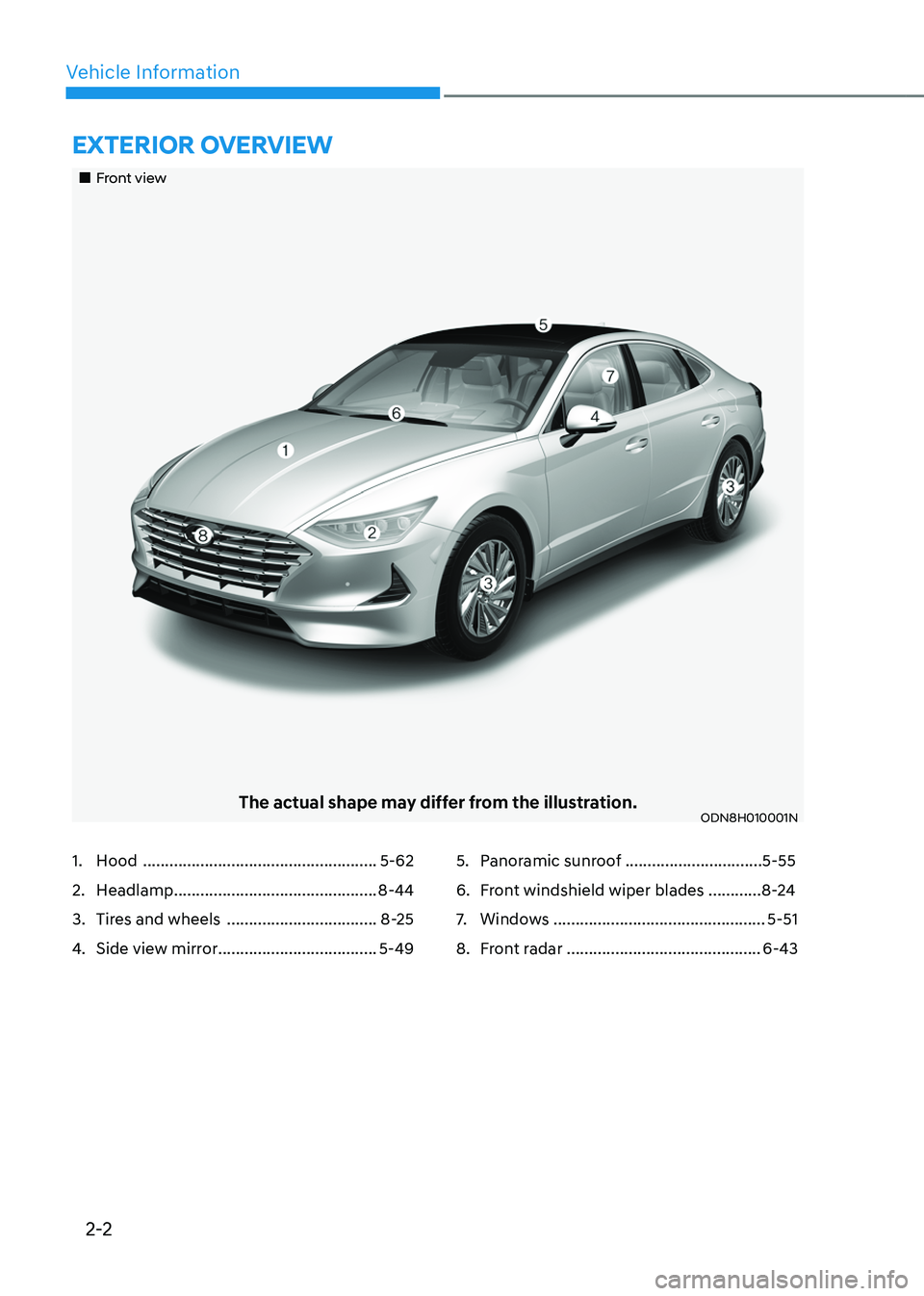

EXTERIOR OVERVIEW
Front view
The actual shape may differ from the illustration.ODN8H010001N
1. Hood .....................................................5-62
2. Headlamp ..............................................8-44
3. Tires and wheels ..................................8-25
4. Side view mirror ....................................5-49
5. Panoramic sunroof ...............................5-55
6. Front windshield wiper blades ............8-24
7. Windows ................................................5-51
8. Front radar ............................................6-43
Page 35 of 527
2-3
02

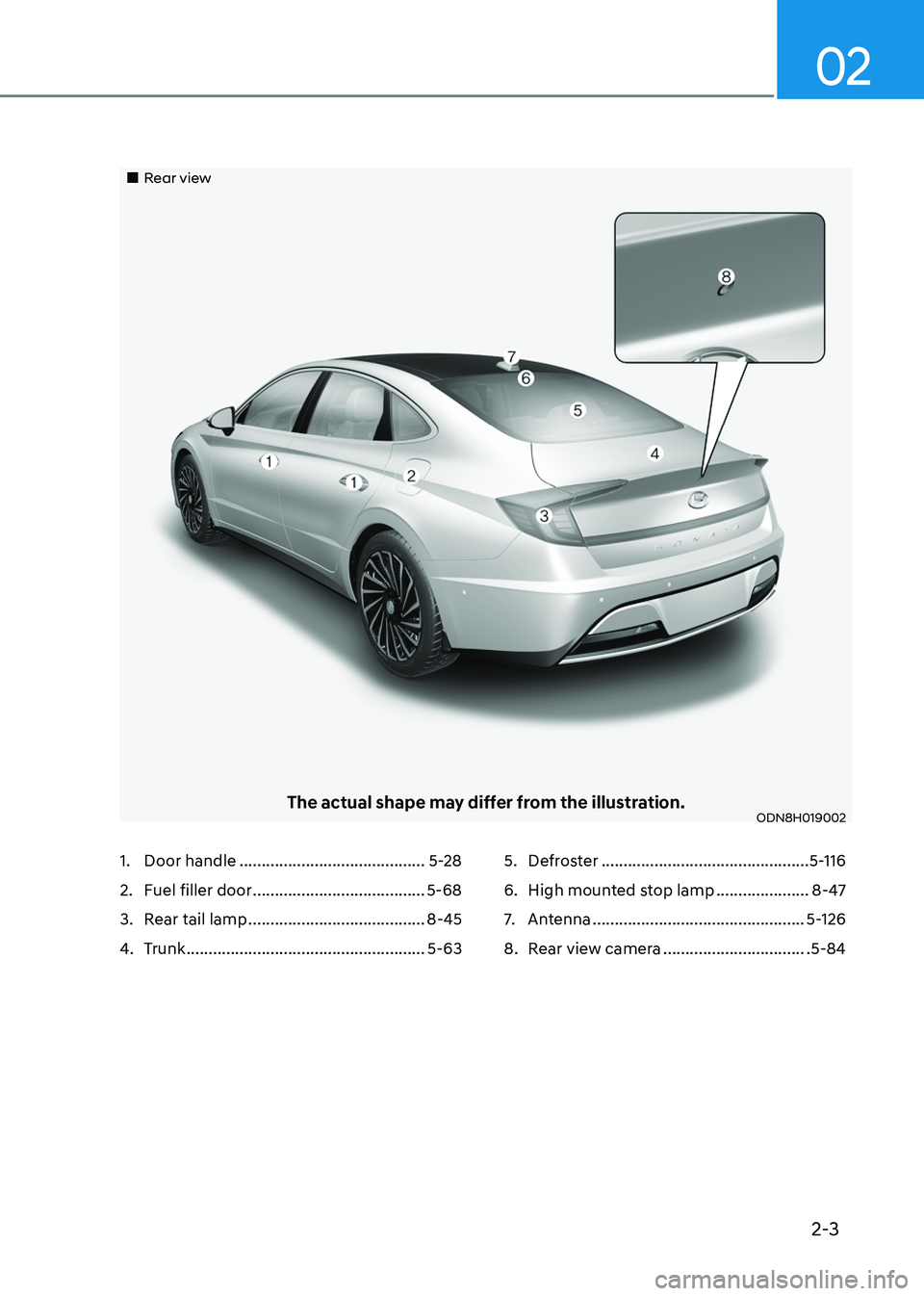

Rear view
The actual shape may differ from the illustration.ODN8H019002
1. Door handle ..........................................5-28
2. Fuel filler door .......................................5-68
3. Rear tail lamp ........................................8-45
4. Trunk ......................................................5-63
5. Defroster ...............................................5-116
6. High mounted stop lamp .....................8-47
7. Antenna ................................................5-126
8. Rear view camera .................................5-84
Page 36 of 527
2-4
Vehicle Information
The actual shape may differ from the illustration.ODN8H010003N
1. Inside door handle ................................5-29
2. Seat position memory system .............5-35
3. Side view mirror control switch ...........5-49
4. Central door lock switch .......................5-30
5. Power window switches .......................5-51
6. Power window lock button ..................5-54
7. Steering wheel tilt/telescopic lever ....5-39
8. Steering wheel ......................................5-38
9. Instrument panel illumination control
switch
......................................................4-5
10. 12V battery reset button ..........................7-4
11. Lane Safety button ...............................6-59
12. Trunk release button ............................5-63
13. ESC OFF button ....................................6-28
14. EPB (Electronic Parking Brake) .............6-19
15. Hood release lever ...............................5-62

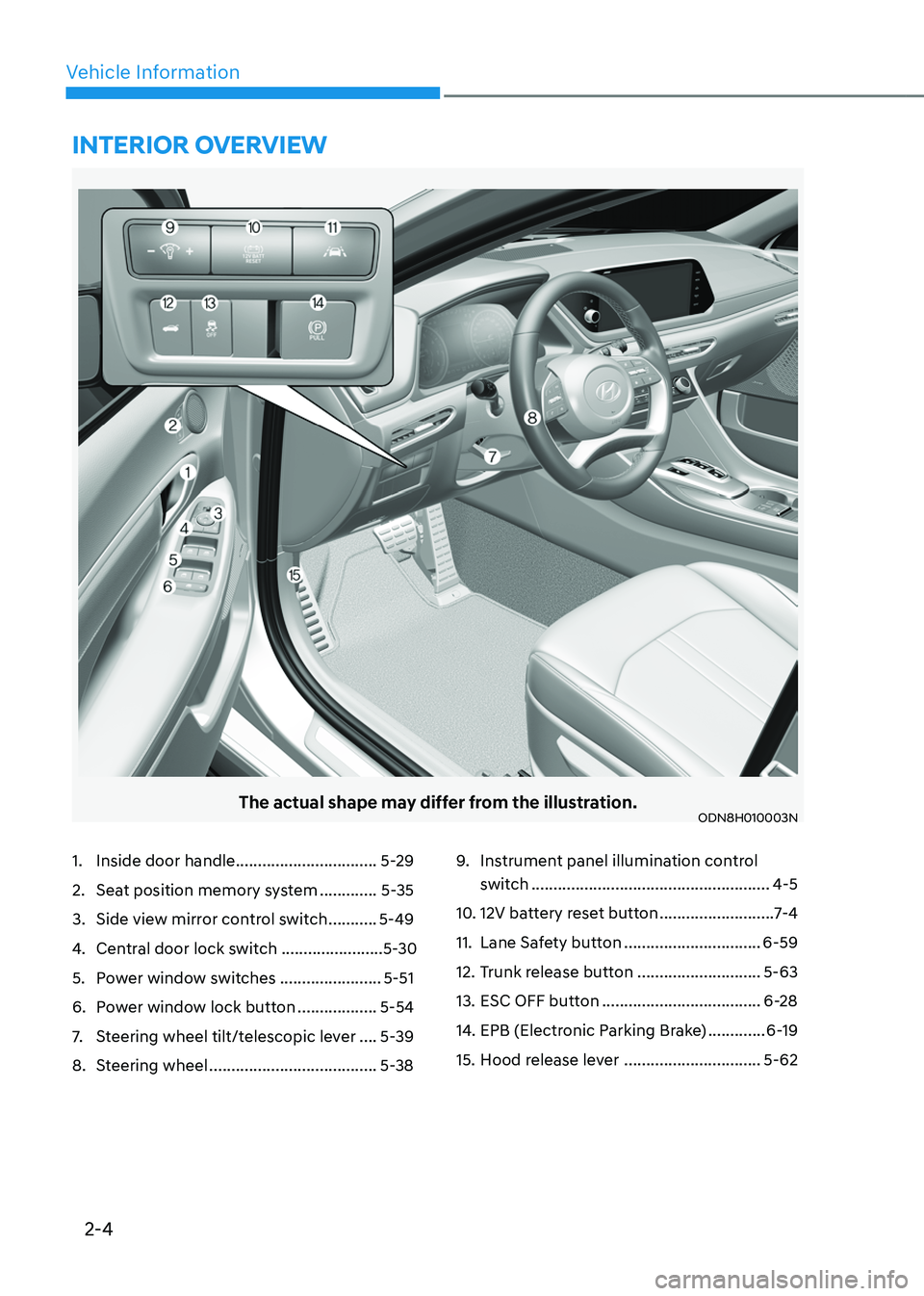

INTERIOR OVERVIEW
Page 37 of 527
2-5
02
The actual shape may differ from the illustration.ODN8H019004
1. Instrument cluster ..................................4-4
2. Driver’s front air bag .............................3-39
3. Engine Start/Stop button .......................6-6
4. Audio / Video / Navigation system.....5-128
5. Hazard warning flasher switch ...............7-2
6. Automatic climate control system .....5-101
7. Passenger’s front air bag .....................3-39
8. Glove box ..............................................5-118
9. Transmission shift button .....................6-10
10. Parking Distance Warning Off button ...5-87
Parking Safety button
............................5-91
11. Parking/View button ............................5-86
12. Drive mode integrated control system ...6-33
13. AUTO HOLD ..........................................6-24

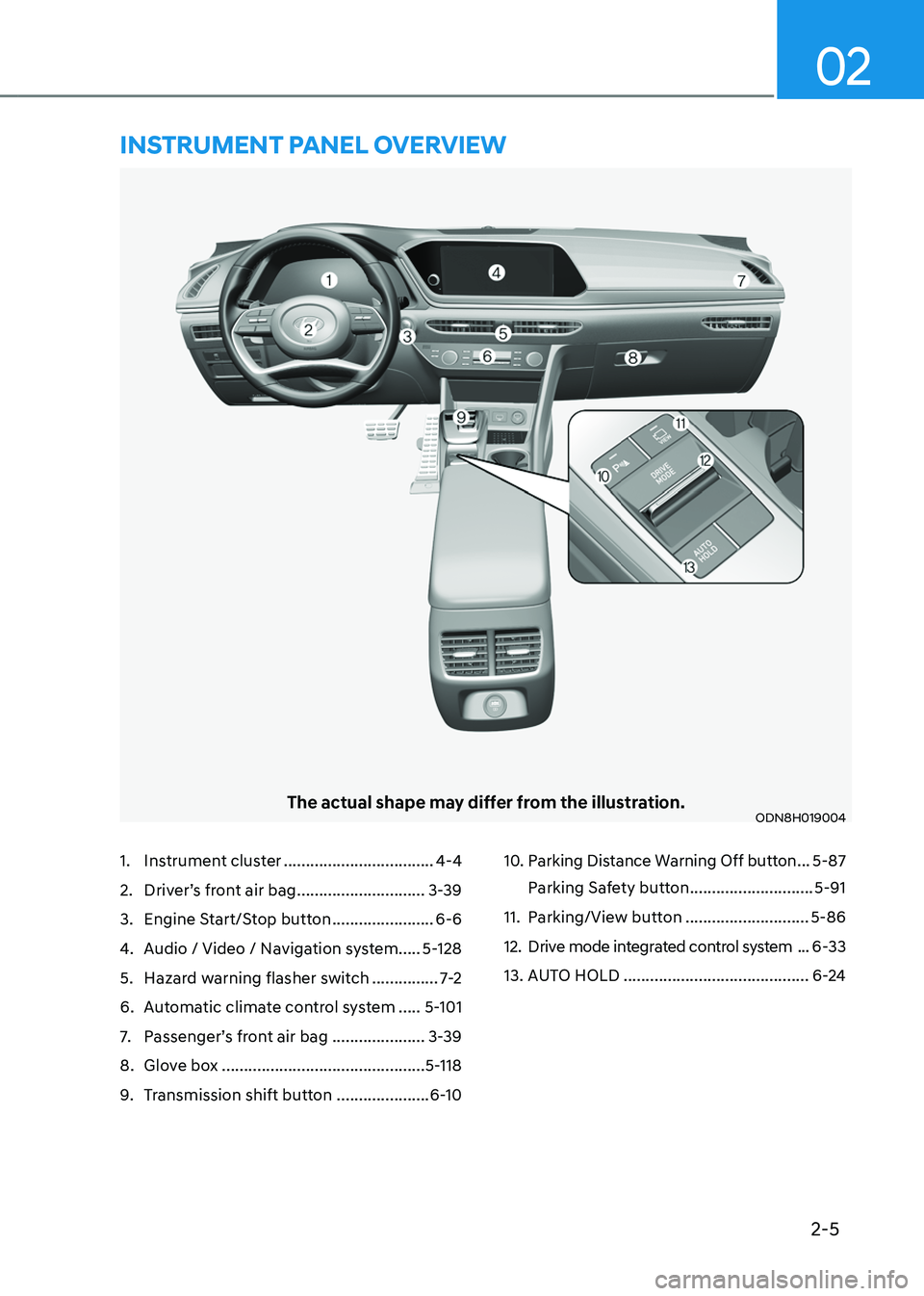

INSTRUMENT PANEL OVERVIEW
Page 38 of 527
2-6
Vehicle Information
Smartstream G2.0 GDi HEV
The actual engine room in the vehicle may differ from the illustration.ODN8H089001

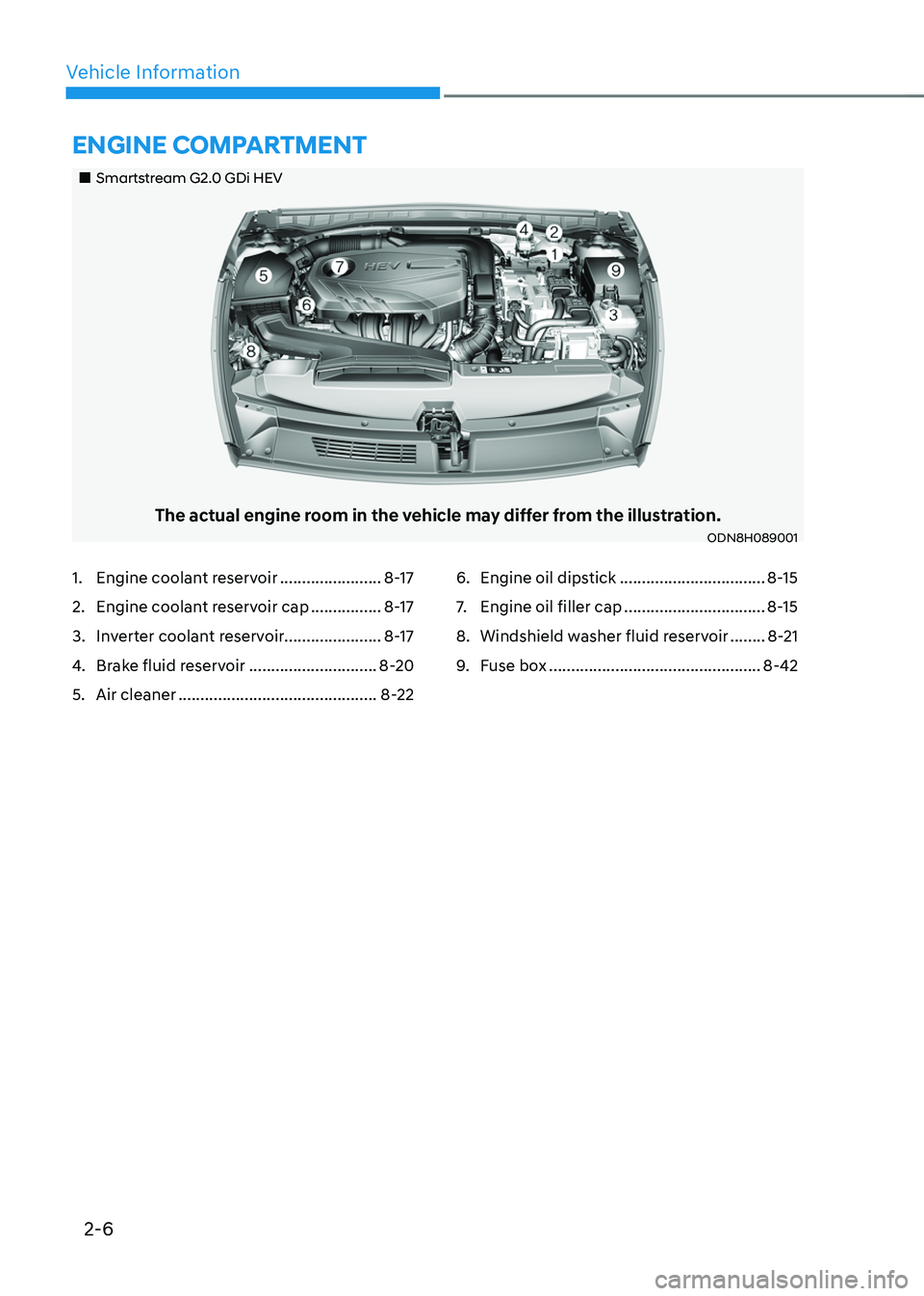

ENGINE COMPARTMENT
1. Engine coolant reservoir .......................8-17
2. Engine coolant reservoir cap ................8-17
3. Inverter coolant reservoir......................8-17
4. Brake fluid reservoir .............................8-20
5. Air cleaner .............................................8-22
6. Engine oil dipstick .................................8-15
7. Engine oil filler cap ................................8-15
8. Windshield washer fluid reservoir ........8-21
9. Fuse box ................................................8-42
Page 39 of 527
02
2-7

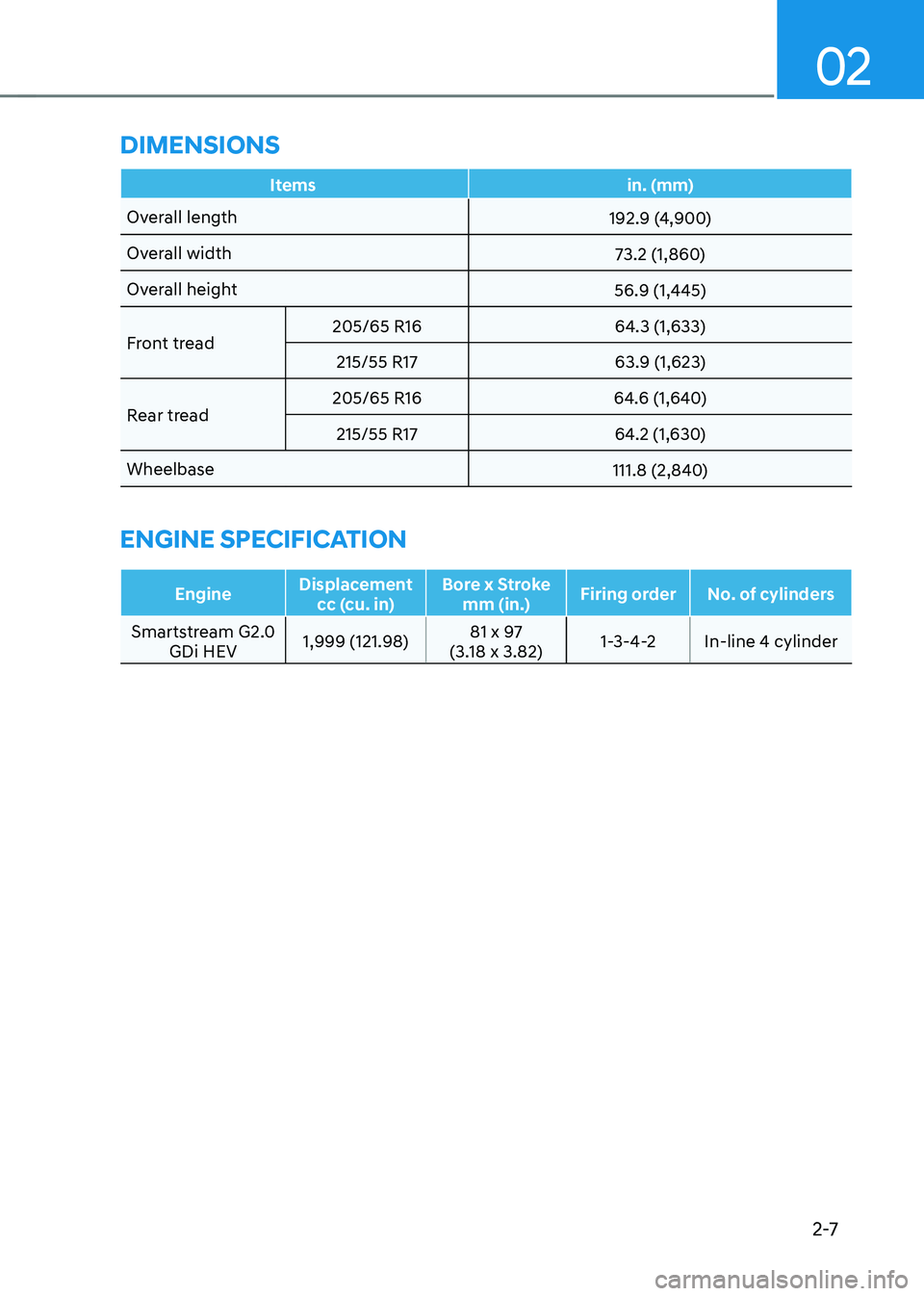

DIMENSIONS
Itemsin. (mm)
Overall length 192.9 (4,900)
Overall width 73.2 (1,860)
Overall height 56.9 (1,445)
Front tread 205/65 R16
64.3 (1,633)
215/55 R17 63.9 (1,623)
Rear tread 205/65 R16
64.6 (1,640)
215/55 R17 64.2 (1,630)
Wheelbase 111.8 (2,840)
ENGINE SPECIFICATION
EngineDisplacement
cc (cu. in) Bore x Stroke
mm (in.) Firing order
No. of cylinders
Smartstream G2.0 GDi HEV 1,999 (121.98) 81 x 97
(3.18 x 3.82) 1-3-4-2
In-line 4 cylinder
Page 40 of 527
Vehicle Information
2-8

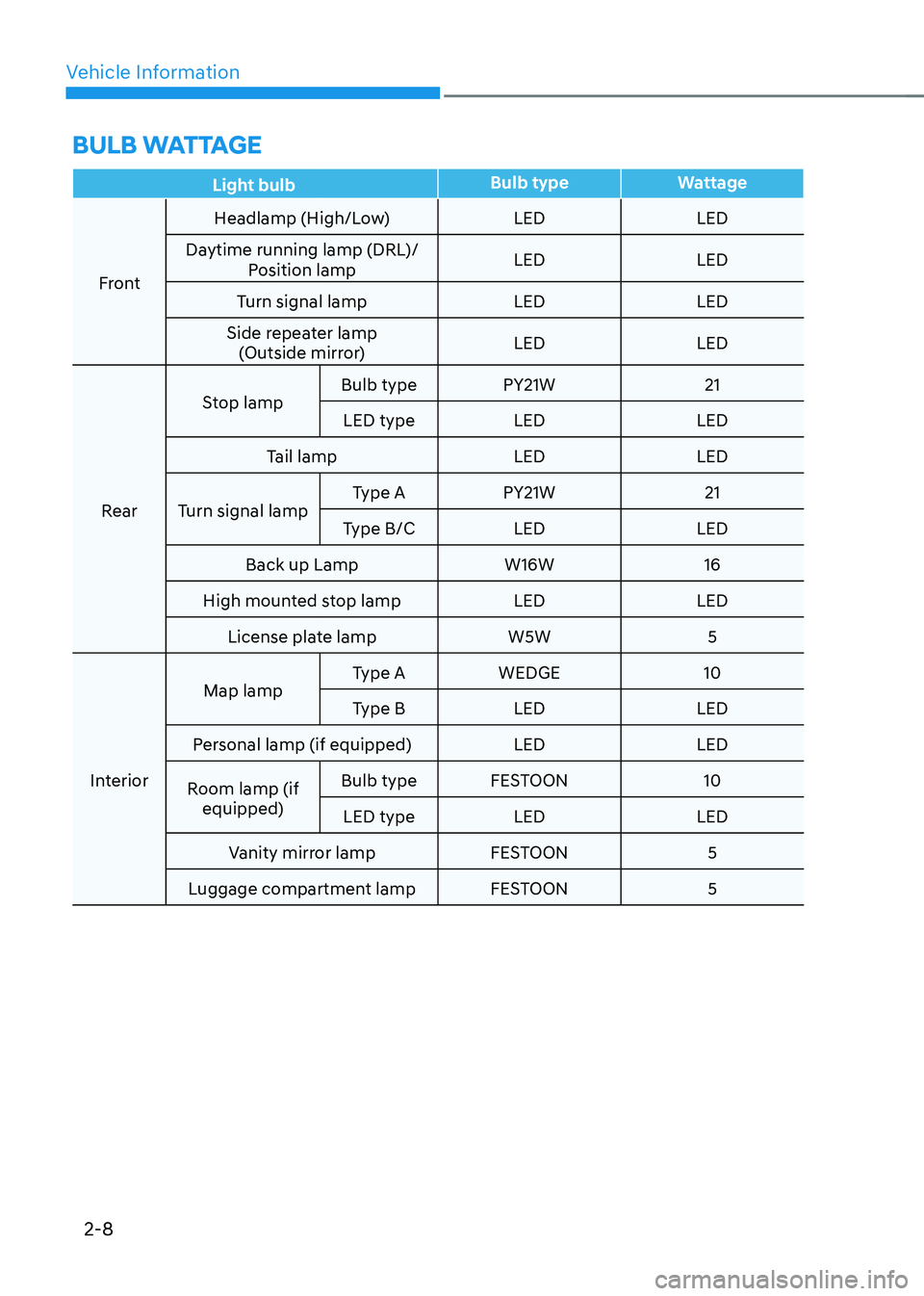

BULB WATTAGE
Light bulbBulb type
Wattage
Front Headlamp (High/Low)
LEDLED
Daytime running lamp (DRL)/ Position lamp LED
LED
Turn signal lamp LEDLED
Side repeater lamp (Outside mirror) LED
LED
Rear Stop lamp
Bulb type
PY21W 21
LED type LED LED
Tail lamp LEDLED
Turn signal lamp Type A
PY21W 21
Type B/C LED LED
Back up Lamp W16W16
High mounted stop lamp LEDLED
License plate lamp W5W5
Interior Map lamp
Type A
WEDGE 10
Type B LED LED
Personal lamp (if equipped) LEDLED
Room lamp (if equipped) Bulb type
FESTOON 10
LED type LED LED
Vanity mirror lamp FESTOON5
Luggage compartment lamp FESTOON5
