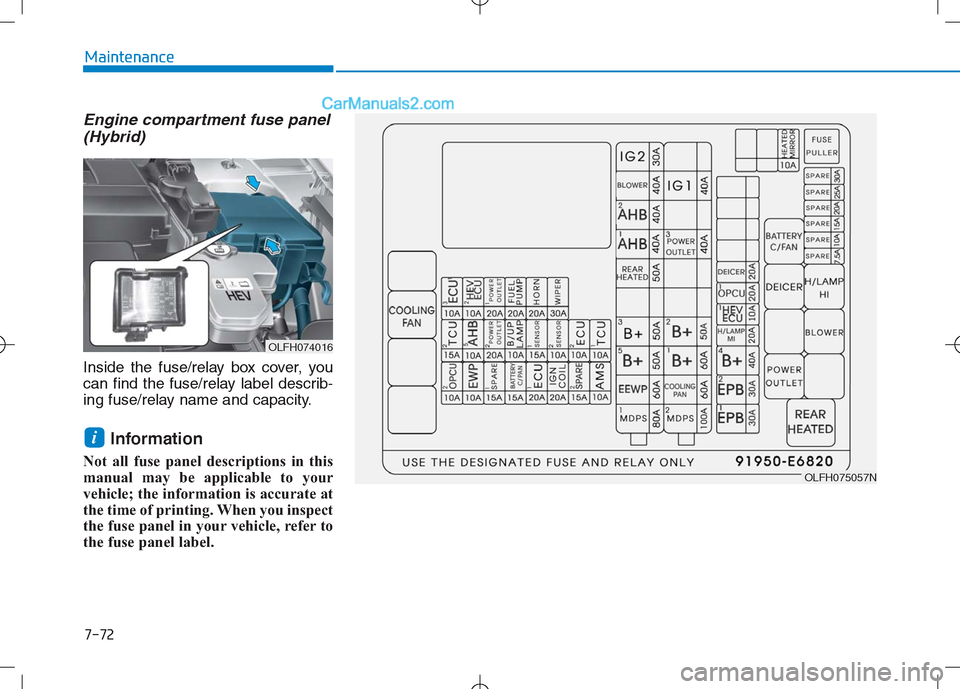

Engine compartment fuse panel(Hybrid)
Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse panel in your vehicle, refer to
the fuse panel label.
i
OLFH075057N
OLFH074016

7-73
7
Maintenance

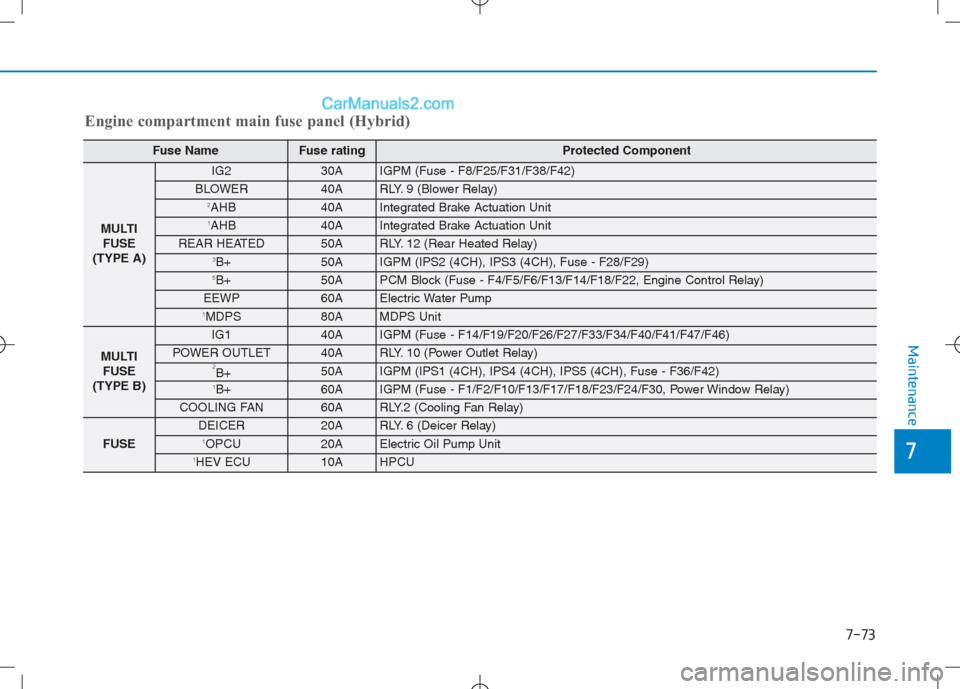

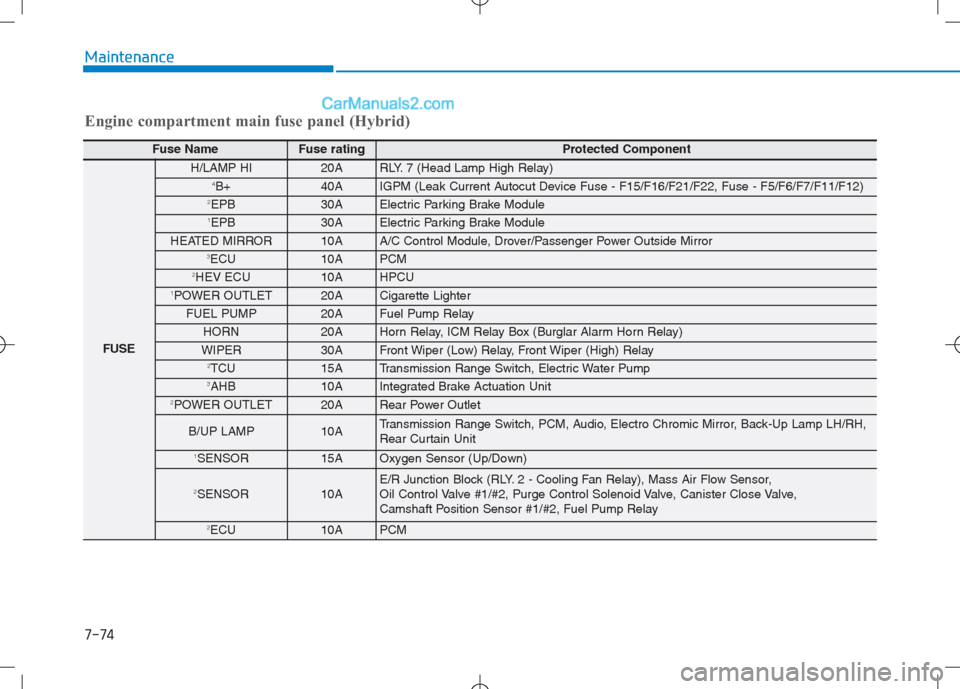

Engine compartment main fuse panel (Hybrid)
Fuse NameFuse rating Protected Component
MULTIFUSE
(TYPE A)
IG230AIGPM (Fuse - F8/F25/F31/F38/F42)
BLOWER40ARLY. 9 (Blower Relay)2AHB40AIntegrated Brake Actuation Unit1AHB40AIntegrated Brake Actuation Unit
REAR HEATED50ARLY. 12 (Rear Heated Relay)3B+50AIGPM (IPS2 (4CH), IPS3 (4CH), Fuse - F28/F29)5B+50APCM Block (Fuse - F4/F5/F6/F13/F14/F18/F22, Engine Control Relay)
EEWP60AElectric Water Pump1MDPS80AMDPS Unit
MULTI FUSE
(TYPE B)
IG140AIGPM (Fuse - F14/F19/F20/F26/F27/F33/F34/F40/F41/F47/F46)
POWER OUTLET40ARLY. 10 (Power Outlet Relay)2B+50AIGPM (IPS1 (4CH), IPS4 (4CH), IPS5 (4CH), Fuse - F36/F42)1B+60AIGPM (Fuse - F1/F2/F10/F13/F17/F18/F23/F24/F30, Power Window Relay)
COOLING FAN60ARLY.2 (Cooling Fan Relay)
FUSE
DEICER20ARLY. 6 (Deicer Relay)1OPCU20AElectric Oil Pump Unit1HEV ECU10AHPCU

7-74
Maintenance
Fuse Name Fuse rating Protected Component
FUSE
H/LAMP HI20ARLY. 7 (Head Lamp High Relay)4B+40AIGPM (Leak Current Autocut Device Fuse - F15/F16/F21/F22, Fuse - F5/F6/F7/F11/F12)2EPB30AElectric Parking Brake Module1EPB30AElectric Parking Brake Module
HEATED MIRROR10AA/C Control Module, Drover/Passenger Power Outside Mirror3ECU10APCM2HEV ECU10AHPCU1POWER OUTLET20ACigarette Lighter
FUEL PUMP20AFuel Pump Relay
HORN20AHorn Relay, ICM Relay Box (Burglar Alarm Horn Relay)
WIPER30AFront Wiper (Low) Relay, Front Wiper (High) Relay2TCU15ATransmission Range Switch, Electric Water Pump3AHB10AIntegrated Brake Actuation Unit2POWER OUTLET20ARear Power Outlet
B/UP LAMP10ATransmission Range Switch, PCM, Audio, Electro Chromic Mirror, Back-Up Lamp LH/RH,
Rear Curtain Unit
1SENSOR15AOxygen Sensor (Up/Down)
2SENSOR10AE/R Junction Block (RLY. 2 - Cooling Fan Relay), Mass Air Flow Sensor,
Oil Control Valve #1/#2, Purge Control Solenoid Valve, Canister Close Valve,
Camshaft Position Sensor #1/#2, Fuel Pump Relay
2ECU10APCM
Engine compartment main fuse panel (Hybrid)

7-75
7
Maintenance

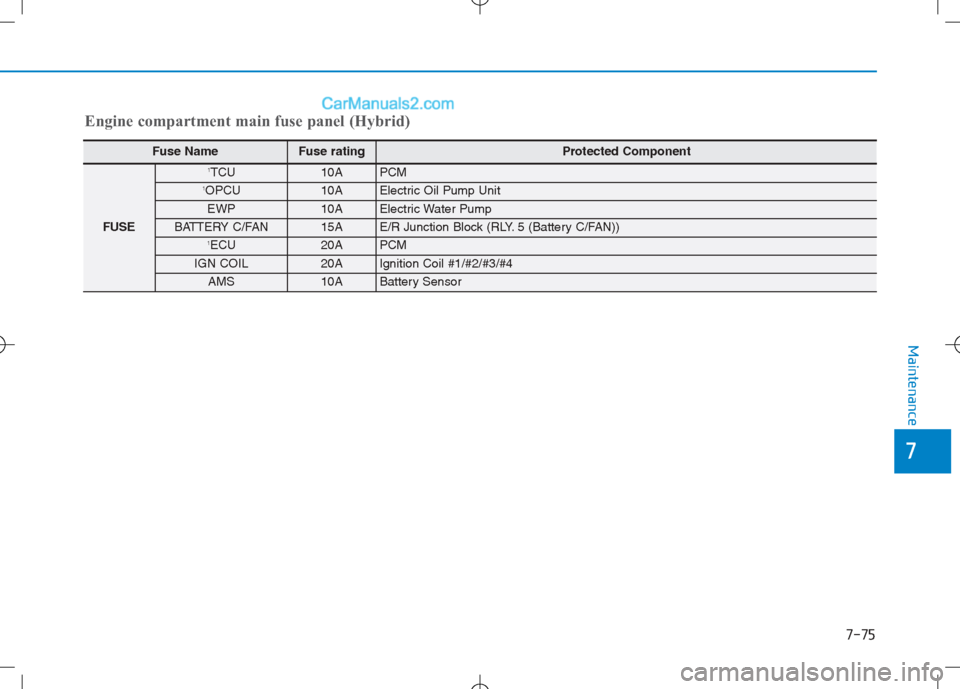

Fuse Name Fuse rating Protected Component
FUSE
1TCU10APCM 1OPCU10AElectric Oil Pump Unit
EWP10AElectric Water Pump
BATTERY C/FAN15AE/R Junction Block (RLY. 5 (Battery C/FAN))1ECU20APCM
IGN COIL20AIgnition Coil #1/#2/#3/#4
AMS10ABattery Sensor
Engine compartment main fuse panel (Hybrid)

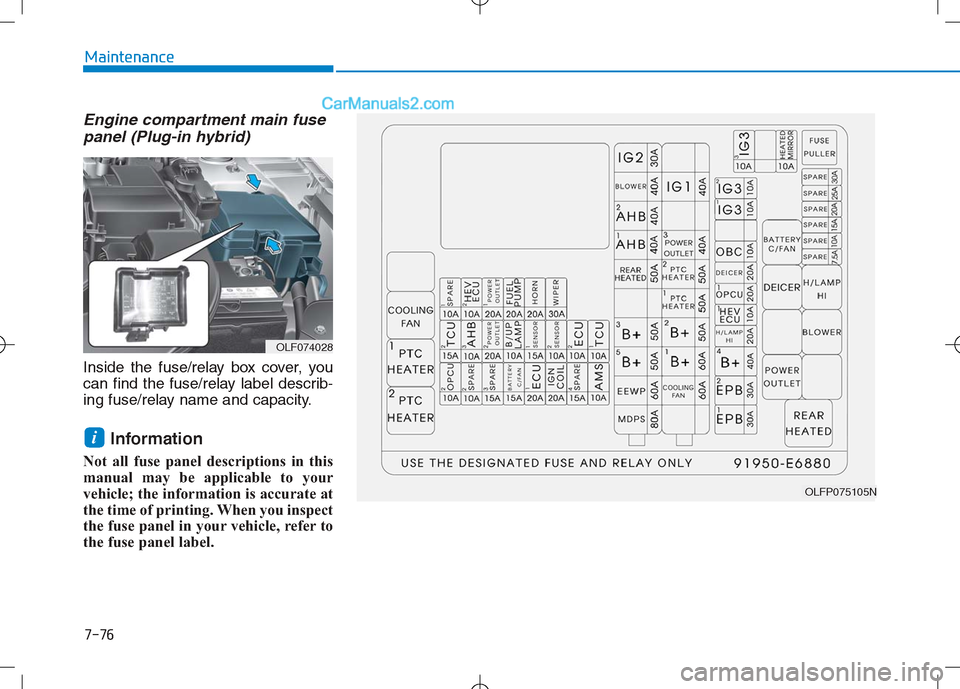

Engine compartment main fusepanel (Plug-in hybrid)
Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse panel in your vehicle, refer to
the fuse panel label.
i
7-76
Maintenance
OLFP075105N
OLF074028

7-77
7
Maintenance

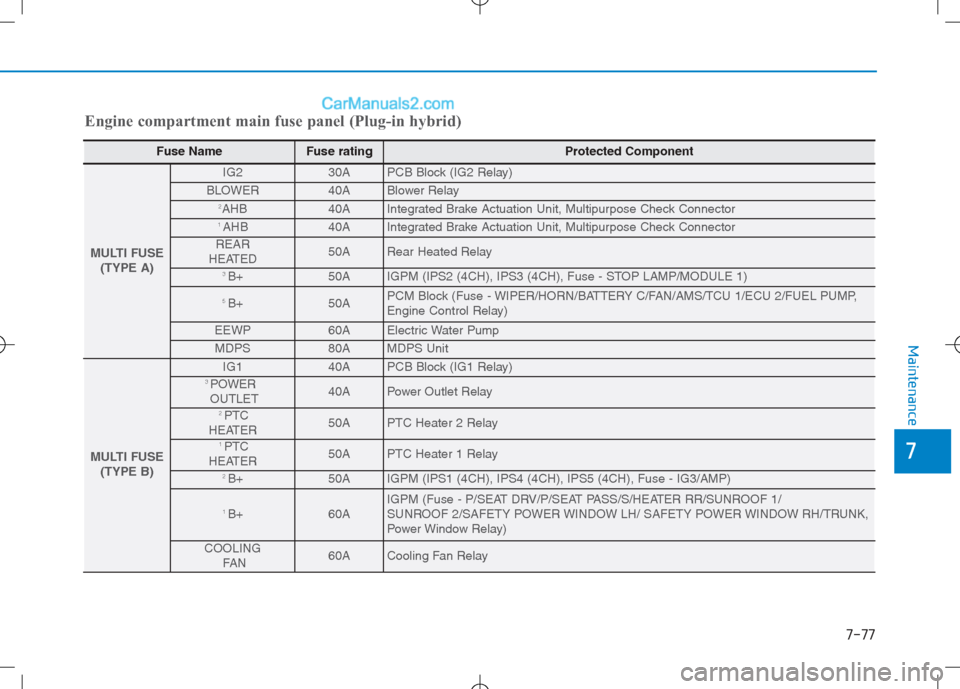

Engine compartment main fuse panel (Plug-in hybrid)

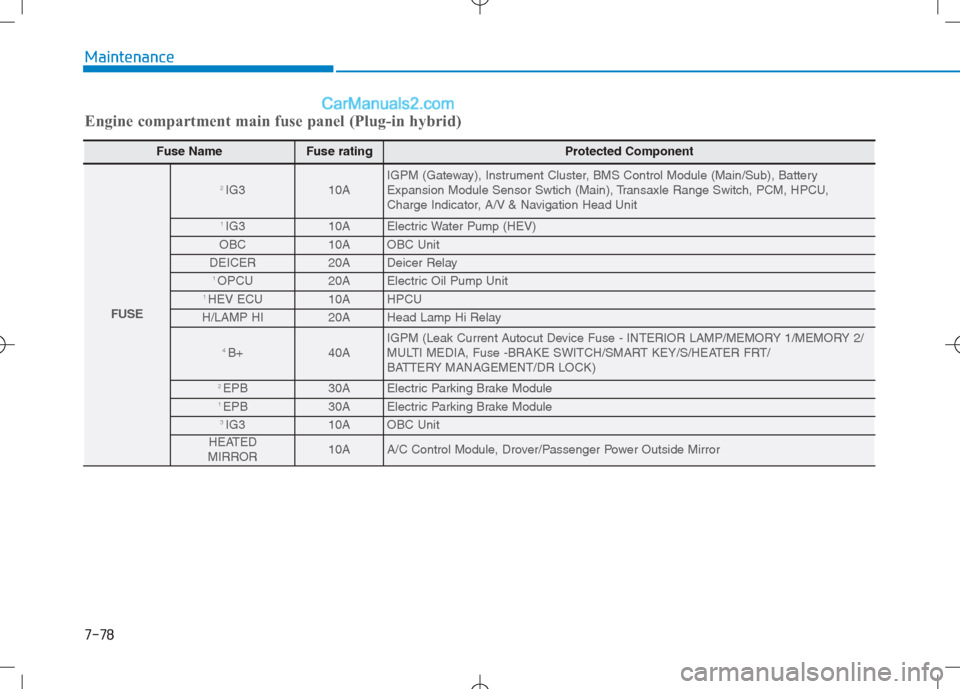

Fuse NameFuse rating Protected Component
MULTI FUSE(TYPE A)
IG2 30A PCB Block (IG2 Relay)
BLOWER 40A Blower Relay 2AHB 40A Integrated Brake Actuation Unit, Multipurpose Check Connector 1 AHB 40A Integrated Brake Actuation Unit, Multipurpose Check Connector
REAR
HEATED 50A Rear Heated Relay
3 B+ 50A IGPM (IPS2 (4CH), IPS3 (4CH), Fuse - STOP LAMP/MODULE 1)
5 B+ 50A PCM Block (Fuse - WIPER/HORN/BATTERY C/FAN/AMS/TCU 1/ECU 2/FUEL PUMP,
Engine Control Relay)
EEWP 60A Electric Water Pump
MDPS 80A MDPS Unit
MULTI FUSE (TYPE B)
IG1 40A PCB Block (IG1 Relay) 3 POWER
OUTLET 40A Power Outlet Relay
2 PTC
HEATER 50A PTC Heater 2 Relay
1 PTC
HEATER50A PTC Heater 1 Relay
2 B+ 50A IGPM (IPS1 (4CH), IPS4 (4CH), IPS5 (4CH), Fuse - IG3/AMP)
1 B+60A IGPM (Fuse - P/SEAT DRV/P/SEAT PASS/S/HEATER RR/SUNROOF 1/
SUNROOF 2/SAFETY POWER WINDOW LH/ SAFETY POWER WINDOW RH/TRUNK,
Power Window Relay)
COOLING FAN 60A Cooling Fan Relay

Maintenance
Fuse NameFuse rating Protected Component
FUSE
2 IG3 10A IGPM (Gateway), Instrument Cluster, BMS Control Module (Main/Sub), Battery
Expansion Module Sensor Swtich (Main), Transaxle Range Switch, PCM, HPCU,
Charge Indicator, A/V & Navigation Head Unit
1 IG310A Electric Water Pump (HEV)
OBC 10A OBC Unit
DEICER 20A Deicer Relay 1 OPCU 20A Electric Oil Pump Unit 1 HEV ECU 10A HPCU
H/LAMP HI 20A Head Lamp Hi Relay
4 B+ 40A IGPM (Leak Current Autocut Device Fuse - INTERIOR LAMP/MEMORY 1/MEMORY 2/
MULTI MEDIA, Fuse -BRAKE SWITCH/SMART KEY/S/HEATER FRT/
BATTERY MANAGEMENT/DR LOCK)
2 EPB 30A Electric Parking Brake Module 1 EPB 30A Electric Parking Brake Module 3 IG310A OBC Unit
HEATED
MIRROR 10A A/C Control Module, Drover/Passenger Power Outside Mirror
Engine compartment main fuse panel (Plug-in hybrid)
7-78

7-79
7
Maintenance

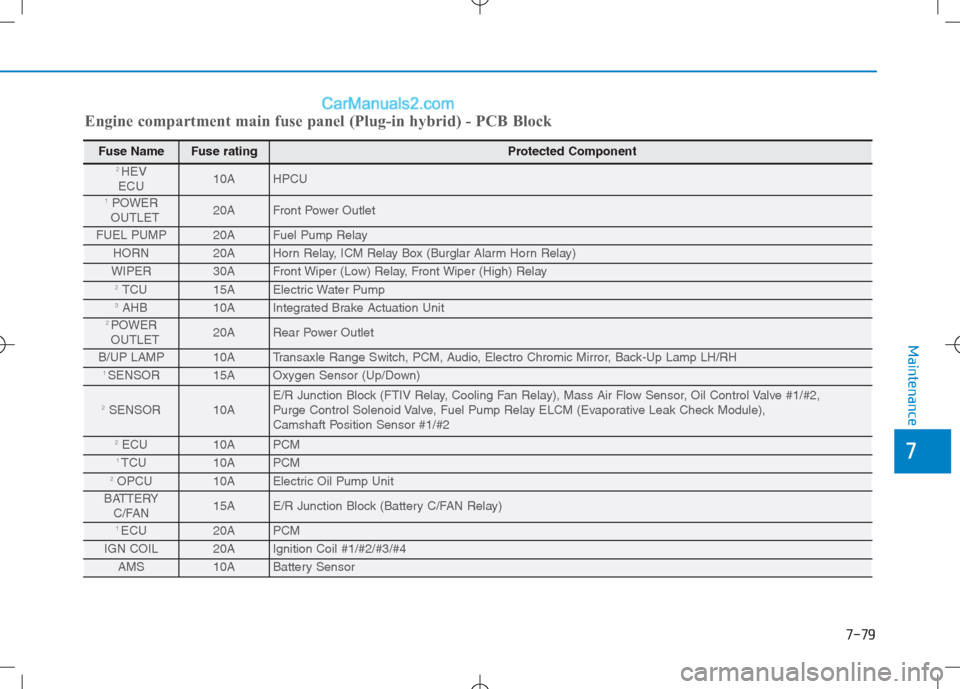

Engine compartment main fuse panel (Plug-in hybrid) - PCB Block
Fuse NameFuse rating Protected Component
2 HEV
ECU10A HPCU
1 POWER
OUTLET20A Front Power Outlet
FUEL PUMP 20A Fuel Pump Relay
HORN 20A Horn Relay, ICM Relay Box (Burglar Alarm Horn Relay)
WIPER 30A Front Wiper (Low) Relay, Front Wiper (High) Relay 2 TCU15A Electric Water Pump 3 AHB10A Integrated Brake Actuation Unit 2 POWER
OUTLET20A Rear Power Outlet
B/UP LAMP 10A Transaxle Range Switch, PCM, Audio, Electro Chromic Mirror, Back-Up Lamp LH/RH 1 SENSOR 15A Oxygen Sensor (Up/Down)
2 SENSOR10A E/R Junction Block (FTIV Relay, Cooling Fan Relay), Mass Air Flow Sensor, Oil Control Valve #1/#2,
Purge Control Solenoid Valve, Fuel Pump Relay ELCM (Evaporative Leak Check Module),
Camshaft Position Sensor #1/#2
2 ECU10A PCM 1 TCU10A PCM 2 OPCU10A Electric Oil Pump Unit
BATTERY C/FAN 15A E/R Junction Block (Battery C/FAN Relay)
1 ECU20A PCM
IGN COIL 20A Ignition Coil #1/#2/#3/#4
AMS 10A Battery Sensor

7-80
Maintenance
L
LI
IG
G H
H T
T
B
B U
U L
LB
B S
S

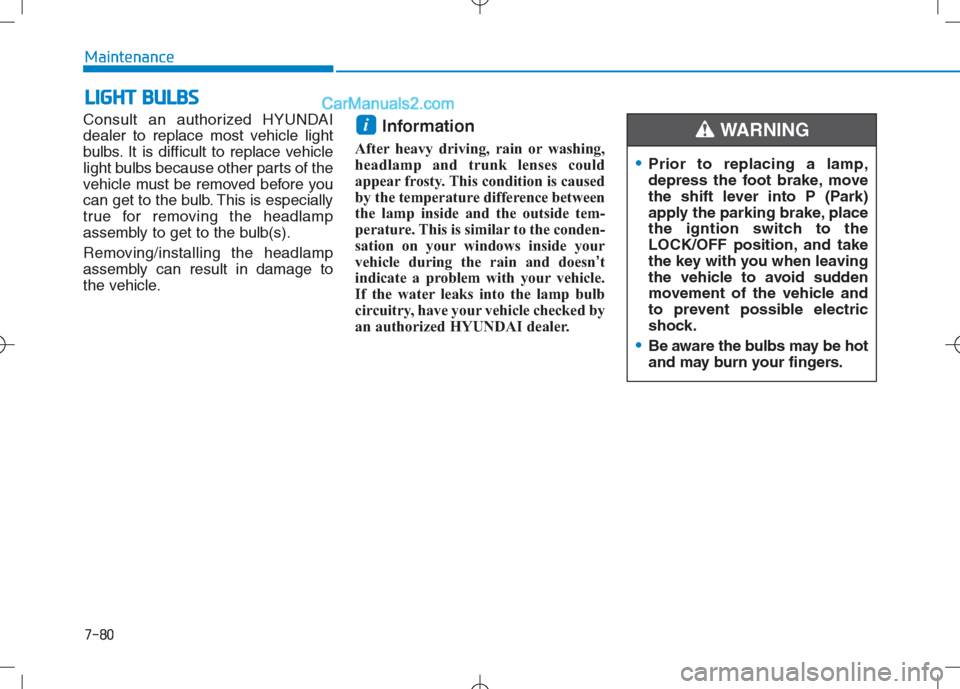

Consult an authorized HYUNDAI
dealer to replace most vehicle light
bulbs. It is difficult to replace vehicle
light bulbs because other parts of the
vehicle must be removed before you
can get to the bulb. This is especially
true for removing the headlamp
assembly to get to the bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.Information
After heavy driving, rain or washing,
headlamp and trunk lenses could
appear frosty. This condition is caused
by the temperature difference between
the lamp inside and the outside tem-
perature. This is similar to the conden-
sation on your windows inside your
vehicle during the rain and doesn’ t
indicate a problem with your vehicle.
If the water leaks into the lamp bulb
circuitry, have your vehicle checked by
an authorized HYUNDAI dealer.
i
Prior to replacing a lamp,
depress the foot brake, move
the shift lever into P (Park)
apply the parking brake, place
the igntion switch to the
LOCK/OFF position, and take
the key with you when leaving
the vehicle to avoid sudden
movement of the vehicle and
to prevent possible electric
shock.
Be aware the bulbs may be hot
and may burn your fingers.
WARNING

7-81
7
Maintenance

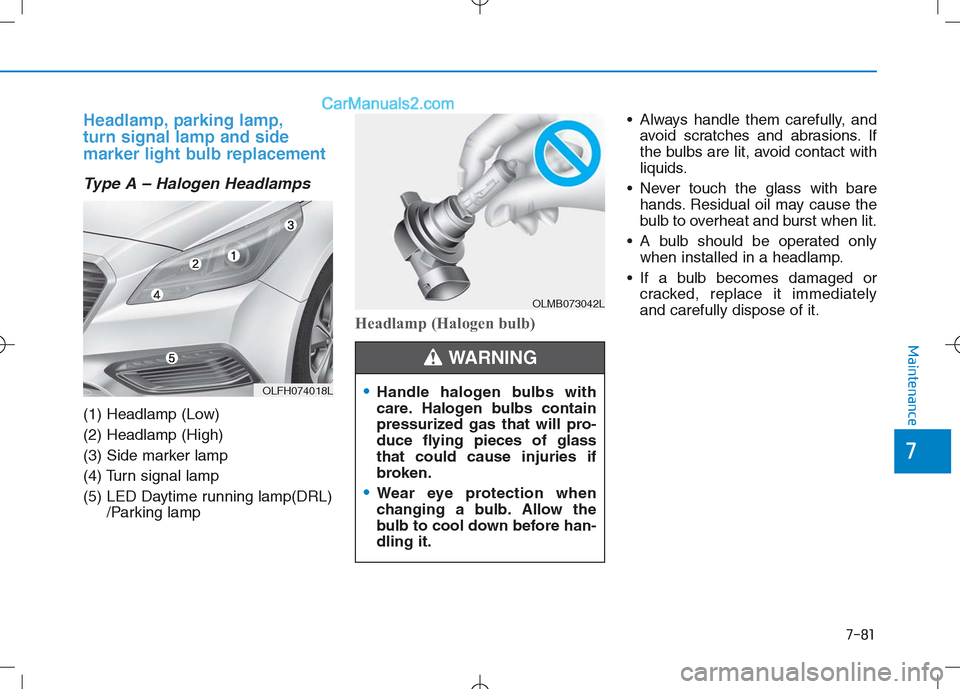

Headlamp, parking lamp,
turn signal lamp and side
marker light bulb replacement
Type A – Halogen Headlamps
(1) Headlamp (Low)
(2) Headlamp (High)
(3) Side marker lamp
(4) Turn signal lamp
(5) LED Daytime running lamp(DRL)
/Parking lamp
Headlamp (Halogen bulb)
Always handle them carefully, andavoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.
Never touch the glass with bare hands. Residual oil may cause the
bulb to overheat and burst when lit.
A bulb should be operated only when installed in a headlamp.
If a bulb becomes damaged or cracked, replace it immediately
and carefully dispose of it.
OLFH074018L
OLMB073042L
Handle halogen bulbs with
care. Halogen bulbs contain
pressurized gas that will pro-
duce flying pieces of glass
that could cause injuries if
broken.
Wear eye protection when
changing a bulb. Allow the
bulb to cool down before han-
dling it.
WARNING
