Safety features of your vehicle

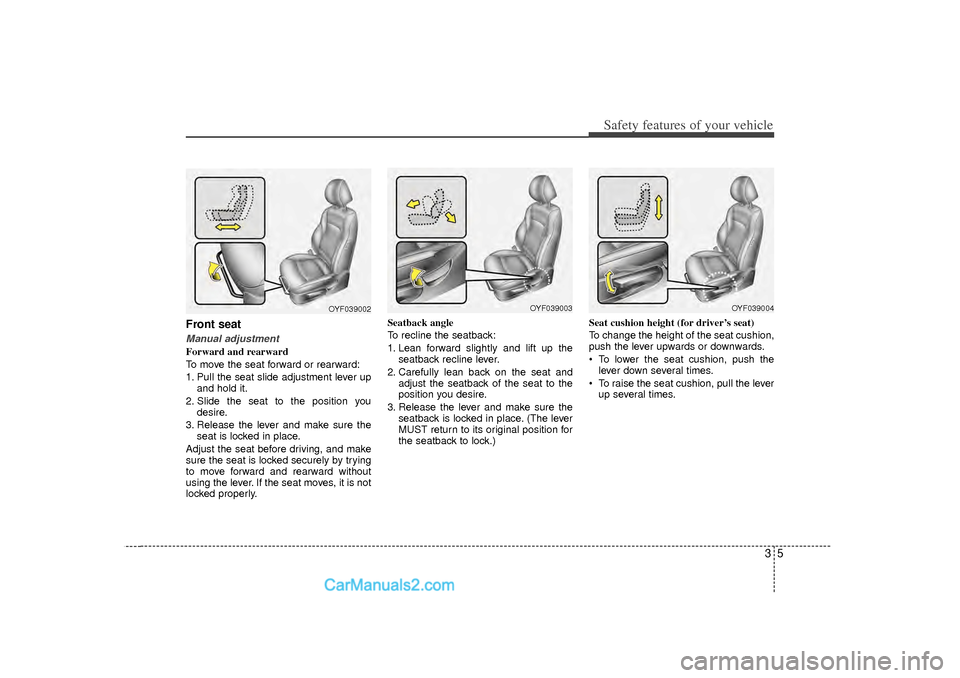

Front seatManual adjustmentForward and rearward
To move the seat forward or rearward:
1. Pull the seat slide adjustment lever upand hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place.
Adjust the seat before driving, and make
sure the seat is locked securely by trying
to move forward and rearward without
using the lever. If the seat moves, it is not
locked properly. Seatback angle
To recline the seatback:
1. Lean forward slightly and lift up the
seatback recline lever.
2. Carefully lean back on the seat and adjust the seatback of the seat to the
position you desire.
3. Release the lever and make sure the seatback is locked in place. (The lever
MUST return to its original position for
the seatback to lock.) Seat cushion height (for driver’s seat)
To change the height of the seat cushion,
push the lever upwards or downwards.
• To lower the seat cushion, push the
lever down several times.
 To raise the seat cushion, pull the lever up several times.
OYF039003
OYF039004
OYF039002

Safety features of your vehicle63Power adjustment (if equipped)The front seat can be adjusted by using
the control switch located on the outside
of the seat cushion. Before driving, adjust
the seat to the proper position so as to
easily control the steering wheel, pedals
and switches on the instrument panel.Forward and rearward
Push the control switch forward or rear-
ward to move the seat to the desired
position. Release the switch once the
seat reaches the desired position.
CAUTION
 The power seat is driven by anelectric motor. Stop operatingonce the adjustment is complet- ed. Excessive operation maydamage the electrical equipment.
 When in operation, the power seat consumes a large amount ofelectrical power. To preventunnecessary charging system drain, do not adjust the powerseat longer than necessary while the engine is not running.
 Do not operate two or more power seat control switches at the sametime. Doing so may result inpower seat motor or electrical component malfunction.
OYF039005
WARNING
The power seat is operable with the
ignition OFF.
Therefore, children should never be
left unattended in the vehicle.

Safety features of your vehicle20

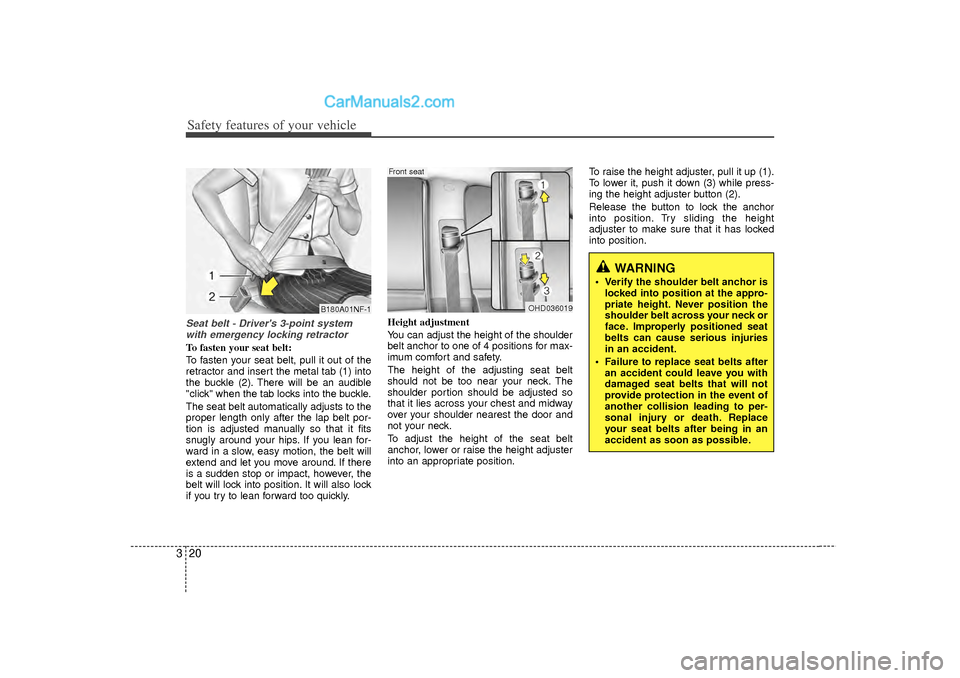

3Seat belt - Driver's 3-point system
with emergency locking retractorTo fasten your seat belt:
To fasten your seat belt, pull it out of the
retractor and insert the metal tab (1) into
the buckle (2). There will be an audible
"click" when the tab locks into the buckle.
The seat belt automatically adjusts to the
proper length only after the lap belt por-
tion is adjusted manually so that it fits
snugly around your hips. If you lean for-
ward in a slow, easy motion, the belt will
extend and let you move around. If there
is a sudden stop or impact, however, the
belt will lock into position. It will also lock
if you try to lean forward too quickly. Height adjustment
You can adjust the height of the shoulder
belt anchor to one of 4 positions for max-
imum comfort and safety.
The height of the adjusting seat belt
should not be too near your neck. The
shoulder portion should be adjusted so
that it lies across your chest and midway
over your shoulder nearest the door and
not your neck.
To adjust the height of the seat belt
anchor, lower or raise the height adjuster
into an appropriate position.To raise the height adjuster, pull it up (1).
To lower it, push it down (3) while press-
ing the height adjuster button (2).
Release the button to lock the anchor
into position. Try sliding the height
adjuster to make sure that it has locked
into position.
WARNING
 Verify the shoulder belt anchor is
locked into position at the appro-
priate height. Never position the
shoulder belt across your neck or
face. Improperly positioned seat
belts can cause serious injuries
in an accident.
 Failure to replace seat belts after an accident could leave you with
damaged seat belts that will not
provide protection in the event of
another collision leading to per-
sonal injury or death. Replace
your seat belts after being in an
accident as soon as possible.
OHD036019
Front seat
B180A01NF-1

441
Features of your vehicle

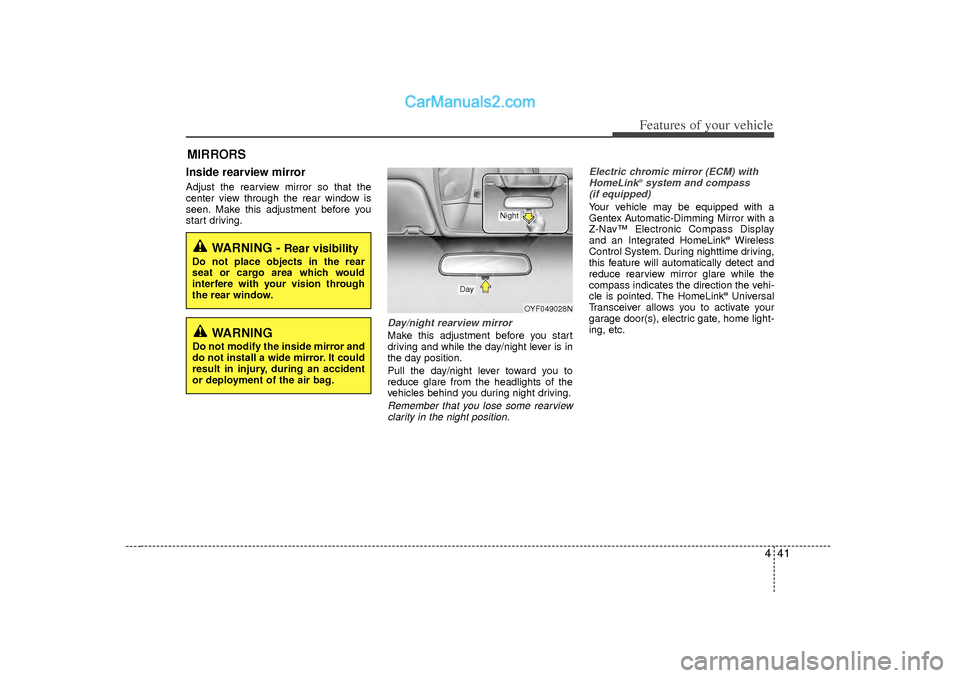

MIRRORS Inside rearview mirrorAdjust the rearview mirror so that the
center view through the rear window is
seen. Make this adjustment before you
start driving.
Day/night rearview mirror Make this adjustment before you start
driving and while the day/night lever is in
the day position.
Pull the day/night lever toward you to
reduce glare from the headlights of the
vehicles behind you during night driving.Remember that you lose some rearviewclarity in the night position. Electric chromic mirror (ECM) with
HomeLink
®system and compass
(if equipped)
Your vehicle may be equipped with a
Gentex Automatic-Dimming Mirror with a
Z-Nav™ Electronic Compass Display
and an Integrated HomeLink
®Wireless
Control System. During nighttime driving,
this feature will automatically detect and
reduce rearview mirror glare while the
compass indicates the direction the vehi-
cle is pointed. The HomeLink®Universal
Transceiver allows you to activate your
garage door(s), electric gate, home light-
ing, etc.
WARNING -
Rear visibility
Do not place objects in the rear
seat or cargo area which would
interfere with your vision through
the rear window.
OYF049028N
Day
Night
WARNING
Do not modify the inside mirror and
do not install a wide mirror. It could
result in injury, during an accident
or deployment of the air bag.

I5
Index
Folding the rear seat ··················\
··················\
··················\
3-14
Front passenger and rear seat 3-point system withcombination locking retractor ··················\
·················3-21\
Front seat adjustment - manual ··················\
··················\
···3-4
Front seat adjustment - power ··················\
··················\
·····3-5
Fuel filler lid ··················\
··················\
··················\
············4-29
Fuel gauge··················\
··················\
··················\
················4-53
Fuel requirements ··················\
··················\
··················\
······1-3
Fuses ··················\
··················\
··················\
··················\
······7-50 Fuse/relay panel description··················\
··················\
··7-54
Instrument panel fuse ··················\
··················\
············7-51
Multi fuse ··················\
··················\
··················\
············7-53
Memory fuse ··················\
··················\
··················\
·······7-52
Gauge Engine temperature gauge··················\
··················\
·····4-52
Fuel gauge ··················\
··················\
··················\
···········4-53
Glassroof, see sunroof ··················\
··················\
······4-32, 4-35
Glass antenna ··················\
··················\
··················\
·········4-111
Glove box··················\
··················\
··················\
···············4-105 Hazard warning flasher··················\
··················\
··············4-72
Hazardous driving conditions ··················\
··················\
····5-38
Headlamp delay ··················\
··················\
··················\
·······4-72
Headlamp welcome function ··················\
··················\
·····4-72
Headlight bulb replacement ··················\
··················\
·······7-59
Headrest ··················\
··················\
··················\
············3-7, 3-11
Highway driving ··················\
··················\
··················\
······5-41
Homelink mirror, see the Electric chromic mirror (ECM)
with homeLink system and compass ··················\
······4-41
Hood··················\
··················\
··················\
··················\
·······4-28
Horn ··················\
··················\
··················\
··················\
·······4-40
How to use this manual ··················\
··················\
···············1-2
Ignition key interlock system ··················\
··················\
····5-19
Immobilizer system ··················\
··················\
··················\
···4-5
Indicators and warnings ··················\
··················\
·············4-59
Indicator symbols on the instrument cluster ··················\
·1-7
Inside rearview mirror ··················\
··················\
···············4-41G
IH

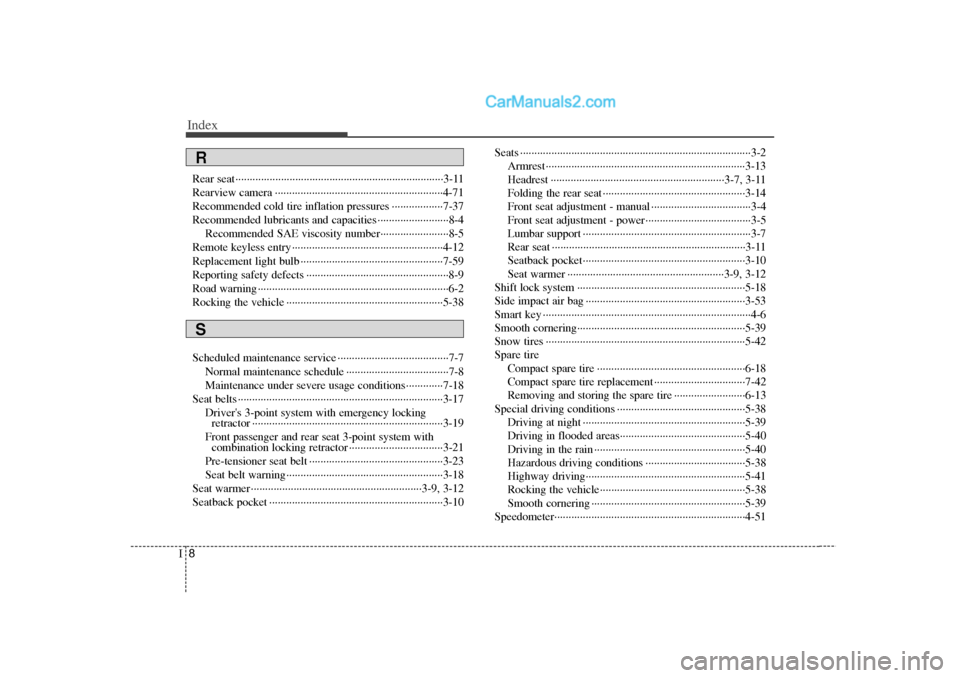

Index8I
Rear seat··················\
··················\
··················\
··················\
·3-11
Rearview camera ··················\
··················\
··················\
·····4-71
Recommended cold tire inflation pressures ··················\
7-37
Recommended lubricants and capacities ··················\
·······8-4Recommended SAE viscosity number··················\
······8-5
Remote keyless entry ··················\
··················\
·················4-12\
Replacement light bulb ··················\
··················\
··············7-59
Reporting safety defects ··················\
··················\
··············8-9
Road warning ··················\
··················\
··················\
·············6-2
Rocking the vehicle ··················\
··················\
··················\
·5-38
Scheduled maintenance service ··················\
··················\
···7-7 Normal maintenance schedule ··················\
··················\
7-8
Maintenance under severe usage conditions ·············7-18
Seat belts ··················\
··················\
··················\
··················\
3-17 Driver's 3-point system with emergency lockingretractor ··················\
··················\
··················\
·············3-19
Front passenger and rear seat 3-point system with combination locking retractor ··················\
···············3-21
Pre-tensioner seat belt ··················\
··················\
···········3-23
Seat belt warning··················\
··················\
··················\
·3-18
Seat warmer ··················\
··················\
··················\
······3-9, 3-12
Seatback pocket ··················\
··················\
··················\
·······3-10 Seats ··················\
··················\
··················\
··················\
·········3-2
Armrest ··················\
··················\
··················\
················3-13
Headrest ··················\
··················\
··················\
·······3-7, 3-11
Folding the rear seat ··················\
··················\
··············3-14
Front seat adjustment - manual ··················\
·················3-4
Front seat adjustment - power ··················\
··················\
·3-5
Lumbar support ··················\
··················\
··················\
·····3-7
Rear seat ··················\
··················\
··················\
··············3-11
Seatback pocket··················\
··················\
··················\
···3-10
Seat warmer ··················\
··················\
··················\
·3-9, 3-12
Shift lock system ··················\
··················\
··················\
·····5-18
Side impact air bag ··················\
··················\
··················\
··3-53
Smart key ··················\
··················\
··················\
··················\
·4-6
Smooth cornering··················\
··················\
··················\
·····5-39
Snow tires ··················\
··················\
··················\
················5-42
Spare tire Compact spare tire ··················\
··················\
················6-18
Compact spare tire replacement ··················\
··············7-42
Removing and storing the spare tire ··················\
·······6-13
Special driving conditions ··················\
··················\
·········5-38 Driving at night ··················\
··················\
··················\
···5-39
Driving in flooded areas··················\
··················\
········5-40
Driving in the rain ··················\
··················\
·················5-40\
Hazardous driving conditions ··················\
·················5-38\
Highway driving··················\
··················\
··················\
··5-41
Rocking the vehicle··················\
··················\
···············5-38
Smooth cornering ··················\
··················\
··················\
5-39
Speedometer··················\
··················\
··················\
·············4-51RS
