remove seats Hyundai Terracan 2003 Owner's Manual

FEATURES OF YOUR HYUNDAI 1- 11
B060A02HP
NOTE: The power windows can be operated for 30 seconds after the ignition key is turned to the "ACC" or "LOCK" positions, or removed from the ignition switch. If the front doors are opened during this 30 second period, the power windows can no longer be operated without the ignition key turned to the "ON" position. WARNING:
(1) Be careful that someone's head, hands and body are not trapped by a closingwindow.
(2) Never try to operate the main switch on
the driver's door and the individual door window switch in opposing directions at the same time. If this is done, the window will stop and cannot be opened or closed.
(3) Do not leave children alone in the car. Always remove the ignition key for their safety. To move the seat toward the front or rear, pull the lock release lever upward. This will release the seat on its track so you can move it forward or rearward to the desired position. When you find the position you want, release the lever and slide the seat forward or rearward on its track until it locks into the desired position and cannot be moved further.
B080A01A-AAT ADJUSTABLE FRONT SEATS WARNING: Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control or an accident which may cause death, serious injury, or property damage. B080B02A-AAT Adjusting Seat Forward and Rearward
B080B01HP
B080C01A-AAT Adjusting Seatback Angle
To recline the seatback, lean forward to take your weight off it, then pull up on the recliner control lever at the outside edge of the seat. Now lean back until the desired seatback angle is achieved. To lock the seatback into position, release the recliner control lever. WARNING: To minimize risk of severe injury in the event of a collision or a sudden stop, both the driver and passenger seatbacks should always be in an upright position while the vehicle is in motion. The protection provided by the seat
B080C01HP
WARNING: To ensure the seat is locked securely, at- tempt to move the seat forward or rearward without using the lock release lever.

CONTROLS AND EQUIPMENT
1- 14

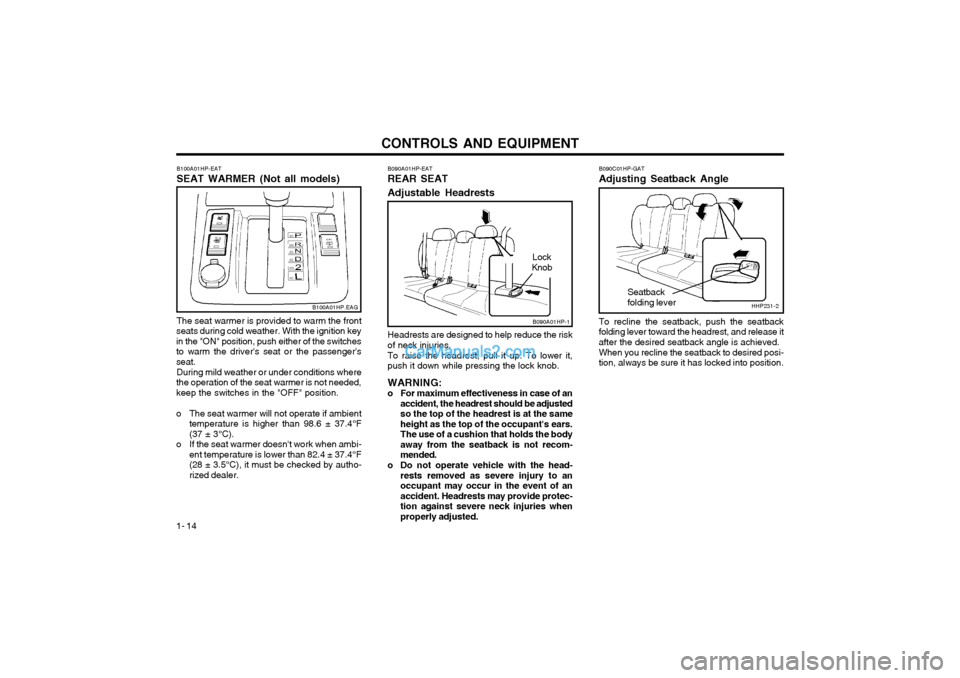

B100A01HP-EAT SEAT WARMER (Not all models) The seat warmer is provided to warm the front
seats during cold weather. With the ignition key in the "ON" position, push either of the switchesto warm the driver's seat or the passenger'sseat.
During mild weather or under conditions where
the operation of the seat warmer is not needed,keep the switches in the "OFF" position.
o The seat warmer will not operate if ambient temperature is higher than 98.6 ± 37.4°F (37 ± 3°C).
o If the seat warmer doesn't work when ambi- ent temperature is lower than 82.4 ± 37.4°F(28 ± 3.5°C), it must be checked by autho-rized dealer.
B100A01HP.EAGHHP231-2
B090A01HP-EAT REAR SEAT Adjustable Headrests Headrests are designed to help reduce the risk of neck injuries. To raise the headrest, pull it up. To lower it, push it down while pressing the lock knob. WARNING:
o For maximum effectiveness in case of an accident, the headrest should be adjusted so the top of the headrest is at the sameheight as the top of the occupant's ears.
The use of a cushion that holds the bodyaway from the seatback is not recom-mended.
o Do not operate vehicle with the head- rests removed as severe injury to anoccupant may occur in the event of anaccident. Headrests may provide protec-tion against severe neck injuries whenproperly adjusted. B090C01HP-GAT Adjusting Seatback Angle To recline the seatback, push the seatback folding lever toward the headrest, and release itafter the desired seatback angle is achieved. When you recline the seatback to desired posi- tion, always be sure it has locked into position.
Seatback folding lever
B090A01HP-1
Lock
Knob
