sunroof Hyundai Terracan 2005 Owner's Manual

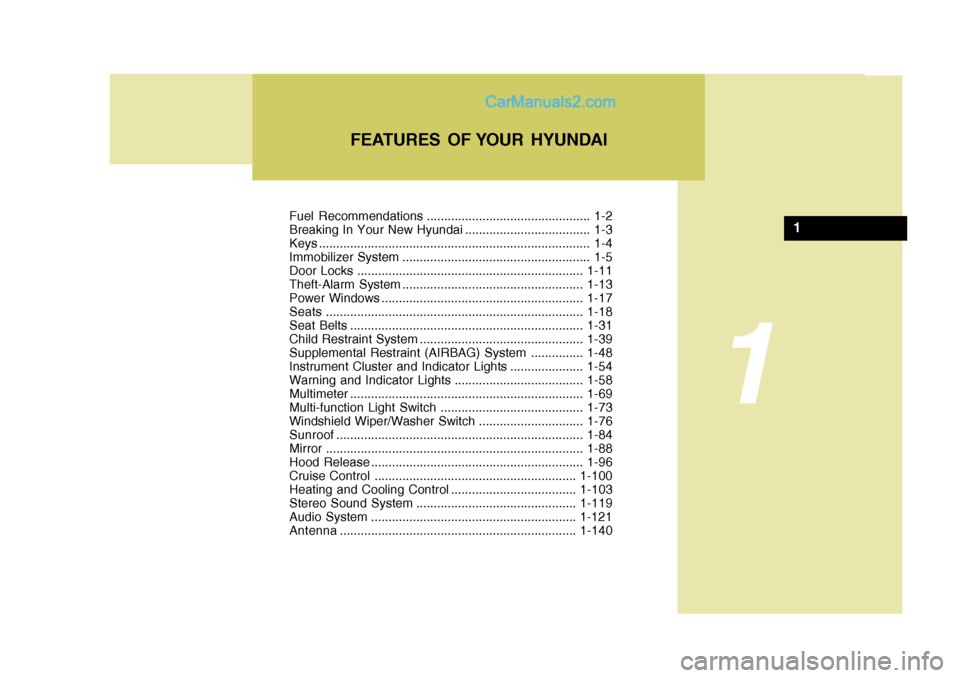

Fuel Recommendations ............................................... 1-2
Breaking In Your New Hyundai .................................... 1-3
Keys .............................................................................. 1-4
Immobilizer System ...................................................... 1-5
Door Locks .................................................................1-11
Theft-Alarm System .................................................... 1-13
Power Windows .......................................................... 1-17
Seats .......................................................................... 1-18
Seat Belts ................................................................... 1-31
Child Restraint System............................................... 1-39
Supplemental Restraint (AIRBAG) System ............... 1-48
Instrument Cluster and Indicator Lights ..................... 1-54
Warning and Indicator Lights ..................................... 1-58
Multim eter ................................................................... 1-69
Multi-function Light Switch ......................................... 1-73
Windshield Wiper/Washer Switch .............................. 1-76
Sunroof ....................................................................... 1-84
Mirror .......................................................................... 1-88
Hood Release ............................................................. 1-96
Cruise Control .......................................................... 1-100
Heating and Cooling Control .................................... 1-103
Stereo Sound System .............................................. 1-119
Audio System ........................................................... 1-121Antenna .................................................................... 1-140FEATURES OF YOUR HYUNDAI
1
1

1
FEATURES OF YOUR HYUNDAI

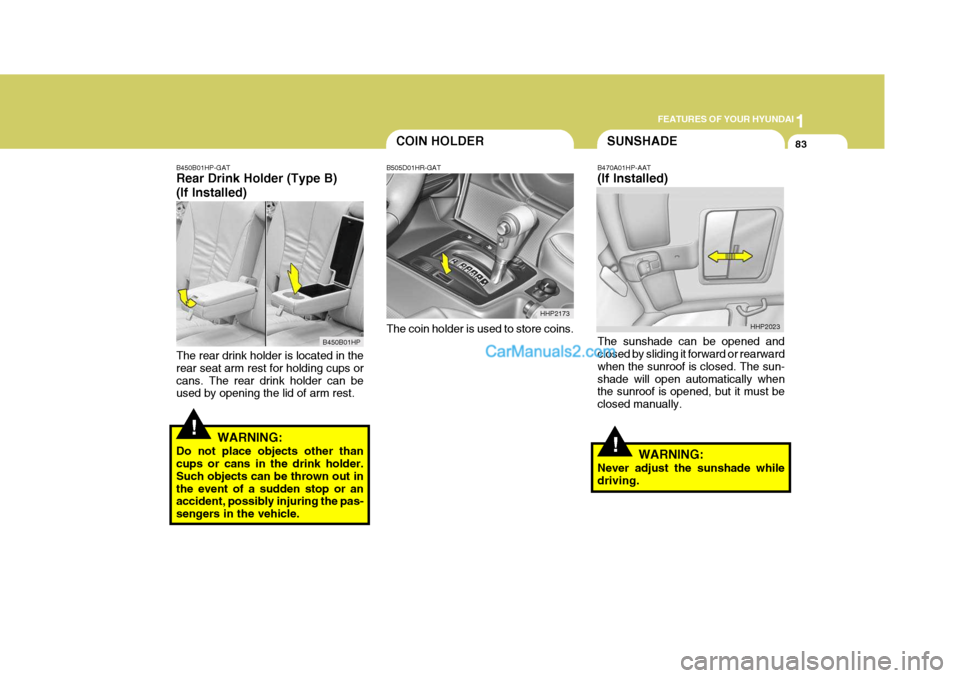

83COIN HOLDERSUNSHADE
B470A01HP-AAT (If Installed) The sunshade can be opened and closed by sliding it forward or rearward when the sunroof is closed. The sun-shade will open automatically when the sunroof is opened, but it must be closed manually. HHP2023
!WARNING:
Never adjust the sunshade while driving.
B505D01HR-GAT The coin holder is used to store coins.
HHP2173
!
B450B01HP-GAT Rear Drink Holder (Type B) (If Installed) The rear drink holder is located in the rear seat arm rest for holding cups orcans. The rear drink holder can be used by opening the lid of arm rest.
WARNING:
Do not place objects other thancups or cans in the drink holder. Such objects can be thrown out inthe event of a sudden stop or an accident, possibly injuring the pas- sengers in the vehicle. B450B01HP

1FEATURES OF YOUR HYUNDAI
84
!

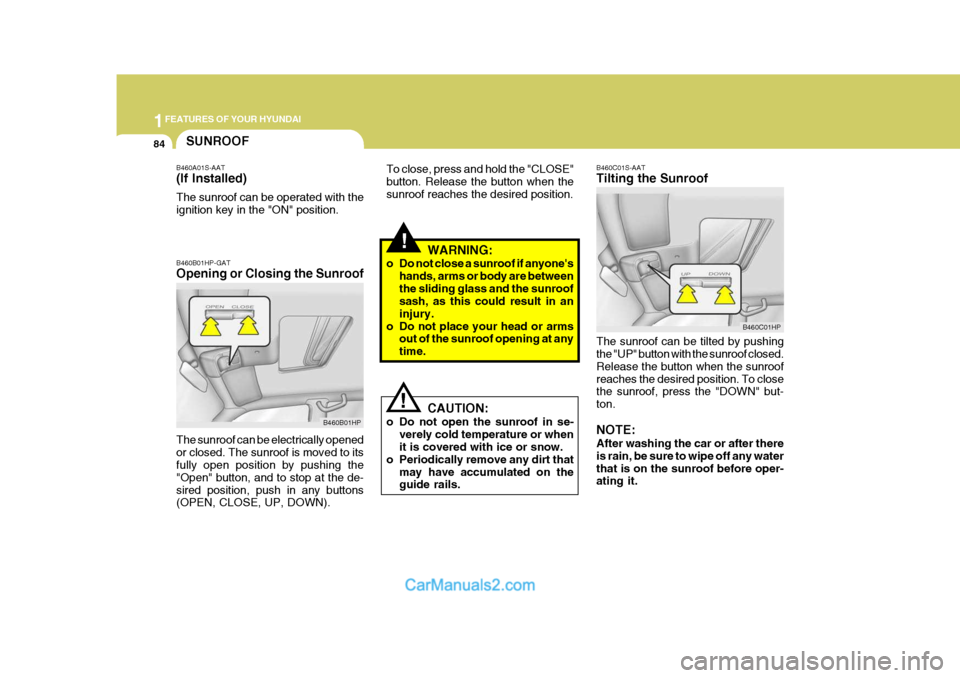

!WARNING:
o Do not close a sunroof if anyone's hands, arms or body are between the sliding glass and the sunroof sash, as this could result in an injury.
o Do not place your head or arms out of the sunroof opening at anytime.
CAUTION:
o Do not open the sunroof in se- verely cold temperature or when it is covered with ice or snow.
o Periodically remove any dirt that may have accumulated on theguide rails. B460C01S-AAT Tilting the Sunroof The sunroof can be tilted by pushing the "UP" button with the sunroof closed. Release the button when the sunroofreaches the desired position. To close the sunroof, press the "DOWN" but- ton. NOTE: After washing the car or after there is rain, be sure to wipe off any waterthat is on the sunroof before oper- ating it.
B460B01HP-GAT Opening or Closing the Sunroof The sunroof can be electrically opened or closed. The sunroof is moved to its fully open position by pushing the "Open" button, and to stop at the de-sired position, push in any buttons (OPEN, CLOSE, UP, DOWN).
B460B01HP B460C01HP
SUNROOF
B460A01S-AAT (If Installed) The sunroof can be operated with the ignition key in the "ON" position. To close, press and hold the "CLOSE"button. Release the button when thesunroof reaches the desired position.

1
FEATURES OF YOUR HYUNDAI
85INTERIOR LIGHT
B480B01Y-AAT Map Light Push in the map light switch to turn the light on or off. This light produces aspot beam for convenient use as a map light at night or as a personal light for the driver and the passenger. B480B01HP

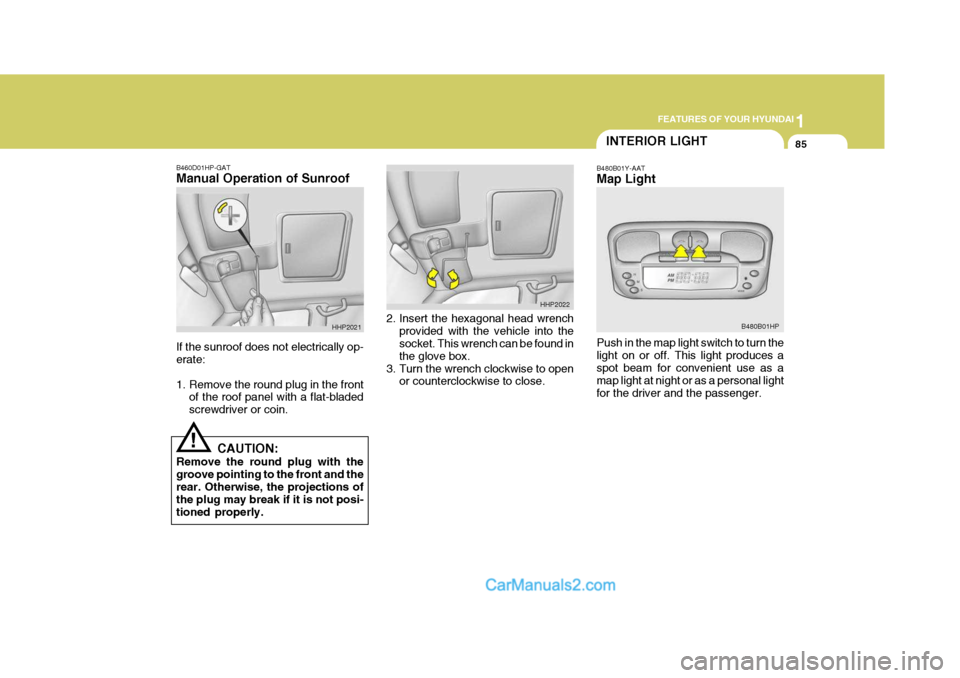

B460D01HP-GAT Manual Operation of Sunroof
CAUTION:
Remove the round plug with the groove pointing to the front and therear. Otherwise, the projections of the plug may break if it is not posi- tioned properly.
!
If the sunroof does not electrically op- erate:
1. Remove the round plug in the front
of the roof panel with a flat-bladed screwdriver or coin. HHP2021
2. Insert the hexagonal head wrench
provided with the vehicle into the socket. This wrench can be found in the glove box.
3. Turn the wrench clockwise to open or counterclockwise to close. HHP2022

1
FEATURES OF YOUR HYUNDAI

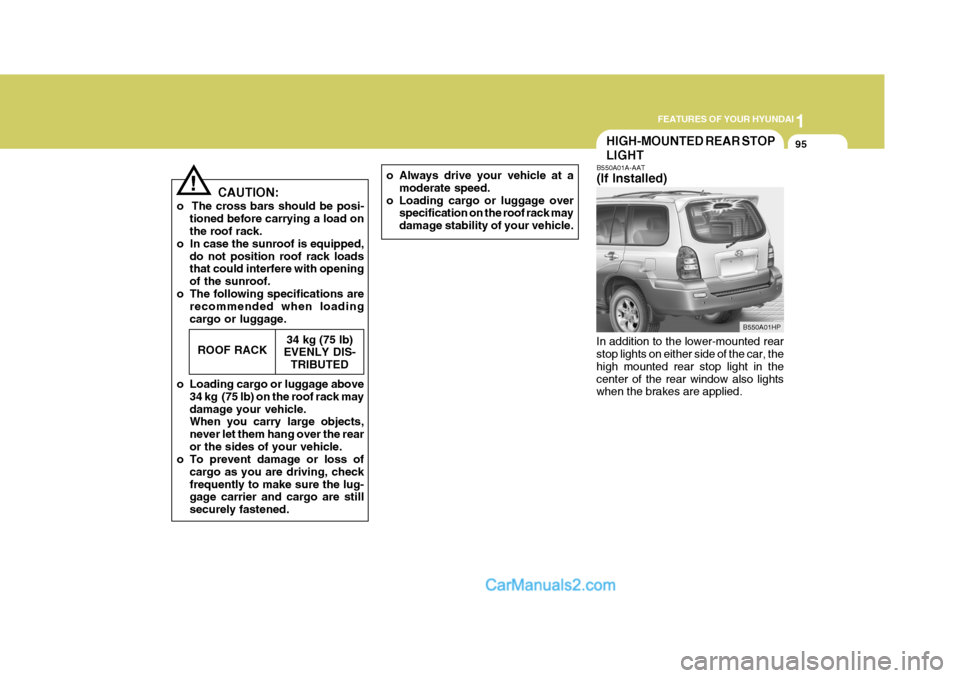

95HIGH-MOUNTED REAR STOP LIGHT
o Always drive your vehicle at a
moderate speed.
o Loading cargo or luggage over specification on the roof rack may damage stability of your vehicle.B550A01A-AAT (If Installed)
In addition to the lower-mounted rear stop lights on either side of the car, the high mounted rear stop light in thecenter of the rear window also lights when the brakes are applied.
! CAUTION:
o The cross bars should be posi- tioned before carrying a load on the roof rack.
o In case the sunroof is equipped, do not position roof rack loadsthat could interfere with opening of the sunroof.
o The following specifications are recommended when loadingcargo or luggage.
o Loading cargo or luggage above 34 kg (75 lb) on the roof rack maydamage your vehicle. When you carry large objects, never let them hang over the rearor the sides of your vehicle.
o To prevent damage or loss of
cargo as you are driving, checkfrequently to make sure the lug- gage carrier and cargo are still securely fastened.ROOF RACK
34 kg (75 lb)
EVENLY DIS-
TRIBUTED
B550A01HP

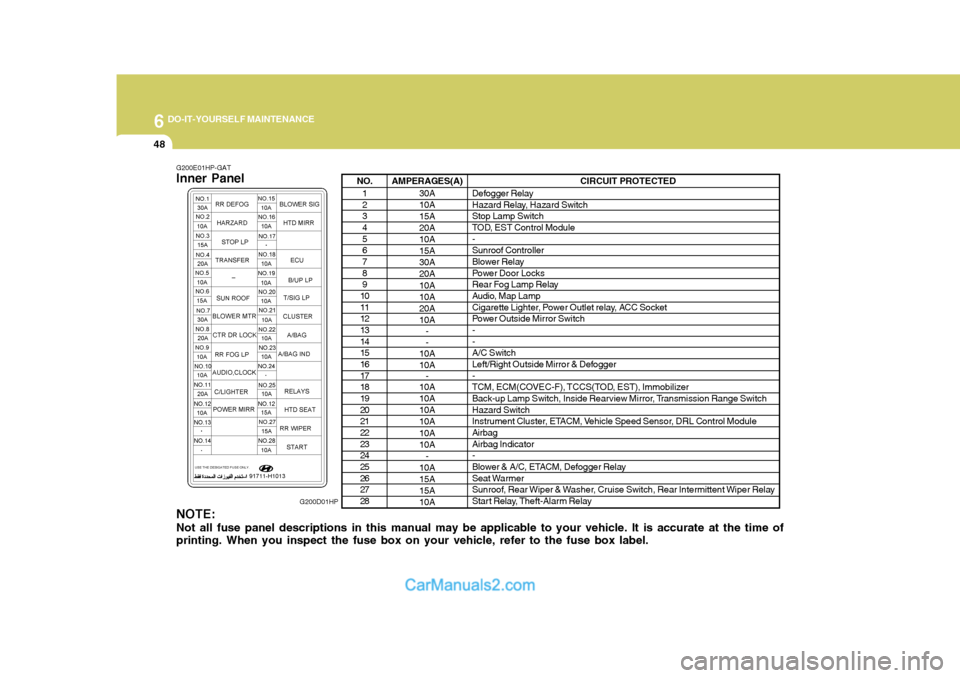

6 DO-IT-YOURSELF MAINTENANCE
48
NO.1 2 34 5 67 8 9
10 11 1213 14 1516 17 1819 20 2122 23 2425 26 2728 AMPERAGES(A)
30A 10A 15A 20A10A15A30A20A 10A 10A20A10A- -
10A 10A -
10A10A10A10A 10A 10A
-
10A15A15A 10A CIRCUIT PROTECTED
Defogger Relay
Hazard Relay, Hazard Switch Stop Lamp Switch
TOD, EST Control Module - Sunroof Controller
Blower Relay
Power Door Locks
Rear Fog Lamp Relay
Audio, Map Lamp
Cigarette Lighter, Power Outlet relay, ACC Socket
Power Outside Mirror Switch- - A/C Switch
Left/Right Outside Mirror & Defogger -
TCM, ECM(COVEC-F), TCCS(TOD, EST), Immobilizer
Back-up Lamp Switch, Inside Rearview Mirror, Transmission Range Switch Hazard Switch
Instrument Cluster, ETACM, Vehicle Speed Sensor, DRL Control ModuleAirbag Airbag Indicator -
Blower & A/C, ETACM, Defogger Relay
Seat Warmer
Sunroof, Rear Wiper & Washer, Cruise Switch, Rear Intermittent Wiper Relay
Start Relay, Theft-Alarm Relay
G200E01HP-GAT Inner Panel NOTE: Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label. G200D01HP

Fuel Recommendations ............................................... 1-2
Running In Your Hyundai .............................................. 1-4
Immobiliser System ...................................................... 1-5
Door Locks ................................................................... 1-9Theft-Alarm System ..................................................... 1-11
Power Windows ........................................................... 1-14
Seats ........................................................................... 1-16
Seat Belts .................................................................... 1-25
Child Restraint System ................................................ 1-31
Supplemental Restraint (AIRBAG) System .................1-40
Instrument Cluster and Indicator Lights .......................1-46
Warning and Indicator Lights....................................... 1-50
Multi-Function Switch .................................................. 1-60
Windscreen Wiper/Washer Switch ..............................1-63
Sunroof ........................................................................ 1-70
Mirror ........................................................................... 1-75
Bonnet Release ........................................................... 1-83
Cruise Co ntrol.............................................................. 1-86
Heating and Cooling Control .......... ..............................1-89
Stereo Sound System ............................................... 1-105
Antenna ..................................................................... 1-107
CONTROLS AND EQUIPMENT
1
1

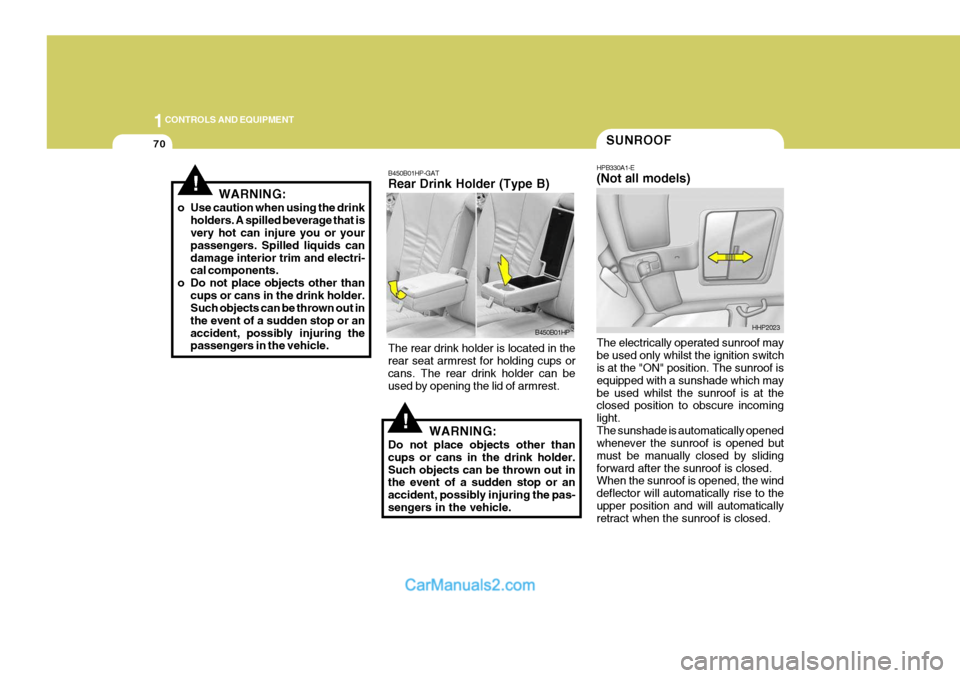

1CONTROLS AND EQUIPMENT
70
The electrically operated sunroof may be used only whilst the ignition switch is at the "ON" position. The sunroof is equipped with a sunshade which maybe used whilst the sunroof is at the closed position to obscure incoming light.The sunshade is automatically opened whenever the sunroof is opened but must be manually closed by slidingforward after the sunroof is closed. When the sunroof is opened, the wind deflector will automatically rise to theupper position and will automatically retract when the sunroof is closed.SUNROOF
HPB330A1-E (Not all models)
HHP2023
!
B450B01HP-GAT Rear Drink Holder (Type B) The rear drink holder is located in the rear seat armrest for holding cups or cans. The rear drink holder can be used by opening the lid of armrest.
WARNING:
Do not place objects other thancups or cans in the drink holder.Such objects can be thrown out in the event of a sudden stop or an accident, possibly injuring the pas-sengers in the vehicle.
!WARNING:
o Use caution when using the drink holders. A spilled beverage that is very hot can injure you or your passengers. Spilled liquids candamage interior trim and electri- cal components.
o Do not place objects other than cups or cans in the drink holder.Such objects can be thrown out in the event of a sudden stop or anaccident, possibly injuring the passengers in the vehicle.
B450B01HP

1
CONTROLS AND EQUIPMENT
71
!
!

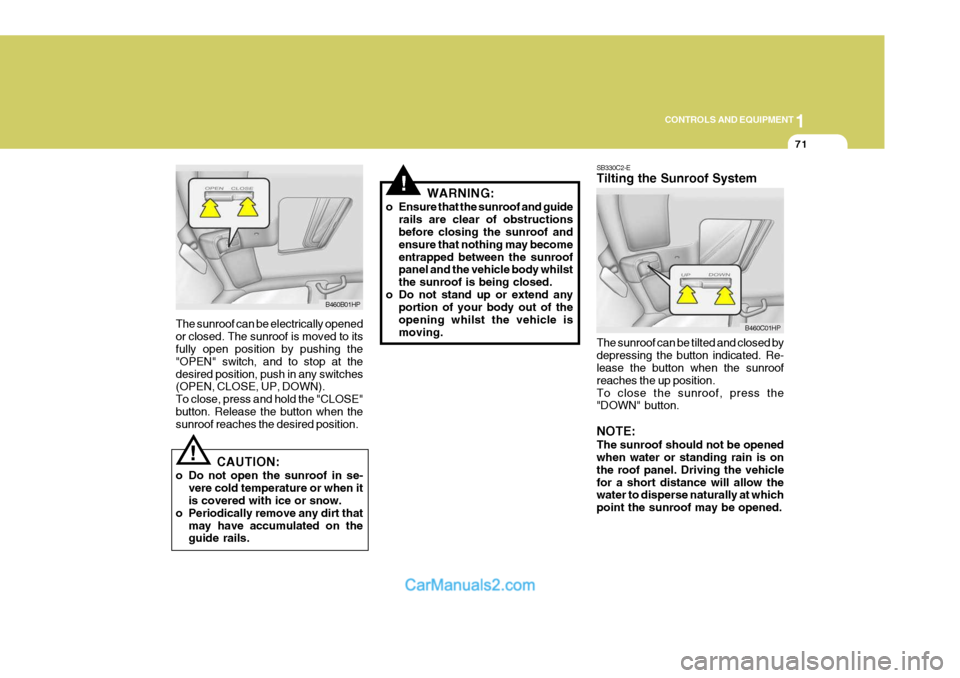

The sunroof can be electrically opened or closed. The sunroof is moved to its fully open position by pushing the "OPEN" switch, and to stop at thedesired position, push in any switches (OPEN, CLOSE, UP, DOWN). To close, press and hold the "CLOSE"button. Release the button when the sunroof reaches the desired position.
CAUTION:
o Do not open the sunroof in se- vere cold temperature or when itis covered with ice or snow.
o Periodically remove any dirt that may have accumulated on theguide rails. WARNING:
o Ensure that the sunroof and guide rails are clear of obstructionsbefore closing the sunroof and ensure that nothing may becomeentrapped between the sunroof panel and the vehicle body whilst the sunroof is being closed.
o Do not stand up or extend any portion of your body out of theopening whilst the vehicle ismoving.
B460B01HP SB330C2-E Tilting the Sunroof System The sunroof can be tilted and closed by depressing the button indicated. Re- lease the button when the sunroof reaches the up position.To close the sunroof, press the "DOWN" button. NOTE: The sunroof should not be opened when water or standing rain is on the roof panel. Driving the vehiclefor a short distance will allow the water to disperse naturally at which point the sunroof may be opened.
B460C01HP

1CONTROLS AND EQUIPMENT
72
Push in the map light switch to turn the light on or off. This light produces a spot beam for convenient use as a map light at night or as a personal lightfor the driver and the passenger.INTERIOR LIGHT
B480B01Y-AAT Map Light
B480B01HP
!

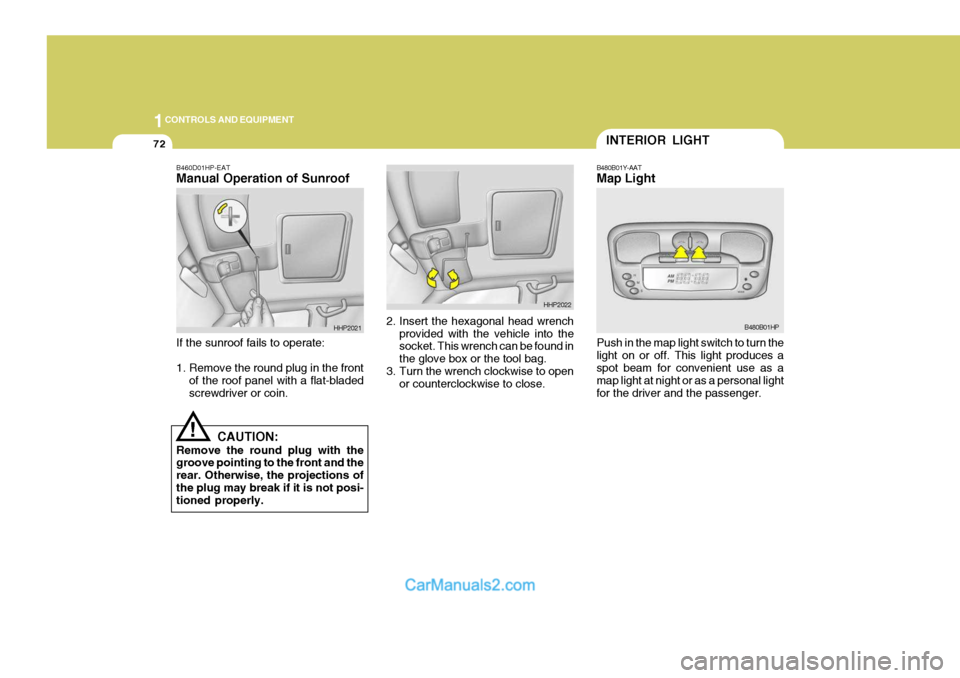

B460D01HP-EAT Manual Operation of Sunroof If the sunroof fails to operate:
1. Remove the round plug in the front
of the roof panel with a flat-bladed screwdriver or coin. 2. Insert the hexagonal head wrench
provided with the vehicle into the socket. This wrench can be found in the glove box or the tool bag.
3. Turn the wrench clockwise to open
or counterclockwise to close.
CAUTION:
Remove the round plug with the groove pointing to the front and the rear. Otherwise, the projections ofthe plug may break if it is not posi- tioned properly.
HHP2021
HHP2022
