6 DO-IT-YOURSELF MAINTENANCE
8
Diesel Engine (2.5 TCI)
G030C02HP
Gasoline Engine
G030C01HP
NOTE: For diesel-powered vehicle SAE 0W- 30 oil should be used only in areaswhere extremely cold temperatures of 10°C(50°F) or below are experi- enced.
(2) The engine oil quality should meet
the following API classification:Diesel Engine (2.5 TCI) : CF-4 or ABOVE Diesel Engine (2.9 CRDi) : CF-4 or ABOVE
(3) The engine oil quality should meet the following ACEA classification :
Diesel Engine (2.5 TCI) : B2 or B3Diesel Engine (2.9 CRDi) : B4 orABOVE G030C02HP-AAT

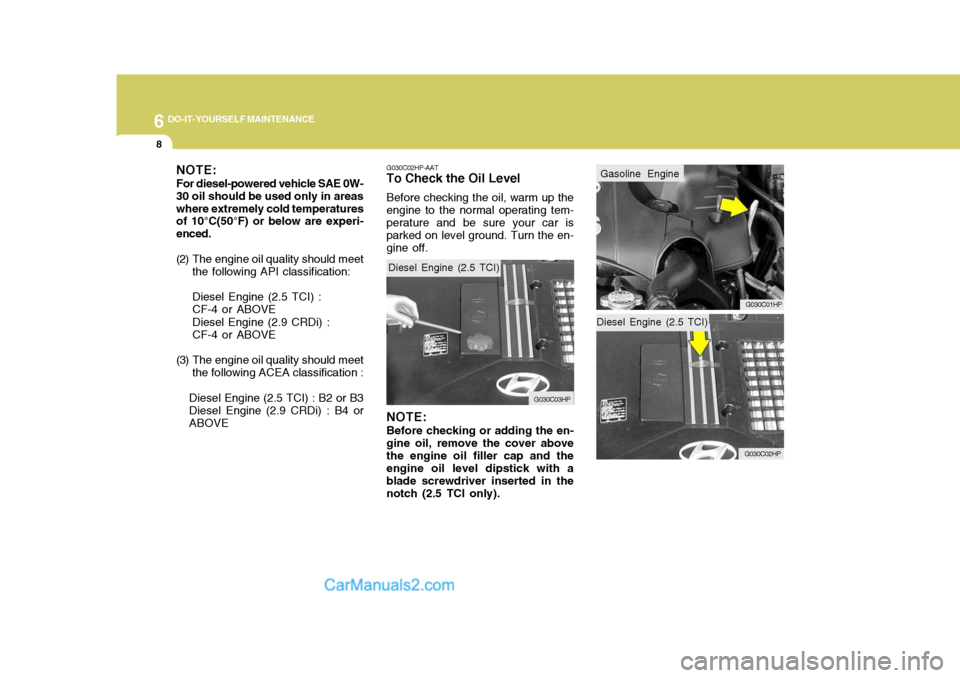

To Check the Oil Level
Before checking the oil, warm up theengine to the normal operating tem- perature and be sure your car is parked on level ground. Turn the en-gine off. NOTE: Before checking or adding the en- gine oil, remove the cover abovethe engine oil filler cap and the engine oil level dipstick with a blade screwdriver inserted in thenotch (2.5 TCI only). G030C03HP
Diesel Engine (2.5 TCI)

6
DO-IT-YOURSELF MAINTENANCE
9
Diesel Engine (2.5 TCI)
Wait ten minutes, then remove the dipstick, wipe it off, fully reinsert thedipstick and withdraw it again. Then note the highest level the oil has reached on the dipstick. It should bebetween the upper ("F") and lower ("L") range. G030D02HP-GAT

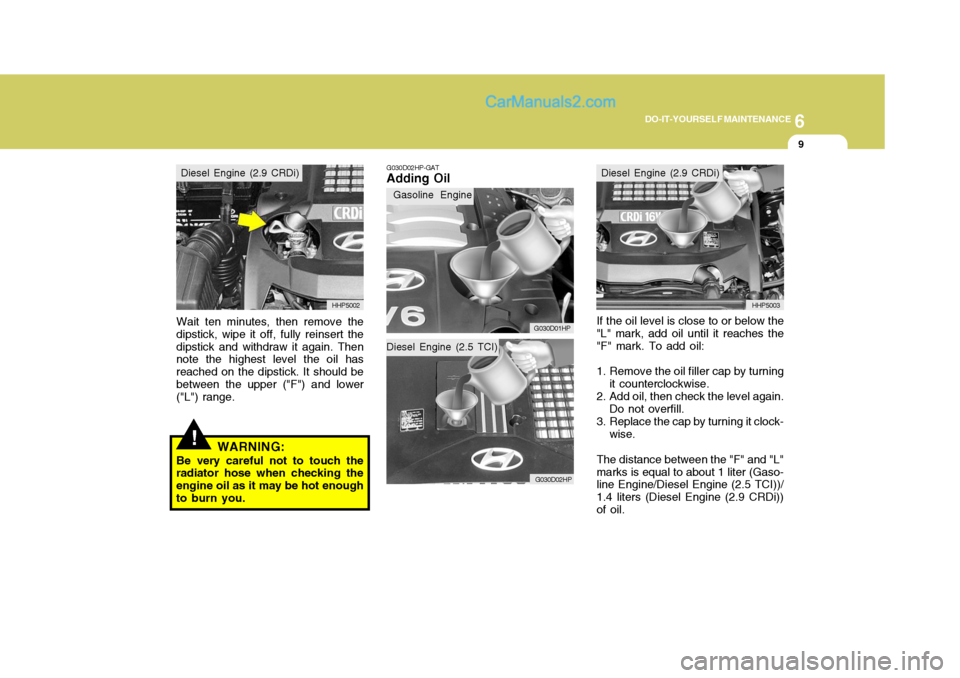

Adding Oil
HHP5002
Diesel Engine (2.9 CRDi)
G030D01HPG030D02HP
Gasoline Engine
!WARNING:
Be very careful not to touch the
radiator hose when checking the engine oil as it may be hot enoughto burn you.
If the oil level is close to or below the "L" mark, add oil until it reaches the "F" mark. To add oil:
1. Remove the oil filler cap by turning
it counterclockwise.
2. Add oil, then check the level again.
Do not overfill.
3. Replace the cap by turning it clock-
wise.
The distance between the "F" and "L" marks is equal to about 1 liter (Gaso- line Engine/Diesel Engine (2.5 TCI))/ 1.4 liters (Diesel Engine (2.9 CRDi))of oil. HHP5003
Diesel Engine (2.9 CRDi)

6 DO-IT-YOURSELF MAINTENANCE
10CHECKING AND CHANGING THE ENGINE COOLANT
!
G050A01A-AAT
WARNING:
Do not remove the radiator cap when the engine is hot. When the engine is hot, the engine coolant is underpressure and may erupt through the opening if the cap is removed. You could be seriously burned if you donot observe this precaution. Do not remove the radiator cap until the radiator is cool to touch.

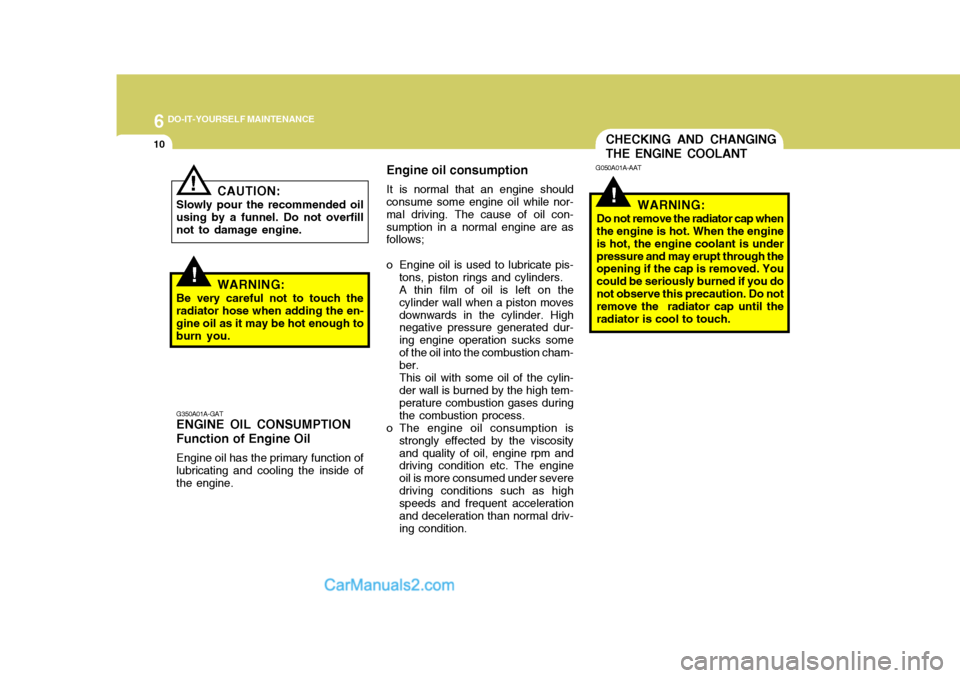

G350A01A-GAT ENGINE OIL CONSUMPTION Function of Engine Oil Engine oil has the primary function of lubricating and cooling the inside of the engine. Engine oil consumption
It is normal that an engine should
consume some engine oil while nor- mal driving. The cause of oil con-sumption in a normal engine are as follows;
o Engine oil is used to lubricate pis-
tons, piston rings and cylinders. A thin film of oil is left on thecylinder wall when a piston movesdownwards in the cylinder. High negative pressure generated dur- ing engine operation sucks someof the oil into the combustion cham- ber. This oil with some oil of the cylin- der wall is burned by the high tem- perature combustion gases duringthe combustion process.
o The engine oil consumption is strongly effected by the viscosityand quality of oil, engine rpm and driving condition etc. The engine oil is more consumed under severedriving conditions such as high speeds and frequent acceleration and deceleration than normal driv-ing condition.
!
! CAUTION:
Slowly pour the recommended oil using by a funnel. Do not overfillnot to damage engine.
WARNING:
Be very careful not to touch the radiator hose when adding the en- gine oil as it may be hot enough toburn you.

6
DO-IT-YOURSELF MAINTENANCE
11
!
Ambient
tempera-
ture
°C ( °F)
-15 (5)
-25 (-13) -35 (-31) -45 (-49) Engine Coolant concentration
Water
65% 60% 50% 40%
Antifreeze solution 35% 40% 50% 60%
G050C01A-AAT
To Check the Coolant Level
The coolant level can be seen on the
side of the plastic coolant reservoir. The level of the coolant should be between the "LOW" and "FULL" lines on the reservoir when the engine iscool. If the level is below the "LOW" mark, add engine coolant to bring it up between "LOW" and "FULL". If thelevel is low, inspect for coolant leaks and recheck the fluid level frequently. If the level drops again, visit yourHyundai dealer for an inspection and diagnosis of the reason. G050D02HP-GAT
To Change the Engine Coolant
The engine coolant should be changed at those intervals specified in the ve- hicle maintenance schedule in Sec- tion 5.
CAUTION:
Engine coolant can damage the fin-ish of your car. If you spill enginecoolant on the car, wash it off thor- oughly with clean water.
1. Park the car on level ground, set the parking brake and remove the radia- tor cap when cool.
G050B01A-DAT

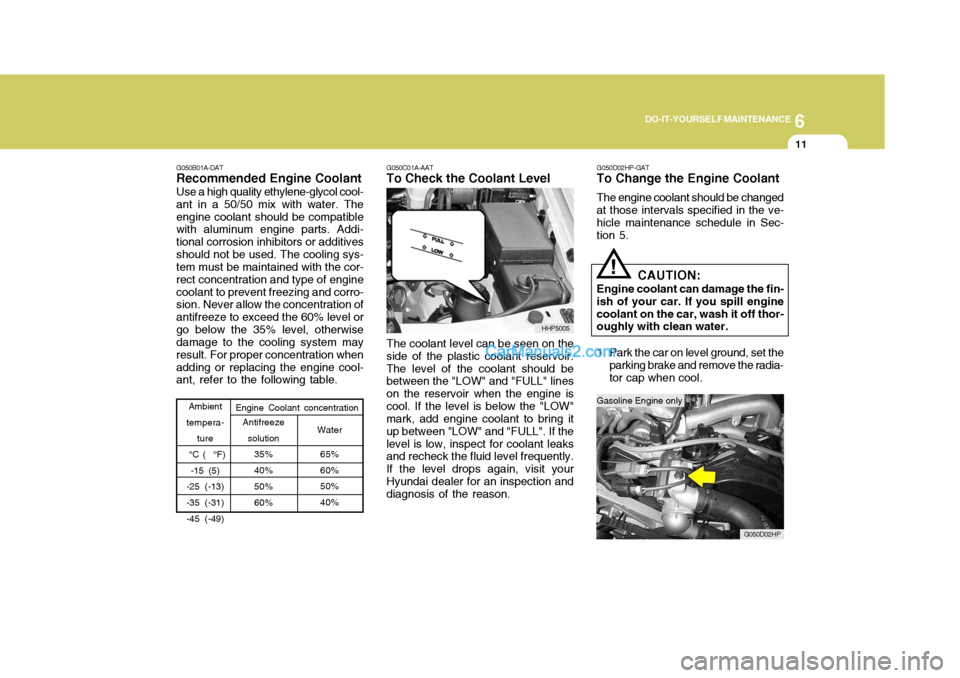

Recommended Engine Coolant
Use a high quality ethylene-glycol cool-ant in a 50/50 mix with water. Theengine coolant should be compatible with aluminum engine parts. Addi- tional corrosion inhibitors or additivesshould not be used. The cooling sys- tem must be maintained with the cor- rect concentration and type of enginecoolant to prevent freezing and corro- sion. Never allow the concentration of antifreeze to exceed the 60% level orgo below the 35% level, otherwise damage to the cooling system may result. For proper concentration whenadding or replacing the engine cool- ant, refer to the following table. HHP5005
G050D02HP
Gasoline Engine only

6 DO-IT-YOURSELF MAINTENANCE
12
NOTE: Gasoline Engine Only Before adding the coolant to the radiator, unscrew the bolts on theengine cover, remove the engine cover and unscrew the flange bolt for fitting water outlet to escapethe excess pressure. And if the coolant overflows from the hole while adding the coolant, screwthe bolt and continue to add the coolant.
G050D01HP 2. Turn the radiator cap counterclock-
wise without pressing down on it, until it stops. This relieves any pres- sure remaining in the cooling sys- tem. And remove the radiator capby pushing down and turning coun- terclockwise.
3. Be sure your drain receptacle is in place. Open the drain cock on theradiator. Allow all the engine cool- ant to drain from the cooling sys-tem, then securely close the drain cock. HHP5006
Gasoline Engine or Diesel Engine (2.5 TCI) Diesel Engine (2.9 CRDi)
Gasoline Engine or Diesel Engine (2.5 TCI)
4. Check Section 9 for the capacity of
the cooling system in your car. Then, following the manufacturer’s directions on the engine coolant container, add the appropriate quan-tity of coolant to the radiator.
5. Fill the radiator with clean deminer-
alized or distilled water. Continueto add clean demineralized or dis- tilled water in small quantities until the fluid level stays up in the radia-tor neck.
HHP5008

6
DO-IT-YOURSELF MAINTENANCE

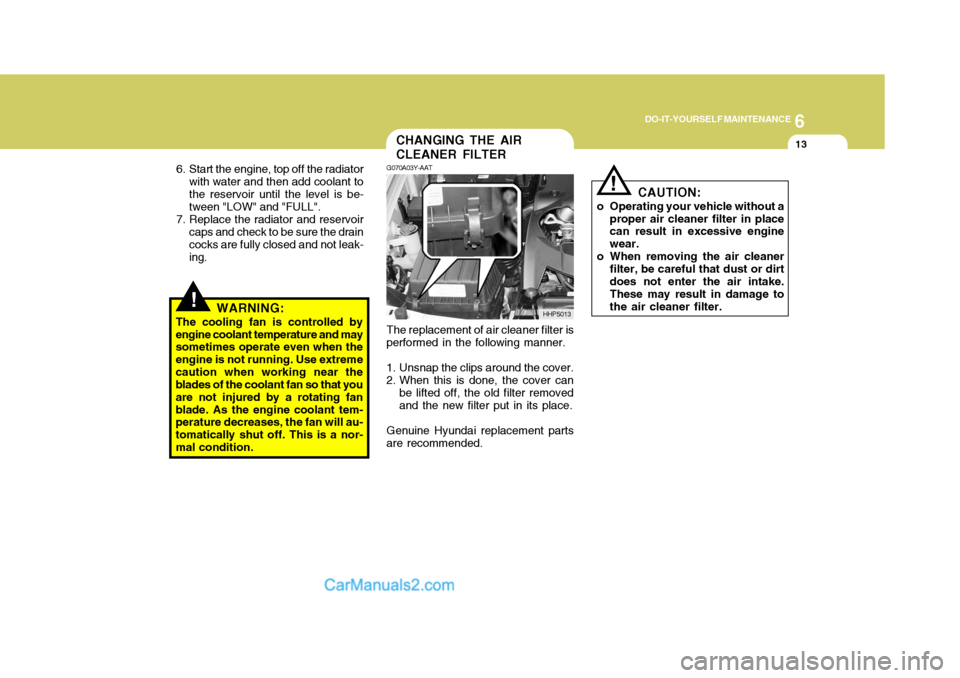

13CHANGING THE AIR CLEANER FILTER
!
6. Start the engine, top off the radiator
with water and then add coolant to the reservoir until the level is be- tween "LOW" and "FULL".
7. Replace the radiator and reservoir caps and check to be sure the draincocks are fully closed and not leak- ing.
WARNING:
The cooling fan is controlled byengine coolant temperature and may sometimes operate even when the engine is not running. Use extremecaution when working near the blades of the coolant fan so that you are not injured by a rotating fanblade. As the engine coolant tem- perature decreases, the fan will au- tomatically shut off. This is a nor-mal condition. G070A03Y-AAT The replacement of air cleaner filter is
performed in the following manner.
1. Unsnap the clips around the cover.
2. When this is done, the cover can be lifted off, the old filter removed and the new filter put in its place.
Genuine Hyundai replacement parts
are recommended. HHP5013
!
CAUTION:
o Operating your vehicle without a proper air cleaner filter in place can result in excessive engine wear.
o When removing the air cleaner filter, be careful that dust or dirtdoes not enter the air intake. These may result in damage to the air cleaner filter.

6 DO-IT-YOURSELF MAINTENANCE

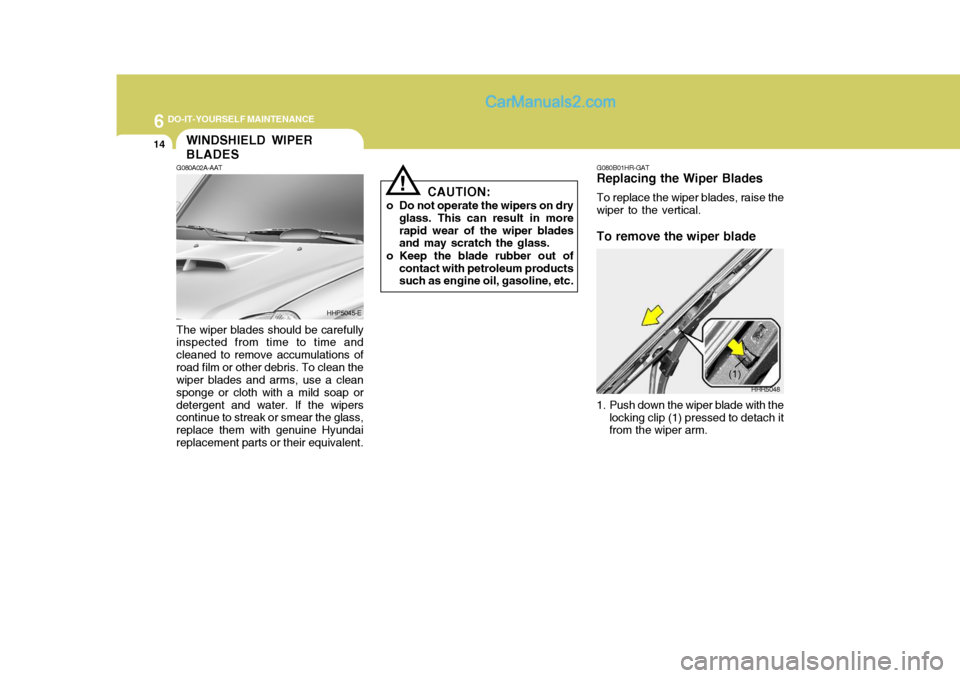

14WINDSHIELD WIPER BLADES
!
G080A02A-AAT The wiper blades should be carefully inspected from time to time and cleaned to remove accumulations ofroad film or other debris. To clean the wiper blades and arms, use a clean sponge or cloth with a mild soap ordetergent and water. If the wipers continue to streak or smear the glass, replace them with genuine Hyundaireplacement parts or their equivalent. CAUTION:
o Do not operate the wipers on dry glass. This can result in morerapid wear of the wiper blades and may scratch the glass.
o Keep the blade rubber out of contact with petroleum productssuch as engine oil, gasoline, etc. G080B01HR-GAT
Replacing the Wiper Blades
To replace the wiper blades, raise the
wiper to the vertical. To remove the wiper blade
1. Push down the wiper blade with the locking clip (1) pressed to detach it from the wiper arm.
HHP5045-E
HHR5048
(1)

6
DO-IT-YOURSELF MAINTENANCE
15

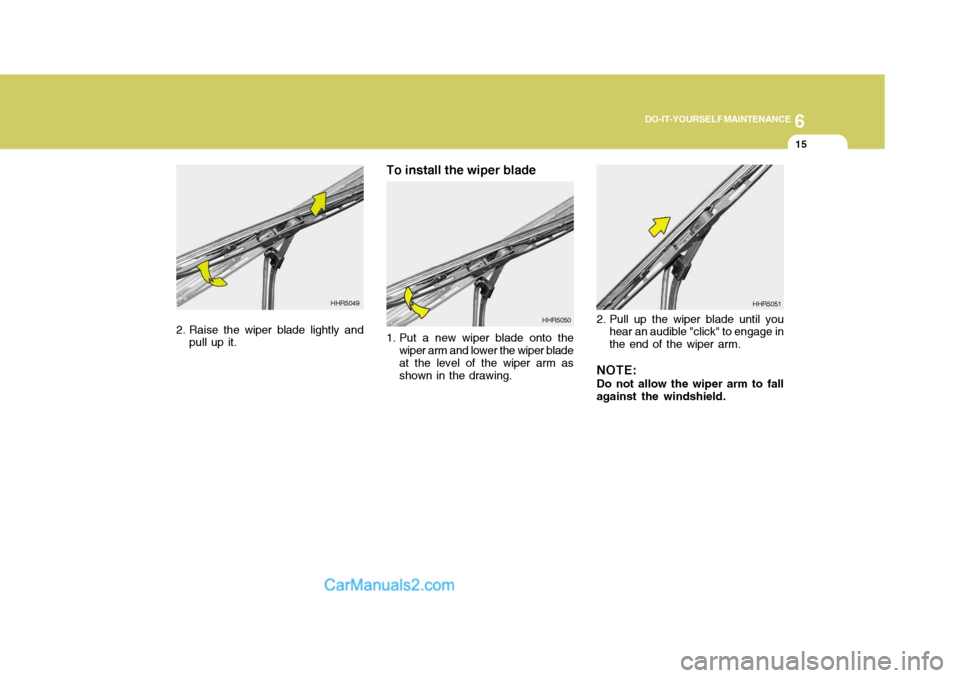

2. Raise the wiper blade lightly and
pull up it. To install the wiper blade
1. Put a new wiper blade onto the
wiper arm and lower the wiper blade at the level of the wiper arm asshown in the drawing.
HHR5049
HHR50502. Pull up the wiper blade until you
hear an audible "click" to engage inthe end of the wiper arm.
NOTE: Do not allow the wiper arm to fall against the windshield. HHR5051

6 DO-IT-YOURSELF MAINTENANCE
16
!
CHECKING THE TRANS- MISSION OIL (MANUAL)FILLING THE WASHER RESERVOIR
CAUTION:
o Radiator antifreeze (engine cool- ant) should not be used in the washer system because it will damage the car's finish.
o The washer should not be oper- ated if the washer reservoir isempty. This can damage the washer fluid pump.
! G100A04HP-GAT Transmission lubricant in the manual transmission should be checked at those intervals specified in the ve-hicle maintenance schedule in Sec- tion 5.
Recommended Oil Use only HYUNDAI GENUINE PARTS MTF 75W/85 (API GL-4) in the manual transmission. Drain plug
G090A02HP-AAT The washer fluid reservoir supplies fluid to the windshield washer sys- tem. A good quality washer fluid should be used to fill the washer reservoir. The fluid level should be checked morefrequently during inclement weather or whenever the washer system is in more frequent use. The capacity of the washer reservoir is 4.5 liters. HHP5017
HHP5010
Filler plug
WARNING:
o Windshield washer fluid agents contain some amounts of alco- hol and can be flammable undercertain circumstances. Do not allow sparks or flame to contact the washer fluid or the washerfluid reservoir. Damage to the vehicle or its occupants could occur.
o Windshield washer fluid is poi- sonous to humans and animals.Do not drink windshield washer fluid. Serious injury or death could occur.

6
DO-IT-YOURSELF MAINTENANCE
17
Manual Transmission Oil Capac- ity
The oil capacity of the manual trans-
mission is;
WARNING:
It is always better to check the trans-
mission oil level when the engine is cool or cold. If the engine is hot, you should exercise great caution to avoid burning yourself on hotengine or exhaust parts.
!
Engine GasolineDiesel (2.9 CRDi)Diesel (2.5 TCI) Capacity 3.2 liters 2.5 liters
NOTE: It is recommended that the manual transaxle fluid should be checkedby an authorized Hyundai dealer.

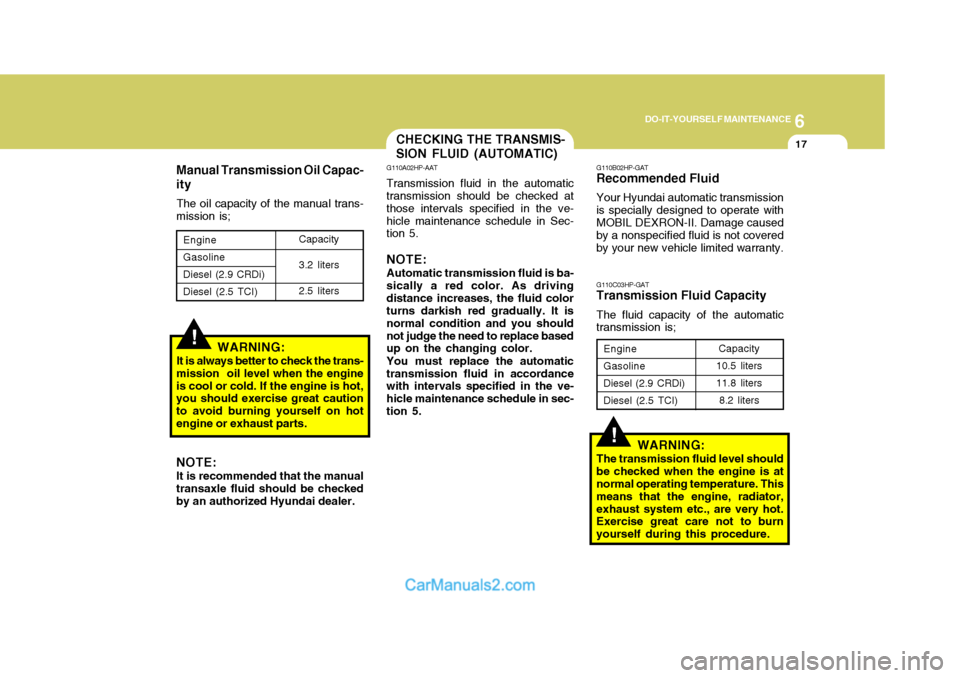

CHECKING THE TRANSMIS- SION FLUID (AUTOMATIC)
!
G110B02HP-GAT
Recommended Fluid
Your Hyundai automatic transmission is specially designed to operate with MOBIL DEXRON-II. Damage caused by a nonspecified fluid is not coveredby your new vehicle limited warranty. G110C03HP-GAT
Transmission Fluid Capacity
The fluid capacity of the automatic transmission is;
WARNING:
The transmission fluid level should be checked when the engine is at normal operating temperature. This means that the engine, radiator,exhaust system etc., are very hot. Exercise great care not to burn yourself during this procedure.
G110A02HP-AAT Transmission fluid in the automatic transmission should be checked at those intervals specified in the ve-hicle maintenance schedule in Sec- tion 5. NOTE: Automatic transmission fluid is ba- sically a red color. As drivingdistance increases, the fluid color turns darkish red gradually. It is normal condition and you shouldnot judge the need to replace based up on the changing color. You must replace the automatic transmission fluid in accordance with intervals specified in the ve- hicle maintenance schedule in sec-tion 5.
Engine GasolineDiesel (2.9 CRDi)Diesel (2.5 TCI)
Capacity
10.5 liters11.8 liters 8.2 liters
