YOUR VEHICLE AT A GLANCE
B255A01HP-GAT INDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER
Turn Signal Indicator Lights
ABS Service Reminder Indicator (SRI) (If Installed) High Beam Indicator Light Low Oil Pressure Warning Light Parking Brake/Low Brake Fluid Level Warning Light Charging System Warning Light
Tail Gate Open Warning Light
Door Ajar Warning Light Low Fuel Level Warning Light
Front Fog Indicator Light
O/D OFF Indicator Light (If Installed)
Immobilizer Warning Indicator Light (If Installed)
SRS (Airbag) Service Reminder Indicator (SRI) (If Installed) Seat Belt Warning Light Cruise Indicator Light (If Installed)
Malfunction Indicator Light (If Installed)
A/T(Automatic Transmission) Oil Temperature Warning Light (If Installed)
4WD LOW Indicator Light 4WD HIGH Indicator Light (Part-time 4WD only)
4WD System Warning Light (Full-time 4WD only)
Fuel Filter Warning Light (Diesel Engine)
Brake Vacuum Warning Light (Diesel Engine)
* More detailed explanations of these items will be found beginning on page 1-58.
Diesel Preheat Indicator Light (Diesel Engine)

Fuel Recommendations ............................................... 1-2
Breaking In Your New Hyundai .................................... 1-3
Keys .............................................................................. 1-4
Immobilizer System ...................................................... 1-5
Door Locks .................................................................1-11
Theft-Alarm System .................................................... 1-13
Power Windows .......................................................... 1-17
Seats .......................................................................... 1-18
Seat Belts ................................................................... 1-31
Child Restraint System............................................... 1-39
Supplemental Restraint (AIRBAG) System ............... 1-48
Instrument Cluster and Indicator Lights ..................... 1-54
Warning and Indicator Lights ..................................... 1-58
Multim eter ................................................................... 1-69
Multi-function Light Switch ......................................... 1-73
Windshield Wiper/Washer Switch ................................1-75
Sunroof ........................................................................ 1-83
Mirror ........................................................................... 1-88
Hood R elease .............................................................. 1-97
Cruise Co ntrol............................................................ 1-101
Heating and Cooling Control ...................................... 1-104
Stereo Sound System ............................................... 1-120
Audio System ............................................................ 1-122
Antenna ..................................................................... 1-141
FEATURES OF YOUR HYUNDAI
1
1

1
FEATURES OF YOUR HYUNDAI
5IMMOBILIZER SYSTEM
B030B01A-AAT Record Your Key Number A code number is stamped on the number plate that came with the keys to your Hyundai. This key numberplate should not be left with the keys but kept in a safe place, not in the vehicle. The key number should alsobe recorded in a place where it can be found in an emergency. If you need additional keys, or if youshould lose your keys, your authorized Hyundai dealer can make new keys if you can supply the key number. B880A01HP-GAT
- For Diesel Engine (2.5 TCI) or
Gasoline Engine (If Installed)
The immobilizer system is an anti-theft device, designed to deter automobile theft. B880B02HP-GAT Keys For greater convenience, your Hyundai has two types of keys as shown in theillustration.
B030B01HR
B880B01HP
B880B02HP
Light Purple ID key
ID key Master key
Master key Black
Type B
Type A

1FEATURES OF YOUR HYUNDAI
6
(3) If you need additional keys or if you
should lose your keys, your autho- rized Hyundai dealer can make new keys if you can supply the key number and ID key.
NOTE: If you make your own duplicate key, you will not be able to cancel the system or start the engine. B880C01A-GAT Key Numbers
B880C01HP
B880C02HP
!
(1) ID key
This key must be used first to reg- ister a unique ID code in the ICM. This ID code is then recorded onto the master keys. Both sides of thekey have a Hyundai logo.
(2) Master key This key is for general use. It will open all locks on your vehicle. One side of the key has the Hyundailogo and the other side has the "M" symbol. If your vehicle is equipped withTheft-alarm system, the master keys with the function of transmit- ter will be provided. (Type B)
CAUTION:
Don't lose your ID key or forget thepassword. Always keep your ID key in a place where you remember and record your password. If you don'thave both the password and ID key, consult your authorized Hyundai dealer. The vehicle key number is recorded upon a metal tag attached to the keys when the vehicle is first delivered toyou.
!
CAUTION:
When starting the engine, do not use the key with other immobilizer keys around. Otherwise the engine may not start or may stop soon after it starts.Keep each keys separately not to have any malfunction after you re- ceive your new vehicle.

1
FEATURES OF YOUR HYUNDAI
7
!
B880D01HP-GAT Limp Home Procedures In case the immobilizer system is out of order, you cannot start the enginewithout the limp home procedures with ignition key. The following procedure is how to startthe engine with the function of the limp home. (0, 1, 2, 3 as a sample pass- word). NOTE: You can get the limp home pass- word when the vehicle is first deliv-ered to you. If you do not have the password, consult your authorized Hyundai dealer.
1. To set the password you may turn
the ignition key "ON" and then turn it "OFF" according to the digit num- bers. For example, turn the ignition key once for digit number "1", andtwice for "2", and so on. However, for the digit number "0", you must turn the ignition key for 10 times.
2. Wait for 3~10 seconds. 3. You may set the remaining number
of digits by following the same pro-cedures 1 and 2.
4. If all of four digits have been tried
successfully, from this time, youhave to start your engine within 30 seconds. If you start your engine after 30 seconds, your engine willnot start.
NOTE: If the engine dies while driving after limp home procedure, you can startyour engine within 8 seconds with- out limp home procedure again. After doing the limp home procedure, you have to consult with your autho- rized Hyundai dealer as soon as pos-sible.
CAUTION:
If you cannot start your engine inspite of limp home procedure, haveyour vehicle towed by an autho- rized Hyundai dealer.
The key number should be recorded and kept in a safe place in case theneed to order further keys arises. New keys are available from any Hyundai dealer by quoting the relevant keynumber. In the interest of security, the metal tag attached to the keys which bears thekey number should be removed from the key ring after you receive your new vehicle. In addition, key numbers can-not be provided by Hyundai for secu- rity reasons. If you need additional keys or if youshould lose your keys, your authorized Hyundai dealer can make new keys if you can supply the key number and IDkey.

1FEATURES OF YOUR HYUNDAI
8
B885B02HP-GAT Keys
All of the locks fitted to the vehicle are operated by the same key. However, since it is possible to lock the doors without the use of the key, care shouldbe exercised to ensure that the key does not become locked inside the vehicle by mistake. If your vehicle isequipped with Theft-alarm system, the master keys with the function of trans- mitter will be provided (Type B). NOTE: If you make your own duplicate key, you will not be able to cancel thesystem or start the engine.Master keys
CAUTION:
o The password should be re- corded and kept in a safe place in case the need to order further keys arises.
o If you forget the password, con- sult your authorized Hyundaidealer.
o When starting the engine, do not use the key with other immobi-lizer keys around. Otherwise the engine may not start or may stopsoon after it starts. Keep each keys separately not to have any malfunction after you receive your new vehicle.
!
B885B01HP B885B02HP
Type A Type B
Master keys
B885A01HP-GAT
- For Diesel Engine (2.9 CRDi)
(If Installed)
The immobilizer system is an anti-theft device, designed to deter automobiletheft.

1
FEATURES OF YOUR HYUNDAI
9

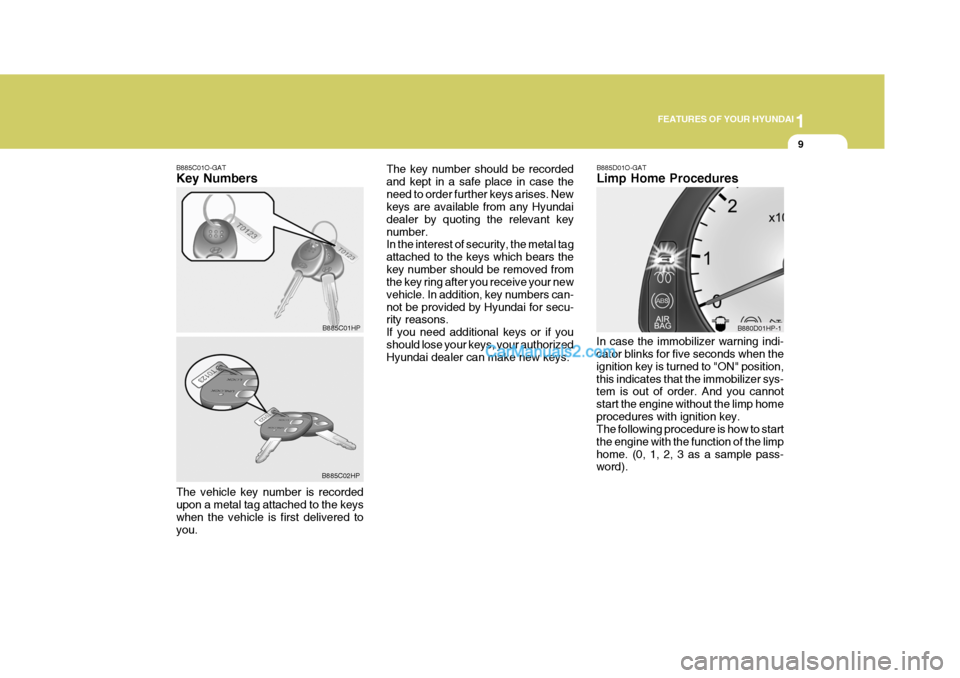

B885C01O-GAT Key Numbers B885D01O-GATLimp Home Procedures
In case the immobilizer warning indi- cator blinks for five seconds when the ignition key is turned to "ON" position,this indicates that the immobilizer sys- tem is out of order. And you cannot start the engine without the limp homeprocedures with ignition key. The following procedure is how to start the engine with the function of the limphome. (0, 1, 2, 3 as a sample pass- word).
B885C01HP
B885C02HP The key number should be recorded and kept in a safe place in case theneed to order further keys arises. New keys are available from any Hyundai dealer by quoting the relevant keynumber. In the interest of security, the metal tag attached to the keys which bears thekey number should be removed from the key ring after you receive your new vehicle. In addition, key numbers can-not be provided by Hyundai for secu- rity reasons. If you need additional keys or if youshould lose your keys, your authorized Hyundai dealer can make new keys.
B880D01HP-1
The vehicle key number is recorded upon a metal tag attached to the keyswhen the vehicle is first delivered to you.

1FEATURES OF YOUR HYUNDAI
10
!
NOTE: If the engine dies while driving after limp home procedure, you can start your engine within 8 seconds with-out limp home procedure again.
5. If the immobilizer indicator blinks for
five seconds, you have to try the limp home procedure again from the beginning.
After doing the limp home procedure,you have to consult with your autho-rized Hyundai dealer as soon as pos- sible.
CAUTION:
o If you fail to try the limp home procedure with the sequence of three times, you have to wait forabout one hour to do the limp home procedure again.
o If you cannot start your engine in spite of limp home procedure,have your vehicle towed by an authorized Hyundai dealer. B030C01Y-AAT ILLUMINATED IGNITION SWITCH Whenever a front door is opened, the ignition switch will be illuminated foryour convenience, provided the igni- tion switch is not in the "ON" position. The light will go off approximately 10seconds after closing the door or when the ignition switch is turned on.
B030C01E
NOTE: You can get the limp home pass- word when the vehicle is first deliv- ered to you. If you do not have thepassword, consult your authorized Hyundai dealer.
1. To set the password you may turn
the ignition key "ON" and then turn it "OFF" according to the digit num-bers, then the immobilizer indicator will blink along with the operation of the ignition key. For example, turnthe ignition key once for digit num- ber "1", and twice for "2", and so on. However, for the digit number "0",you must turn the ignition key for 10 times.
2. Wait for 3~10 seconds.
3. You may set the remaining number of digits by following the same pro-cedures 1 and 2.
4. If all of four digits have been tried successfully, turn the ignition key"ON" and check that the immobi-lizer indicator illuminates. From this time, you have to start your engine within 30 seconds. If you start yourengine after 30 seconds, your en- gine will not start.

1
FEATURES OF YOUR HYUNDAI
57
1. Tachometer
2. Turn Signal Indicator Light
3. Coolant Temperature Gauge
4. Fuel Gauge
5. Speedometer
6. Immobilizer Warning Light (2.9 CRDi only)(If Installed)
7. Diesel Preheat Indicator Light
8. ABS Service Reminder Indicator (SRI) (If Installed)
9. Supplemental Restraint (AirBag) System Service Reminder Indicator (SRI) (If Installed)
10.Fuel Filter Warning Light
11.Brake Vacuum Warning Light
12.Low Oil Pressure Warning Light
13.Parking Brake/Low Brake Fluid Level
Warning Light
14.Charging System Warning Light
15.A/T Oil Temperature Warning Light (If Installed) 16.Overdrive Off Indicator Light (If Installed)
17.High Beam Indicator Light
18.Front Fog Indicator Light
19.Automatic Transmission Position Indicator Light
(If Installed)
20.Cruise Indicator Light (If Installed)
21.4WD LOW Indicator Light
22.4WD HIGH Indicator Light (Part-time 4WD) / 4WD System Warning Light (Full-time 4WD)
23.Malfunction Indicator Light (MIL) (If Installed)
24.Trip Odometer
25.Odometer
26.Trip Odometer Reset Knob
27.Tail Gate Open Warning Light
28.Door Ajar Warning Light
29.Seat Belt Warning Light
30.Low Fuel Warning Light

1FEATURES OF YOUR HYUNDAI
62
B260R01HP-GAT4WD LOW Indicator Light
When the key is turned to the "ON" position, the 4WD(Four Wheel Drive)LOW indicator light will come on and then go off in a few seconds. The 4WD low indicator light comes onwhen the transfer shift knob is set to LOW position (Part-time 4WD type : 4L position, Full-time 4WD type : Lowposition). B260T02HP-GAT 4WD HIGH Indicator Light (Part-time 4WD only)
When the key is turned to the "ON" position, the 4WD(Four Wheel Drive) HIGH indicator light will come on and then go off in a few seconds.The 4WD HIGH indicator light will illu- minate when the transfer shift knob is set to 4H position.
B260U01TB-GAT
Immobilizer Warning Light (Diesel Engine (2.9CRDi)) (If Installed)
This indicator light comes on for some seconds after the ignition key is turned to the "ON" position. At this time, you can start the engine. The light goes outafter the engine is running. In case this light goes out before you start the engine, you must turn to the "LOCK"position and restart the engine. In case this light blinks for five seconds when the ignition key is turned to "ON" posi-tion, this indicates that the immobilizer system is out of order. At this time, refer to the explanation of the Limphome procedure(See page 1-9) or con- sult to the Hyundai dealer.
!
B260U01HP-DAT A/T(Automatic Transmis- sion) Oil TemperatureWarning Light (If Installed)
The A/T oil temperature warning light comes on when the automatic trans- mission oil temperature goes up to the temperature that may result in seriousdamage of automatic transmission. If the A/T oil temperature warning light comes on while driving, park your ve-hicle in at a safe place as soon as possible. With the selector lever shifted into "P" position, allow the engine toidle until the warning light goes off. When the warning light goes off, the vehicle can be driven normally. CAUTION:
If the warning light doesn't go off orblinks, this indicates that there is a malfunction in the automatic trans- mission or T.C.U (TransmissionControl Unit). If this occurs, have your vehicle checked by an autho- rized Hyundai dealer.
B260C01A-AAT O/D OFF Indicator (Automatic Transmissiononly)
When the overdrive switch is turned on, the overdrive off indicator will go out. This amber indicator will be illumi-nated when the overdrive switch is turned off.
