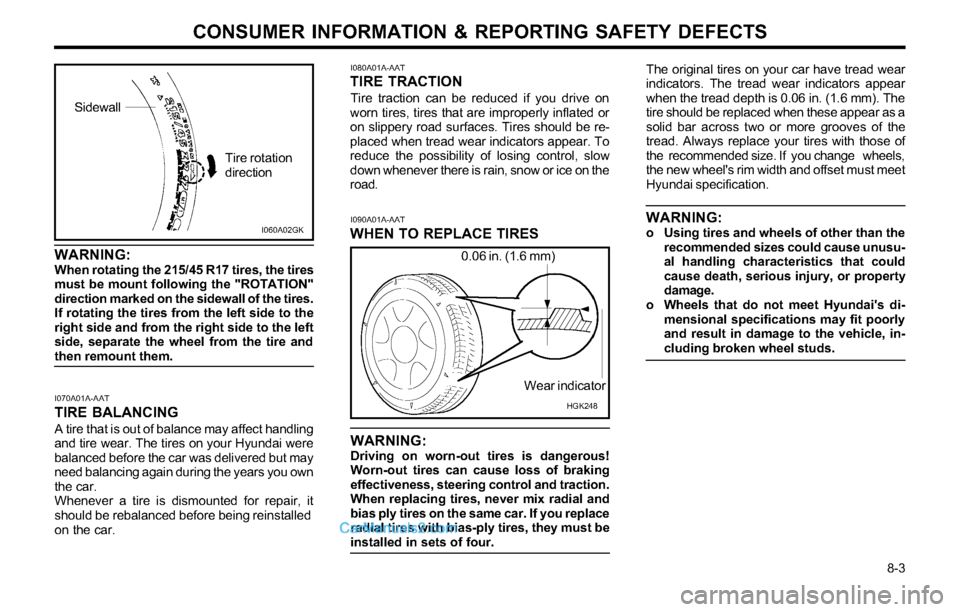

CONSUMER INFORMATION & REPORTING SAFETY DEFECTS
8-3
I090A01A-AAT
WHEN TO REPLACE TIRES
WARNING:
Driving on worn-out tires is dangerous!
Worn-out tires can cause loss of braking
effectiveness, steering control and traction.
When replacing tires, never mix radial and
bias ply tires on the same car. If you replace
radial tires with bias-ply tires, they must be
installed in sets of four.
I060A02GK
WARNING:When rotating the 215/45 R17 tires, the tires
must be mount following the "ROTATION"
direction marked on the sidewall of the tires.
If rotating the tires from the left side to the
right side and from the right side to the left
side, separate the wheel from the tire and
then remount them.Sidewall
Tire rotation
direction
I070A01A-AAT
TIRE BALANCING
A tire that is out of balance may affect handling
and tire wear. The tires on your Hyundai were
balanced before the car was delivered but may
need balancing again during the years you own
the car.
Whenever a tire is dismounted for repair, it
should be rebalanced before being reinstalled
on the car.
I080A01A-AATTIRE TRACTION
Tire traction can be reduced if you drive on
worn tires, tires that are improperly inflated or
on slippery road surfaces. Tires should be re-
placed when tread wear indicators appear. To
reduce the possibility of losing control, slow
down whenever there is rain, snow or ice on the
road.
The original tires on your car have tread wear
indicators. The tread wear indicators appear
when the tread depth is 0.06 in. (1.6 mm). The
tire should be replaced when these appear as a
solid bar across two or more grooves of the
tread. Always replace your tires with those of
the recommended size. If you change wheels,
the new wheel's rim width and offset must meet
Hyundai specification.
WARNING:o Using tires and wheels of other than the
recommended sizes could cause unusu-
al handling characteristics that could
cause death, serious injury, or property
damage.
o Wheels that do not meet Hyundai's di-
mensional specifications may fit poorly
and result in damage to the vehicle, in-
cluding broken wheel studs.
Wear indicator 0.06 in. (1.6 mm)
HGK248

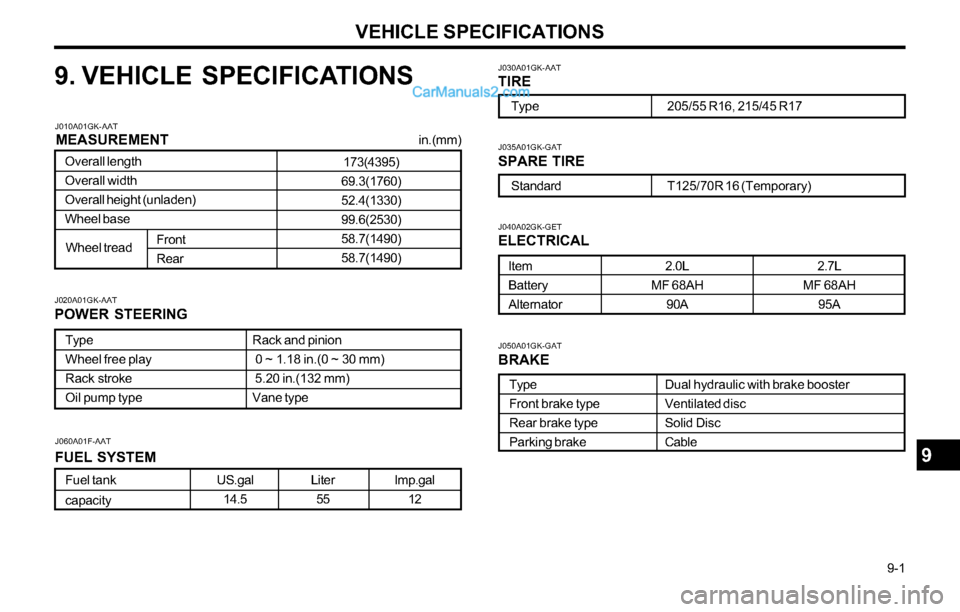

VEHICLE SPECIFICATIONS
9-1 Liter
55
9
J030A01GK-AATTIRE
Dual hydraulic with brake booster
Ventilated disc
Solid Disc
Cable
9. VEHICLE SPECIFICATIONS
J010A01GK-AATMEASUREMENT
J060A01F-AAT
FUEL SYSTEM
Type
Wheel free play
Rack stroke
Oil pump typeRack and pinion
0 ~ 1.18 in.(0 ~ 30 mm)
5.20 in.(132 mm)
Vane type
205/55 R16, 215/45 R17 Type
Overall length
Overall width
Overall height (unladen)
Wheel base
Front
Rear
173(4395)
69.3(1760)
52.4(1330)
99.6(2530)
58.7(1490)
58.7(1490) Wheel tread in.(mm)
J020A01GK-AATPOWER STEERING
Fuel tank
capacityUS.gal
14.5Imp.gal
12
J050A01GK-GATBRAKE
Type
Front brake type
Rear brake type
Parking brake
J035A01GK-GATSPARE TIRE
T125/70R 16 (Temporary) Standard
J040A02GK-GETELECTRICAL
Item
Battery
Alternator2.0L
MF 68AH
90A2.7L
MF 68AH
95A
