HYUNDAI TUCSON 2008 Owners Manual

6
DO-IT-YOURSELF MAINTENANCE
27
REPLACEMENT OF LIGHT BULBS!
G260A02A-AATBefore attempting to replace a light bulb, be sure
the switch is turned to the "OFF" position.
The next paragraph shows how to reach the
light bulbs so they may be changed. Be sure to
replace the burned-out bulb with one of the
same number and wattage rating.
See page 6-34 for the wattage description.
CAUTION:
o Keep the lamps out of contact with pe-
troleum products, such as oil, gasoline,
etc.
o After heavy, driving rain or washing,
headlight and taillight lenses could ap-
pear frosty. This condition is caused by
the temperature difference between the
lamp inside and outside. This is similar
to the condensation on your windows
inside your vehicle during the rain and
doesn’t indicate a problem with your
vehicle. If the water leaks into the lamp
bulb circuitry, have the vehicle checked
by an Authorized Hyundai Dealer.
HJM5013 G270A02O-AAT

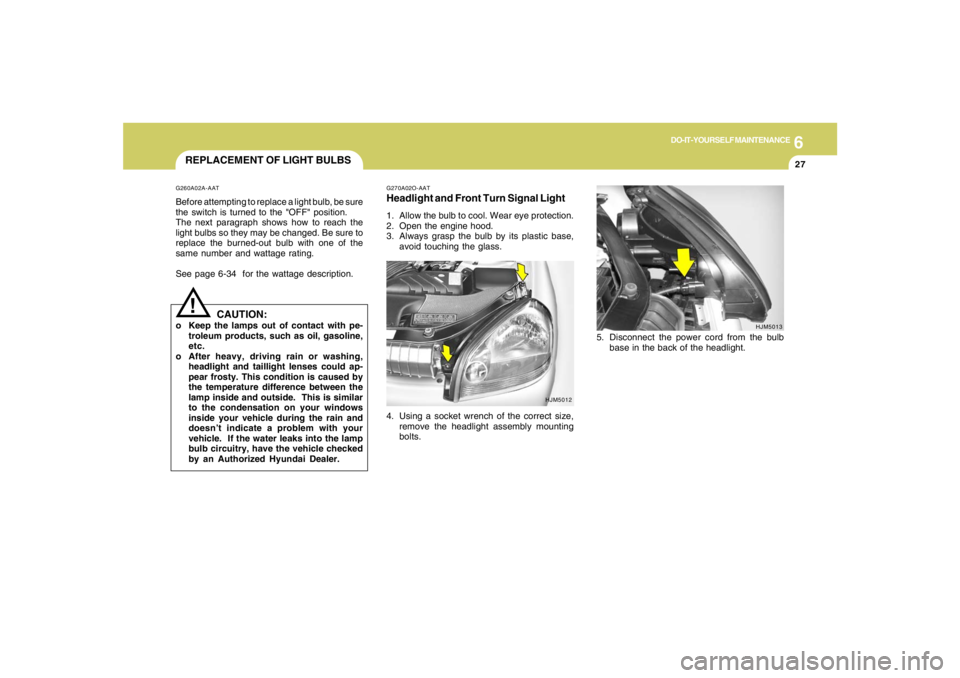

Headlight and Front Turn Signal Light1. Allow the bulb to cool. Wear eye protection.
2. Open the engine hood.
3. Always grasp the bulb by its plastic base,
avoid touching the glass.
4. Using a socket wrench of the correct size,
remove the headlight assembly mounting
bolts.
HJM5012
5. Disconnect the power cord from the bulb
base in the back of the headlight.

6
DO-IT-YOURSELF MAINTENANCE
28

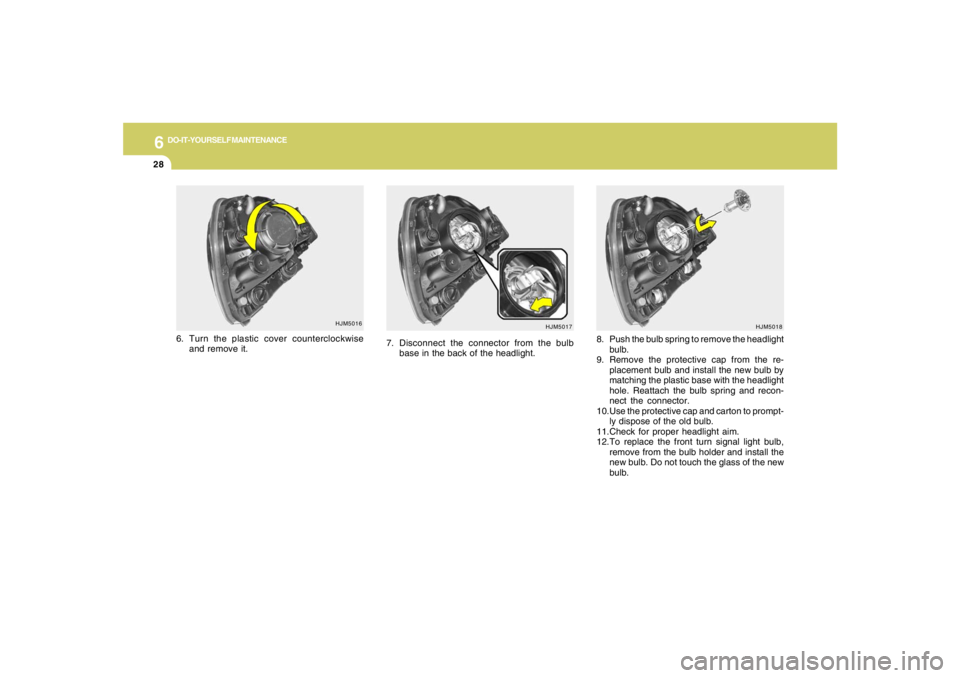

8. Push the bulb spring to remove the headlight
bulb.
9. Remove the protective cap from the re-
placement bulb and install the new bulb by
matching the plastic base with the headlight
hole. Reattach the bulb spring and recon-
nect the connector.
10.Use the protective cap and carton to prompt-
ly dispose of the old bulb.
11.Check for proper headlight aim.
12.To replace the front turn signal light bulb,
remove from the bulb holder and install the
new bulb. Do not touch the glass of the new
bulb.
HJM5018
HJM5016
HJM5017
6. Turn the plastic cover counterclockwise
and remove it.7. Disconnect the connector from the bulb
base in the back of the headlight.

6
DO-IT-YOURSELF MAINTENANCE
29
G270B01JM-AATRear Combination Light
!
WARNING:
This halogen bulb contains gas under pres-
sure and if impacted could shatter, result-
ing in flying fragments. Always wear eye
protection when servicing the bulb. Protect
the bulb against abrasions or scratches
and against liquids when lighted. Turn the
bulb on only when installing in a headlight.
Replace the headlight if damaged or cracked.
Keep the bulb out of the reach of children
and dispose of the used bulb with care.
G270A03O
HJM5020
HJM5021
HJM5022(1)
(2)
(3)

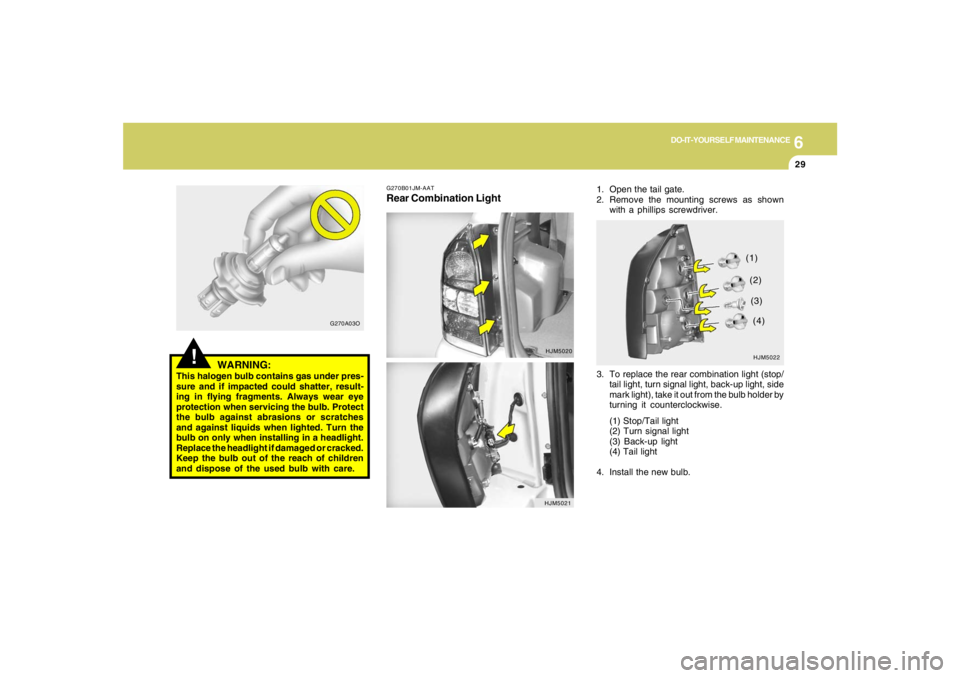

(4) 1. Open the tail gate.
2. Remove the mounting screws as shown
with a phillips screwdriver.
3. To replace the rear combination light (stop/
tail light, turn signal light, back-up light, side
mark light), take it out from the bulb holder by
turning it counterclockwise.
(1) Stop/Tail light
(2) Turn signal light
(3) Back-up light
(4) Tail light
4. Install the new bulb.

6
DO-IT-YOURSELF MAINTENANCE
30
G270C02TB-GATLuggage Compartment Light
(If Installed)
G270C01JM
1. Remove the cover with a flat blade screw
driver.
G270I02JM-GATFront fog Light (If installed)
HJM5047
1. Remove the cover with a phillips screw
driver.
2. Remove the bolts with a wrench.3. Disconnect the power cord.
HJM5049
HJM5050
4. Replace to the new bulb.
HJM5048

6
DO-IT-YOURSELF MAINTENANCE
31

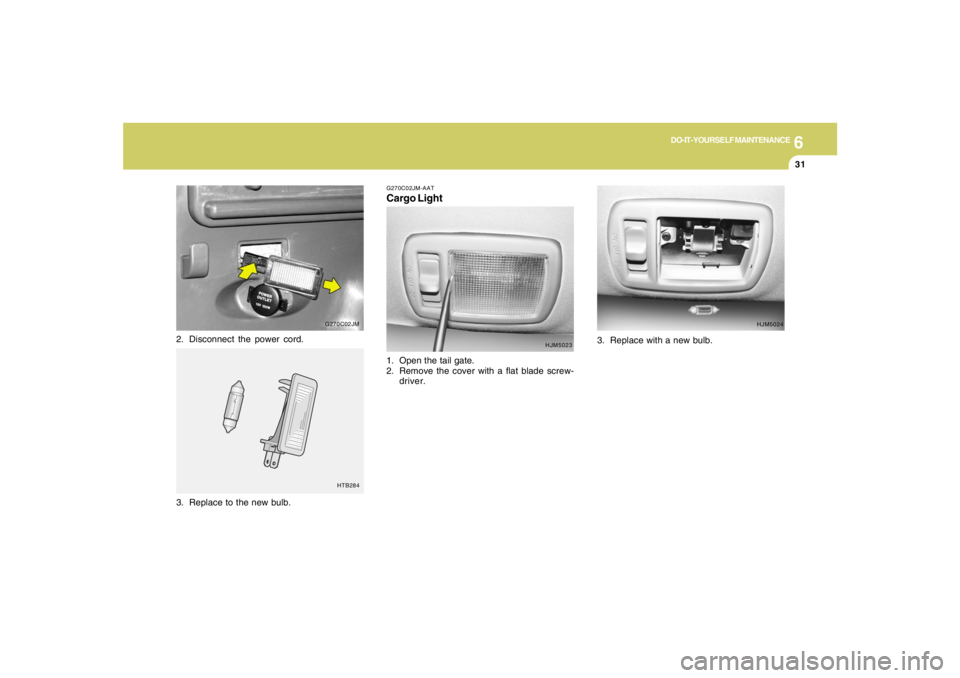

G270C02JM-AATCargo Light1. Open the tail gate.
2. Remove the cover with a flat blade screw-
driver.
3. Replace to the new bulb.
HTB284
2. Disconnect the power cord.
G270C02JM
HJM5023
HJM5024
3. Replace with a new bulb.

6
DO-IT-YOURSELF MAINTENANCE
32
G270G01O-AATInterior Light1. Remove the cover with a flat blade screw-
driver.
HJM5025
G270E01JM G270E01O-AAT

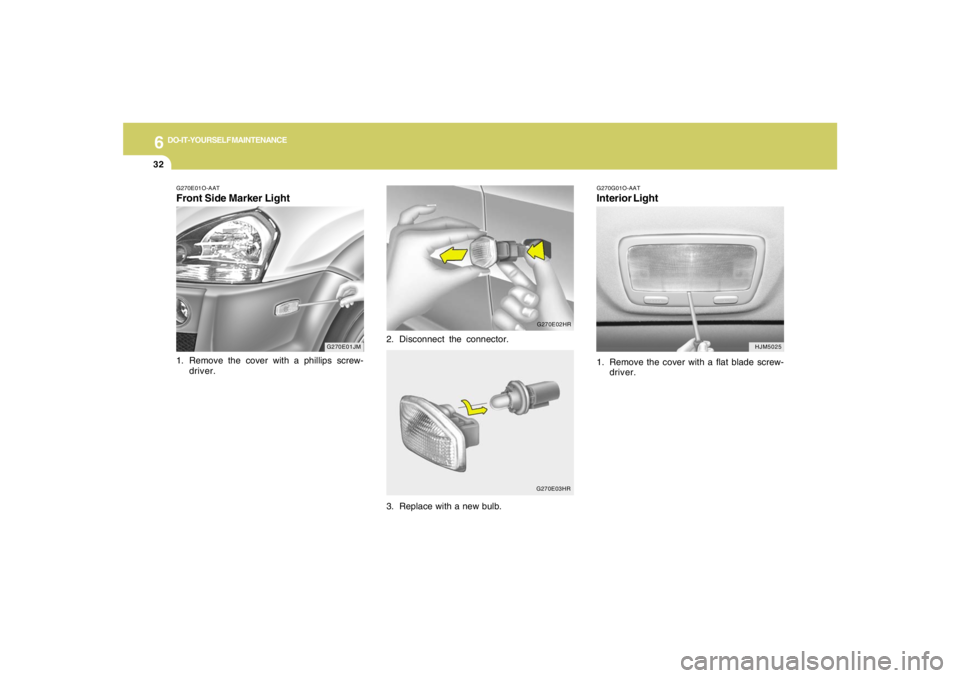

Front Side Marker Light1. Remove the cover with a phillips screw-
driver.2. Disconnect the connector.
3. Replace with a new bulb.
G270E02HRG270E03HR

6
DO-IT-YOURSELF MAINTENANCE
33

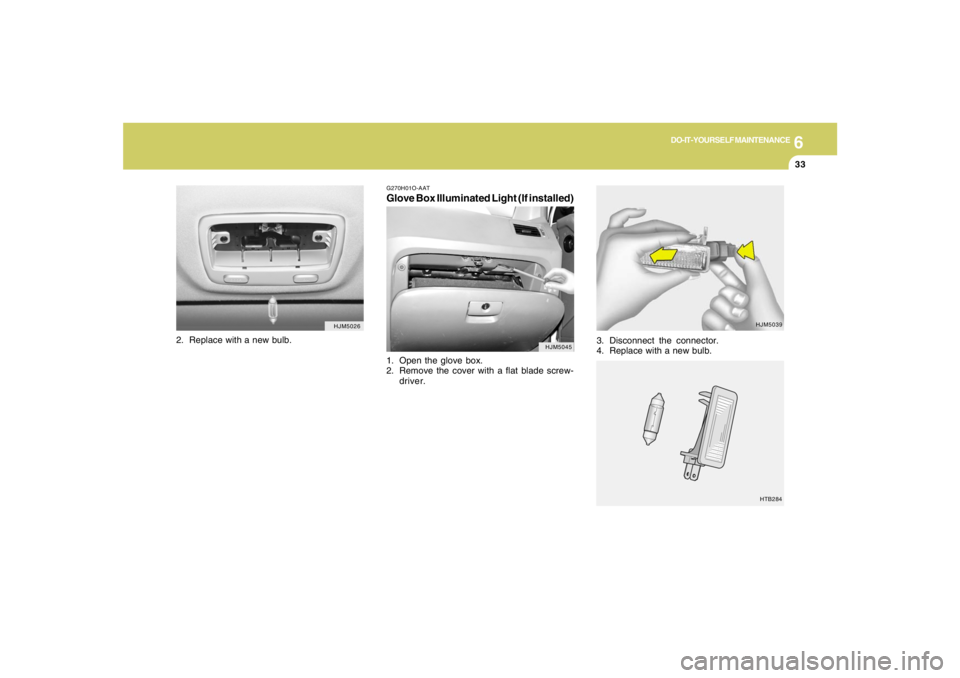

G270H01O-AATGlove Box Illuminated Light (If installed)1. Open the glove box.
2. Remove the cover with a flat blade screw-
driver.
HJM5026
HJM5045
2. Replace with a new bulb.
3. Disconnect the connector.
4. Replace with a new bulb.
HJM5039
HTB284

6
DO-IT-YOURSELF MAINTENANCE
34
BULB WATTAGEG280A02JM-AAT
G280A01JM-U
Part Name
Front Postion Light
Glove Box Illuminated Light
Head Light (Low/High)
Interior Light
Front Fog Light (If installed)
Turn Signal Light
Side Marker
Front Door Edge Warning Light (If installed) No.
1
2
3
4
5
6
7
8Wattage
5
10
55/60
10
10
27
21
5
5Wattage
10
5
21
21
5
21/5 No.
9
10
11
12
13
14
15
Part Name
Cargo Light
High Mounted Rear Stop Light
Luggage Compartment Light
Turn Signal Light
Back-up Light
License Plate Light
Stop/Tail Light Map Light
Room Light
A TYPE
B TYPE2.4
5
Socket type
S8.5/8.5
LED
S8.5/8.5
BA 15s
W2.1x9.5D
S8.5/8.5
BAY 15d Socket type
W2.1x9.5d
-
P43t
W2.1x9.5D
S8.5/8.5
PGJ13
BA15s
W2.1x9.5D
W2.1x4.6D

6
DO-IT-YOURSELF MAINTENANCE
35
FUSE PANEL DESCRIPTIONG200C01JM-GATEngine Compartment
G200C01JM
NOTE:Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the
fuse box on your vehicle, refer to the fuse box label.FUSE
RATING
30A
30A
50A
50A
30A
40A
30A
30A
15A
10A
15A
15A
15A
15A
15A
15APROTECTED COMPONENTS
Start relay, Ignition switch
Engine control, Fuel pump , A/C, Generator, ATM
Ignition switch, Power connector
Cooling fan
ABS, ESC
ABS, ESC
Blower
Ignition switch, Power connector
Injector
Cooling fan, Stop lamp switch, Oxygen sensor, ECM/PCM
DRL
Front fog lamp
Horn, Siren
A/C
Head lamp (HIGH)
Head lamp (LOW)
IGN
ECU
BATT #1
C/FAN
ABS #1
ABS #2
BLOWER
BATT #2
INJ
SNSR
DRL
F/FOG
HORN
A/CON
H/LP (HI)
H/LP (LOW) FUSIBLE
LINK
FUSE
DESCRIPTION

6
DO-IT-YOURSELF MAINTENANCE
36
G200E01JM-AATInner Panel
G200E02JM
