HYUNDAI TUCSON 2016 Owners Manual

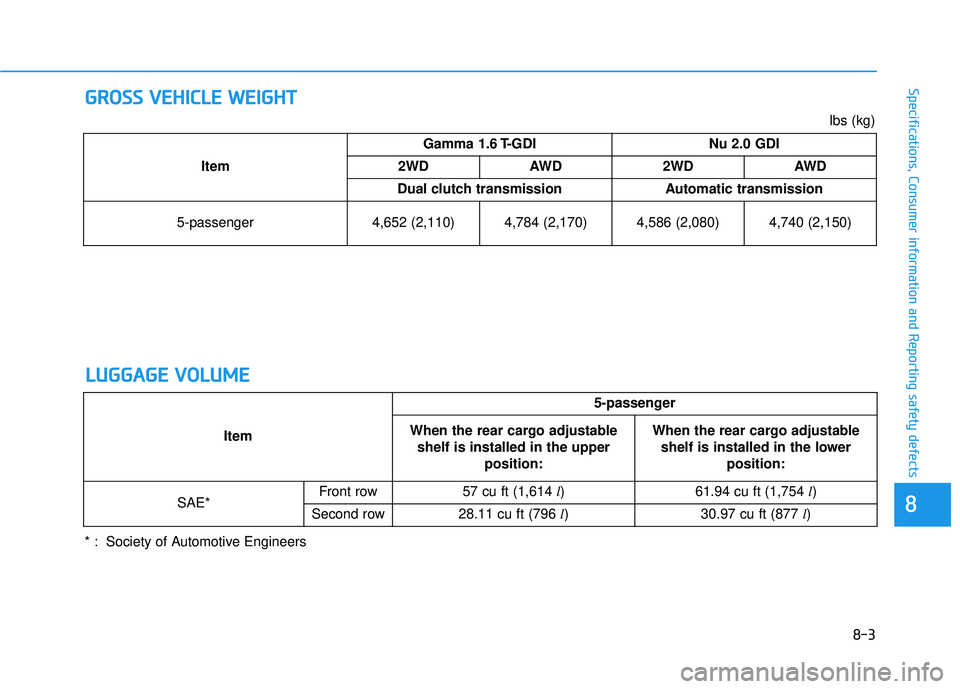

GGRROO SSSS VV EEHH IICC LLEE WW EEIIGG HH TT
8-3
88
Specifications, Consumer information and Reporting safety defects
LLUU GGGGAAGG EE VV OO LLUU MM EE
Item Gamma 1.6 T-GDI Nu 2.0 GDI
2WD AWD 2WD AWD
Dual clutch transmissionAutomatic transmission
5-passenger 4,652 (2,110) 4,784 (2,170) 4,586 (2,080) 4,740 (2,150)
Item 5-passenger
When the rear cargo adjustable shelf is installed in the upper position: When the rear cargo adjustable
shelf is installed in the lower position:
SAE* Front row
57 cu ft (1,614
l) 61.94 cu ft (1,754 l)
Second row 28.11 cu ft (796
l) 30.97 cu ft (877 l)
lbs (kg)
* : Society of Automotive Engineers

8-4
Specifications, Consumer information and Reporting safety defects

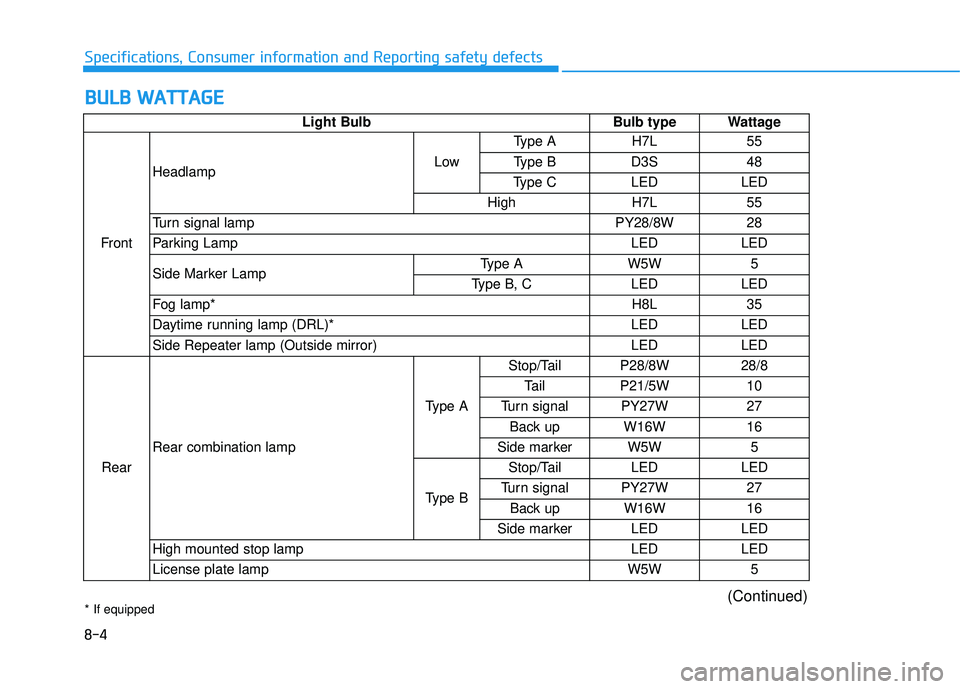

BBUU LLBB WW AATTTTAA GG EE
Light Bulb Bulb type Wattage
Front Headlamp
LowType A H7L 55
Type B D3S 48
Type C LED LED
High H7L 55
Turn signal lamp PY28/8W 28
Parking Lamp LED LED
Side Marker Lamp Type A W5W 5
Type B, C LED LED
Fog lamp* H8L 35
Daytime running lamp (DRL)* LED LED
Side Repeater lamp (Outside mirror) LED LED
Rear Rear combination lamp Type A
Stop/Tail P28/8W 28/8
Tail P21/5W 10
Turn signal PY27W 27
Back up W16W 16
Side marker W5W 5
Type B Stop/Tail LED LED
Turn signal PY27W 27 Back up W16W 16
Side marker LED LED
High mounted stop lamp LED LED
License plate lamp W5W 5
* If equipped (Continued)

8-5
88
Specifications, Consumer information and Reporting safety defects

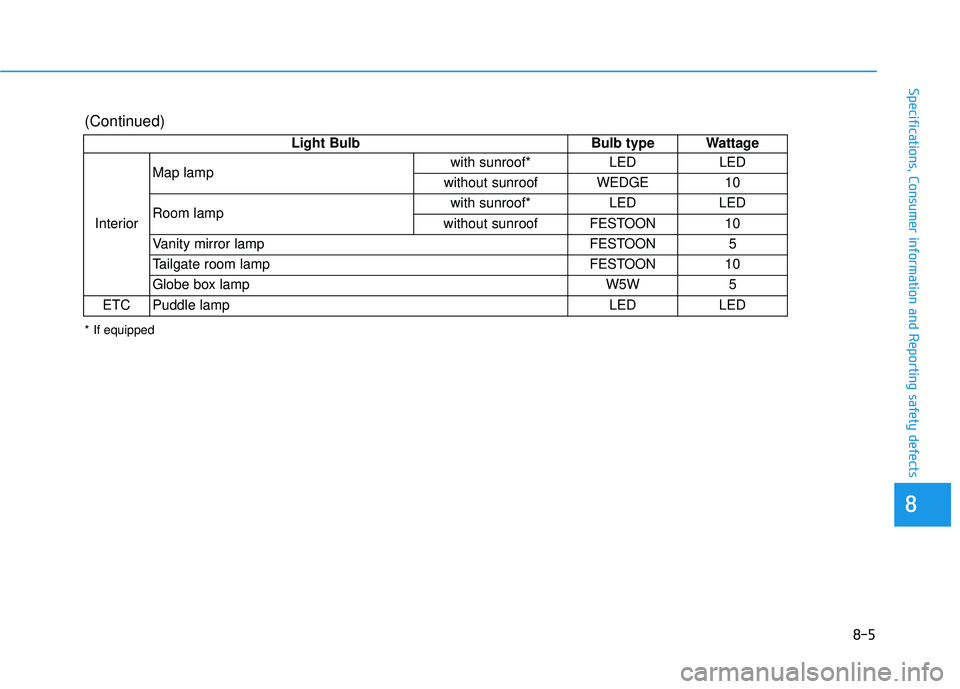

Light BulbBulb type Wattage
Interior Map lamp
with sunroof* LED LED
without sunroof WEDGE 10
Room lamp with sunroof* LED LED
without sunroof FESTOON 10
Vanity mirror lamp FESTOON 5
Tailgate room lamp FESTOON 10
Globe box lamp W5W 5
ETC Puddle lamp LED LED
* If equipped
(Continued)

8-6
Specifications, Consumer information and Reporting safety defects
AAIIRR CC OO NNDDIITT IIOO NNIINN GG SS YY SSTT EEMM
Contact an authorized HYUNDAI dealer for more details.
ItemsWeight of VolumeClassification
Refrigerant
oz. (g) 19.4±0.88 (550±25)R-134a
Compressor lubricantoz. (cc) 4.23±0.35 (120±10)PAG 30

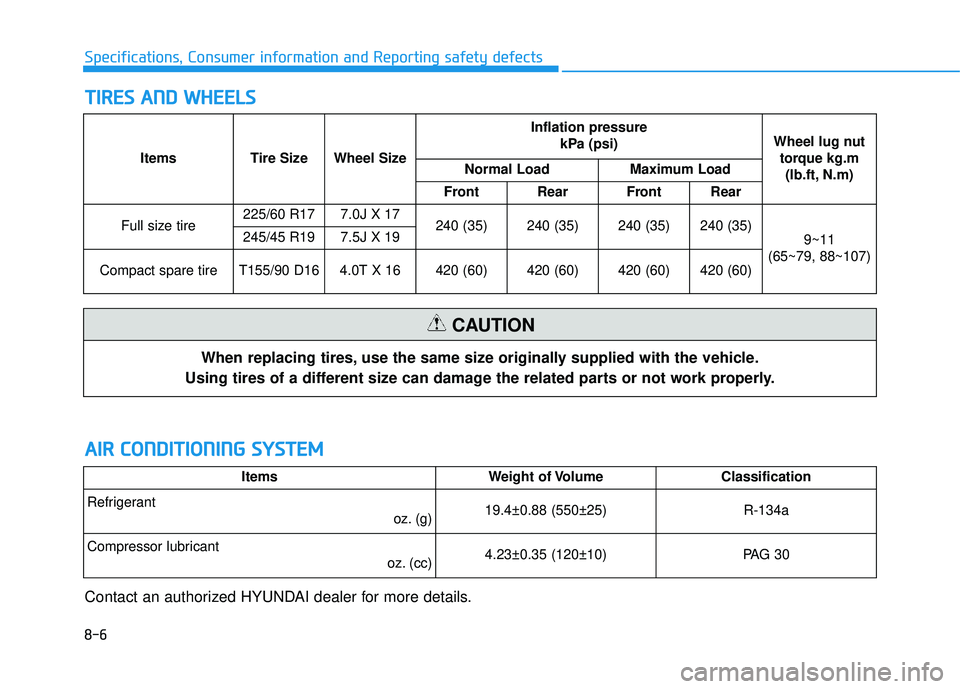

TTIIRR EESS AA NN DD WW HHEEEELLSS
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION
Items Tire SizeWheel Size
Inflation pressure kPa (psi)Wheel lug nuttorque kg.m (lb.ft, N.m)
Normal LoadMaximum Load
FrontRearFrontRear
Full size tire225/60 R177.0J X 17240 (35)240 (35)240 (35)240 (35)9~11
(65~79, 88~107)245/45 R197.5J X 19
Compact spare tireT155/90 D164.0T X 16420 (60)420 (60)420 (60)420 (60)

8-7
88
Specifications, Consumer information and Reporting safety defects
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.

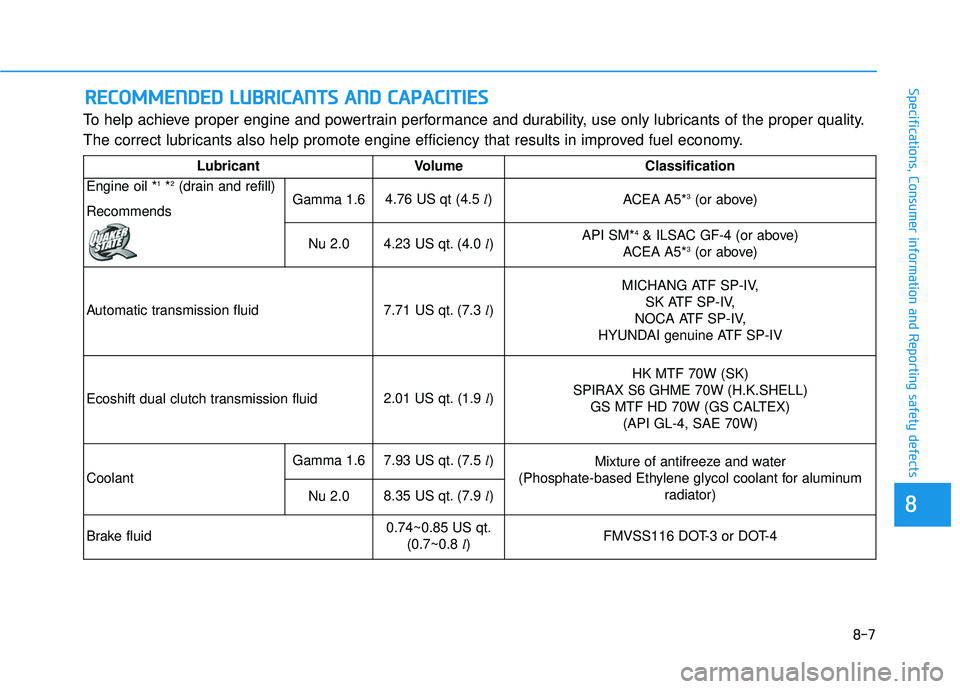

RREECCOO MM MMEENN DDEEDD LL UU BBRRIICC AA NN TTSS AA NN DD CC AA PPAA CCIITT IIEE SS
Lubricant Volume Classification
Engine oil * 1
*2
(drain and refill)
Recommends Gamma 1.6
4.76 US qt (4.5
l)
ACEA A5*3
(or above)
Nu 2.0 4.23 US qt. (4.0
l) API SM*
4
& ILSAC GF-4 (or above)
ACEA A5* 3
(or above)
Automatic transmission fluid 7.71 US qt. (7.3
l) MICHANG ATF SP-IV,
SK ATF SP-IV,
NOCA ATF SP-IV,
HYUNDAI genuine ATF SP-IV
Ecoshift dual clutch transmission fluid 2.01 US qt. (1.9
l) HK MTF 70W (SK)
SPIRAX S6 GHME 70W (H.K.SHELL) GS MTF HD 70W (GS CALTEX) (API GL-4, SAE 70W)
Coolant Gamma 1.6
7.93 US qt. (7.5
l)
Mixture of antifreeze and water
(Phosphate-based Ethylene glycol coolant for aluminum radiator)
Nu 2.08.35 US qt. (7.9 l)
Brake fluid 0.74~0.85 US qt.
(0.7~0.8 l) FMVSS116 DOT-3 or DOT-4

8-8
Specifications, Consumer information and Reporting safety defects
*1
: Refer to the recommended SAE viscosity numbers on the next page.
* 2
: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ -
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
* 3
: If the ACEA A5 engine oil is not available in your country, you are able to use ILSAC GF-3 (or above) or ACEA A3 (or above).
* 4

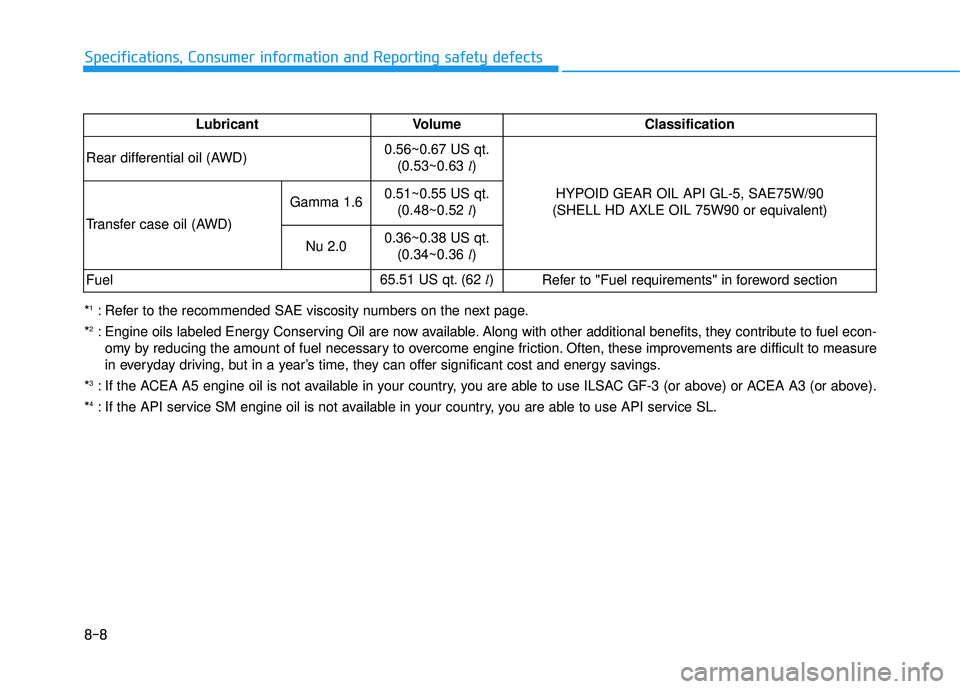

: If the API service SM engine oil is not available in your country, you are able to use API service SL. Lubricant Volume Classification
Rear differential oil (AWD) 0.56~0.67 US qt.
(0.53~0.63 l)
HYPOID GEAR OIL API GL-5, SAE75W/90
(SHELL HD AXLE OIL 75W90 or equivalent)
Transfer case oil (AWD) Gamma 1.6
0.51~0.55 US qt.
(0.48~0.52 l)
Nu 2.0 0.36~0.38 US qt.
(0.34~0.36 l)
Fuel 65.51 US qt. (62
l)
Refer to "Fuel requirements" in foreword section

8-9
88
Specifications, Consumer information and Reporting safety defects

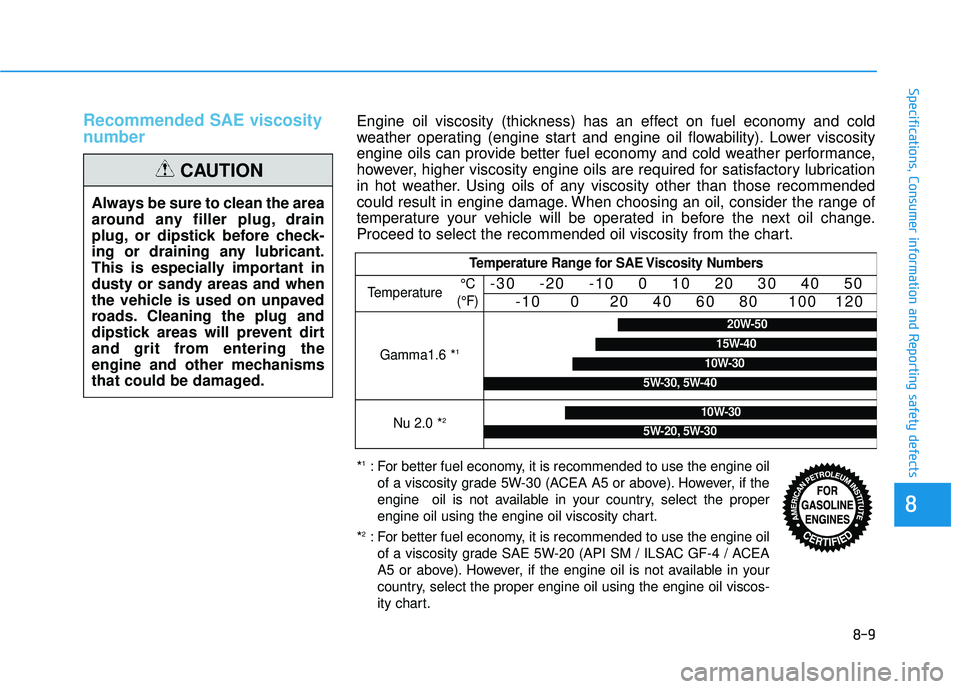

Recommended SAE viscosity
number
Always be sure to clean the area
around any filler plug, drain
plug, or dipstick before check-
ing or draining any lubricant.
This is especially important in
dusty or sandy areas and when
the vehicle is used on unpaved
roads. Cleaning the plug and
dipstick areas will prevent dirt
and grit from entering the
engine and other mechanisms
that could be damaged.
CAUTION
Engine oil viscosity (thickness) has an effect on fuel economy and cold
weather operating (engine start and engine oil flowability). Lower viscosity
engine oils can provide better fuel economy and cold weather performance,
however, higher viscosity engine oils are required for satisfactory lubrication
in hot weather. Using oils of any viscosity other than those recommended
could result in engine damage. When choosing an oil, consider the range of
temperature your vehicle will be operated in before the next oil change.
Proceed to select the recommended oil viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature -30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Gamma1.6 *1
Nu 2.0 *210W-30
5W-20, 5W-30
°C
(°F)
5W-30, 5W-40
10W-30
15W-40
20W-50
* 1
: For better fuel economy, it is recommended to use the engine oil
of a viscosity grade 5W-30 (ACEA A5 or above). However, if the
engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.
* 2
: For better fuel economy, it is recommended to use the engine oil
of a viscosity grade SAE 5W-20 (API SM / ILSAC GF-4 / ACEA
A5 or above). However, if the engine oil is not available in your
country, select the proper engine oil using the engine oil viscos-
ity chart.

8-10
Specifications, Consumer information and Reporting safety defects
VVEEHH IICC LLEE CC EE RR TTIIFF IICC AA TTIIOO NN
L
L AA BBEELL

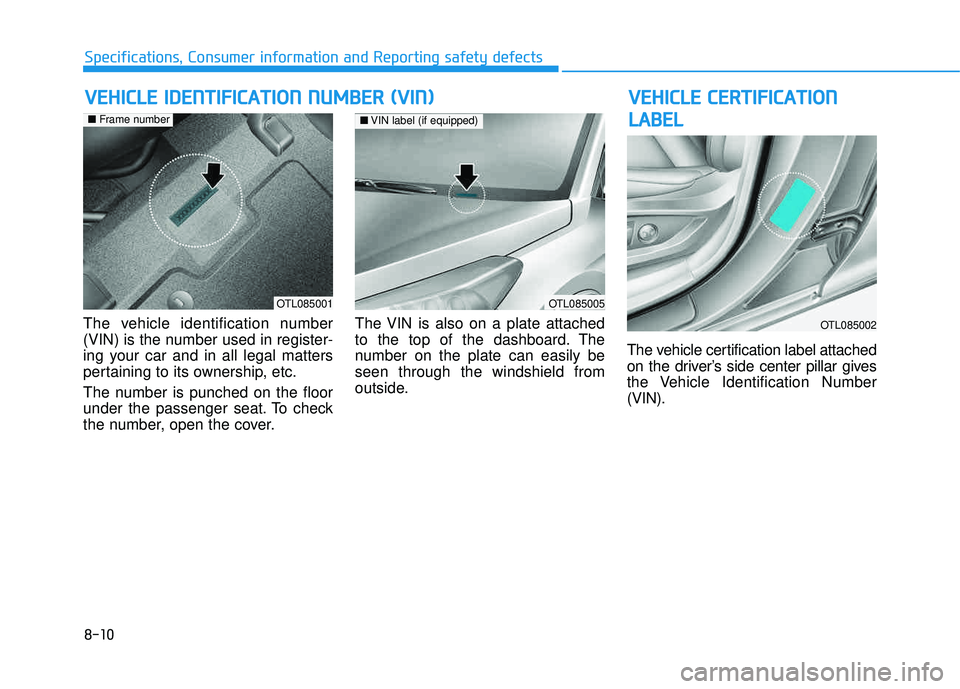

The vehicle identification number
(VIN) is the number used in register-
ing your car and in all legal matters
pertaining to its ownership, etc.
The number is punched on the floor
under the passenger seat. To check
the number, open the cover. The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily beseen through the windshield from
outside.
The vehicle certification label attached
on the driver’s side center pillar gives
the Vehicle Identification Number(VIN).
VV
EEHH IICC LLEE IIDD EENN TTIIFF IICC AA TTIIOO NN NN UU MM BBEERR (( VV IINN ))
OTL085005
■VIN label (if equipped)
OTL085002
OTL085001
■ Frame number

8-11
88
Specifications, Consumer information and Reporting safety defects

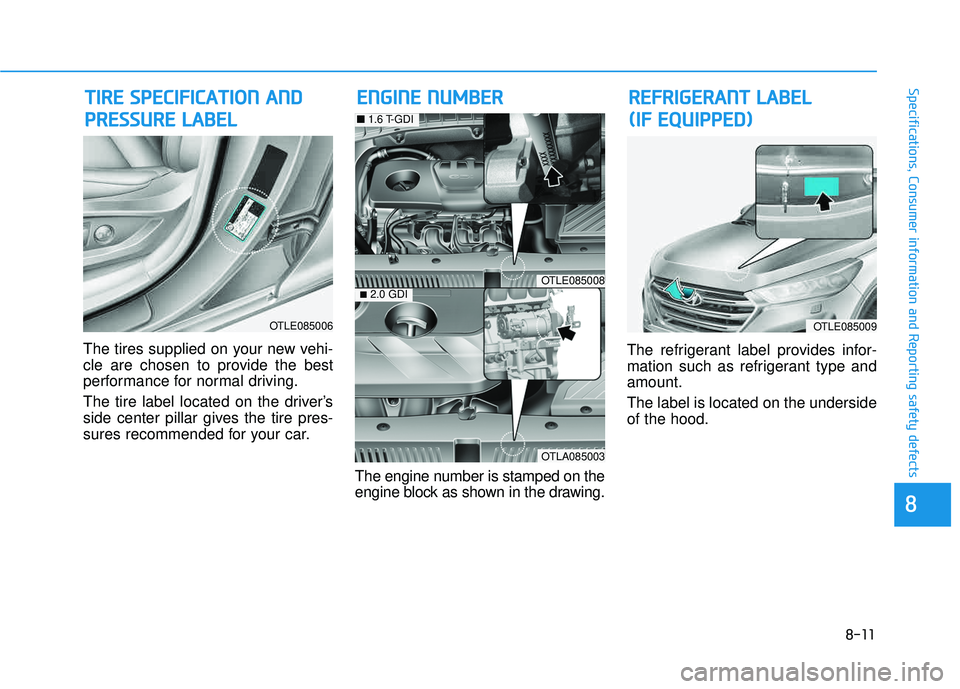

The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pres-
sures recommended for your car.The engine number is stamped on the
engine block as shown in the drawing.The refrigerant label provides infor-
mation such as refrigerant type andamount. The label is located on the underside of the hood.
EE
NN GGIINN EE NN UU MM BBEERR RREEFFRR IIGG EERR AA NN TT LL AA BBEELL
(
( IIFF EE QQ UUIIPP PPEEDD ))
T
T
IIRR EE SS PP EECCIIFF IICC AA TTIIOO NN AA NN DD
P
P RR EESSSSUU RREE LL AA BBEELL
OTLE085009OTLE085006
OTLE085008
OTLA085003
■ 1.6 T-GDI
■2.0 GDI

8-12
Specifications, Consumer information and Reporting safety defects
Eastern Region:
Connecticut, Delaware,
Maine, Massachusetts, New
Hampshire, New Jersey, New York,
Pennsylvania, Rhode Island,
Vermont.
Eastern Region
1122 Cranbury South River Road
Jamesburg, NJ 08831(800) 633-5151 Southern Region:
Florida, Georgia, Maryland, North
Carolina, South Carolina, Virginia,
West Virginia.
Southern Region
3025 Chastain Meadows Parkway
Suite 100 Marietta, GA 30066 (800) 633-5151South Central Region:
Alabama, Arkansas, Louisiana,
Mississippi, New Mexico, Oklahoma,
Tennessee, Texas.
South Central Region 1421 South Beltline Road, Suite 400
Coppell, TX 75019 (800) 633-5151 Central Region:
Illinois, Indiana, lowa, Kentucky,
Michigan, Minnesota, Nebraska,
North Dakota, South Dakota, Ohio,
Wisconsin, Kansas, Missouri.
Central Region
1705 Sequoia Drive Aurora, Illinois 60506 (800) 633-5151Western Region:
Alaska, Hawaii, Arizona, California,
Colorado, Idaho, Montana, Nevada,
Oregon, Utah, Washington,
Wyoming.
Western Region
10550 Talbert Avenue P.O.Box
20850 Fountain Valley, California92728-0850 (800) 633-5151
CC

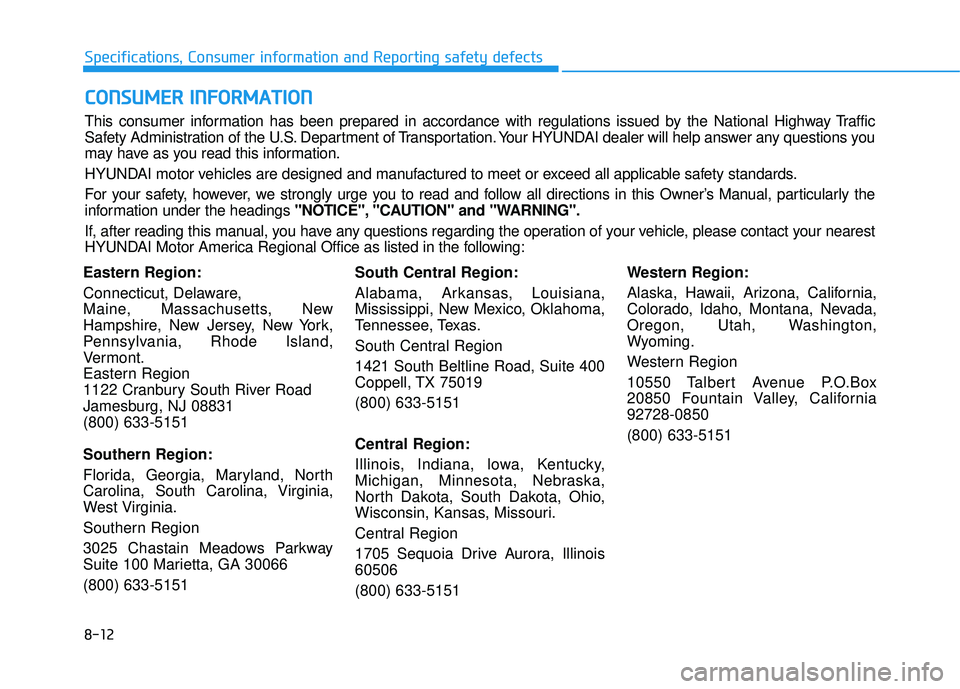

OO NNSSUU MM EERR IINN FFOO RRMM AATTIIOO NN
This consumer information has been prepared in accordance with regulations issued by the National Highway Traffic
Safety Administration of the U.S. Department of Transportation. Your HYUNDAI dealer will help answer any questions you
may have as you read this information.
HYUNDAI motor vehicles are designed and manufactured to meet or exceed all applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions in this Owner’s Manual, particularly the
information under the headings "NOTICE", "CAUTION" and "WARNING".
If, after reading this manual, you have any questions regarding the operation of your vehicle, please contact your nearest
HYUNDAI Motor America Regional Office as listed in the following:
