HYUNDAI TUCSON 2021 Owners Manual

7-87
7
Maintenance
C
CA
A L
LI
IF
F O
O R
RN
N I
IA
A
P
P E
ER
R C
CH
H L
LO
O R
RA
A T
TE
E
N
N O
O T
TI
IC
C E
E

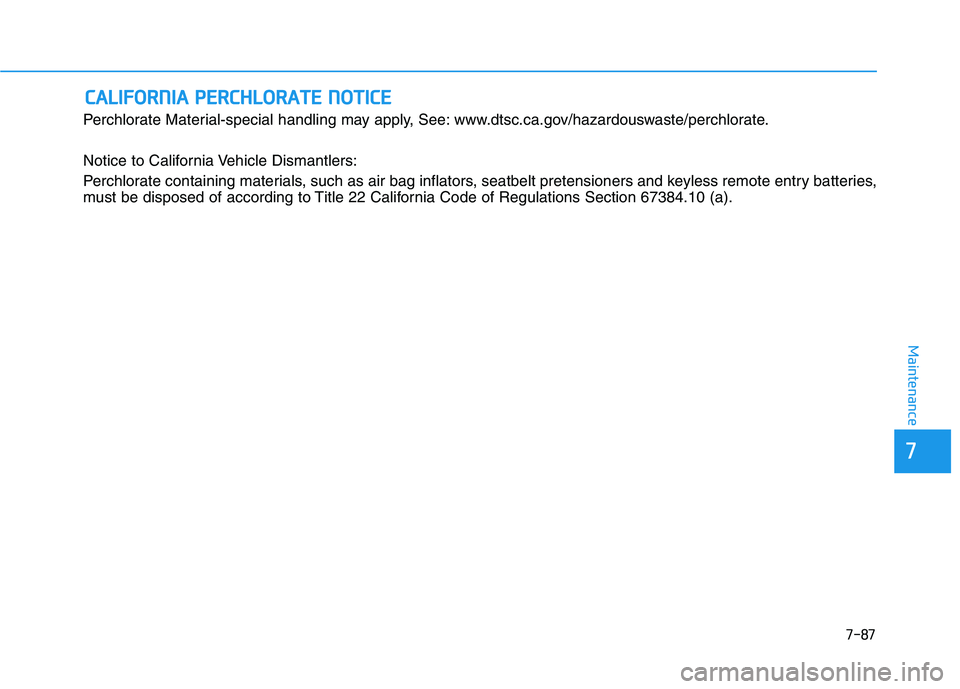

Perchlorate Material-special handling may apply, See: www.dtsc.ca.gov/hazardouswaste/perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials, such as air bag inflators, seatbelt pretensioners and keyless remote entry batteries,
must be disposed of according to Title 22 California Code of Regulations Section 67384.10 (a).

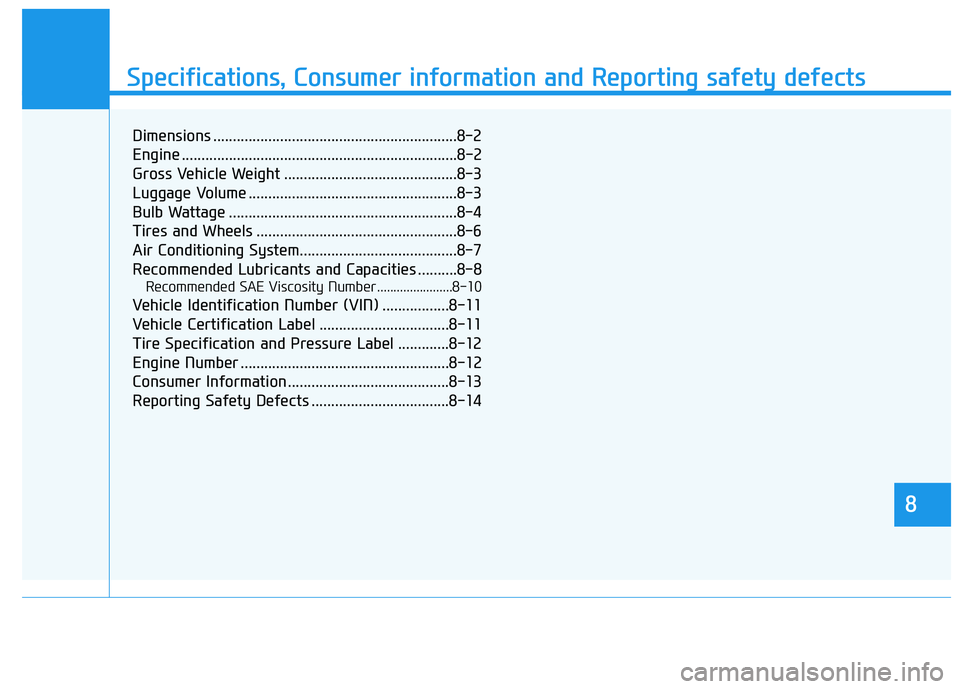

Specifications, Consumer information and Reporting safety defects
8
Dimensions ..............................................................8-2
Engine ......................................................................8-2
Gross Vehicle Weight ............................................8-3
Luggage Volume .....................................................8-3
Bulb Wattage ..........................................................8-4
Tires and Wheels ...................................................8-6
Air Conditioning System........................................8-7
Recommended Lubricants and Capacities ..........8-8
Recommended SAE Viscosity Number .......................8-10
Vehicle Identification Number (VIN) .................8-11
Vehicle Certification Label .................................8-11
Tire Specification and Pressure Label .............8-12
Engine Number .....................................................8-12
Consumer Information .........................................8-13
Reporting Safety Defects ...................................8-14

D DI
IM
ME
EN
NS
SI
IO
ON
NS
S
8-2
Specifications, Consumer information and Reporting safety defects
E
EN
NG
GI
IN
NE
E
Itemsin (mm)
Overall length176.38 (4,480)
Overall width72.83 (1,850)
Overall height64.76 (1,645) / 66.34 (1,650) *1
Front tread
225/60 R1763.31 (1,608) 225/55 R18
245/45 R1963.15 (1,604)
Rear tread
225/60 R1763.78 (1,620) 225/55 R18
245/45 R1963.58 (1,615)
Wheelbase105.12 (2,670)
Items 2.0 GDI2.4 GDI
Displacement
cu. in (cc)121.99 (1,999)143.96 (2,359)
Bore x Stroke
in. (mm)3.19X3.81 (81X97)3.46X3.81 (88X97)
Firing order1-3-4-21-3-4-2
No. of cylinders4, In-line4, In-line
*1: with roof rack

G GR
RO
OS
SS
S
V
VE
EH
HI
IC
CL
LE
E
W
WE
EI
IG
GH
HT
T
8-3
88
Specifications, Consumer information and Reporting safety defects
L
LU
UG
GG
GA
AG
GE
E
V
VO
OL
LU
UM
ME
E

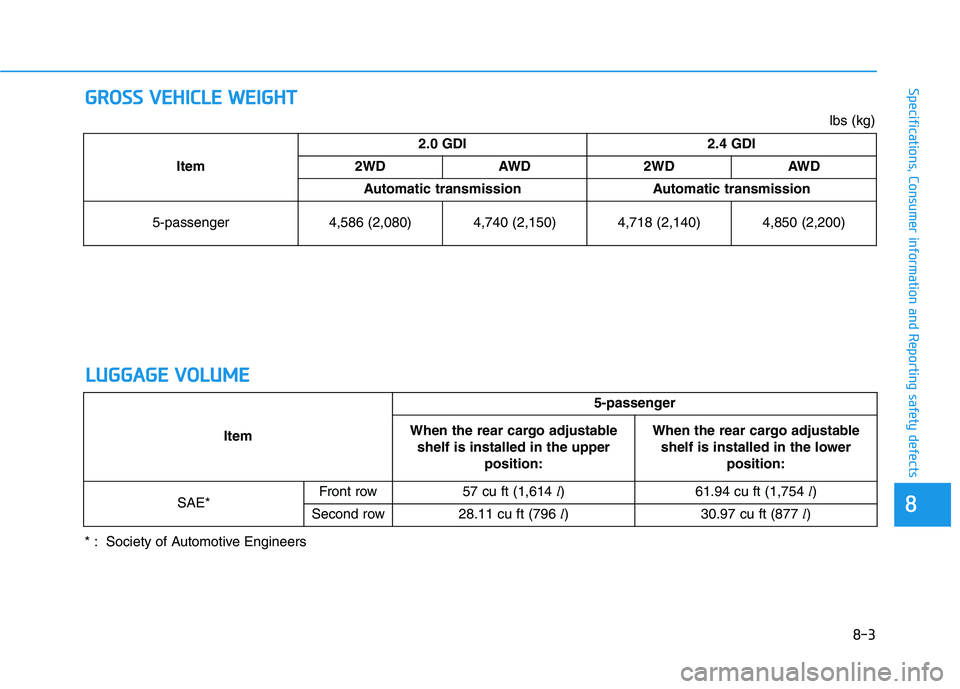

Item2.0 GDI 2.4 GDI
2WD AWD 2WD AWD
Automatic transmissionAutomatic transmission
5-passenger 4,586 (2,080) 4,740 (2,150) 4,718 (2,140) 4,850 (2,200)
Item 5-passenger
When the rear cargo adjustable
shelf is installed in the upper
position:When the rear cargo adjustable
shelf is installed in the lower
position:
SAE*Front row57 cu ft (1,614 l) 61.94 cu ft (1,754 l)
Second row28.11 cu ft (796 l) 30.97 cu ft (877 l)
lbs (kg)
* : Society of Automotive Engineers

8-4
Specifications, Consumer information and Reporting safety defects
B BU
UL
LB
B
W
WA
AT
TT
TA
AG
GE
E

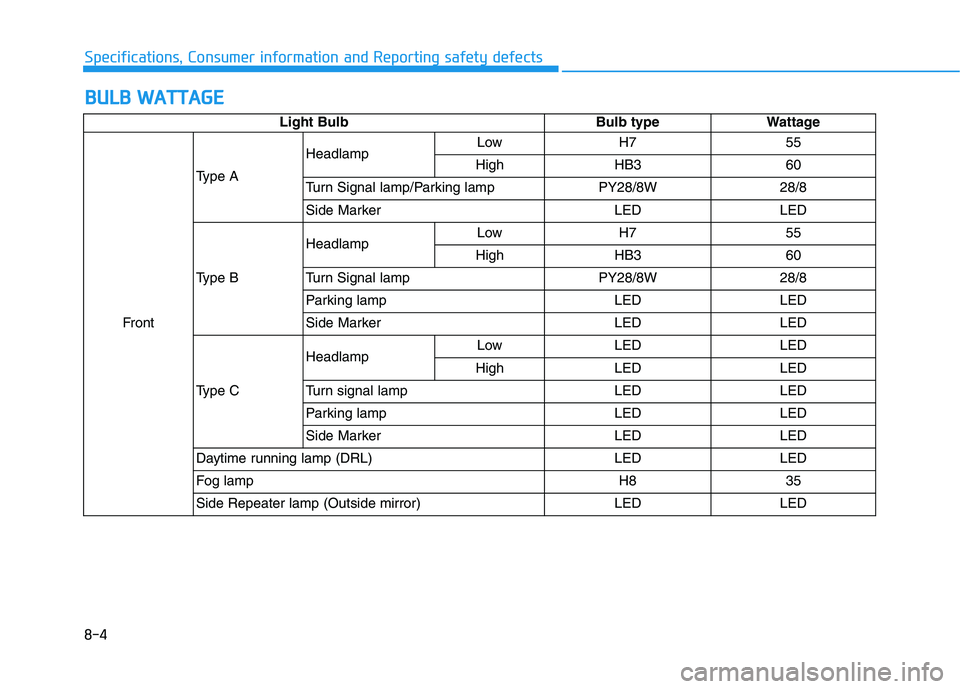

Light Bulb Bulb type Wattage
FrontType AHeadlampLow H7 55
High HB3 60
Turn Signal lamp/Parking lamp PY28/8W 28/8
Side Marker LED LED
Type BHeadlampLow H7 55
High HB3 60
Turn Signal lamp PY28/8W 28/8
Parking lamp LED LED
Side Marker LED LED
Type CHeadlampLow LED LED
High LED LED
Turn signal lamp LED LED
Parking lamp LED LED
Side Marker LED LED
Daytime running lamp (DRL) LED LED
Fog lamp H8 35
Side Repeater lamp (Outside mirror) LED LED

8-5
88
Specifications, Consumer information and Reporting safety defects

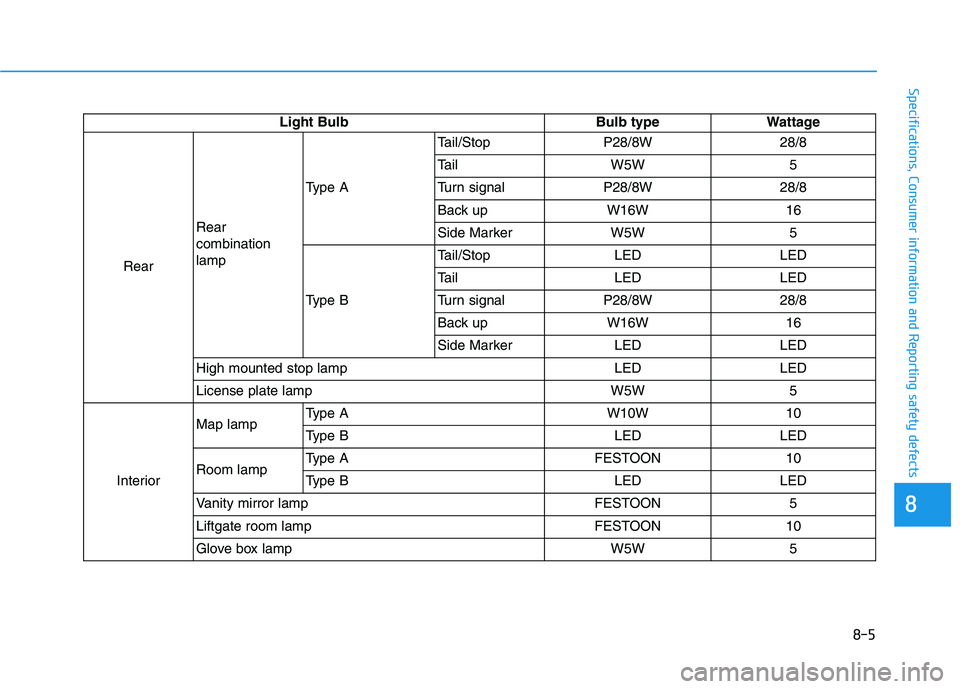

Light Bulb Bulb type Wattage
RearRear
combination
lampType ATail/Stop P28/8W 28/8
Tail W5W 5
Turn signal P28/8W 28/8
Back up W16W 16
Side Marker W5W 5
Type BTail/Stop LED LED
Tail LED LED
Turn signal P28/8W 28/8
Back up W16W 16
Side Marker LED LED
High mounted stop lamp LED LED
License plate lamp W5W 5
InteriorMap lampType A W10W 10
Type B LED LED
Room lampType A FESTOON 10
Type B LED LED
Vanity mirror lamp FESTOON 5
Liftgate room lamp FESTOON 10
Glove box lamp W5W 5

8-6
Specifications, Consumer information and Reporting safety defects
T TI
IR
RE
ES
S
A
AN
ND
D
W
WH
HE
EE
EL
LS
S

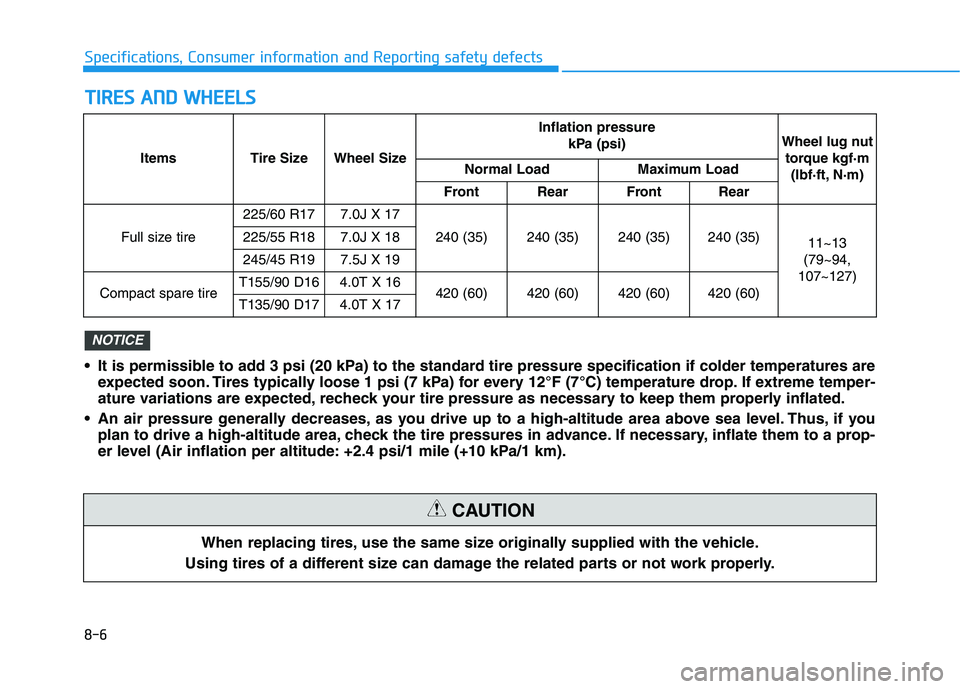

When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION
Items Tire SizeWheel Size
Inflation pressure
kPa (psi)Wheel lug nut
torque kgf·m
(lbf·ft, N·m)
Normal LoadMaximum Load
FrontRearFrontRear
Full size tire
225/60 R177.0J X 17
240 (35)240 (35)240 (35)240 (35)11~13
(79~94,
107~127)225/55 R187.0J X 18
245/45 R197.5J X 19
Compact spare tireT155/90 D164.0T X 16420 (60)420 (60)420 (60)420 (60)T135/90 D174.0T X 17
It is permissible to add 3 psi (20 kPa) to the standard tire pressure specification if colder temperatures are
expected soon. Tires typically loose 1 psi (7 kPa) for every 12°F (7°C) temperature drop. If extreme temper-
ature variations are expected, recheck your tire pressure as necessary to keep them properly inflated.
An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you
plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a prop-
er level (Air inflation per altitude: +2.4 psi/1 mile (+10 kPa/1 km).
NOTICE

8-7
88
Specifications, Consumer information and Reporting safety defectsA AI
IR
R
C
CO
ON
ND
DI
IT
TI
IO
ON
NI
IN
NG
G
S
SY
YS
ST
TE
EM
M

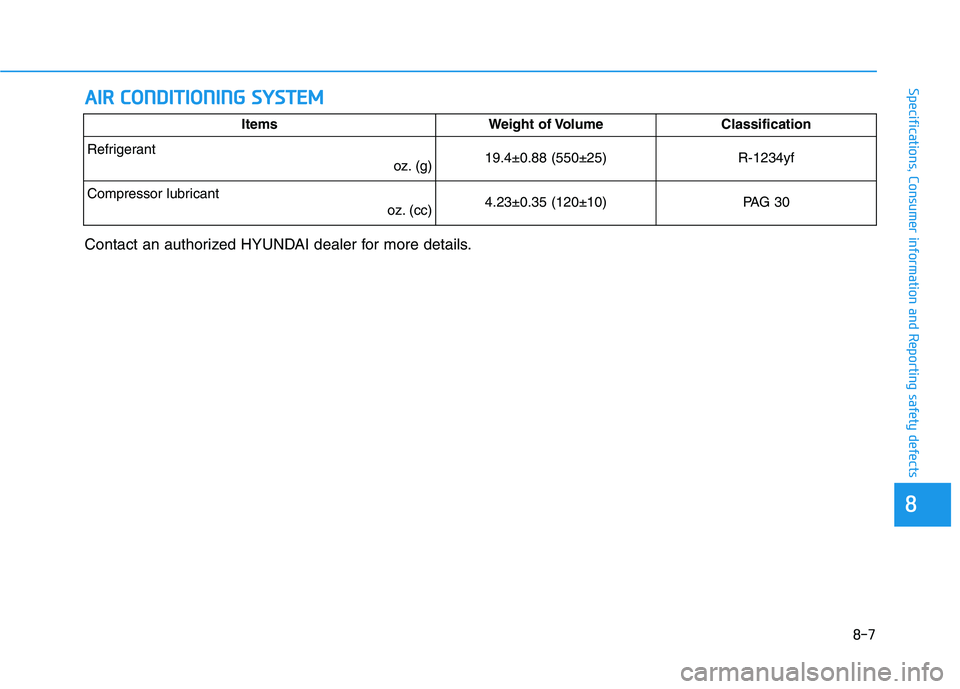

Contact an authorized HYUNDAI dealer for more details.
ItemsWeight of VolumeClassification
Refrigerant
oz. (g) 19.4±0.88 (550±25)R-1234yf
Compressor lubricant
oz. (cc) 4.23±0.35 (120±10)PAG 30

Specifications, Consumer information and Reporting safety defects

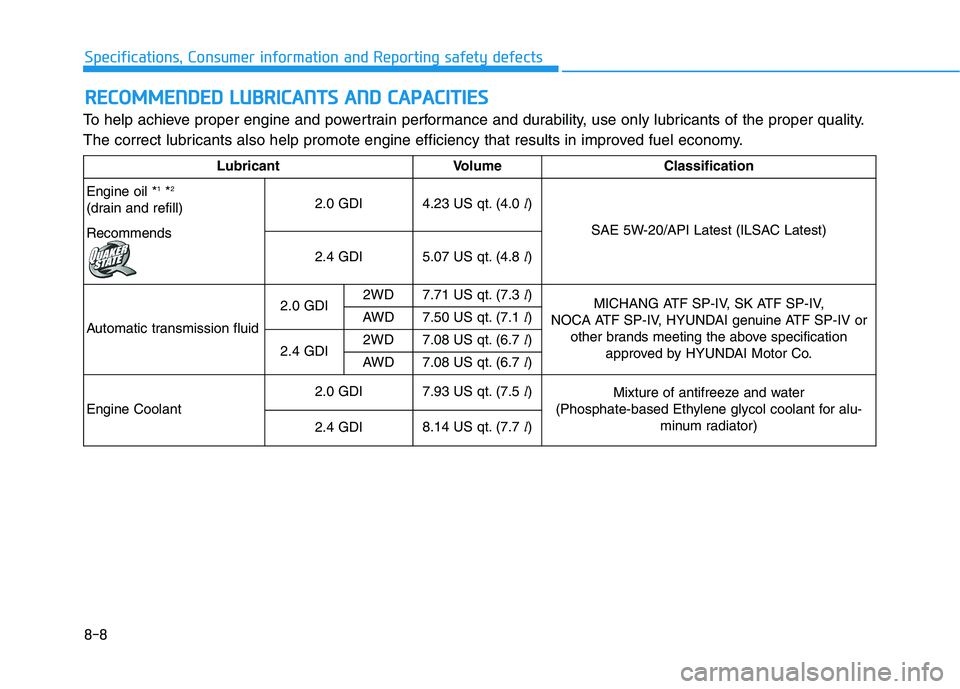

To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
R RE
EC
CO
OM
MM
ME
EN
ND
DE
ED
D
L
LU
UB
BR
RI
IC
CA
AN
NT
TS
S
A
AN
ND
D
C
CA
AP
PA
AC
CI
IT
TI
IE
ES
S
Lubricant Volume Classification
Engine oil *
1*2
(drain and refill)
Recommends2.0 GDI4.23 US qt. (4.0 l)
SAE 5W-20/API Latest (ILSAC Latest)
2.4 GDI5.07 US qt. (4.8 l)
Automatic transmission fluid2.0 GDI2WD7.71 US qt. (7.3 l)
MICHANG ATF SP-IV, SK ATF SP-IV,
NOCA ATF SP-IV, HYUNDAI genuine ATF SP-IV or
other brands meeting the above specification
approved by HYUNDAI Motor Co. AWD7.50 US qt. (7.1 l)
2.4 GDI2WD7.08 US qt. (6.7 l)
AWD7.08 US qt. (6.7 l)
Engine Coolant
2.0 GDI7.93 US qt. (7.5 l)Mixture of antifreeze and water
(Phosphate-based Ethylene glycol coolant for alu-
minum radiator)
2.4 GDI8.14 US qt. (7.7 l)
8-8

8-9
88
Specifications, Consumer information and Reporting safety defects

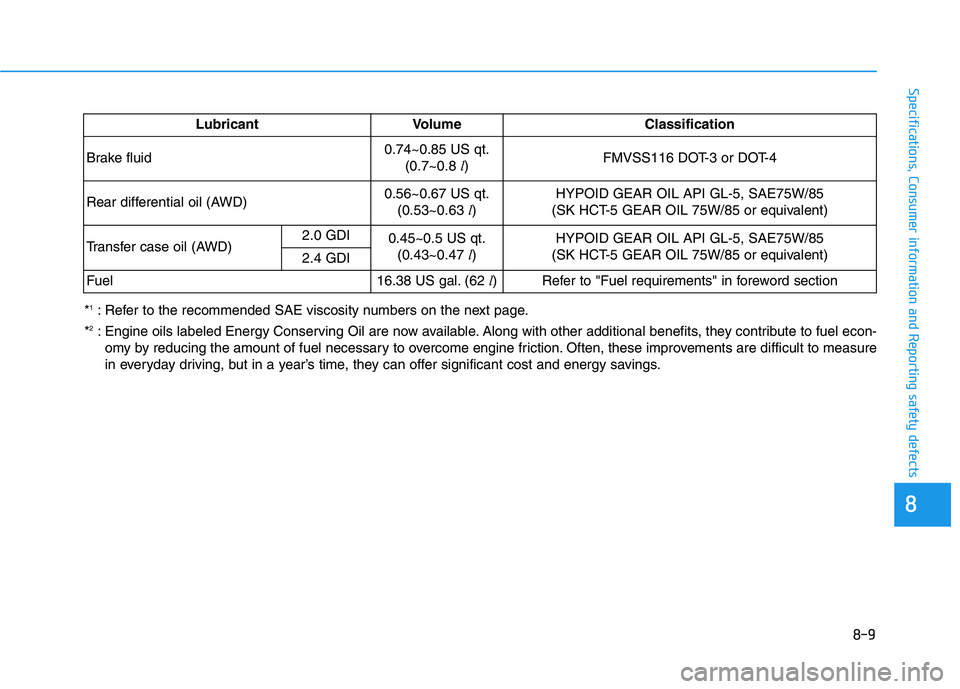

*1: Refer to the recommended SAE viscosity numbers on the next page.
*
2: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.Lubricant Volume Classification
Brake fluid0.74~0.85 US qt.
(0.7~0.8 l)FMVSS116 DOT-3 or DOT-4
Rear differential oil (AWD)0.56~0.67 US qt.
(0.53~0.63 l)HYPOID GEAR OIL API GL-5, SAE75W/85
(SK HCT-5 GEAR OIL 75W/85 or equivalent)
Transfer case oil (AWD)2.0 GDI
0.45~0.5 US qt.
(0.43~0.47 l)HYPOID GEAR OIL API GL-5, SAE75W/85
(SK HCT-5 GEAR OIL 75W/85 or equivalent)
2.4 GDI
Fuel16.38 US gal. (62 l)
Refer to "Fuel requirements" in foreword section
