HYUNDAI TUCSON HYBRID 2023 Owners Manual

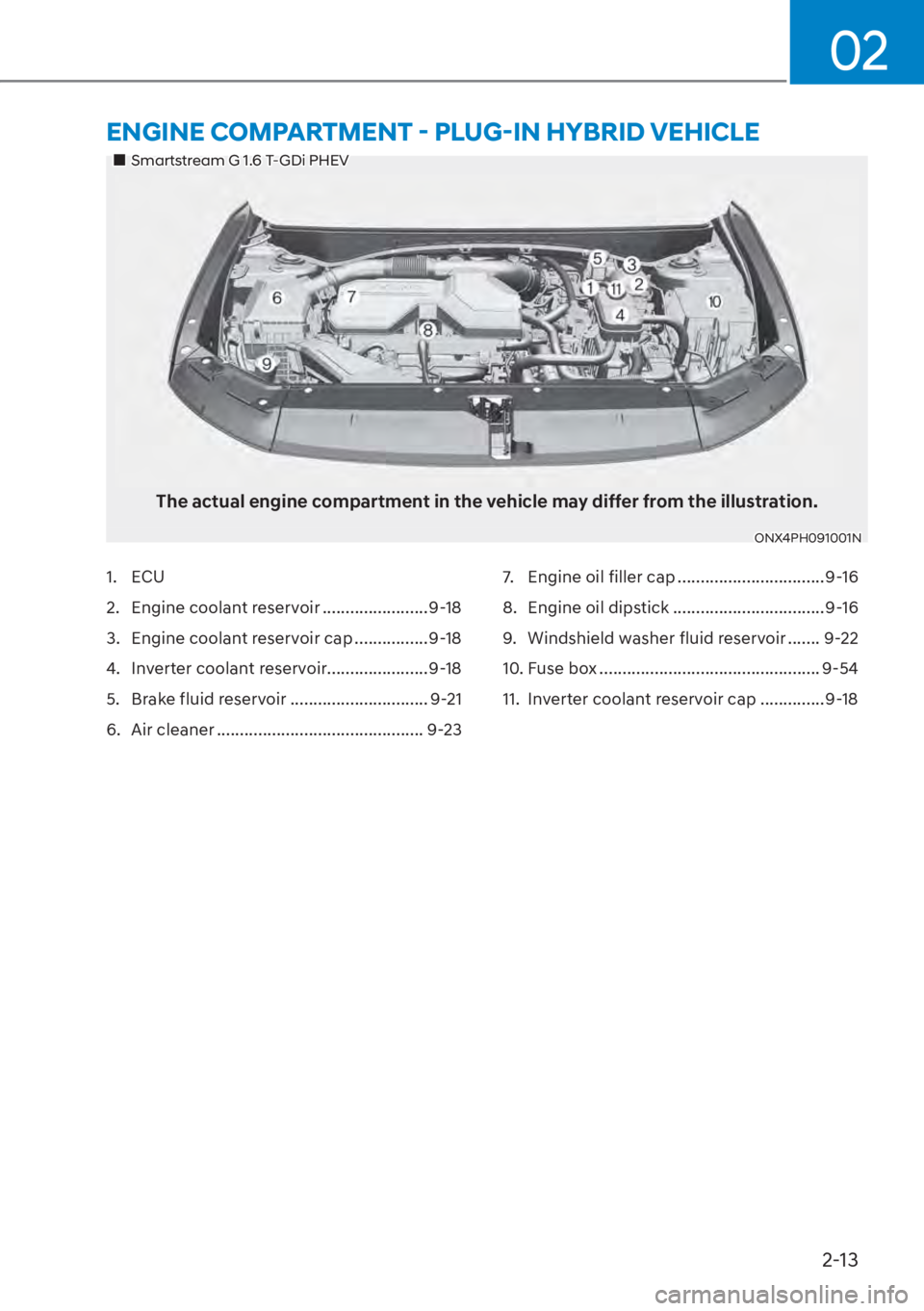

2-13
02
(1*,1(&203$570(17

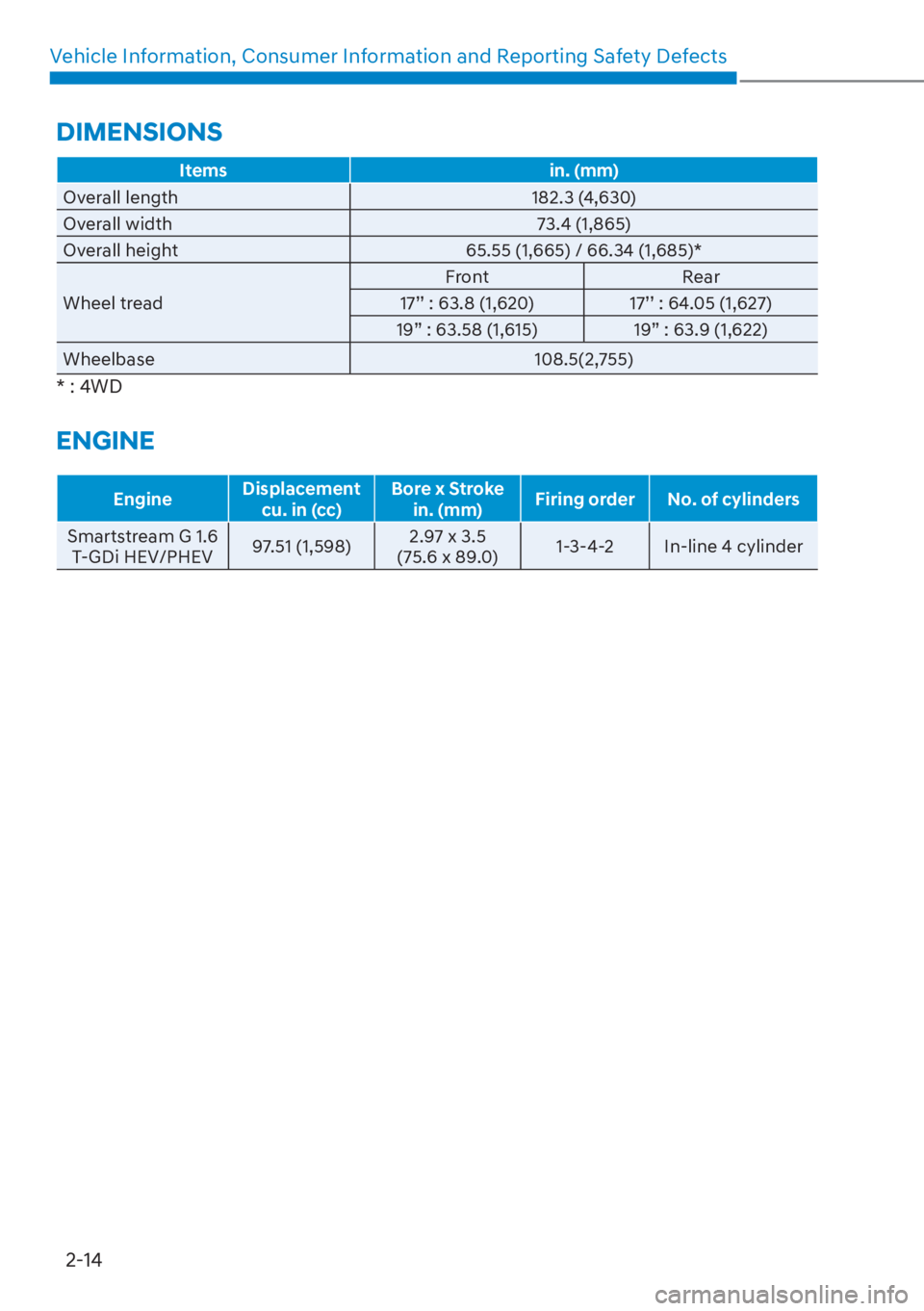

Vehicle Information, Consumer Information and Reporting Safety Defects2-14
Items in. (mm)
Overall length 182.3 (4,630)
O
verall width 73.4 (1,865)
Overall height 65.55 (1,665) / 66.34 (1,685)*
Wheel tread Front
Rear
17’’ : 63.8 (1,620) 17’’ : 64.05 (1,627)
19” : 63.58 (1,615) 19” : 63.9 (1,622)
Wheelbase 108.5(2,755)
* : 4WD
ENGINE
EngineDisplacement
cu. in (cc) Bore x Stroke
in. (mm) Firing order No. of cylinders
Smartstream G 1.6 T
-GDi HEV/PHEV 97.51 (1,598)2.97 x 3.5
(75.6 x 89.0) 1-3-4-2 In-line 4 cylinder
',0(16,216

02
2-15
Light bulbBulb type Wattage
Front H
eadlight
High
LED LED
Low LED LED
Daytime running lamp (DRL) /
position lamp LED LED
Turn signal lamp LED LED
Turn signal lamp (Outside mirror) LED LED
Rear Type A
Tail lamp
P21/5W 5/21
Tail/Stop lamp P21/5W 5/21
Side marker lamp P21/5W 5/21
Type B Tail lamp
LED LED
Tail/Stop lamp LED LED
Side marker lamp LED LED
Turn signal lamp PY21W 21
Reverse lamp W16W 16
License plate lamp Type A W5W
5
Type B LED LED
High mounted stop lamp LED LED
Interior Map lamp
Type A W10W 10
Type B
LED LED
Room lamp* FESTOON 10
Personal lamp* LED LED
Glove box lamp W5W5
Sunvisor lamp FESTOON 5
Luggage compartment lamp FESTOON 10
* : if equipped
%8/%:$77$*(

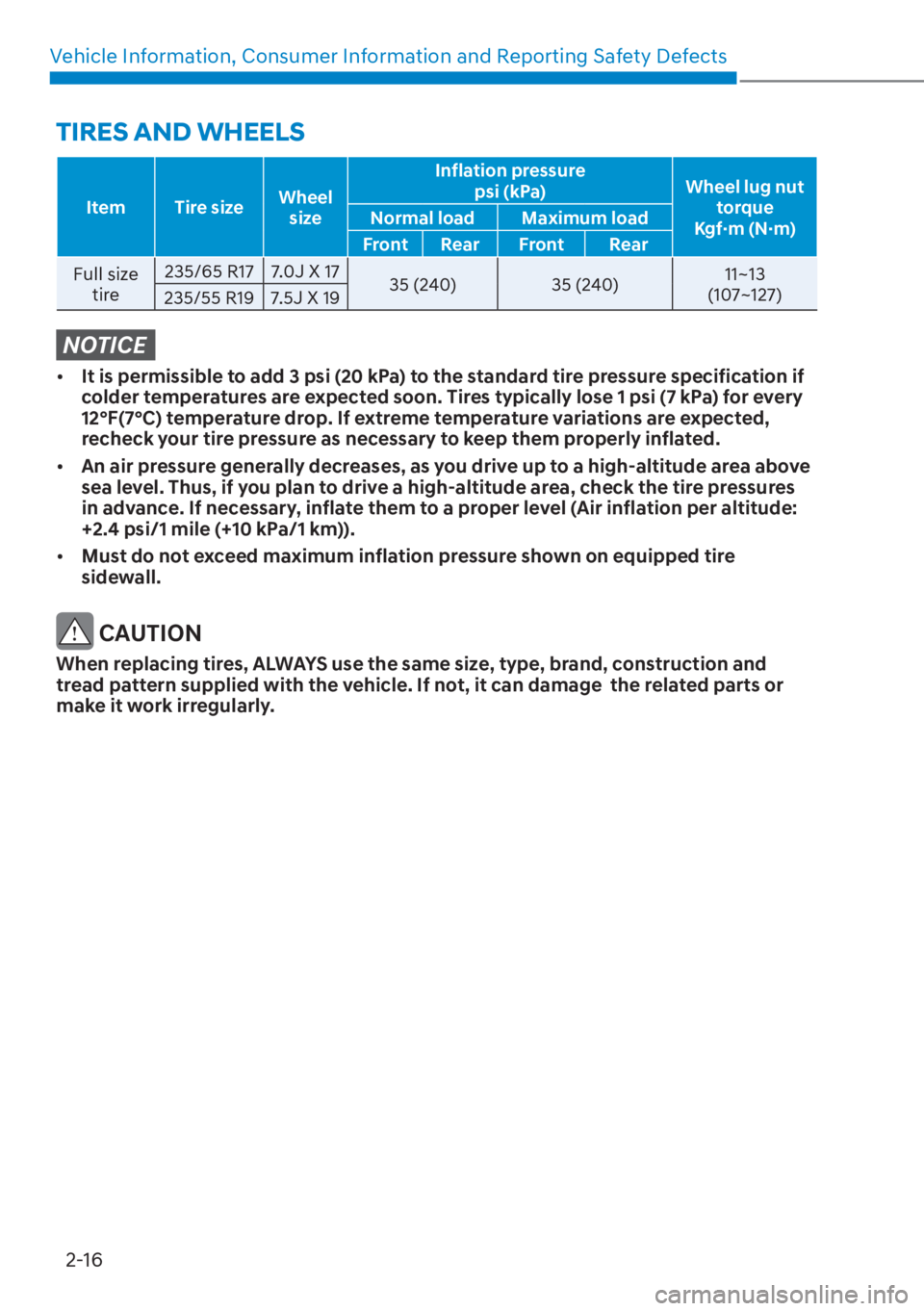

Vehicle Information, Consumer Information and Reporting Safety Defects2-16
Item Tire size Wheel
size Inflation pressure
psi (kPa) Wheel lug nut
torque
Kgf·m (N·m)
Normal load Maximum load
Front Rear Front Rear
Full size tir
e 235/65 R17 7.0J X 17
35 (240) 35 (240) 11~13
(107~127)
235/55 R19 7.5J X 19
NOTICE

[ It is permissible to add 3 psi (20 kPa) to the standard tire pressure specification if
colder temperatures are expected soon. Tires typically lose 1 psi (7 kPa) for every
12°F(7°C) temperature drop. If extreme temperature variations are expected,
recheck your tire pressure as necessary to keep them properly inflated.

[ An air pressure generally decreases, as you drive up to a high-altitude area above
sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures
in advance. If necessary, inflate them to a proper level (Air inflation per altitude:
+2.4 psi/1 mile (+10 kPa/1 km)).

[ Must do not exceed maximum inflation pressure shown on equipped tire
sidewall.
CAUTION
When replacing tires, ALWAYS use the same size, type, brand, construction and
tread pattern supplied with the vehicle. If not, it can damage the related parts or
make it work irregularly.
7,5(6$1':+((/6

02

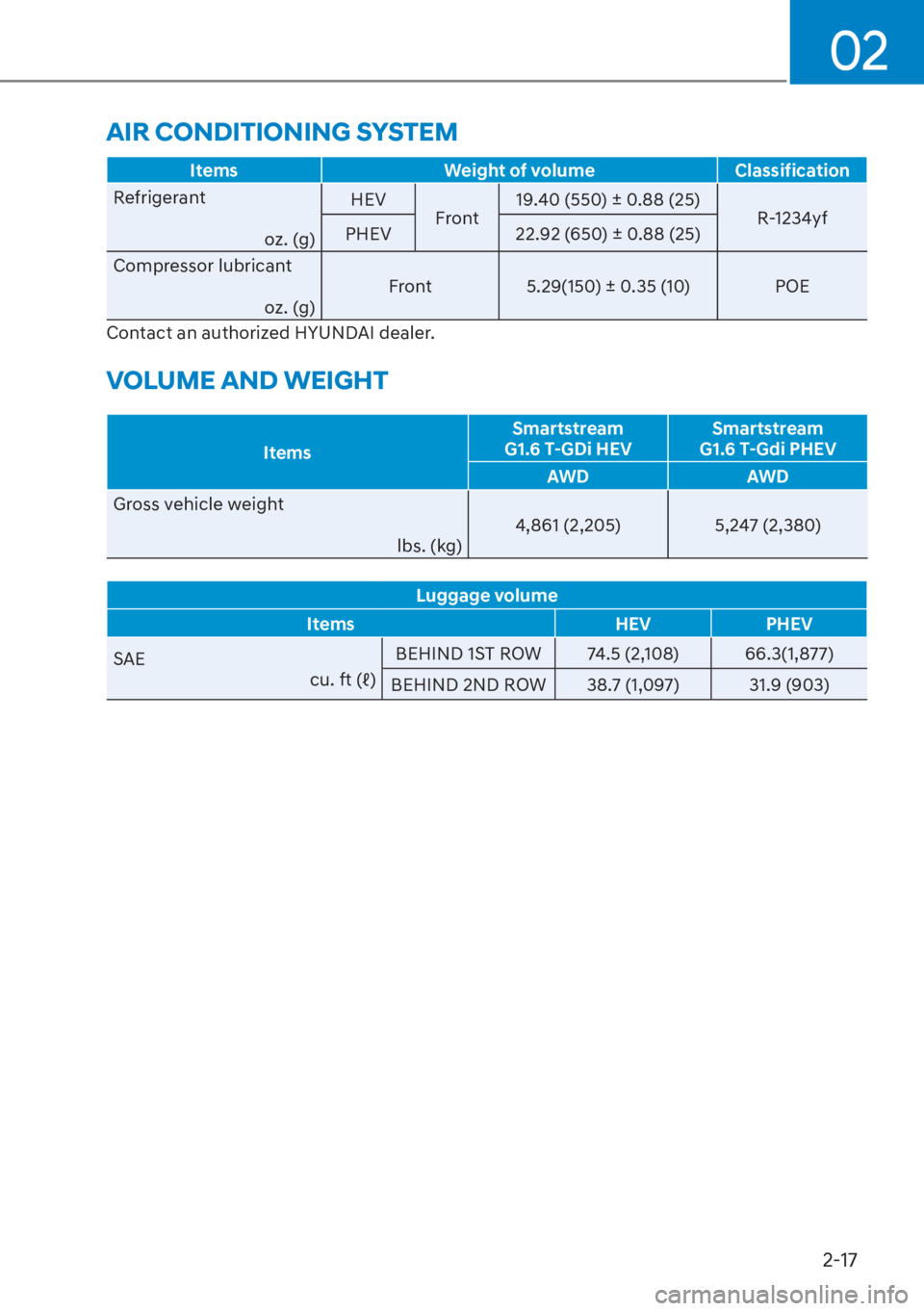

2-17
ItemsWeight of volume Classification
Refrigerant
o
z. (g)HEV
Front19.40 (550) ± 0.88 (25)
R-1234yf
PHEV 22.92 (650) ± 0.88 (25)
Compressor lubricant
oz. (g)Front
5.29(150) ± 0.35 (10) POE
Contact an authorized HYUNDAI dealer.
92/80($1':(,*+7
Items Smartstream
G1.6 T-GDi HEV Smartstream
G1.6 T-Gdi PHEV
AWD AWD
Gross vehicle weight
lbs. (k
g)4,861 (2,205)
5,247 (2,380)
Luggage volume
Items HEV PHEV
SAE FXIW
bBEHIND 1S

T ROW 74.5 (2,108) 66.3(1,877)
BEHIND 2ND ROW 38.7 (1,097) 31.9 (903)
$,5&21',7,21,1*6<67(0

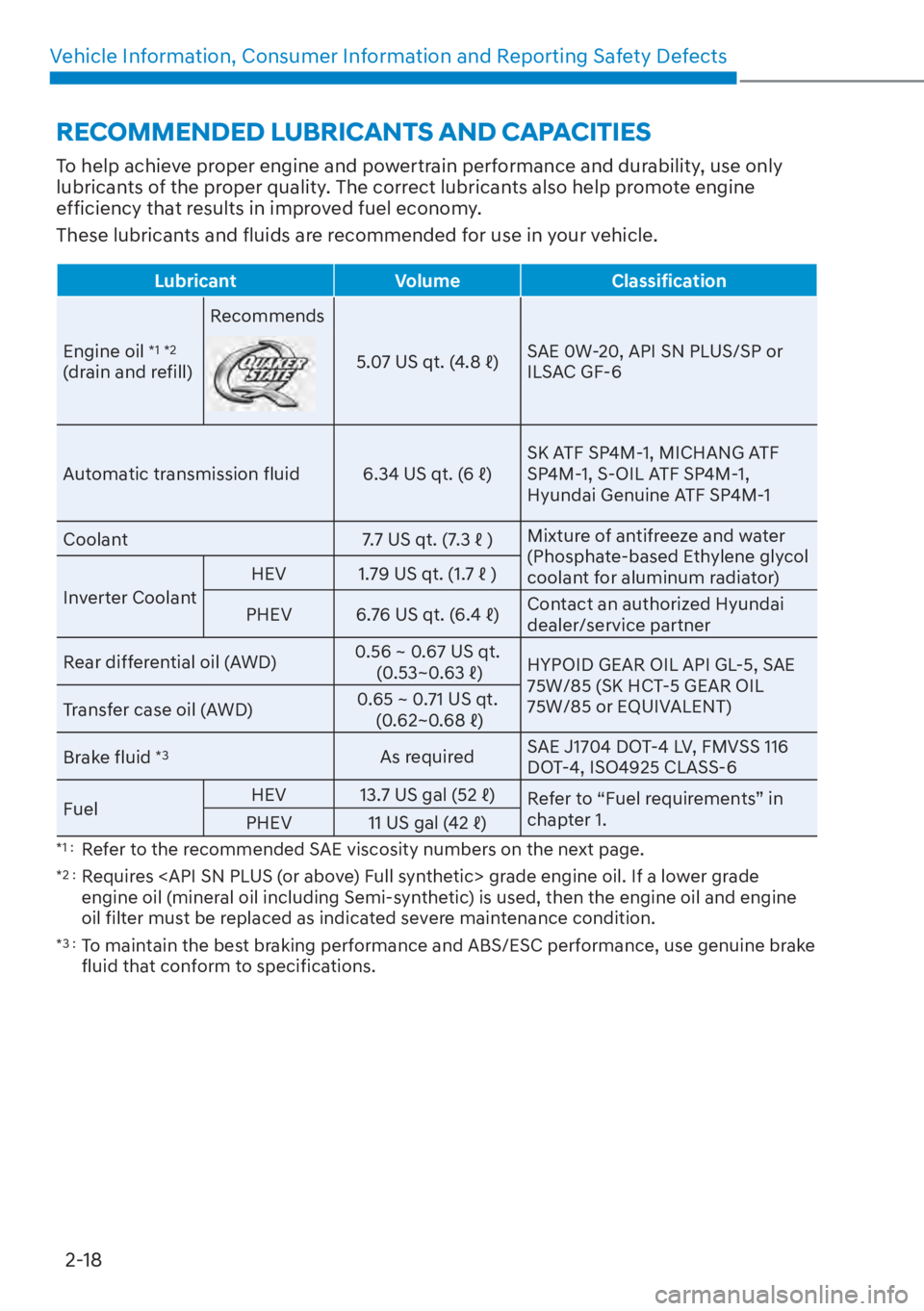

Vehicle Information, Consumer Information and Reporting Safety Defects2-18
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant VolumeClassification
Engine oil
*1 *2
(drain and refill) Recommends
86TW
b SAE 0W-20, API SN PLUS/SP or
ILSAC GF-6
Automatic transmission fluid
86TW
bSK ATF SP4M-1, MICHANG ATF
SP4M-1, S-OIL ATF SP4M-1,
Hyundai Genuine ATF SP4M-1
Coolant 86TW
bMixture of antifreeze and water
(Phosphate-based Ethylene glycol
coolant for aluminum radiator)
Inverter Coolant HEV
86TW
b
PHEV 86TW
b Contact an authorized Hyundai
dealer/service partner
Rear differential oil (AWD) 0.56 ~ 0.67 US qt.
a
b HYPOID GEAR OIL API GL-5, SAE
75W/85 (SK HCT-5 GEAR OIL
75W/85 or EQUIVALENT)
Transfer case oil (AWD) 0.65 ~ 0.71 US qt.
a
b
Brake fluid
*3As required SAE J1704 DOT-4 LV, FMVSS 116
DOT-4, ISO4925 CLASS-6
Fuel HEV
86JDO
b
Refer to “Fuel requirements” in
chapter 1.
PHEV 86JDO
b
*1 : Refer to the recommended SAE viscosity numbers on the next page.
*2 : Requires grade engine oil. If a lower grade
engine oil (mineral oil including Semi-synthetic) is used, then the engine oil and engine
oil filter must be replaced as indicated severe maintenance condition.
*3 : To maintain the best braking performance and ABS/ESC performance, use genuine brake
fluid that conform to specifications.
5(&200(1'('/8%5,&$176$1'&$3$&,7,(6

02
2-19
Recommended SAE Viscosity Number
CAUTION
Always be sure to clean the area around any filler plug, drain plug, or dipstick before
checking or draining any lubricant. This is especially important in dusty or sandy
areas and when the vehicle is used on unpaved roads. Cleaning the plug and dipstick
areas will prevent dirt and grit from entering the engine and other mechanisms that
could be damaged.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather
operating (engine start and engine oil flowability). Lower viscosity engine oils can
provide better fuel economy and cold weather performance, however, higher viscosity
engine oils are required for satisfactory lubrication in hot weather. Using oils of any
viscosity other than those recommended could result in engine damage.
When choosing an oil, consider the range of temperature your vehicle will be operated
in before the next oil change. Proceed to select the recommended oil viscosity from
the chart.
Temperature Range for SAE Viscosity Numbers
Temperature °C -30 -20 -10 0 10 20 30 40 50
(°F) -10 0 20 40 60 80 100 120
Smartstream G 1.6 T-GDi HEV/PHEV
0W-20 0W-20
An engine oil displaying this API Certification Mark conforms to
the international Lubricant Specification Advisory Committee
(ILSAC). It is recommended to only use engine oils that uphold
this API Certification Mark.

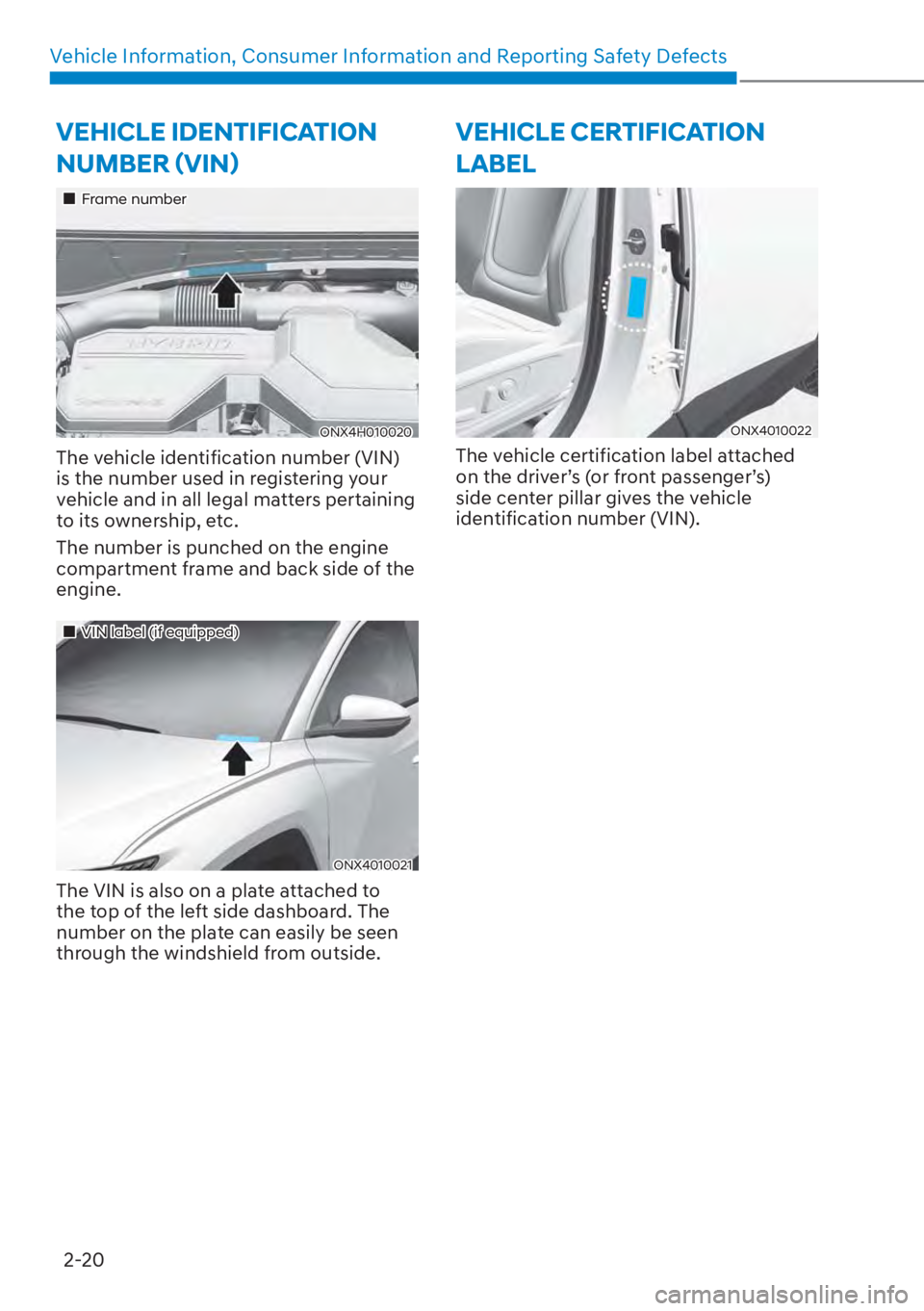

Vehicle Information, Consumer Information and Reporting Safety Defects2-20
9(+,&/(,'(17,),&$7,21
180%(5
ã9,1
ä
„Frame number
ONX4H010020
The vehicle identification number (VIN)
is the number used in registering your
vehicle and in all legal matters pertaining
to its ownership, etc.
The number is punched on the engine
compartment frame and back side of the
engine.
„VIN label (if equipped)
ONX4010021
The VIN is also on a plate attached to
the top of the left side dashboard. The
number on the plate can easily be seen
through the windshield from outside.
9(+,&/(&(57,),&$7,21
/$%(/
ONX4010022
The vehicle certification label attached
on the driver’s (or front passenger’s)
side center pillar gives the vehicle
identification number (VIN).

02

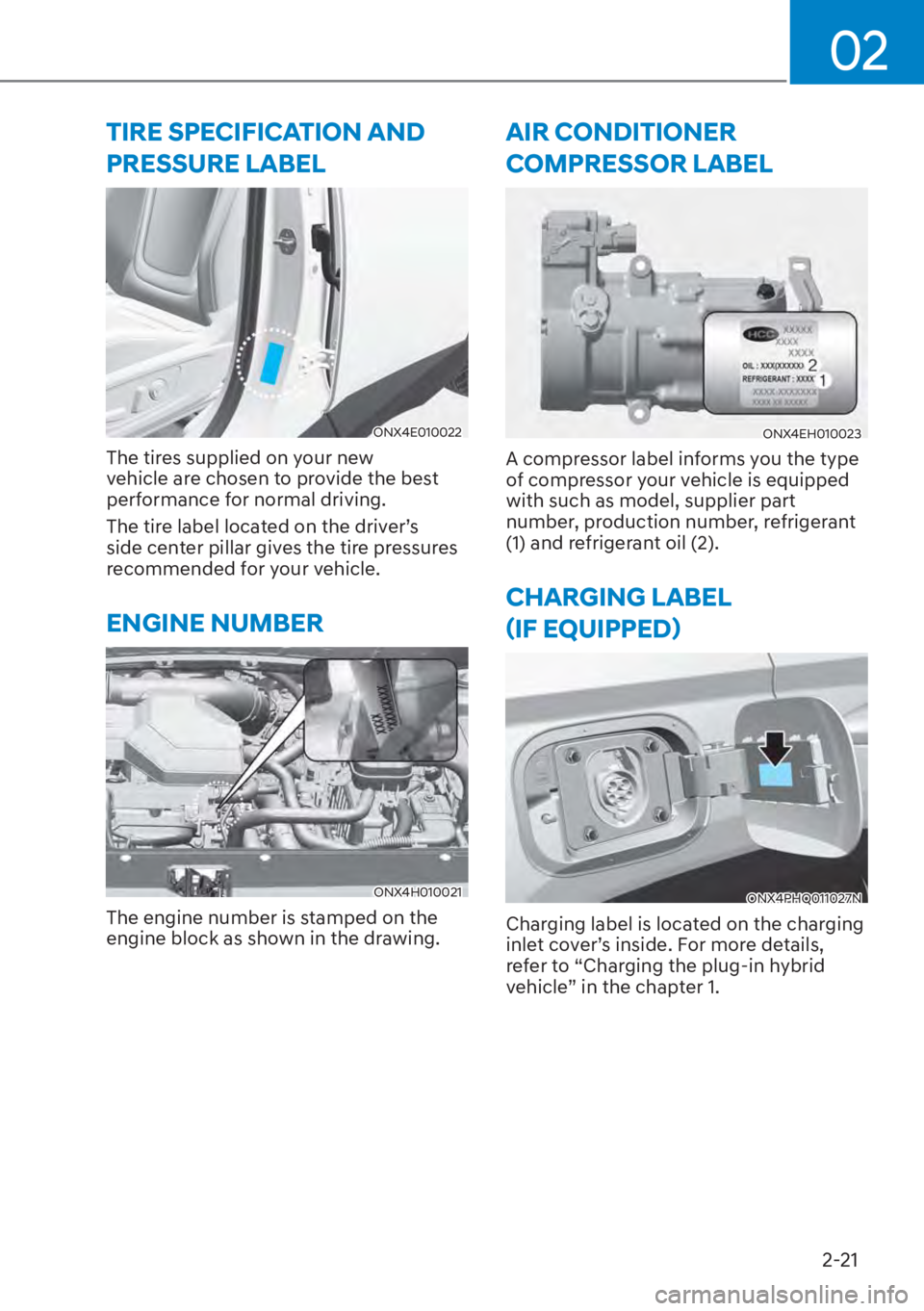

2-21
7,5(63(&,),&$7,21$1'
35(6685(/$%(/
ONX4E010022
The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your vehicle.
(1*,1(180%(5
ONX4H010021
The engine number is stamped on the
engine block as shown in the drawing.
$,5&21',7,21(5
&2035(6625/$%(/
ONX4EH010023
A compressor label informs you the type
of compressor your vehicle is equipped
with such as model, supplier part
number, production number, refrigerant
(1) and refrigerant oil (2).
&+$5*,1*/$%(/

ã,)(48,33('
ä
ONX4PHQ011027N
Charging label is located on the charging
inlet cover’s inside. For more details,
refer to “Charging the plug-in hybrid
vehicle” in the chapter 1.

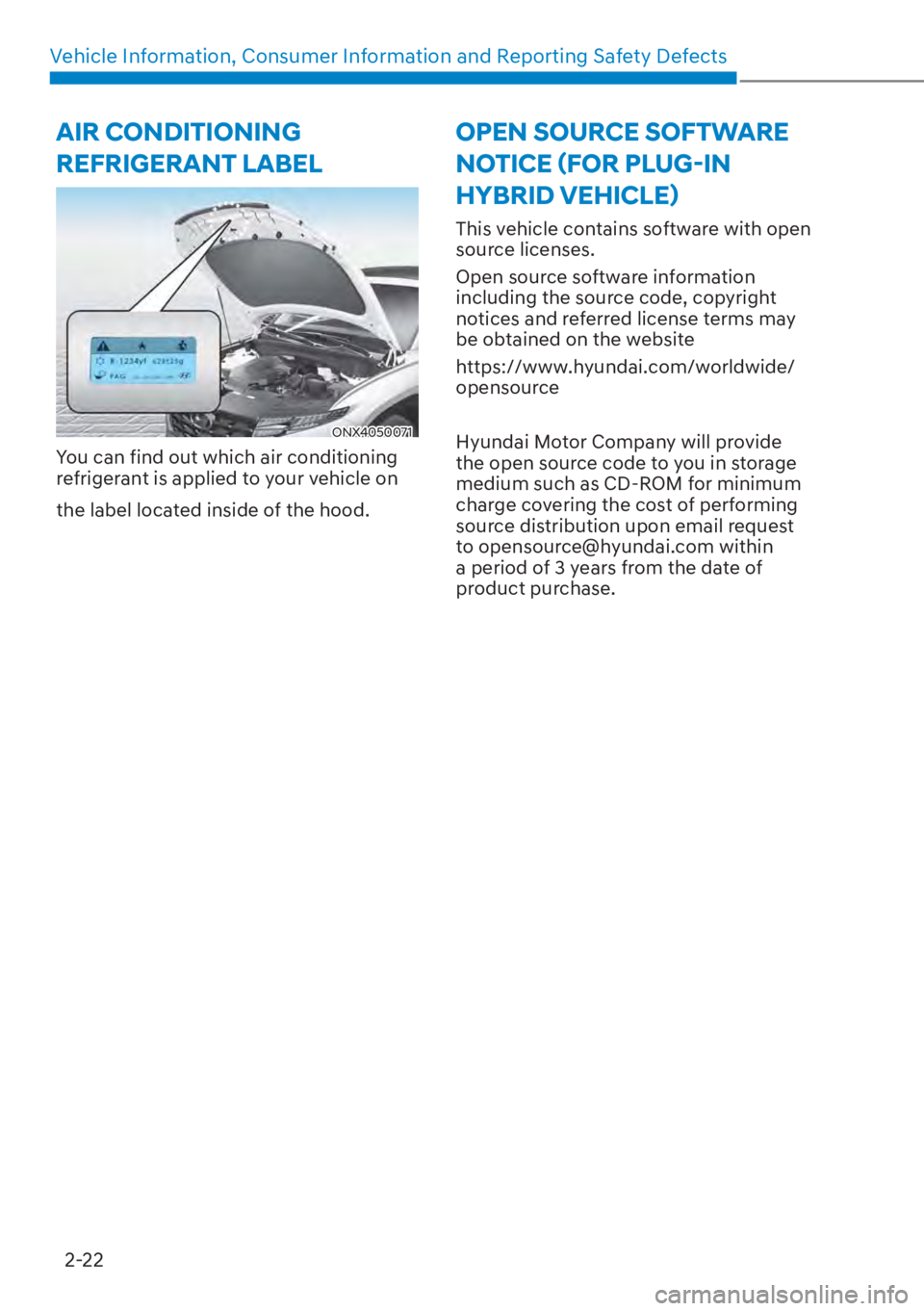

Vehicle Information, Consumer Information and Reporting Safety Defects2-22
$,5&21',7,21,1*
5()5,*(5$17/$%(/
This vehicle contains software with open
source licenses.
Open source software information
including the source code, copyright
notices and referred license terms may
be obtained on the website
https://www.hyundai.com/worldwide/
opensource
Hyundai Motor Company will provide
the open source code to you in storage
medium such as CD-ROM for minimum
charge covering the cost of performing
source distribution upon email request
to [email protected] within
a period of 3 years from the date of
product purchase.
