HYUNDAI VELOSTER 2011 Owners Manual

79
Maintenance

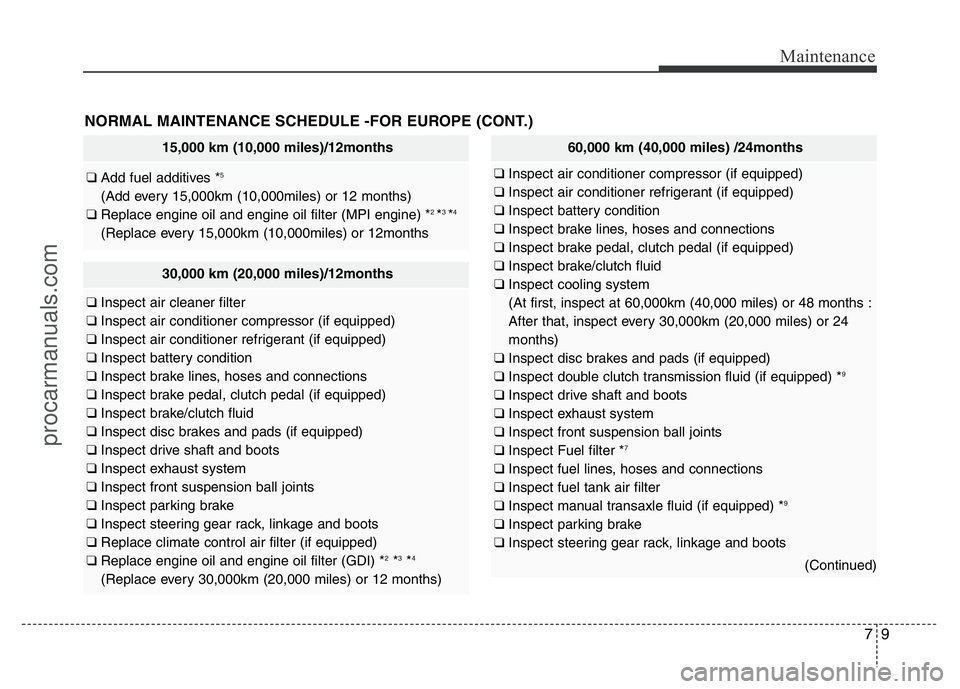

NORMAL MAINTENANCE SCHEDULE -FOR EUROPE (CONT.)
15,000 km (10,000 miles)/12months
❑ Add fuel additives *5
(Add every 15,000km (10,000miles) or 12 months)
❑ Replace engine oil and engine oil filter (MPI engine) *2 *3 *4
(Replace every 15,000km (10,000miles) or 12months
30,000 km (20,000 miles)/12months
❑ Inspect air cleaner filter
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect air conditioner refrigerant (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect brake pedal, clutch pedal (if equipped)
❑ Inspect brake/clutch fluid
❑ Inspect disc brakes and pads (if equipped)
❑ Inspect drive shaft and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect parking brake
❑ Inspect steering gear rack, linkage and boots
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and engine oil filter (GDI) *
2*3*4
(Replace every 30,000km (20,000 miles) or 12 months)
60,000 km (40,000 miles) /24months
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect air conditioner refrigerant (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect brake pedal, clutch pedal (if equipped)
❑ Inspect brake/clutch fluid
❑ Inspect cooling system
(At first, inspect at 60,000km (40,000 miles) or 48 months :
After that, inspect every 30,000km (20,000 miles) or 24
months)
❑ Inspect disc brakes and pads (if equipped)
❑ Inspect double clutch transmission fluid (if equipped) *
9
❑ Inspect drive shaft and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect Fuel filter *
7
❑ Inspect fuel lines, hoses and connections
❑ Inspect fuel tank air filter
❑ Inspect manual transaxle fluid (if equipped) *
9
❑ Inspect parking brake
❑ Inspect steering gear rack, linkage and boots
(Continued)
procarmanuals.com

Maintenance
10 7

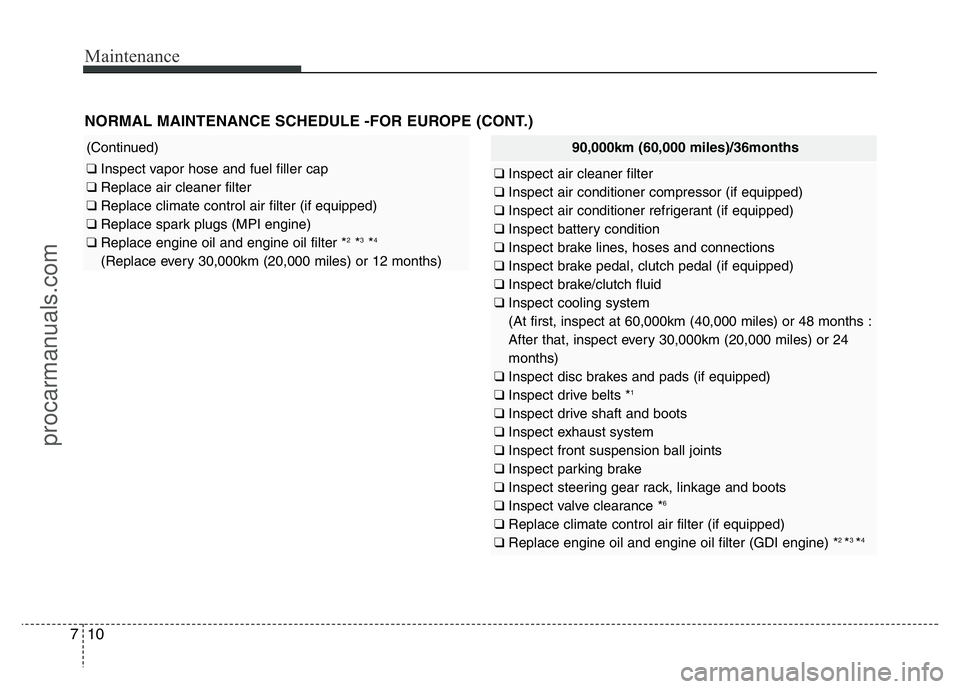

NORMAL MAINTENANCE SCHEDULE -FOR EUROPE (CONT.)
90,000km (60,000 miles)/36months
❑ Inspect air cleaner filter
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect air conditioner refrigerant (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect brake pedal, clutch pedal (if equipped)
❑ Inspect brake/clutch fluid
❑ Inspect cooling system
(At first, inspect at 60,000km (40,000 miles) or 48 months :
After that, inspect every 30,000km (20,000 miles) or 24
months)
❑ Inspect disc brakes and pads (if equipped)
❑ Inspect drive belts *
1
❑ Inspect drive shaft and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect parking brake
❑ Inspect steering gear rack, linkage and boots
❑ Inspect valve clearance *
6
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and engine oil filter (GDI engine) *2 *3 *4
(Continued)
❑ Inspect vapor hose and fuel filler cap
❑ Replace air cleaner filter
❑ Replace climate control air filter (if equipped)
❑ Replace spark plugs (MPI engine)
❑ Replace engine oil and engine oil filter *
2*3*4
(Replace every 30,000km (20,000 miles) or 12 months)
procarmanuals.com

711
Maintenance

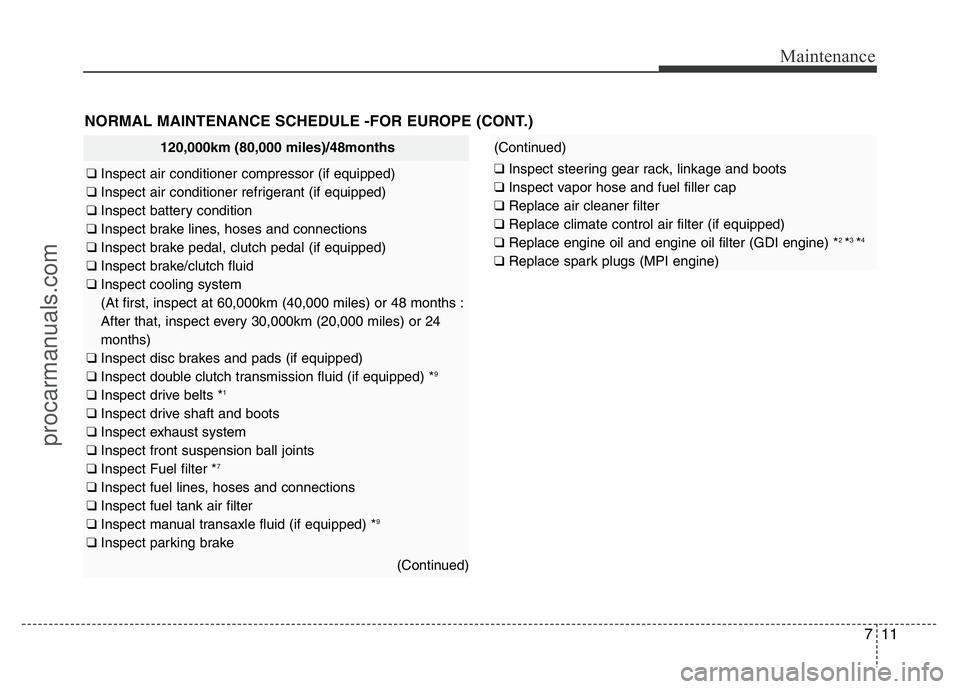

NORMAL MAINTENANCE SCHEDULE -FOR EUROPE (CONT.)
120,000km (80,000 miles)/48months
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect air conditioner refrigerant (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect brake pedal, clutch pedal (if equipped)
❑ Inspect brake/clutch fluid
❑ Inspect cooling system
(At first, inspect at 60,000km (40,000 miles) or 48 months :
After that, inspect every 30,000km (20,000 miles) or 24
months)
❑ Inspect disc brakes and pads (if equipped)
❑ Inspect double clutch transmission fluid (if equipped) *
9
❑ Inspect drive belts *1
❑ Inspect drive shaft and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect Fuel filter *
7
❑ Inspect fuel lines, hoses and connections
❑ Inspect fuel tank air filter
❑ Inspect manual transaxle fluid (if equipped) *
9
❑ Inspect parking brake
(Continued)
(Continued)
❑ Inspect steering gear rack, linkage and boots
❑ Inspect vapor hose and fuel filler cap
❑ Replace air cleaner filter
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and engine oil filter (GDI engine) *
2 *3 *4
❑ Replace spark plugs (MPI engine)
procarmanuals.com

Maintenance
12 7

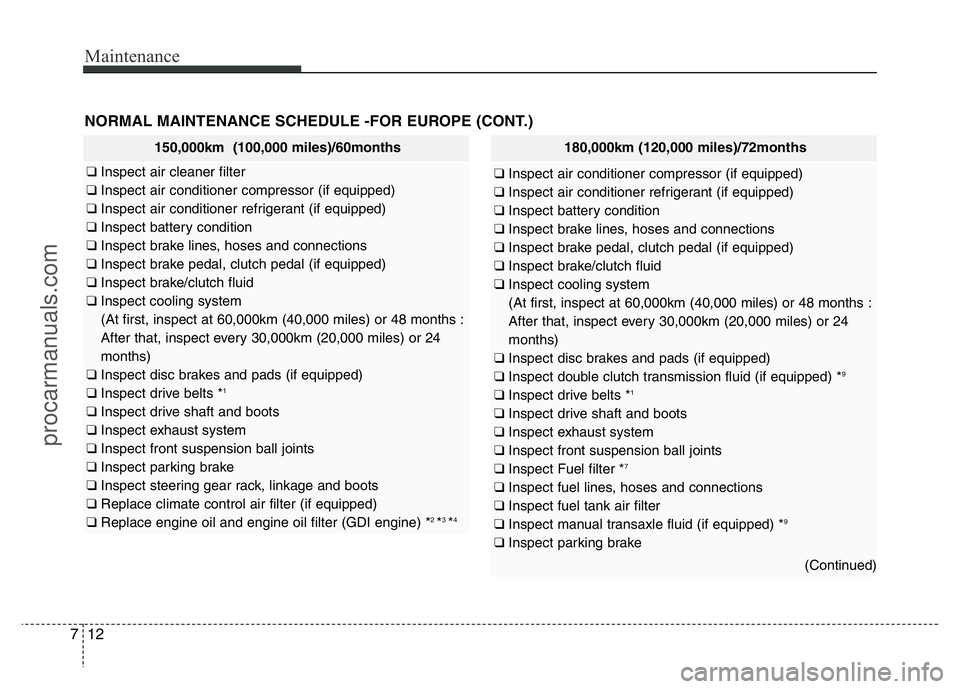

NORMAL MAINTENANCE SCHEDULE -FOR EUROPE (CONT.)
150,000km (100,000 miles)/60months
❑ Inspect air cleaner filter
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect air conditioner refrigerant (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect brake pedal, clutch pedal (if equipped)
❑ Inspect brake/clutch fluid
❑ Inspect cooling system
(At first, inspect at 60,000km (40,000 miles) or 48 months :
After that, inspect every 30,000km (20,000 miles) or 24
months)
❑ Inspect disc brakes and pads (if equipped)
❑ Inspect drive belts *
1
❑ Inspect drive shaft and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect parking brake
❑ Inspect steering gear rack, linkage and boots
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and engine oil filter (GDI engine) *
2 *3 *4
180,000km (120,000 miles)/72months
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect air conditioner refrigerant (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect brake pedal, clutch pedal (if equipped)
❑ Inspect brake/clutch fluid
❑ Inspect cooling system
(At first, inspect at 60,000km (40,000 miles) or 48 months :
After that, inspect every 30,000km (20,000 miles) or 24
months)
❑ Inspect disc brakes and pads (if equipped)
❑ Inspect double clutch transmission fluid (if equipped) *
9
❑ Inspect drive belts *1
❑ Inspect drive shaft and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect Fuel filter *
7
❑ Inspect fuel lines, hoses and connections
❑ Inspect fuel tank air filter
❑ Inspect manual transaxle fluid (if equipped) *
9
❑ Inspect parking brake
(Continued)
procarmanuals.com

713
Maintenance

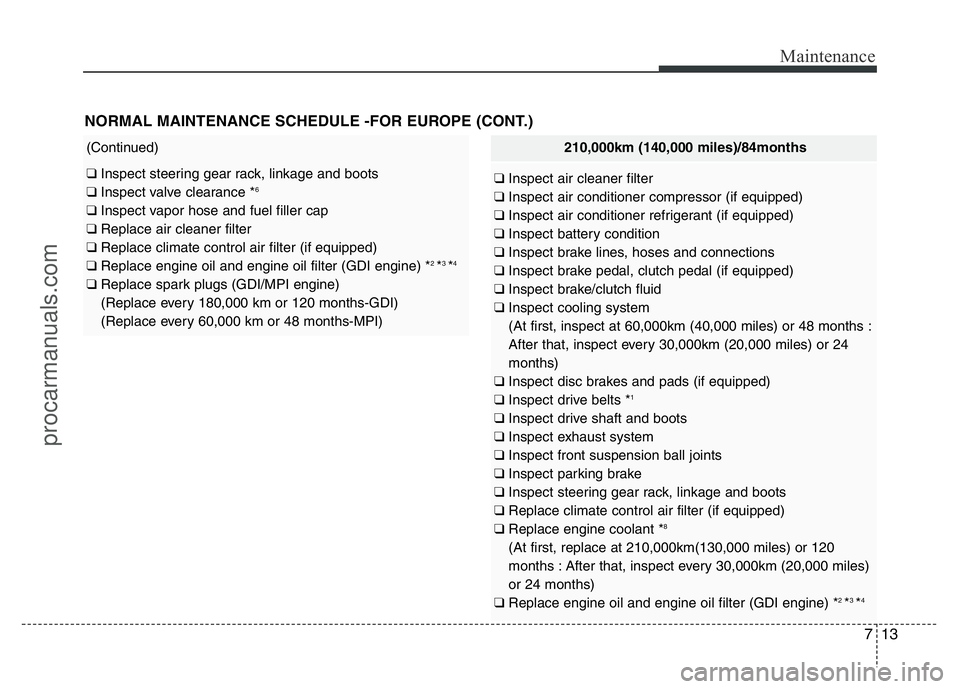

210,000km (140,000 miles)/84months
❑ Inspect air cleaner filter
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect air conditioner refrigerant (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect brake pedal, clutch pedal (if equipped)
❑ Inspect brake/clutch fluid
❑ Inspect cooling system
(At first, inspect at 60,000km (40,000 miles) or 48 months :
After that, inspect every 30,000km (20,000 miles) or 24
months)
❑ Inspect disc brakes and pads (if equipped)
❑ Inspect drive belts *
1
❑ Inspect drive shaft and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect parking brake
❑ Inspect steering gear rack, linkage and boots
❑ Replace climate control air filter (if equipped)
❑ Replace engine coolant *
8
(At first, replace at 210,000km(130,000 miles) or 120
months : After that, inspect every 30,000km (20,000 miles)
or 24 months)
❑ Replace engine oil and engine oil filter (GDI engine) *
2 *3 *4
NORMAL MAINTENANCE SCHEDULE -FOR EUROPE (CONT.)
(Continued)
❑ Inspect steering gear rack, linkage and boots
❑ Inspect valve clearance *6
❑ Inspect vapor hose and fuel filler cap
❑ Replace air cleaner filter
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and engine oil filter (GDI engine) *
2 *3 *4
❑ Replace spark plugs (GDI/MPI engine)
(Replace every 180,000 km or 120 months-GDI)
(Replace every 60,000 km or 48 months-MPI)
procarmanuals.com

Maintenance
14 7

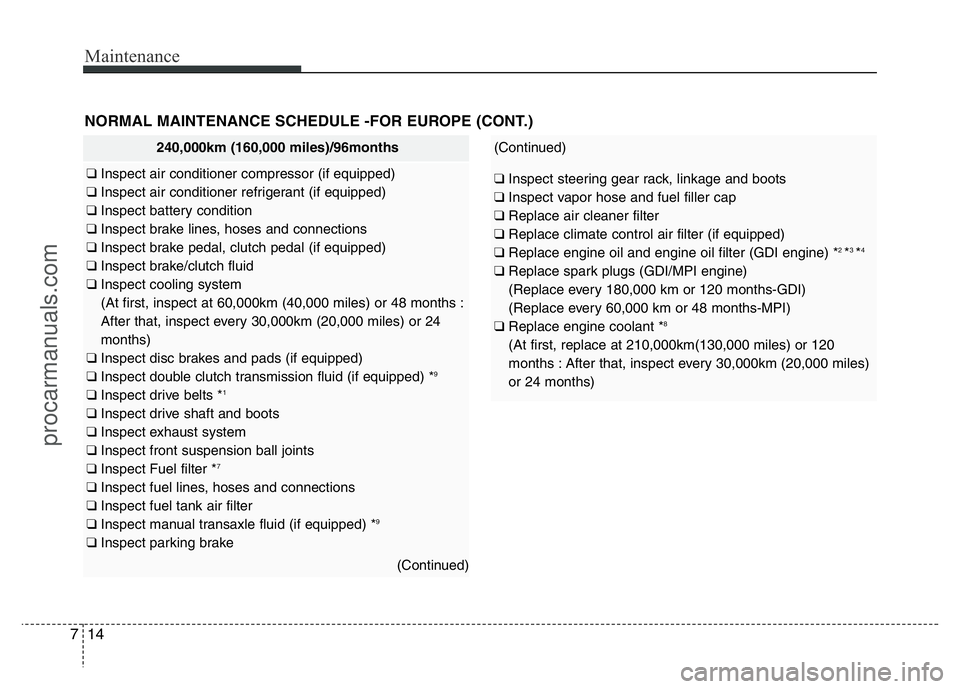

NORMAL MAINTENANCE SCHEDULE -FOR EUROPE (CONT.)
(Continued)
❑ Inspect steering gear rack, linkage and boots
❑ Inspect vapor hose and fuel filler cap
❑ Replace air cleaner filter
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and engine oil filter (GDI engine) *
2 *3 *4
❑ Replace spark plugs (GDI/MPI engine)
(Replace every 180,000 km or 120 months-GDI)
(Replace every 60,000 km or 48 months-MPI)
❑ Replace engine coolant *
8
(At first, replace at 210,000km(130,000 miles) or 120
months : After that, inspect every 30,000km (20,000 miles)
or 24 months)
240,000km (160,000 miles)/96months
❑ Inspect air conditioner compressor (if equipped)
❑ Inspect air conditioner refrigerant (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect brake pedal, clutch pedal (if equipped)
❑ Inspect brake/clutch fluid
❑ Inspect cooling system
(At first, inspect at 60,000km (40,000 miles) or 48 months :
After that, inspect every 30,000km (20,000 miles) or 24
months)
❑ Inspect disc brakes and pads (if equipped)
❑ Inspect double clutch transmission fluid (if equipped) *
9
❑ Inspect drive belts *1
❑ Inspect drive shaft and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect Fuel filter *
7
❑ Inspect fuel lines, hoses and connections
❑ Inspect fuel tank air filter
❑ Inspect manual transaxle fluid (if equipped) *
9
❑ Inspect parking brake
(Continued)
procarmanuals.com

715
Maintenance

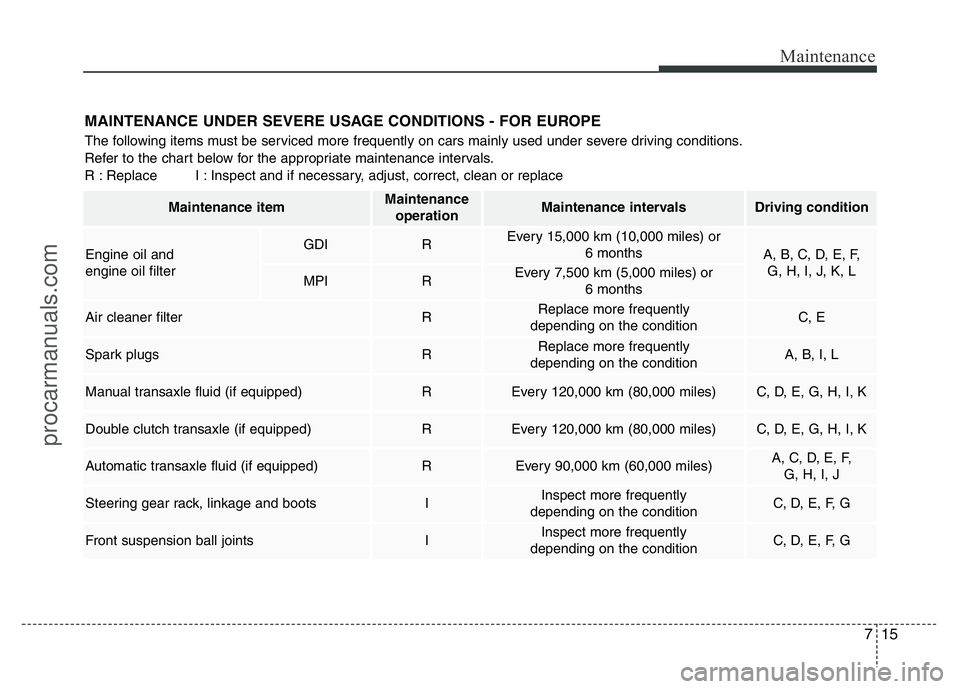

MAINTENANCE UNDER SEVERE USAGE CONDITIONS - FOR EUROPE
The following items must be serviced more frequently on cars mainly used under severe driving conditions.
Refer to the chart below for the appropriate maintenance intervals.
R : Replace I : Inspect and if necessary, adjust, correct, clean or replace
Maintenance itemMaintenance
operationMaintenance intervalsDriving condition
Engine oil and
engine oil filterGDIREvery 15,000 km (10,000 miles) or
6 months
A, B, C, D, E, F,
G, H, I, J, K, L
MPIREvery 7,500 km (5,000 miles) or
6 months
Air cleaner filterRReplace more frequently
depending on the conditionC, E
Spark plugs RReplace more frequently
depending on the conditionA, B, I, L
Manual transaxle fluid (if equipped)REvery 120,000 km (80,000 miles)C, D, E, G, H, I, K
Double clutch transaxle (if equipped)REvery 120,000 km (80,000 miles)C, D, E, G, H, I, K
Automatic transaxle fluid (if equipped)REvery 90,000 km (60,000 miles)A, C, D, E, F,
G, H, I, J
Steering gear rack, linkage and bootsIInspect more frequently
depending on the conditionC, D, E, F, G
Front suspension ball jointsIInspect more frequently
depending on the conditionC, D, E, F, G
procarmanuals.com

Maintenance
16 7
SEVERE DRIVING CONDITIONS
A : Repeatedly driving short distance of less than 8 km (5
miles) in normal temperature or less than 16 km (10 miles)
in freezing temperature
B : Extensive engine idling or low speed driving for long dis-
tances
C : Driving on rough, dusty, muddy, unpaved, graveled or salt
spread roads
D : Driving in areas using salt or other corrosive
materials or in very cold weather
E : Driving in sandy areas
F : More than 50 % driving in heavy city traffic during hot
weather above 32 °C (90 °F)G : Driving on uphill, downhill, or mountain road
H : Towing a trailer or using a camper on roof rack
I : Driving for patrol car, taxi, commercial car or vehicle towing
J : Driving in very cold weather
K : Driving over 170 km/h (106 mile/h)
L : Frequently driving in stop-and-go conditions
Maintenance itemMaintenance
operationMaintenance intervalsDriving condition
Disc brakes and pads, calipers and rotorsIInspect more frequently
depending on the conditionC, D, E, G, H
Parking brakeIInspect more frequently
depending on the conditionC, D, G, H
Driveshaft and bootsIInspect more frequently
depending on the conditionC, D, E, F,
G, H, I, J
Climate control air filter (if equipped)RReplace more frequently
depending on the conditionC, E
procarmanuals.com

717
Maintenance
NORMAL MAINTENANCE SCHEDULE - EXCEPT EUROPE
The following maintenance services must be performed to ensure good emission control and performance. Keep receipts for all
vehicle emission services to protect your warranty. Where both mileage and time are shown, the frequency of service is deter-
mined by whichever occurs first.
*
1: Adjust alternator and power steering (and water pump drive
belt) and air conditioner drive belt (if equipped).
Inspect and if necessary repair or replace.
*
2: Check the engine oil level and leak every 500 km (350
miles) or before starting a long trip.
*
3: Driving in summer season temperature over 40 °C (104 °F
- SAUDI, UAE, OMAN, KUWAIT, BAHRAIN, QATAR, IRAN,
YEMEN ETC) or driving over 170 km/h (106 mile/h) must
conform the severe driving condition.
*
4: For your convenience, it can be replaced prior to it's interval
when you do maintenance of other items.
*
5: Inspect for excessive valve noise and/or engine vibration
and adjust if necessary. An authorized HYUNDAI dealer
should perform the operation.*
6: The fuel filter is considered to be maintenance free but peri-
odic inspection is recommended for this maintenance
schedule depends on fuel quality. If there are some impor-
tant matters like fuel flow restriction, surging, loss of power,
hard starting problem etc, replace the fuel filter immediate-
ly regardless of maintenance schedule and consult an
authorized HYUNDAI dealer for details.
*
7: When adding coolant, use only deionized water or soft
water for your vehicle and never mix hard water in the
coolant filled at the factory. An improper coolant mixture can
result in serious malfunction or engine damage.
*
8: HYUNDAI recommends that you use good quality gasolines
meet Europe Fuel standards (EN228) or equivalents.
For customers who do not use good quality gasolines
including fuel additives regularly, and have problems start-
ing or the engine does not run smoothly, one bottle of addi-
tives added to the fuel tank at every 5,000km or every
engine oil change is recommended. Additives are available
from your authorized HYUNDAI dealer along with informa-
tion on how to use them. Do not mix other additives.
procarmanuals.com

Maintenance
18 7

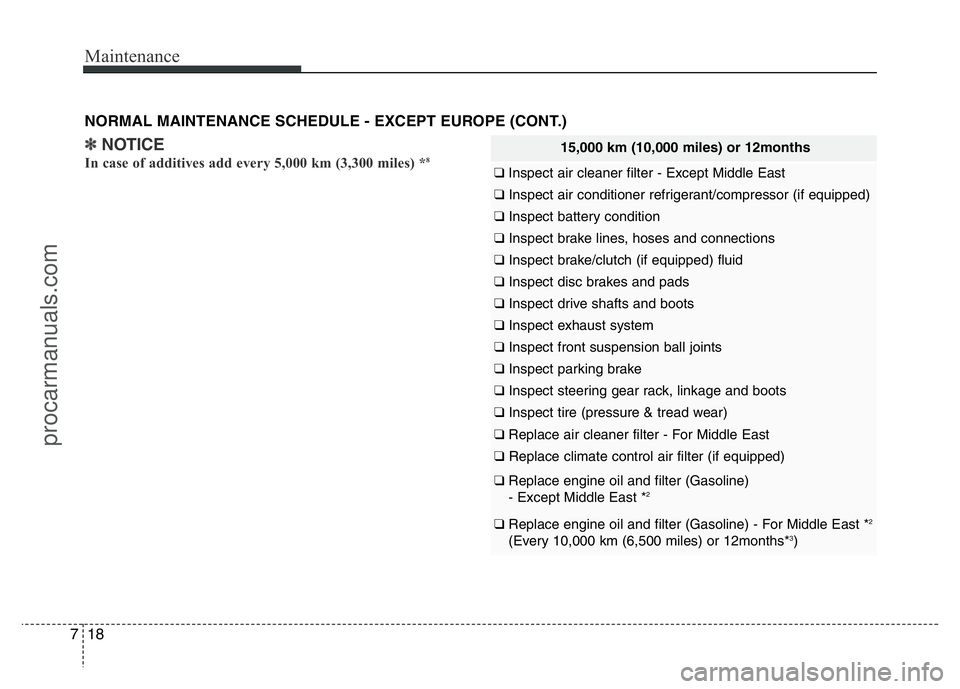

NORMAL MAINTENANCE SCHEDULE - EXCEPT EUROPE (CONT.)
15,000 km (10,000 miles) or 12months
❑ Inspect air cleaner filter - Except Middle East
❑ Inspect air conditioner refrigerant/compressor (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect brake/clutch (if equipped) fluid
❑ Inspect disc brakes and pads
❑ Inspect drive shafts and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect parking brake
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
❑ Replace air cleaner filter - For Middle East
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and filter (Gasoline)
- Except Middle East *2
❑ Replace engine oil and filter (Gasoline) - For Middle East *2
(Every 10,000 km (6,500 miles) or 12months*3)
✽NOTICE
In case of additives add every 5,000 km (3,300 miles) *8
procarmanuals.com
