HYUNDAI VELOSTER 2015 Owners Manual

Specifications, Consumer information, Reporting safety defects
6 8
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3If the API service SM engine oil is not available in your country, you may substitute API service SL.

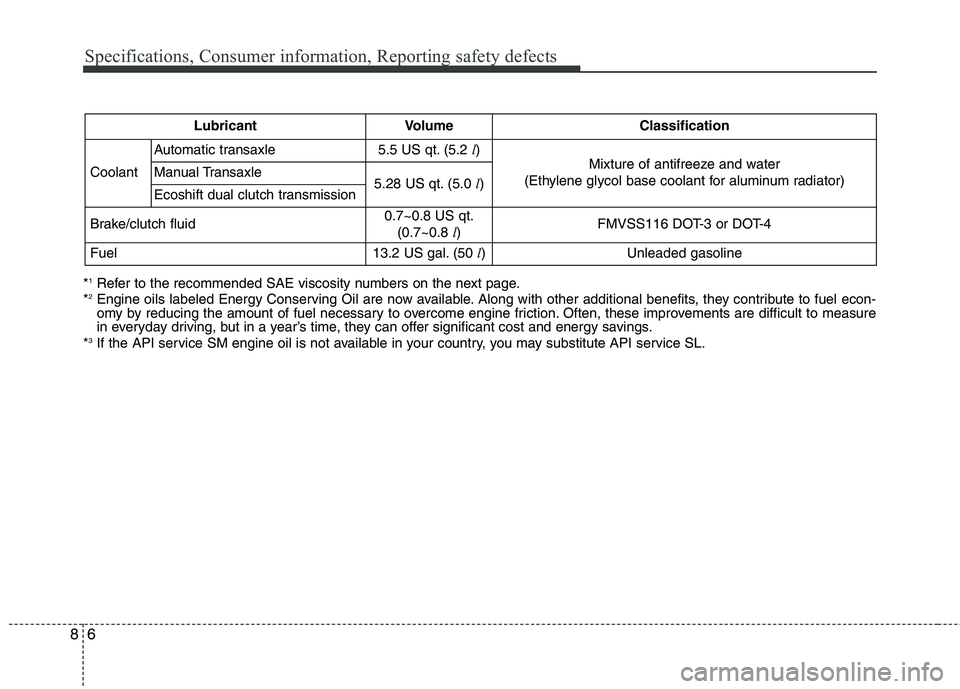

LubricantVolumeClassification
Coolant
Automatic transaxle5.5 US qt. (5.2 l)Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminum radiator)Manual Transaxle5.28 US qt. (5.0 l)Ecoshift dual clutch transmission
Brake/clutch fluid0.7~0.8 US qt.
(0.7~0.8 l)FMVSS116 DOT-3 or DOT-4
Fuel13.2 US gal. (50 l)Unleaded gasoline

87
Specifications, Consumer information, Reporting safety defects

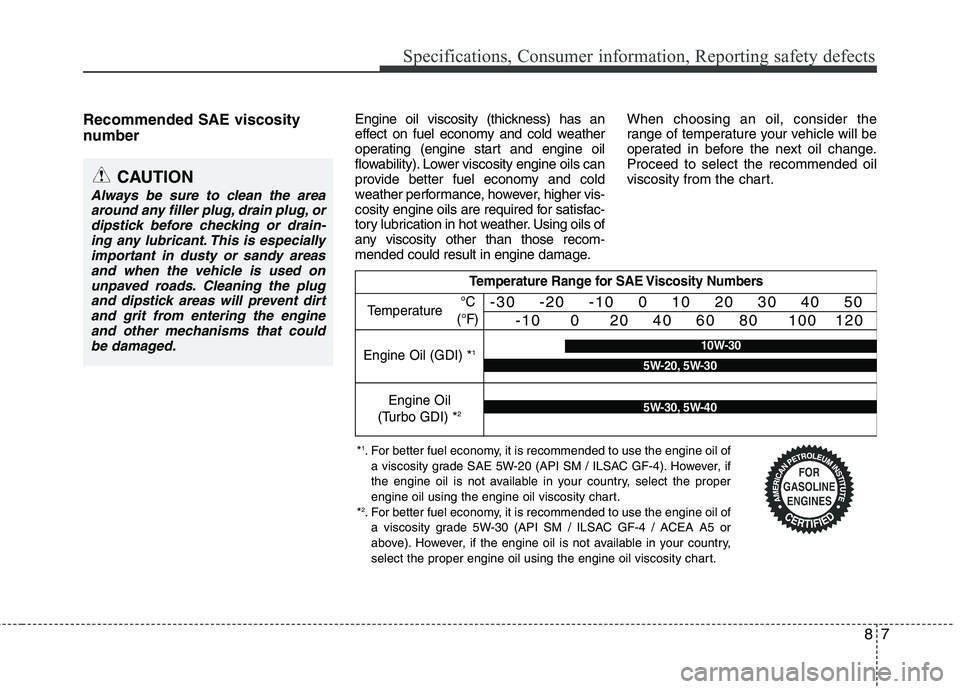

Recommended SAE viscosity
numberEngine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils can
provide better fuel economy and cold
weather performance, however, higher vis-
cosity engine oils are required for satisfac-
tory lubrication in hot weather. Using oils of
any viscosity other than those recom-
mended could result in engine damage.When choosing an oil, consider the
range of temperature your vehicle will be
operated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or drain-
ing any lubricant. This is especially
important in dusty or sandy areas
and when the vehicle is used on
unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt
and grit from entering the engine
and other mechanisms that could
be damaged.
*1. For better fuel economy, it is recommended to use the engine oil of
a viscosity grade SAE 5W-20 (API SM / ILSAC GF-4). However, if
the engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.
*
2. For better fuel economy, it is recommended to use the engine oil of
a viscosity grade 5W-30 (API SM / ILSAC GF-4 / ACEA A5 or
above). However, if the engine oil is not available in your country,
select the proper engine oil using the engine oil viscosity chart.
Temperature Range for SAE Viscosity Numbers
Temperature -30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Engine Oil (GDI) *1
Engine Oil
(Turbo GDI) *2
10W-30
5W-20, 5W-30
5W-30, 5W-40
°C
(°F)

Specifications, Consumer information, Reporting safety defects
8 8

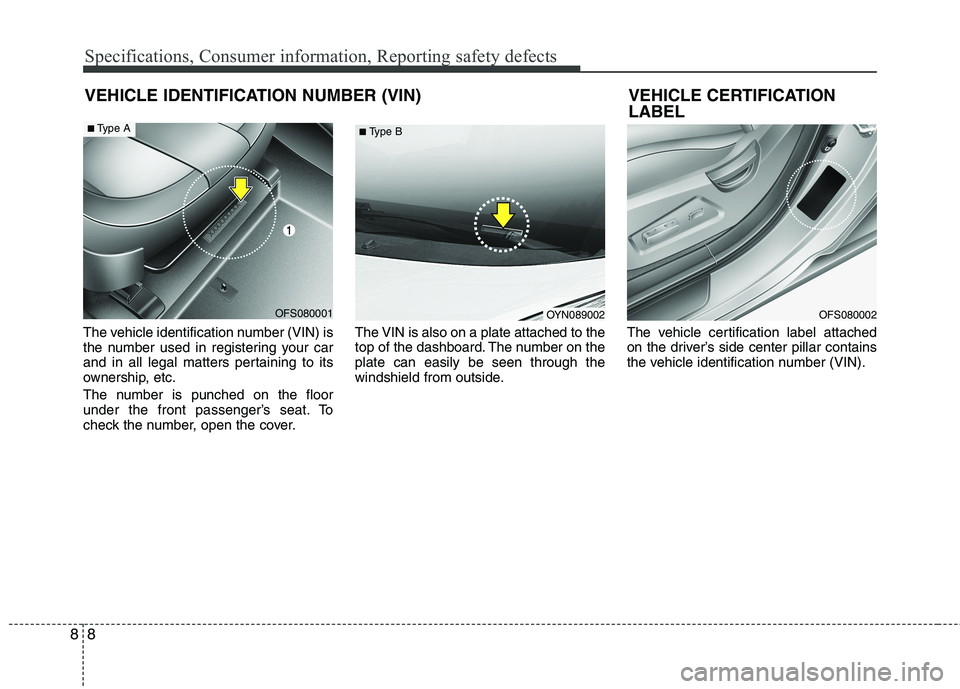

The vehicle identification number (VIN) is
the number used in registering your car
and in all legal matters pertaining to its
ownership, etc.
The number is punched on the floor
under the front passenger’s seat. To
check the number, open the cover.The VIN is also on a plate attached to the
top of the dashboard. The number on the
plate can easily be seen through the
windshield from outside.The vehicle certification label attached
on the driver’s side center pillar contains
the vehicle identification number (VIN).
OFS080001
■Type A
OYN089002
■Type B
OFS080002
VEHICLE IDENTIFICATION NUMBER (VIN)
VEHICLE CERTIFICATION
LABEL

89
Specifications, Consumer information, Reporting safety defects

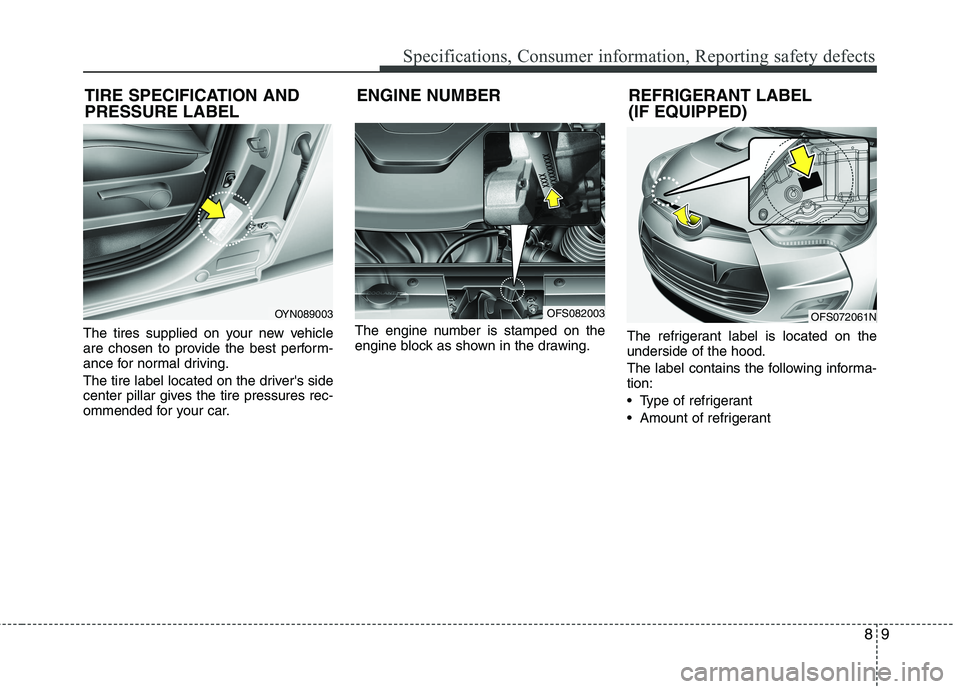

The tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your car.The engine number is stamped on the
engine block as shown in the drawing.The refrigerant label is located on the
underside of the hood.
The label contains the following informa-
tion:
Type of refrigerant
Amount of refrigerant
OFS072061NOYN089003OFS082003
TIRE SPECIFICATION AND
PRESSURE LABELENGINE NUMBER REFRIGERANT LABEL
(IF EQUIPPED)

Specifications, Consumer information, Reporting safety defects
10 8

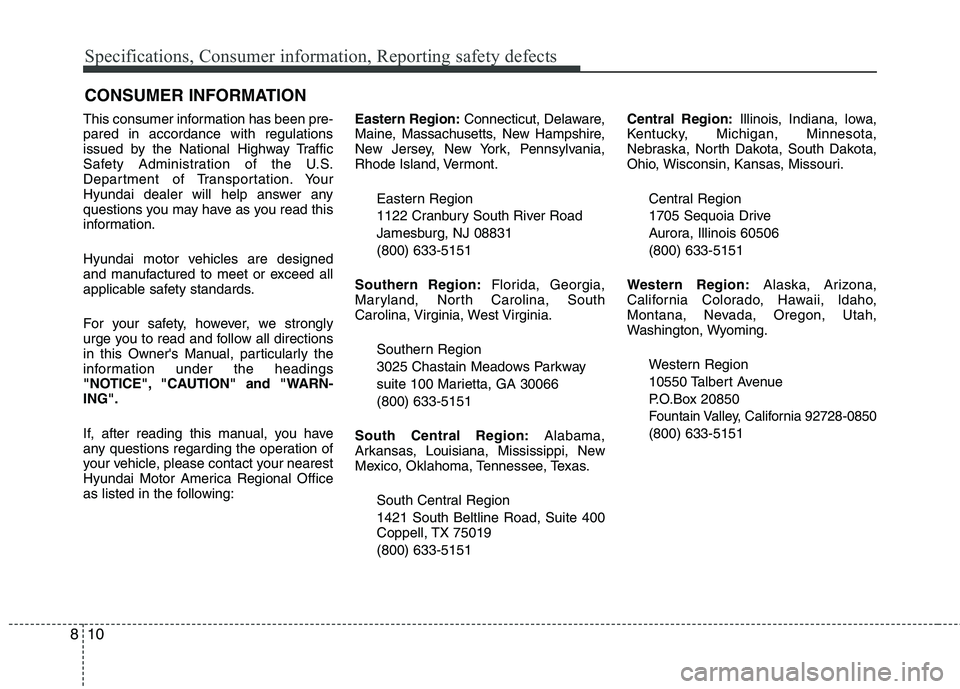

This consumer information has been pre-
pared in accordance with regulations
issued by the National Highway Traffic
Safety Administration of the U.S.
Department of Transportation. Your
Hyundai dealer will help answer any
questions you may have as you read this
information.
Hyundai motor vehicles are designed
and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly
urge you to read and follow all directions
in this Owner's Manual, particularly the
information under the headings
"NOTICE", "CAUTION" and "WARN-
ING".
If, after reading this manual, you have
any questions regarding the operation of
your vehicle, please contact your nearest
Hyundai Motor America Regional Office
as listed in the following:Eastern Region:Connecticut, Delaware,
Maine, Massachusetts, New Hampshire,
New Jersey, New York, Pennsylvania,
Rhode Island, Vermont.
Eastern Region
1122 Cranbury South River Road
Jamesburg, NJ 08831
(800) 633-5151
Southern Region:Florida, Georgia,
Maryland, North Carolina, South
Carolina, Virginia, West Virginia.
Southern Region
3025 Chastain Meadows Parkway
suite 100 Marietta, GA 30066
(800) 633-5151
South Central Region:Alabama,
Arkansas, Louisiana, Mississippi, New
Mexico, Oklahoma, Tennessee, Texas.
South Central Region
1421 South Beltline Road, Suite 400
Coppell, TX 75019
(800) 633-5151Central Region:Illinois, Indiana, lowa,
Kentucky, Michigan, Minnesota,
Nebraska, North Dakota, South Dakota,
Ohio, Wisconsin, Kansas, Missouri.
Central Region
1705 Sequoia Drive
Aurora, Illinois 60506
(800) 633-5151
Western Region:Alaska, Arizona,
California Colorado, Hawaii, ldaho,
Montana, Nevada, Oregon, Utah,
Washington, Wyoming.
Western Region
10550 Talbert Avenue
P.O.Box 20850
Fountain Valley, California 92728-0850
(800) 633-5151
CONSUMER INFORMATION

811
Specifications, Consumer information, Reporting safety defects

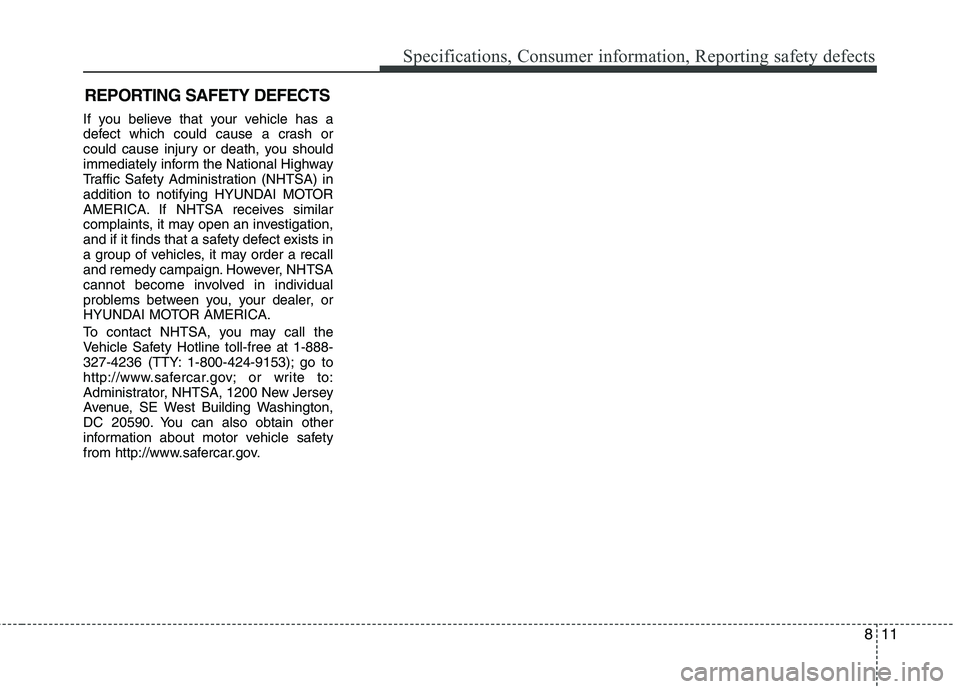

If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National Highway
Traffic Safety Administration (NHTSA) in
addition to notifying HYUNDAI MOTOR
AMERICA. If NHTSA receives similar
complaints, it may open an investigation,
and if it finds that a safety defect exists in
a group of vehicles, it may order a recall
and remedy campaign. However, NHTSA
cannot become involved in individual
problems between you, your dealer, or
HYUNDAI MOTOR AMERICA.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov; or write to:
Administrator, NHTSA, 1200 New Jersey
Avenue, SE West Building Washington,
DC 20590. You can also obtain other
information about motor vehicle safety
from http://www.safercar.gov.
REPORTING SAFETY DEFECTS

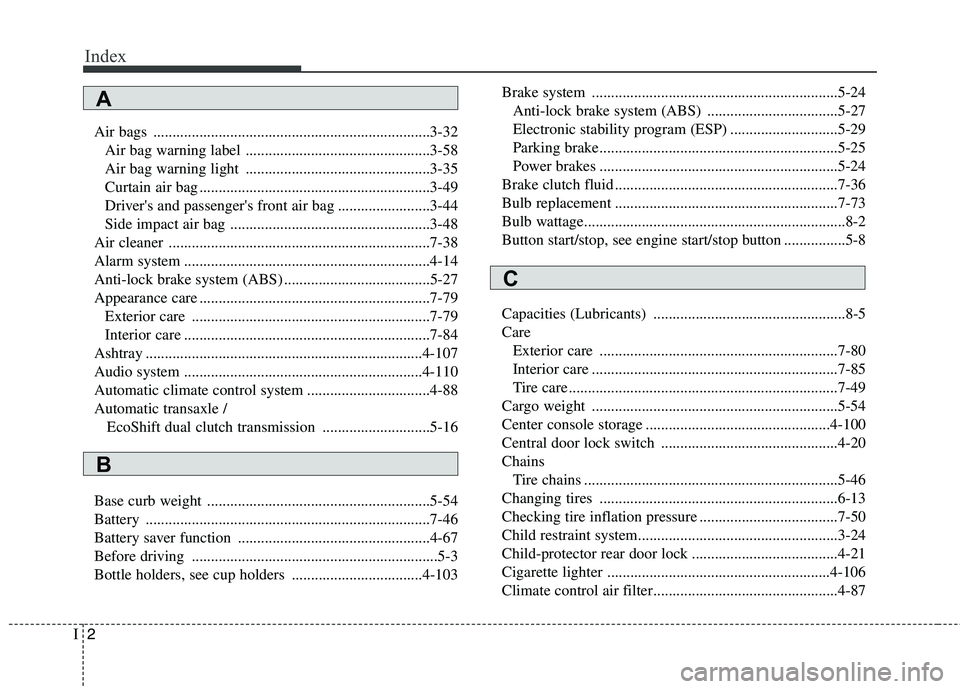

IIndex

Index
2I
Air bags ........................................................................3-32
Air bag warning label ................................................3-58
Air bag warning light ................................................3-35
Curtain air bag ............................................................3-49
Driver's and passenger's front air bag ........................3-44
Side impact air bag ....................................................3-48
Air cleaner ....................................................................7-38
Alarm system ................................................................4-14
Anti-lock brake system (ABS) ......................................5-27
Appearance care ............................................................7-79
Exterior care ..............................................................7-79
Interior care ................................................................7-84
Ashtray ........................................................................4-107
Audio system ..............................................................4-110
Automatic climate control system ................................4-88
Automatic transaxle /
EcoShift dual clutch transmission ............................5-16
Base curb weight ..........................................................5-54
Battery ..........................................................................7-46
Battery saver function ..................................................4-67
Before driving ................................................................5-3
Bottle holders, see cup holders ..................................4-103Brake system ................................................................5-24
Anti-lock brake system (ABS) ..................................5-27
Electronic stability program (ESP) ............................5-29
Parking brake..............................................................5-25
Power brakes ..............................................................5-24
Brake clutch fluid ..........................................................7-36
Bulb replacement ..........................................................7-73
Bulb wattage....................................................................8-2
Button start/stop, see engine start/stop button ................5-8
Capacities (Lubricants) ..................................................8-5
Care
Exterior care ..............................................................7-80
Interior care ................................................................7-85
Tire care ......................................................................7-49
Cargo weight ................................................................5-54
Center console storage ................................................4-100
Central door lock switch ..............................................4-20
Chains
Tire chains ..................................................................5-46
Changing tires ..............................................................6-13
Checking tire inflation pressure ....................................7-50
Child restraint system....................................................3-24
Child-protector rear door lock ......................................4-21
Cigarette lighter ..........................................................4-106
Climate control air filter................................................4-87
A
B
C

I3
Index

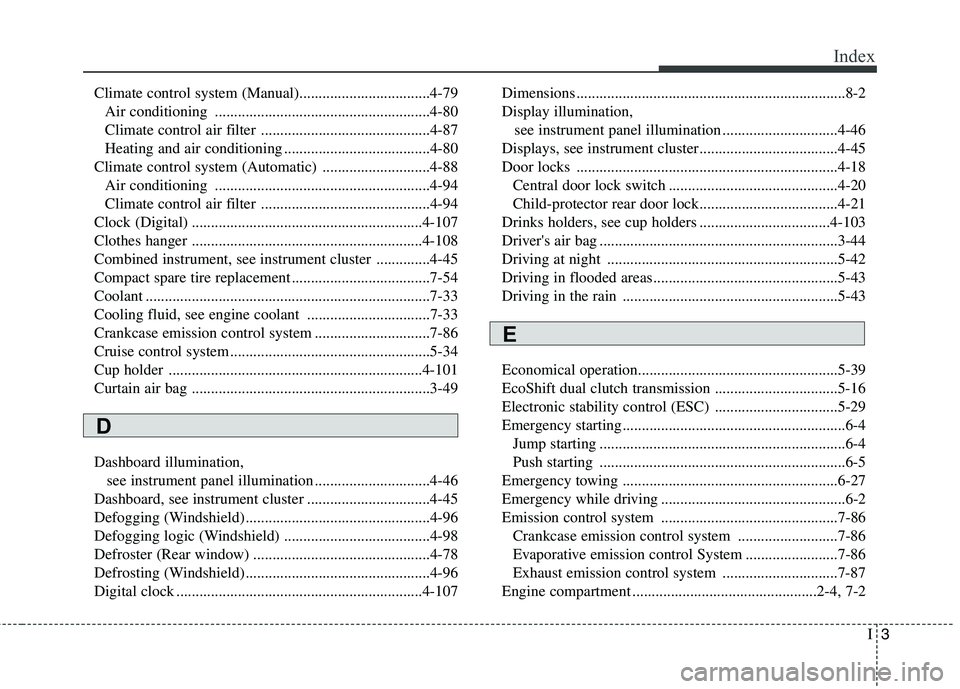

Climate control system (Manual)..................................4-79
Air conditioning ........................................................4-80
Climate control air filter ............................................4-87
Heating and air conditioning ......................................4-80
Climate control system (Automatic) ............................4-88
Air conditioning ........................................................4-94
Climate control air filter ............................................4-94
Clock (Digital) ............................................................4-107
Clothes hanger ............................................................4-108
Combined instrument, see instrument cluster ..............4-45
Compact spare tire replacement ....................................7-54
Coolant ..........................................................................7-33
Cooling fluid, see engine coolant ................................7-33
Crankcase emission control system ..............................7-86
Cruise control system ....................................................5-34
Cup holder ..................................................................4-101
Curtain air bag ..............................................................3-49
Dashboard illumination,
see instrument panel illumination ..............................4-46
Dashboard, see instrument cluster ................................4-45
Defogging (Windshield)................................................4-96
Defogging logic (Windshield) ......................................4-98
Defroster (Rear window) ..............................................4-78
Defrosting (Windshield)................................................4-96
Digital clock ................................................................4-107Dimensions ......................................................................8-2
Display illumination,
see instrument panel illumination ..............................4-46
Displays, see instrument cluster....................................4-45
Door locks ....................................................................4-18
Central door lock switch ............................................4-20
Child-protector rear door lock....................................4-21
Drinks holders, see cup holders ..................................4-103
Driver's air bag ..............................................................3-44
Driving at night ............................................................5-42
Driving in flooded areas................................................5-43
Driving in the rain ........................................................5-43
Economical operation....................................................5-39
EcoShift dual clutch transmission ................................5-16
Electronic stability control (ESC) ................................5-29
Emergency starting..........................................................6-4
Jump starting ................................................................6-4
Push starting ................................................................6-5
Emergency towing ........................................................6-27
Emergency while driving ................................................6-2
Emission control system ..............................................7-86
Crankcase emission control system ..........................7-86
Evaporative emission control System ........................7-86
Exhaust emission control system ..............................7-87
Engine compartment ................................................2-4, 7-2
D
E

Index
4I

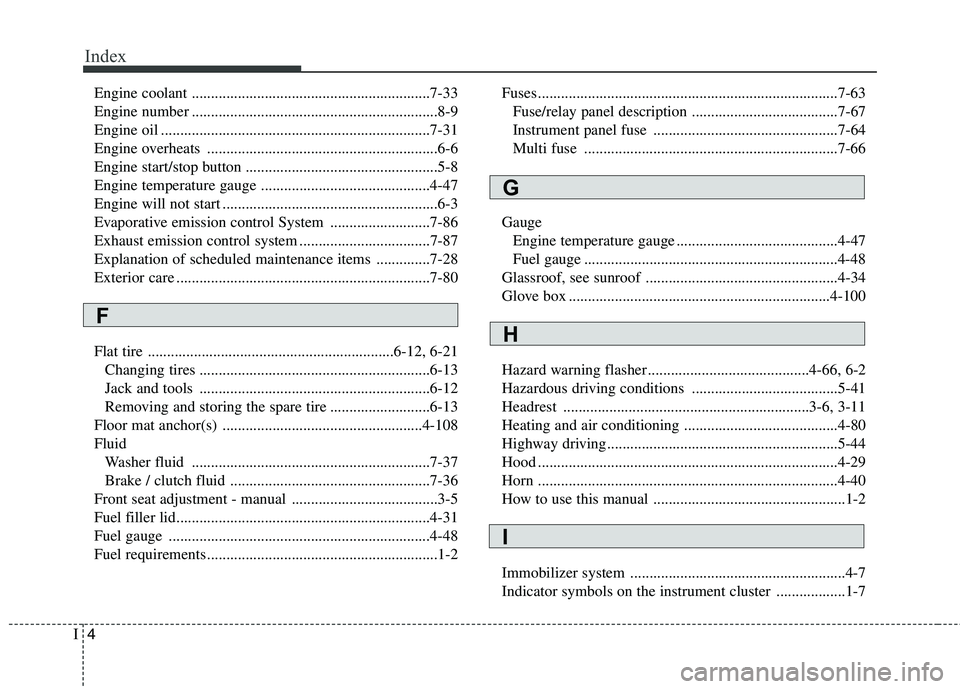

Engine coolant ..............................................................7-33
Engine number ................................................................8-9
Engine oil ......................................................................7-31
Engine overheats ............................................................6-6
Engine start/stop button ..................................................5-8
Engine temperature gauge ............................................4-47
Engine will not start ........................................................6-3
Evaporative emission control System ..........................7-86
Exhaust emission control system ..................................7-87
Explanation of scheduled maintenance items ..............7-28
Exterior care ..................................................................7-80
Flat tire ................................................................6-12, 6-21
Changing tires ............................................................6-13
Jack and tools ............................................................6-12
Removing and storing the spare tire ..........................6-13
Floor mat anchor(s) ....................................................4-108
Fluid
Washer fluid ..............................................................7-37
Brake / clutch fluid ....................................................7-36
Front seat adjustment - manual ......................................3-5
Fuel filler lid..................................................................4-31
Fuel gauge ....................................................................4-48
Fuel requirements ............................................................1-2Fuses ..............................................................................7-63
Fuse/relay panel description ......................................7-67
Instrument panel fuse ................................................7-64
Multi fuse ..................................................................7-66
Gauge
Engine temperature gauge ..........................................4-47
Fuel gauge ..................................................................4-48
Glassroof, see sunroof ..................................................4-34
Glove box ....................................................................4-100
Hazard warning flasher ..........................................4-66, 6-2
Hazardous driving conditions ......................................5-41
Headrest ................................................................3-6, 3-11
Heating and air conditioning ........................................4-80
Highway driving............................................................5-44
Hood ..............................................................................4-29
Horn ..............................................................................4-40
How to use this manual ..................................................1-2
Immobilizer system ........................................................4-7
Indicator symbols on the instrument cluster ..................1-7
F
G
H
I
