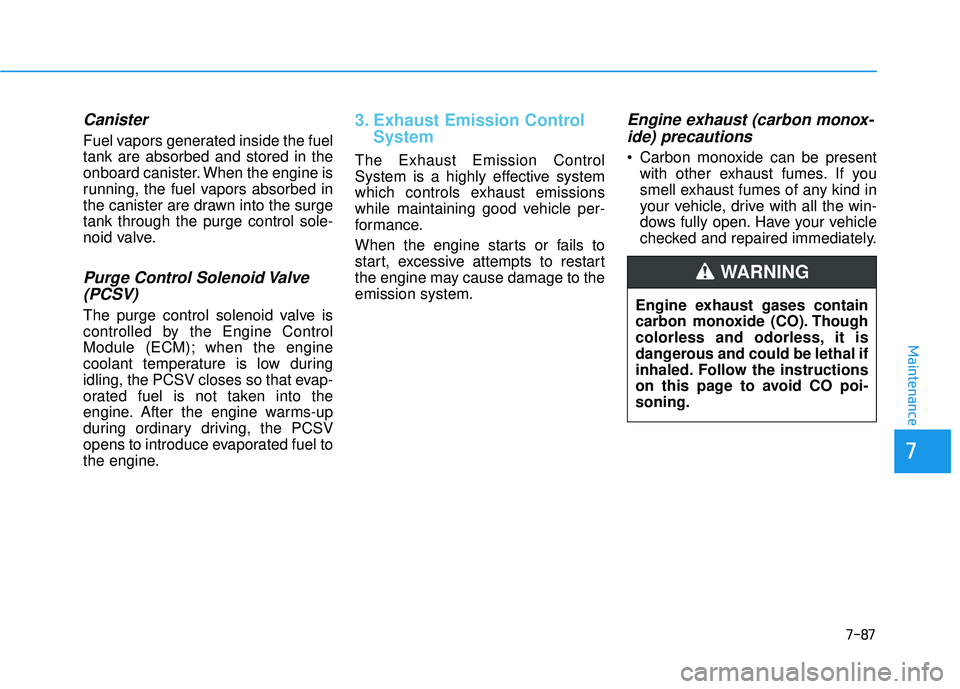

Canister
Fuel vapors generated inside the fuel
tank are absorbed and stored in the
onboard canister. When the engine is
running, the fuel vapors absorbed in
the canister are drawn into the surge
tank through the purge control sole-
noid valve.
Purge Control Solenoid Valve(PCSV)
The purge control solenoid valve is
controlled by the Engine Control
Module (ECM); when the engine
coolant temperature is low during
idling, the PCSV closes so that evap-
orated fuel is not taken into the
engine. After the engine warms-up
during ordinary driving, the PCSV
opens to introduce evaporated fuel to
the engine.
3. Exhaust Emission Control System
The Exhaust Emission Control
System is a highly effective system
which controls exhaust emissions
while maintaining good vehicle per-
formance.
When the engine starts or fails to
start, excessive attempts to restart
the engine may cause damage to the
emission system.
Engine exhaust (carbon monox-
ide) precautions
Carbon monoxide can be present
with other exhaust fumes. If you
smell exhaust fumes of any kind in
your vehicle, drive with all the win-
dows fully open. Have your vehicle
checked and repaired immediately.
Engine exhaust gases contain
carbon monoxide (CO). Though
colorless and odorless, it is
dangerous and could be lethal if
inhaled. Follow the instructions
on this page to avoid CO poi-
soning.
WARNING

7-88

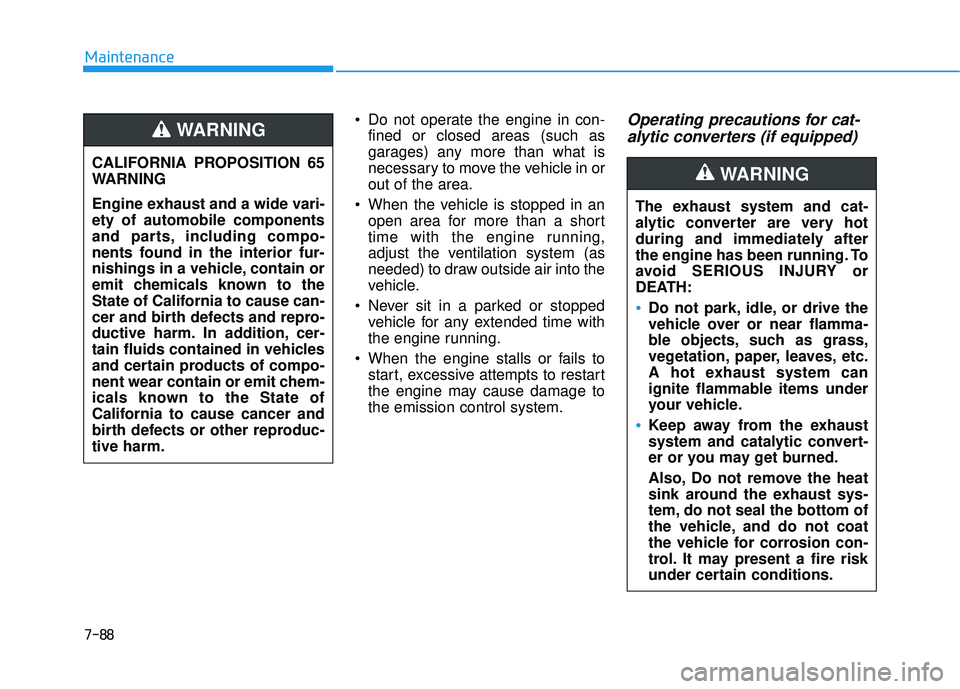

Maintenance Do not operate the engine in con-fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
When the vehicle is stopped in an open area for more than a short
time with the engine running,
adjust the ventilation system (as
needed) to draw outside air into the
vehicle.
Never sit in a parked or stopped vehicle for any extended time with
the engine running.
When the engine stalls or fails to start, excessive attempts to restart
the engine may cause damage to
the emission control system.
Operating precautions for cat-alytic converters (if equipped)
The exhaust system and cat-
alytic converter are very hot
during and immediately after
the engine has been running. To
avoid SERIOUS INJURY or
DEATH:
Do not park, idle, or drive the
vehicle over or near flamma-
ble objects, such as grass,
vegetation, paper, leaves, etc.
A hot exhaust system can
ignite flammable items under
your vehicle.
Keep away from the exhaust
system and catalytic convert-
er or you may get burned.
Also, Do not remove the heat
sink around the exhaust sys-
tem, do not seal the bottom of
the vehicle, and do not coat
the vehicle for corrosion con-
trol. It may present a fire risk
under certain conditions.
WARNING CALIFORNIA PROPOSITION 65
WARNING
Engine exhaust and a wide vari-
ety of automobile components
and parts, including compo-
nents found in the interior fur-
nishings in a vehicle, contain or
emit chemicals known to the
State of California to cause can-
cer and birth defects and repro-
ductive harm. In addition, cer-
tain fluids contained in vehicles
and certain products of compo-
nent wear contain or emit chem-
icals known to the State of
California to cause cancer and
birth defects or other reproduc-
tive harm.
WARNING

7-89
7
Maintenance

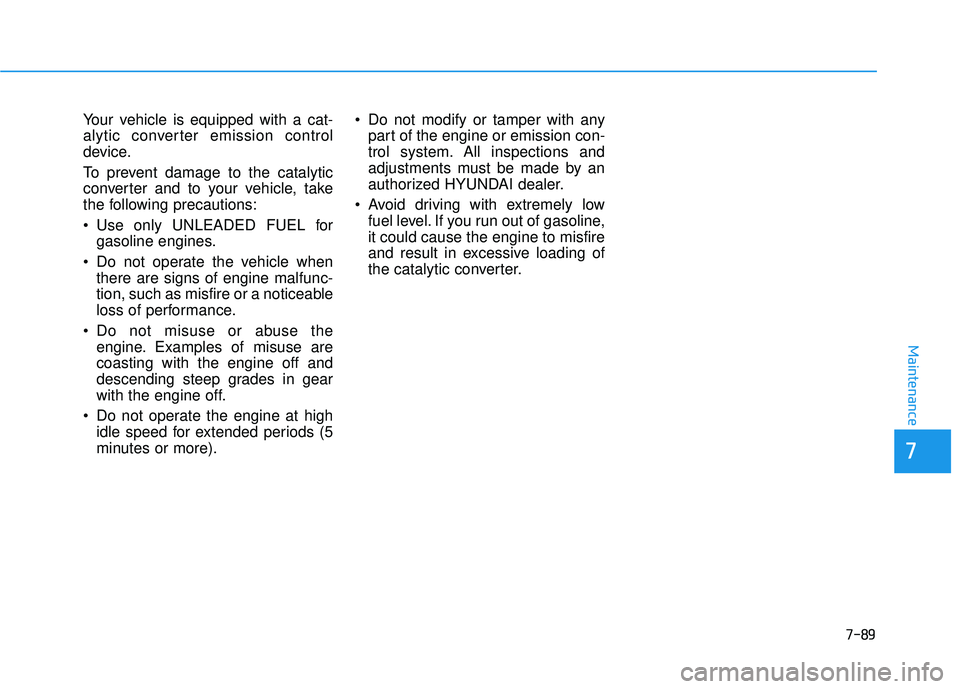

Your vehicle is equipped with a cat-
alytic converter emission control
device.
To prevent damage to the catalytic
converter and to your vehicle, take
the following precautions:
Use only UNLEADED FUEL forgasoline engines.
Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the engine. Examples of misuse are
coasting with the engine off and
descending steep grades in gear
with the engine off.
Do not operate the engine at high idle speed for extended periods (5
minutes or more). Do not modify or tamper with any
part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized HYUNDAI dealer.
Avoid driving with extremely low fuel level. If you run out of gasoline,
it could cause the engine to misfire
and result in excessive loading of
the catalytic converter.

7-90
Maintenance
C
CA
A L
LI
IF
F O
O R
RN
N I
IA
A
P
P E
ER
R C
CH
H L
LO
O R
RA
A T
TE
E
N
N O
O T
TI
IC
C E
E

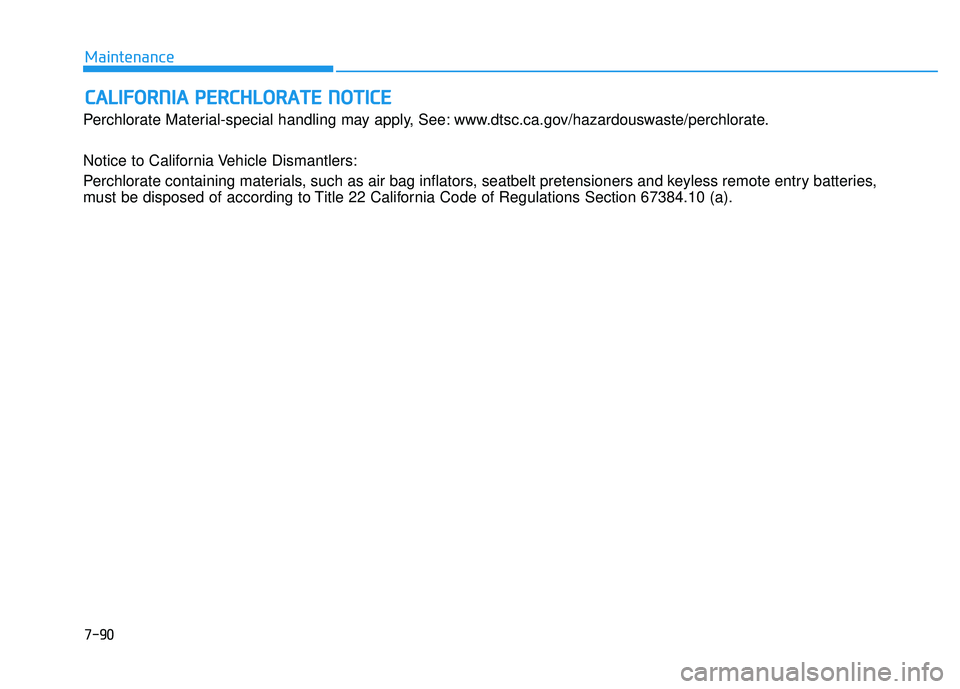

Perchlorate Material-special handling may apply, See: www.dtsc.ca.gov/hazardouswaste/perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials, such as air bag inflators, seatbelt pretensioners and keyless remote entry batteries,
must be disposed of according to Title 22 California Code of Regulations Section 67384.10 (a).

888

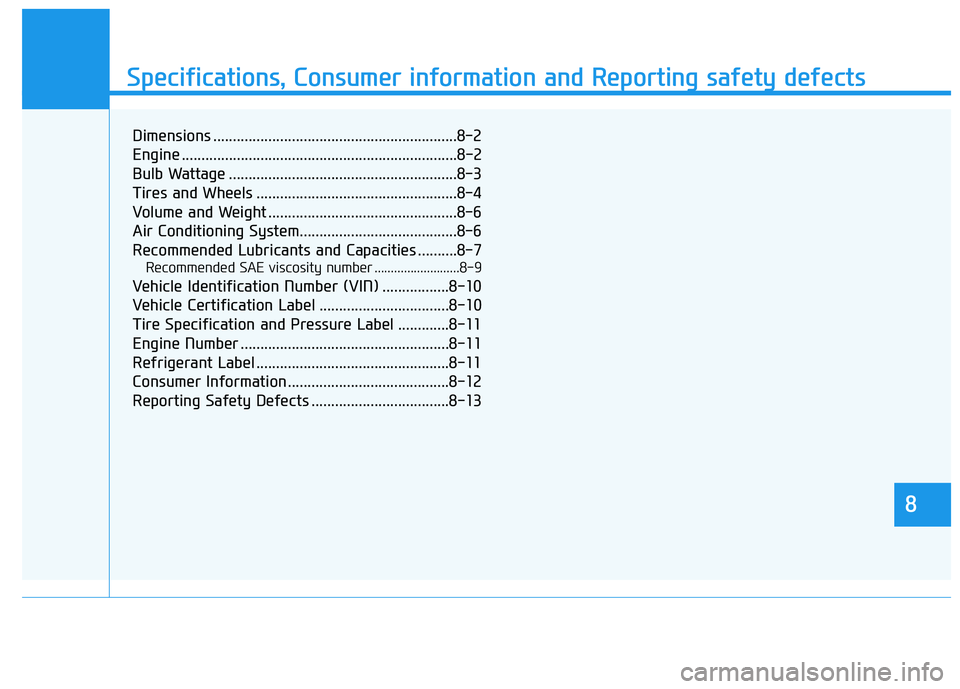

Specifications & Consumer information
8
Specifications, Consumer information and Reporting safety defects
8
Dimensions ..............................................................8-2
Engine ......................................................................8-\
2
Bulb Wattage ..........................................................8-3
Tires and Wheels ...................................................8-4
Volume and Weight ................................................8-6
Air Conditioning System........................................8-6
Recommended Lubricants and Capacities ..........8-7
Recommended SAE viscosity number ..........................8-9
Vehicle Identification Number (VIN) .................8-10
Vehicle Certification Label .................................8-10
Tire Specification and Pressure Label .............8-11
Engine Number .....................................................8-11
Refrigerant Label .................................................8-11
Consumer Information .........................................8-12
Reporting Safety Defects ...................................8-13

D
DI
IM
M E
EN
N S
SI
IO
O N
NS
S
8-2
Specifications, Consumer information and Reporting safety defects
E
EN
N G
GI
IN
N E
E

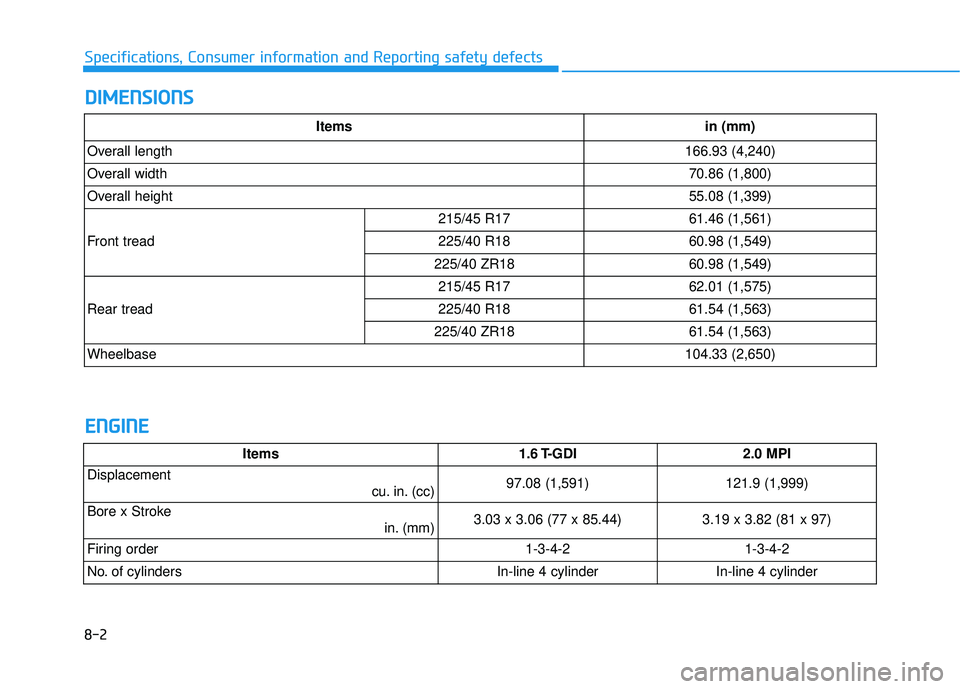

Items 1.6 T-GDI2.0 MPI
Displacement
cu. in. (cc)97.08 (1,591)121.9 (1,999)
Bore x Stroke in. (mm)3.03 x 3.06 (77 x 85.44)3.19 x 3.82 (81 x 97)
Firing order1-3-4-21-3-4-2
No. of cylindersIn-line 4 cylinderIn-line 4 cylinder
Itemsin (mm)
Overall length166.93 (4,240)
Overall width70.86 (1,800)
Overall height55.08 (1,399)
Front tread
215/45 R1761.46 (1,561)
225/40 R1860.98 (1,549)
225/40 ZR1860.98 (1,549)
Rear tread
215/45 R1762.01 (1,575)
225/40 R1861.54 (1,563)
225/40 ZR1861.54 (1,563)
Wheelbase104.33 (2,650)

B
BU
U L
LB
B
W
W A
AT
TT
TA
A G
G E
E
88
Specifications, Consumer information and Reporting safety defects
8-3

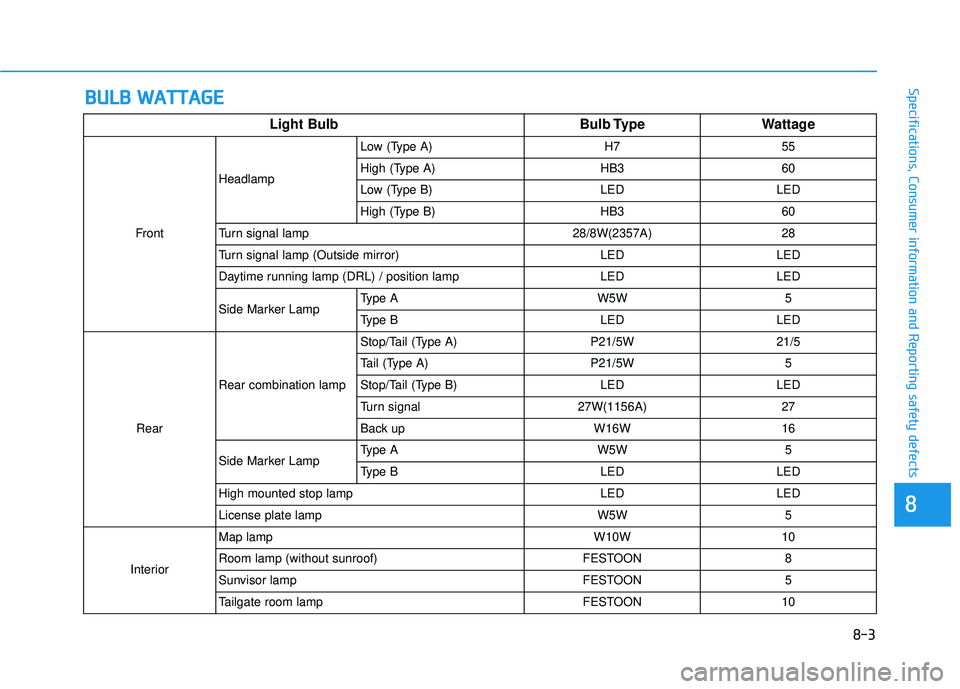

Light Bulb Bulb Type Wattage
Front
Headlamp
Low (Type A) H7 55
High (Type A) HB3 60
Low (Type B) LED LED
High (Type B) HB3 60
Turn signal lamp 28/8W(2357A) 28
Turn signal lamp (Outside mirror) LED LED
Daytime running lamp (DRL) / position lamp LED LED
Side Marker Lamp Type A W5W 5
Type B LED LED
Rear Rear combination lamp Stop/Tail (Type A) P21/5W 21/5
Tail (Type A) P21/5W 5
Stop/Tail (Type B) LED LED
Turn signal 27W(1156A) 27
Back up W16W 16
Side Marker Lamp Type A W5W 5
Type B LED LED
High mounted stop lamp LED LED
License plate lamp W5W 5
Interior Map lamp W10W 10
Room lamp (without sunroof) FESTOON 8
Sunvisor lamp FESTOON 5
Tailgate room lamp FESTOON 10

T
TI
IR
R E
ES
S
A
A N
N D
D
W
W H
HE
EE
EL
LS
S
8-4
Specifications, Consumer information and Reporting safety defects

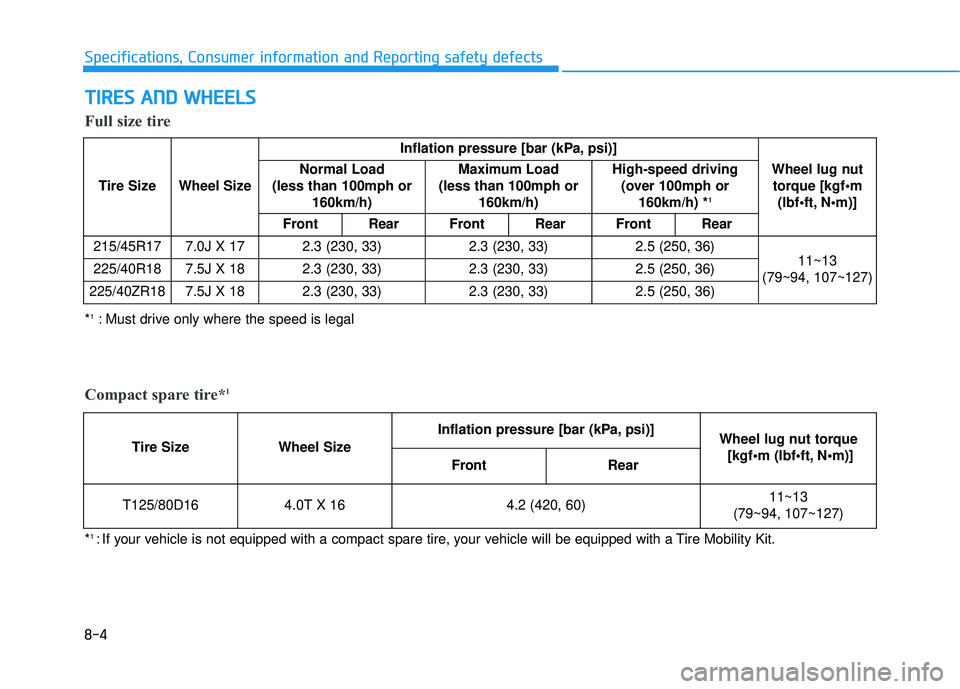

Tire Size Wheel Size Inflation pressure [bar (kPa, psi)]
Wheel lug nut torque [kgf•m
Normal Load
(less than 100mph or 160km/h) Maximum Load
(less than 100mph or 160km/h) High-speed driving
(over 100mph or 160km/h) *1
Front Rear Front Rear Front Rear
215/45R17 7.0J X 17 2.3 (230, 33) 2.3 (230, 33)2.5 (250, 36)
11~13
(79~94, 107~127)
225/40R18 7.5J X 18 2.3 (230, 33)
2.3 (230, 33)2.5 (250, 36)
225/40ZR18 7.5J X 18 2.3 (230, 33) 2.3 (230, 33)2.5 (250, 36)
Full size tire
*1: Must drive only where the speed is legal
Compact spare tire*1
Tire SizeWheel Size Inflation pressure [bar (kPa, psi)]
Wheel lug nut torque

Front Rear
T125/80D16 4.0T X 16 4.2 (420, 60) 11~13
(79~94, 107~127)
*1 : If your vehicle is not equipped with a compact spare tire, your vehicle will be equipped with a Tire Mobility Kit.

8-5
88
Specifications, Consumer information and Reporting safety defects

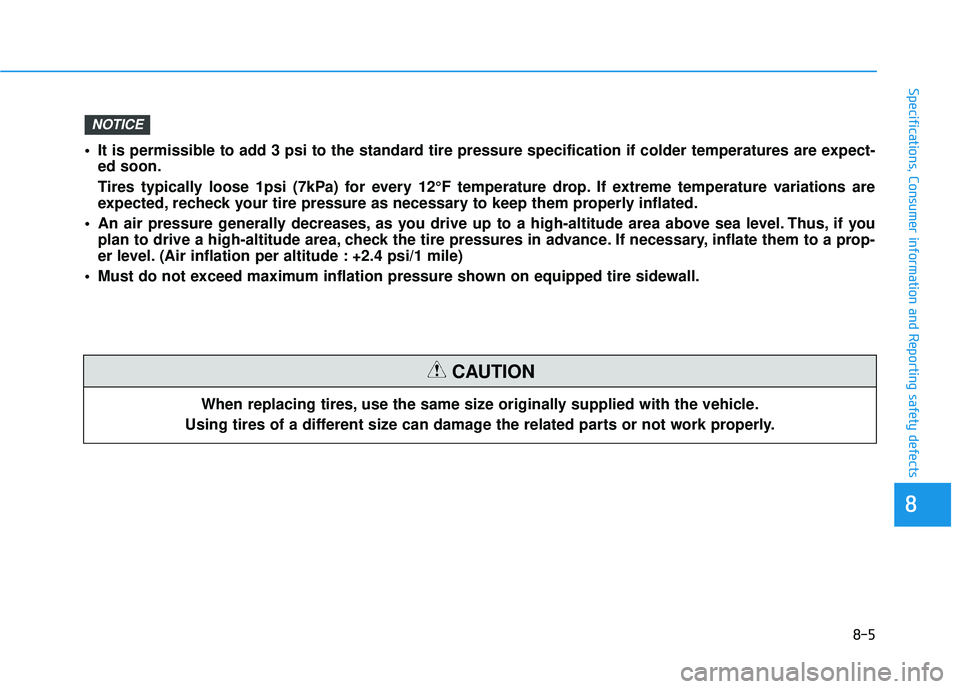

When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION
It is permissible to add 3 psi to the standard tire pressure specification if colder temperatures are expect- ed soon.
Tires typically loose 1psi (7kPa) for every 12°F temperature drop. If extreme temperature variations are
expected, recheck your tire pressure as necessary to keep them properly inflated.
An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a prop-
er level. (Air inflation per altitude : +2.4 psi/1 mile)
Must do not exceed maximum inflation pressure shown on equipped tire sidewall.
NOTICE

8-6
Specifications, Consumer information and Reporting safety defects
V
VO
O L
LU
U M
M E
E
A
A N
N D
D
W
W E
EI
IG
G H
H T
T
A
A I
IR
R
C
C O
O N
ND
DI
IT
T I
IO
O N
NI
IN
N G
G
S
S Y
Y S
ST
T E
EM
M
Contact an authorized HYUNDAI dealer for more details.

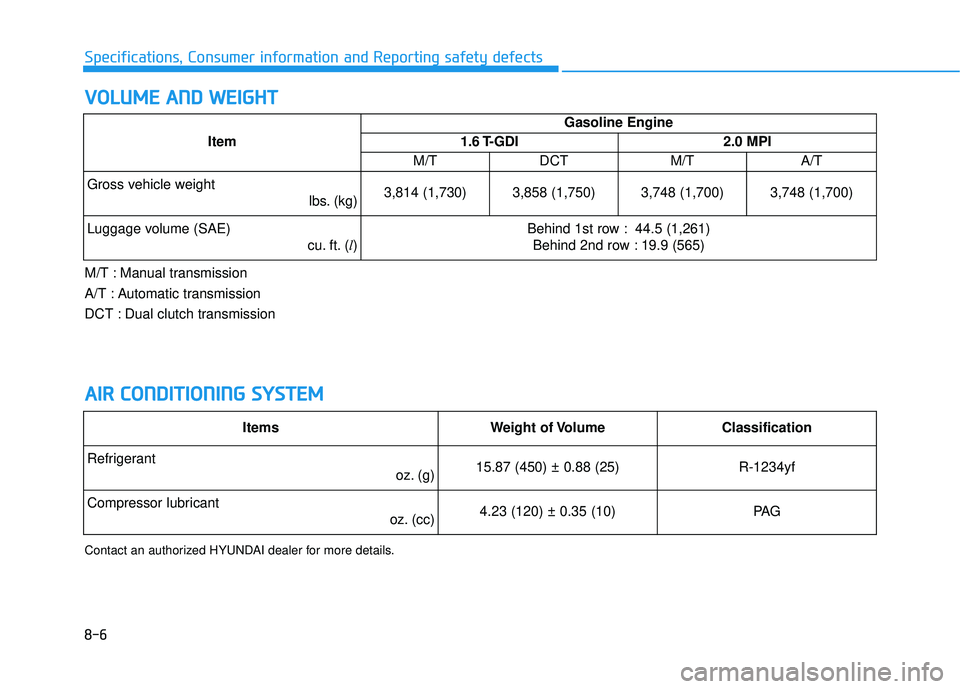

Item
Gasoline Engine
1.6 T-GDI2.0 MPI
M/TDCTM/TA/T
Gross vehicle weight
lbs. (kg)3,814 (1,730)3,858 (1,750)3,748 (1,700)3,748 (1,700)
Luggage volume (SAE)cu. ft. (l)Behind 1st row : 44.5 (1,261)Behind 2nd row : 19.9 (565)
ItemsWeight of VolumeClassification
Refrigerant oz. (g) 15.87 (450) ± 0.88 (25) R-1234yf
Compressor lubricantoz. (cc) 4.23 (120) ± 0.35 (10)PA G
M/T : Manual transmission
A/T : Automatic transmission
DCT : Dual clutch transmission
