Vehicle Information

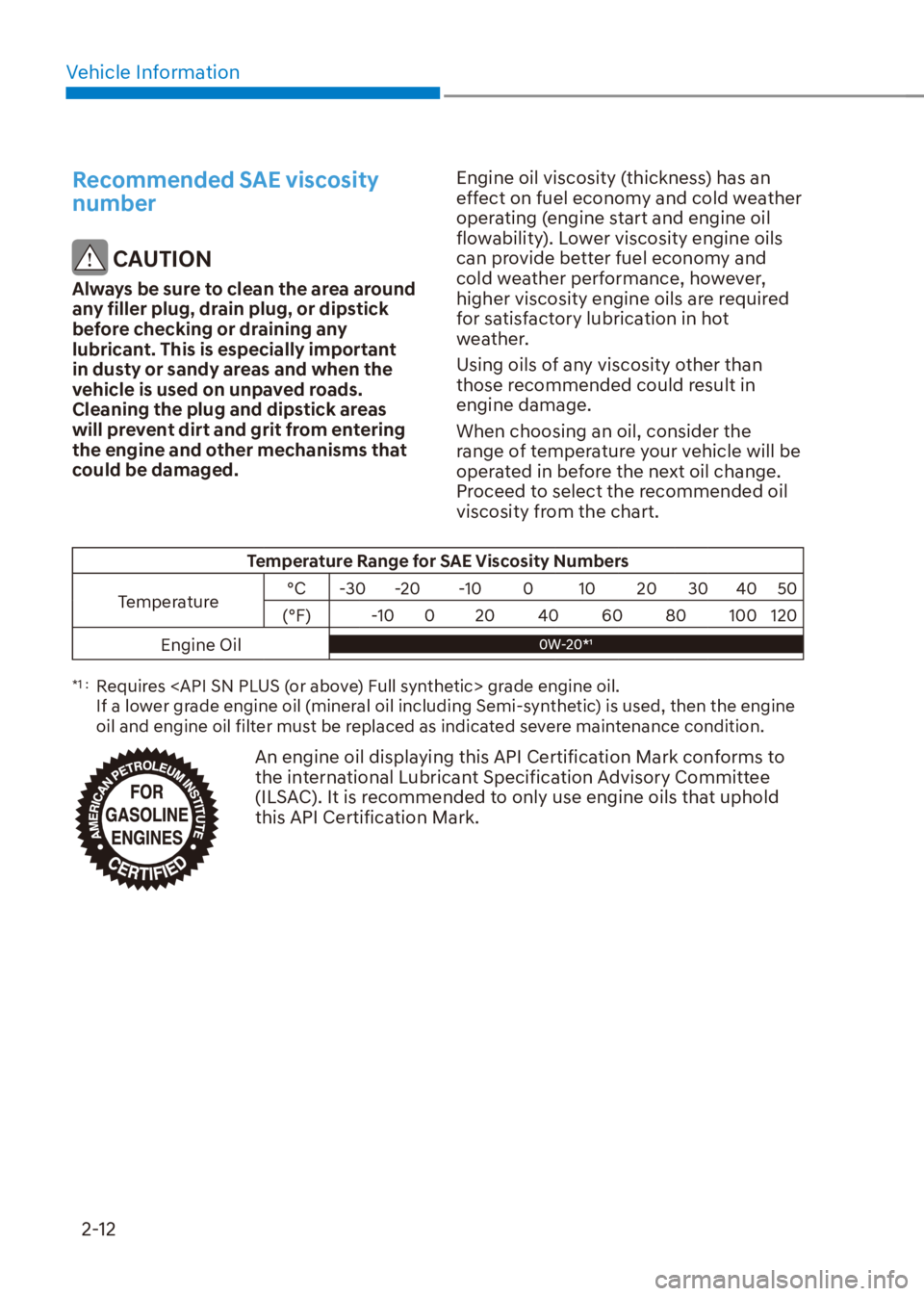

2-12
Recommended SAE viscosity
number
CAUTION
Always be sure to clean the area around
any filler plug, drain plug, or dipstick
before checking or draining any
lubricant. This is especially important
in dusty or sandy areas and when the
vehicle is used on unpaved roads.
Cleaning the plug and dipstick areas
will prevent dirt and grit from entering
the engine and other mechanisms that
could be damaged.Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and
cold weather performance, however,
higher viscosity engine oils are required
for satisfactory lubrication in hot
weather.
Using oils of any viscosity other than
those recommended could result in
engine damage.
When choosing an oil, consider the
range of temperature your vehicle will be
operated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature°C -30 -20 -10 0 10 20 30 40 50
(°F) -10 0 20 40 60 80 100 120
Engine Oil
0W-20*
Î 0W-20*
Î
*1 : Requires grade engine oil.
If a lower grade engine oil (mineral oil including Semi-synthetic) is used, then the engine
oil and engine oil filter must be replaced as indicated severe maintenance condition.
An engine oil displaying this API Certification Mark conforms to
the international Lubricant Specification Advisory Committee
(ILSAC). It is recommended to only use engine oils that uphold
this API Certification Mark.

05
5-63
Checking the amount of air
conditioner refrigerant and
compressor lubricant
When the amount of refrigerant is low,
the performance of the air conditioning
is reduced. Overfilling also reduces the
performance of the air conditioning
system.
Therefore, if abnormal operation is
found, have the system inspected by an
authorized HYUNDAI dealer.
NOTICE
It is important that the correct type and
amount of oil and refrigerant is used.
Otherwise, damage to the compressor
and abnormal system operation may
occur. To prevent damage, the air
conditioning system in your vehicle
should only be serviced by trained and
certified technicians.
WARNING
Vehicles equipped with R-134a
Since the refrigerant is
operated at very high
pressure, the air conditioning
system should only be
serviced by trained and
certified technicians.
All refrigerants should be reclaimed
with proper equipment.
Venting refrigerants directly to the
atmosphere is harmful to individuals
and environment. Failure to heed these
warnings can lead to serious injuries.
OQX089050N
Air conditioning refrigerant label
You can find out which air conditioning
refrigerant is applied to your vehicle on
the label located underside of the hood.
„Example
OHCM059040
Each symbols and specification on
the air conditioning refrigerant label is
represented as below:
1. Classification of refrigerant
2. Amount of refrigerant
3. Classification of Compressor lubricant
4. Caution
5. Service manual

8
Engine Compartment ....................................................................................... 8-3
Maintenance Services ...................................................................................... 8-4
Owner’s Responsibility ............................................................................................... 8-4
Owner Maintenance Precautions ............................................................................... 8-4
Owner Maintenance ......................................................................................... 8-5Owner Maintenance Schedule ....................................................................................8-5
Scheduled Maintenance Services ....................................................................8-7Normal Maintenance Schedule .................................................................................. 8-8
Maintenance Under Severe Usage Conditions ......................................................... 8-11
Severe Driving Conditions .......................................................................................... 8-11
Explanation of Scheduled Maintenance Items .............................................. 8-12
Engine Oil ......................................................................................................... 8-15
Checking the Engine Oil Level ................................................................................... 8-15
Checking the Engine Oil and Filter ........................................................................... 8-15
Engine Coolant .................................................................................................8-16
Checking the Engine Coolant Level .......................................................................... 8-16
Changing Engine Coolant .......................................................................................... 8-18
Brake/Clutch Fluid ...........................................................................................8-19
Checking the Brake/Clutch Fluid Level .................................................................... 8-19
Washer Fluid .................................................................................................... 8-20Checking the Washer Fluid Level ............................................................................. 8-20
Parking Brake .................................................................................................. 8-20
Checking the Parking Brake ..................................................................................... 8-20
Air Cleaner ........................................................................................................ 8-21Filter Replacement ..................................................................................................... 8-21
Climate Control Air Filter ................................................................................ 8-22Filter Inspection.......................................................................................................... 8-22
Wiper Blades ................................................................................................... 8-23Blade Inspection ........................................................................................................ 8-23
Blade Replacement .................................................................................................... 8-23
Battery ............................................................................................................. 8-25For Best Battery Service ............................................................................................8-26
Battery Recharging ....................................................................................................8-26
Reset Features ............................................................................................................8-26
8. Maintenance

08
8-5
WARNING
Performing maintenance work on a
vehicle can be dangerous. If you lack
sufficient knowledge and experience or
the proper tools and equipment to do
the work, have it done by an authorized
HYUNDAI dealer.
ALWAYS follow these precautions for
performing maintenance work:

[Park your vehicle on level ground,
move the shift lever into the P (Park,
for intelligent variable transmission
vehicle) position, place the ignition
switch in the LOCK/OFF position.

[Block the tires (front and back) to
prevent the vehicle from moving.
Remove loose clothing or jewelry
that can become entangled in
moving parts.

[If you must run the engine during
maintenance, do so out doors or in
an area with plenty of ventilation.

[Keep flames, sparks, or smoking
materials away from the battery and
fuel-related parts.The following lists are vehicle checks and
inspections that should be performed
by the owner or an authorized HYUNDAI
dealer at the frequencies indicated to
help ensure safe, dependable operation
of your vehicle.
Any adverse conditions should be
brought to the attention of your dealer as
soon as possible.
These Owner Maintenance vehicle
checks are generally not covered by
warranties and you may be charged for
labor, parts and lubricants used.
Owner Maintenance Schedule
When you stop for fuel:

[Check the engine oil level.

[Check the coolant level in the engine
coolant reservoir.

[Check the windshield washer fluid
level.

[Check the for low or under-inflated
tires.
WARNING
Be careful when checking your engine
coolant level when the engine is hot.
This may result in coolant being blown
out of the opening and cause serious
burns and other injuries.
OWNER MAINTENANCE

08
8-15
Checking the Engine Oil Level
1. Follow all of the oil manufacturer’s
precautions.
2. Be sure the vehicle is on the level
ground in P (Park) with the parking
brake set. If possible, block the
wheels.
3. Turn the engine on and allow the
engine to reach normal operating
temperature.
4. Turn the engine off and wait about 15
minutes for the oil to return to the oil
pan.
5. Pull the dipstick out, wipe it clean, and
re-insert it fully.
OQX089003L
6. Pull the dipstick out again and check
the level. The level should be between
F and L.
OQX089004L
7. If it is near or at L, add enough oil to
bring the level to F.
Use only the specified engine oil. (refer
to “Recommended Lubricants and
Capacities” in chapter 2).
NOTICE
To prevent damage to your engine:

[Do not overfill with engine oil. Add oil
in small quantities and recheck level
to ensure engine is not overfilled.

[Do not spill engine oil when adding
or changing engine oil. Use a funnel
to help prevent oil from being spilled
on engine components. Wipe off
spilled oil immediately.
Checking the Engine Oil and
Filter
Have engine oil and filter changed by an
authorized HYUNDAI dealer according
to the Maintenance Schedule at the
beginning of this chapter.
WARNING
CALIFORNIA PROPOSITION 65
WARNING
Engine oil contains chemicals known to
the State of California to cause cancer,
birth defects and reproductive harm.
Used engine oil may cause irritation or
cancer of the skin if left in contact with
the skin for prolonged periods of time.
Always protect your skin by washing
your hands thoroughly with soap and
warm water as soon as possible after
handling used oil.
ENGINE OIL

08
8-19
Checking the Brake/Clutch Fluid
Level
OQX089007L
Check the fluid level in the reservoir
periodically. The fluid level should be
between MAX and MIN marks on the side
of the reservoir.
Before removing the reservoir cap and
adding brake/clutch fluid, clean the area
around the reservoir cap thoroughly to
prevent brake fluid contamination.
If the level is low, add the specified
brake/clutch fluid to the MAX level. The
level will fall with accumulated mileage.
This is a normal condition associated
with the wear of the brake linings. If
the fluid level is excessively low, have
the brake/clutch system checked by an
authorized HYUNDAI dealer.
WARNING
If the brake system requires frequent
additions of fluid this could indicate
a leak in the brake system. Have the
vehicle inspected by an authorized
HYUNDAI dealer.
WARNING
Do not allow brake fluid to come in
contact with your eyes. If brake/clutch
fluid comes in contact with your eyes,
flush your eyes with clean water for
at least 15 minutes and get immediate
medical attention.
NOTICE

[Do not allow brake fluid to contact
the vehicle’s body paint, as paint
damage will result.

[Brake/clutch fluid, which has been
exposed to open air for an extended
time should NEVER be used as its
quality cannot be guaranteed. It
should be disposed of properly.

[Do not use the wrong kind of brake
fluid. A few drops of mineral based
oil, such as engine oil, in your brake
system can damage brake system
parts.
Information
Use only the specified brake fluid (refer
to “Recommended Lubricants and
Capacities” in chapter 2).
BRAKE/CLUTCH FLUID

Maintenance
8-26
For Best Battery Service
OQX089042

[Keep the battery securely mounted.

[Keep the battery top clean and dry.

[Keep the terminals and connections
clean, tight, and coated with
petroleum jelly or terminal grease.

[Rinse any spilled acid from the battery
immediately with a solution of water
and baking soda.
Battery Recharging
WARNING
Always follow these instructions when
recharging your vehicle’s battery to
avoid the risk of SERIOUS INJURY or
DEATH from explosions or acid burns:

[Before performing maintenance or
recharging the battery, turn off all
accessories and place the ignition
switch to the LOCK/OFF position.

[Keep all flames, sparks, or smoking
materials away from the battery.

[Always work outdoors or in an area
with plenty of ventilation.

[Wear eye protection when checking
the battery during charging.

[The battery must be removed from
the vehicle and placed in a well
ventilated area.

[Watch the battery during charging,
and stop or reduce the charging
rate if the battery cells begin boiling
violently.
[The negative battery cable must
be removed first and installed last
when the battery is disconnected.
Disconnect the battery charger in the
following order:
1. Turn off the battery charger main
switch.
2. Unhook the negative clamp from
the negative battery terminal.
3. Unhook the positive clamp from
the positive battery terminal.

[Always use a genuine HYUNDAI
approved battery when you replace
the battery.
By jump starting
After a jump start from a good battery,
drive the vehicle for 20-30 minutes
before it is shutoff. The vehicle may
not restart if you shut it off before the
battery had a chance to adequately
recharge. See “Jump Starting” in chapter
7 for more information on jump starting
procedures.
Information
An inappropriately disposed
battery can be harmful to
the environment and human
health. Dispose of the battery
according to your local law(s) or
regulations.
Reset Features
The following items may need to be reset
after the battery has been discharged or
the battery has been disconnected. See
chapter 3 or 4 for:

[Power Windows

[Trip Computer

[Climate Control System

[Clock

[Audio System

[Sunroof
