HYUNDAI VENUE 2023 Owners Manual

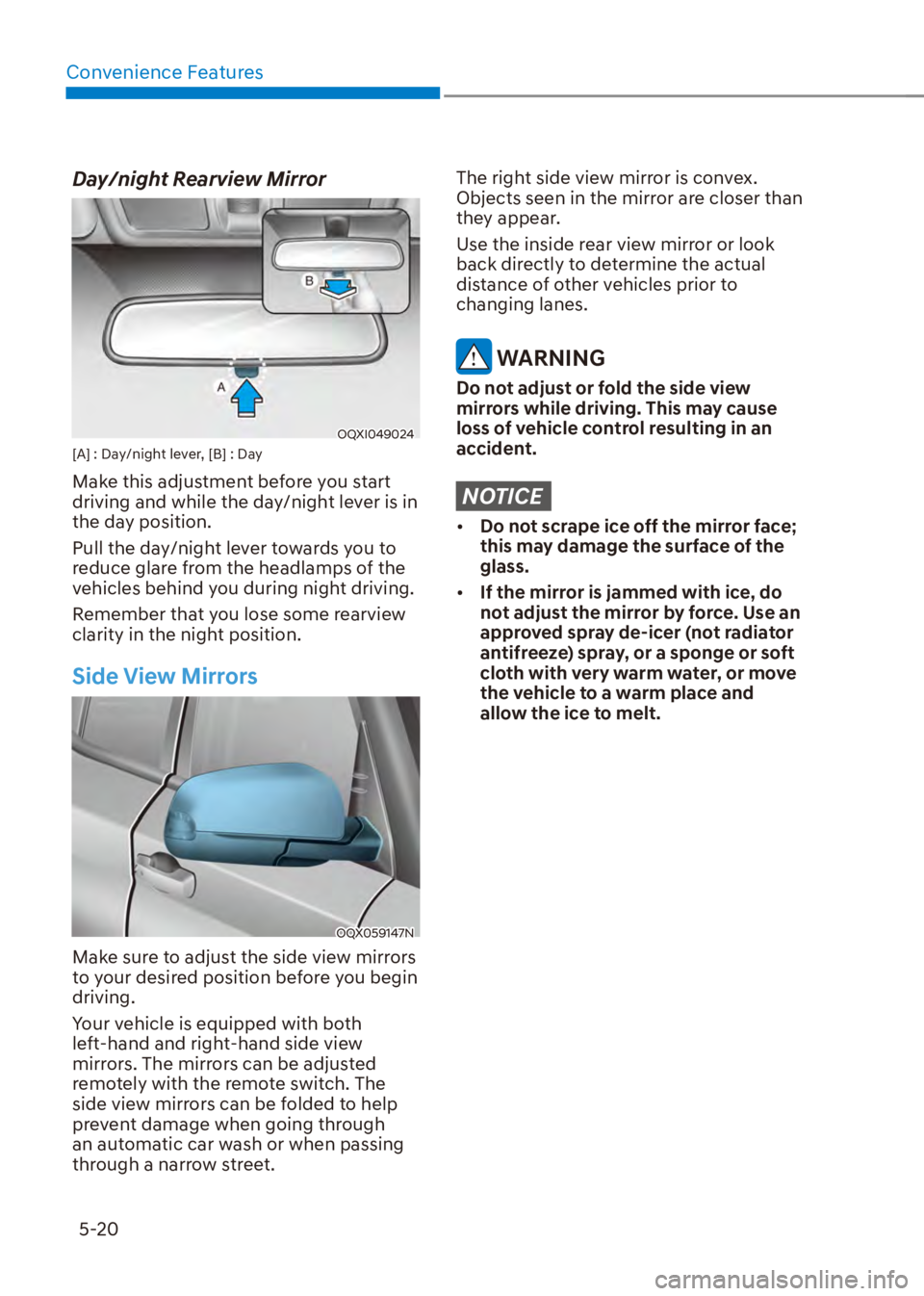

Convenience Features5-20
Day/night Rearview Mirror
OQXI049024[A] : Day/night lever, [B] : Day
Make this adjustment before you start
driving and while the day/night lever is in
the day position.
Pull the day/night lever towards you to
reduce glare from the headlamps of the
vehicles behind you during night driving.
Remember that you lose some rearview
clarity in the night position.
Side View Mirrors
OQX059147N
Make sure to adjust the side view mirrors
to your desired position before you begin
driving.
Your vehicle is equipped with both
left-hand and right-hand side view
mirrors. The mirrors can be adjusted
remotely with the remote switch. The
side view mirrors can be folded to help
prevent damage when going through
an automatic car wash or when passing
through a narrow street.
The right side view mirror is convex.
Objects seen in the mirror are closer than
they appear.
Use the inside rear view mirror or look
back directly to determine the actual
distance of other vehicles prior to
changing lanes.
WARNING
Do not adjust or fold the side view
mirrors while driving. This may cause
loss of vehicle control resulting in an
accident.
NOTICE

[ Do not scrape ice off the mirror face;
this may damage the surface of the
glass.

[ If the mirror is jammed with ice, do
not adjust the mirror by force. Use an
approved spray de-icer (not radiator
antifreeze) spray, or a sponge or soft
cloth with very warm water, or move
the vehicle to a warm place and
allow the ice to melt.

05
5-21

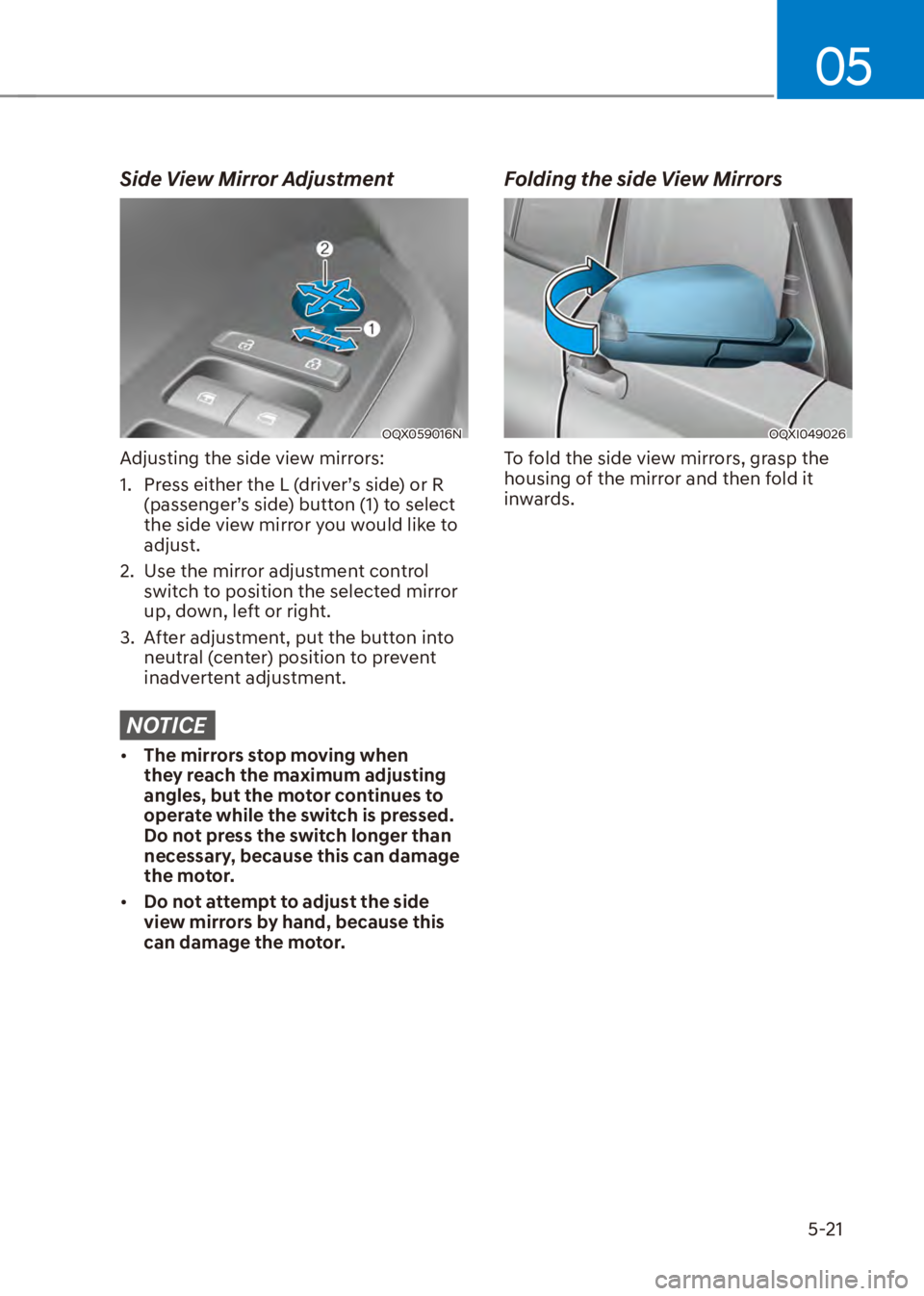

Side View Mirror Adjustment
OQX059016N
Adjusting the side view mirrors:
1. Press either the L (driver’s side) or R (passenger’s side) button (1) to select
the side view mirror you would like to
adjust.
2. Use the mirror adjustment control switch to position the selected mirror
up, down, left or right.
3. After adjustment, put the button into neutral (center) position to prevent
inadvertent adjustment.
NOTICE

[The mirrors stop moving when
they reach the maximum adjusting
angles, but the motor continues to
operate while the switch is pressed.
Do not press the switch longer than
necessary, because this can damage
the motor.

[ Do not attempt to adjust the side
view mirrors by hand, because this
can damage the motor.
Folding the side View Mirrors
OQXI049026
To fold the side view mirrors, grasp the
housing of the mirror and then fold it
inwards.

5-22
Convenience Features

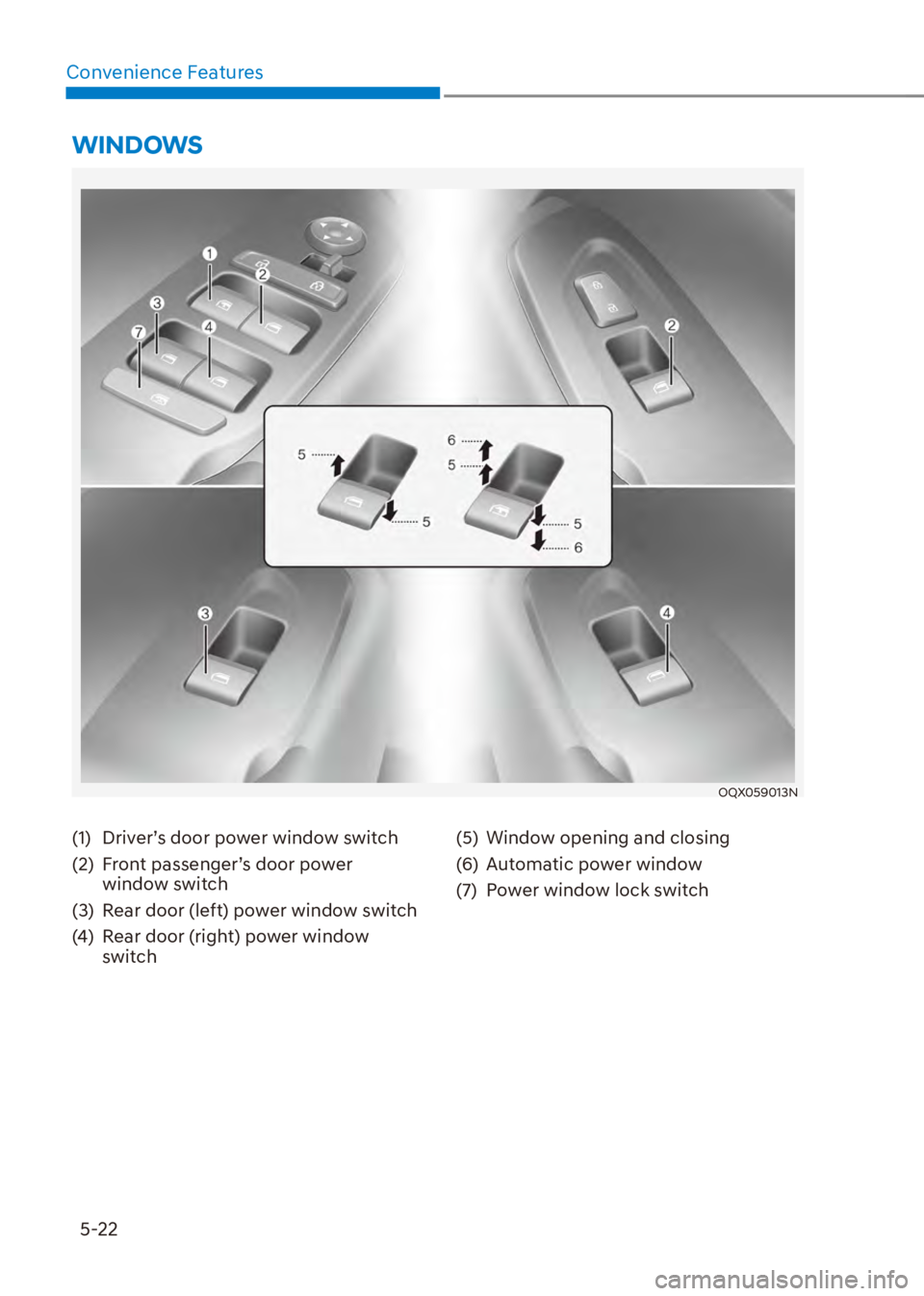

(1) Driver’s door power window switch
(2) Front passenger’s door power
window switch
(3) Rear door (left) power window switch
(4) Rear door (right) power window switch (5) Window opening and closing
(6) Automatic power window
(7) Power window lock switch
WINDOWS
OQX059013N

05
5-23

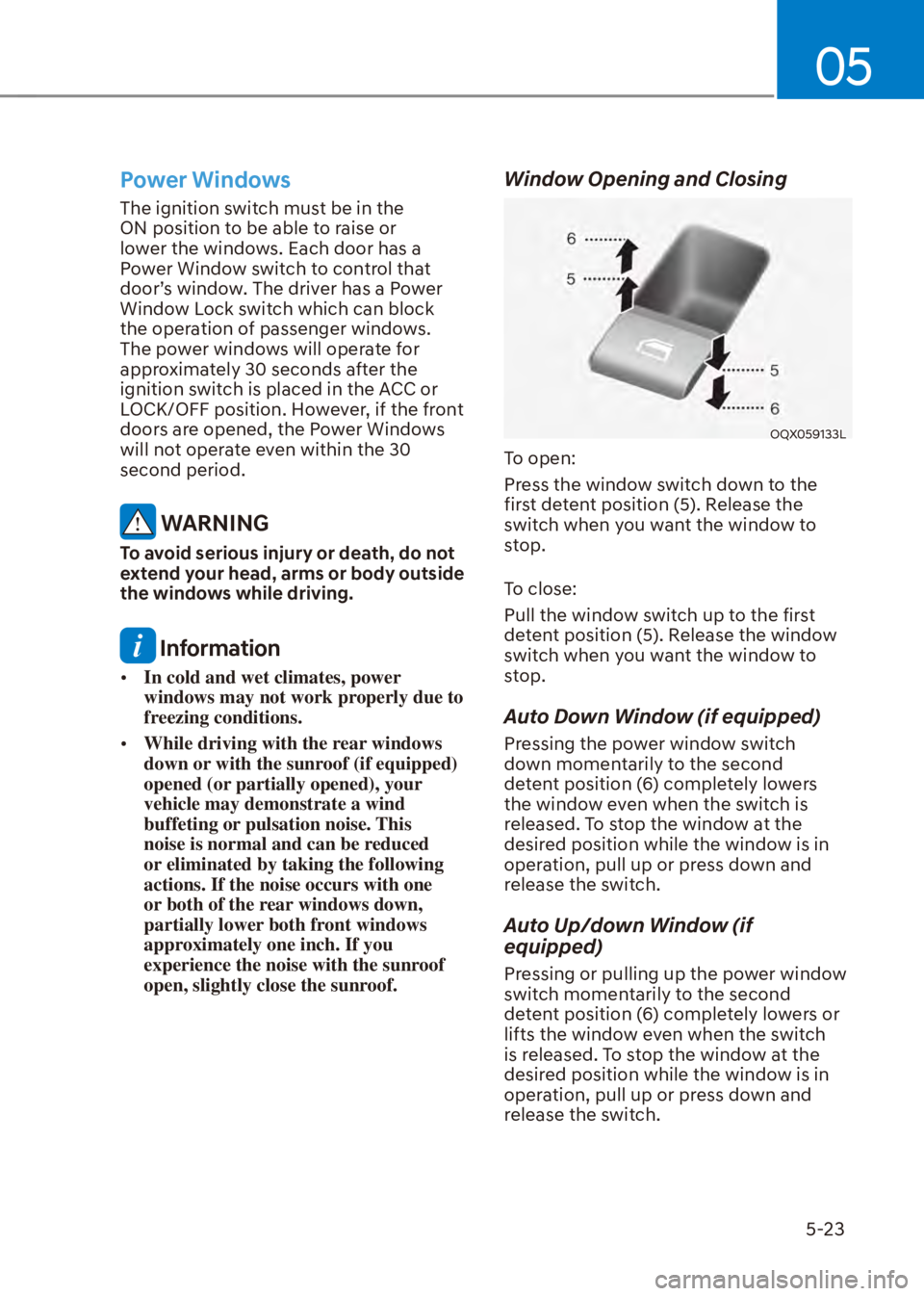

Power Windows
The ignition switch must be in the
ON position to be able to raise or
lower the windows. Each door has a
Power Window switch to control that
door’s window. The driver has a Power
Window Lock switch which can block
the operation of passenger windows.
The power windows will operate for
approximately 30 seconds after the
ignition switch is placed in the ACC or
LOCK/OFF position. However, if the front
doors are opened, the Power Windows
will not operate even within the 30
second period.
WARNING
To avoid serious injury or death, do not
extend your head, arms or body outside
the windows while driving.
Information

[In cold and wet climates, power
windows may not work properly due to
freezing conditions.

[ While driving with the rear windows
down or with the sunroof (if equipped)
opened (or partially opened), your
vehicle may demonstrate a wind
buffeting or pulsation noise. This
noise is normal and can be reduced
or eliminated by taking the following
actions. If the noise occurs with one
or both of the rear windows down,
partially lower both front windows
approximately one inch. If you
experience the noise with the sunroof
open, slightly close the sunroof.
Window Opening and Closing
OQX059133L
To open:
Press the window switch down to the
first detent position (5). Release the
switch when you want the window to
stop.
To close:
Pull the window switch up to the first
detent position (5). Release the window
switch when you want the window to
stop.
Auto Down Window (if equipped)
Pressing the power window switch
down momentarily to the second
detent position (6) completely lowers
the window even when the switch is
released. To stop the window at the
desired position while the window is in
operation, pull up or press down and
release the switch.
Auto Up/down Window (if
equipped)
Pressing or pulling up the power window
switch momentarily to the second
detent position (6) completely lowers or
lifts the window even when the switch
is released. To stop the window at the
desired position while the window is in
operation, pull up or press down and
release the switch.

Convenience Features5-24

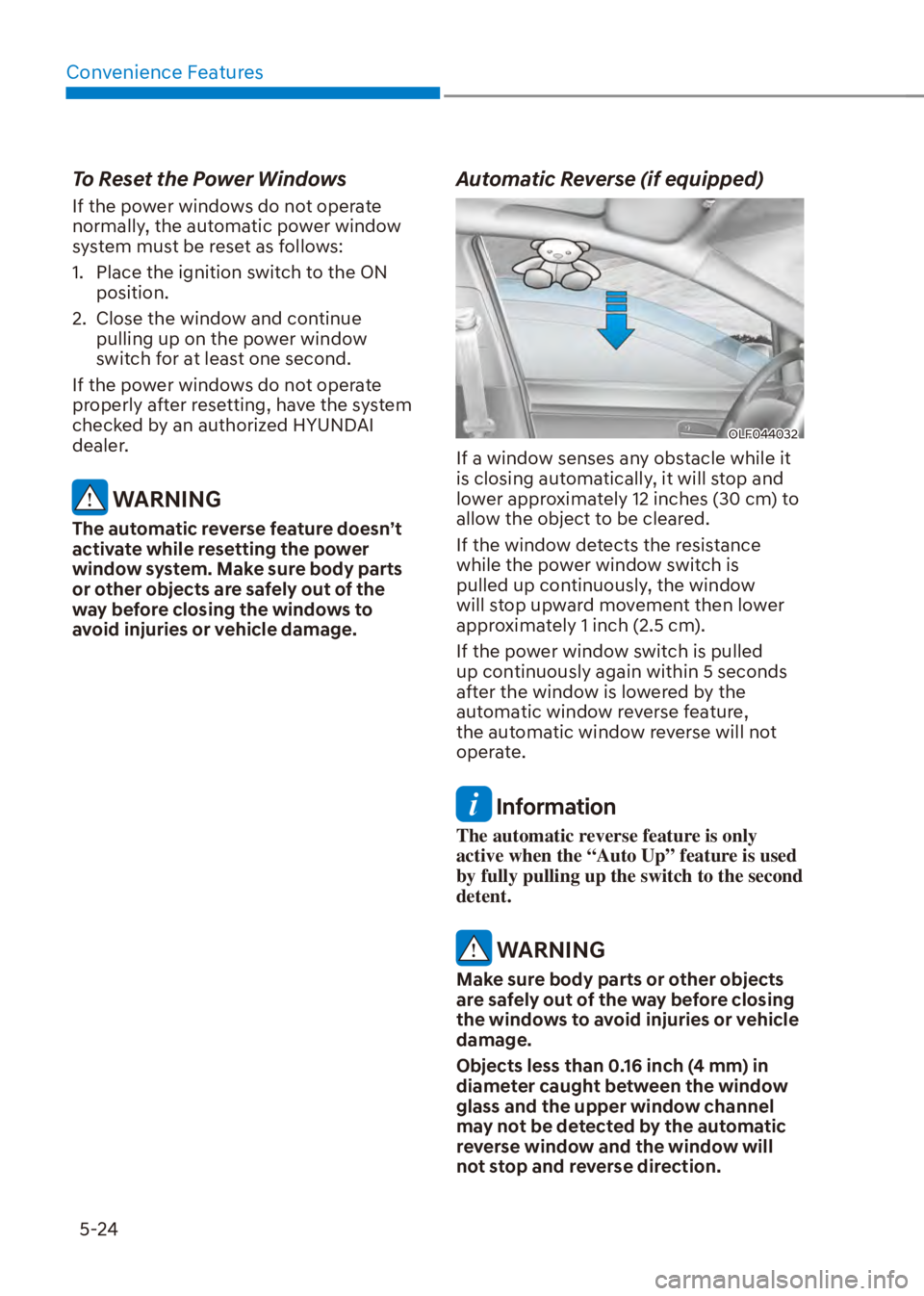

To Reset the Power Windows
If the power windows do not operate
normally, the automatic power window
system must be reset as follows:
1. Place the ignition switch to the ON position.
2. Close the window and continue pulling up on the power window
switch for at least one second.
If the power windows do not operate
properly after resetting, have the system
checked by an authorized HYUNDAI
dealer.
WARNING
The automatic reverse feature doesn’t
activate while resetting the power
window system. Make sure body parts
or other objects are safely out of the
way before closing the windows to
avoid injuries or vehicle damage.
Automatic Reverse (if equipped)
OLF044032
If a window senses any obstacle while it
is closing automatically, it will stop and
lower approximately 12 inches (30 cm) to
allow the object to be cleared.
If the window detects the resistance
while the power window switch is
pulled up continuously, the window
will stop upward movement then lower
approximately 1 inch (2.5 cm).
If the power window switch is pulled
up continuously again within 5 seconds
after the window is lowered by the
automatic window reverse feature,
the automatic window reverse will not
operate.
Information
The automatic reverse feature is only
active when the “Auto Up” feature is used
by fully pulling up the switch to the second
detent.
WARNING
Make sure body parts or other objects
are safely out of the way before closing
the windows to avoid injuries or vehicle
damage.
Objects less than 0.16 inch (4 mm) in
diameter caught between the window
glass and the upper window channel
may not be detected by the automatic
reverse window and the window will
not stop and reverse direction.

05
5-25

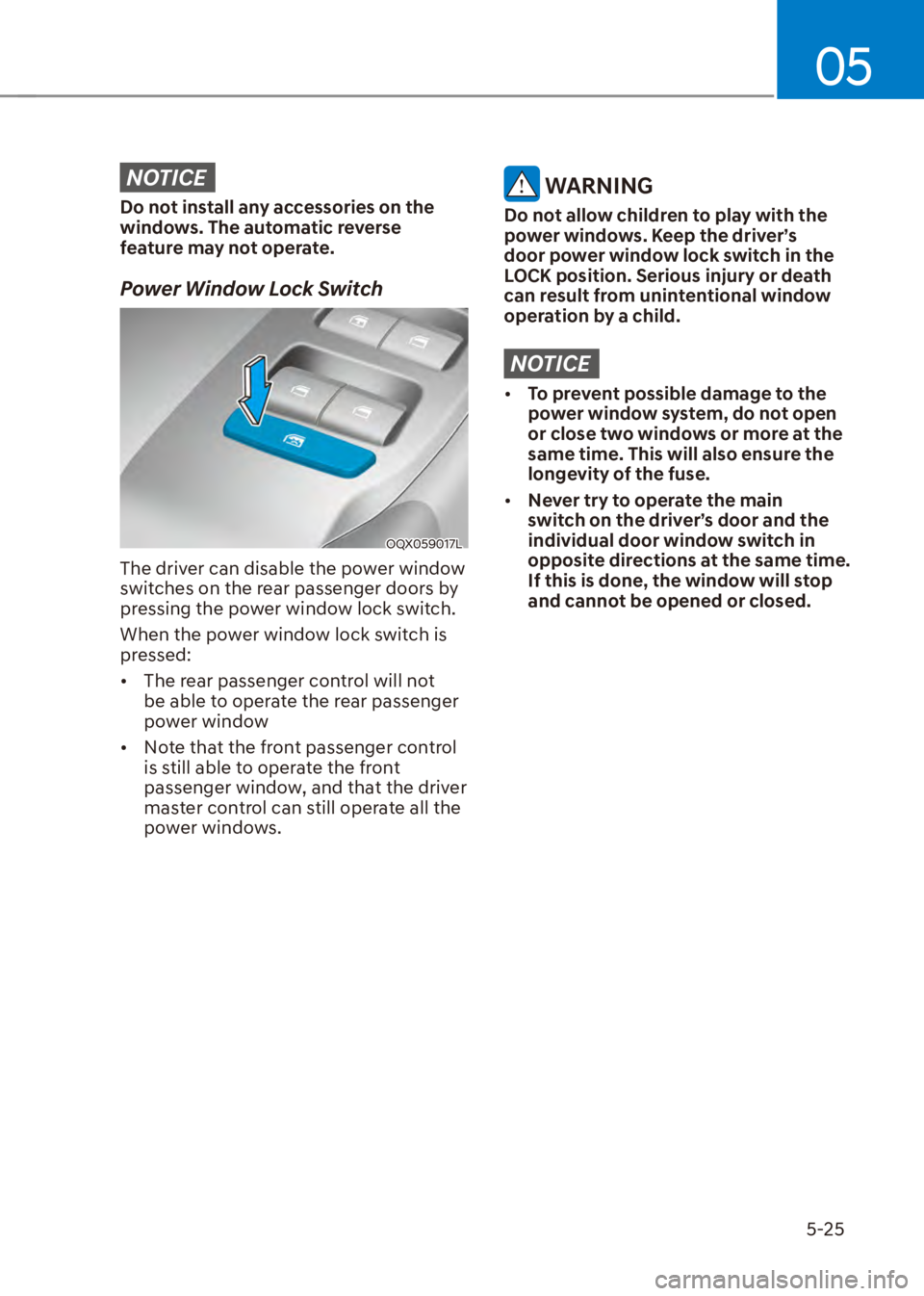

NOTICE
Do not install any accessories on the
windows. The automatic reverse
feature may not operate.
Power Window Lock Switch
OQX059017L
The driver can disable the power window
switches on the rear passenger doors by
pressing the power window lock switch.
When the power window lock switch is
pressed:

[The rear passenger control will not
be able to operate the rear passenger
power window

[ Note that the front passenger control
is still able to operate the front
passenger window, and that the driver
master control can still operate all the
power windows.
WARNING
Do not allow children to play with the
power windows. Keep the driver’s
door power window lock switch in the
LOCK position. Serious injury or death
can result from unintentional window
operation by a child.
NOTICE

[To prevent possible damage to the
power window system, do not open
or close two windows or more at the
same time. This will also ensure the
longevity of the fuse.

[ Never try to operate the main
switch on the driver’s door and the
individual door window switch in
opposite directions at the same time.
If this is done, the window will stop
and cannot be opened or closed.

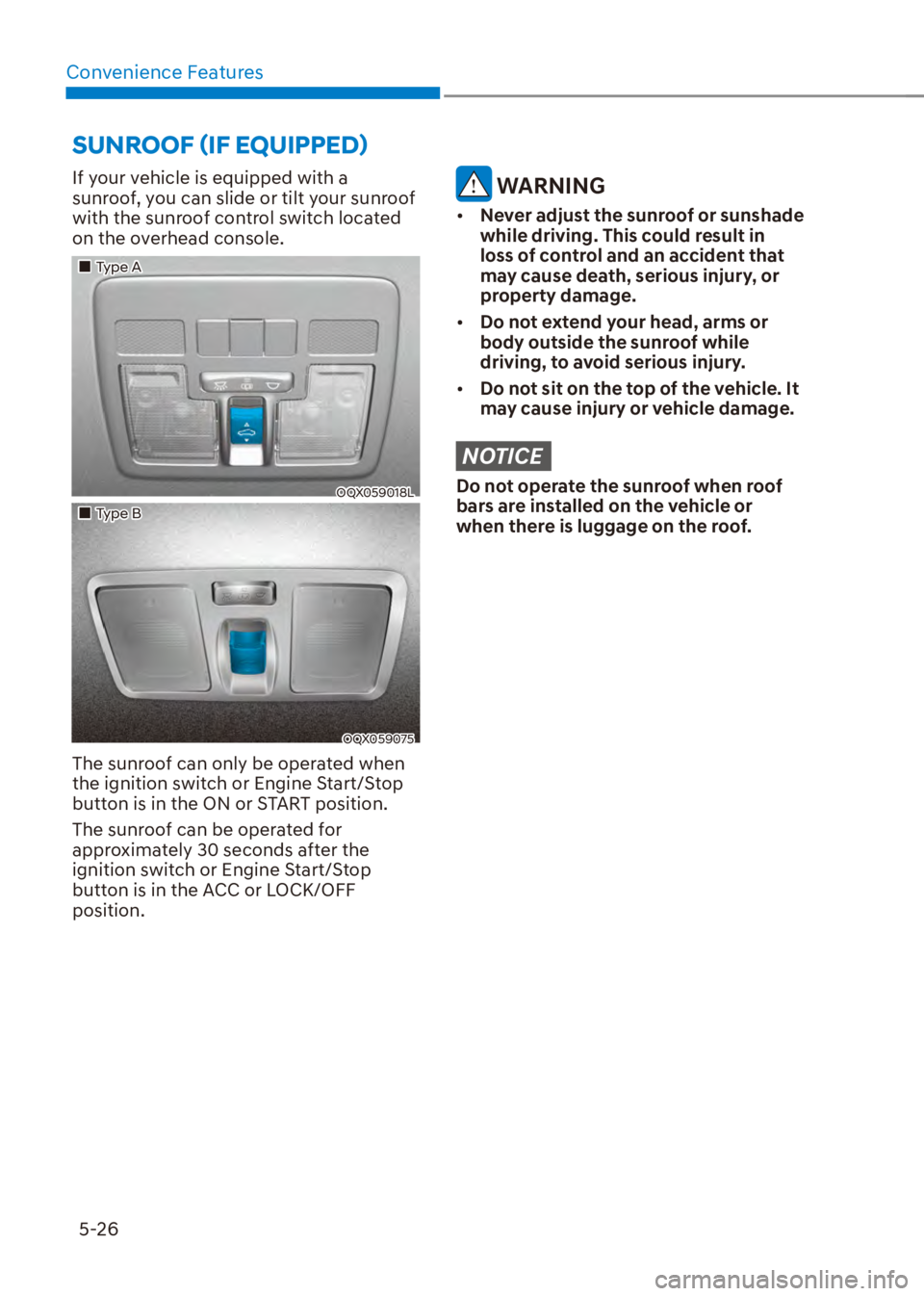

Convenience Features5-26
681522)

05
5-27

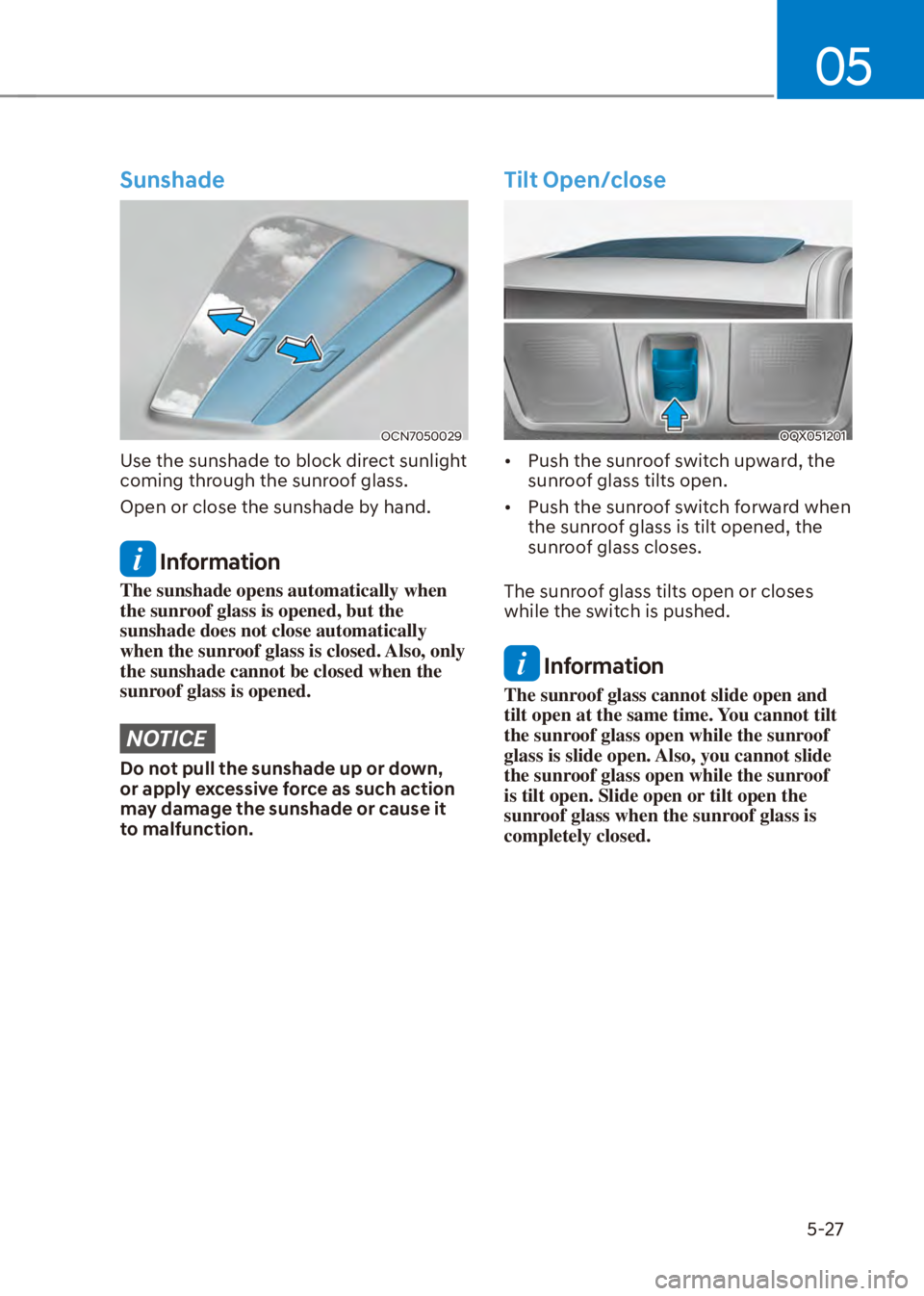

Sunshade
OCN7050029
Use the sunshade to block direct sunlight
coming through the sunroof glass.
Open or close the sunshade by hand.
Information
The sunshade opens automatically when
the sunroof glass is opened, but the
sunshade does not close automatically
when the sunroof glass is closed. Also, only
the sunshade cannot be closed when the
sunroof glass is opened.
NOTICE
Do not pull the sunshade up or down,
or apply excessive force as such action
may damage the sunshade or cause it
to malfunction.
Tilt Open/close
OQX051201

[Push the sunroof switch upward, the
sunroof glass tilts open.

[ Push the sunroof switch forward when
the sunroof glass is tilt opened, the
sunroof glass closes.
The sunroof glass tilts open or closes
while the switch is pushed.
Information
The sunroof glass cannot slide open and
tilt open at the same time. You cannot tilt
the sunroof glass open while the sunroof
glass is slide open. Also, you cannot slide
the sunroof glass open while the sunroof
is tilt open. Slide open or tilt open the
sunroof glass when the sunroof glass is
completely closed.

Convenience Features5-28

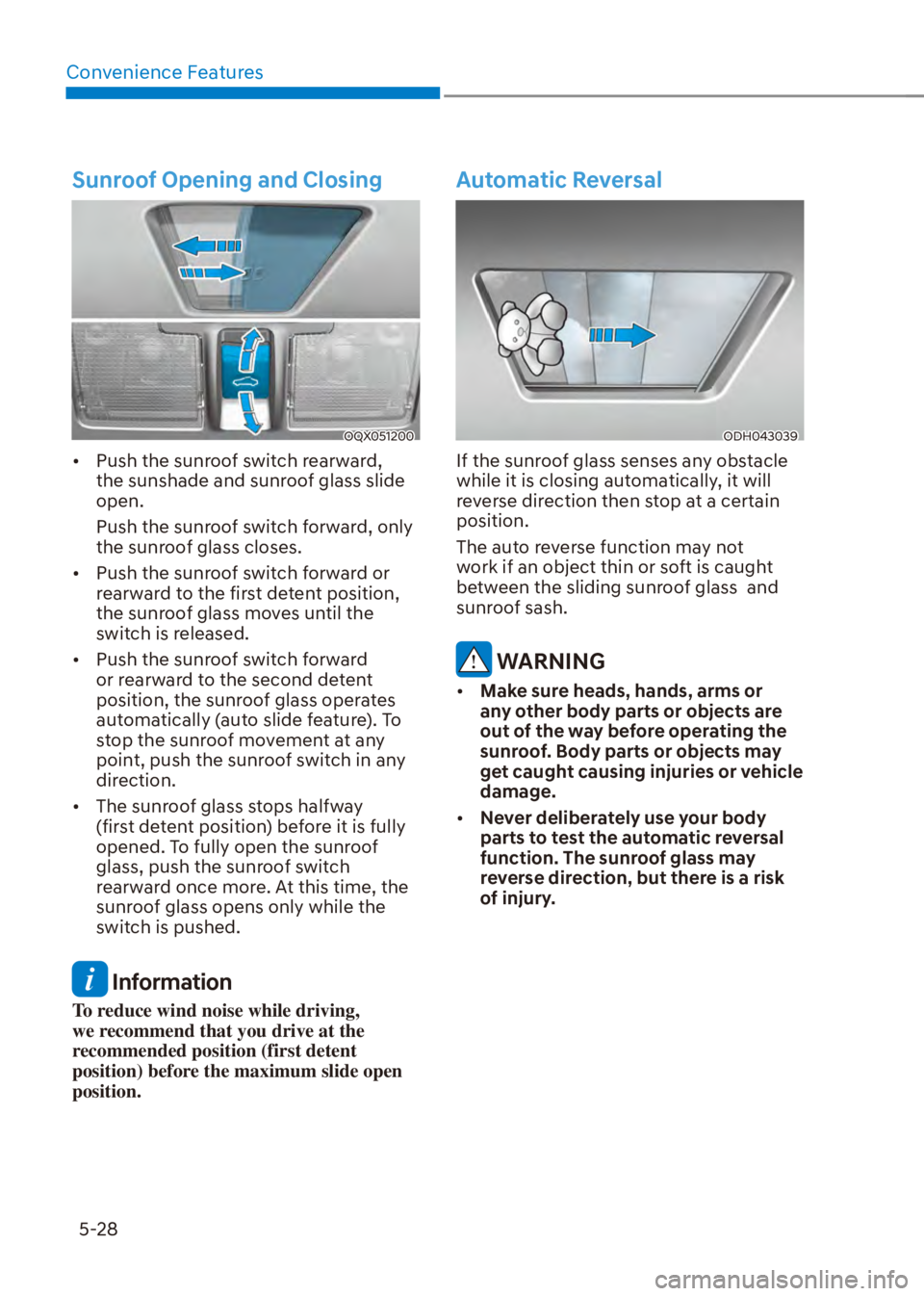

Sunroof Opening and Closing
OQX051200

[ Push the sunroof switch rearward,
the sunshade and sunroof glass slide
open.
Push the sunroof switch forward, only
the sunroof glass closes.

[ Push the sunroof switch forward or
rearward to the first detent position,
the sunroof glass moves until the
switch is released.

[ Push the sunroof switch forward
or rearward to the second detent
position, the sunroof glass operates
automatically (auto slide feature). To
stop the sunroof movement at any
point, push the sunroof switch in any
direction.

[ The sunroof glass stops halfway
(first detent position) before it is fully
opened. To fully open the sunroof
glass, push the sunroof switch
rearward once more. At this time, the
sunroof glass opens only while the
switch is pushed.
Information
To reduce wind noise while driving,
we recommend that you drive at the
recommended position (first detent
position) before the maximum slide open
position.
Automatic Reversal
ODH043039
If the sunroof glass senses any obstacle
while it is closing automatically, it will
reverse direction then stop at a certain
position.
The auto reverse function may not
work if an object thin or soft is caught
between the sliding sunroof glass and
sunroof sash.
WARNING

[Make sure heads, hands, arms or
any other body parts or objects are
out of the way before operating the
sunroof. Body parts or objects may
get caught causing injuries or vehicle
damage.

[ Never deliberately use your body
parts to test the automatic reversal
function. The sunroof glass may
reverse direction, but there is a risk
of injury.

05
5-29
NOTICE

[Do not continue to push the sunroof
switch after the sunroof is fully
opened, closed, or tilted. Damage to
the sunroof motor could occur.

[ Continuous operations such as slide
open/close, tilt open/close, etc. may
cause the motor or sunroof system to
malfunction.

[ Regularly remove any accumulated
dust on the sunroof rail.

[ Dust accumulated between the
sunroof and roof panel can make
noise Open the sunroof and remove
dust regularly using a clean cloth.

[ Do not try to open the sunroof when
the temperature is below freezing
or when the sunroof is covered
with snow or ice. The sunroof may
not work properly and may break if
opened by force.

[ Do not open or drive with the sunroof
glass open immediately after rain or
washing the vehicle. Water may wet
the interior of the vehicle.

[ Do not extend any luggage outside
the sunroof while driving. Vehicle
damage may occur if the vehicle
suddenly stops.
WARNING
Do not extend your head, arms, body
parts or objects outside the sunroof
while driving. Injuries may occur if the
vehicle suddenly stops.
Front Lamps
„Type A
OQX059018L
„Type B
OQX059075
In some circumstances resetting the
sunroof operation may need to be
performed. Some instances where
resetting the sunroof may be required
include:

[When the 12-volt battery is either
disconnected or discharged

[ When the sunroof fuse is replaced

[ If the sunroof one-touch AUTO OPEN/
CLOSE operation is not functioning
properly
