rear entertainment HYUNDAI VERACRUZ 2008 Owners Manual

Windshield defrosting and defogging / 4-106
Storage compartment / 4-109
Interior features / 4-112
Exterior feature / 4-119
Audio system / 4-121
Rear seat entertainment system (RSE) / 4-166
Features of your vehicle
4

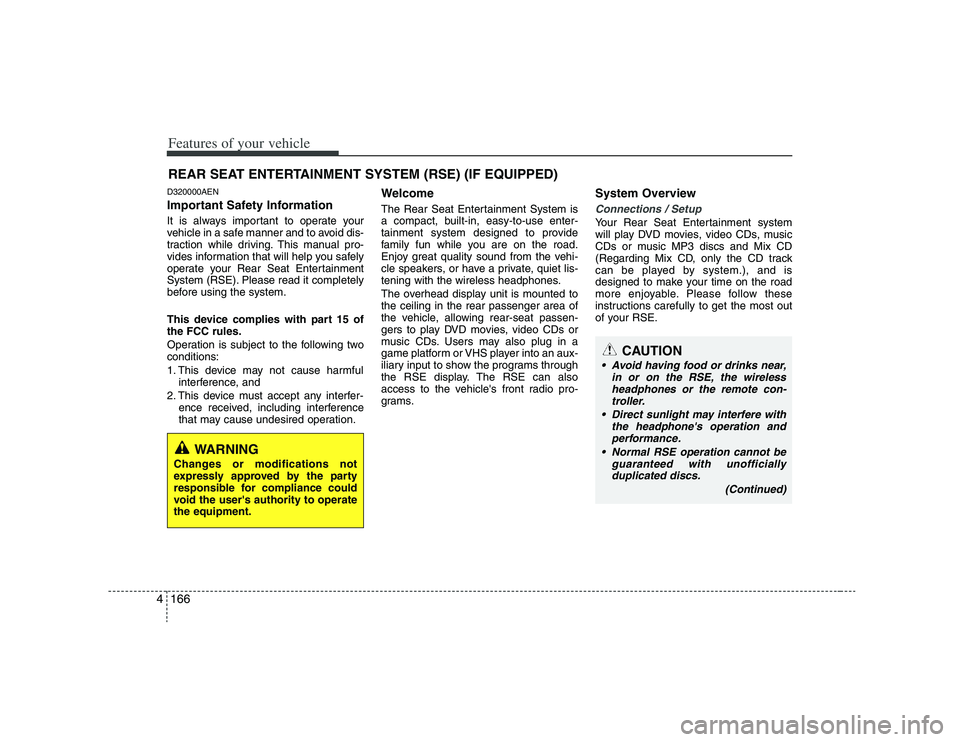

Features of your vehicle166 4D320000AENImportant Safety InformationIt is always important to operate your
vehicle in a safe manner and to avoid dis-
traction while driving. This manual pro-
vides information that will help you safely
operate your Rear Seat Entertainment
System (RSE). Please read it completely
before using the system.
This device complies with part 15 of
the FCC rules.
Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interfer-
ence received, including interference
that may cause undesired operation.
WelcomeThe Rear Seat Entertainment System is
a compact, built-in, easy-to-use enter-
tainment system designed to provide
family fun while you are on the road.
Enjoy great quality sound from the vehi-
cle speakers, or have a private, quiet lis-
tening with the wireless headphones.
The overhead display unit is mounted to
the ceiling in the rear passenger area of
the vehicle, allowing rear-seat passen-
gers to play DVD movies, video CDs or
music CDs. Users may also plug in a
game platform or VHS player into an aux-
iliary input to show the programs through
the RSE display. The RSE can also
access to the vehicle's front radio pro-
grams.
System OverviewConnections / SetupYour Rear Seat Entertainment system
will play DVD movies, video CDs, music
CDs or music MP3 discs and Mix CD
(Regarding Mix CD, only the CD track
can be played by system.), and is
designed to make your time on the road
more enjoyable. Please follow these
instructions carefully to get the most out
of your RSE.
REAR SEAT ENTERTAINMENT SYSTEM (RSE) (IF EQUIPPED)
CAUTION
Avoid having food or drinks near,
in or on the RSE, the wireless
headphones or the remote con-
troller.
Direct sunlight may interfere with
the headphone's operation and
performance.
Normal RSE operation cannot be
guaranteed with unofficially
duplicated discs.
(Continued)
WARNING
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to operate
the equipment.

4167
Features of your vehicle
✽ ✽

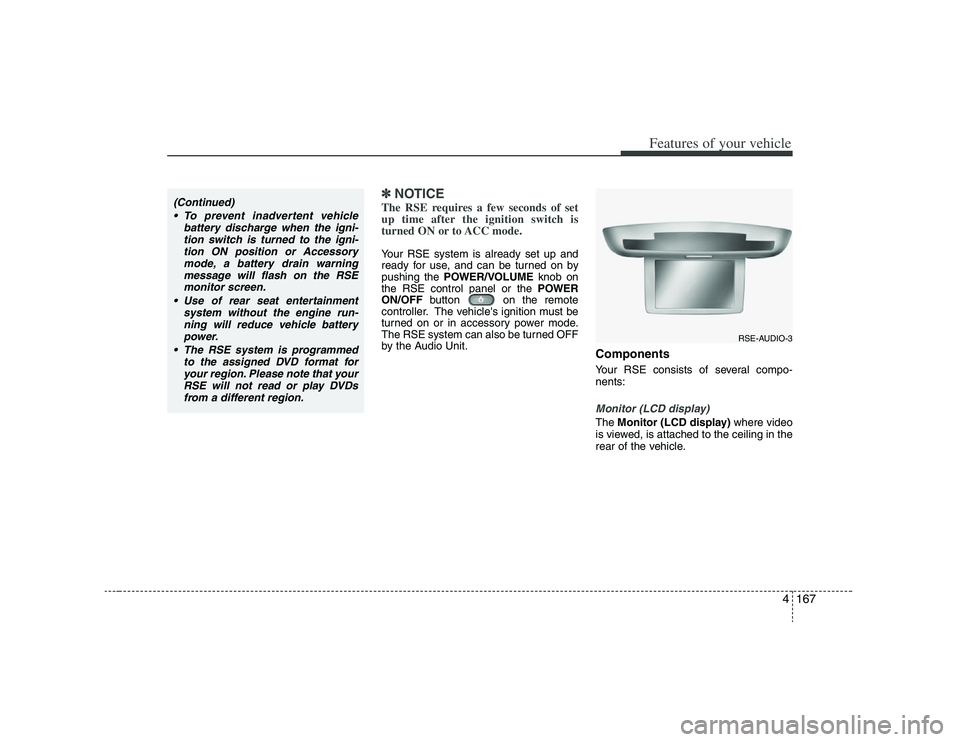

NOTICEThe RSE requires a few seconds of set
up time after the ignition switch is
turned ON or to ACC mode.Your RSE system is already set up and
ready for use, and can be turned on by
pushing the POWER/VOLUMEknob on
the RSE control panel or the POWER
ON/OFFbutton on the remote
controller. The vehicle's ignition must be
turned on or in accessory power mode.
The RSE system can also be turned OFF
by the Audio Unit.
ComponentsYour RSE consists of several compo-
nents:Monitor (LCD display)The Monitor (LCD display)where video
is viewed, is attached to the ceiling in the
rear of the vehicle.
(Continued)
To prevent inadvertent vehicle
battery discharge when the igni-
tion switch is turned to the igni-
tion ON position or Accessory
mode, a battery drain warning
message will flash on the RSE
monitor screen.
Use of rear seat entertainment
system without the engine run-
ning will reduce vehicle battery
power.
The RSE system is programmed
to the assigned DVD format for
your region. Please note that your
RSE will not read or play DVDs
from a different region.
RSE-AUDIO-3

I5

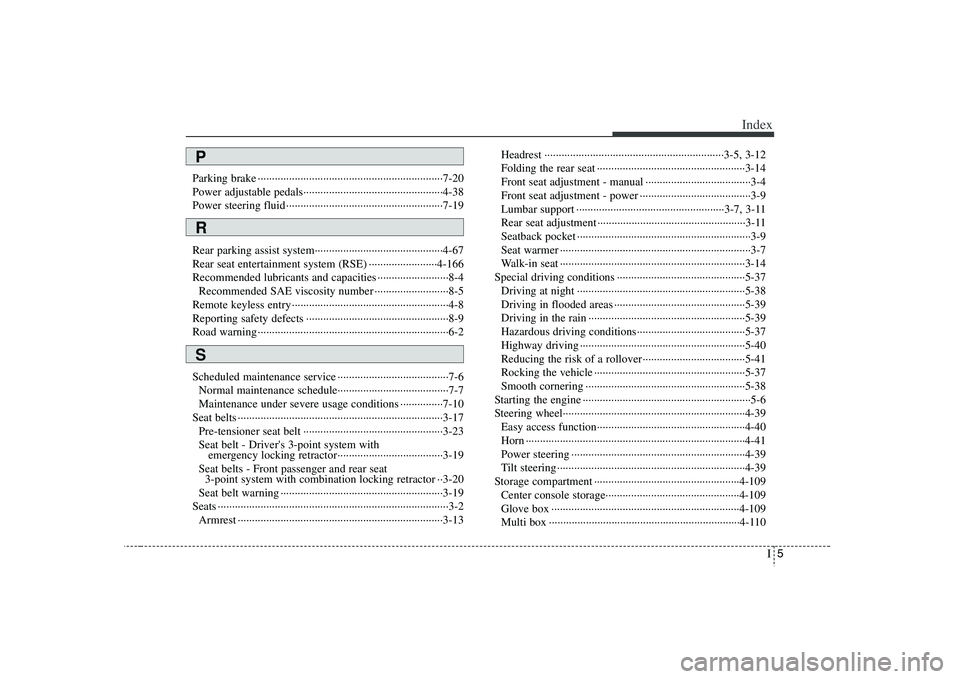

Index
Parking brake ·································································7-20
Power adjustable pedals·················································4-38
Power steering fluid ·······················································7-19
Rear parking assist system·············································4-67
Rear seat entertainment system (RSE) ························4-166
Recommended lubricants and capacities ·························8-4
Recommended SAE viscosity number ··························8-5
Remote keyless entry ·······················································4-8
Reporting safety defects ··················································8-9
Road warning ···································································6-2
Scheduled maintenance service ·······································7-6
Normal maintenance schedule·······································7-7
Maintenance under severe usage conditions ···············7-10
Seat belts ········································································3-17
Pre-tensioner seat belt ·················································3-23
Seat belt - Driver's 3-point system with
emergency locking retractor·····································3-19
Seat belts - Front passenger and rear seat
3-point system with combination locking retractor ··3-20
Seat belt warning ·························································3-19
Seats ·················································································3-2
Armrest ········································································3-13Headrest ·······························································3-5, 3-12
Folding the rear seat ····················································3-14
Front seat adjustment - manual ·····································3-4
Front seat adjustment - power ·······································3-9
Lumbar support ····················································3-7, 3-11
Rear seat adjustment ····················································3-11
Seatback pocket ·····························································3-9
Seat warmer ···································································3-7
Walk-in seat ·································································3-14
Special driving conditions ·············································5-37
Driving at night ···························································5-38
Driving in flooded areas ··············································5-39
Driving in the rain ·······················································5-39
Hazardous driving conditions······································5-37
Highway driving ··························································5-40
Reducing the risk of a rollover····································5-41
Rocking the vehicle ·····················································5-37
Smooth cornering ························································5-38
Starting the engine ···························································5-6
Steering wheel································································4-39
Easy access function····················································4-40
Horn ·············································································4-41
Power steering ·····························································4-39
Tilt steering ··································································4-39
Storage compartment ···················································4-109
Center console storage···············································4-109
Glove box ··································································4-109
Multi box ···································································4-110PRS
