HYUNDAI VERACRUZ 2010 Owners Manual

Specifications, Consumer information, Reporting safety defects
2 8

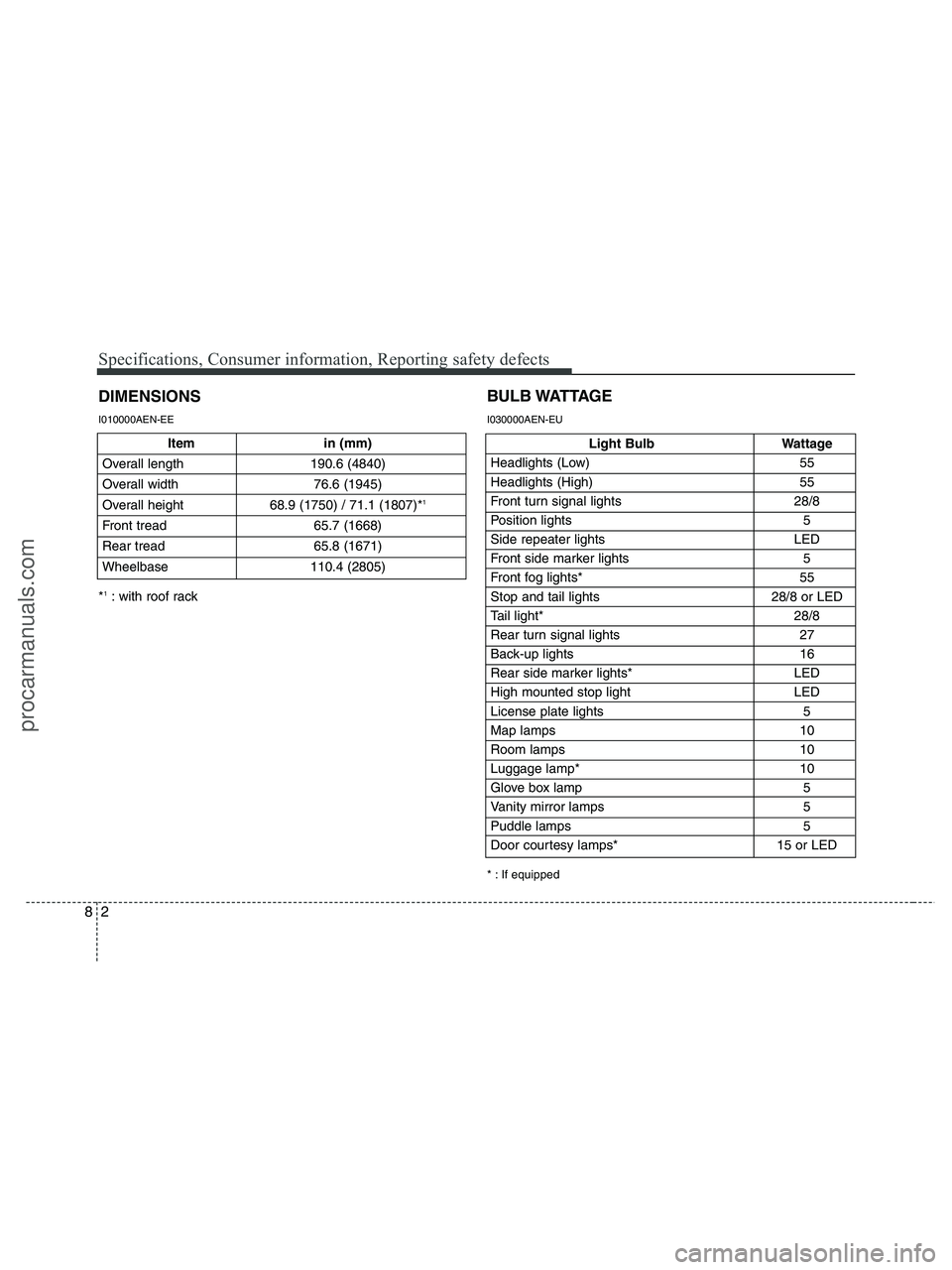

Item in (mm)
Overall length 190.6 (4840)
Overall width 76.6 (1945)
Overall height 68.9 (1750) / 71.1 (1807)*
1
Front tread 65.7 (1668)
Rear tread 65.8 (1671)
Wheelbase 110.4 (2805)
DIMENSIONS
Light Bulb Wattage
Headlights (Low) 55
Headlights (High) 55
Front turn signal lights 28/8
Position lights 5
Side repeater lights LED
Front side marker lights 5
Front fog lights* 55
Stop and tail lights 28/8 or LED
Tail light* 28/8
Rear turn signal lights 27
Back-up lights 16
Rear side marker lights* LED
High mounted stop light LED
License plate lights 5
Map lamps 10
Room lamps 10
Luggage lamp* 10
Glove box lamp 5
Vanity mirror lamps 5
Puddle lamps 5
Door courtesy lamps* 15 or LED
BULB WATTAGE
* : If equipped
*1: with roof rack
I010000AEN-EE I030000AEN-EU
procarmanuals.com

83
Specifications, Consumer information, Reporting safety defects

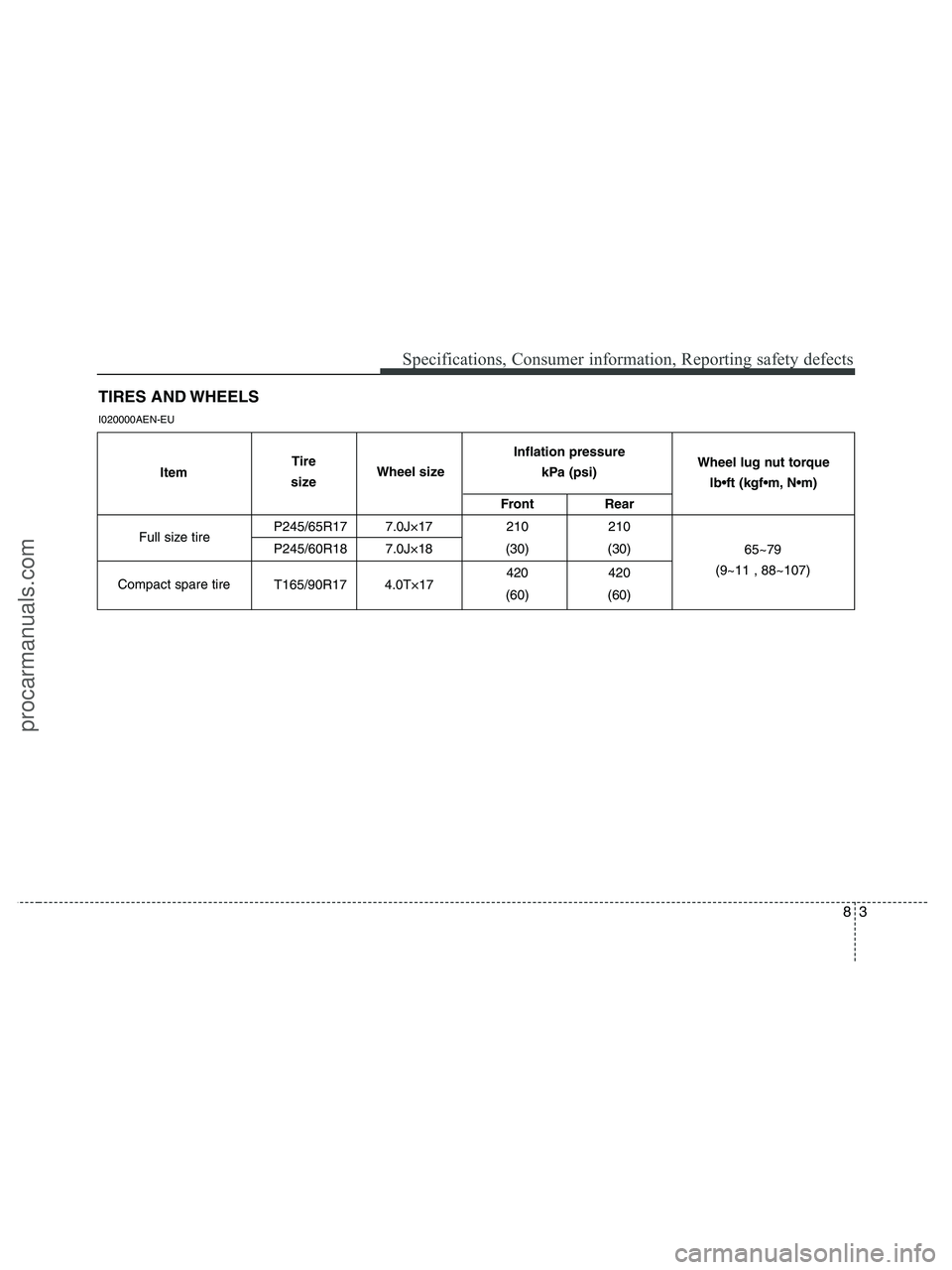

TIRES AND WHEELS
I020000AEN-EU
Front Rear
P245/65R17 7.0J×17 210 210
P245/60R18 7.0J×18 (30) (30)
420 420
T165/90R17 4.0T×17
(60) (60)
Full size tire
Compact spare tireWheel lug nut torque

65~79
(9~11 , 88~107) ItemTire
sizeWheel sizeInflation pressure
kPa (psi)
procarmanuals.com

Specifications, Consumer information, Reporting safety defects
4 8

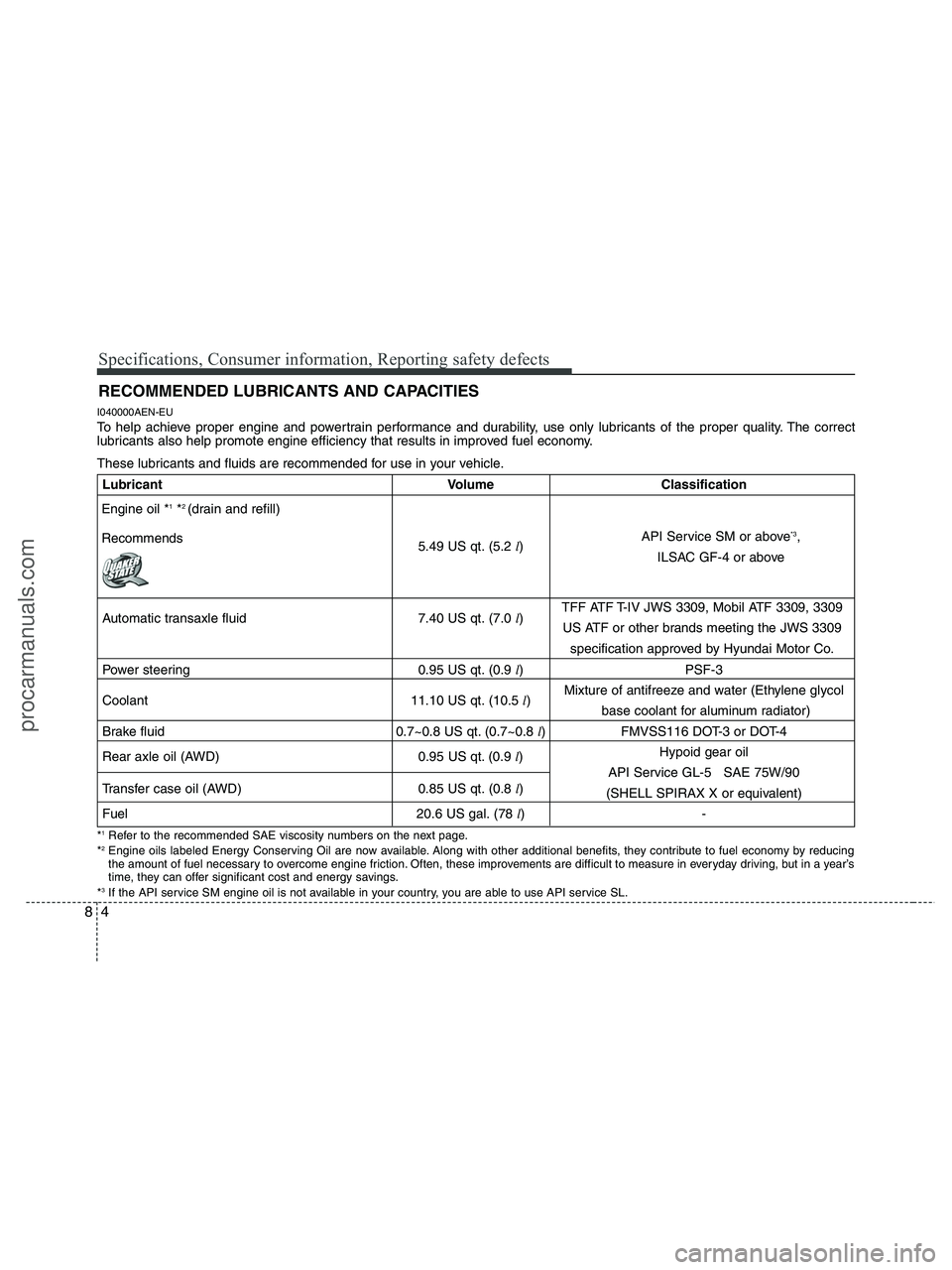

RECOMMENDED LUBRICANTS AND CAPACITIES
I040000AEN-EU
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*
3If the API service SM engine oil is not available in your country, you are able to use API service SL.
Lubricant Volume Classification
5.49 US qt. (5.2 l)
Automatic transaxle fluid 7.40 US qt. (7.0 l)
Power steering 0.95 US qt. (0.9 l) PSF-3
Mixture of antifreeze and water (Ethylene glycol
Coolant 11.10 US qt. (10.5 l)
base coolant for aluminum radiator)
Brake fluid 0.7~0.8 US qt. (0.7~0.8 l) FMVSS116 DOT-3 or DOT-4
Rear axle oil (AWD) 0.95 US qt. (0.9 l)Hypoid gear oil
API Service GL-5 SAE 75W/90
Transfer case oil (AWD) 0.85 US qt. (0.8 l)
(SHELL SPIRAX X or equivalent)
Fuel 20.6 US gal. (78 l)-
Engine oil *1*2 (drain and refill)
RecommendsAPI Service SM or above
*3,
ILSAC GF-4 or above
TFF ATF T-IV JWS 3309, Mobil ATF 3309, 3309
US ATF or other brands meeting the JWS 3309
specification approved by Hyundai Motor Co.
procarmanuals.com

85
Specifications, Consumer information, Reporting safety defects

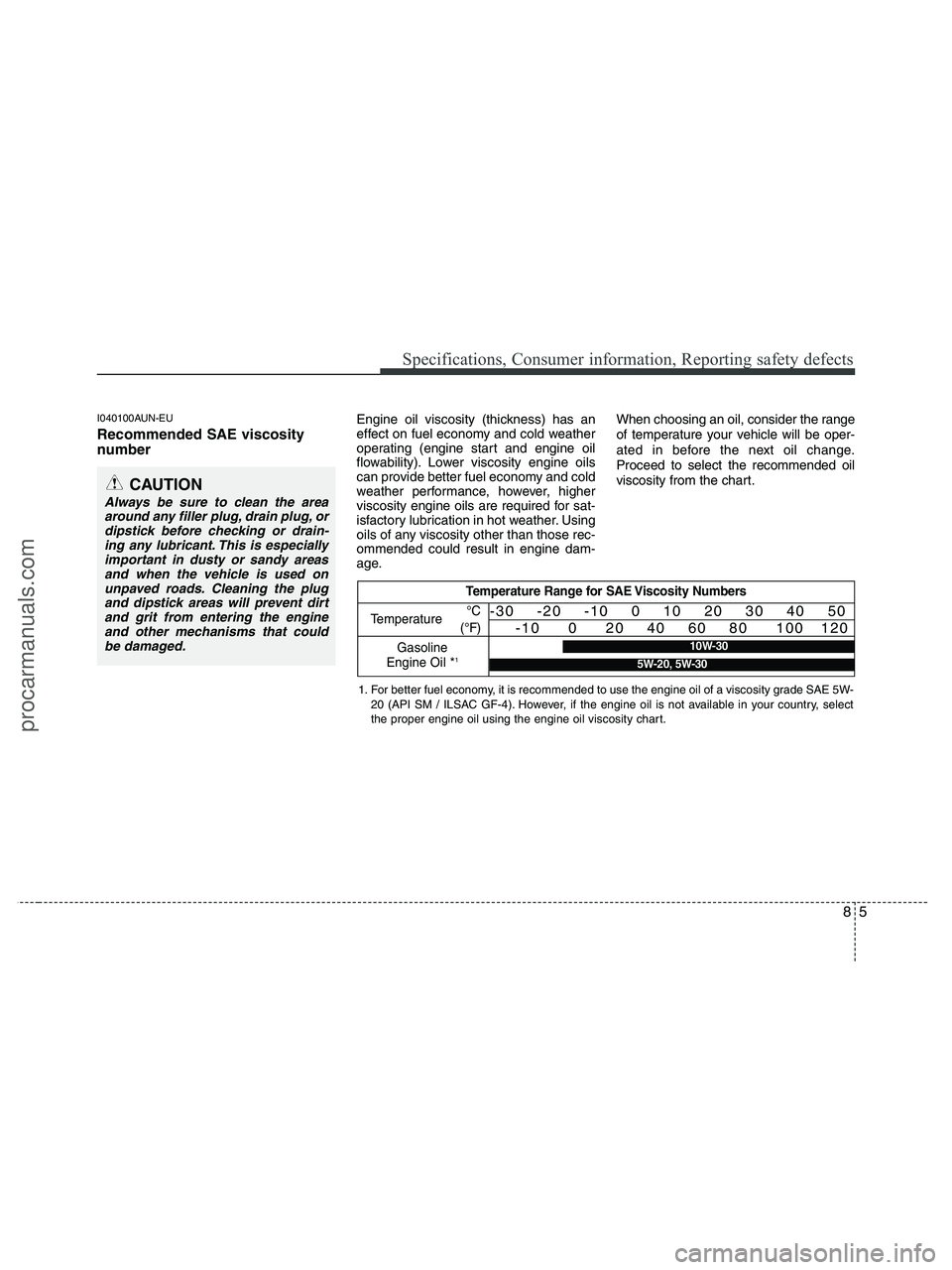

I040100AUN-EU
Recommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather. Using
oils of any viscosity other than those rec-
ommended could result in engine dam-
age.When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or drain-
ing any lubricant. This is especially
important in dusty or sandy areas
and when the vehicle is used on
unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt
and grit from entering the engine
and other mechanisms that could
be damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
1. For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-
20 (API SM / ILSAC GF-4). However, if the engine oil is not available in your country, select
the proper engine oil using the engine oil viscosity chart.
10W-30
5W-20, 5W-30
procarmanuals.com

Specifications, Consumer information, Reporting safety defects
6 8

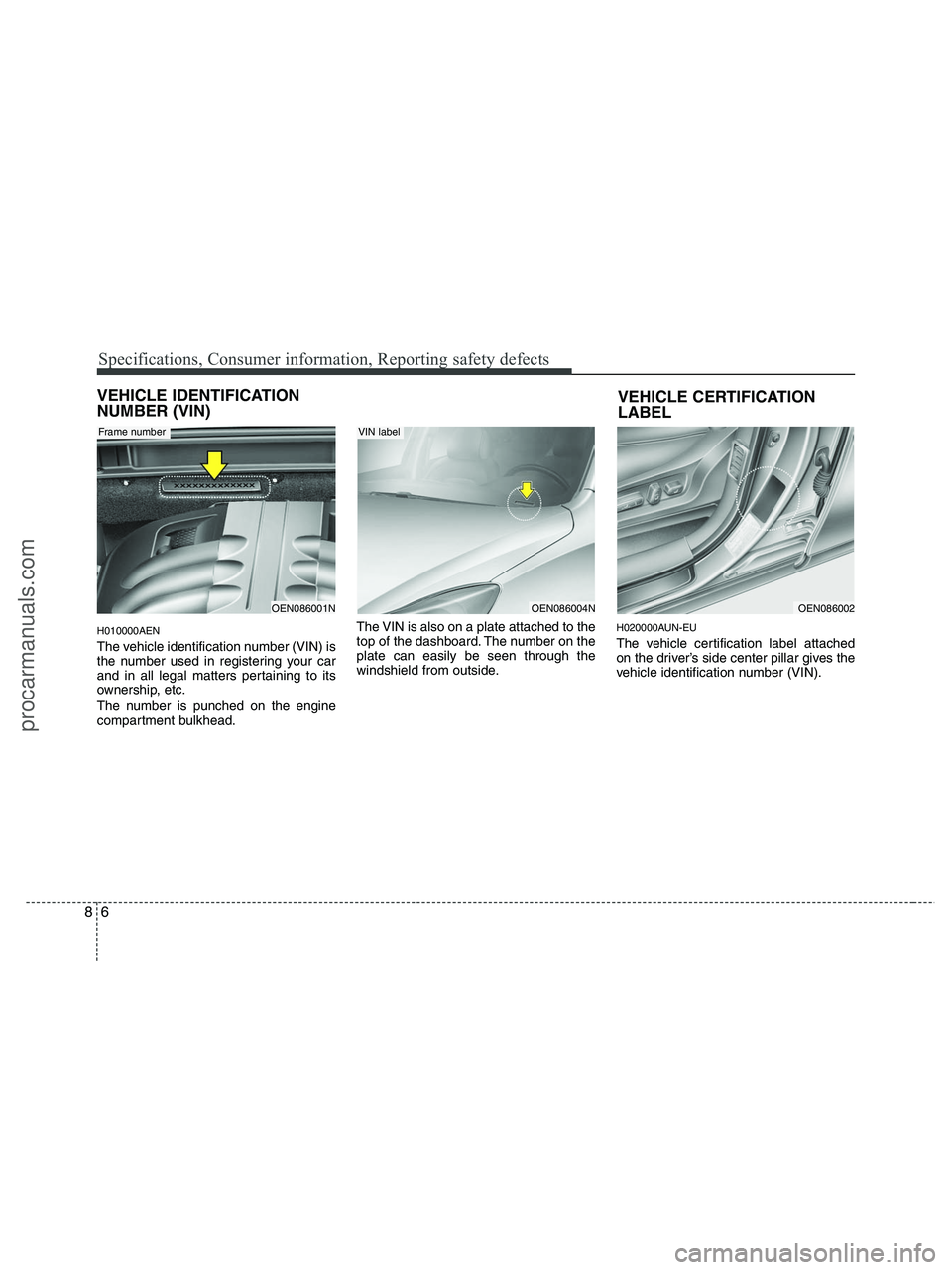

VEHICLE IDENTIFICATION
NUMBER (VIN)
H010000AEN
The vehicle identification number (VIN) is
the number used in registering your car
and in all legal matters pertaining to its
ownership, etc.
The number is punched on the engine
compartment bulkhead.The VIN is also on a plate attached to the
top of the dashboard. The number on the
plate can easily be seen through the
windshield from outside.
H020000AUN-EU
The vehicle certification label attached
on the driver’s side center pillar gives the
vehicle identification number (VIN).
OEN086002
VEHICLE CERTIFICATION
LABEL
OEN086004NOEN086001N
Frame numberVIN label
procarmanuals.com

87
Specifications, Consumer information, Reporting safety defects

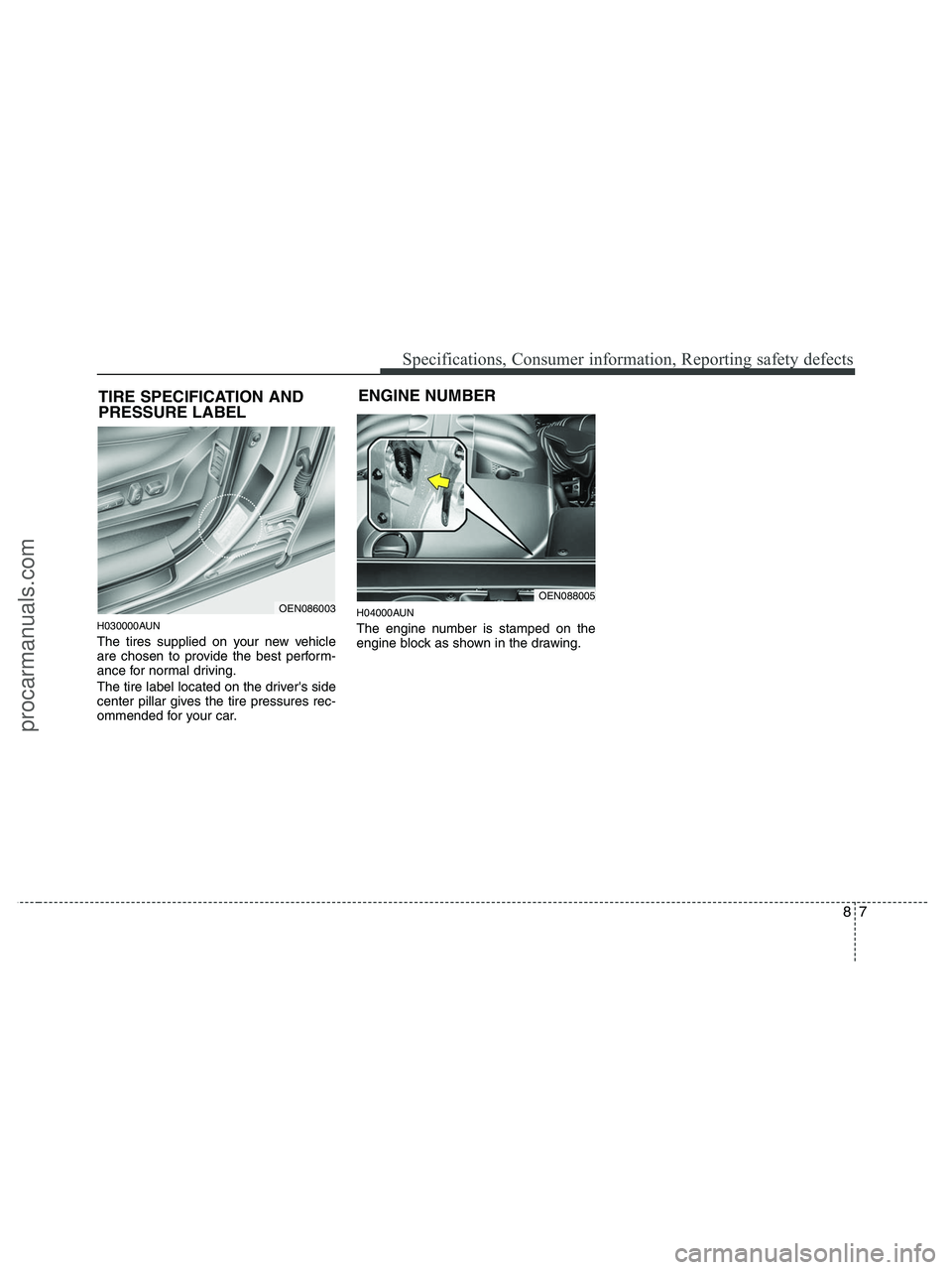

H030000AUN
The tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your car.
H04000AUN
The engine number is stamped on the
engine block as shown in the drawing.
OEN086003OEN088005
ENGINE NUMBER
TIRE SPECIFICATION AND
PRESSURE LABEL
procarmanuals.com

Specifications, Consumer information, Reporting safety defects
8 8

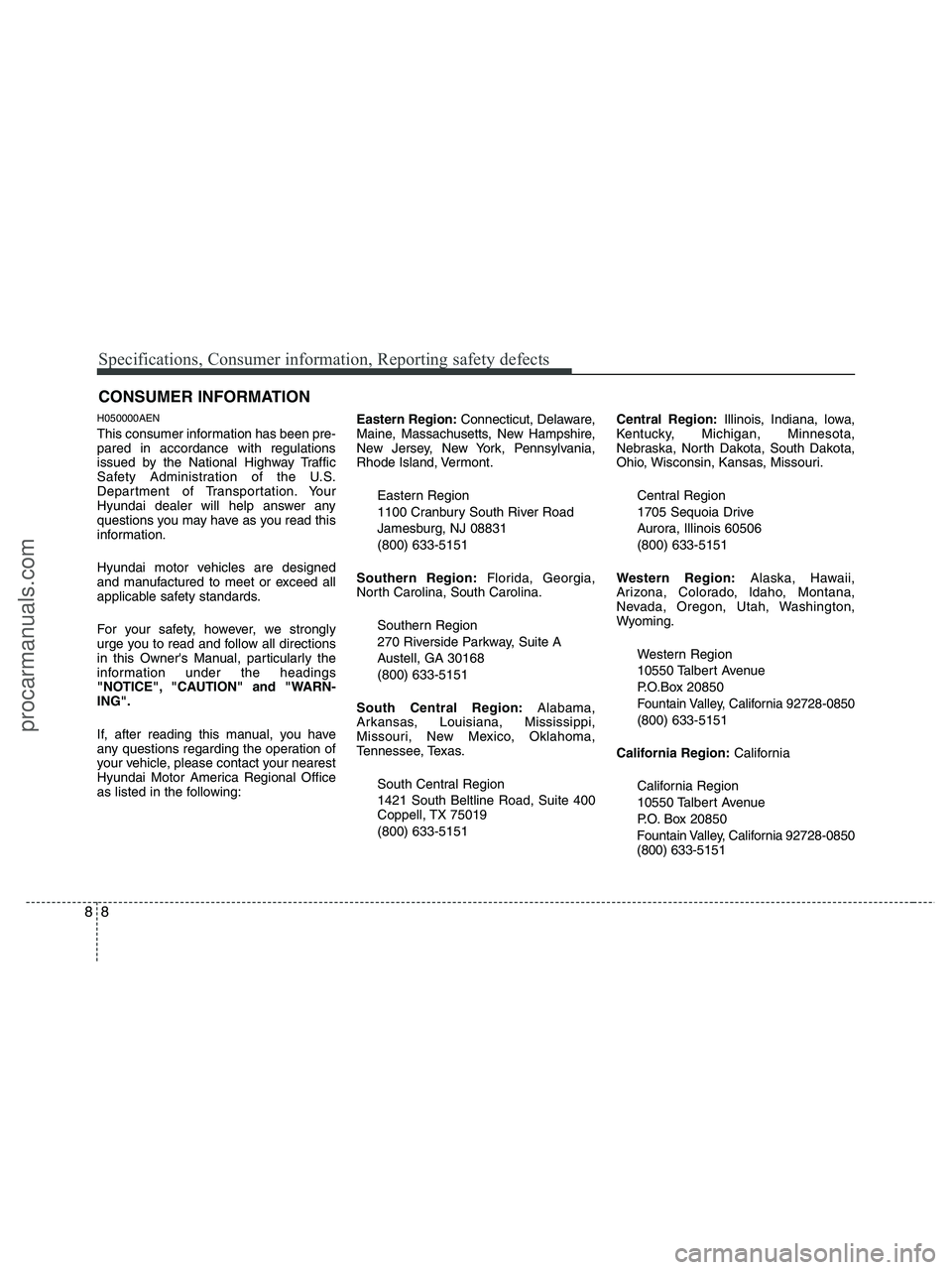

H050000AEN
This consumer information has been pre-
pared in accordance with regulations
issued by the National Highway Traffic
Safety Administration of the U.S.
Department of Transportation. Your
Hyundai dealer will help answer any
questions you may have as you read this
information.
Hyundai motor vehicles are designed
and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly
urge you to read and follow all directions
in this Owner's Manual, particularly the
information under the headings
"NOTICE", "CAUTION" and "WARN-
ING".
If, after reading this manual, you have
any questions regarding the operation of
your vehicle, please contact your nearest
Hyundai Motor America Regional Office
as listed in the following:Eastern Region:Connecticut, Delaware,
Maine, Massachusetts, New Hampshire,
New Jersey, New York, Pennsylvania,
Rhode Island, Vermont.
Eastern Region
1100 Cranbury South River Road
Jamesburg, NJ 08831
(800) 633-5151
Southern Region:Florida, Georgia,
North Carolina, South Carolina.
Southern Region
270 Riverside Parkway, Suite A
Austell, GA 30168
(800) 633-5151
South Central Region:Alabama,
Arkansas, Louisiana, Mississippi,
Missouri, New Mexico, Oklahoma,
Tennessee, Texas.
South Central Region
1421 South Beltline Road, Suite 400
Coppell, TX 75019
(800) 633-5151Central Region:Illinois, Indiana, lowa,
Kentucky, Michigan, Minnesota,
Nebraska, North Dakota, South Dakota,
Ohio, Wisconsin, Kansas, Missouri.
Central Region
1705 Sequoia Drive
Aurora, Illinois 60506
(800) 633-5151
Western Region:Alaska, Hawaii,
Arizona, Colorado, ldaho, Montana,
Nevada, Oregon, Utah, Washington,
Wyoming.
Western Region
10550 Talbert Avenue
P.O.Box 20850
Fountain Valley, California 92728-0850
(800) 633-5151
California Region:California
California Region
10550 Talbert Avenue
P.O. Box 20850
Fountain Valley, California 92728-0850
(800) 633-5151
CONSUMER INFORMATION
procarmanuals.com

89
Specifications, Consumer information, Reporting safety defects

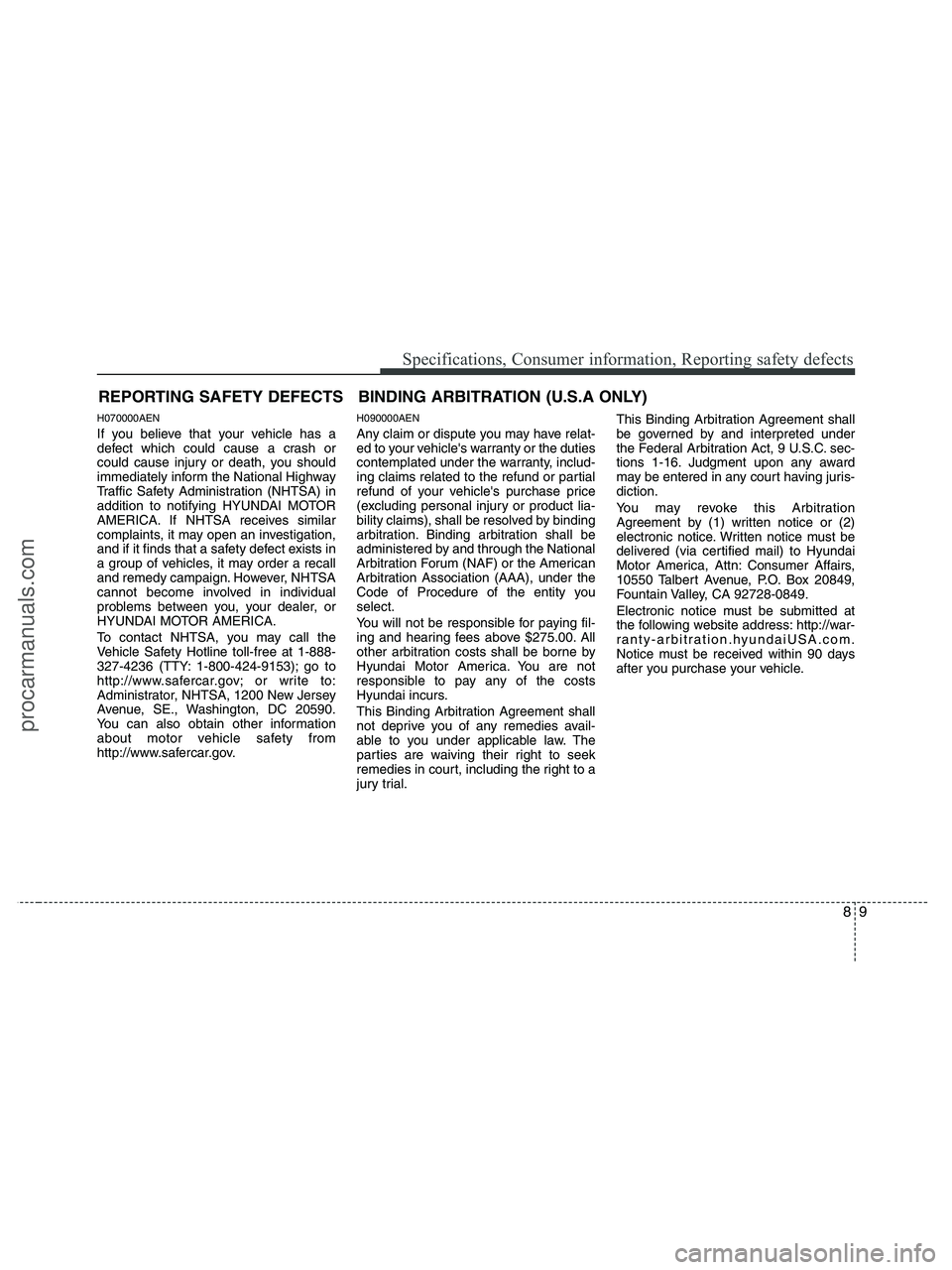

H070000AEN
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National Highway
Traffic Safety Administration (NHTSA) in
addition to notifying HYUNDAI MOTOR
AMERICA. If NHTSA receives similar
complaints, it may open an investigation,
and if it finds that a safety defect exists in
a group of vehicles, it may order a recall
and remedy campaign. However, NHTSA
cannot become involved in individual
problems between you, your dealer, or
HYUNDAI MOTOR AMERICA.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov; or write to:
Administrator, NHTSA, 1200 New Jersey
Avenue, SE., Washington, DC 20590.
You can also obtain other information
about motor vehicle safety from
http://www.safercar.gov.
H090000AEN
Any claim or dispute you may have relat-
ed to your vehicle's warranty or the duties
contemplated under the warranty, includ-
ing claims related to the refund or partial
refund of your vehicle's purchase price
(excluding personal injury or product lia-
bility claims), shall be resolved by binding
arbitration. Binding arbitration shall be
administered by and through the National
Arbitration Forum (NAF) or the American
Arbitration Association (AAA), under the
Code of Procedure of the entity you
select.
You will not be responsible for paying fil-
ing and hearing fees above $275.00. All
other arbitration costs shall be borne by
Hyundai Motor America. You are not
responsible to pay any of the costs
Hyundai incurs.
This Binding Arbitration Agreement shall
not deprive you of any remedies avail-
able to you under applicable law. The
parties are waiving their right to seek
remedies in court, including the right to a
jury trial.This Binding Arbitration Agreement shall
be governed by and interpreted under
the Federal Arbitration Act, 9 U.S.C. sec-
tions 1-16. Judgment upon any award
may be entered in any court having juris-
diction.
You may revoke this Arbitration
Agreement by (1) written notice or (2)
electronic notice. Written notice must be
delivered (via certified mail) to Hyundai
Motor America, Attn: Consumer Affairs,
10550 Talbert Avenue, P.O. Box 20849,
Fountain Valley, CA 92728-0849.
Electronic notice must be submitted at
the following website address: http://war-
ranty-arbitration.hyundaiUSA.com.
Notice must be received within 90 days
after you purchase your vehicle.
REPORTING SAFETY DEFECTSBINDING ARBITRATION (U.S.A ONLY)
procarmanuals.com

IIndex
procarmanuals.com

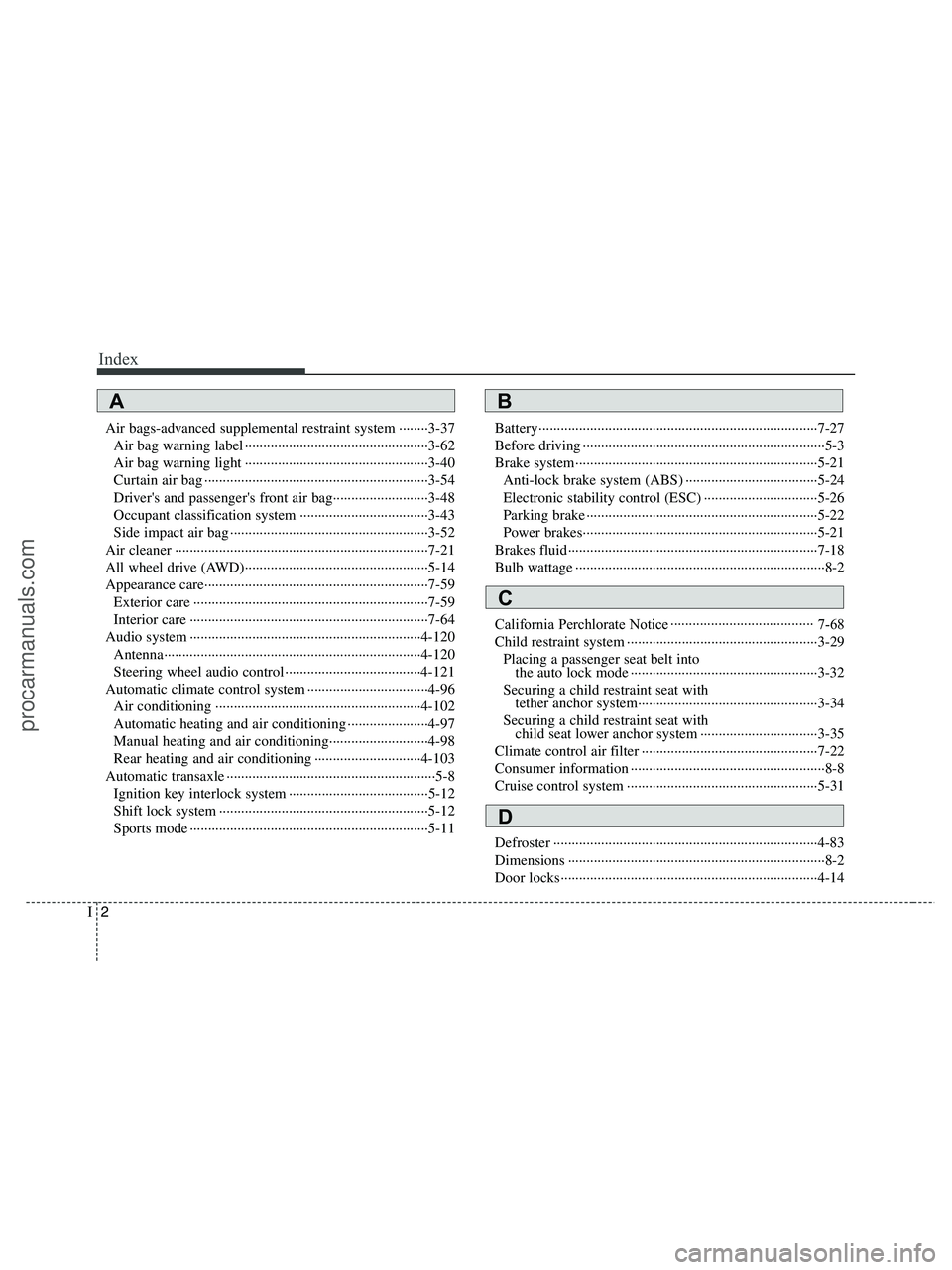

Index
2I
Air bags-advanced supplemental restraint system ········3-37
Air bag warning label ··················································3-62
Air bag warning light ··················································3-40
Curtain air bag ·····························································3-54
Driver's and passenger's front air bag··························3-48
Occupant classification system ···································3-43
Side impact air bag ······················································3-52
Air cleaner ·····································································7-21
All wheel drive (AWD)··················································5-14
Appearance care·····························································7-59
Exterior care ································································7-59
Interior care ·································································7-64
Audio system ·······························································4-120
Antenna······································································4-120
Steering wheel audio control ·····································4-121
Automatic climate control system ·································4-96
Air conditioning ························································4-102
Automatic heating and air conditioning ······················4-97
Manual heating and air conditioning···························4-98
Rear heating and air conditioning ·····························4-103
Automatic transaxle ·························································5-8
Ignition key interlock system ······································5-12
Shift lock system ·························································5-12
Sports mode ·································································5-11Battery············································································7-27
Before driving ··································································5-3
Brake system··································································5-21
Anti-lock brake system (ABS) ····································5-24
Electronic stability control (ESC) ·······························5-26
Parking brake ·······························································5-22
Power brakes································································5-21
Brakes fluid····································································7-18
Bulb wattage ····································································8-2
California Perchlorate Notice ······································· 7-68
Child restraint system ····················································3-29
Placing a passenger seat belt into
the auto lock mode ···················································3-32
Securing a child restraint seat with
tether anchor system·················································3-34
Securing a child restraint seat with
child seat lower anchor system ································3-35
Climate control air filter ················································7-22
Consumer information ·····················································8-8
Cruise control system ····················································5-31
Defroster ········································································4-83
Dimensions ······································································8-2
Door locks······································································4-14
AB
C
D
procarmanuals.com
