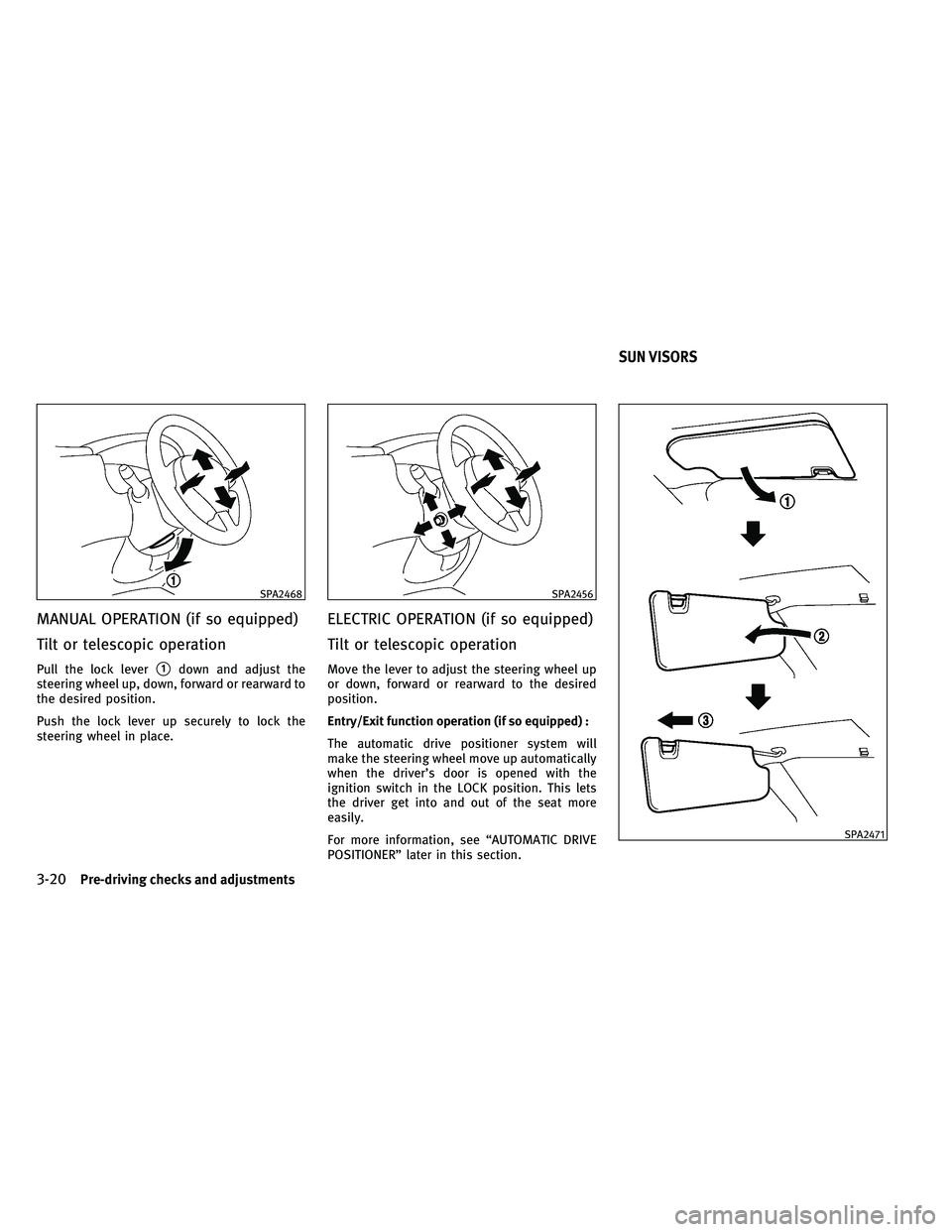

MANUAL OPERATION (if so equipped)
Tilt or telescopic operation
Pull the lock lever1down and adjust the
steering wheel up, down, forward or rearward to
the desired position.
Push the lock lever up securely to lock the
steering wheel in place.
ELECTRIC OPERATION (if so equipped)
Tilt or telescopic operation
Move the lever to adjust the steering wheel up
or down, forward or rearward to the desired
position.
Entry/Exit function operation (if so equipped) :
The automatic drive positioner system will
make the steering wheel move up automatically
when the driver’s door is opened with the
ignition switch in the LOCK position. This lets
the driver get into and out of the seat more
easily.
For more information, see “AUTOMATIC DRIVE
POSITIONER” later in this section.
SPA2468SPA2456
SPA2471
SUN VISORS
3-20Pre-driving checks and adjustments

1. To block glare from the front, swing downthe main sun visor
1.
2. To block glare from the side, remove the main sun visor from the center mount and
swing the visor to the side
2.
3. Slide the sun visor
3in or out as needed.
INSIDE MIRROR
Adjust the height and the angle of the inside
mirror to the desired position.
Manual anti-glare type
The night position1will reduce glare from the
headlights of vehicles behind you at night.
Use the day position
2when driving in day-
light hours.
WARNING
Use the night position only when necessary,
because it reduces rearview clarity.
SPA2447SPA2143
MIRRORS
Pre-driving checks and adjustments3-21

Automatic anti-glare type
The inside mirror is designed so that it auto-
matically changes reflection according to the
intensity of the headlights of the following
vehicle.
The anti-glare system will be automatically
turned on when the ignition switch is pushed to
the ON position.
When the anti-glare system is turned on, the
indicator light
Awill illuminate and excessive
glare from the headlights of the vehicle behind
you will be reduced.
Type A: Push the
switchBto make the
inside rearview mirror operate normally and the
indicator light will turn off. Push the
switch again to turn the system on.
Type B: Push the “” switch
Cto make the
inside rearview mirror operate normally. The
indicator light will turn off. Push the “I” switch
Dto turn the system on.
Do not allow any object to cover the sensors
E
or apply glass cleaner on them. Doing so will
reduce the sensitivity of the sensor, resulting in
improper operation. For the compass (if so equipped) operation, see
“COMPASS” in the “2. Instruments and con-
trols” section.
For the HomeLink
Universal Transceiver opera-
tion, see “HomeLink UNIVERSAL TRANS-
CEIVER” in the “2. Instruments and controls”
section.
Type A
SPA2422A
Type B
SPA2450
3-22Pre-driving checks and adjustments

OUTSIDE MIRRORS
WARNING
Objects viewed in the outside mirror on the
passenger side are closer than they appear. Be
careful when moving to the right. Using only
this mirror could cause an accident. Use the
inside mirror or glance over your shoulder to
properly judge distances to other objects.
Adjusting outside mirrors
The outside mirror control switch is located on
the armrest.
The outside mirror will operate only when the
ignition switch is in the ACC or ON position.
Turn the switch right or left to select the right or
left side mirror
1, then adjust using the con-
trol switch
2.
Defrosting outside mirrors
The outside mirrors will be heated when the
rear window defroster switch is operated.
Foldable outside mirrors
Fold the outside mirror by pushing it toward the
rear of the vehicle.
Reverse tilt-down feature (if so
equipped)
When backing up the vehicle, the right or left
outside mirror will turn downward automatically
to provide better rear visibility.
1. Push the ignition switch to the ON posi- tion.
2. Move the selector lever to the R (Reverse) position.
3. Choose the right or left outside mirror by operating the outside mirror control
switch.
SPA2319SPA1829
Pre-driving checks and adjustments3-23

4. The selected outside mirror surfacemoves downward.
When one of the following conditions has oc-
curred, the selected outside mirror surface will
return to its original position.
●The selector lever is moved to any position
other than R (Reverse).
● The outside mirror control switch is set to
the center position.
● The ignition switch is pushed to the OFF
position.
VANITY MIRROR
To use the front vanity mirror, pull down the sun
visor and pull up the cover. The automatic drive positioner system has three
features:
●
Entry/exit function
● Seat synchronization function
● Memory storage
ENTRY/EXIT FUNCTION
This system is designed so that the driver’s seat
and steering column will automatically move
when the automatic transmission selector lever
is in the P (Park) position. This allows the driver
to get into and out of the driver’s seat more
easily.
The driver’s seat will slide backward and the
steering wheel will move up when the driver’s
door is opened with the ignition switch in the
OFF position.
The driver’s seat and steering wheel will return
to the previous positions when one of the
following is operated:
●When the ignition switch is pushed to the
ACC position after the driver’s door is
closed.
● When the ignition switch is pushed to the
ON position.
● When the Intelligent Key is inserted into the
port after the driver’s door is closed.
SIC3869
AUTOMATIC DRIVE POSITIONER (if so
equipped)
3-24Pre-driving checks and adjustments

The driver’s seat will not return to the previous
positions if the seat or steering adjusting
switch is operated when the seat is at the exit
position.
Cancel or activate entry/exit function
The selector lever must be in the P (Park)
position with the ignition switch in the OFF
position.
The entry/exit function can be activated or
canceled by pressing and holding the SET
switch for more than 10 seconds.
The indicator lights on the memory switches (1
and 2) will blink once when the function is
canceled, and the indicator lights will blink
twice when the function is activated.
The entry/exit function can also be activated or
canceled if the “Lift Steering Wheel on Exit” key
or “Slide Driver Seat Back on Exit” key is turned
to ON or OFF in the “Comfort & Conv.” settings.
(See “VEHICLE INFORMATION AND SETTINGS” in
the “4. Monitor, climate, audio, phone and
voice recognition systems” section.)
Initialize entry/exit function
If the battery cable is disconnected, or if the
fuse opens, the entry/exit function will not work
though this function was set on before. In such
a case, after connecting the battery or replacing
with a new fuse, open and close the driver’s
door more than two times after the ignition
switch is turned from the ON position to the
LOCK position. The entry/exit function will be
activated.
SEAT SYNCHRONIZATION FUNCTION
The seat synchronization function automatically
adjusts the positions of the steering wheel and
outside mirrors when the seat is adjusted using
the power seat switches.
However, the steering wheel and outside mir-
rors will not move if the seat is adjusted over
the maximum thresholds. The system considers
that the steering wheel and outside mirror
adjustments are not necessary because the
seat may not be adjusted for the driving posi-
tion. Note that the function is set to disabled as
the factory default setting.
SPA2469
Pre-driving checks and adjustments3-25

The seat synchronization function operates un-
der the following conditions:
●The ignition switch is in the ON position.
● The selector lever is in the P (Park) position.
If the outside mirrors or the steering wheel
reaches its maximum adjustment, the function
is automatically disabled. Restart the function
by selecting a previously stored seat memory
position using the memory switches (1 or 2). An
Intelligent Key that was previously linked to the
stored seat memory can also be used to restart
the function.
If a seat position was not previously stored in
the seat memory, restart the function by adjust-
ing the steering wheel and outside mirrors
manually for your best driving position and then
drive the vehicle above 4 MPH (7 km/h).
Cancel or activate seat
synchronization function
The selector lever must be in the P (Park)
position with the ignition switch in the ACC
position.
The seat synchronization function can be acti-
vated or canceled by pushing and holding the
SET switch for more than 10 seconds while the
ignition switch is in the ACC position. The indicator lights on the memory switches
(1 and 2) will blink once when the function is
canceled, and the indicator lights will blink
twice when the function is activated.
MEMORY STORAGE
Two positions for the driver’s seat, steering
column and outside mirrors can be stored in the
automatic drive positioner memory. Follow
these procedures to use the memory system.
1. Move the selector lever to the P (Park)
position.
2. Push the ignition switch to the ON posi- tion.
3. Adjust the driver’s seat, steering column and outside mirrors to the desired posi-
tions by manually operating each adjust-
ing switch. For additional information, see
“SEATS” in the “1. Safety — Seats, seat
belts and supplemental restraint system”
section and “TILT/TELESCOPIC COLUMN”
page 3-19 and “OUTSIDE MIRRORS” ear-
lier in this section. 4. Push the SET switch and, within 5 sec-
onds, push the memory switch (1 or 2)
fully for at least 1 second.
The indicator light for the pushed memory
switch will stay on for approximately 5 sec-
onds after pushing the switch.
If memory is stored in the same memory
switch, the previous memory will be deleted.
Linking Intelligent Key to a stored
memory position
The Intelligent Key can be linked to a stored
memory position with the following procedure.
1. Follow the steps for storing a memoryposition.
2. While the indicator light for the memory switch being set is illuminated for 5 sec-
onds, push the UNLOCK
button on
the Intelligent Key. If the indicator light
blinks, the Intelligent Key is linked to that
memory setting.
Push the ignition switch to the OFF position,
and then push the UNLOCKbutton on the
Intelligent Key. The driver’s seat, steering wheel
and outside mirrors will move to the memorized
position or to the exit position when the
entry/exit function is set to active.
3-26Pre-driving checks and adjustments

Confirming memory storage
●Push the ignition switch to the ON position
and push the SET switch. If the main memory
has not been stored, the indicator light will
come on for approximately 0.5 second.
When the memory has stored in position, the
indicator light will stay on for approximately
5 seconds.
● If the battery cable is disconnected, or if the
fuse opens, the memory will be canceled. In
this case, reset the desired position using
the previous procedure.
● If optional Intelligent Keys are added to your
vehicle, the memory storage procedure to
switch 1 or 2 and linking Intelligent Key
procedure to a stored memory position
should be performed again for each Intelli-
gent Key. For additional Intelligent Key infor-
mation, see “KEYS” earlier in this section.
Selecting the memorized position
1. Move the selector lever to the P (Park) position.
2. Use one of the following methods to move the driver’s seat, the outside mirrors and
the steering wheel.
●Push the ignition switch to the ON posi-
tion and push the memory switch (1 or 2)
fully for at least 1 second. ●
Within 45 seconds of opening the driver’s
door, push the memory switch (1 or 2)
fully for at least 1 second.
The driver’s seat, steering column and
outside mirrors will move to the memo-
rized position or to the exit position when
the entry/exit function is set to active with
the indicator light flashing, and then the
light will stay on for approximately 5
seconds.
SYSTEM OPERATION
The automatic drive positioner system will not
work or will stop operating under the following
conditions:
● When the vehicle speed is above 4 MPH
(7 km/h).
● When the adjusting switch for the driver’s
seat and steering column is turned on while
the automatic drive positioner is operating.
● When the memory switch 1 or 2 is not
pushed for at least 1 second.
● When the seat, steering column and outside
mirrors have already been moved to the
memorized position.
● When no position is stored in the memory
switch. ●
When the engine is started while moving the
automatic drive positioner.
● When the AT selector lever is moved from the
P (Park) position to any other position. (How-
ever, it will not be canceled if the switch is
pushed while the seat and steering column
are returning to the previous positions
(entry/exit function).)
● When the driver’s door remains open for
more than 45 seconds and the ignition
switch is not in the ON position.
● The seat synchronization function is auto-
matically disabled if the outside mirrors or
steering wheel reaches its maximum adjust-
ment.
● The seat synchronization function will not
operate if the seat is adjusted over one of
the following maximum thresholds:
– Seat sliding: 3.0 in (76 mm)
– Seatback reclining: 9.1 degrees
– Seat lifter (rear side): 0.8 in (20 mm)
Pre-driving checks and adjustments3-27

4 Monitor, climate, audio, phone and voice
recognition systems
Safety note....................................... 4-2
Center multi-function control panel ................. 4-2
How to use INFINITI controller ................... 4-5
How to use touch screen (models with
navigation system) ............................. 4-5
Menu options (models with navigation
system) ....................................... 4-7
How to select menus on the screen .............. 4-8
Vehicle information and settings .................... 4-8
How to use STATUS button ...................... 4-8
How to use brightness control and display
ON/OFF button ................................. 4-8
How to use INFO button ........................ 4-8
How to use SETTING button ....................4-12
Rearview monitor ................................. 4-22
How to read displayed lines ....................4-22
How to park with predicted course lines .........4-23
Difference between predicted and actual
distances ..................................... 4-24
How to adjust screen .......................... 4-26
Operating tips ................................ 4-27
Around view monitor (if so equipped) ..............4-27
How to switch the display ......................4-29
How to see each view ......................... 4-30Difference between predicted and actual
distances
..................................... 4-34
Camera aiding corner sonar function ............4-36
How to adjust the screen view ..................4-37
Around view monitor settings ..................4-37
Operating tips ................................ 4-38
Ventilators ....................................... 4-38
Automatic climate control ......................... 4-39
Automatic climate control (Type A) ..............4-40
Automatic climate control (Type B) ..............4-43
Operating tips ................................ 4-46
In-cabin microfilter ............................ 4-47
Servicing climate control ....................... 4-47
Audio system .................................... 4-48
Audio operation precautions ...................4-48
FM-AM-SAT radio with Compact Disc (CD)
player ........................................ 4-62
DVD (DIGITAL VERSATILE DISC) player
operation
(models with navigation system) ......4-66
Usb memory operation ......................... 4-70
Bluetooth streaming audio (models with
navigation system) ............................ 4-74
iPod player operation ......................... 4-79
Music box (if so equipped) .................... 4-81
Cd/dvd/usb memory care and cleaning .........4-88

Steering-wheel-mounted controls for audio......4-90
Antenna ...................................... 4-91
Car phone or CB radio ............................ 4-92
Bluetooth Hands-Free Phone System (models
with navigation system) ........................... 4-93
Regulatory information ......................... 4-94
Voice commands .............................. 4-94
Control buttons ............................... 4-95
Connecting procedure ......................... 4-95
Phone selection ............................... 4-96
Vehicle phonebook ............................ 4-96
Making a call ................................. 4-98
Receiving a call ............................... 4-99
During a call ................................. 4-100
Phone setting ................................ 4-101
Troubleshooting guide ........................ 4-102
Bluetooth Hands-Free Phone System (models
without navigation system) (if so equipped) .......4-103 Regulatory information
........................ 4-104
Control buttons .............................. 4-104
Voice recognition system .....................4-104
Pairing procedure ............................ 4-109
Phonebook registration ....................... 4-110
Making a call ................................ 4-110
Receiving a call ............................... 4-111
During a call .................................. 4-111
Phone settings ................................ 4-112
Voice adaptation mode ........................ 4-115
INFINITI Voice Recognition system (models with
navigation system) .............................. 4-116
INFINITI Voice Recognition standard mode ......4-116
Using the system .............................. 4-119
INFINITI Voice Recognition alternate
command mode .............................. 4-129
Using the system ............................. 4-135
Troubleshooting guide ........................ 4-140
