If the power supply is disconnected, the clock
will not indicate the correct time. Readjust the
time.
ADJUSTING THE TIME
1. To set the clock forward, push the button
1.
2. To set the clock backward, push the but- ton
2.
3. To move forward or backward faster, push and hold the button more than 5 seconds.
For details about display clock adjustment (if so
equipped), see “HOW TO USE SETTING BUTTON”
in the “4. Monitor, climate, audio, phone and
voice recognition systems” section. The power outlet is used for powering electrical
accessories such as cellular telephones.
CAUTION
●
The outlet and plug may be hot during or
immediately after use.
● Do not use with accessories that exceed a 12
volt, 120W (10A) power draw. Do not use
double adapters or more than one electrical
accessory.
● Use power outlet with the engine running to
avoid discharging the vehicle battery.
● Avoid using power outlet when the air condi-
tioner, headlights or rear window defroster
is on.
● This power outlet is not designed for use
with a cigarette lighter unit.
● Push the plug in as far as it will go. If good
contact is not made, the plug may overheat
or the internal temperature fuse may blow.
● Before inserting or disconnecting a plug, be
sure the electrical accessory being used is
turned OFF.
● When not in use, be sure to close the cap. Do
not allow water or any liquid to contact the
outlet.
SIC3325
Center console
SIC3867
Front
SIC3631
CLOCK POWER OUTLET
2-44Instruments and controls

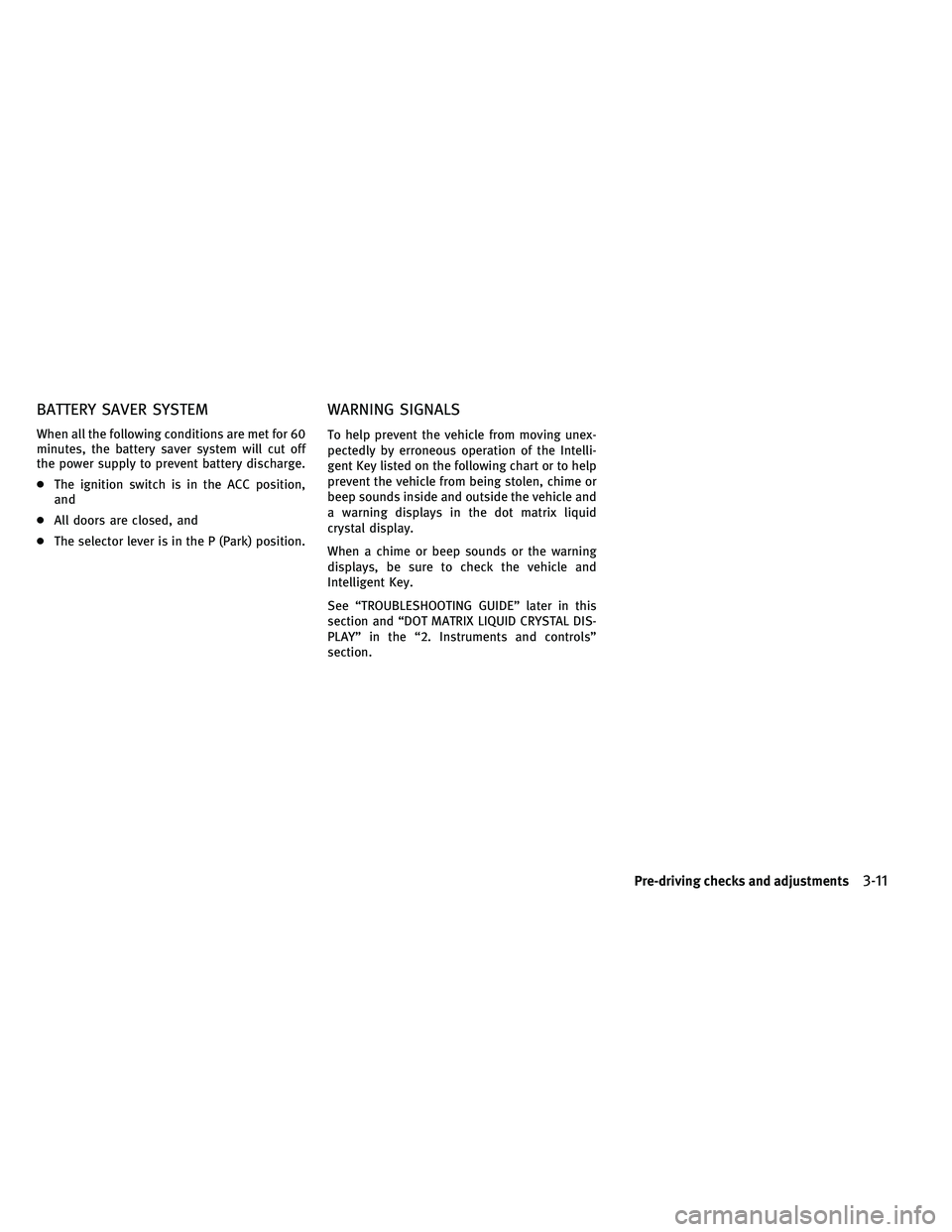

BATTERY SAVER SYSTEM
When all the following conditions are met for 60
minutes, the battery saver system will cut off
the power supply to prevent battery discharge.
●The ignition switch is in the ACC position,
and
● All doors are closed, and
● The selector lever is in the P (Park) position.
WARNING SIGNALS
To help prevent the vehicle from moving unex-
pectedly by erroneous operation of the Intelli-
gent Key listed on the following chart or to help
prevent the vehicle from being stolen, chime or
beep sounds inside and outside the vehicle and
a warning displays in the dot matrix liquid
crystal display.
When a chime or beep sounds or the warning
displays, be sure to check the vehicle and
Intelligent Key.
See “TROUBLESHOOTING GUIDE” later in this
section and “DOT MATRIX LIQUID CRYSTAL DIS-
PLAY” in the “2. Instruments and controls”
section.
Pre-driving checks and adjustments3-11

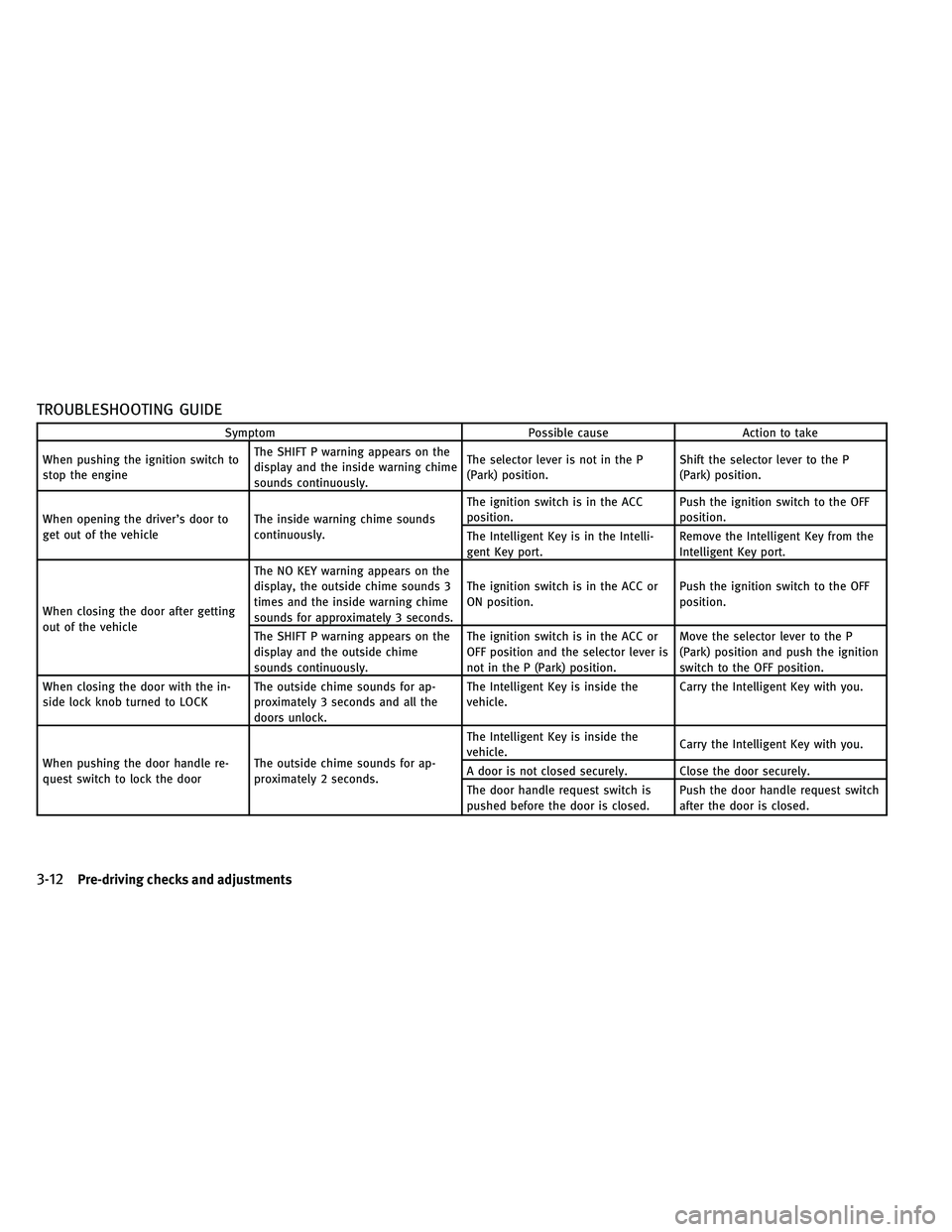

TROUBLESHOOTING GUIDE
SymptomPossible causeAction to take
When pushing the ignition switch to
stop the engine The SHIFT P warning appears on the
display and the inside warning chime
sounds continuously. The selector lever is not in the P
(Park) position.
Shift the selector lever to the P
(Park) position.
When opening the driver’s door to
get out of the vehicle The inside warning chime sounds
continuously. The ignition switch is in the ACC
position.
Push the ignition switch to the OFF
position.
The Intelligent Key is in the Intelli-
gent Key port. Remove the Intelligent Key from the
Intelligent Key port.
When closing the door after getting
out of the vehicle The NO KEY warning appears on the
display, the outside chime sounds 3
times and the inside warning chime
sounds for approximately 3 seconds.
The ignition switch is in the ACC or
ON position.
Push the ignition switch to the OFF
position.
The SHIFT P warning appears on the
display and the outside chime
sounds continuously. The ignition switch is in the ACC or
OFF position and the selector lever is
not in the P (Park) position.Move the selector lever to the P
(Park) position and push the ignition
switch to the OFF position.
When closing the door with the in-
side lock knob turned to LOCK The outside chime sounds for ap-
proximately 3 seconds and all the
doors unlock. The Intelligent Key is inside the
vehicle.
Carry the Intelligent Key with you.
When pushing the door handle re-
quest switch to lock the door The outside chime sounds for ap-
proximately 2 seconds. The Intelligent Key is inside the
vehicle.
Carry the Intelligent Key with you.
A door is not closed securely. Close the door securely.
The door handle request switch is
pushed before the door is closed. Push the door handle request switch
after the door is closed.
3-12Pre-driving checks and adjustments

Turn the fuel-filler cap counterclockwise to re-
move. To tighten, turn the cap clockwise until a
single click is heard.
Put the fuel-filler cap on the cap holder
A
while refueling.
LOOSE FUEL CAP warning
The LOOSE FUEL CAP warning appears on the
vehicle information display when the fuel-filler
cap is not tightened correctly after the vehicle
has been refueled. To turn off the warning,
perform the following steps:
1. Remove and install the fuel-filler cap assoon as possible. (See “FUEL-FILLER
DOOR” earlier in this section.)
2. Tighten the fuel-filler cap until it clicks.
3. Push the
switchAfor about 1
second to turn off the LOOSE FUEL CAP
tightening the fuel-filler cap.
WARNING
● Do not adjust the steering wheel while driv-
ing. You could lose control of your vehicle
and cause an accident.
● Do not adjust the steering wheel any closer
to you than is necessary for proper steering
operation and comfort. The driver’s air bag
inflates with great force. If you are unre-
strained, leaning forward, sitting sideways
or out of position in any way, you are at
greater risk of injury or death in a crash. You
may also receive serious or fatal injuries
from the air bag if you are up against it when
it inflates. Always sit back against the seat-
back and as far away as practical from the
steering wheel. Always use the seat belts.
JVP0006XSPA2839
TILT/TELESCOPIC COLUMN
Pre-driving checks and adjustments3-19

4 Monitor, climate, audio, phone and voice
recognition systems
Safety note....................................... 4-2
Center multi-function control panel ................. 4-2
How to use INFINITI controller ................... 4-5
How to use touch screen (models with
navigation system) ............................. 4-5
Menu options (models with navigation
system) ....................................... 4-7
How to select menus on the screen .............. 4-8
Vehicle information and settings .................... 4-8
How to use STATUS button ...................... 4-8
How to use brightness control and display
ON/OFF button ................................. 4-8
How to use INFO button ........................ 4-8
How to use SETTING button ....................4-12
Rearview monitor ................................. 4-22
How to read displayed lines ....................4-22
How to park with predicted course lines .........4-23
Difference between predicted and actual
distances ..................................... 4-24
How to adjust screen .......................... 4-26
Operating tips ................................ 4-27
Around view monitor (if so equipped) ..............4-27
How to switch the display ......................4-29
How to see each view ......................... 4-30Difference between predicted and actual
distances
..................................... 4-34
Camera aiding corner sonar function ............4-36
How to adjust the screen view ..................4-37
Around view monitor settings ..................4-37
Operating tips ................................ 4-38
Ventilators ....................................... 4-38
Automatic climate control ......................... 4-39
Automatic climate control (Type A) ..............4-40
Automatic climate control (Type B) ..............4-43
Operating tips ................................ 4-46
In-cabin microfilter ............................ 4-47
Servicing climate control ....................... 4-47
Audio system .................................... 4-48
Audio operation precautions ...................4-48
FM-AM-SAT radio with Compact Disc (CD)
player ........................................ 4-62
DVD (DIGITAL VERSATILE DISC) player
operation
(models with navigation system) ......4-66
Usb memory operation ......................... 4-70
Bluetooth streaming audio (models with
navigation system) ............................ 4-74
iPod player operation ......................... 4-79
Music box (if so equipped) .................... 4-81
Cd/dvd/usb memory care and cleaning .........4-88

WARNING
●Do not disassemble or modify this system. If
you do, it may result in accidents, fire, or
electric shock.
● Do not use this system if you notice any
abnormality, such as a frozen screen or lack
of sound. Continued use of the system may
result in accident, fire or electric shock.
● In case you notice any foreign object in the
system hardware, spill liquid on it, or notice
smoke or smell coming from it, stop using
the system immediately and contact your
nearest INFINITI retailer. Ignoring such con-
ditions may lead to accidents, fire, or electric
shock.
Do not attempt to operate the system in extreme
temperature conditions [below 4°F (20°C)
and above 158°F (70°C)]. Operating this system
under these conditions may result in system
malfunctions.
1. “CAMERA ” Around View Monitor display
button (P. 4-103)
2, 6, 7, 10, 11. For navigation system control buttons (Re-
fer to the separate Navigation System
Owner’s Manual.)
3. INFINITI controller (P. 4-5)
4. “STATUS ” status display button (P. 4-8)
5. “
OFF ” brightness control and dis-
play ON/OFF button (P. 4-8) 8. “AM·FM·SAT
” band selector button
(P. 4-48)
9. “DISC·AUX ” selector button (P. 4-48)
12. “INFO ” vehicle and navigation informa-
tion button (P. 4-8)
13. “SETTING ” button (P. 4-12)
With navigation system
SAA1836
SAFETY NOTE CENTER MULTI-FUNCTION CONTROL PANEL
4-2Monitor, climate, audio, phone and voice recognition systems

1. “AUX” button (P. 4-27)
2. “RADIO AM·FM ” band selector button
(P. 4-48)
3. INFINITI controller (P. 4-5)
4. “
OFF ” brightness control and dis-
play ON/OFF button (P. 4-8)
5. “INFO ” vehicle information button
(P. 4-8)
6. “DISC ” selector button (P. 4-48)
7. “STATUS ” status display button (P. 4-8)
8. “SETTING ” button (P. 4-12)
Without navigation system (Type A)
SAA1524
Monitor, climate, audio, phone and voice recognition systems4-3

1. “DISC·AUX” selector button (P. 4-48)
2. “CAMERA ” Around View Monitor display
(P. 4-27)
3. INFINITI controller (P. 4-5)
4. “
OFF ” brightness control and dis-
play ON/OFF button (P. 4-8)
5. “INFO ” vehicle information button
(P. 4-8)
6. “RADIO AM·FM ” band selector button
(P. 4-48)
7. “STATUS ” status display button (P. 4-8)
8. “SETTING ” button (P. 4-12)
When you use this system, make sure the
engine is running.
If you use the system with the engine not run-
ning (ignition ON or ACC) for a long time, it will
use up all the battery power, and the engine will
not start.
Without navigation system (Type B)
SAA2103With navigation system
SAA1541
Without navigation system
SAA1508
4-4Monitor, climate, audio, phone and voice recognition systems

HOW TO USE INFINITI CONTROLLER
Choose an item on the display using the main
directional buttons
2(or additional directional
buttons
6with navigation system) or center
dial
3, and push the ENTERbutton1for
operation.
If you push the BACKbutton
4before the
setup is completed, the setup will be canceled
and/or the display will return to the previous
screen. This button can also be used to delete
characters that have been input.
After the setup is completed, push the BACK
button
4and return to the previous screen.
For the VOICEbutton
5functions, refer to the
separate Navigation System Owner’s Manual.
HOW TO USE TOUCH SCREEN (models
with navigation system)
CAUTION
● The glass screen on the liquid crystal display
may break if it is hit with a hard or sharp
object. If the glass screen breaks, do not
touch it. Doing so could result in an injury. ●
To clean the display, use a soft, dry cloth. If
additional cleaning is necessary, use a small
amount of neutral detergent with a soft
cloth. Never use a rough cloth, alcohol, ben-
zine, thinner or any kind of solvent or paper
towel with a chemical cleaning agent. They
will scratch or deteriorate the panel.
● Do not splash any liquid such as water or car
fragrance on the display. Contact with liquid
will cause the system to malfunction.
To ensure safe driving, some functions cannot
be operated while driving.
The on-screen functions that are not available
while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then
operate the navigation system.
WARNING
● ALWAYS give your full attention to driving.
● Avoid using vehicle features that could dis-
tract you. If distracted, you could lose con-
trol of your vehicle and cause an accident.
Touch screen operation
With this system, the same operations as those
for the INFINITI controller are possible using the
touch screen operation.
Selecting the item :
Touch an item to select it. To select the “Audio”
settings, touch the “Audio” area
1on the
screen.
Touch the BACK
2button to return to the
previous screen.
SAA2473
Monitor, climate, audio, phone and voice recognition systems4-5

Adjusting an item :
Touch the+
1or2button to adjust the
settings.
Touch the
3or4button to
move to the previous or next item.
Touch the
5or6button to
move to the previous or next page. Inputting characters :
Touch the letter or number
1.
There are some options available when input-
ting characters.
● Uppercase:
Shows uppercase characters.
● Lowercase:
Shows lowercase characters.
● Symbols:
Shows symbols such as the question mark
(?). ●
Space:
Inserts a space.
● Delete:
Deletes the last character that has been
input with one touch. Push and hold the
button to delete all of the characters.
● OK:
Completes character inputs.
Touch screen maintenance
If you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or
detergent. Dampen the cloth first, and then
wipe the screen.SAA2474SAA2475
4-6Monitor, climate, audio, phone and voice recognition systems
